DBX VENUE360 VENU 360 DriveRack 3x6 PA Speaker Sound Processor System+Samson Mic

$1,415.22 $1,147.50 Save 19% Sold out
Shipping calculated at checkout.
Product Description
Package Includes:

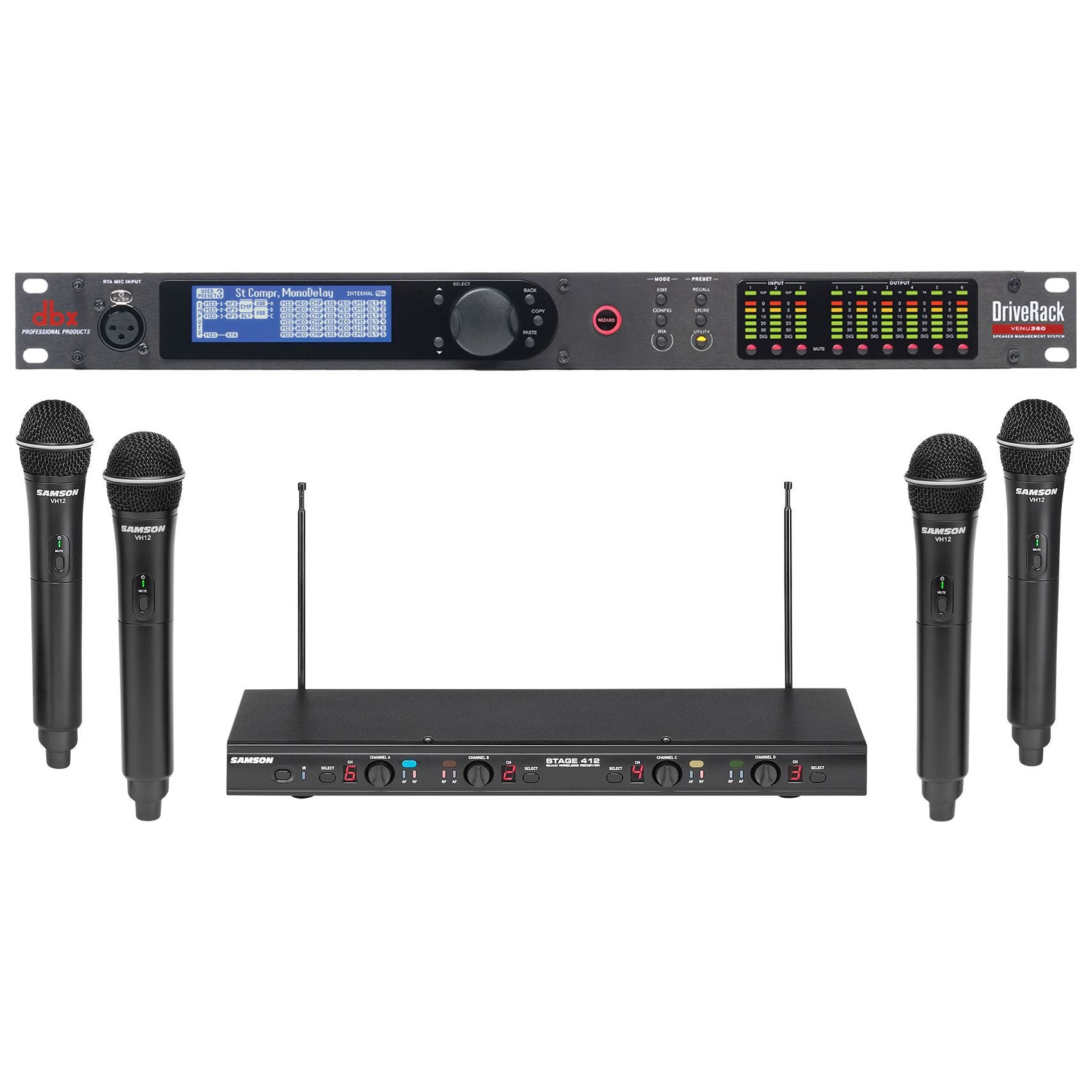

  • (1) DBX VENUE360 VENU 360 DriveRack 3x6 PA Speaker Sound Processor System+APP
  • (1) Samson Stage-412 Quad Handheld VHF Wireless Microphones Frequency Agile Mics

Description of VENU360-V:

All the processing needed to supercharge your sound system. Now with complete control from your mobile device.

dbx took the dominant DriveRack® 260, improved its features, and added more. The result?
The 3 input, 6 output DriveRack VENU360.

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

AutoEQ™
New, improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience.

With a RTA Mic “listening” to your room, the updated DriveRack VENU360 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds using sine sweeps. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.

The AutoEQ is now located in the output processing stage, which means independent sections of a system can be equalized automatically. This allows AutoEQ to be used on the FOH system as well as the stage monitors, zones and tower delays!

Enhanced AFS™ Feedback Elimination
Enhanced AFS™ algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone.

Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack VENU360 listens for and anticipates feedback and automatically removes it before it even has a chance, while never altering your sound.

Updated Wizard Setup Functions
Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.

Wizard functions in the DriveRack VENU360 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. The Wizards help you configure routing, level balancing, AutoEQ, Advanced Feedback Suppression, and provide access to updated speaker tunings – available for most major speaker brands. The addition of a Monitor Wizard makes it easy to configure and optimize stage monitors.

Mobile Control
Connect to the DriveRack VENU360 through your local network with your Android, iOS, Mac, or Windows device to customize the sound of your loudspeaker system so it sounds and performs optimally. The app lets you directly manipulate the Compressor, Graphic EQ, Parametric EQ, Crossover settings, Speaker profiles, and more with its attractive, easy-to-use graphical user interface.

Features:

Input Processing

  • dbx Compression
  • AFS™ (Advanced Feedback Suppression)
  • 31-Band Graphic EQ
  • 12-Band Parametric EQ (with narrow notch capabilities)
  • Subharmonic Synthesis
  • Backline Delay
  • Noise Gate
Output Processing

  • Crossover (supports full range up to mono 6-way systems)
  • 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
  • dbx Compression
  • Automatic Gain Control
  • Subharmonic Synthesis
  • Noise Gate
  • Tower Delays (up to 1000ms per output)
  • 8-Band Parametric EQs (used for speaker tunings)
  • dbx Limiting
  • Driver Alignment Delays
Tested Wireless Routers:

  • Dlink 636L
  • Dlink Cloud router 2000
  • Cisco / linksys: WRT54G2V1
  • Netgear WGR614 v7
  • Netgear WNR 1000



Authorized Samson Dealer!

Description of SWS412HH-E:

The Samson Stage 412 is a frequency-agile, quad-channel wireless microphone system with four handheld dynamic microphones that transmit to a single rugged metal receiver. Each handheld features Samson’s Q6 dynamic mic element, providing crisp, clear sound and reliable VHF wireless performance for presentation, education, house of worship, karaoke and other applications with up to four
performers. The Stage 412’s frequency-agile design offers four channels with six operating frequencies per channel across a 173MHz–198MHz frequency range. In addition, the system’s IR sync function allows users to wirelessly match each transmitter to a receiver’s operating frequency. Each transmitter offers a 200’ operating range for up to 10 hours via two AA batteries (not included).

Features:

Stage 412 Wireless System

  • Quad-channel VHF (173MHz–198MHz) wireless system
  • Six operating frequencies per channel
  • Up to three simultaneous systems (region dependent)
  • IR sync wirelessly matches receiver and transmitter frequency
  • 200' (60m) operating range (line-of-sight)
  • AC adapter included

SR412 Wireless Receiver

  • Rugged metal chassis
  • Dedicated Volume controls for each channel
  • Four 1/4" independent channel outputs
  • Three balanced XLR mixed outputs

VH12 Handheld Transmitters

  • Four Q6 Dynamic Microphone capsules
  • Each offers up to 10 hours of battery life via two AA batteries (not included)

Specifications

Stage 212 Wireless System

  • Operating Frequency: VHF 173MHz–198MHz
  • Number of Frequencies per Channel: 6
  • Operating Range: 200' (60m)
  • Frequency Response: 80Hz–15kHz
  • Tone Key Frequency: 30kHz

SR212 Wireless Receiver

  • Dynamic Range: 100dB
  • Maximum Output: 1.37V
  • Output Connectors: Two 1/4" (6.3 mm) unbalanced, three XLR balanced
  • Audio Output Levels: -12dB
  • Power Supply: 100-240V, 50/60Hz, 0.4A, Output: DC 15V, 800mA
  • Dimensions: 17" x 6.75" x 1.5" (430mm x 170mm x 40mm)
  • Weight: 3.08lb (1.4kg)

VH12 Handheld Transmitters

  • RF Power Output: 10mW
  • Microphone Element: Q6 Dynamic
  • Typical Battery Life: 10 hours
  • Current Consumption: 120 mA typical
  • Dimensions (each): ø2.16" x 10" (ø55mm x 255mm)
  • Weight (each): 0.48lb (0.22kg)
