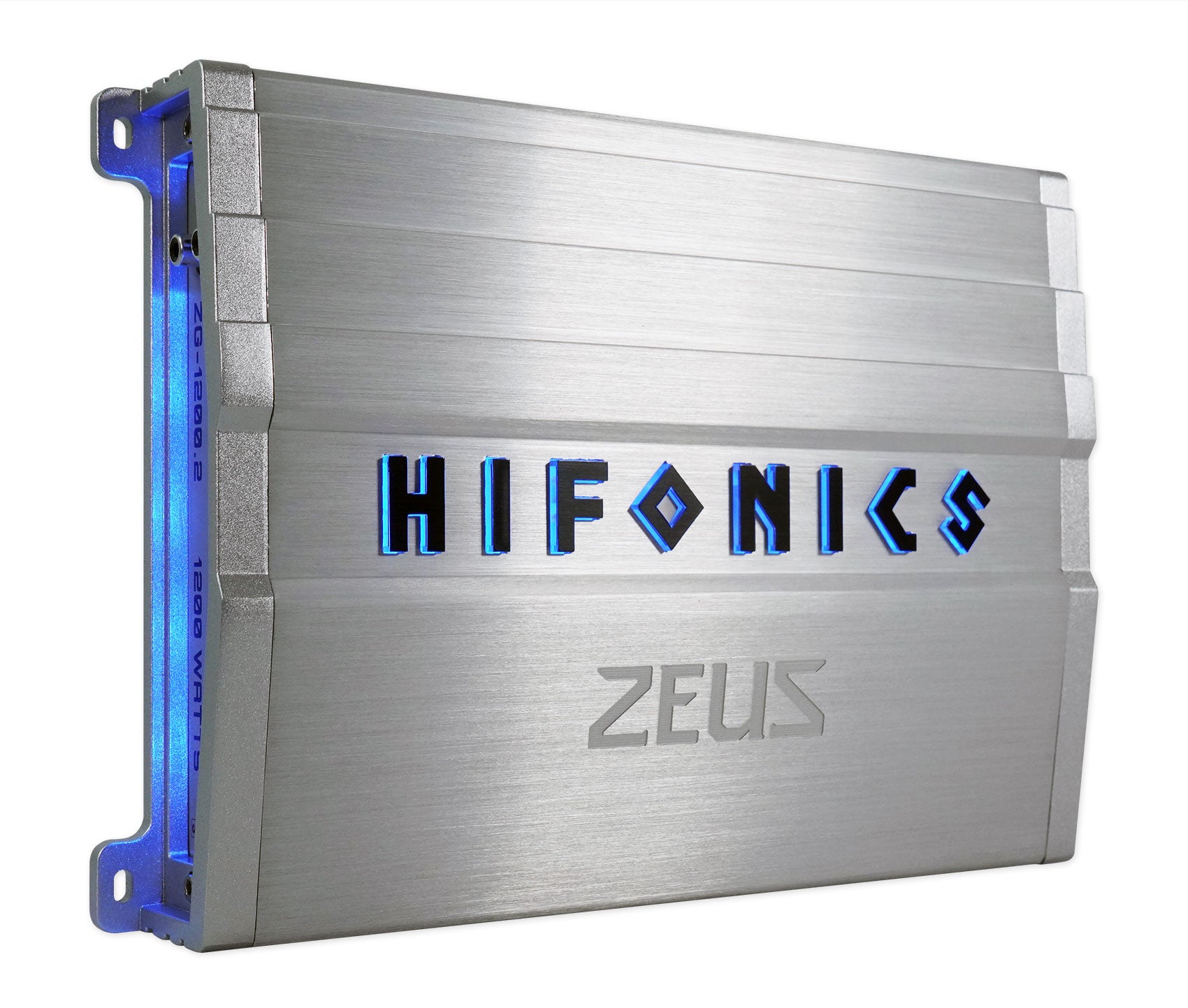

Hifonics ZG-1200.2 ZEUS Gamma 1200w 2-Channel Car Audio Amplifier Class A/B Amp

Description:

Hifonics ZEUS Gamma two channel audio amplifier delivers 1200 watts with Simpatico coil design (SPC) that features PWM MOSFET power supply for maxiumum current levels.

Features:

• Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
• RCA Inputs: Nickel plated high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• Operation Mode: Two Channel, Full Range, Bridgeable, Flexible installation allows this amplifier to run in two channel or bridged mono mode.
• Crossover Type: Onboard electronic crossover
• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• Class/Topology: "Class A/B, Designed to be high sound quality with minimal distortion.
• Output Device Technology: PWM MOSFET Power Supply, Stable power through the PC board with minimal heat generation.

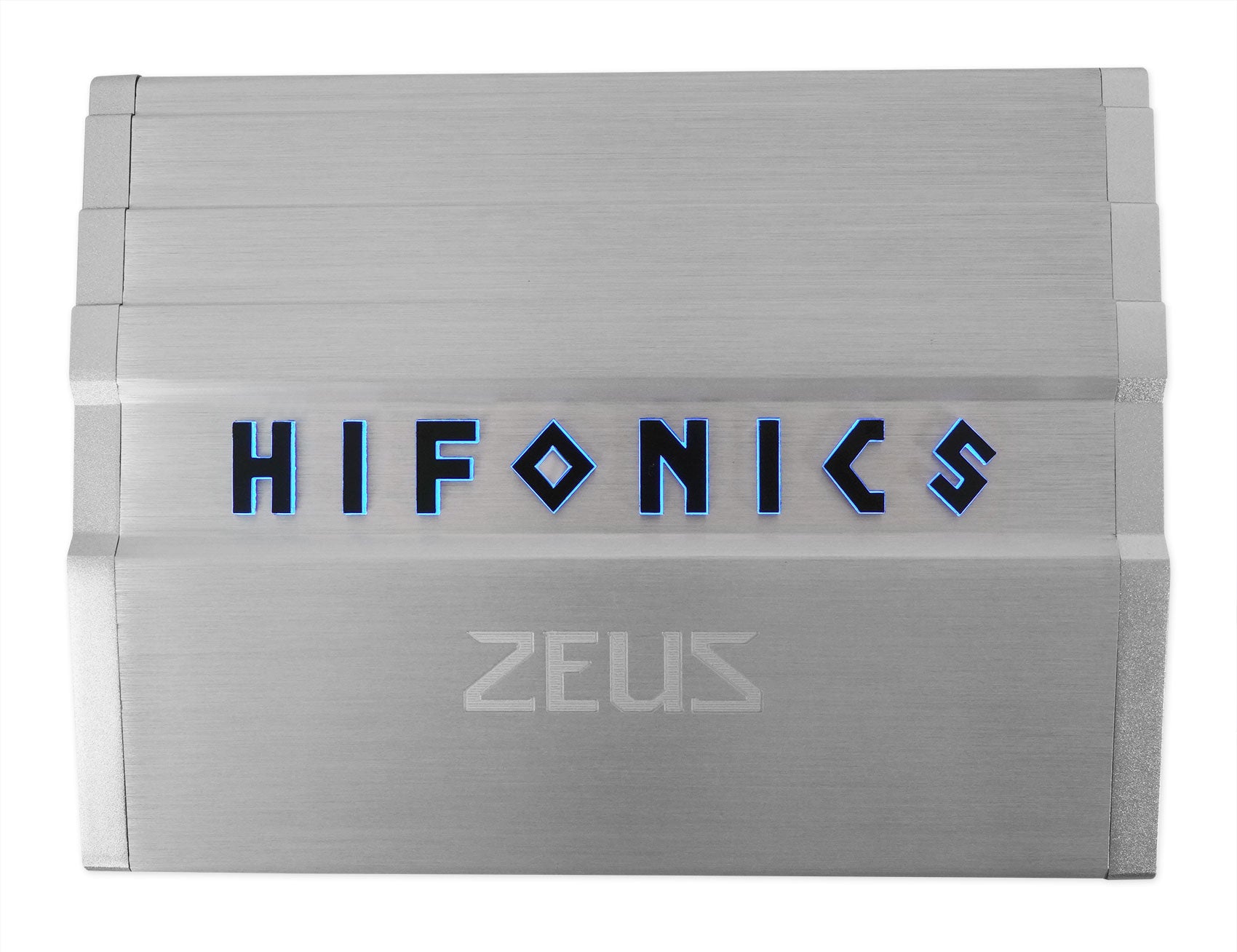

• Heat Sink: Aluminum, Old School Hifonics Heat sink for Superior Heat Dissipation.
• Power Supply: Simpatico Coil Design, The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
• Output Connections: RCA Outputs, Daisy chain multiple amplifier to eliminate additional signal cables from the source unit.
• Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.

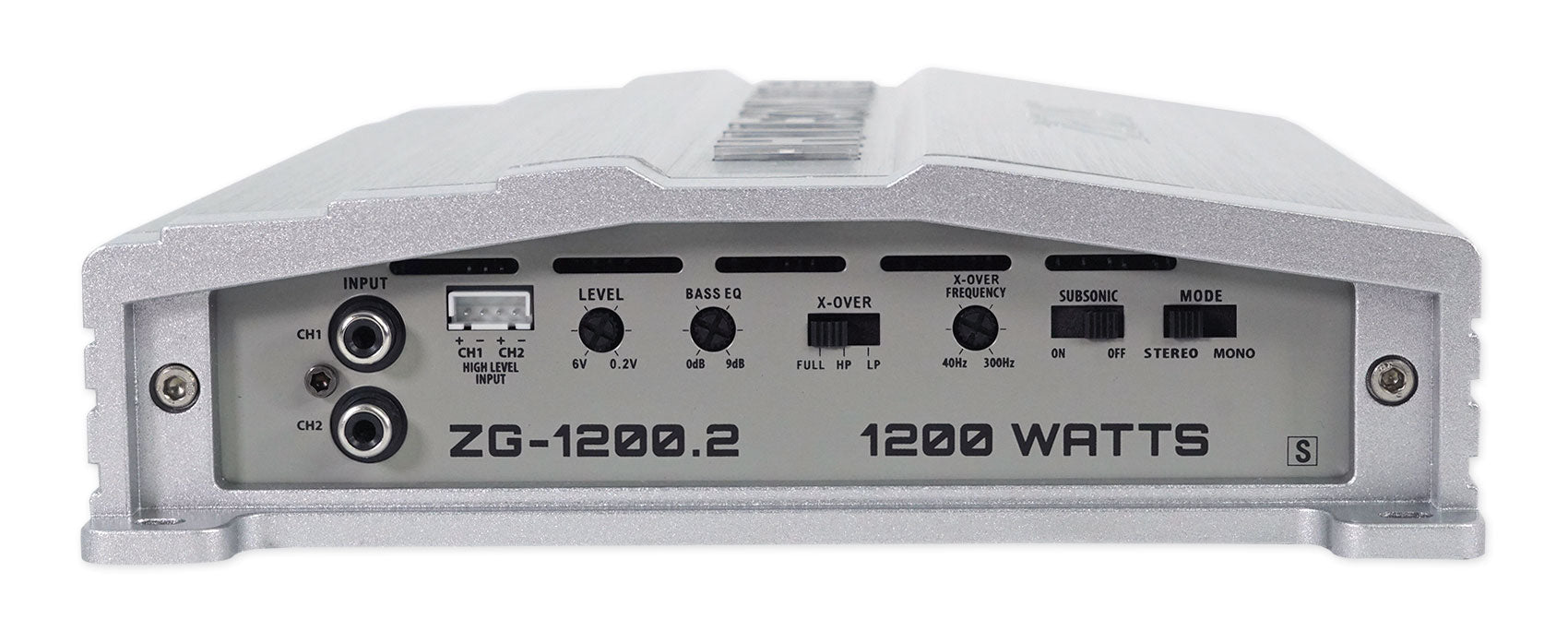

• LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

Specifications:

• Class: Class A/B
• Total Channels: 2
• Power @ 2 Ohms (ch x watts): 2 x 600
• Power @ 4 Ohms (ch x watts): 2 x 300
• Mono Bridged @ 4 Ohms (ch x watts): 1 x 1200
• Crossover: Variable Electronic 12dB Per Octave
• Variable High Pass Crossover 12dB per Octave: 40Hz-300Hz
• Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
• Tone Control/Parametric EQ: Built-in bass control
• Bass Boost: 0-9dB
• Variable Voltage: .2 to 6V
• Frequency Response: 10Hz-22kHz
• Total Harmonic Distortion (THD): < 0.5%
• Speaker Level Audio Inputs: Yes
• Power Terminal 12v/GND: 4 AWG
• Speaker Terminal Wire Gauge: 12 AWG
• Fusing: 40A
• Color: Silver
• Dimensions: 14.5 x 14.5 x 12.5 in
• Weight: 28.6 lbs
