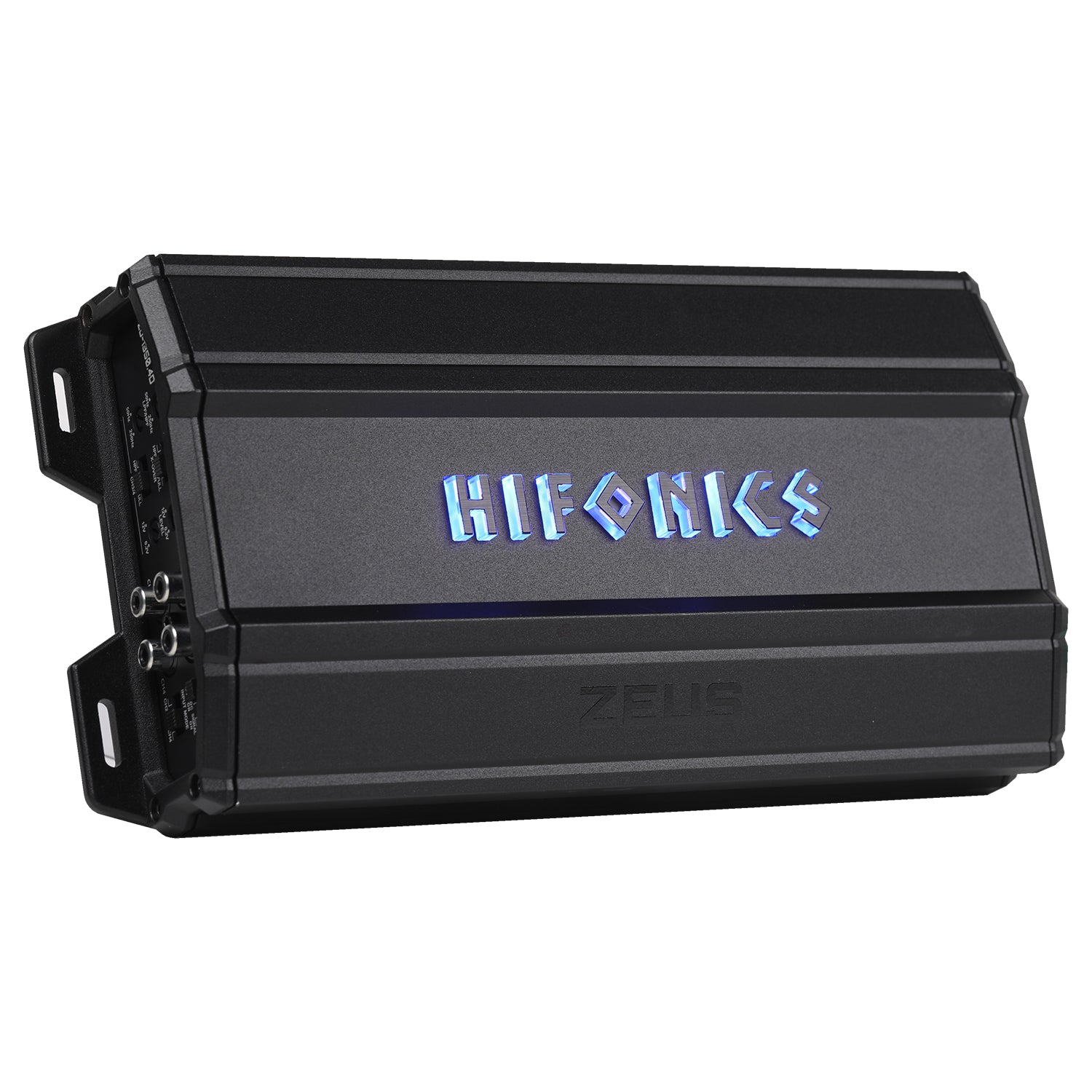

Hifonics ZD-1350.4D 1350 Watt 4-Channel Car Audio Amplifier Class-D Amp

Description:

Hifonics ZEUS DELTA four channel amplifier delivers 1350 watts that features PWM MOSFET power supply for maximum current levels.

Features:

• Compatible Vehicle Fitment: Universal
• Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
• RCA Inputs: Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant.
• Operation Mode: Four Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• Crossover Type: Onboard electronic crossover

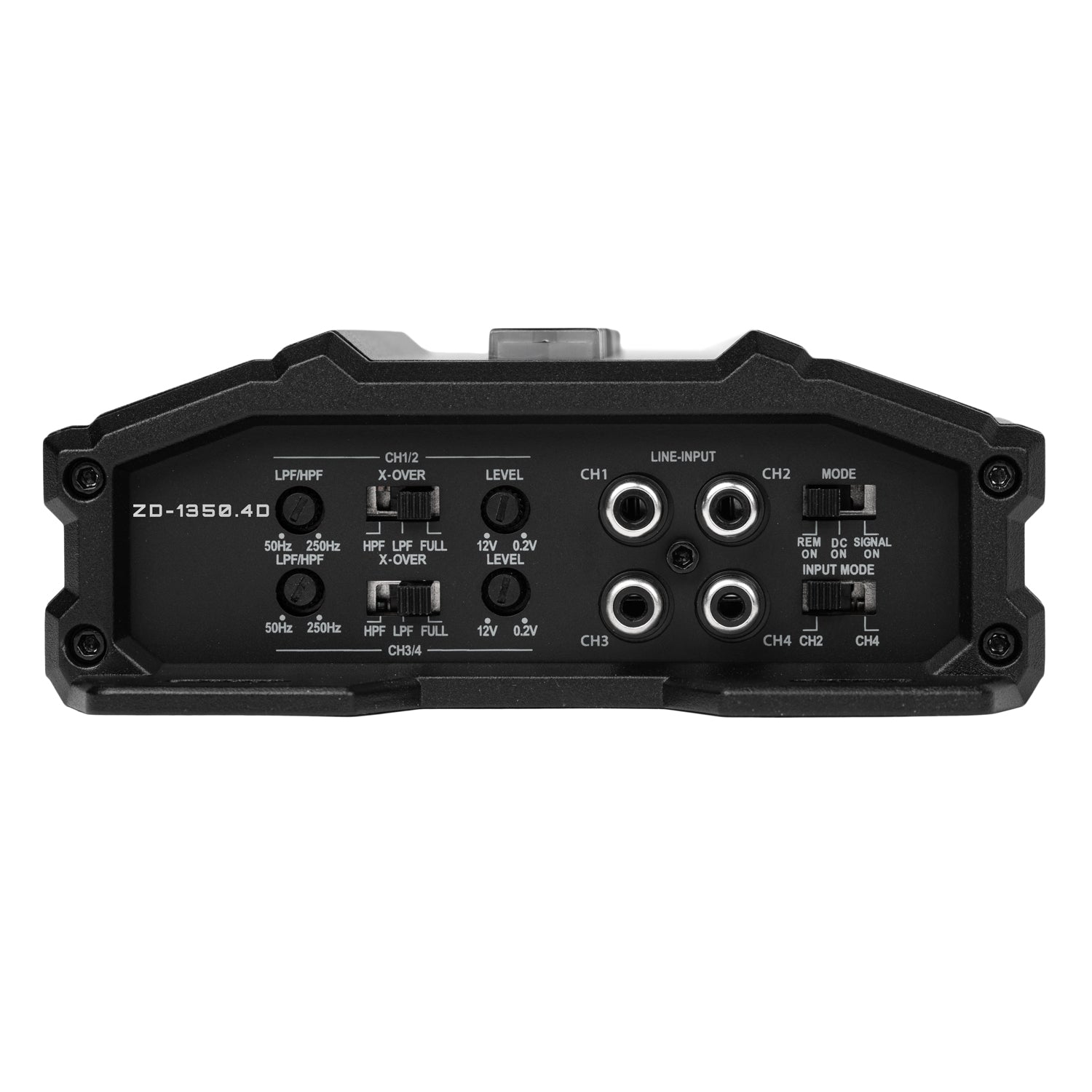

• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• Class / Topology: Class D: High efficiency with big power in a small footprint.
• Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• Heat Sink: Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.
• Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

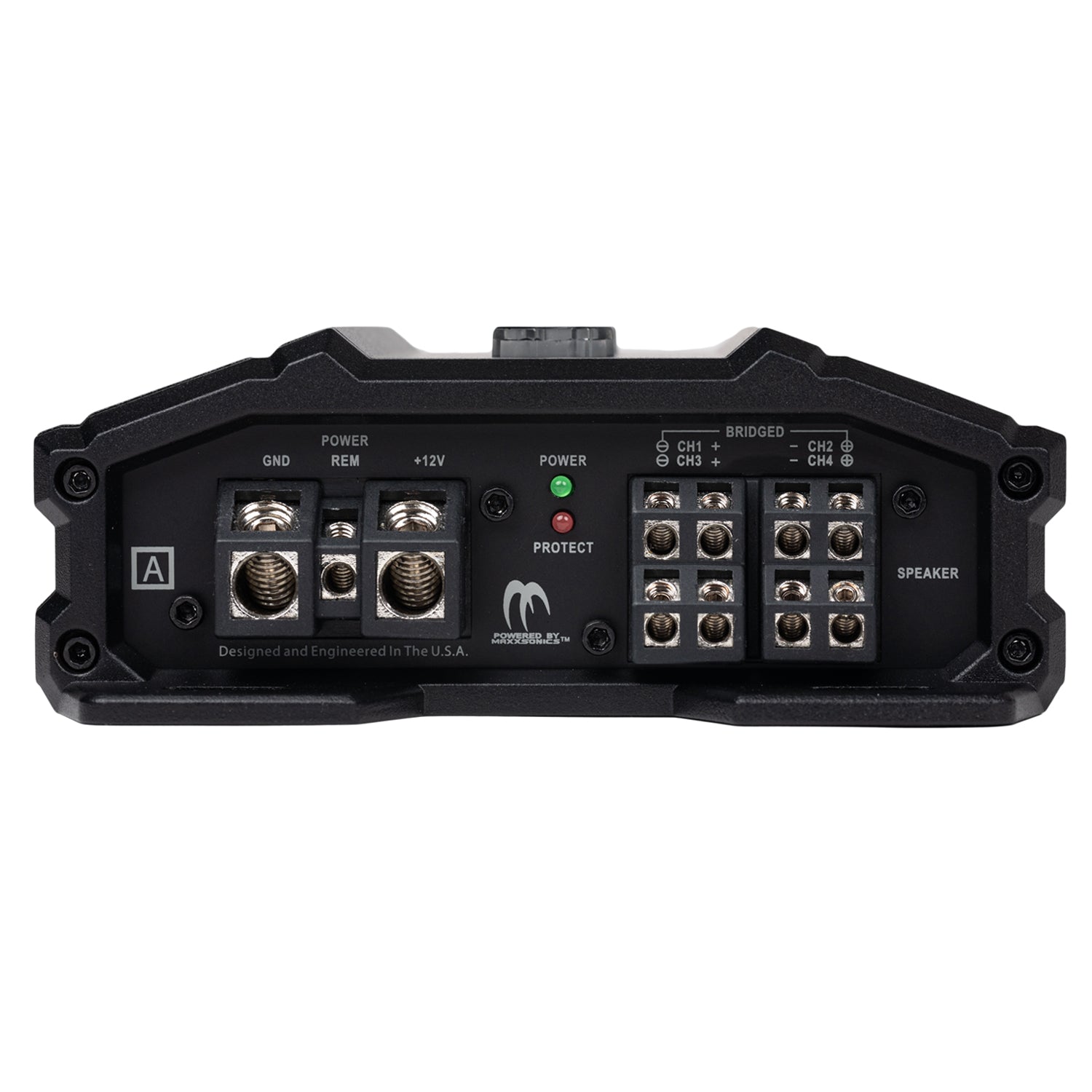

• Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
• LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
• Bass Remote Included: -
• Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

Specifications:

• Amp Class: Class D
• Amp Total Channels: 4
• Amp Max Power (watts): 1350
• Amp Power @ 1 Ohm (ch x watts): N/A
• Amp Power @ 2 Ohms (ch x watts): 4 x 335
• Amp Power @ 4 Ohms (ch x watts): 4 x 170
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 675
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 50Hz-250Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
• Amp Tone Control / Parametric EQ: Built-in bass control
• Amp Bass Boost: N/A
• Amp Subsonic Filter: N/A
• Amp Phase Shift: N/A
• Amp Variable Voltage: 0.2-6V
• Amp Frequency Response: 10Hz-22kHz
• Amp Total Harmonic Distortion (THD): < 0.5%
• Amp Speaker Level Audio Inputs: Yes
• Pre-amp Audio Outputs: N/A
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: External 60A
• Item Weight (lbs): 5.07
• Item Length (in): 11.65
• Item Width (in): 5.75
• Item Height (in): 2.16
• Color: Black
