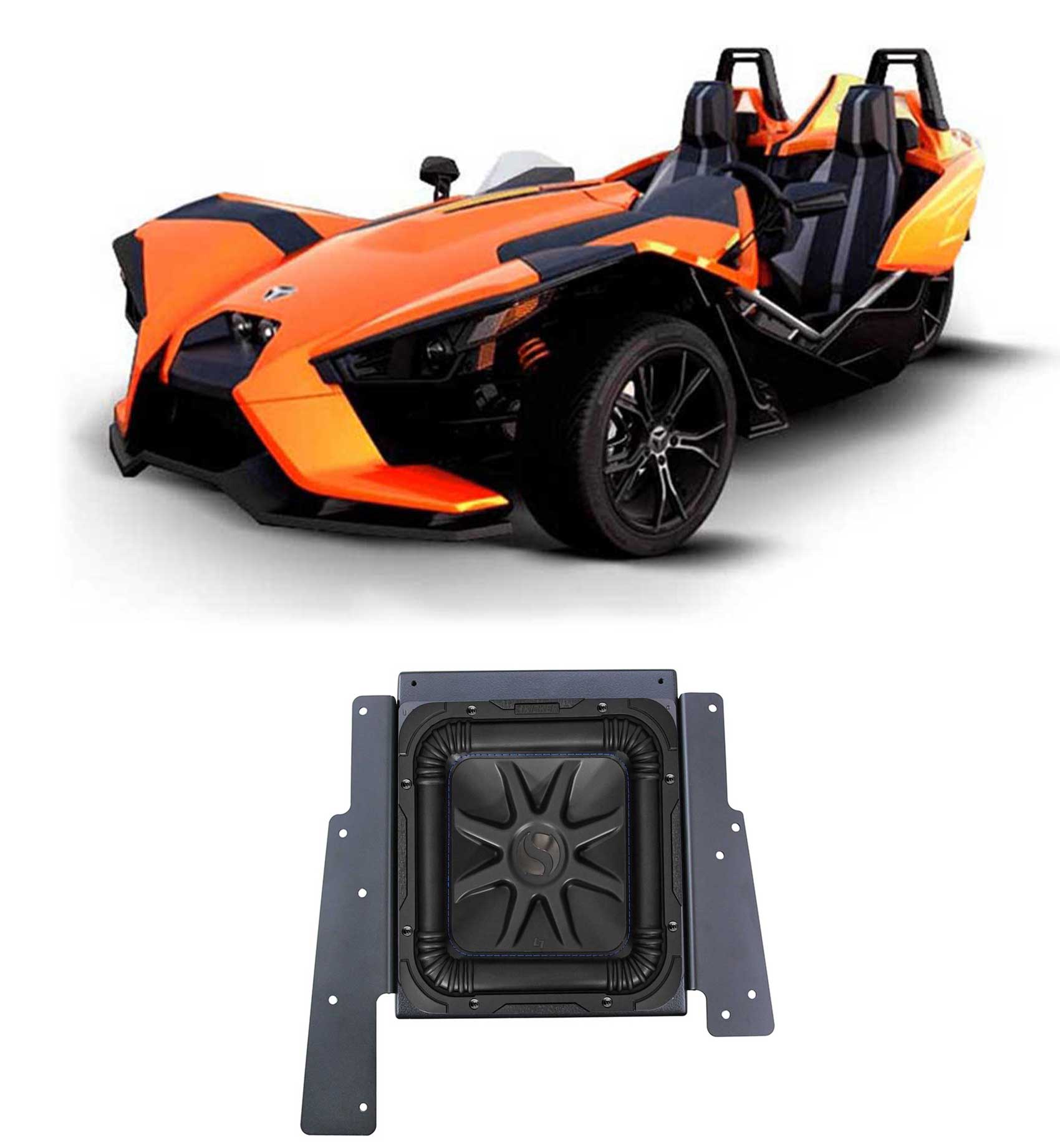

Behind Driver or Passenger Kicker L7 Subwoofer for Polaris Slingshot+ Enclosure

Package Includes:

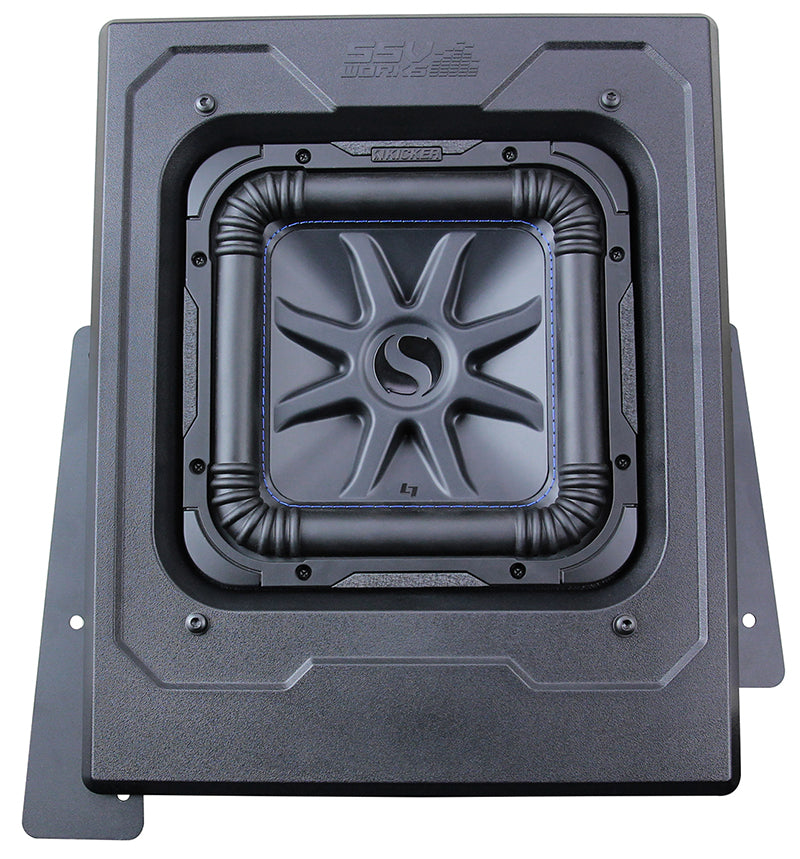

• (1) SSV Polaris Slingshot Behind Driver or Passenger Seat 10" Subwoofer Enclosure

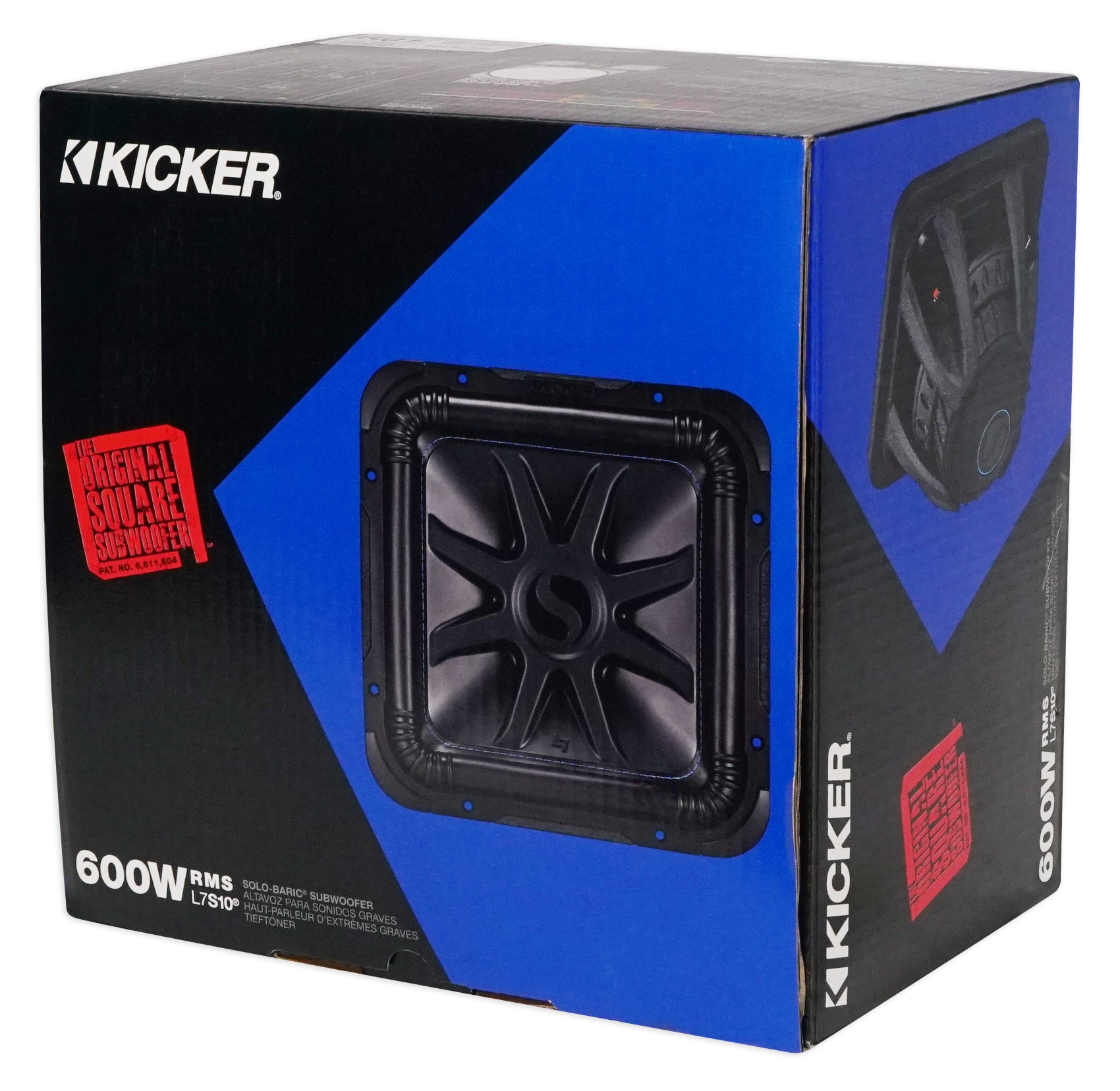

• (1) Kicker L7S104 10" 1200 Watt Solobaric L7S Car Subwoofer Solo-Baric 44L7S10-4

---

Authorized SSV Works Dealer!

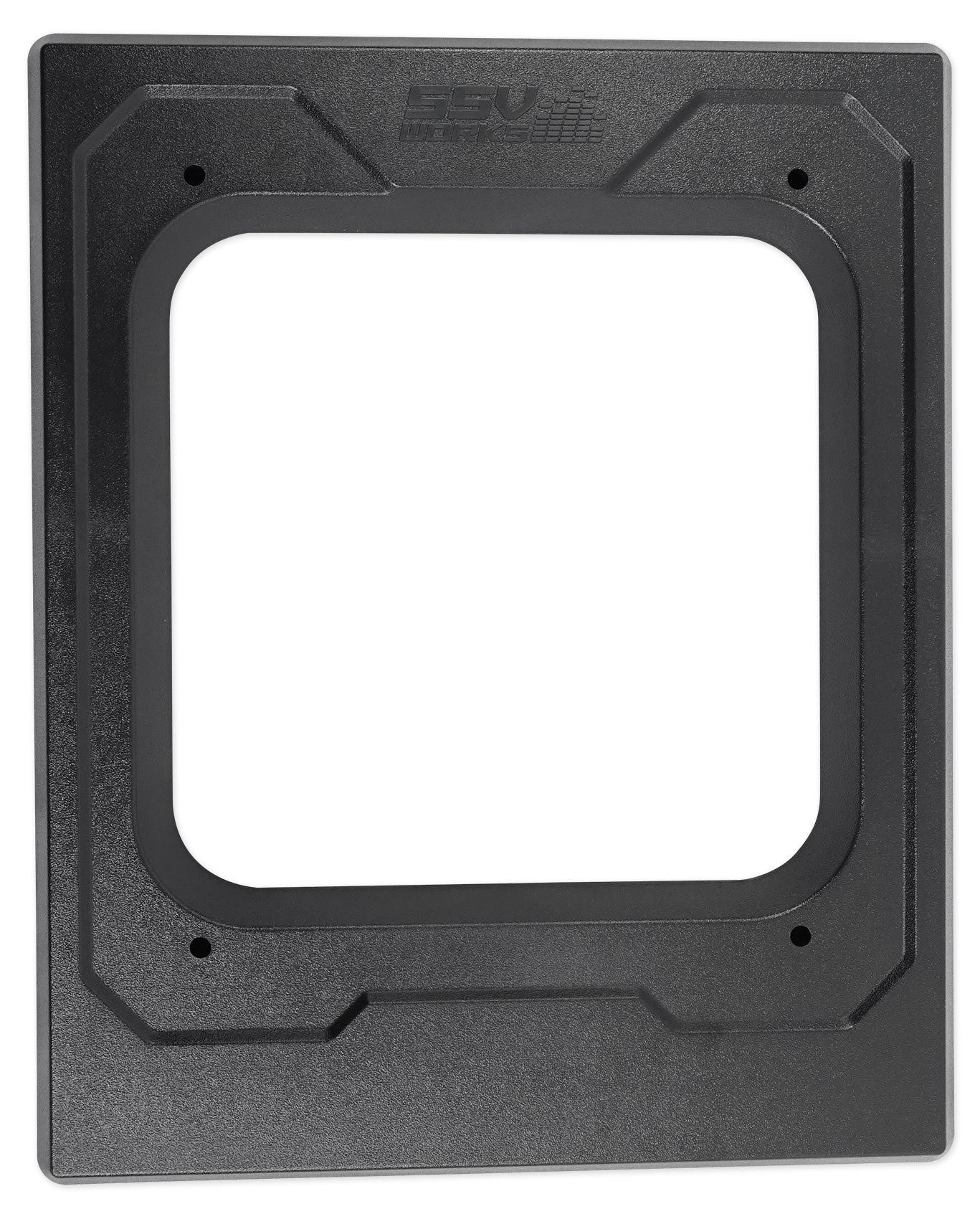

Description of 170-SS-BS10-U:

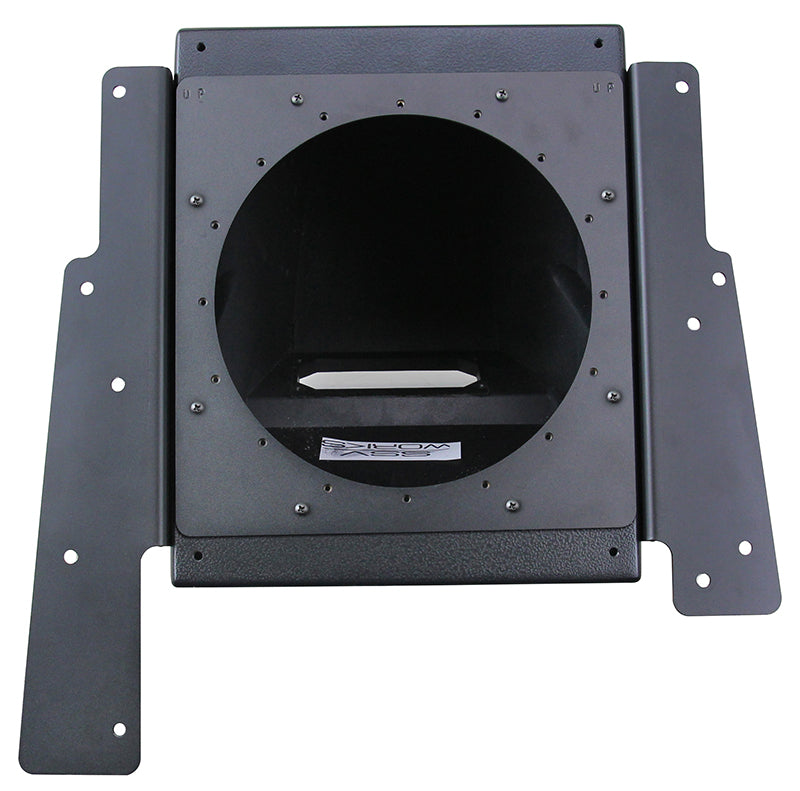

SSV Works custom molded sub enclosure is designed for a 10" subwoofer and bolts into the open space behind the driver or passenger seat, clear of the seat. NO CUTTING REQUIRED, the box simply bolts in and provides the proper airspace required for a 10" woofer. They are 100% fiberglass for the best sound quality and bass response. They are finished in a black texture coat to match Polaris textures and can be custom painted to match your color scheme. - Includes stainless mounting hardware and step-by-step installation instructions.

Features:

• SSV Polaris Slingshot Behind Driver or Passenger Seat 10" Subwoofer Enclosure
• Air Space: 0.73 Cubic Feet
• Max Round Woofer Depth: 180mm (7.0” inches)
• Very large basket and magnet, could be more depth if magnet/diameter is smaller

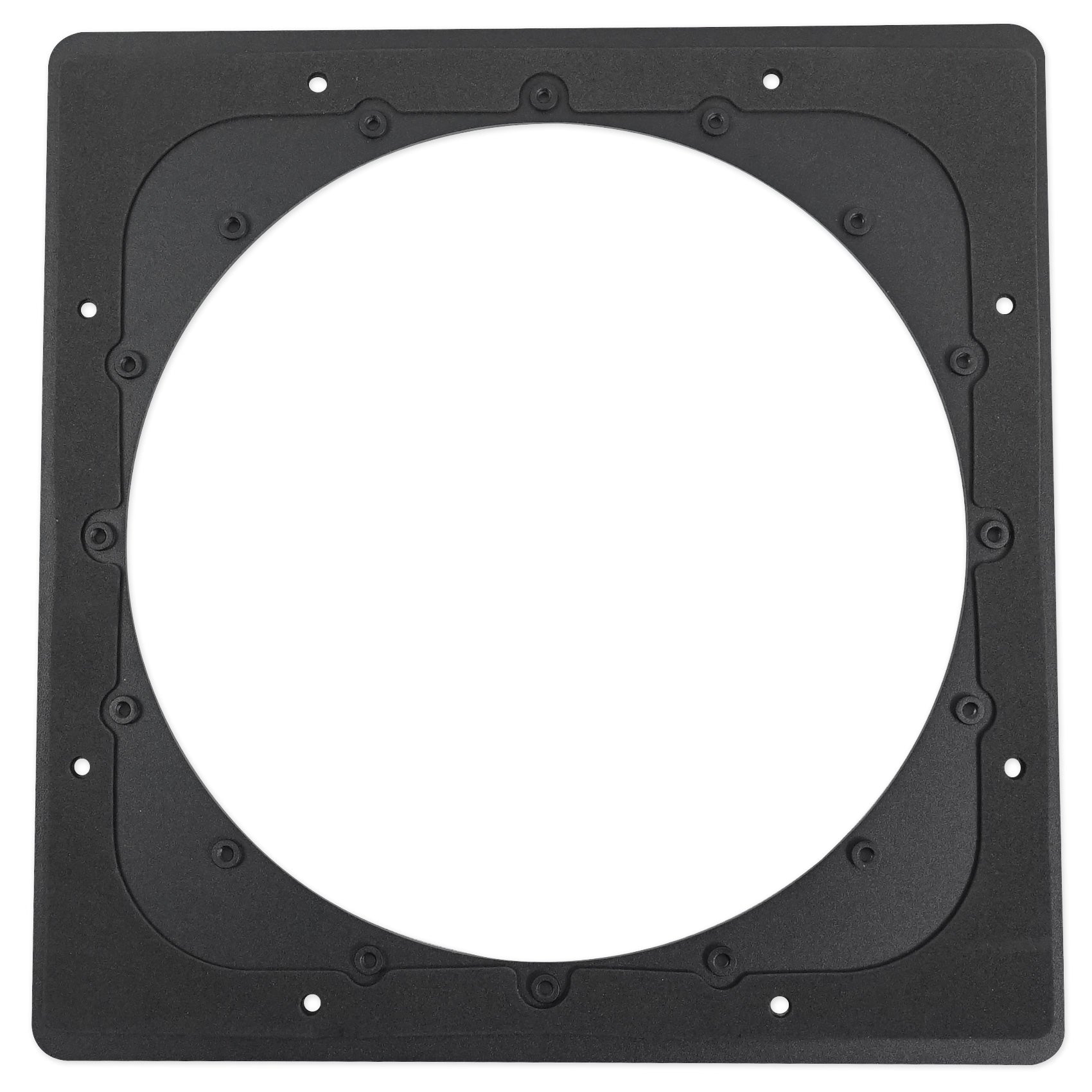

• Cutout diameter On Steel Plate: 232mm (9.13” inches)
• NOTE: Requires External Amplifier.
• Fits 2015-2018 Polaris Slingshot (All models)

---

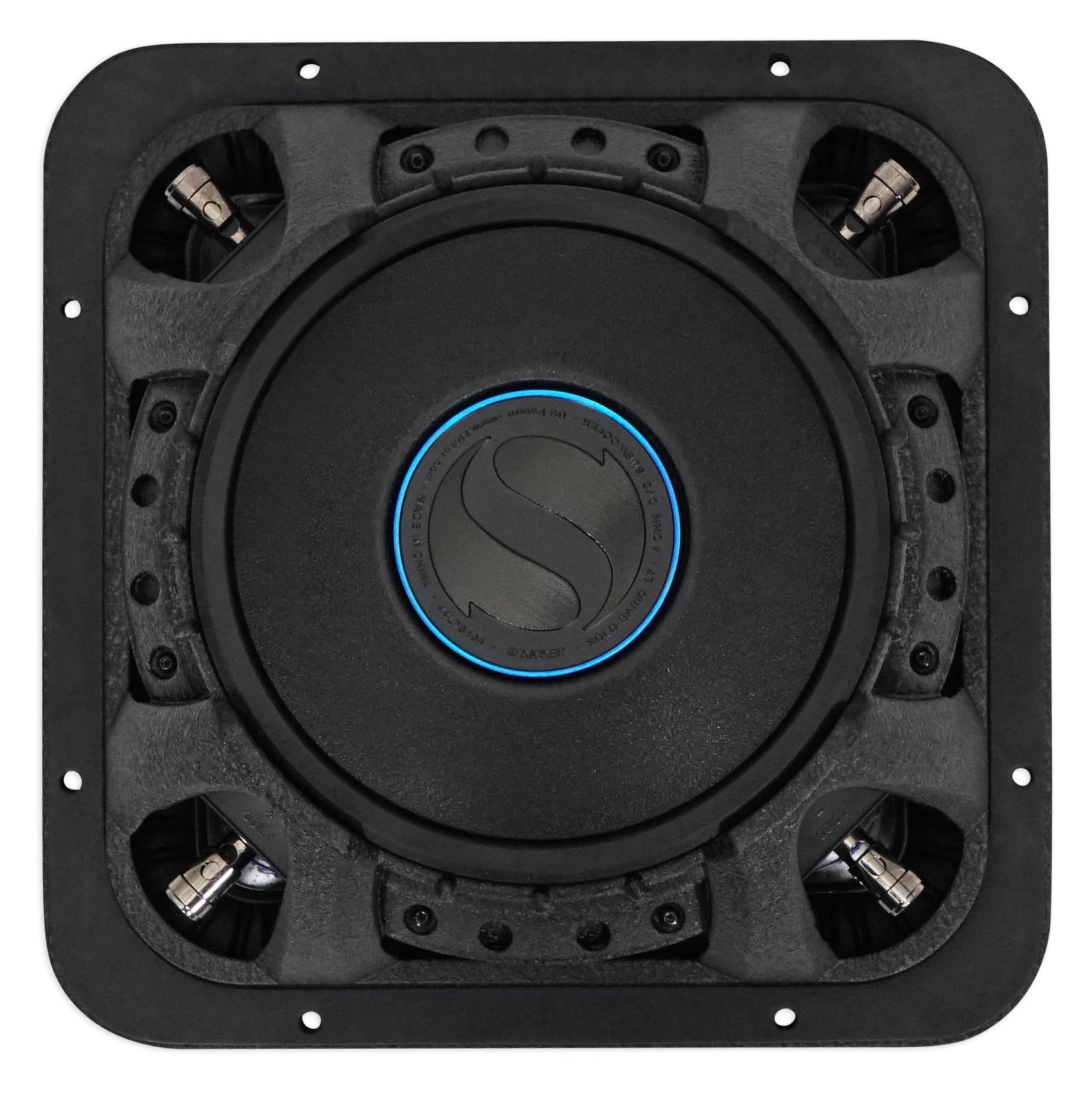

Description of 44L7S104:

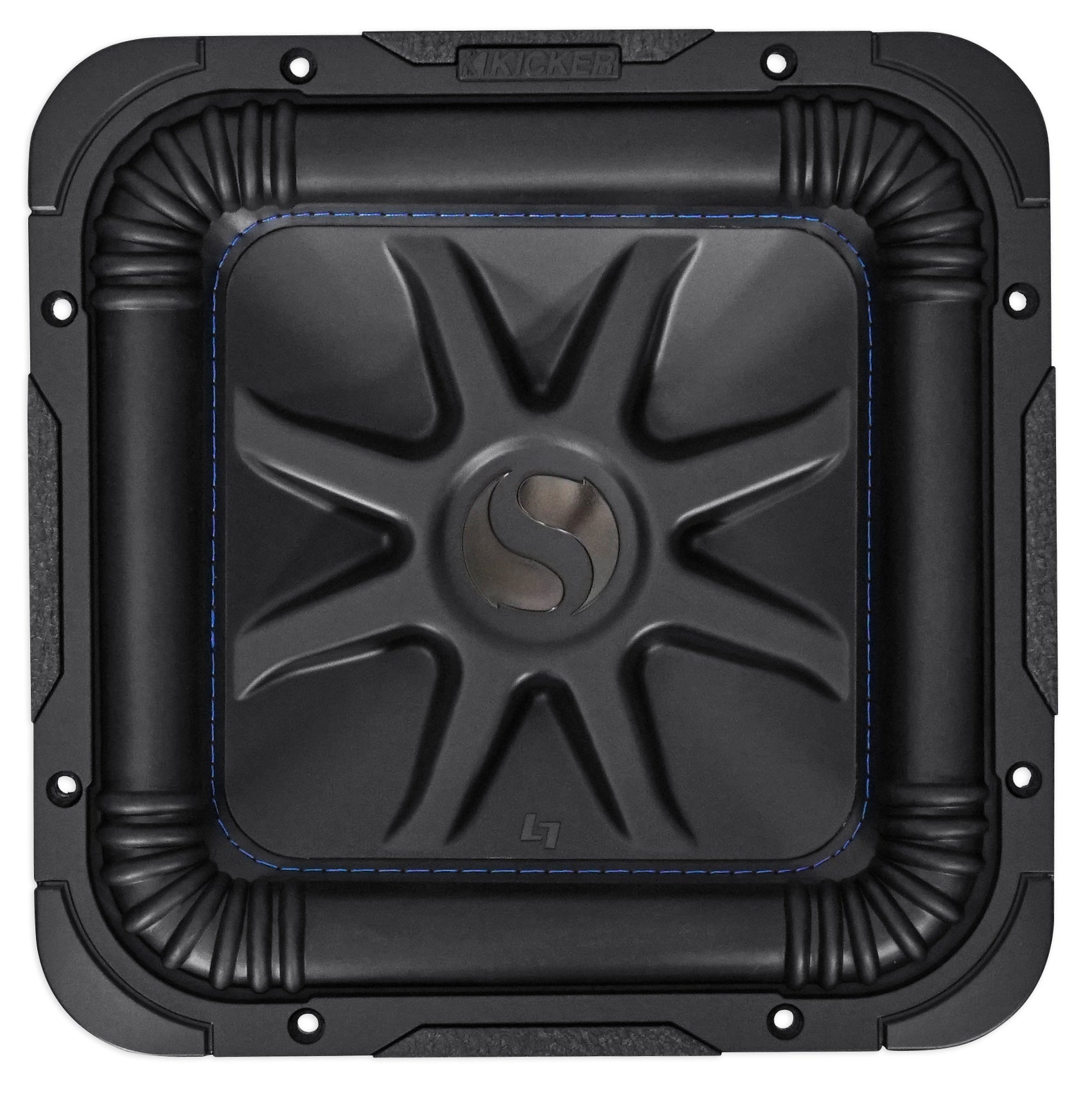

Square Matters
The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer.

Features:

• Kicker L7S104 10" 1200 Watt Solobaric L7S Car Subwoofer Solo-Baric 44L7S10-4
• Dual Four-Ohm Voice Coils
• Injection-Molded Polypropylene Cone
• Patented Corner Ribs Minimize Distortion
• SoloKon™ 360-Degree Back Bracing
• Ribbed Santoprene Surround With Blue Surround Stitching
• UniPlate&trde; Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
• Thick Tinsel Leads
• Large Ceramic Magnet
• Cast Aluminum Basket
• Satin-Nickel Plated, Spring-Loaded Speaker Terminals
• The Solo-Baric L7S 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications:

• Size: 10" (25.4 cm)

• Impedance: 4 Ohms DVC

• Max Rec Amplifier Power: 1200 Watts Peak / 600 Watts RMS

• Sensitivity: 86.8 dB 1w/1m

• Frequency Response: 24Hz - 100Hz

• Mounting Depth: 6-1/4" (15.9 cm)

• Mounting Cutout, Square: 9-5/16" (23.7 cm)

• Min Rec Sealed Box Volume: 0.66 cu. ft. (18.7 liters)

• Max Rec Sealed Box Volume: 1.0 cu. ft. (28.3 liters)

• Min Rec Vented Box Volume: 1.25 cu. ft. (35.4 liters)

• Max Rec Vented Box Volume: 2.25 cu. ft. (63.8 liters)
