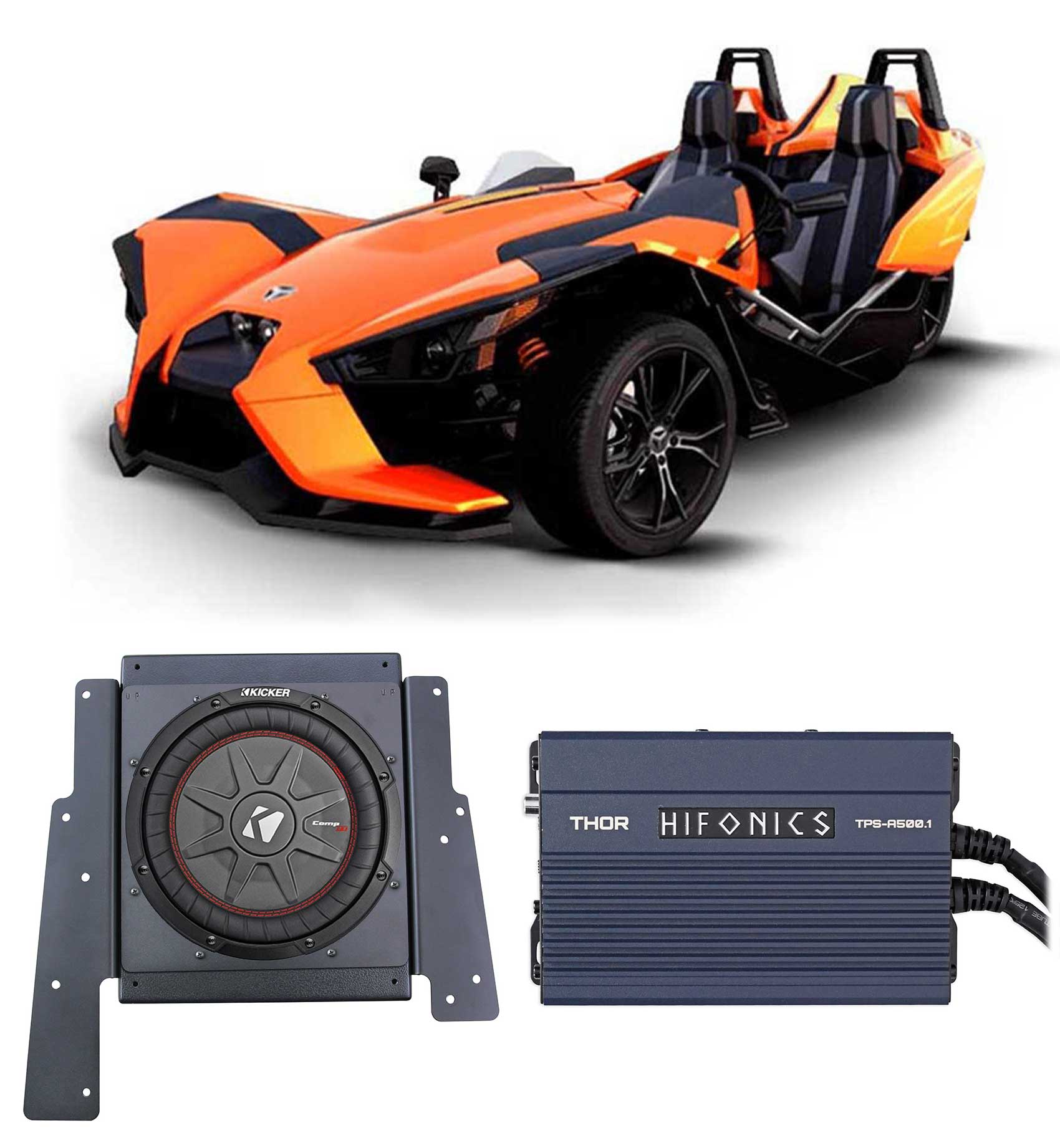

Behind Either Seat Kicker Subwoofer for Polaris Slingshot+Hifonics Amp+Enclosure
Product Description
Package Includes:
- (1) SSV Polaris Slingshot Behind Driver or Passenger Seat 10" Subwoofer Enclosure
- (1) Kicker 43CWRT101 COMPRT10 10" 800W 1-Ohm DVC Shallow Car Subwoofer Sub
- (1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Authorized SSV Works Dealer!
Description of 170-SS-BS10-U:

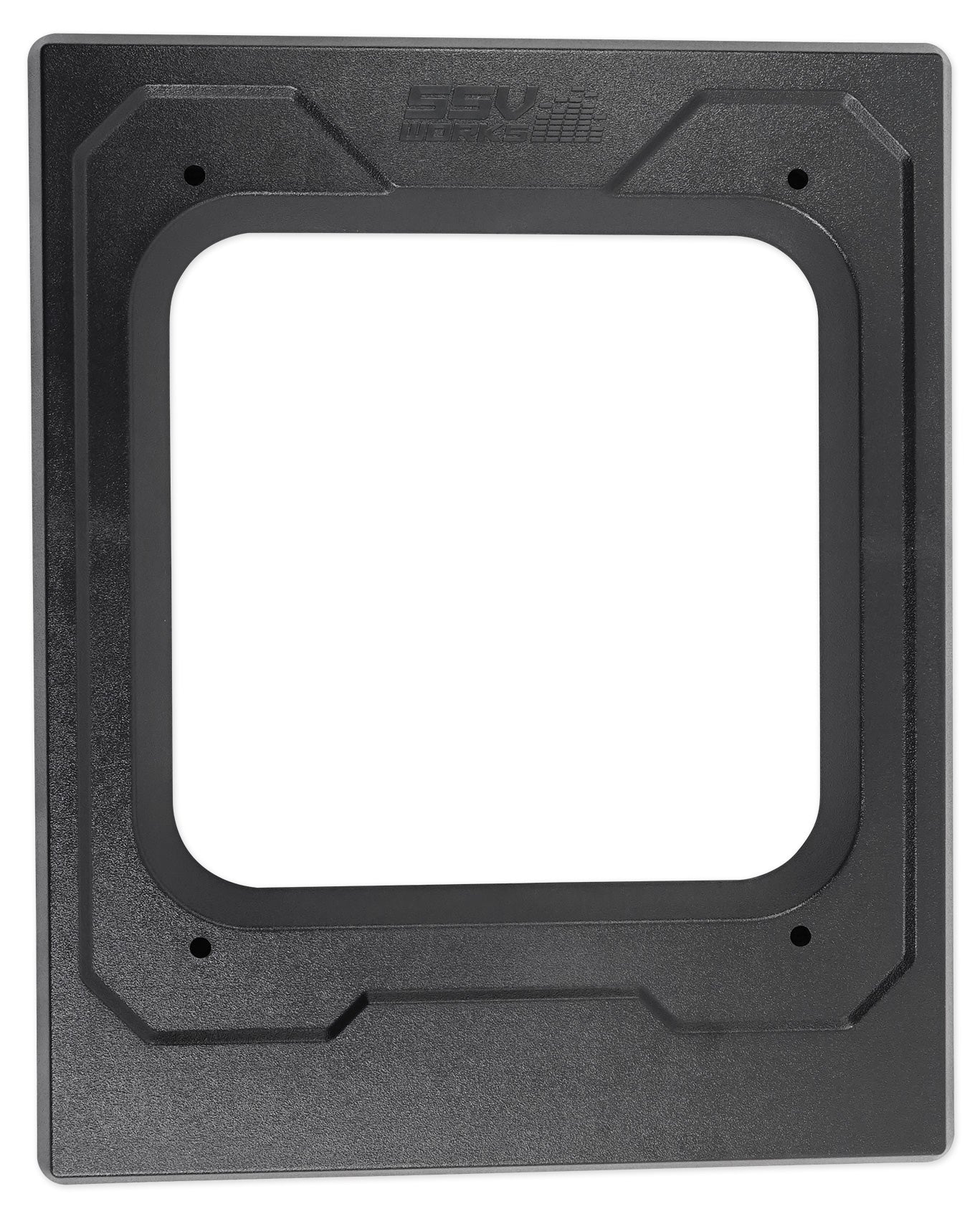

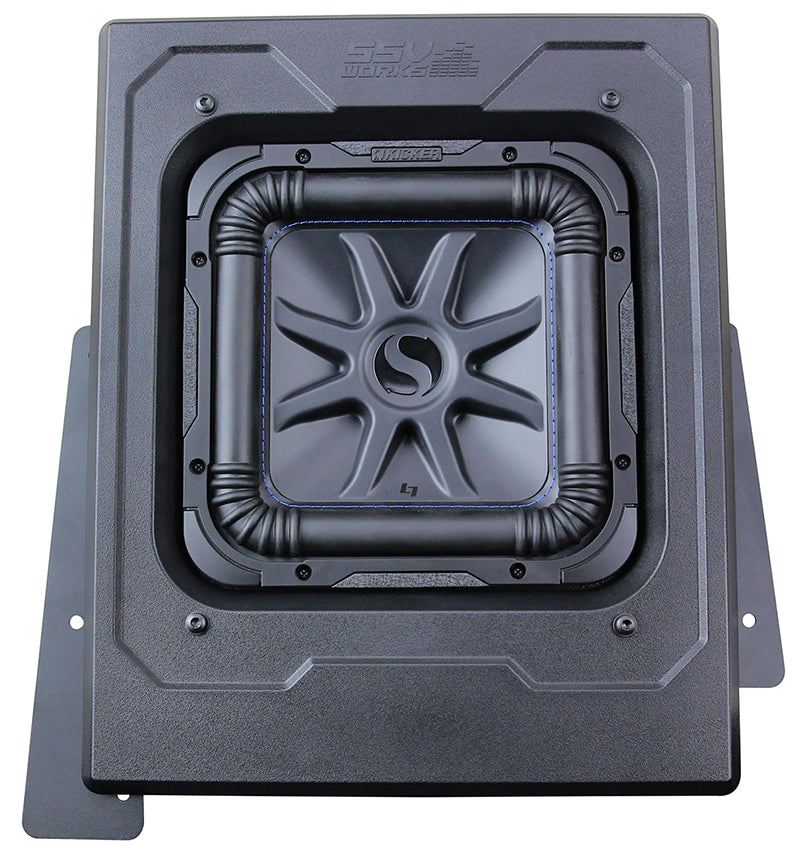

SSV Works custom molded sub enclosure is designed for a 10" subwoofer and bolts into the open space behind the driver or passenger seat, clear of the seat. NO CUTTING REQUIRED, the box simply bolts in and provides the proper airspace required for a 10" woofer. They are 100% fiberglass for the best sound quality and bass response. They are finished in a black texture coat to match Polaris textures and can be custom painted to match your color scheme. - Includes stainless mounting hardware and step-by-step installation instructions.
Features:
- SSV Polaris Slingshot Behind Driver or Passenger Seat 10" Subwoofer Enclosure
- Air Space: 0.73 Cubic Feet
- Max Round Woofer Depth: 180mm (7.0” inches)
- Very large basket and magnet, could be more depth if magnet/diameter is smaller
- Cutout diameter On Steel Plate: 232mm (9.13” inches)
- NOTE: Requires External Amplifier.
- Fits 2015-2018 Polaris Slingshot (All models)
Click here for the Installation Guide
Video of 43CWRT101:
CompRT™ Subwoofers have reduced what were already the thinnest mounting depths available from the world's bass leader, taking almost another inch off the shallow-mount driver's basket suitable for the trickiest installations. It's true, deep bass that's made to fit where conventional-sized subwoofers don't.
Despite the shallower mount, CompRT Subwoofers are now available in 1- or 2-Ohm dual-voice coils, made to match perfectly with any Mono Amplifiers in a car or truck, or with smaller-scale, low-impedance KICKER PX-Series Amplifiers in a powersports setting. Picking up where the preceding CompVT Series left off, CompRT Subwoofers are engineered to deliver serious bottom-end where space is limited. Whether behind the seat in a compact car or in a motorcycle's saddlebags, make no mistake signature KICKER bass is on board.
The CompRT motor structure is as intricate as one might expect from a shallow-mount subwoofer. It utilizes a large-diameter, progressive-roll spider for increased linearity and better overall sound. An inverted-bumped back plate and a bumped top plate allow for full voice-coil clearance and excursion, creating outstanding bass despite the limited area. High-temp coil wire winding around the high-mass, solid pole piece and double venting contribute to the woofers' efficient cooling attributes and durability. As a result, CompRT power handling has increased dramatically with the newest design.
CompRT features an injection-molded polypropylene cone and tough Santoprene™ surround that interlocks with the front gasket for ultra-rigidity and minimal distortion. The full-coverage, sealed steel basket provides full protection of the motor assembly, and with the interlocking surround and gasket, helps the weather-proof subwoofer perform perfectly in outdoor powersports settings.
CompRT features dual pairs of sturdy, spring-loaded wire terminals that are custom-designed specifically for the basket so the subwoofer can retain its shallow mounting capability.
Big Bass Anywhere:
Your car’s back dash. The bags on your bike. Behind your ATV’s seats. Add the weatherproof CompRT Sub to your ride without sacrificing comfort or storage space.
Stout:
Superior components make a huge difference. Dual voice coils, a unique heat management system and our signature red cone stitching all help to give you deep bass and outstanding reliability in our thinnest subwoofers.
Ready to Ride:
This KICKER® sub is built to take the power and sound incredible. With recommended power ratings as high as 500 watts, it’s easy to get the bass you crave.

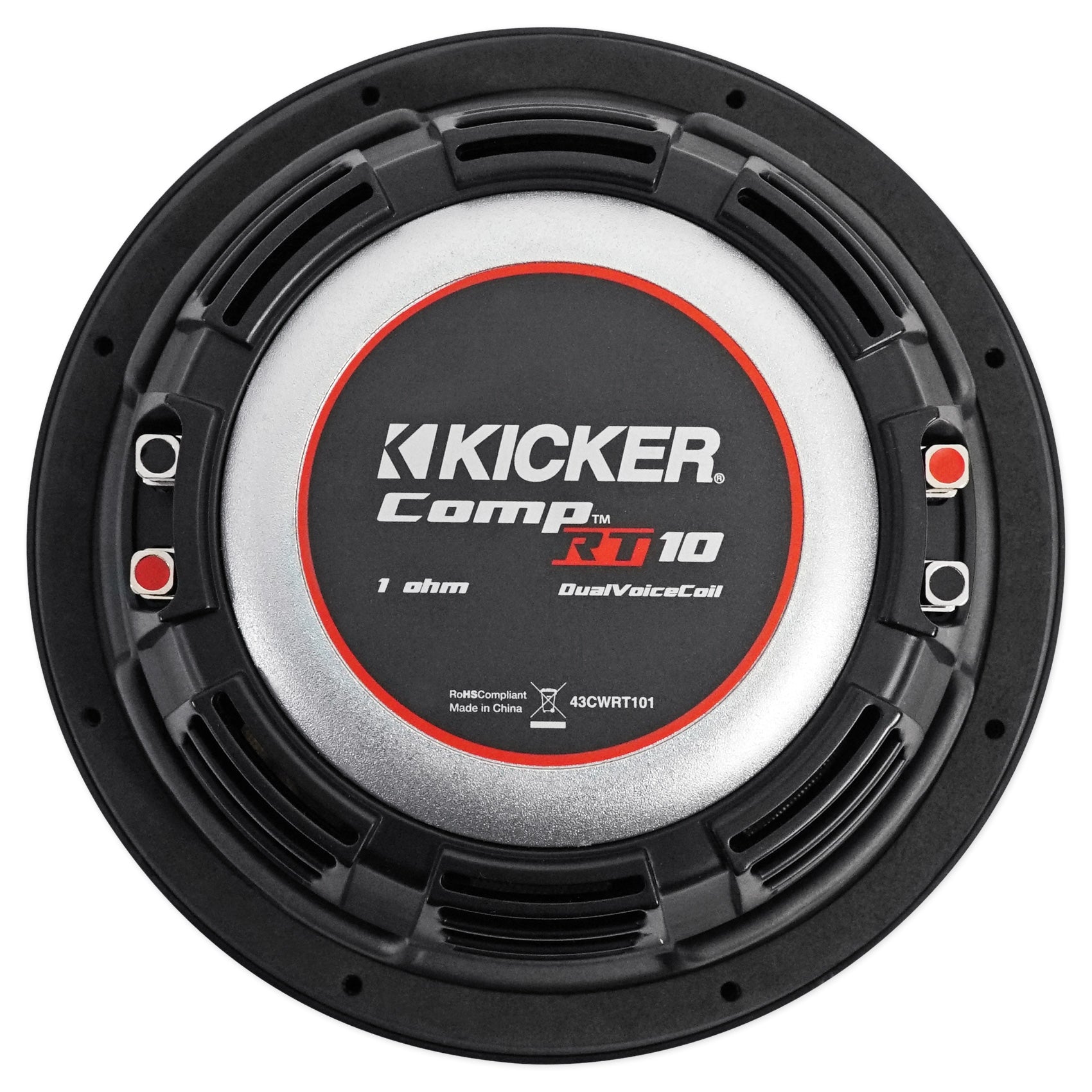

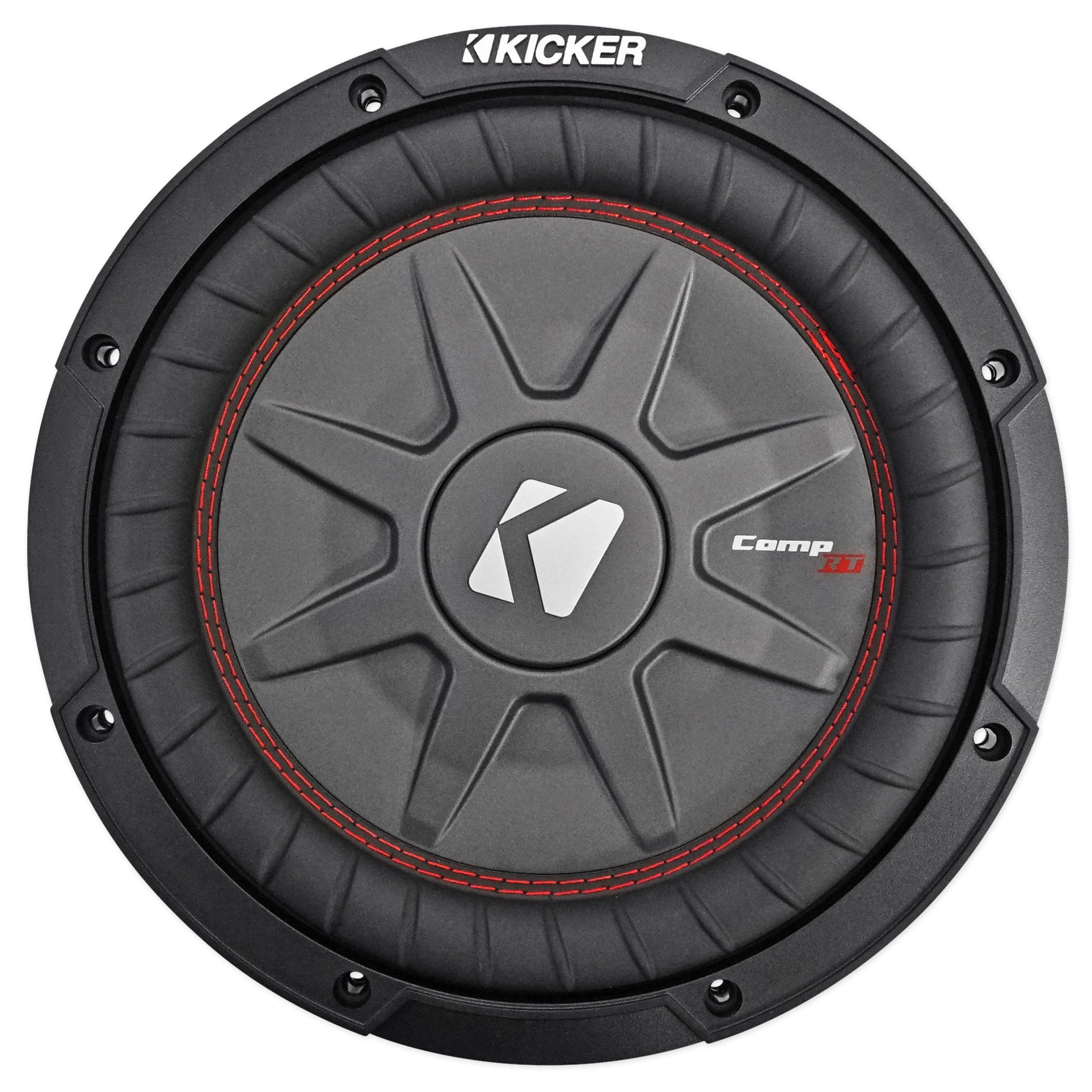

10" CompRT 1 Ohm:
- The CompRT 10-Inch Subwoofer is an all-weather thin mount subwoofer with dual 1Ω voice coils.
- It takes serious know-how for a thin subwoofer to deliver super-deep bass. With Kicker custom SoloKon™ technology and the CompRT’s unique framework, the sub sounds fat – but keeps it thin!
- The CompRT 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power.
Features/Specifications:
- Kicker 43CWRT101 10" 800 Watt Dual Voice Coil 1-Ohm Car Audio Subwoofer
- Power Handling :
- Peak : 800 watts
- RMS : 400 watts
- Size : 10"
- Impedance : Dual 1-Ohm
- True shallow-mount subwoofer great for compact cars or even motorcycle saddlebags
- Suitable for the trickiest installations
- Large-diameter, progressive-roll spider
- Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion
- High-temp coil wire winding around a high-mass, solid pole piece
- Double venting for max cool
- Injection-molded polypropylene cone and tough Santroprene® surround that interlocks with front gasket
- Dual pair of spring-loaded wire terminals custom-designed for shallow mount
- Weather-proof for outdoor powersports applications
- Frequency Response : 25 - 500Hz
- Sensitivity : 84.8dB @ 1w/1m
- Mounting Depth : 3-7/16"
- Mounting Diameter : 9-1/8"
- Min Sealed Box Vol : 0.4 cu. ft.
- Max Sealed Box Vol : 1.25 cu. ft.
- Min Vented Box Vol : 1.25 cu. ft.
- Max Vented Box Vol : 1.75 cu. ft.

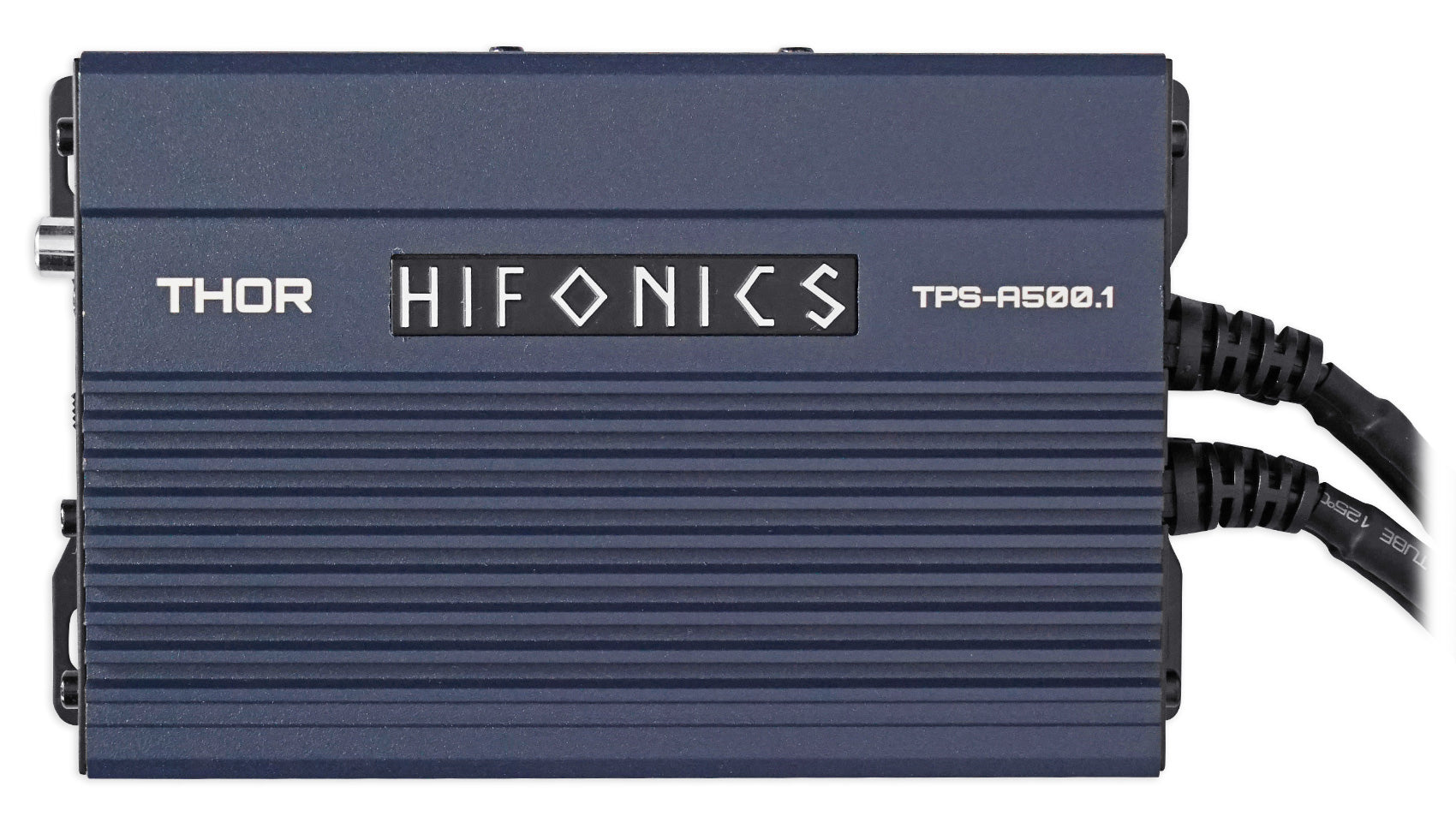

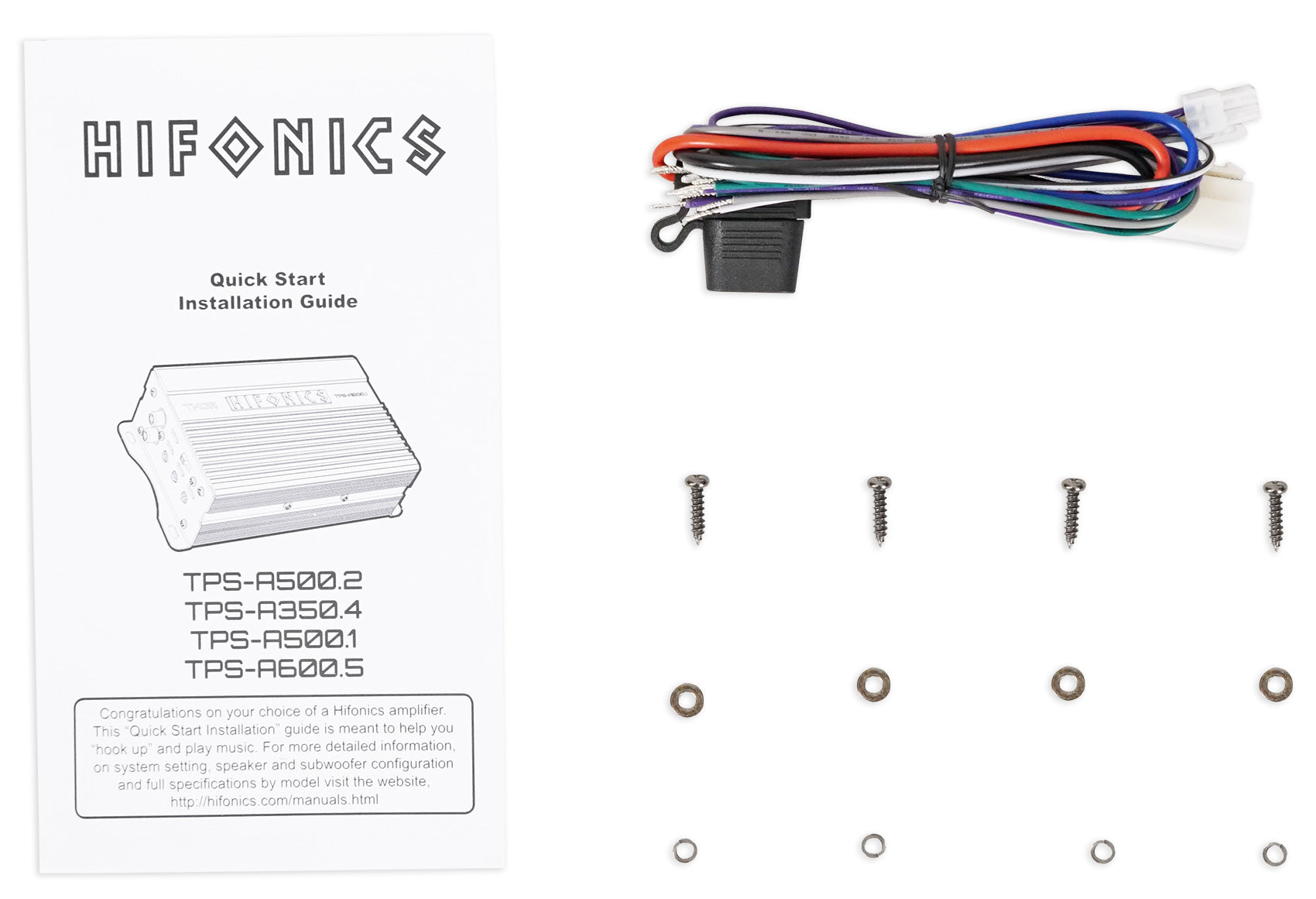

Description of TPS-A500.1:
Hifonics THOR compact 500 watt mono Powersports amplifier to for a subwoofer with on-board equalization and simple instalation with quick release connectors.
Features:
- Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
- Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
- Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reduces incoming noise from source units dramatically improving sound quality
- Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
- Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofer system
- Crossover / Signal Shaping: LPF - Complete control of amplifier signal, essential when using two or more amplifiers
- Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
- Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
- Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
- Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
- Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
- Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections
- Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
- Marinized / Waterproof: YES - Water resistant for durability in any environment
Specifications:
- Class: Full Range Class D
- Variable Voltage: 0.2V~9V
- Signal to Noise Ratio: >100dB
- Frequency Response: 10Hz-300Hz
- Crossover Type: Electronic 12dB Per Octave
- Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
- Bass Boost: 0-12dB@45Hz
- Subsonic Filter: 60Hz
- Power @ 2-Ohms: 1 x 500W
- Power @ 4-Ohms: 1 x 250W
- Total Channels: Mono
- Audio Inputs: RCA
- Power Terminal 12v/GND: Molex 10 ga
- Speaker Terminal Wire Gauge: Molex Plug Connector
- Fusing: 1 x 30 Amps
- Certifications: Marine & Powersports
- Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
- Weight: 2.09 lbs (0.95 kg)
