Hifonics HCC-1700.4 1700 Watt 4-Channel Car Audio Amplifier COLOSSUS Classic Amp

Description:

Hifonics COLOSSUS Classic four channel audio amplifier delivers 1700 watts with Super A/B Class™ technology that features Ultra-Fi™ MOSFET outputs that are selected for both balance and output power.

Features:

• Low Noise Preamplifier Circuit
  Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

• RCA Inputs
  Nickel-plated RCA jacks create the most efficient High/Low Level audio connection and resist corrosion.

• Operation Mode
  4 channel operation mode allows either stereo or mono bridged operation.

• Crossover Type
  Variable electronic crossovers allow for complete control of the sound.

• Electronic Equalizer
  Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.

• Class / Topology
  Super A/B Class proprietary designs use high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, this unique hybrid of Super A/B Technology results in lower distortion, higher current efficiencies and less heat than conventional amplifier designs.

• Output Device Technology
  Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.

• Heat Sink
  Heavy-duty aluminum alloy heat sink efficiently moves heat from the MOSFET for superior dissipation.

• Power Supply
  The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

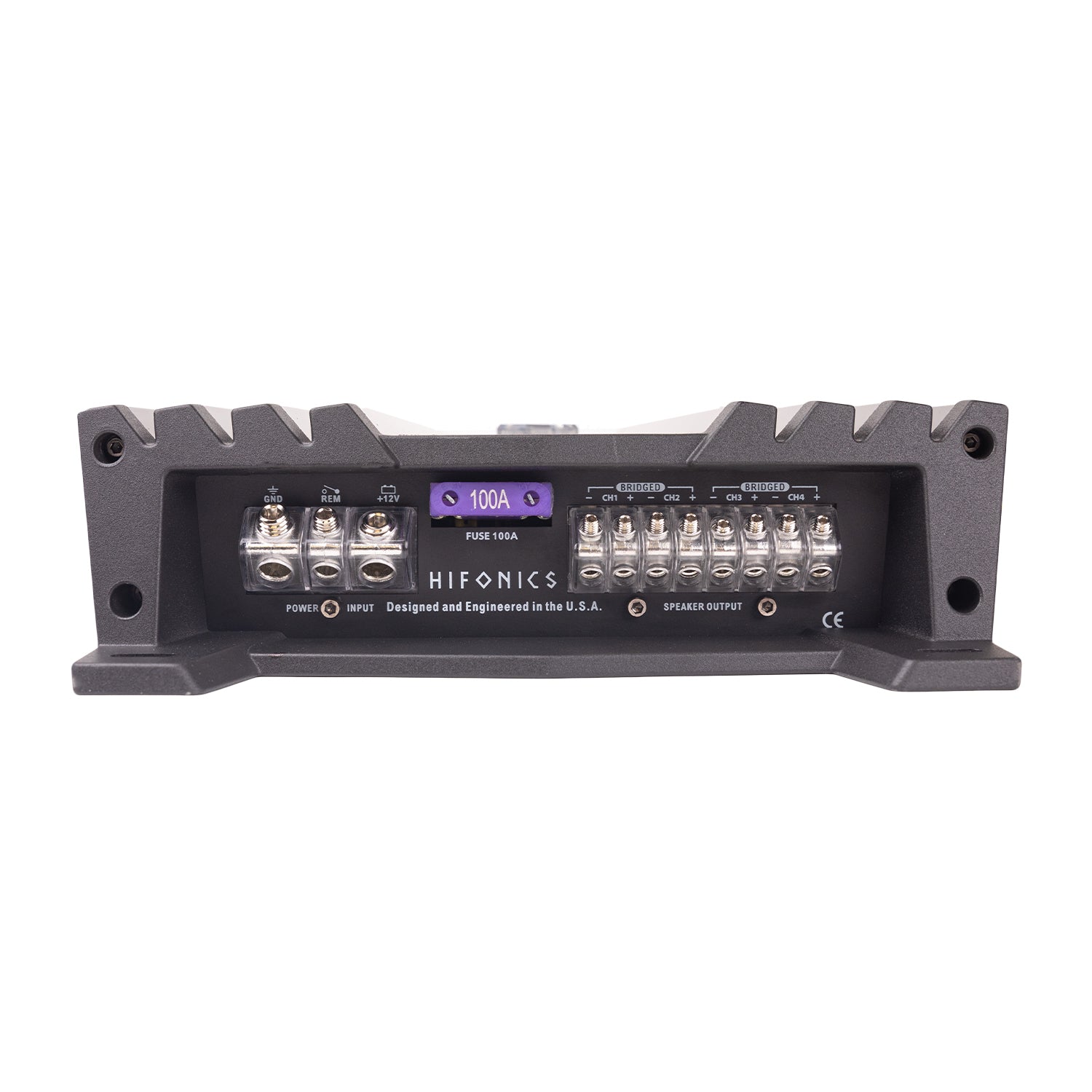

• Output Connections
  High temperature impact resistant nickel plated connectors with Allen head set screws which allow for secure termination of wire and creates an erosion resistant seal.
• Connection Type
  Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.

• LED System Protection Circuitry Diagnostics
  Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.


Specifications:

• Weight: 12.15 lbs.

• Dimensions: 22 × 10.75 × 4.5 in

• Item Weight (lbs.): 10.85

• Item Length (in): 20.0

• Item Width (in): 9.0

• Item Height (in): 2.5

• Type: Amplifier

• Series: COLOSSUS Classic

• Color: Black

• Warranty: 1 Year

• Compatible Vehicles: Universal

• Amp Class: Super A/B Class™

• Amp Total Channels: 4

• Amp Max Power (watts): 1700

• Amp Power @ 2 Ohms (ch x watts): 4 x 425

• Amp Power @ 4 Ohms (ch x watts): 4 x 225

• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 850

• Amp Crossover: Variable Electronic 12dB Per Octave

• Amp Variable High Pass Crossover 12dB per Octave: 10Hz-2.5KHz

• Amp Variable Low Pass Crossover 12dB per Octave: 30Hz-2.5KHz

• Amp Tone Control / Parametric EQ: Built-in Bass Control

• Amp Bass Boost: 0-10dB

• Amp Variable Voltage: 0.2-9V

• Amp Frequency Response: 10Hz-22kHz

• Amp Total Harmonic Distortion (THD): < 0.5%

• Amp Speaker Level Audio Inputs: Yes

• Amp Power Terminal 12v/GND: 4 AWG

• Amp Speaker Terminal Wire Gauge: 12 AWG

• Amp Fusing: 100A
