JBL C50PACK Commercial Sub+(4) Wall Speakers+Amplifier For Restaurant/Bar/Cafe

• (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
• (1) JBL C50PACK Commercial Subwoofer+(4) Satellite Speakers For Restaurant/Bar/Cafe

Authorized JBL Dealer!

Description:

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features:

• JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs
• Max Output Power: 60 Watts
• Frequency Response: 20 Hz - 20 kHz
• THD (Total Harmonic Distortion): <0.5%
• Signal-to-Noise Ratio: > 76 dB
• Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
• Phantom Power: 27VDC
• Crosstalk: -70 dB
• Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
• Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms
• Insertion Loss: 1 dB Maximum
• Number of Inputs: 5
• Number of Outputs: 1
• Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
• Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
• Independent bass and treble controls for each output channel
• Paging Chime, and Priority Muting
• Rack mounting hardware included
• Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
• Product Weight: 19.4 Lbs.

All About Your 70 Volt:

Description:

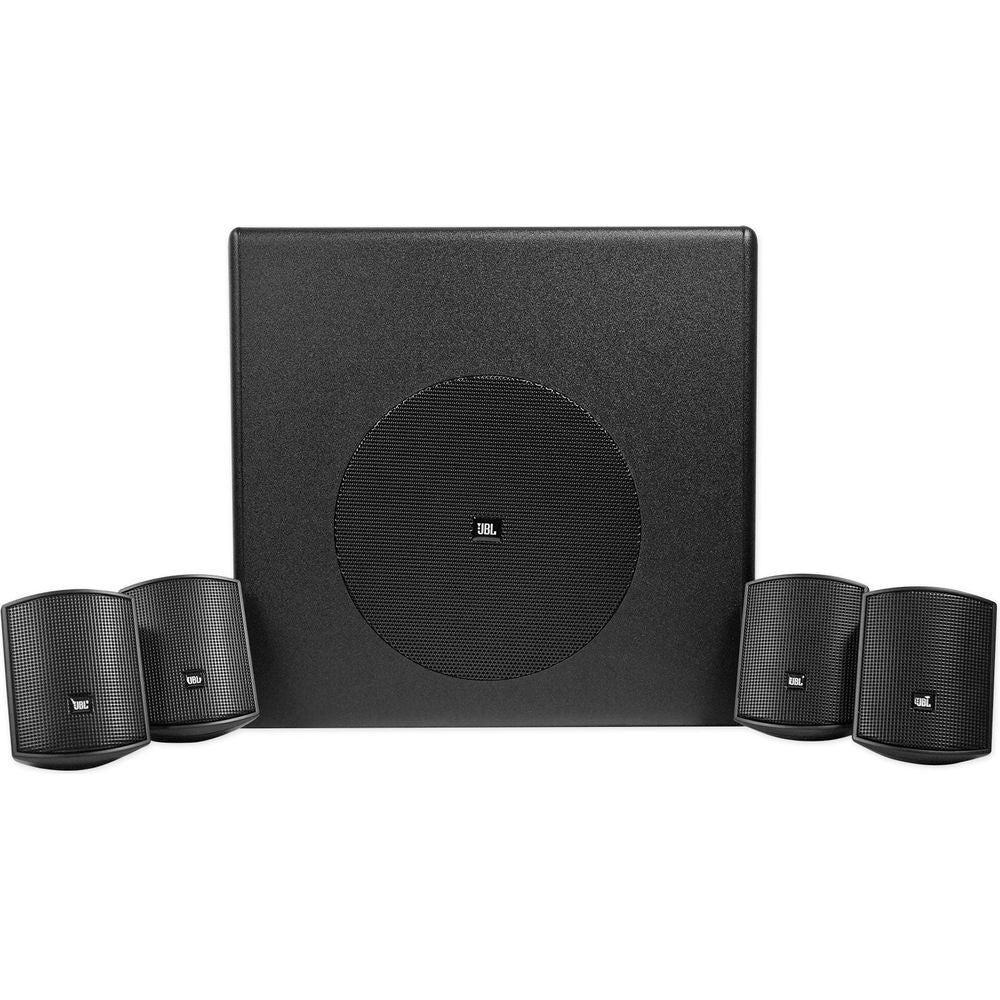

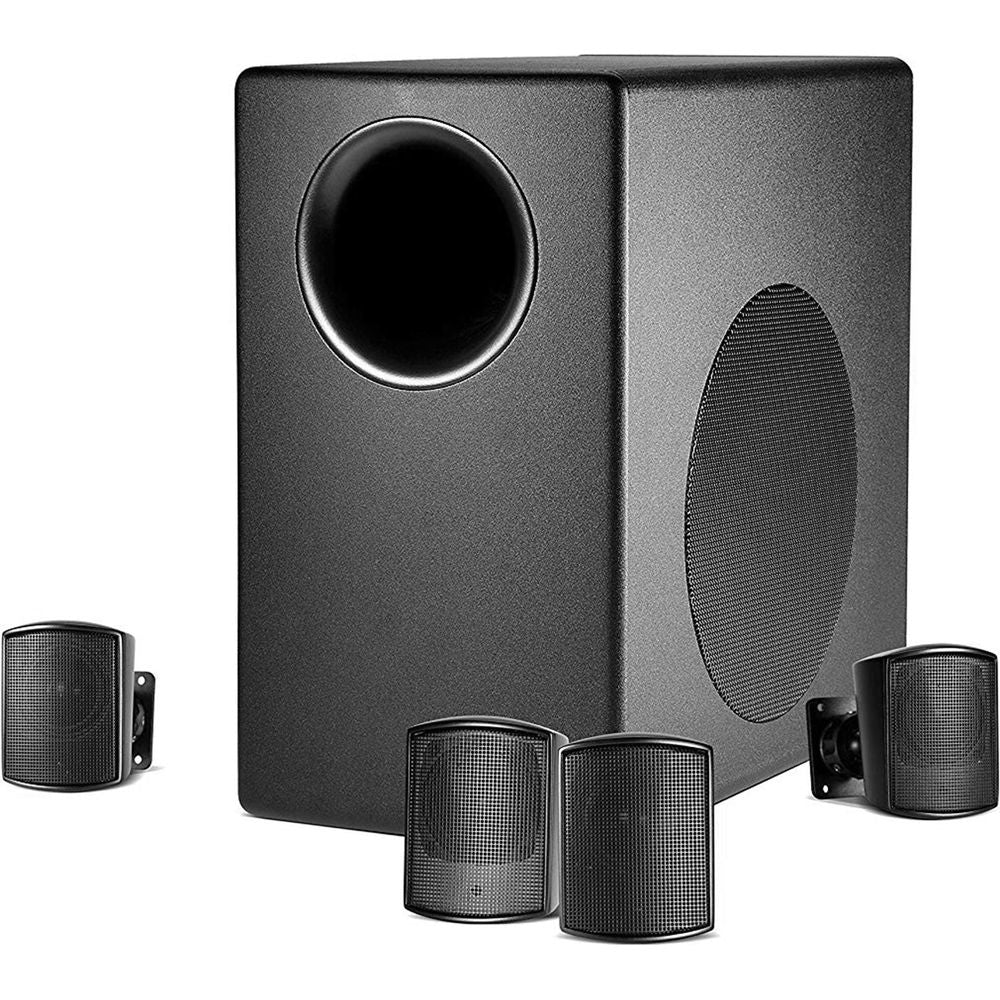

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System
The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surfacemount system.

Features:

• JBL C50PACK Commercial Subwoofer+(4) Satellite Speakers For Restaurant/Bar/Cafe
• Versatile four satellite speaker system
• Stylish, unobtrusive design fits into a wide variety of decor
• High fidelity sound
• Selectable 70V/100V for distributed lines, or low impedance
• Wall-mount brackets include
• Available in black or white

Specifications :

• Frequency Range (-10 dB) 32 Hz – 20 kHz
• Frequency Response (±3 dB) 50 Hz – 17 kHz
• Power Capacity 200 Watts Continuous Program Power (100 hrs)
• 100 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity
• (2.83V, 1m) 87 dB (subwoofer center of wall, higher sensitivity depending on subwoofer boundary loading, see application note)
• Nominal Impedance 4 ohms (in bypass/thru mode) with 4 satellites

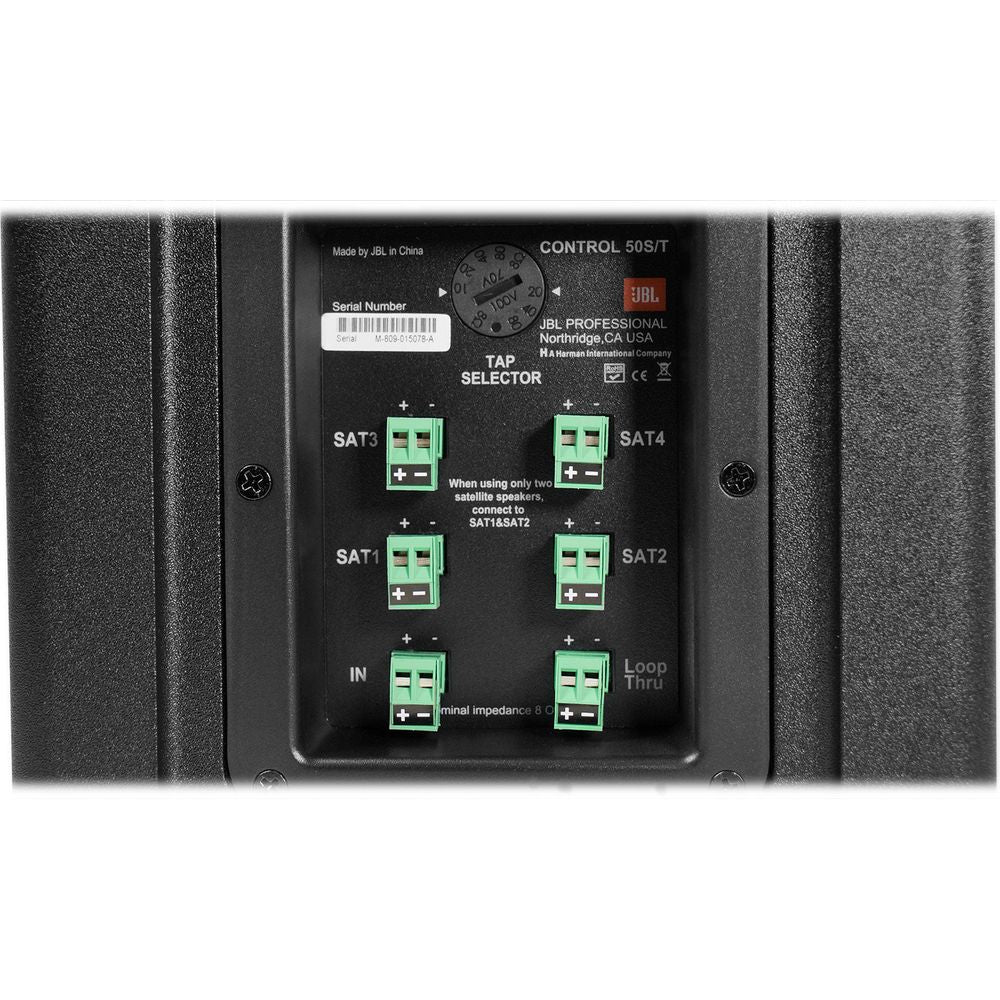

• Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
