Features:

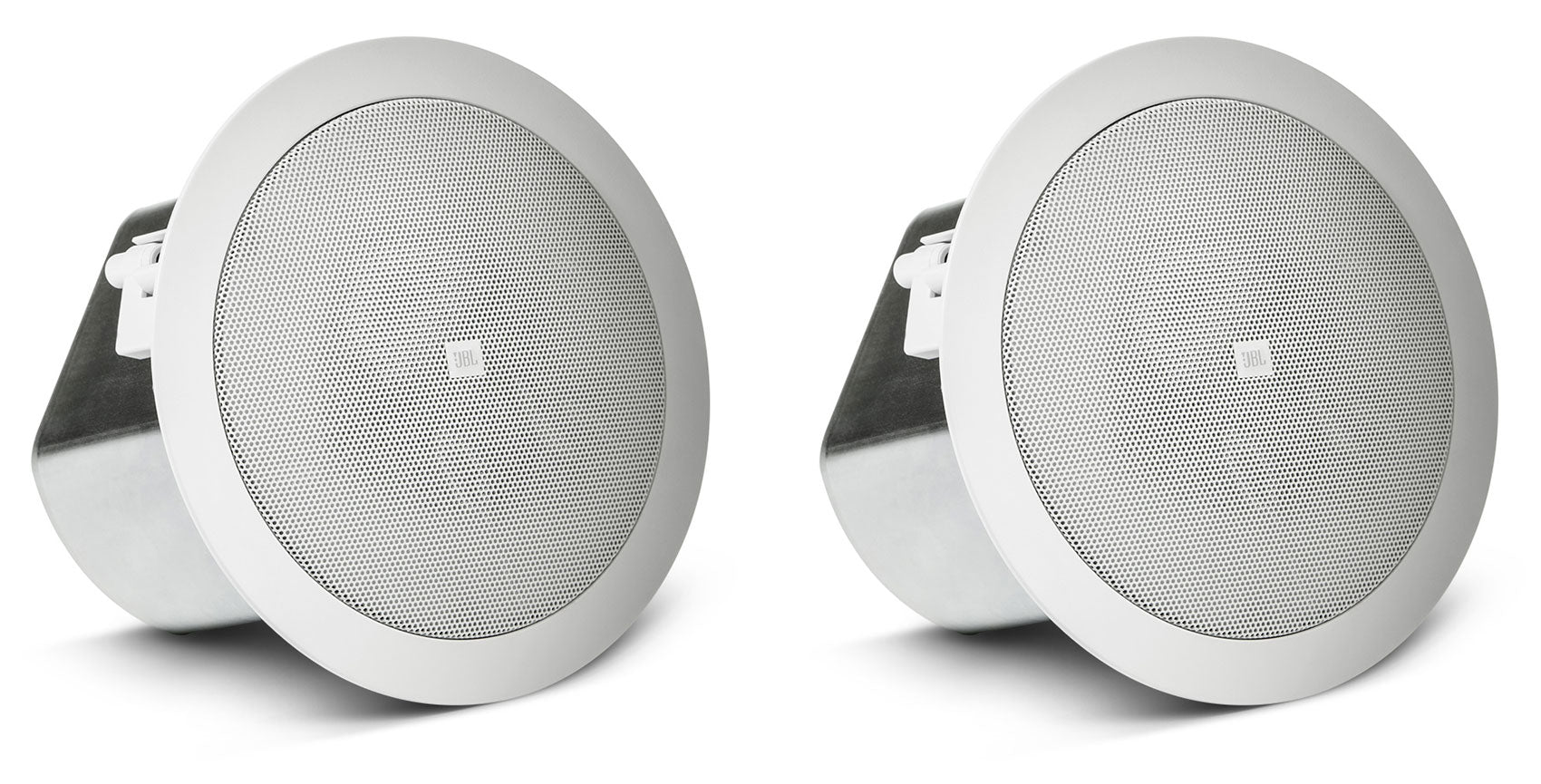

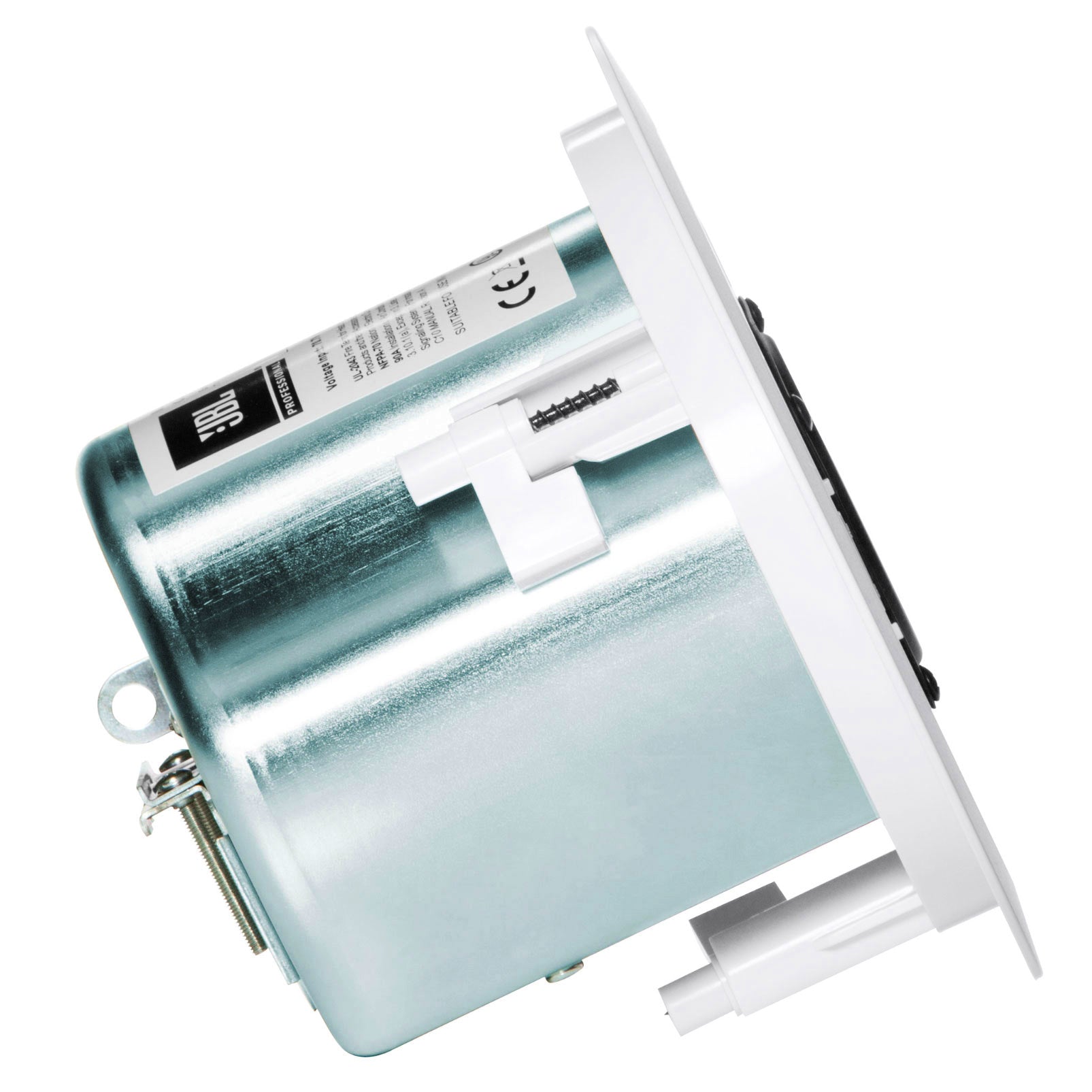

- Pair JBL CONTROL 12C/T 3" 15w 70v In-Ceiling Speakers For Restaurant/Bar/Cafe

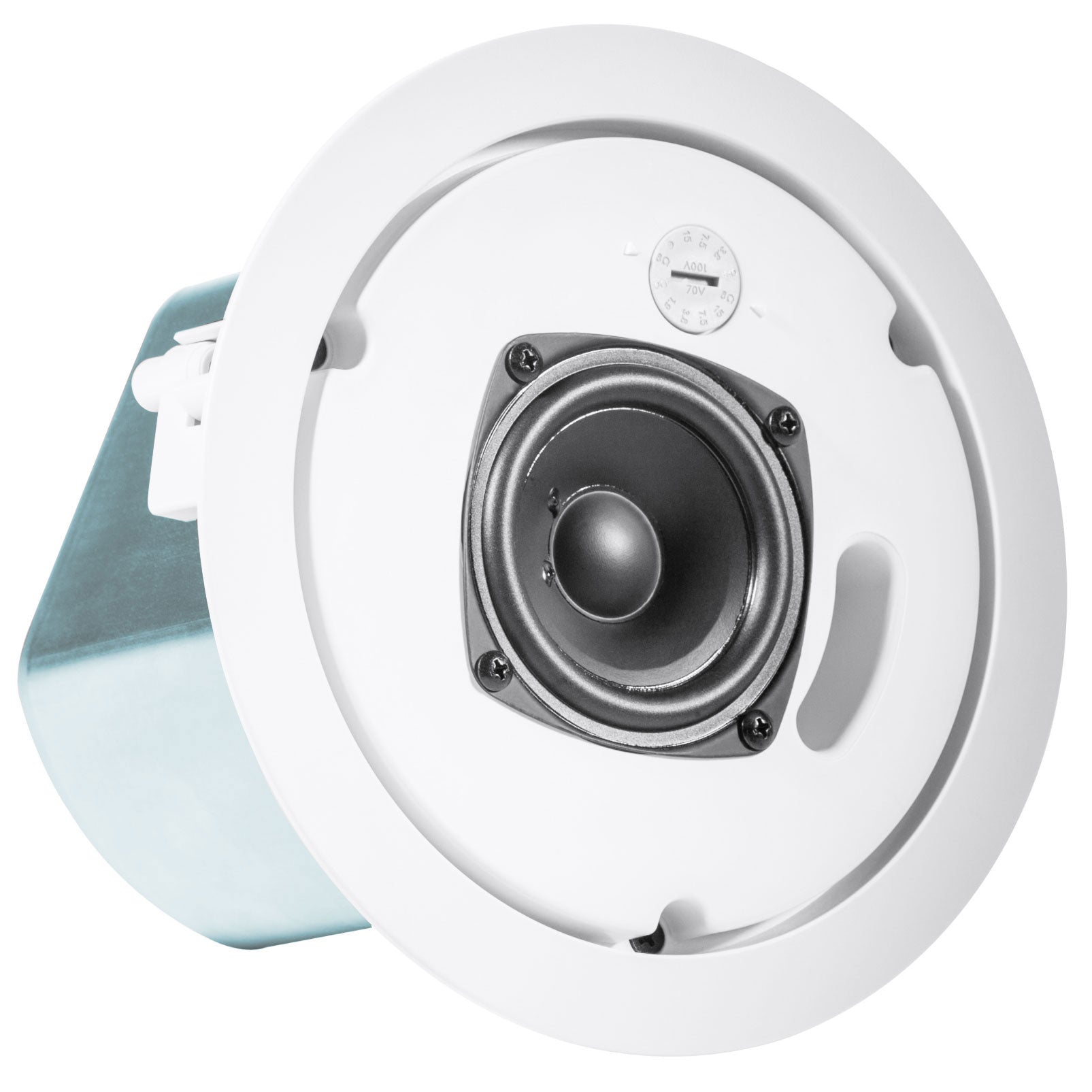

- 76 mm (3 in) full-range driver

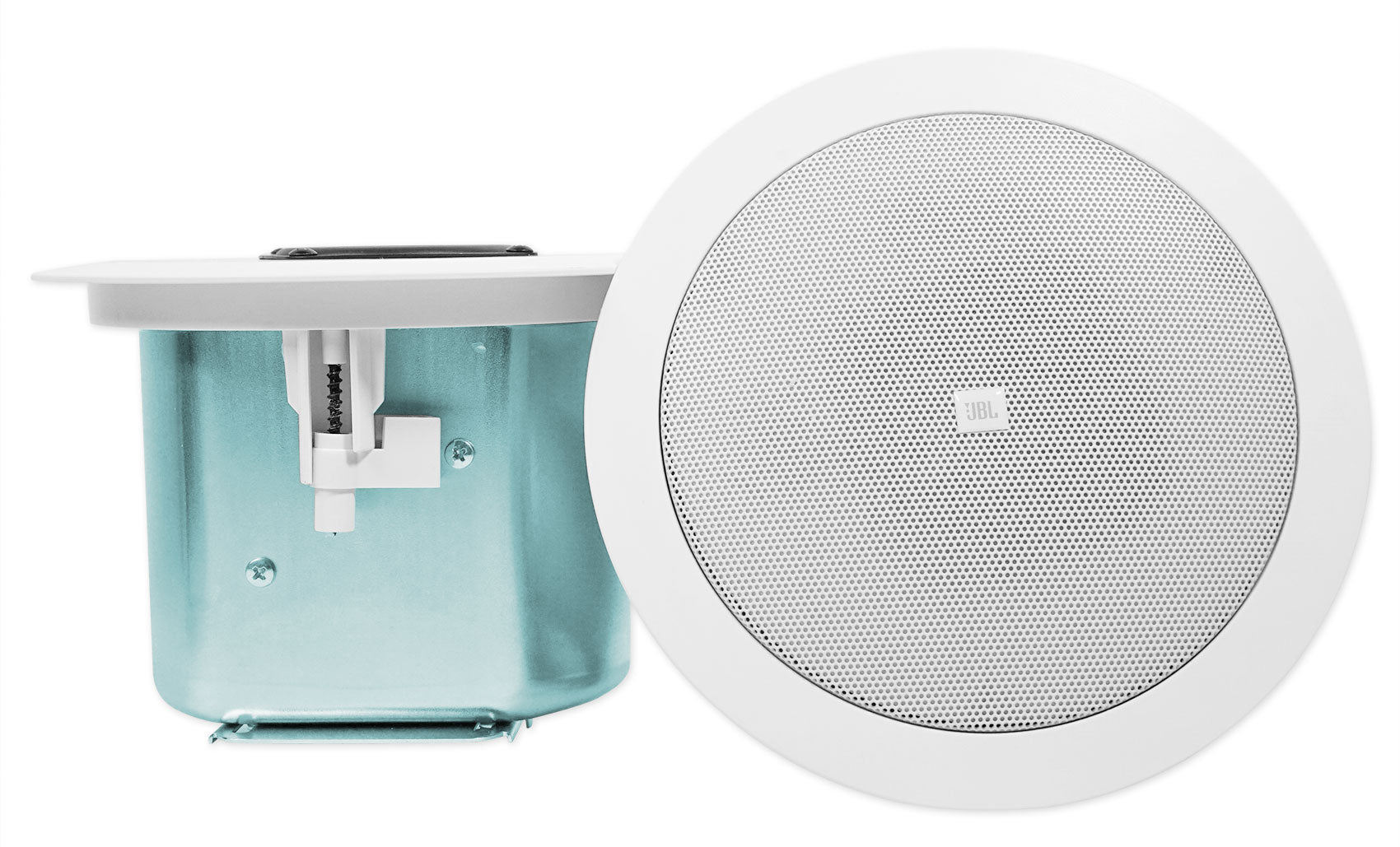

- Blind-mount backcan for quick and easy install
- Combined 70V/100V and low impedance direct operation: 20 Watts at 8O nominal setting and 15W multi-tap at 70V/100V
- 68 Hz – 17 kHz bandwidth with wide 130° coverage
- Color: White
Specifications:
- Frequency Range (-10 dB) 68 Hz – 17 kHz
- Power Capacity (at low-Z) 40 Watts Continuous Program Power
- 20 Watts Continuous Pink Noise
- Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V
- (& 1.9 W @ 70V only)
- Frequency Response (±3 dB) 95 Hz – 15 kHz
- Nominal Sensitivity 84 dB
- Nominal Coverage Angle 130° conical coverage
- Directivity Factor (Q) 9.8
- Directivity Index (DI) 7.4 dB
- Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
- Nominal Impedance 8 ohms (in direct/bypass 8O setting)

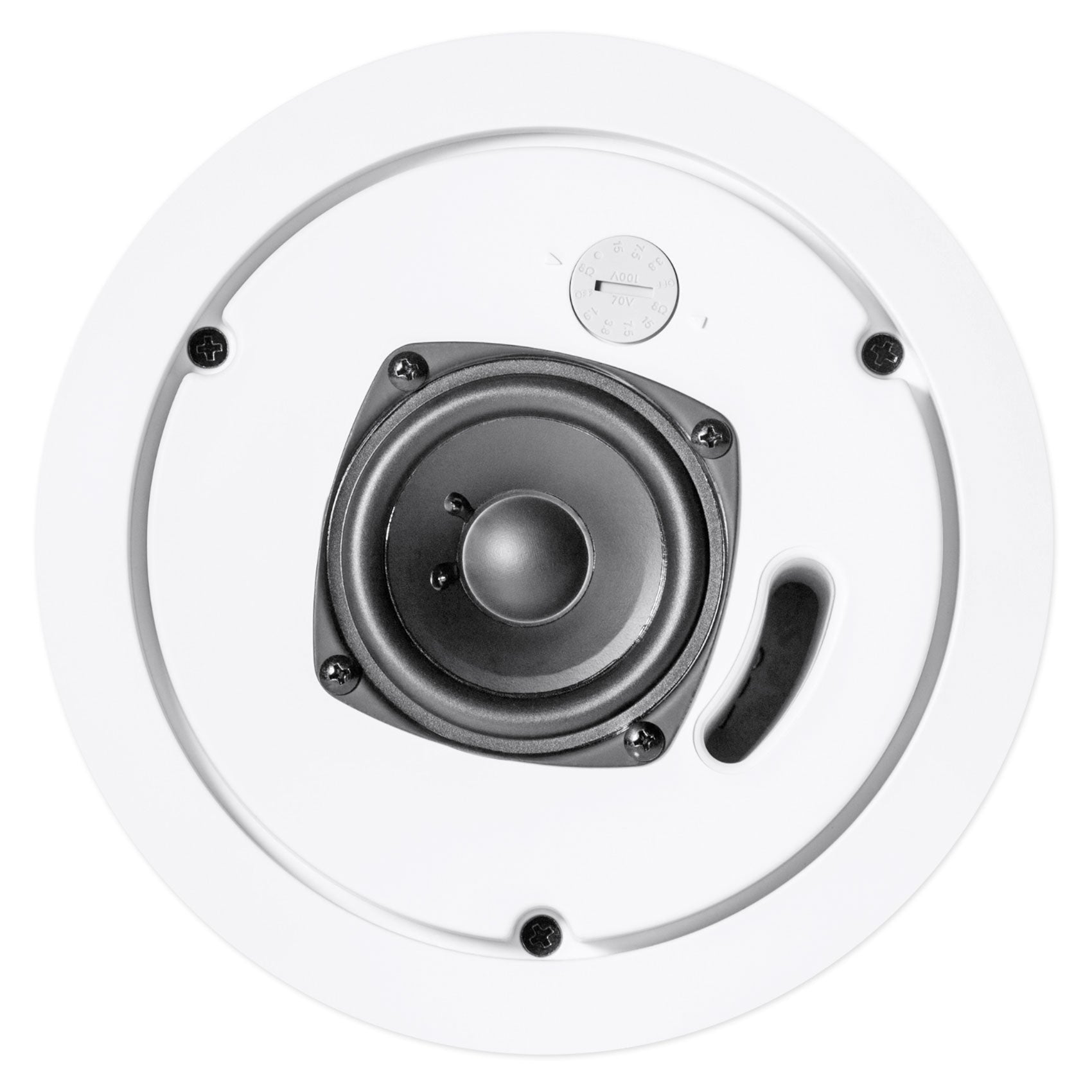

- Full-Range Driver 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
- Input Connectors Removable locking 4-pin connector with screw-down terminals.
- Max wire size 12 AWG (2.5 mm2)

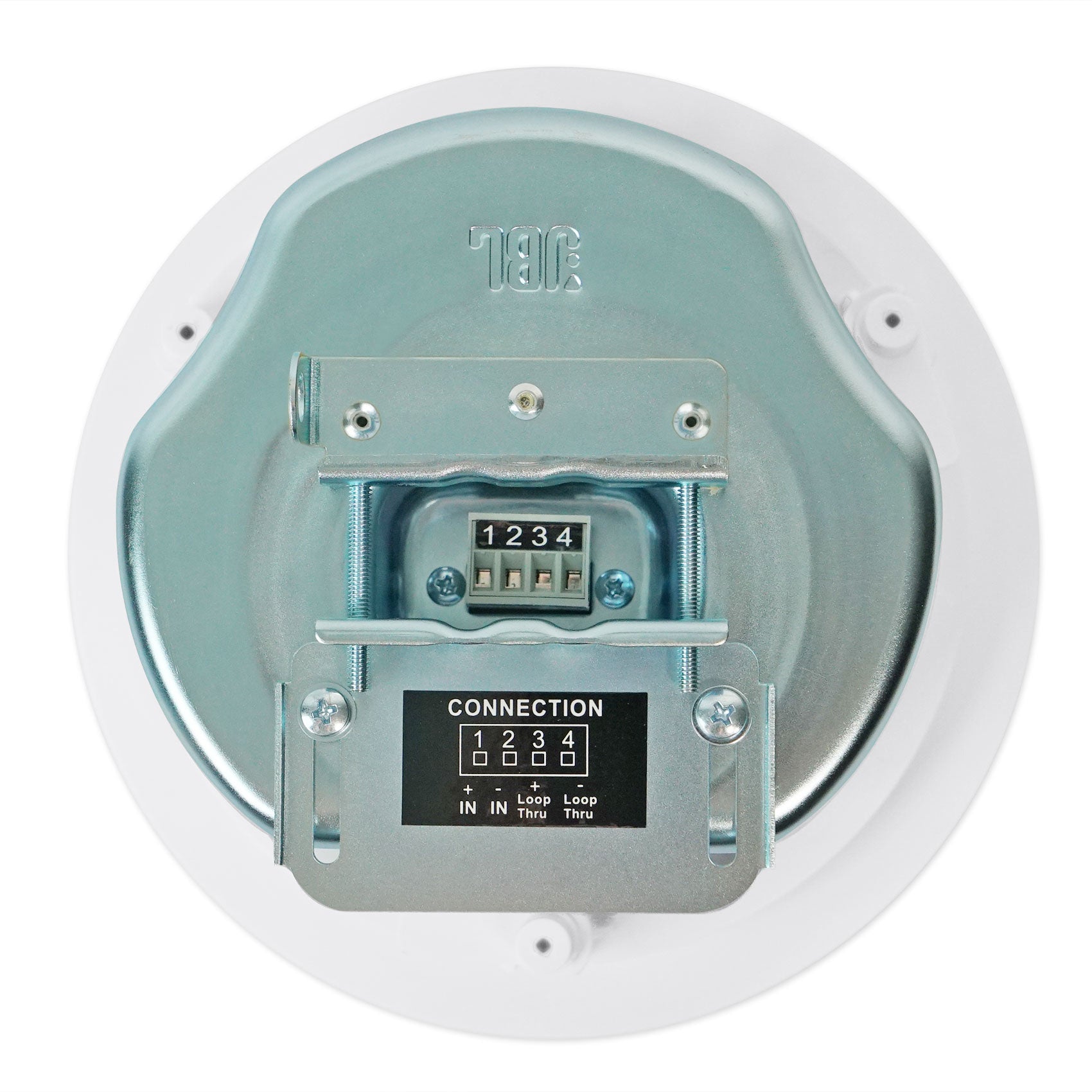

- Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
- Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated
- steel backcan

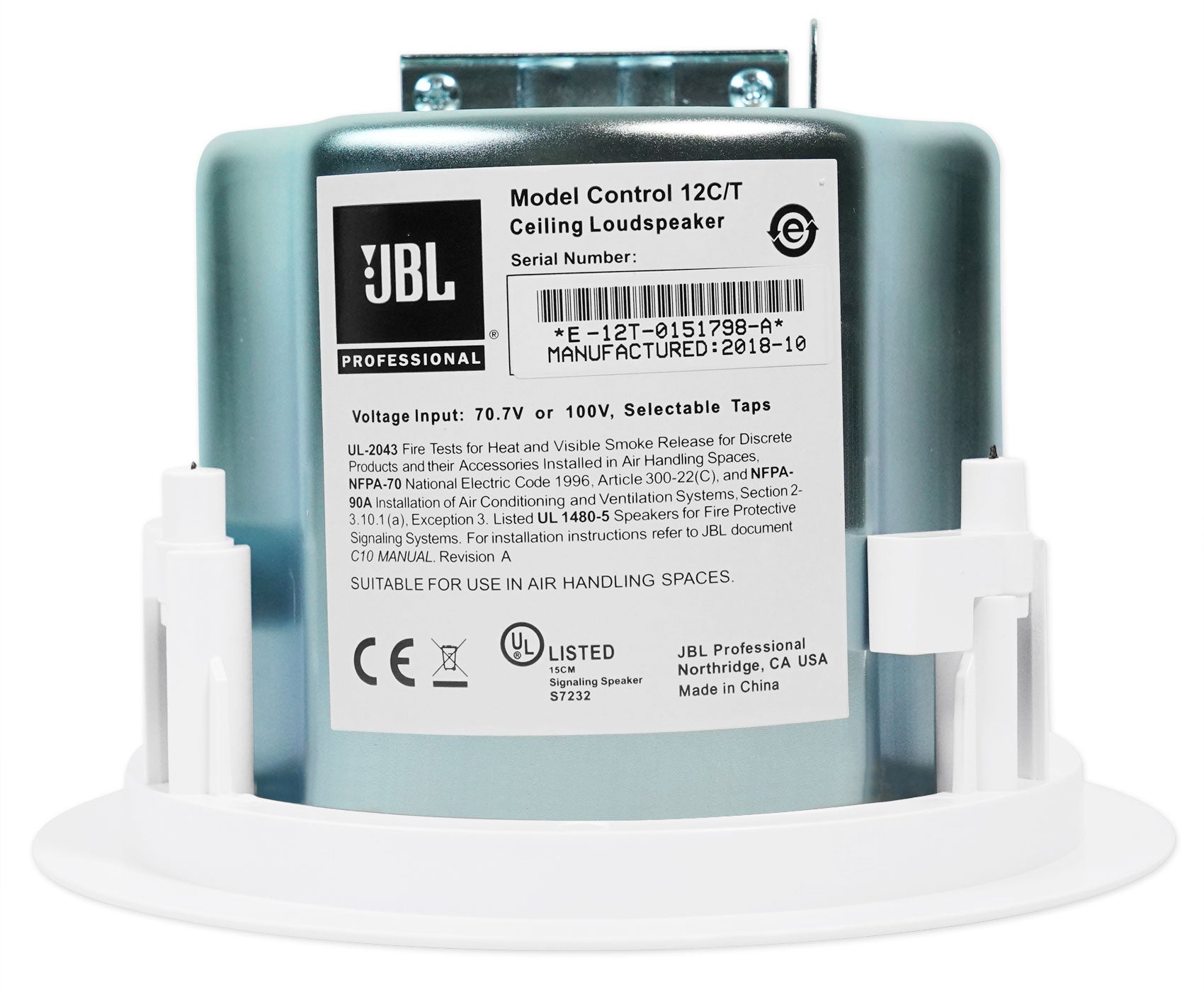

- Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
- Dimensions 196 mm diameter x 138 mm depth from back of baffle
- (7.7 in diameter x 5.4 in depth)
- Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout
- template included)
- Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
- Safety Seismic Attachment One point, top surface
- Net Weight 1.6 kg (3.5 lbs, one speaker)
- Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)

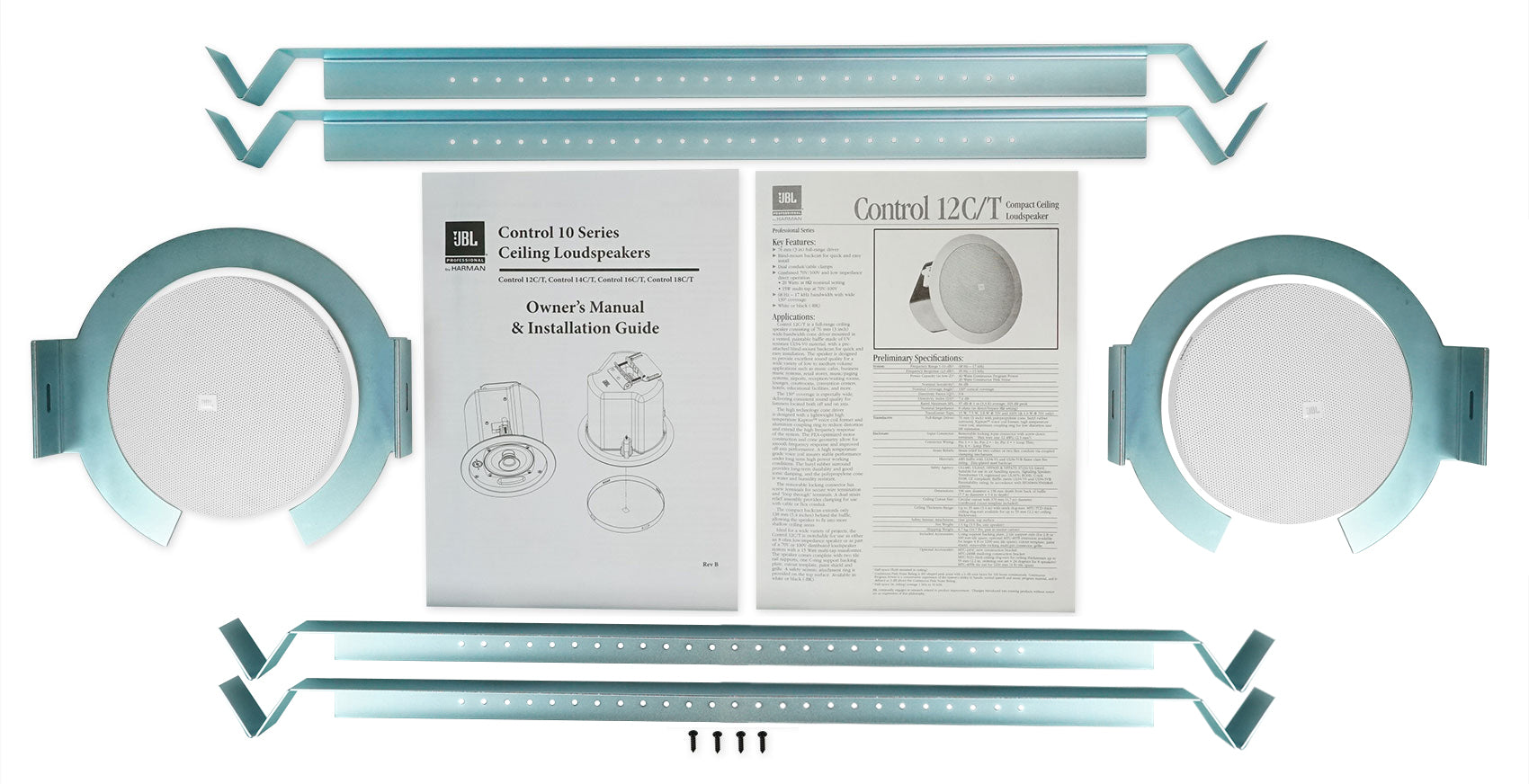

- Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
- Optional Accessories MTC-24NC new construction bracket, MTC-24MR mud-ring construction bracket, MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers), MTC-48TR tile rail for 1200 mm (4 ft) tile spans
