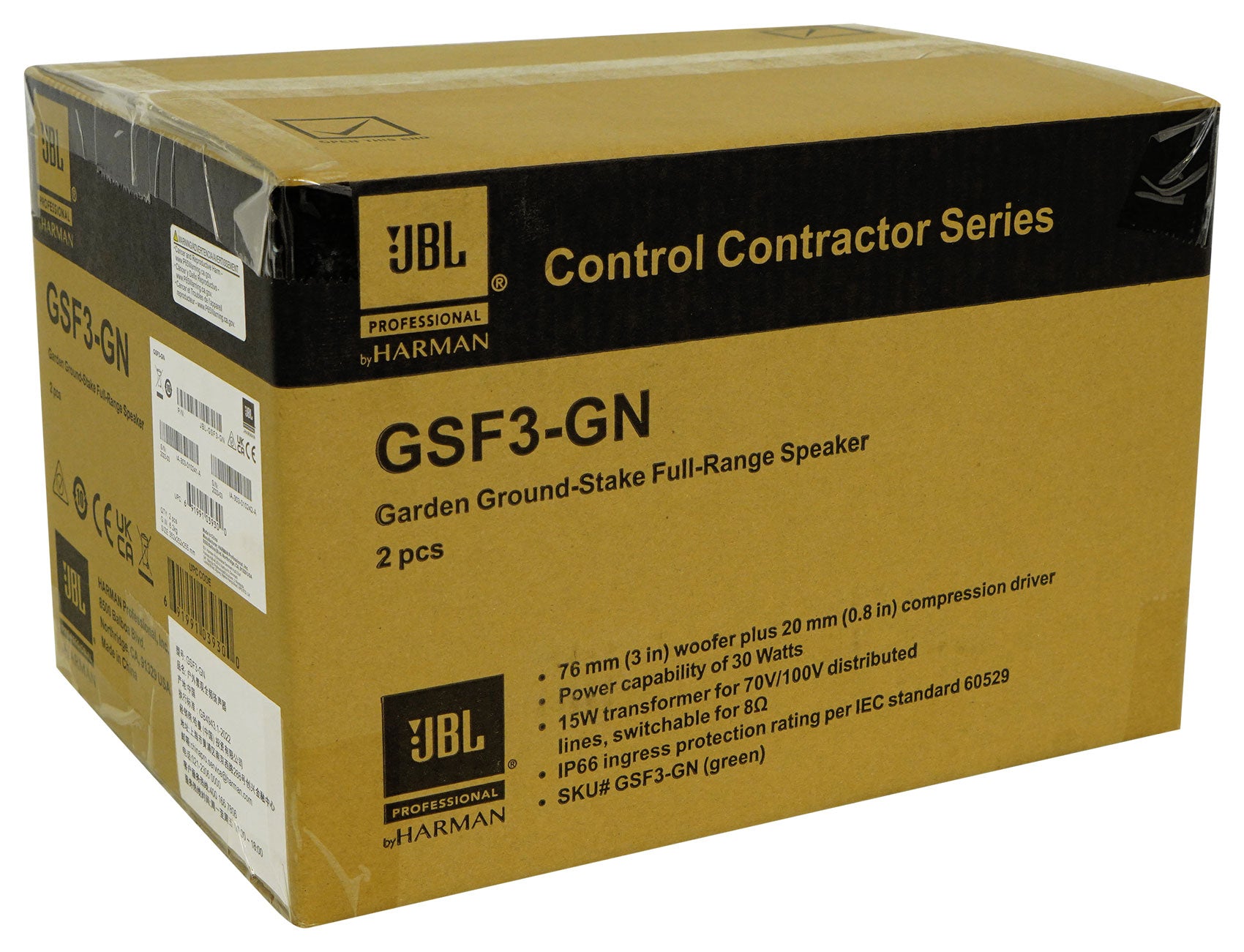

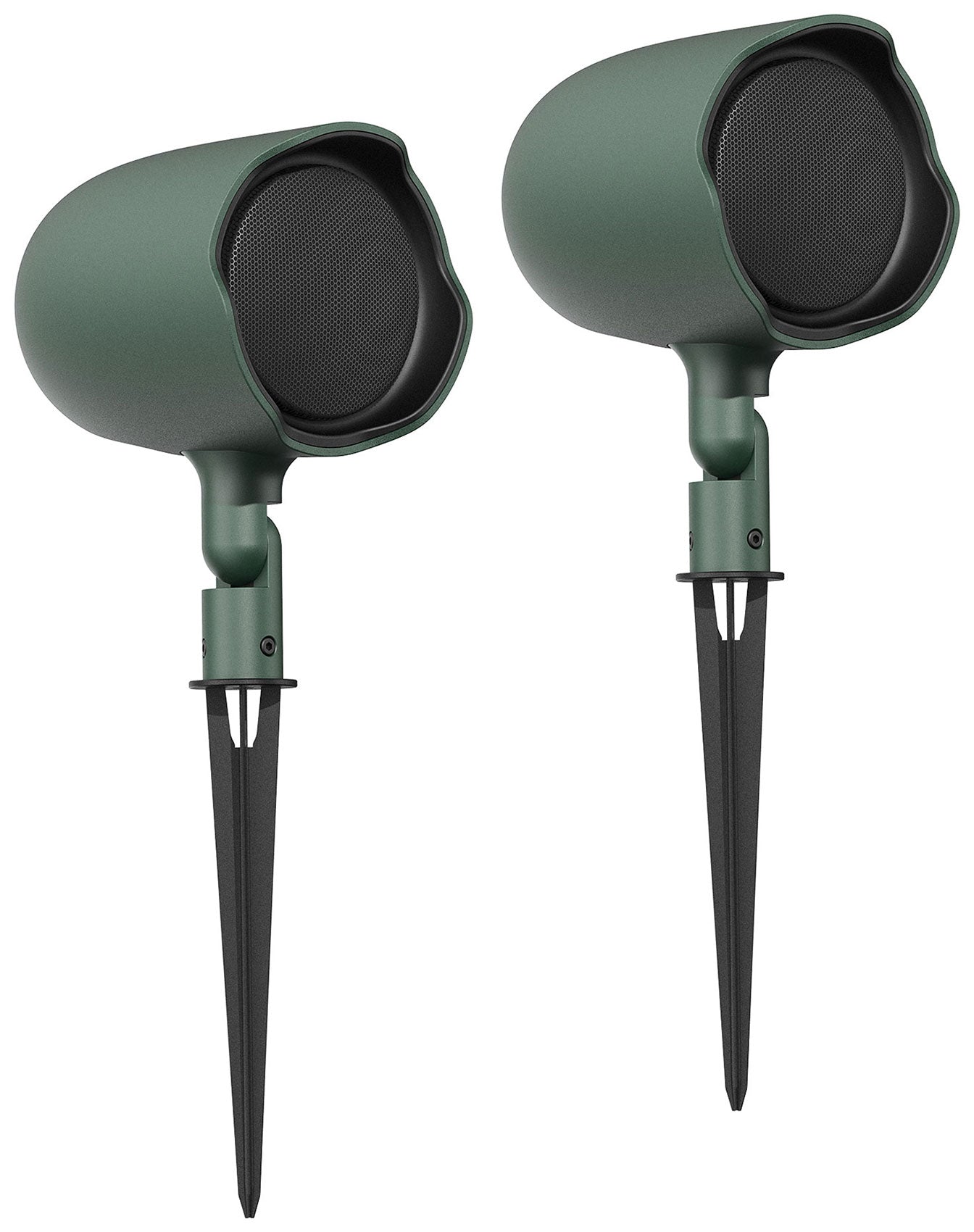

Pair JBL GSF3-GN 3" Landscape Ground Stake or Wall Mount 70v Commercial Speaker
Product Description
Description:
Ground-Stake Landscape Loudspeaker
The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

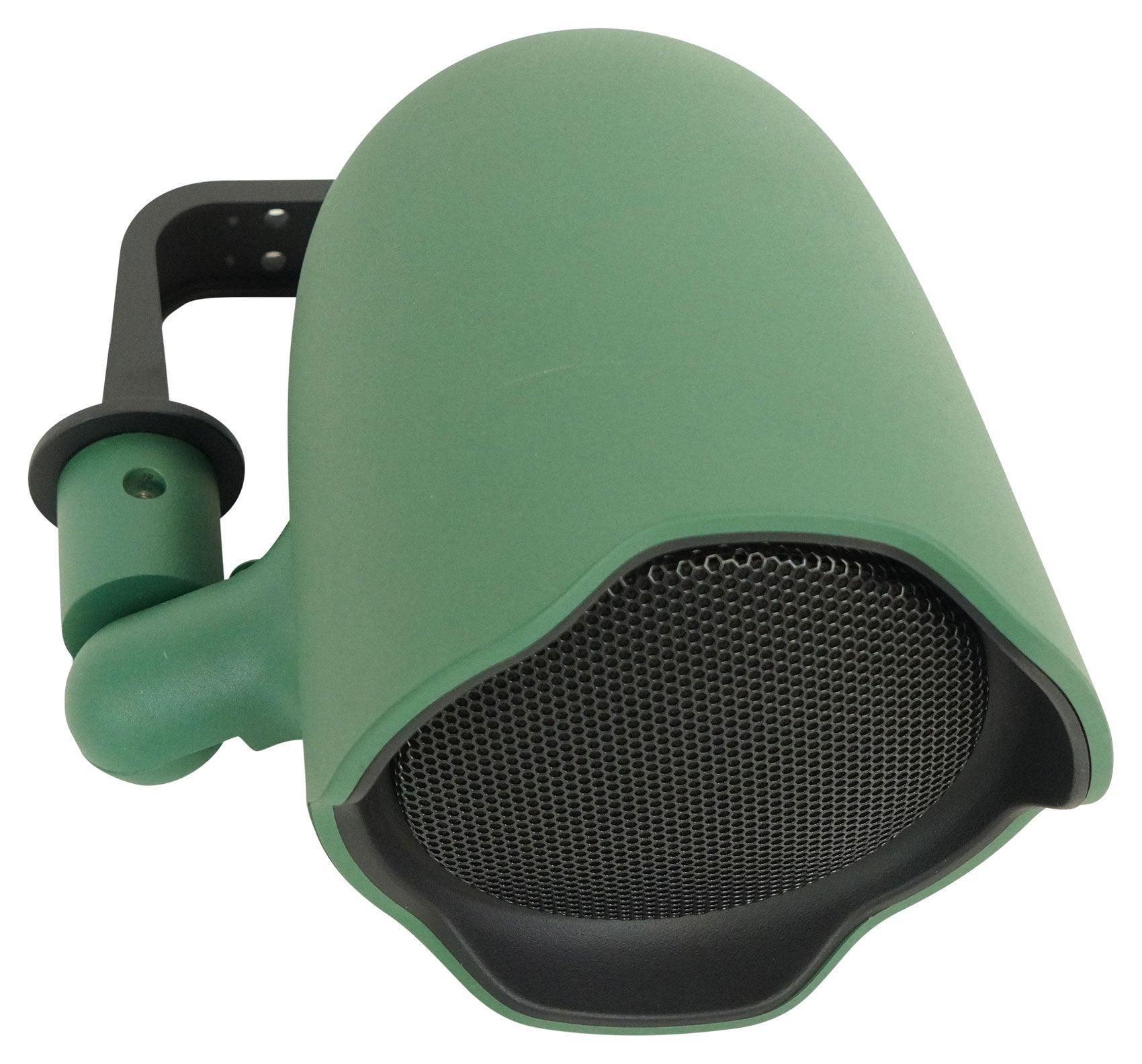

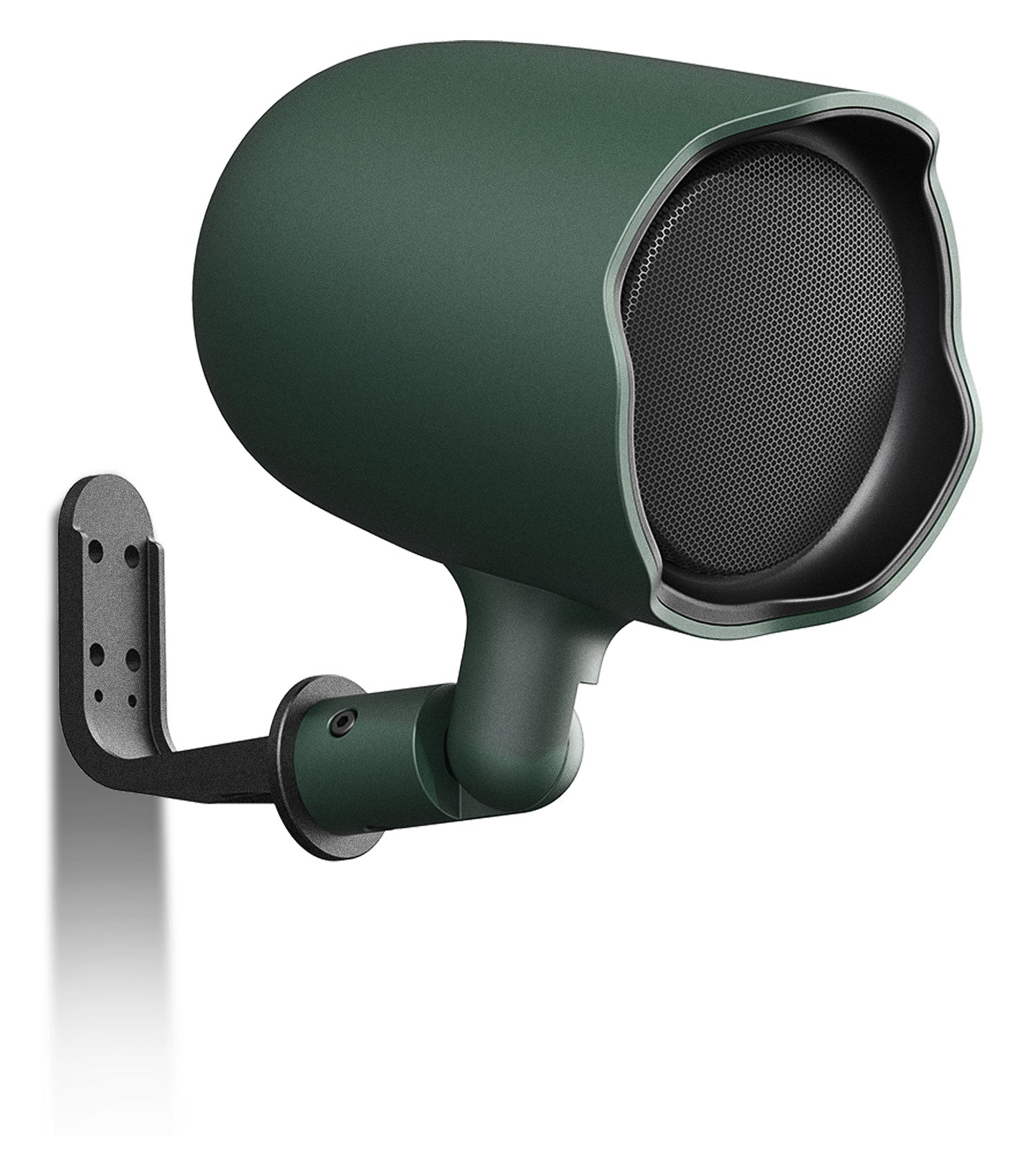

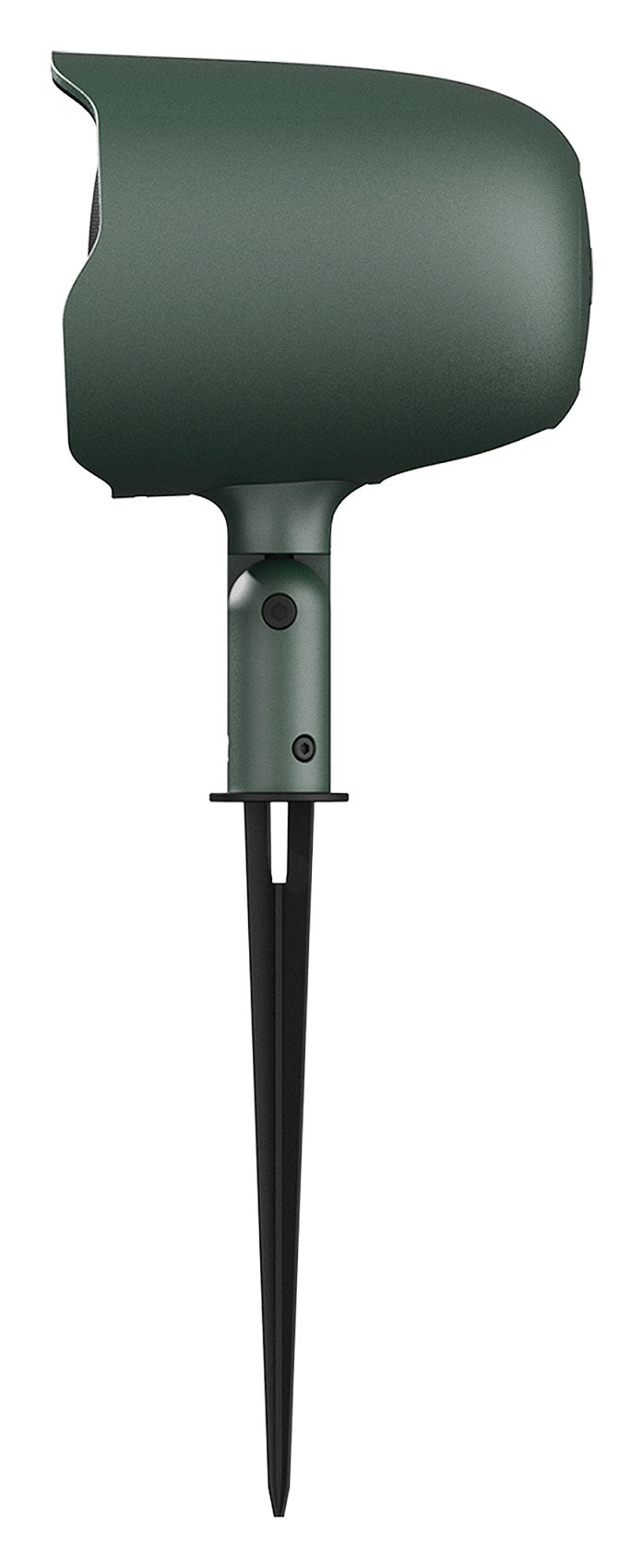

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF3 - winner of international design awards for industrial design excellence - is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
Features:

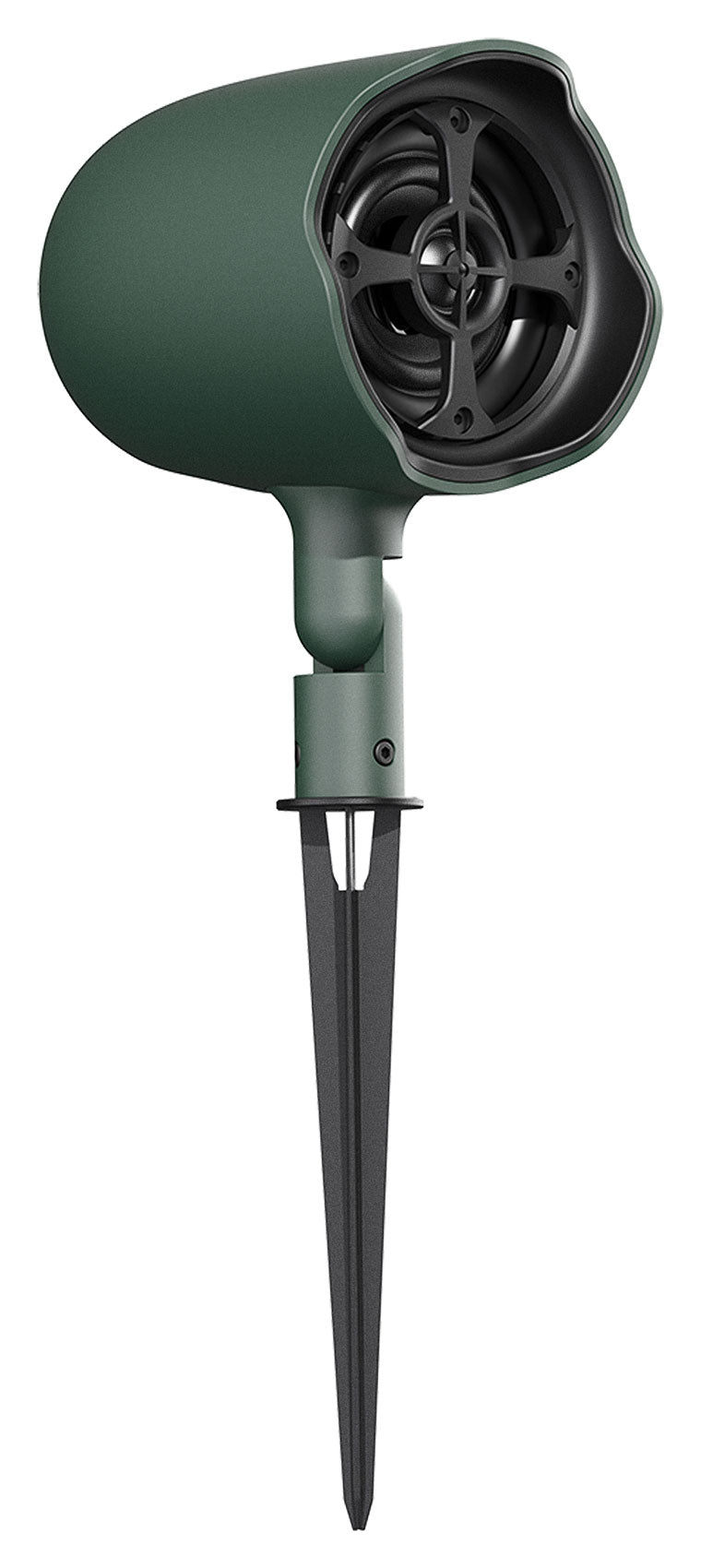

- Transducers: 83 mm (3") woofer with polypropylene cone and 25 mm (1") voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
- Frequency Range: 74 Hz - 20 kHz
- Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
- IP66 rated against water and dust ingress
- Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
- Bottom drip hole provides drainage for drivers
- Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers

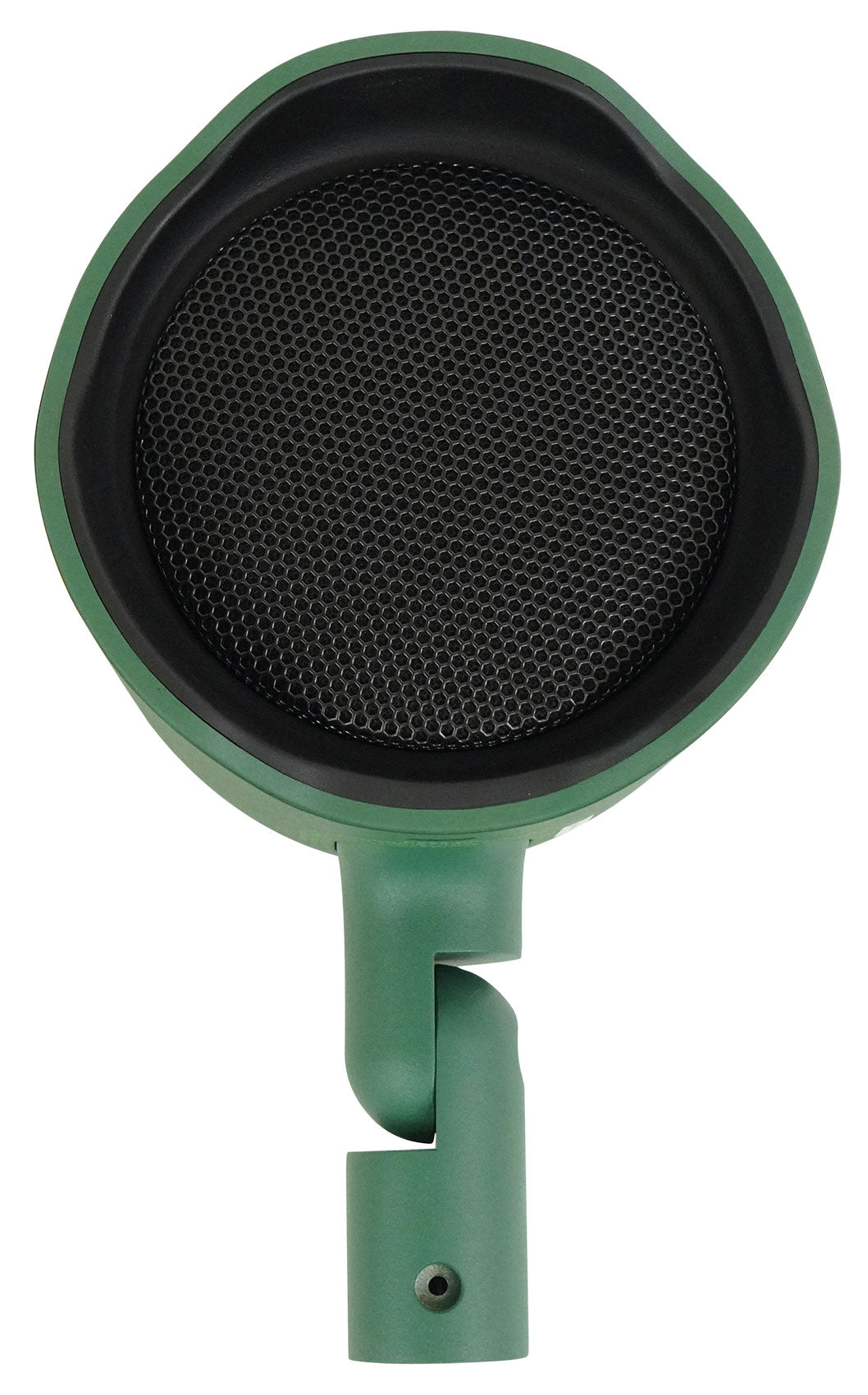

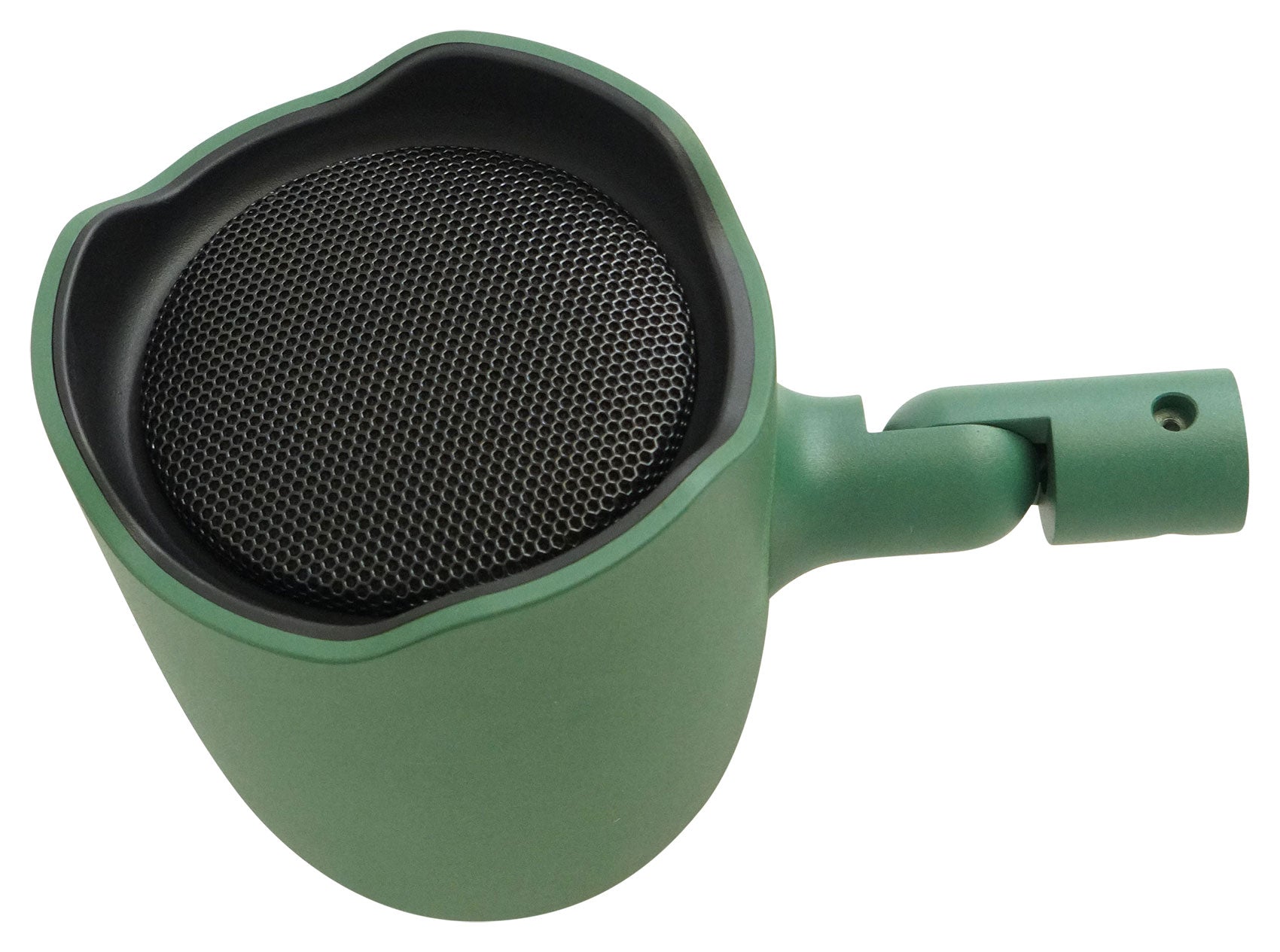

- Aimable via adjustable hinge
- Includes ground stake and L-bracket for surface mounting

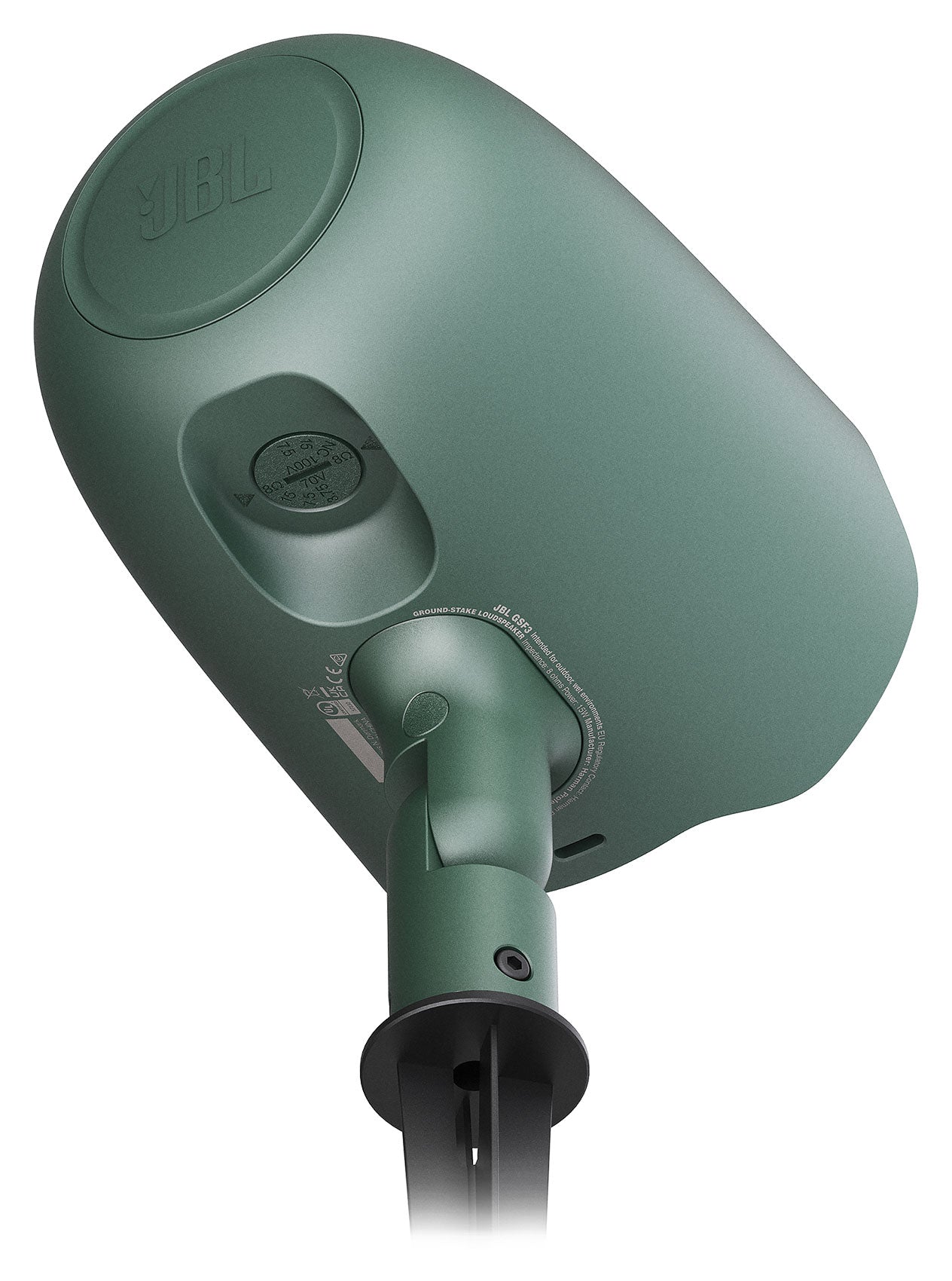

- Includes tap selector located on bottom of speaker, away from water incursion
- Available in hunter green or tan finish
Specifications:
- Frequency Range (-10dB): 74 Hz - 20 kHz
- Frequency Response (+/-3 dB): 120 Hz - 15 kHz
- Power Rating: 60 W Continuous Program (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (2 hrs), 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
- Sensitivity: 84 dB (43 Hz - 110 Hz)
- Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m
- Coverage Pattern: 90° conical
- Nominal Impedance: 8 Ω (at 8Ω tap)
- Transformer Taps: 70V: 15 W, 7.5 W, 3.75 W, 100V: 15 W, 7.5 W
- Drivers: 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton voice coil former, 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton voice coil former

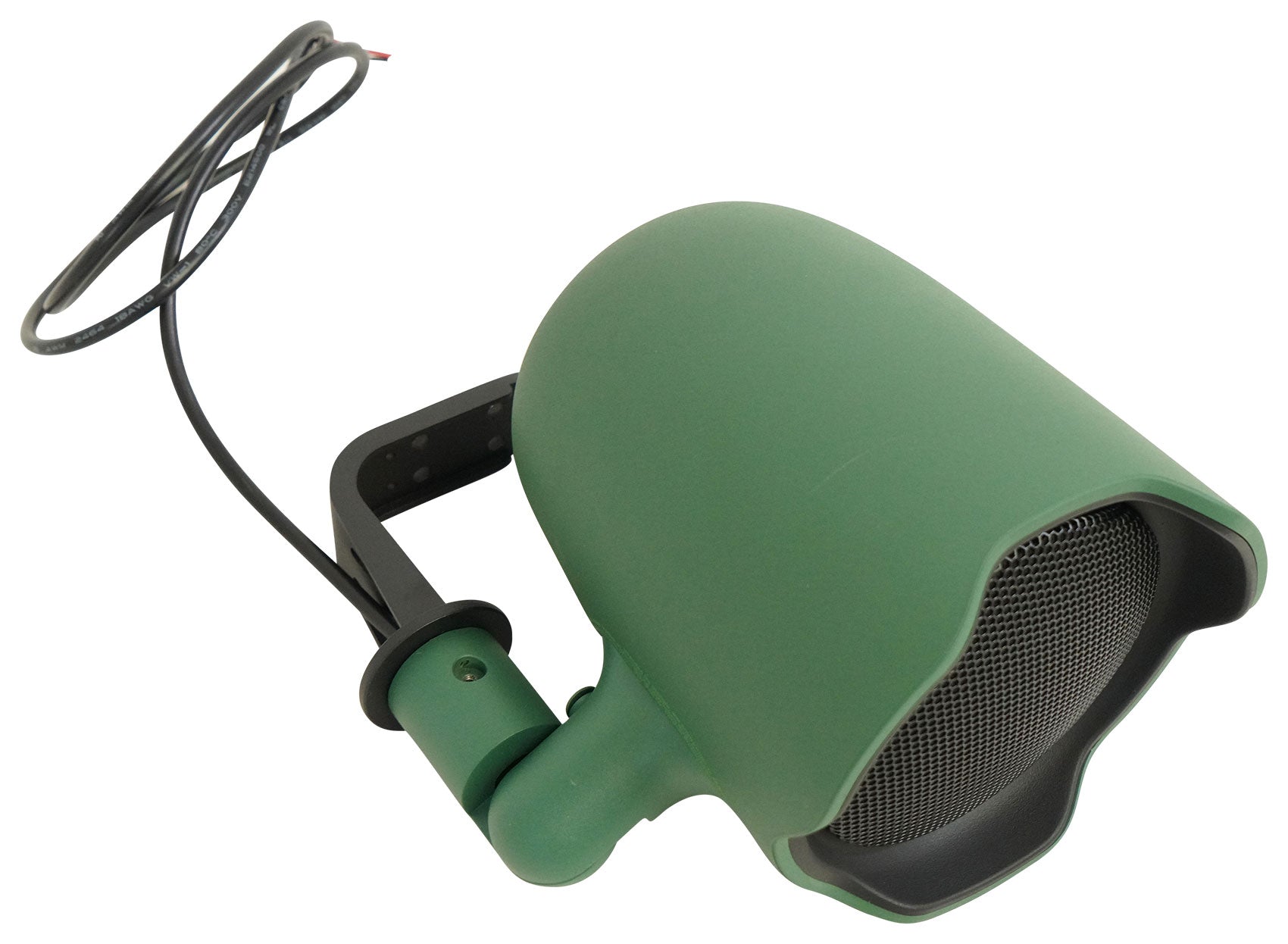

- Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
- Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
- Color: Hunter Green RAL 6018, or Tan RAL7004
- Dimensions: Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
- Net Weight: 1.7 kg (3.8 lbs)

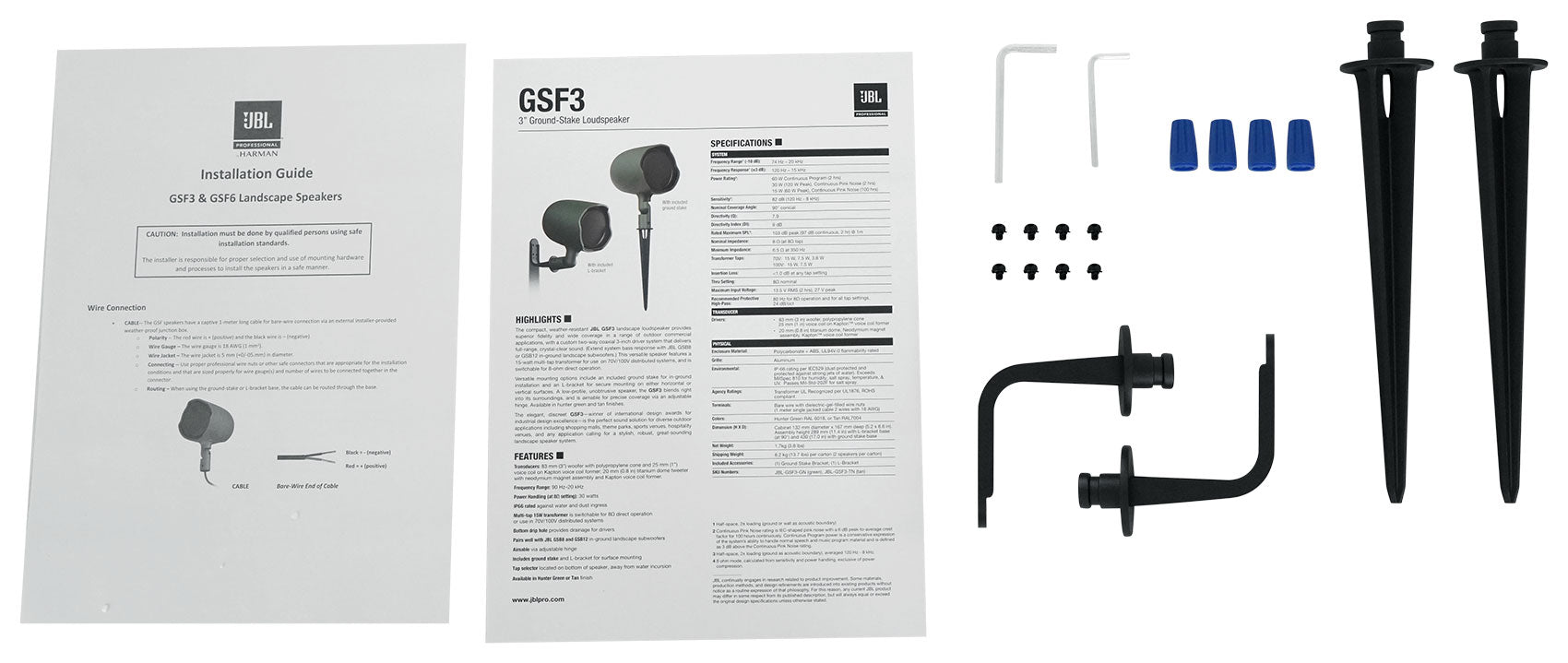

- Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket
- Directivity Factor (Q): 7.9
- Directivity Index (dB): 9 dB
