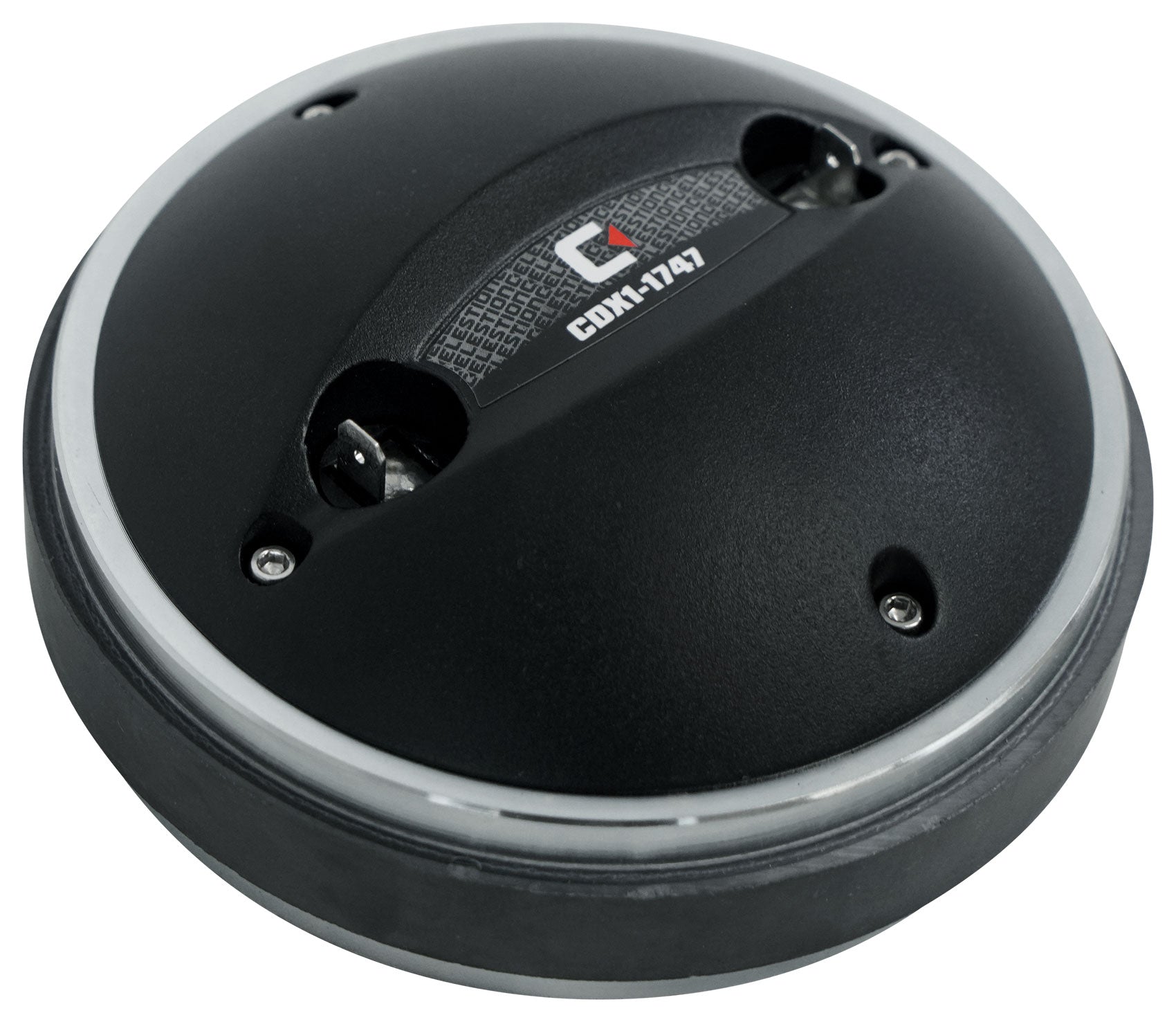

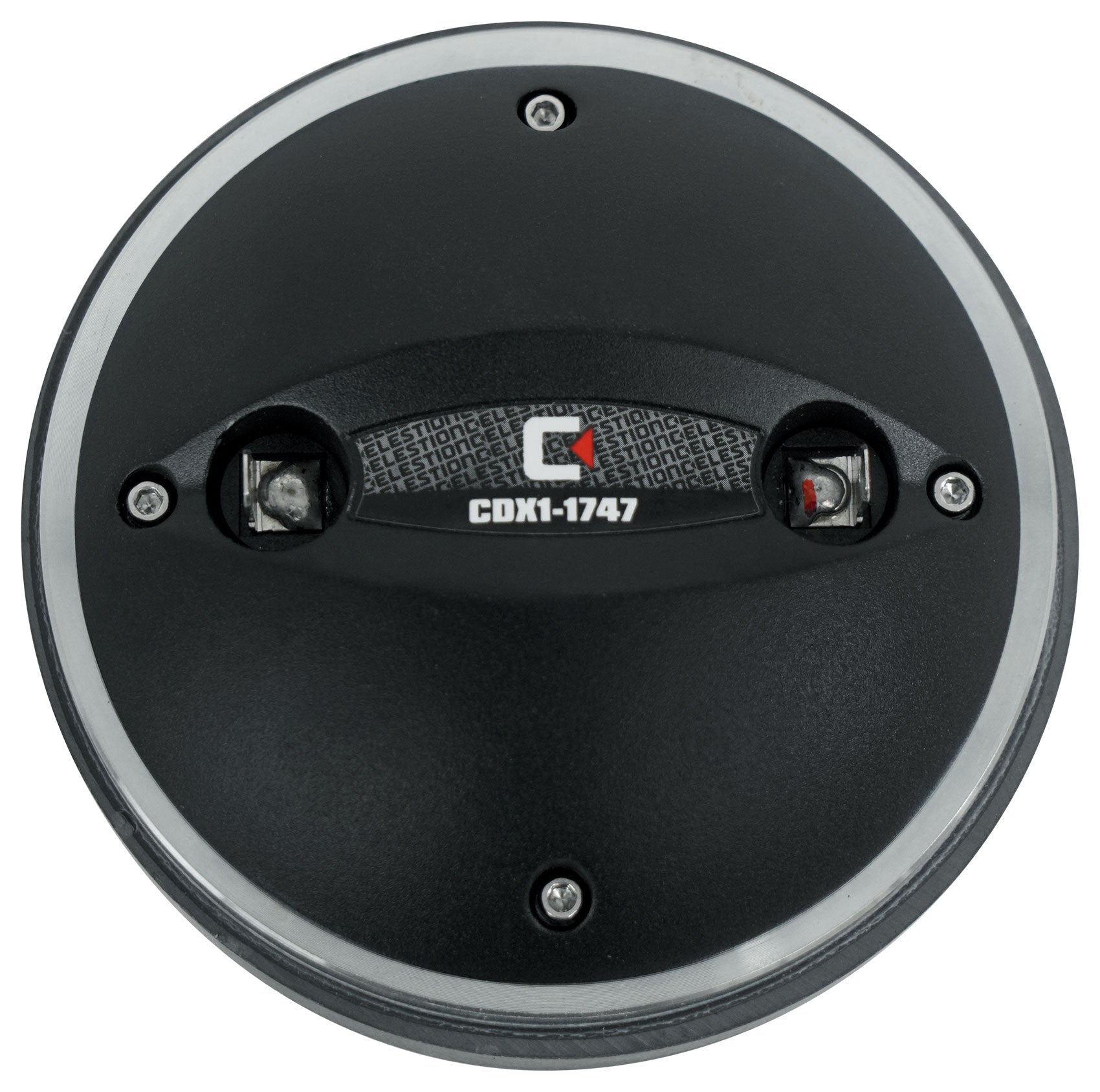

Celestion CDX1-1747 120W Pro Audio PA 1" Compression Driver/Bolt-Fitting 1" Exit

Features:

• Single piece polyimide diaphragm and surround
• Sound Castle soft clamping diaphragm assembly
• 1,600Hz recommended min. crossover freq (12dB/oct)
• Bolt fitting

Specifications:

• Power rating: 60W
• Continuous power rating: 120W
• Rated impedance: 8Ω
• Sensitivity: 110dB
• Frequency range: 1000-20,000Hz
• Recommended min. crossover (12dB/oct): 1600Hz
• Magnet type: Ferrite
• Voice coil diameter: 44mm / 1.75in
• Voice coil material: Edgewound copper clad aluminum
• Diaphragm material: Polyimide
• Surround material: Polyimide

Mounting Information:

• Width: 120mm / 4.7in
• Depth: 53mm / 2.1in

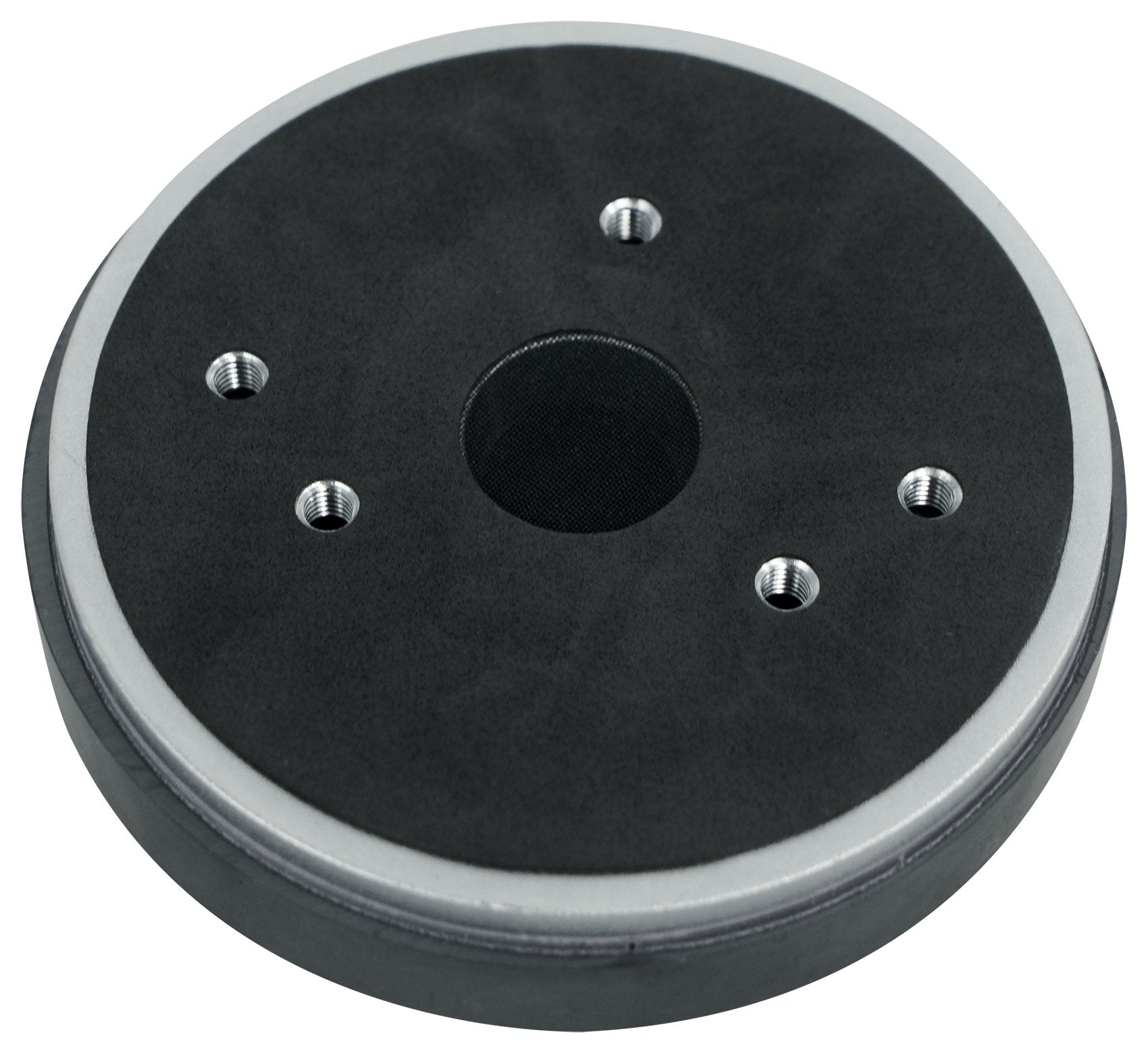

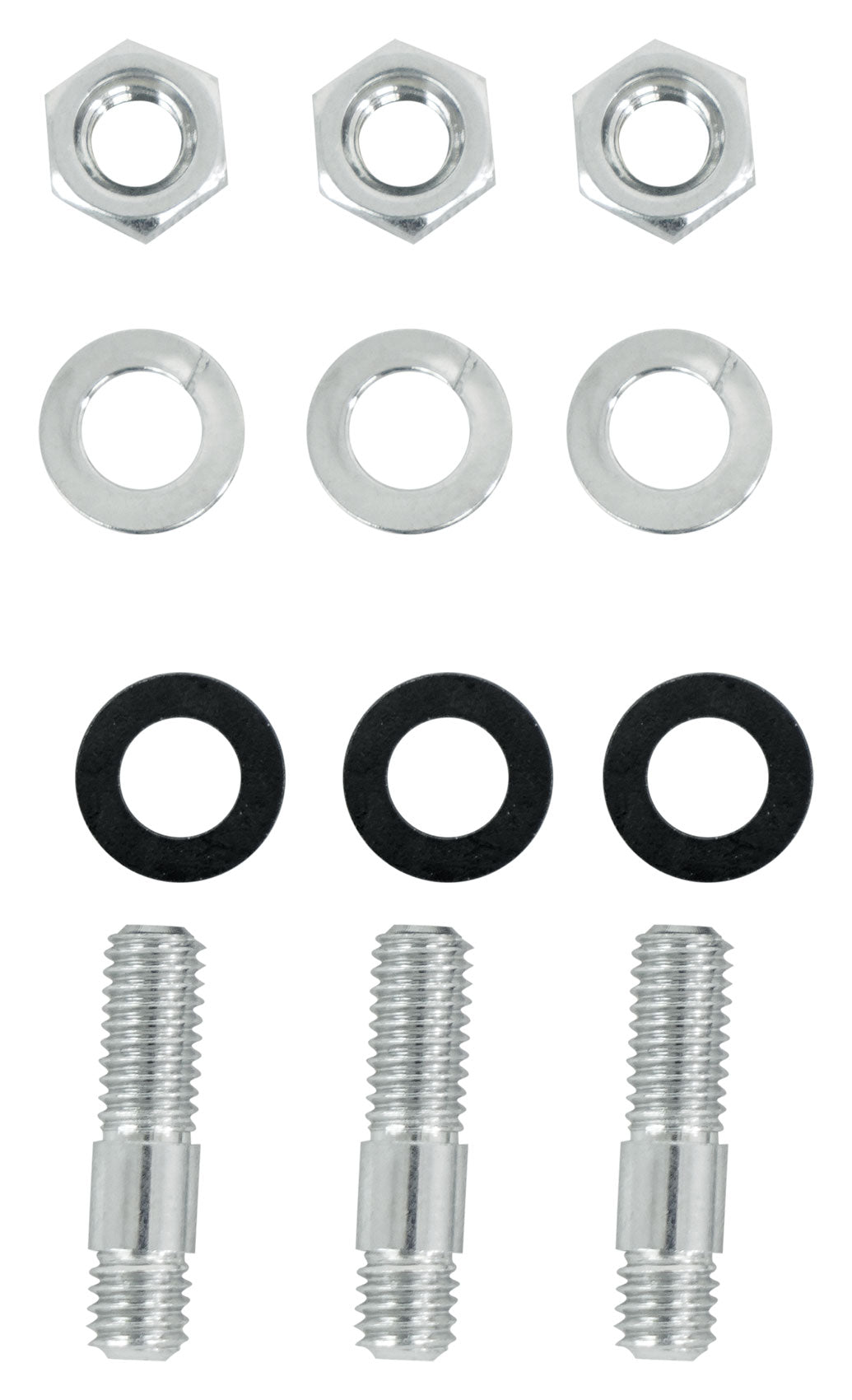

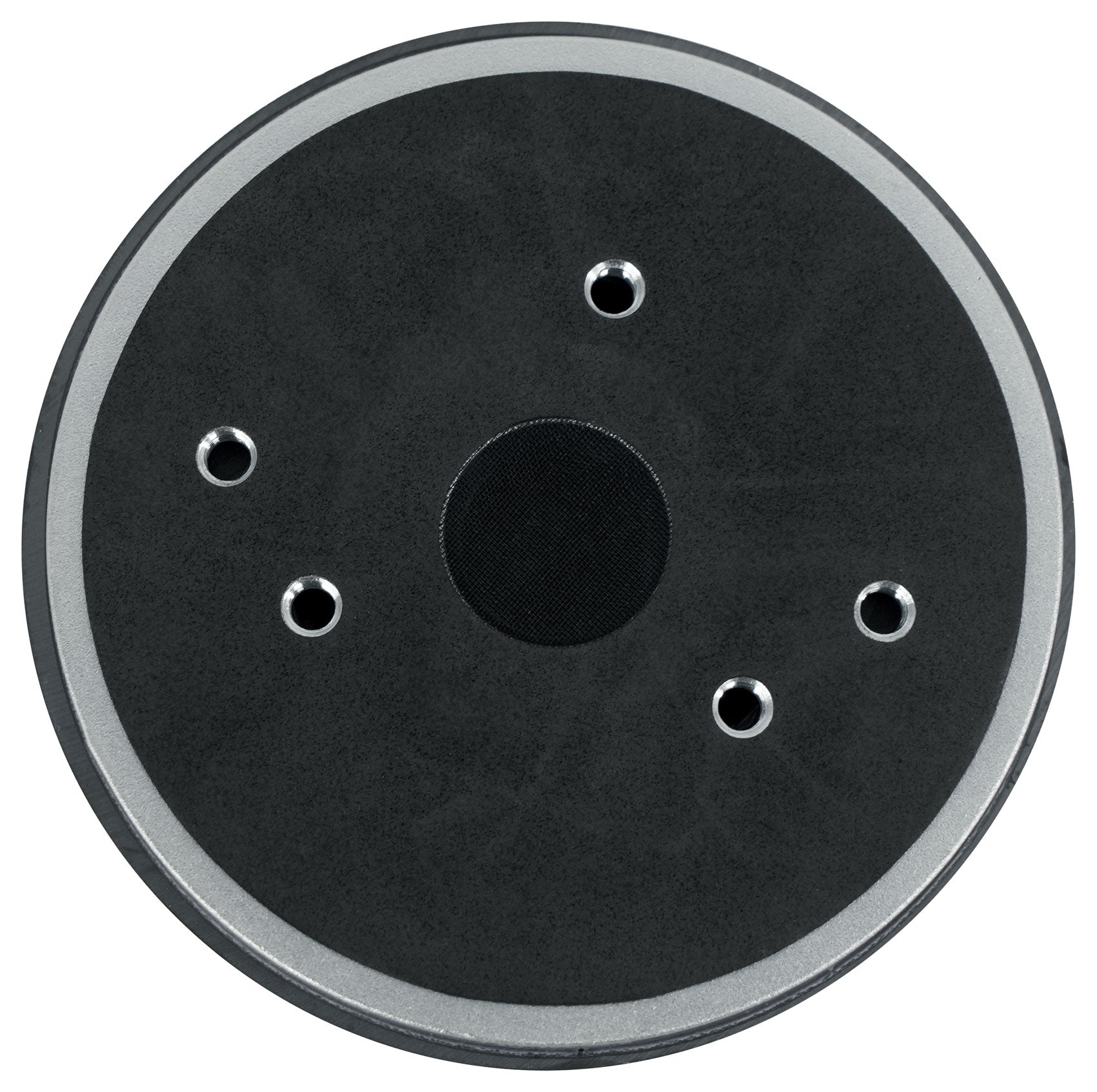

• Fitting: Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)
• Screw version: CDX1-1748
• Throat exit: 25mm / 1in
• Unit weight: 2.3kg / 5.1lb

Packed Dimensions & Weight:

• Single pack size W x D x H: 140mm x 170mm x 70mm / 5.5in x 6.7in x 2.8in
• Single pack weight: 3kg / 6.6lb

Horns and repair kits:

• T5572: Diaphragm repair kit (8Ω)
• T5359: H1-9040P Horn
• T5134: H1-7050 'No Bell' Horn
