American DJ ADJ RGBW4C IR 32-Ch. Wireless DMX Controller+Receiver+Transmitter

$279.93 $142.99 Save 49%
Shipping calculated at checkout.
Product Description
Package Includes:
  • (1) American DJ ADJ RGBW4C IR 32-Ch. DMX Controller For RGB, RGBW, RGBA LED Lights
  • (1) Rockville DMX-WTR 2.4GHZ Wireless DJ DMX Lighting Transmitter
  • (1) Rockville DMX-WRE 2.4GHZ Wireless DJ DMX Receiver w/ 9 Hour Rechargeable Battery

Authorized American DJ Dealer!

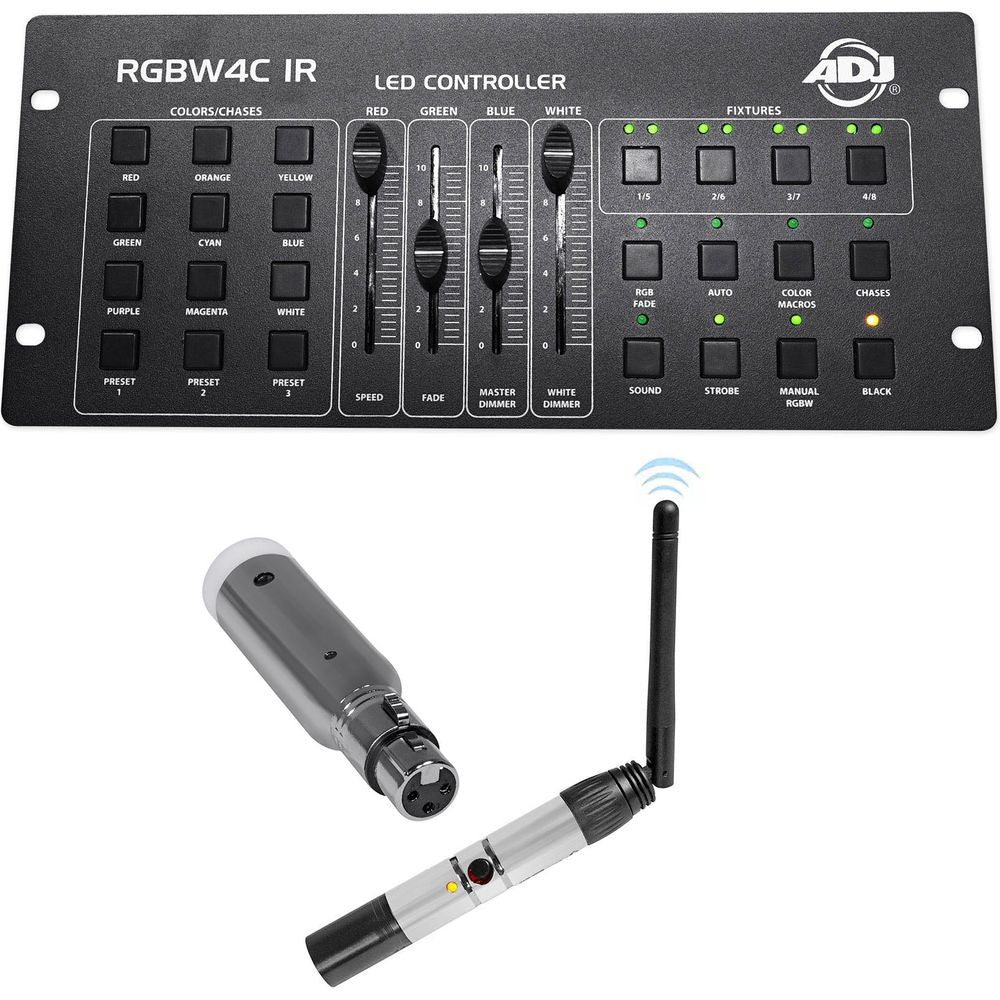

Description of RGBW4C IR:

The RGBW4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber. Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control.

The units control panel includes 9 direct access “Static Color/Chase” buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi function faders that control RGBW intensities on the fly, as well as chase program “Speed”, chase program “Fade Time” and “Master Dimmer”. There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and Blackout modes.

The RGBW4C is one of the simplest and most versatile LED controllers available today. It’s ideal for D.J.’s, nightclubs, lounges, bars and anyone that wants easy control of LED Par’s, Bar’s, Flood’s or Panel’s.

Features:

  • American DJ ADJ RGBW4C IR 32-Channel DMX Controller For RGB, RGBW, RGBA LED Lights
  • Compact DMX512 Controller for RGB, RGBW, and RGBA LED Fixtures

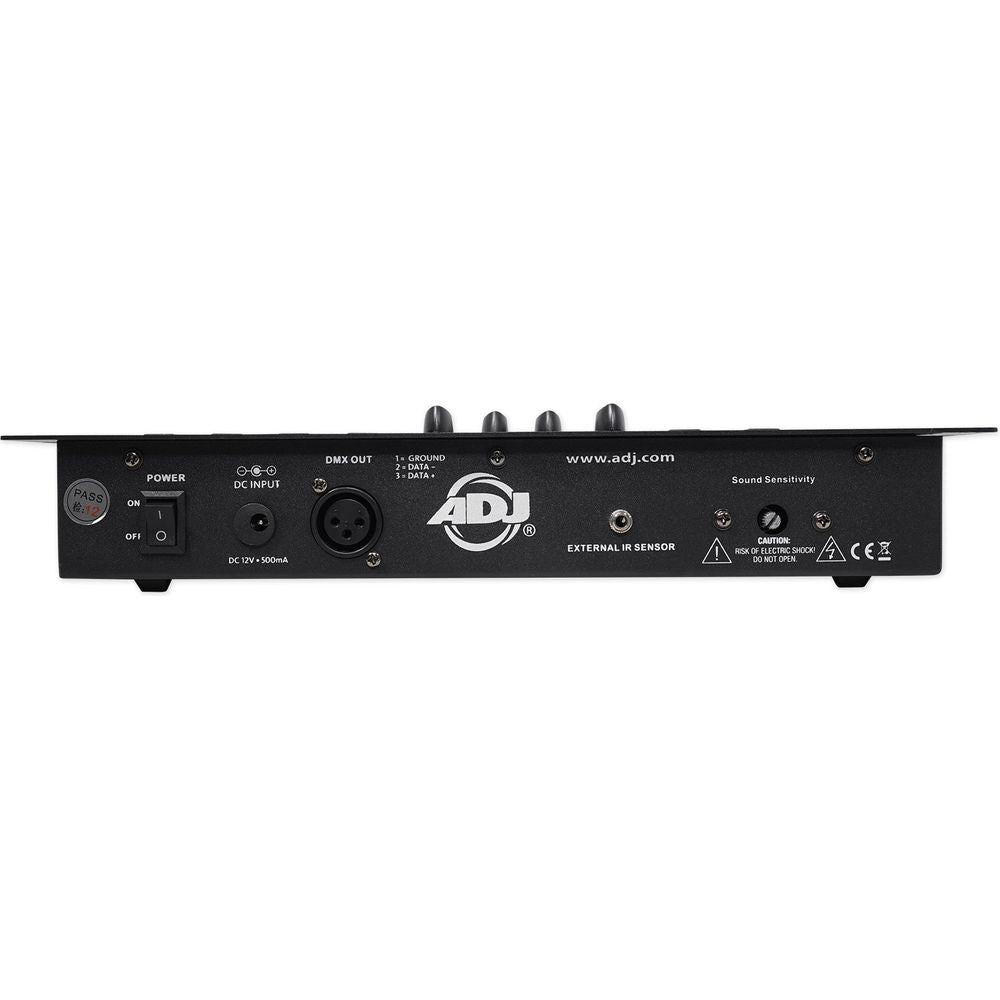

  • DMX Output Connector: 3-Pin XLR
  • Power Supply: 12VDC 500mA UL (Included)
  • Power Consumption: 3.6 Watts
  • Control Up to 8 Individual Fixtures or Fixture Groups
  • 3 User Programmable Color Preset, Direct Access Buttons
  • 9 Color Preset/Chase Program Direct Access Buttons
  • Color Macro Playback Mode
  • Manual RGBW Intensity Control Mode
  • RGB and Auto Modes
  • On the Fly Speed & Fade Control of All Chase Programs
  • Sound Active Mode Via Internal Microphone
  • Adjustable Microphone Sensitivity
  • Variable Strobe
  • Blackout Button
  • Product Dimensions (L x W x H): 12.9" x 5.5" x 1.9" inches
  • Product Weight: 2.4 Lbs.

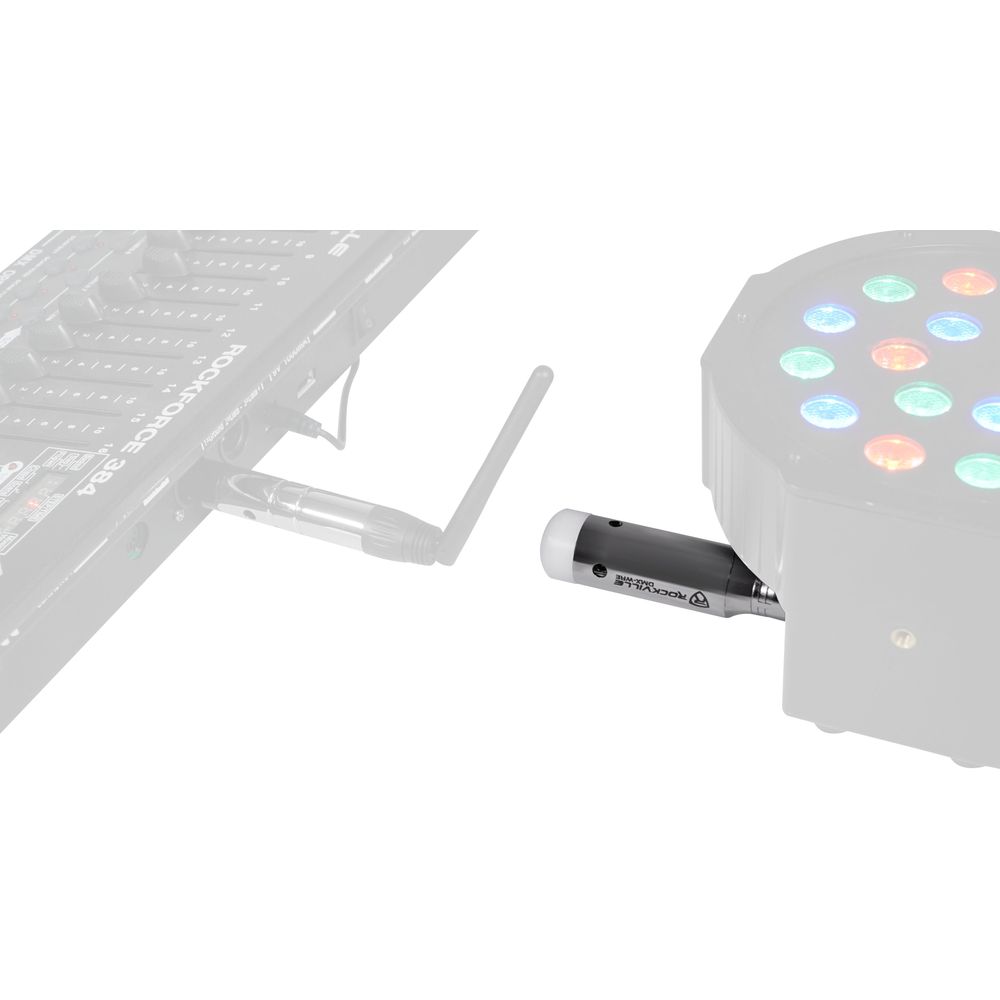

How To Use wireless DMX (DMX-WTR DMX-WRE)


Features of DMX-WTR:

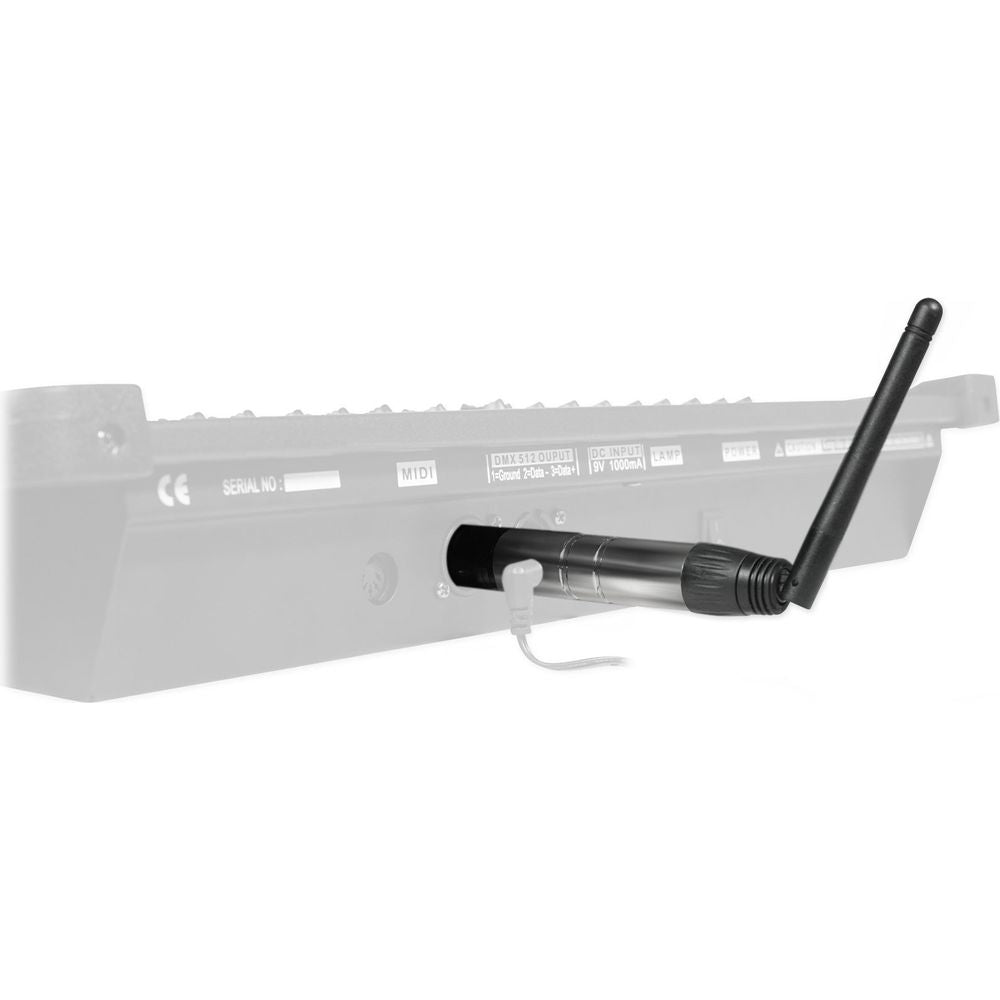

  • Rockville DMX-WTR 2.4GHz Wireless DJ DMX Transmitter
  • Daisy-chain multiple lights together and use one receiver to control all of the connected lights. This setup requires one transmitter and one receiver
  • Connect one transmitter to your DMX controller and then one receiver to each light, and each light will have its own channels on the controller so they can all be controlled independently (this can be done with up to 7 lights/groups)
  • Makes it easy to set up all of your lights without a mess of wires!
  • Controls work without any delay. These are extremely reliable
  • The product uses the 2.4GHz frequency band
  • Efficient GFSK modulation with 126 channel high-speed frequency hopping (FHSS). Hops 1100 times per second for interference-free operation
  • 3-color LED displays status and parameters
  • One-touch operation
  • 7 selectable groups of lights can be controlled independently
  • Connect up to 25 receivers to each transmitter
  • Requires you to hold the button to change linking - this prevents accidental un-linking
  • System information - CPU: 32-bitARM Core
  • Distance: 1968 feet (600 meters)
  • Modulation: GFSK maximum transmit power: 23 dBm
  • Receiver sensitivity: -94 dBm
  • Unit dimensions: 4.7" long and antenna is 3.7" tall
  • Weight: 0.4 lbs

Applications:

  • Stage lighting
  • Up lighting (wall washing)
  • DJ lighting
  • Clubs/bars
  • Party halls
  • Theatrical performances
  • Stadium lights



How To Use wireless DMX (DMX-WTR DMX-WRE)

 Features of DMX-WRE:

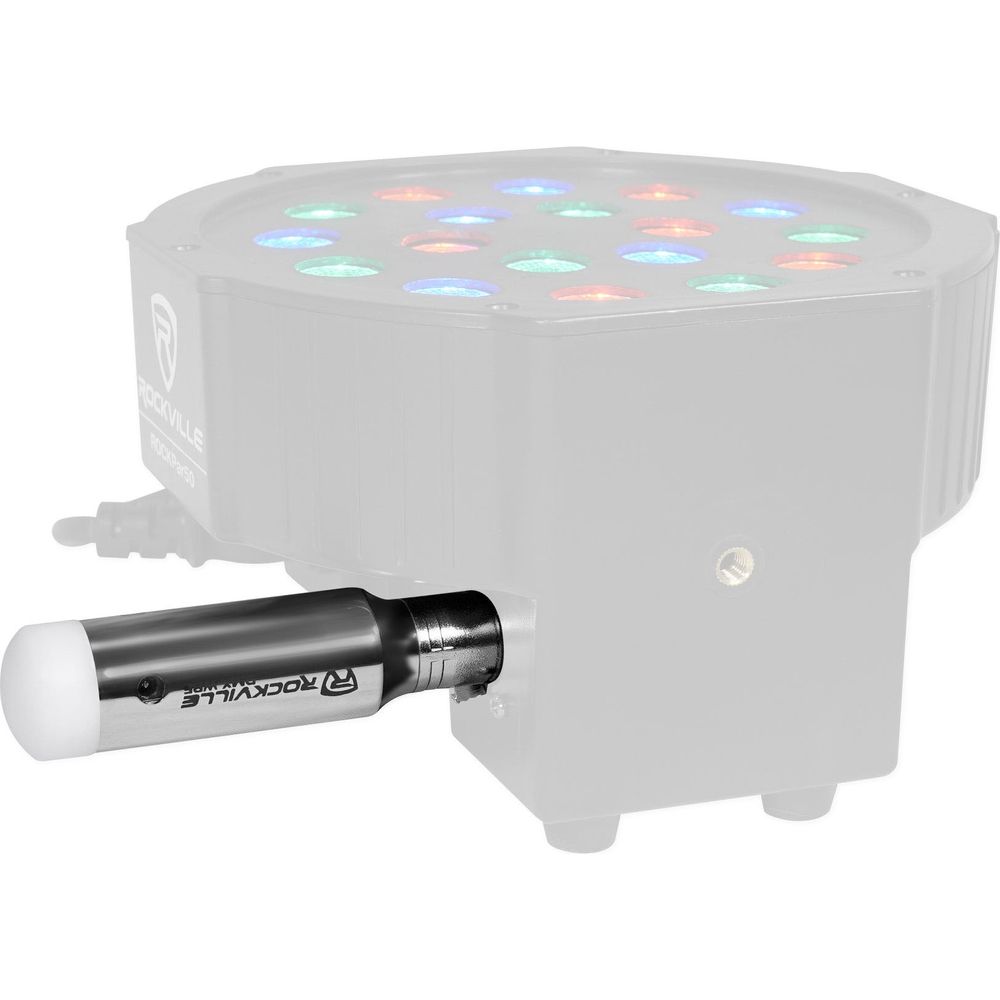

  • Rockville DMX-WRE 2.4GHz Wireless DJ DMX Receiver
  • Built-in 650mAh rechargeable battery
  • Battery power/working time: 9 hours (only takes 2 hours to fully charge)
  • Can also be used while it's plugged in and charging!
  • Daisy-chain multiple lights together and use one receiver to control all of the connected lights. This setup requires one transmitter and one receiver
  • Connect one transmitter to your DMX controller and then one receiver to each light, and each light will have its own channels on the controller so they can all be controlled independently (this can be done with up to 7 lights/groups)
  • Makes it easy to set up all of your lights without a mess of wires!
  • Controls work without any delay. These are extremely reliable
  • The product uses the 2.4GHz frequency band
  • Efficient GFSK modulation with 126 channel high-speed frequency hopping (FHSS). Hops 1100 times per second for interference-free operation
  • 3-color LED displays status and parameters
  • One-touch operation
  • 7 selectable groups of lights can be controlled independently
  • Connect up to 25 receivers to each transmitter
  • Requires you to hold the button to change linking - this prevents accidental un-linking
  • System information - CPU: 32-bitARM Core
  • Distance: 1968 feet (600 meters)
  • Modulation: GFSK maximum transmit power: 23 dBm
  • Receiver sensitivity: -94 dBm
  • Unit dimensions: 4.7" long and antenna is 3.5" tall
  • Weight: 0.4 lbs

Applications:

  • Stage lighting
  • Up lighting (wall washing)
  • DJ lighting
  • Clubs/bars
  • Party halls
  • Theatrical performances
  • Stadium lights
