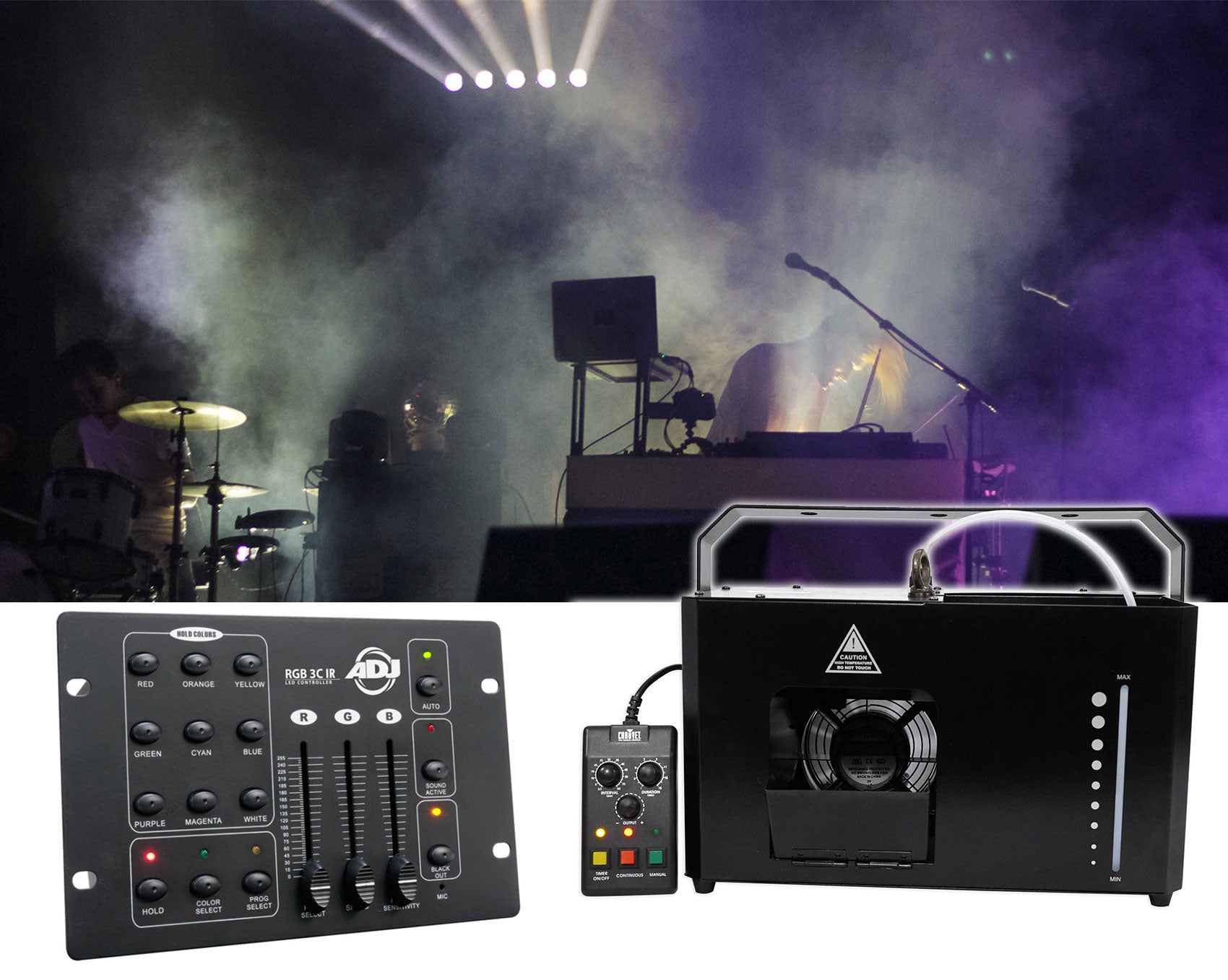

Chauvet Hurricane Haze 4D Haze Machine Hazer w/ Remote+Timer+DMX Controller

• (1) Chauvet Hurricane Haze 4D DMX Water Based Haze Machine Hazer w/ Remote+Timer
• (1) American DJ ADJ RGB3C IR Compact Universal DMX Controller For RGB LED Lights

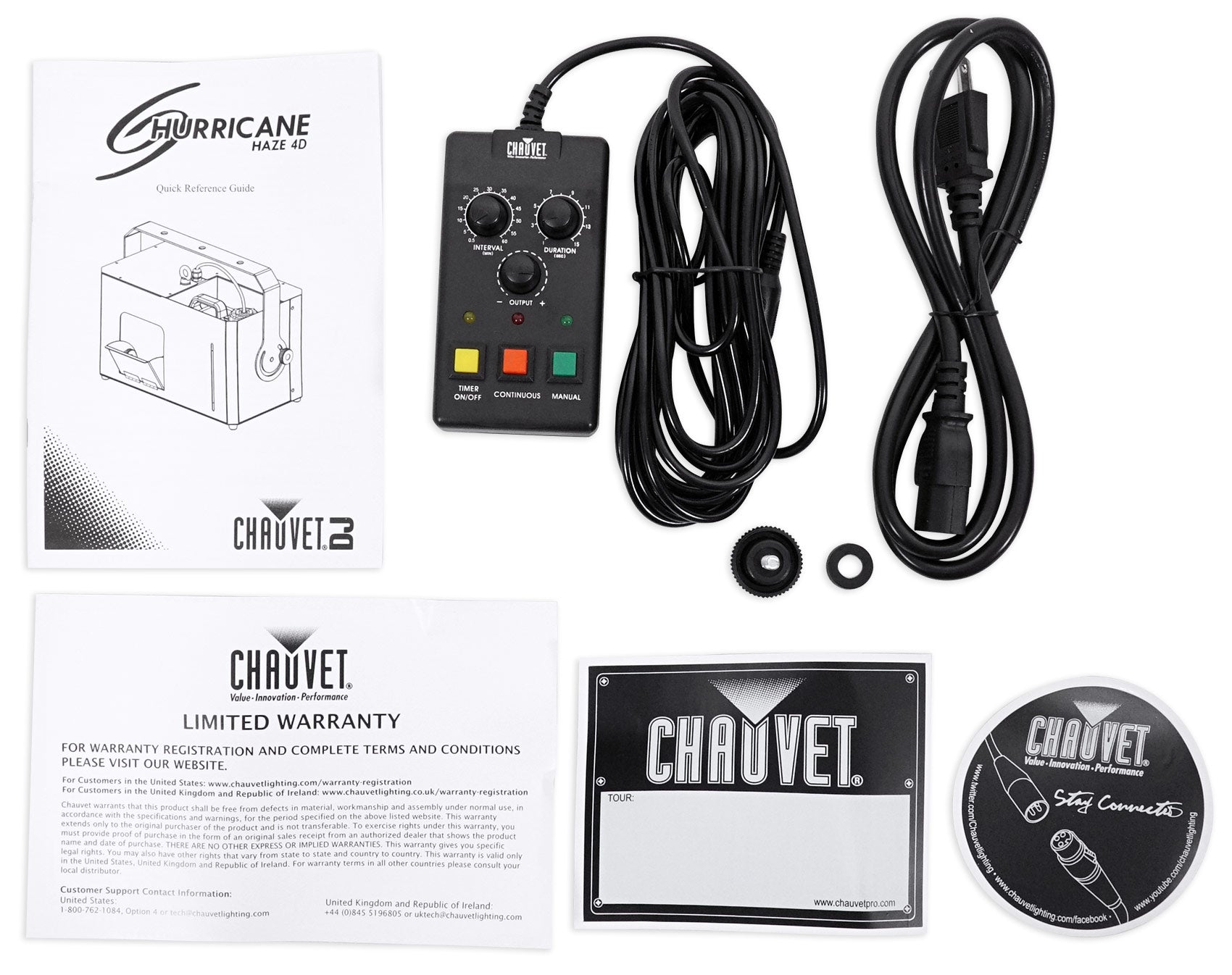

 What's Included:

• Hurricane Haze 4D

• Power cord

• Controller

• Hanging bracket with mounting hardware

• Warranty card

• Quick Reference Guide


Authorized Chauvet Dealer!

Description of HHaze 4D:

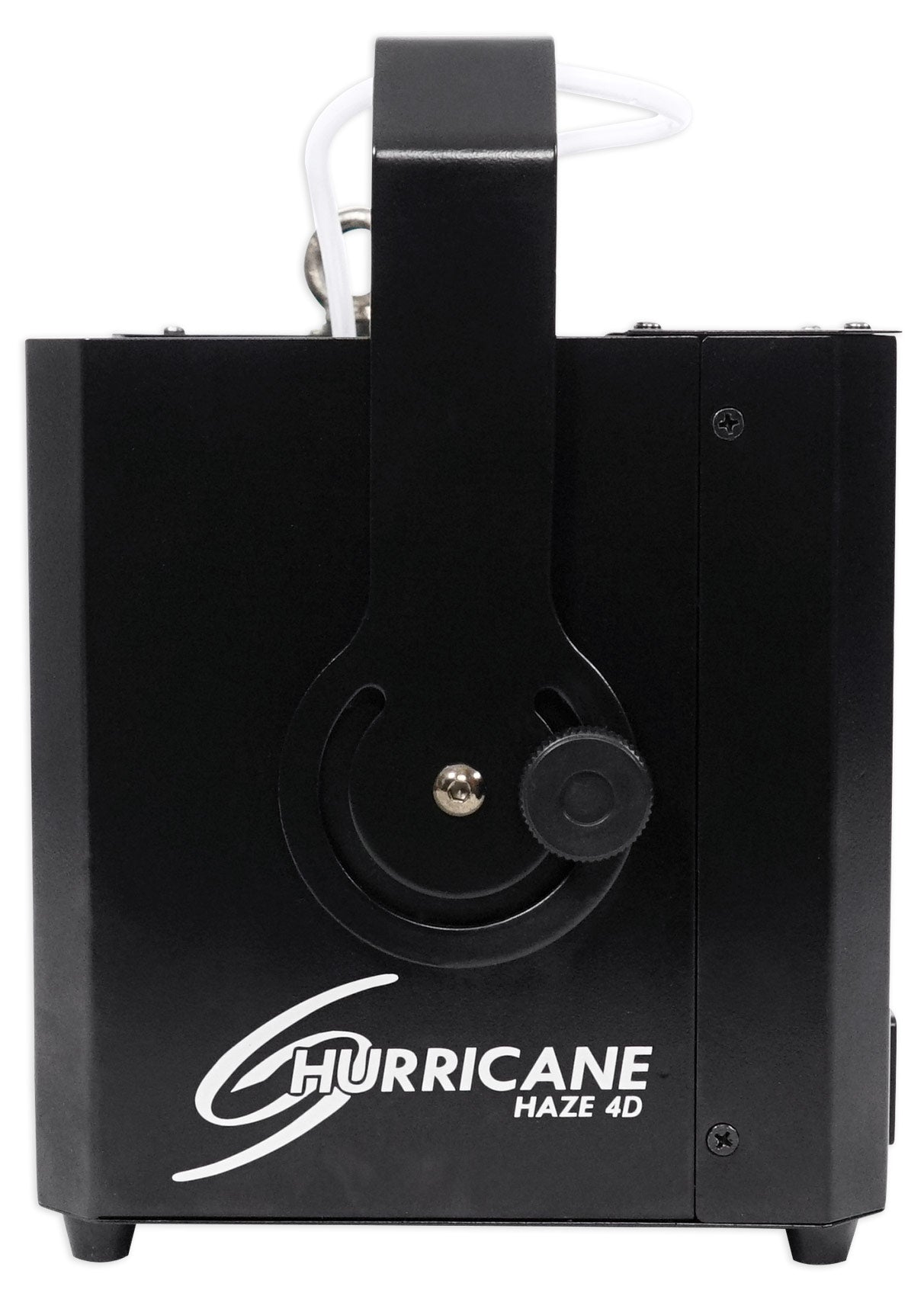

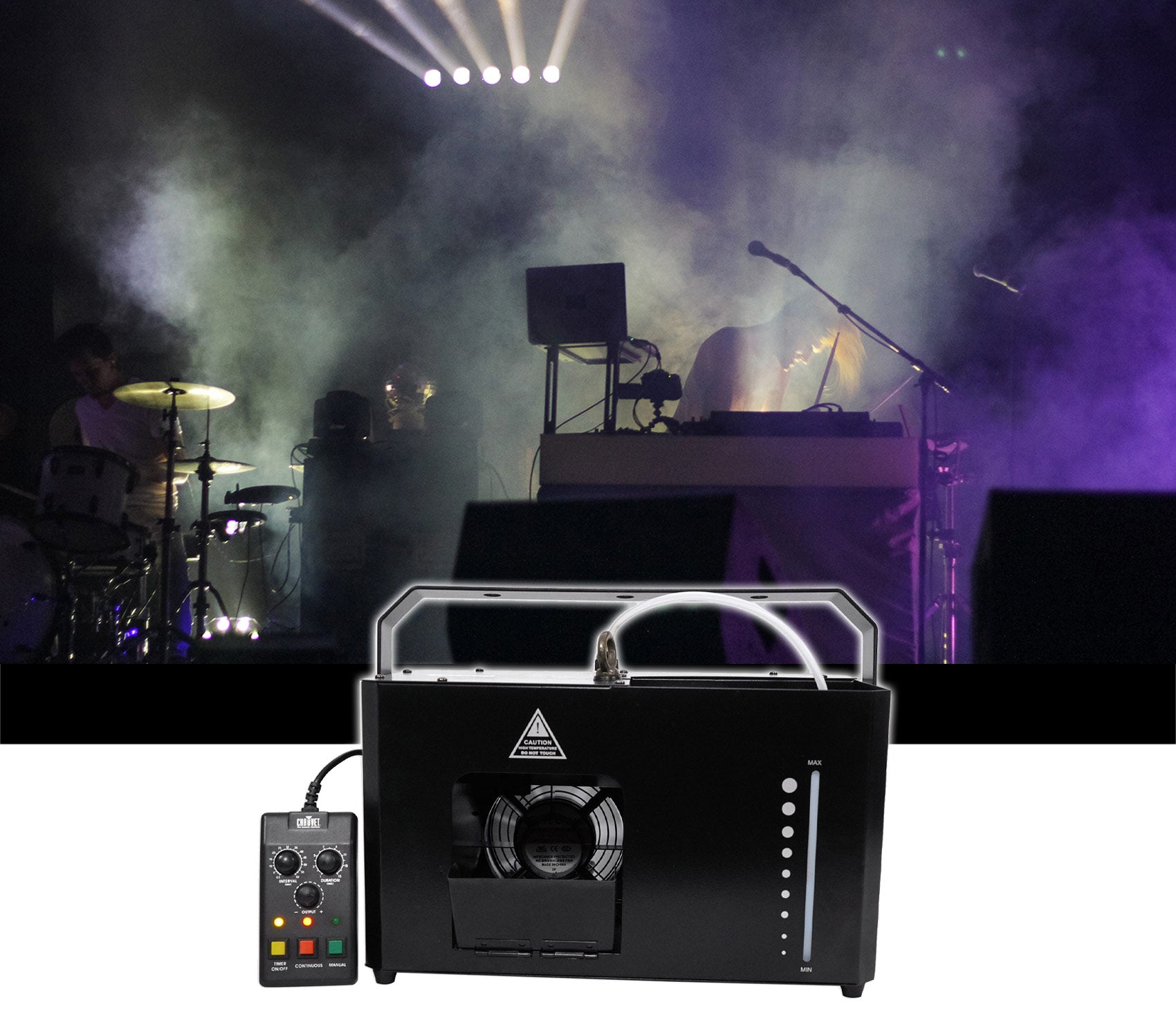

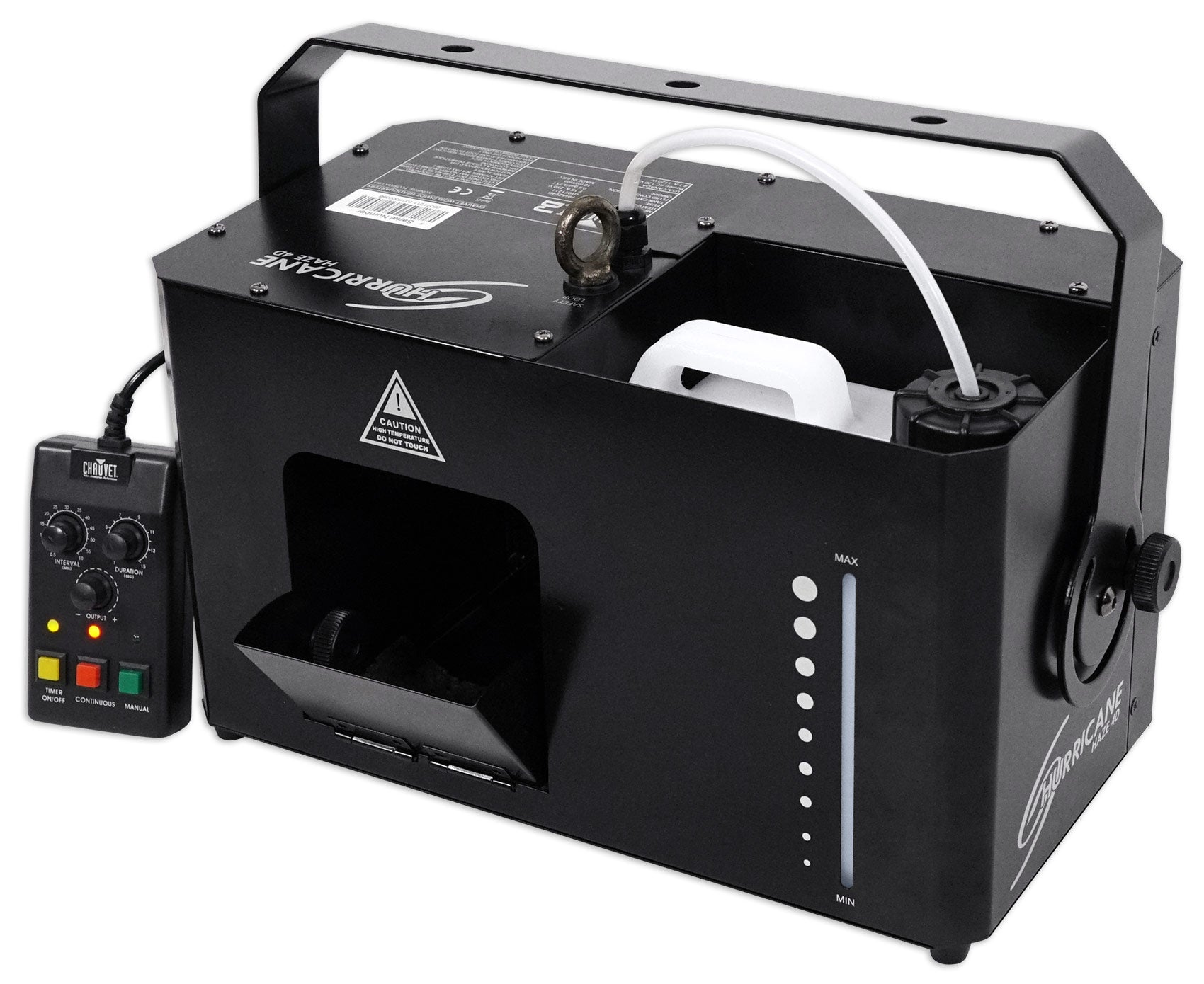

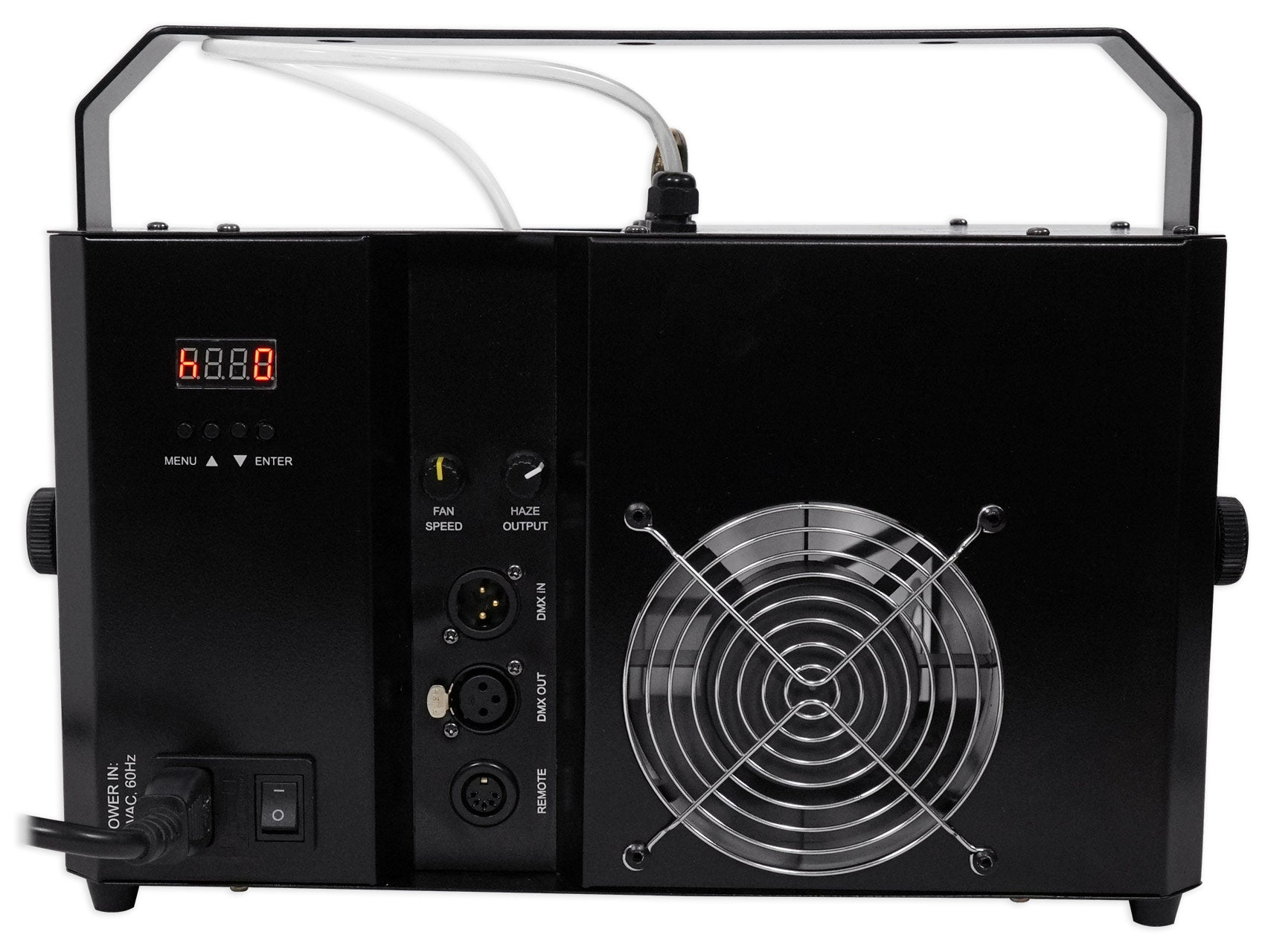

Hurricane Haze 4D is a low profile hazer with an adjustable scoop to direct the haze and a discreet fan. It can be controlled with the included wired timer remote and built-in DMX.

Features:

• Chauvet Hurricane Haze 4D DMX Water Based Haze Machine Hazer w/ Remote+Timer
• Low profile hazer that will fill the room with a light haze to enhance any light show

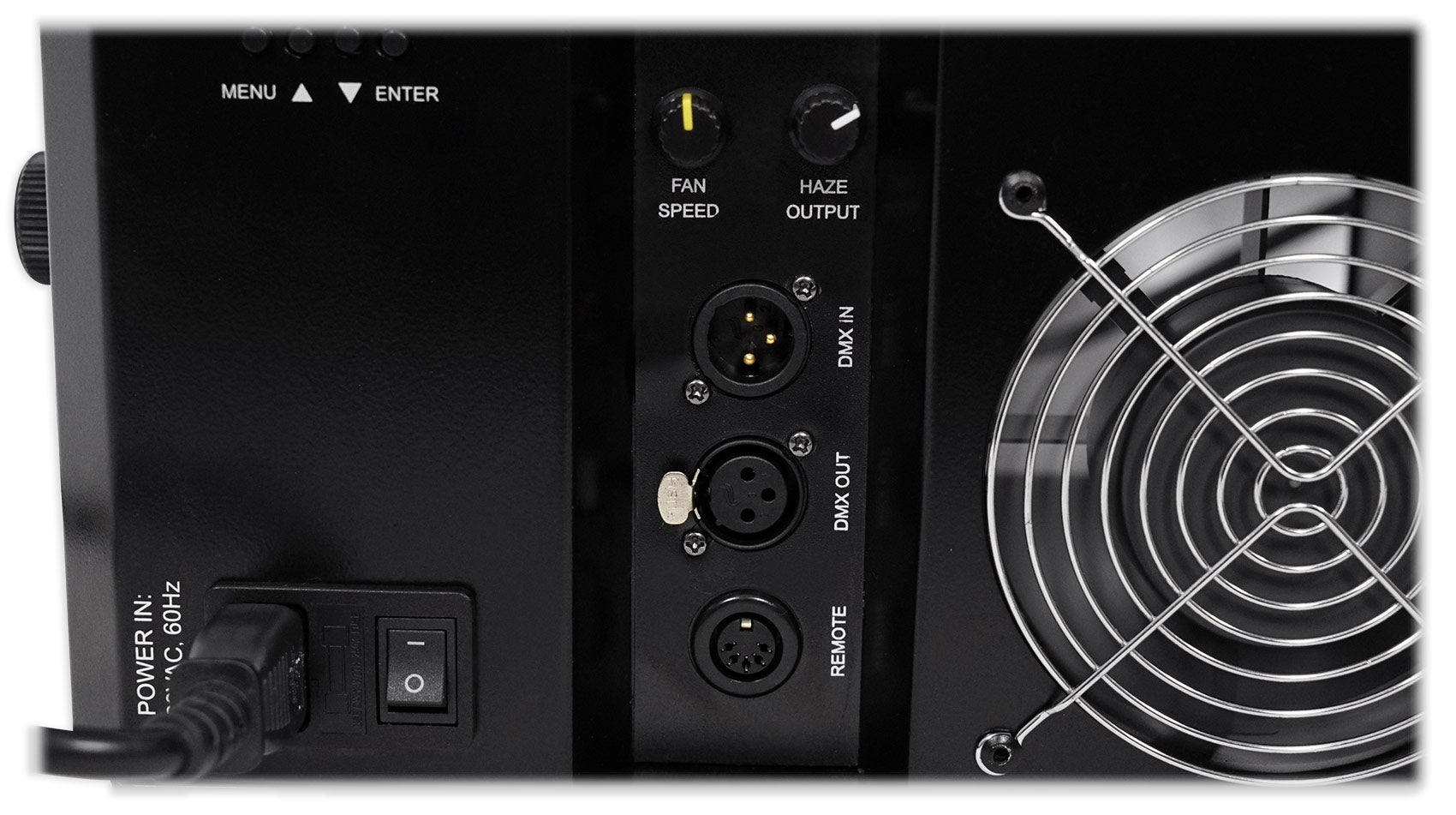

• Built-in volume and fan speed knobs offer smooth, stand-alone operation
• High output, low noise fan allows the unit to be used in any environment
• Small footprint allows the machine to be placed in any location
• Direct the Haze to any location using the built-in adjustable scoop
• Increased control using the included wired timer remote and built-in DMX
• Easily set DMX address using built-in digital display

Specifications:

• DMX Channels: 2
• DMX Connectors: 3-pin XLR
• Heat-Up Time: 2 min
• Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
• Power and Current: 1120 W, 8.1 A @ 120 V, 60 Hz ; 1120 W, 4.8 A @ 230 V, 50 Hz
• Weight: 13.2 lb (6 kg)
• Size: 11 x 15.5. x 9.6 in (277 x 396 x 245 mm)
• Approvals: CE, cULus

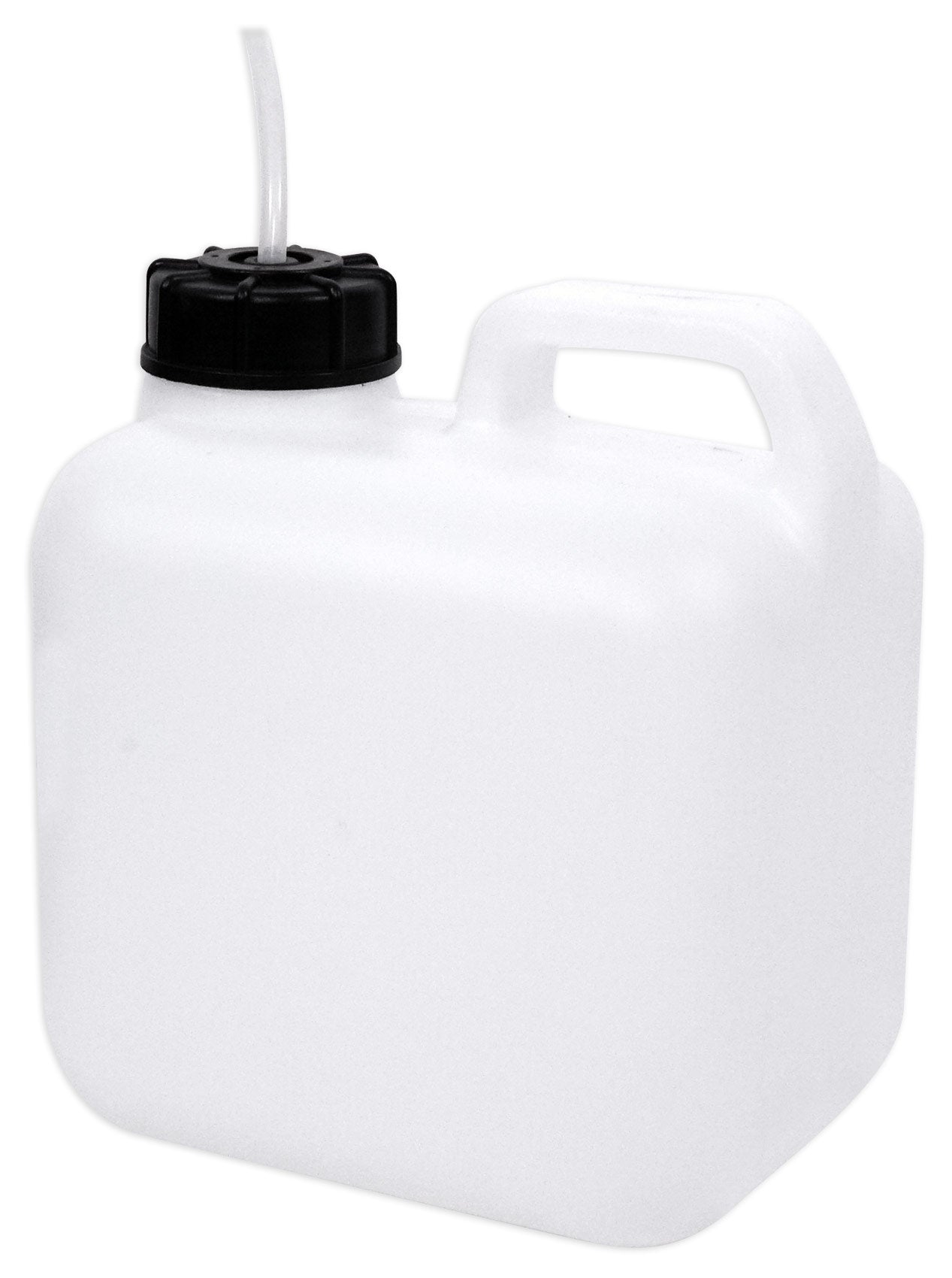

• Tank Capacity: .9 gal (3.75 l)
• Output: 4300 cfm
• Fluid Consumption: 10 ml/min
• Compatible Fluids: HFG

Description of RGB3C IR:

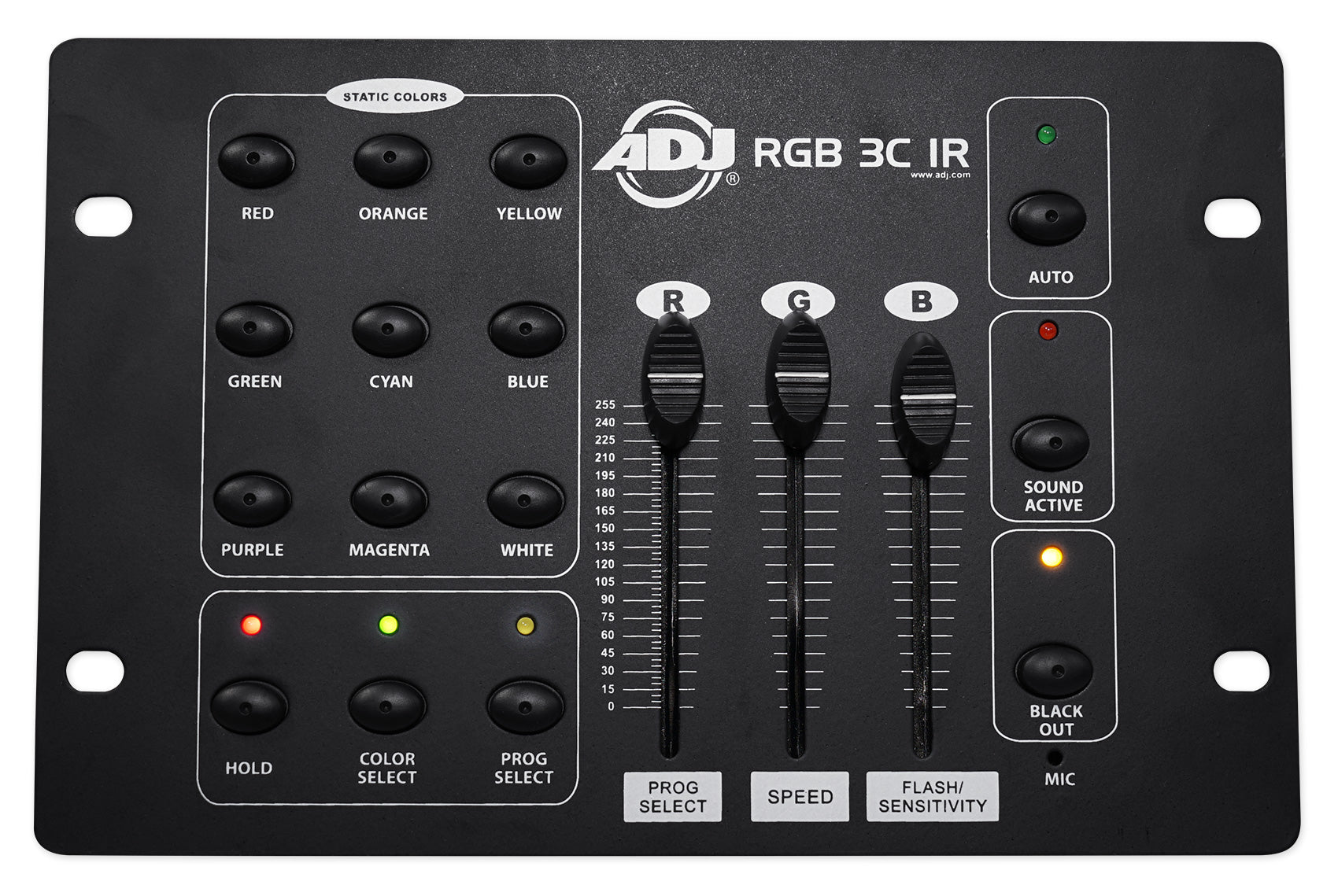

The RGB 3C IR is a basic 3-channel RGB LED controller. It was designed to control any standard 3 channel RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue.

All LED fixtures must be set to run in DMX mode and be addressed to DMX channel 1. The units control panel includes nine direct access “Static Color” buttons, which contain pre-programmed color presets, 3 manual RGB faders so a desired color could be set on the fly, a Program select button which allows for 7 static colors and 10 chase programs to be accessed via the program select fader, a Sound Active button which activates the 10 chase programs to randomly sequence via an internal microphone, an auto run button also activates the 10 chase programs to randomly sequence while the speed of the chases can be controlled via the speed fader. The hold button will lock all buttons and faders and pause the current scene. The controller will remain locked even when power is switched off and on, and finally a blackout button to bring all values to zero so there is no output going to your fixtures.

It’s the ideal control solution for DJ’s, small night clubs, and bars that want a simple LED controller to run the show.

Features:

• American DJ ADJ RGB3C IR Compact Universal DMX Controller For RGB LED Lights
• Compact DMX512 Controller for RGB LED Fixtures
• DMX Output Connector: 3-Pin XLR
• Power Supply: DC 9-12V 300mA (Included)
• Power Consumption: 3.6 Watts
• Control up to 8 individual fixtures or fixture groups
• 3 Manual RGB Faders
• 9 Direct Access Static Color Buttons
• Program Select Button
• 7 Static Colors
• 10 Chase Programs
• Manual RGB Intensity Control Mode
• RGB and Auto Modes
• On The Fly Speed & Fade Control of All Chase Programs
• Sound Active Button
• Hold Button to Lock All Buttons and Faders and Pause Current Scene
• Strobe Fader
• Blackout Button
• ADJ LED RC2 Compatible (Sold Separately)
• Product Dimensions (L x W x H): 8.75" x 5.5" x 2.5" inches
• Product Weight: 1.8 Lbs.
