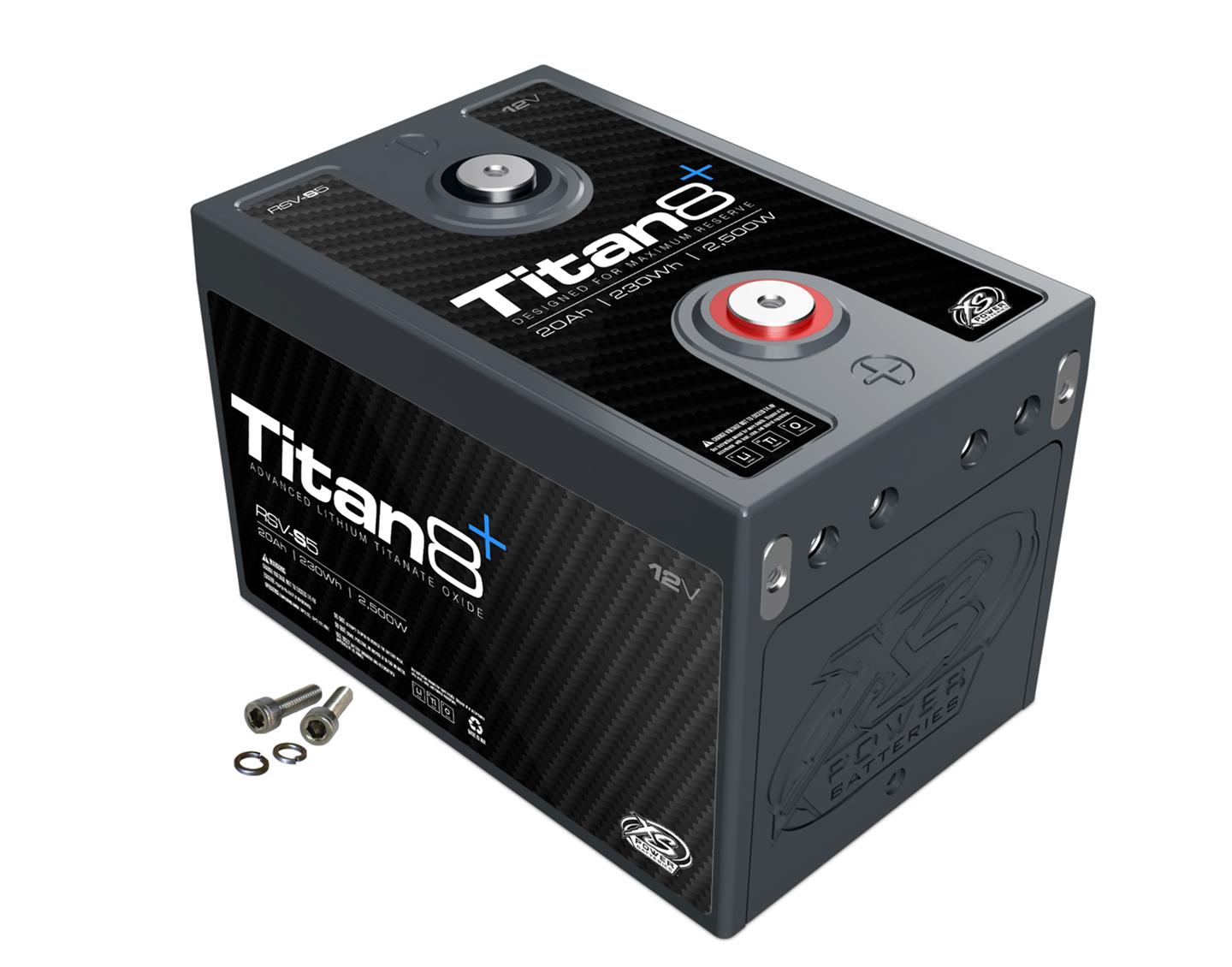

XS Power RSV-S5 12V 2500Watt Titan8 Lithium Battery Reserve Module, Max 1000Amps
Product Description
Description:
XS Power Titan8 lithium batteries are designed for unbeatable cranking power. This Lithium Titanate Oxide (LTO) Series uses a high-power lithium cell that is designed for high-burst output (5,000 watts for five seconds) and higher reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.
XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position.
Features:
- 12 Volt LTO Battery
- Four Inputs
- Two Side Terminals can be used either/or in conjunction with each other
Specifications:
- Lithium Titanate Battery Reserve Module
- Weight Lbs. – 8lbs
- Weight Kgs. – 3.63kgs
- Length – 7.4 in
- Height – 5 in
- Width – 4.85 in
- Voltage – 12V
- Wattage – 2,500
- MAX Amps – 1,000
- Energy Wh – 230
- CA – 500A
- CA Pb Eq* – 750A
- Ah – 20
- Ah Pb Eq* – 60
- M6 Terminal Hardware Included
Note:
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
