JBL EON208P Portable PA System / Pair 8" Speakers+Powered 8 Chan Mixer/Bluetooth

Authorized JBL Dealer!

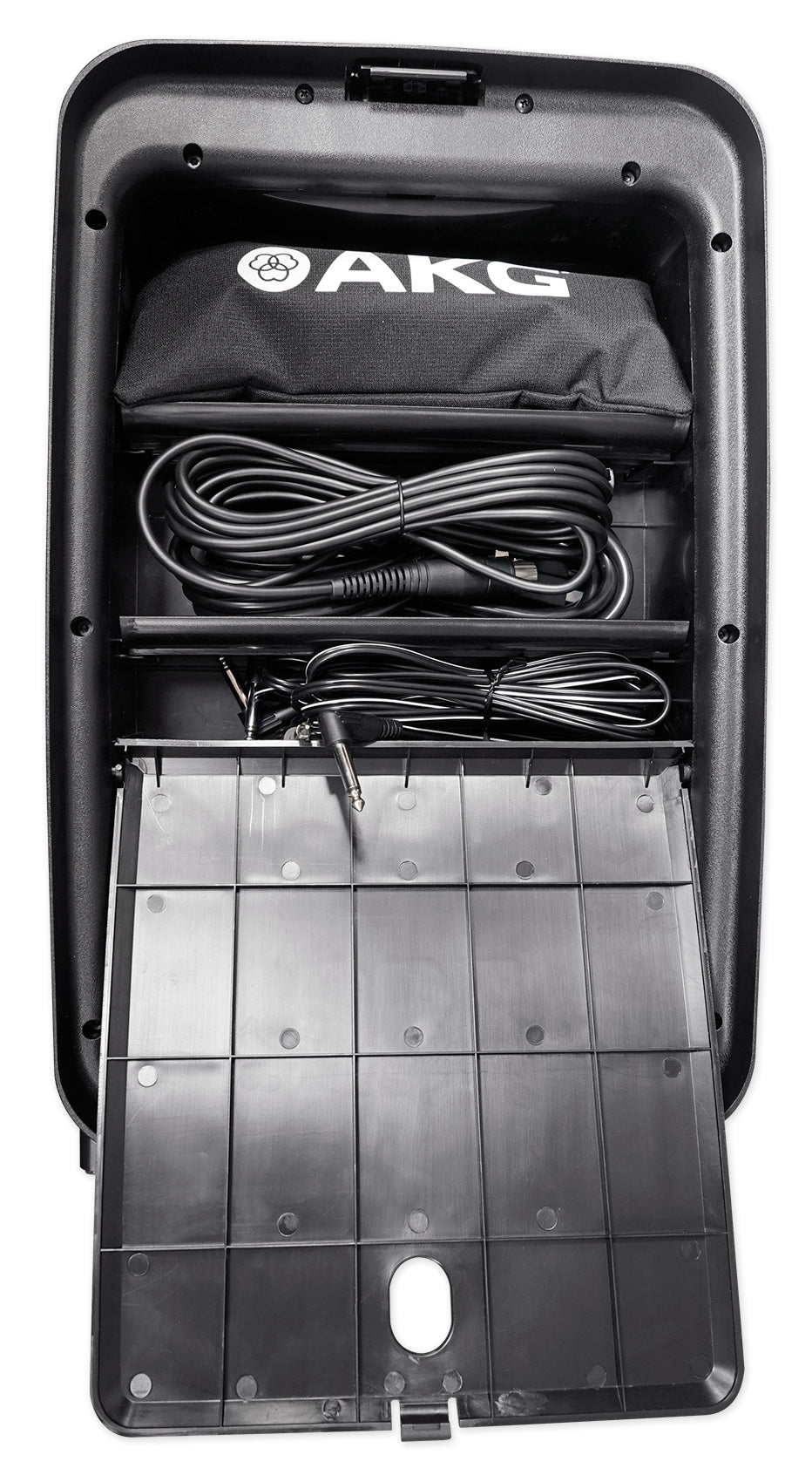

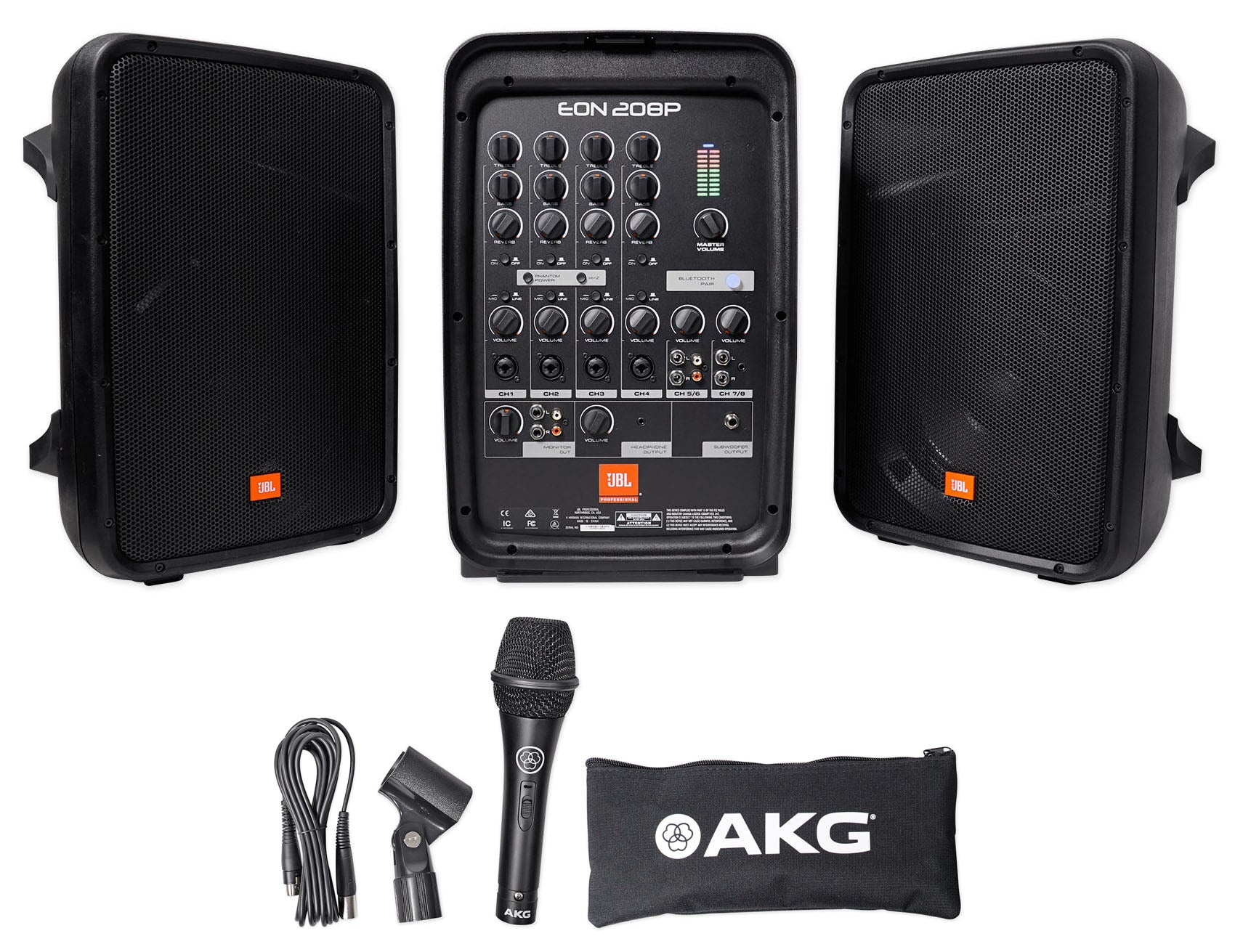

What's In The Box:

• (2) JBL Professional Speakers

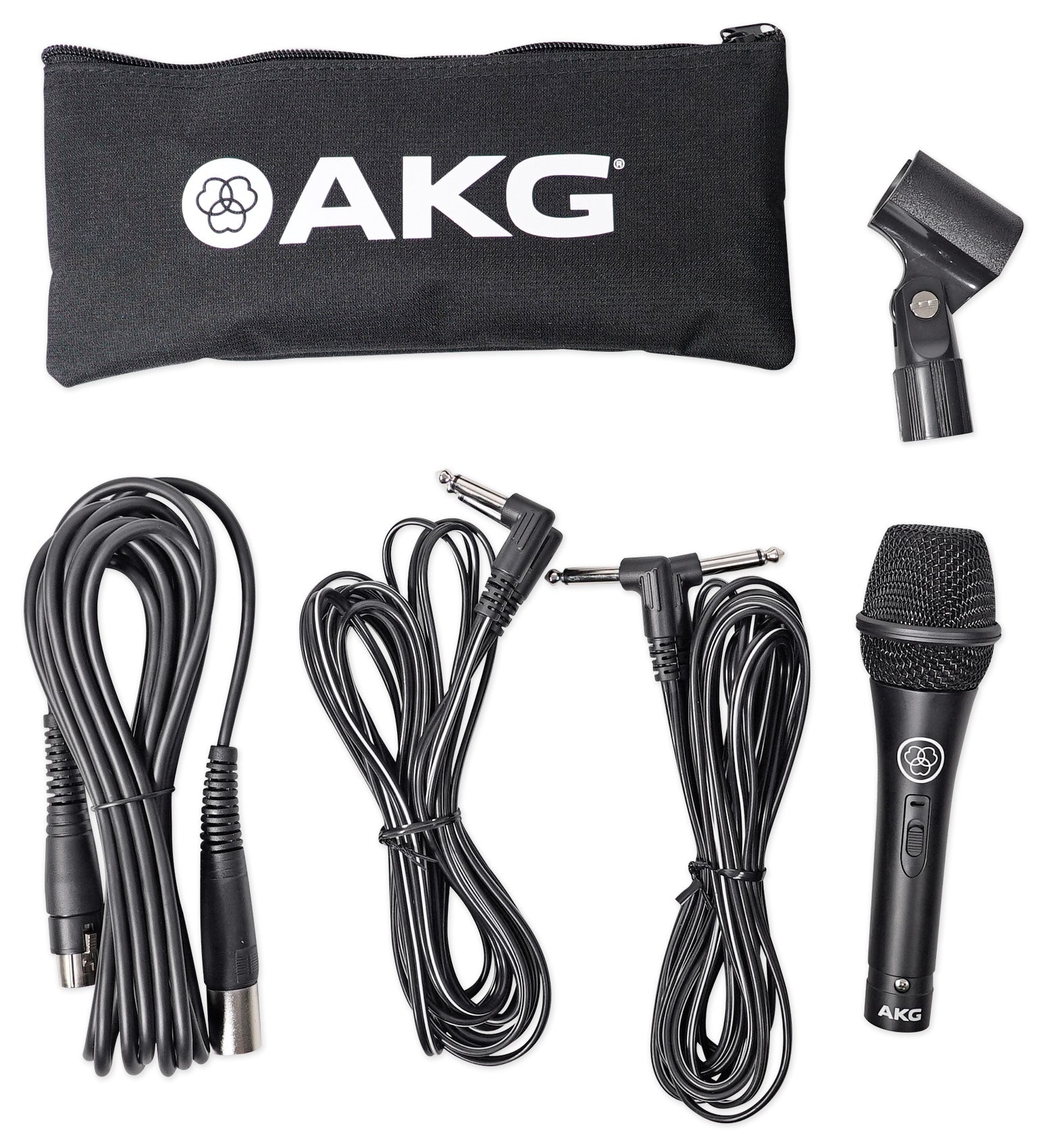

• (1) AKG Vocal Microphone, 1 Microphone Cable and 1 Microphone Clamp
• (1) Pair of Unshielded Speaker Cables
• (1) Power Cable
• (1) Owner's Manual

Description:

Everything You Need to Be Heard
Get legendary sound quality with the EON208P all-in-one portable PA system, complete with an 8-channel mixer, Bluetooth audio and included AKG microphone. With a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8" two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity also allows you to stream audio from your mobile device. With 300 watts, you'll have more than enough volume to be heard. Plus, the compact and lightweight form factor means you can carry the entire system with one hand.

Bluetooth
The detachable 8-channel mixer features professional I/O, thoughtfully designed controls and Bluetooth audio for best-in-class performance.

Performance
Unparalleled audio quality in its class. JBL heritage loud speakers deliver their legendary sound.

Portable & Easy to Use

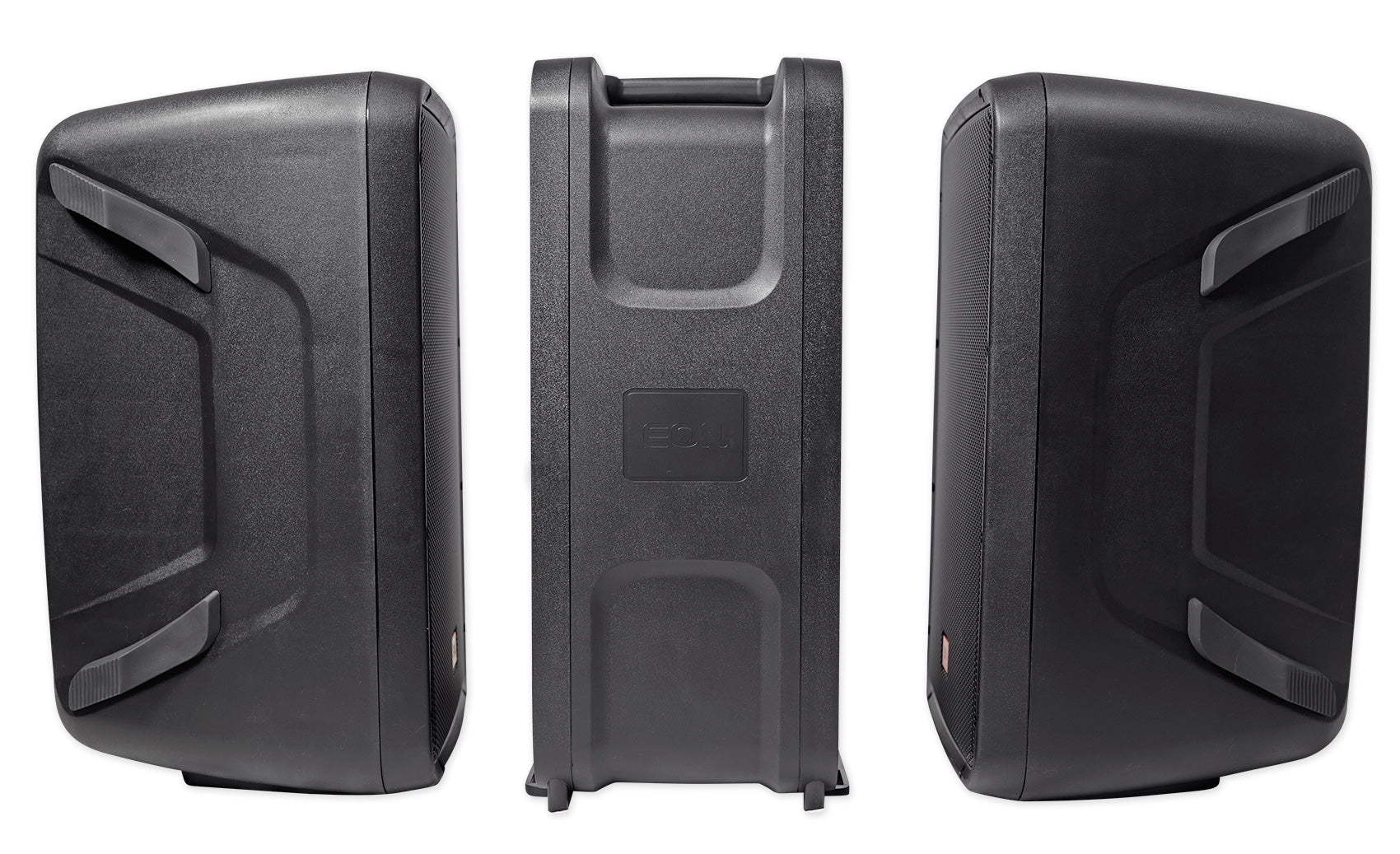

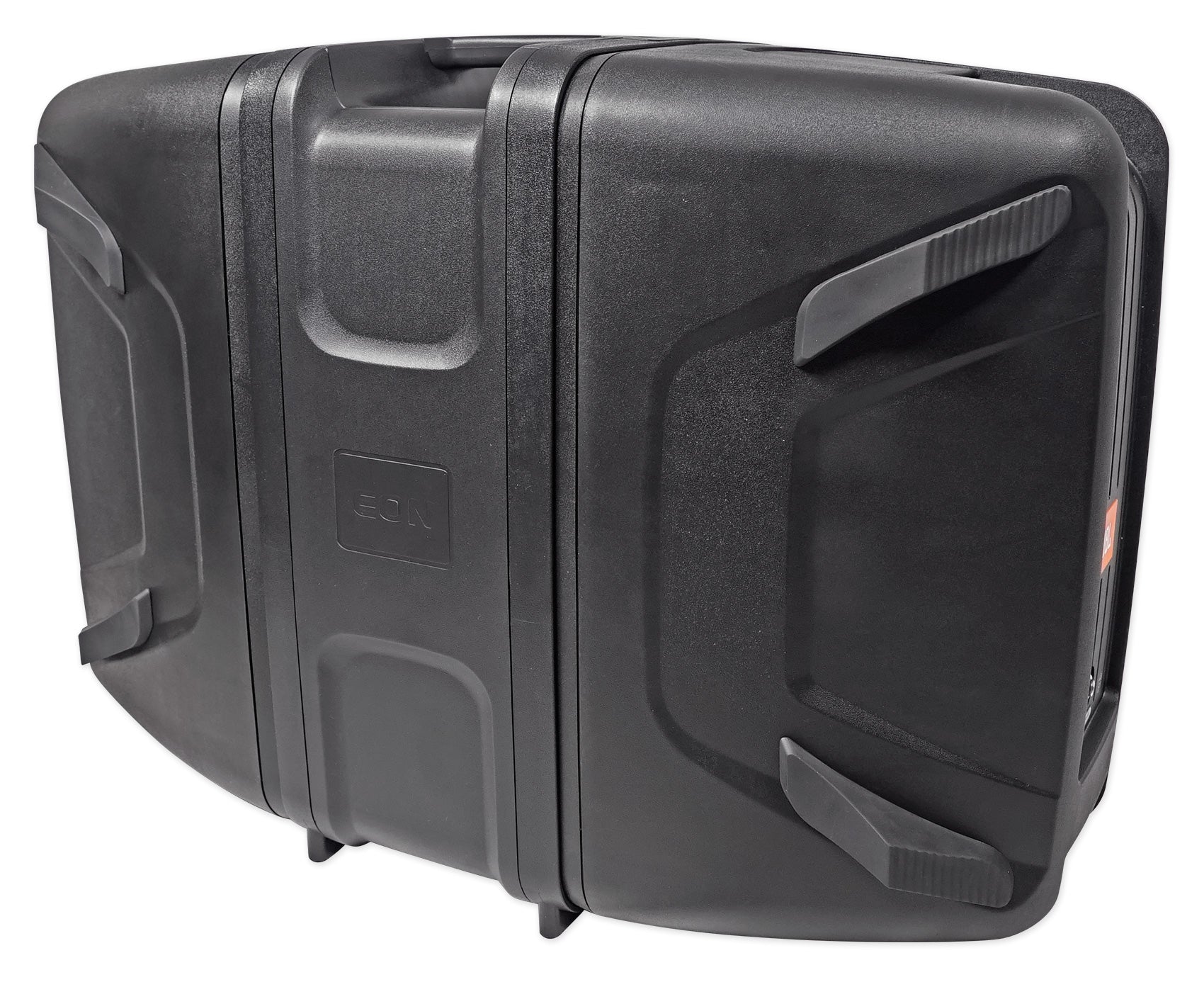

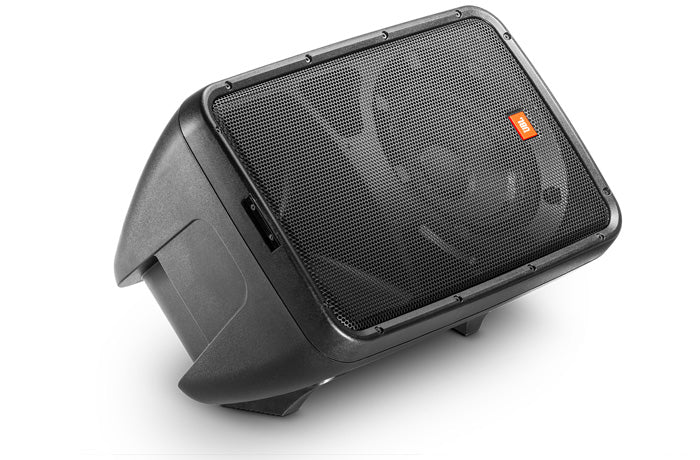

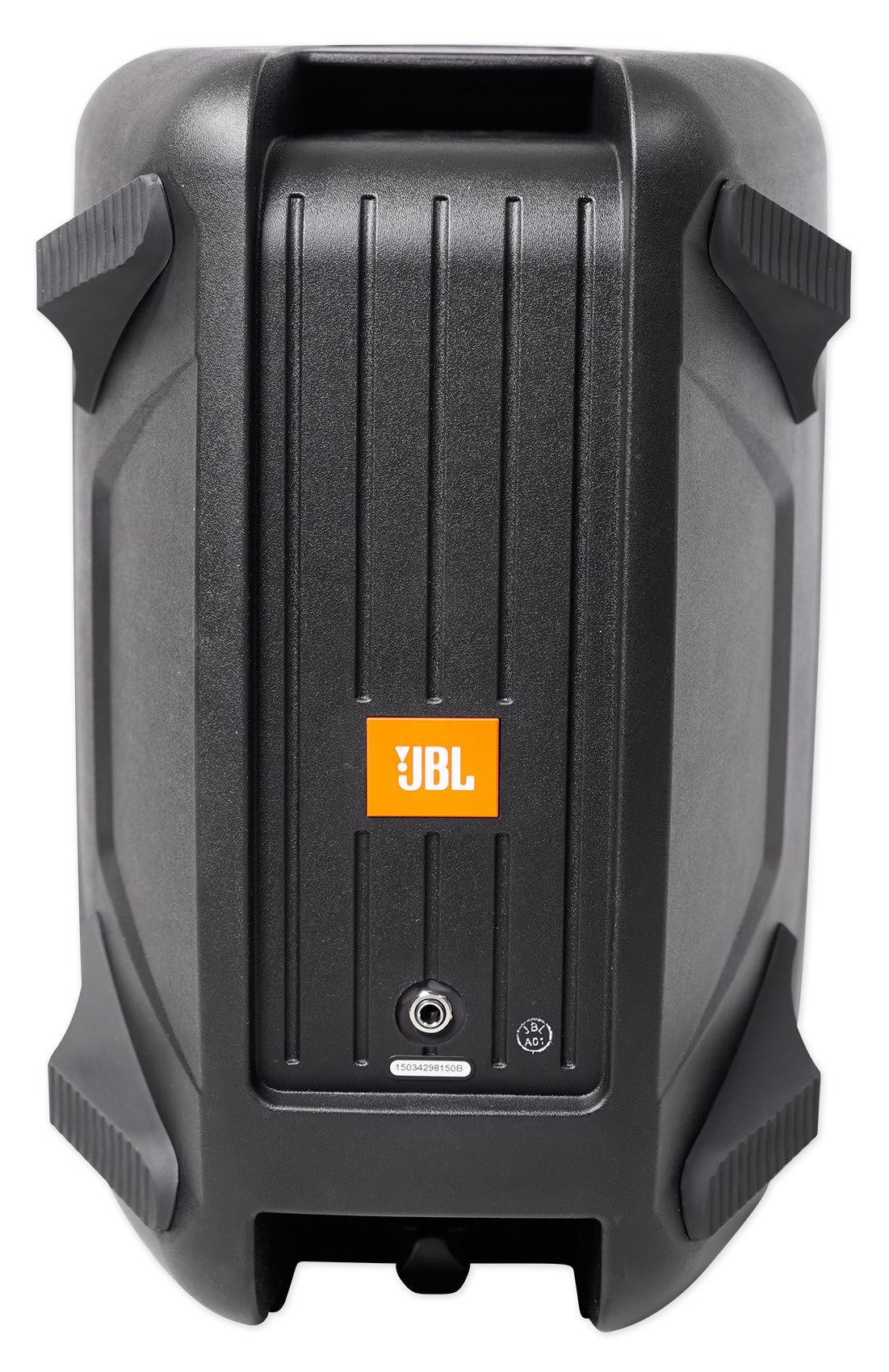

EON208P puts professional audio within arm's reach - literally. The twin 8" speakers and 8-channel mixer clip together to form the most comprehensive, lightweight and portable PA in its class. Carry it in one hand with a guitar slung over your shoulder to play coffee shops and medium-size gigs. Or turn a backyard into the hottest nightclub around. With uncompromising JBL sound quality and effortless portability, you'll want to take it everywhere. The versatile enclosures facilitate stacking, pole mounting and use in monitor position.

Professional-Grade Mixer

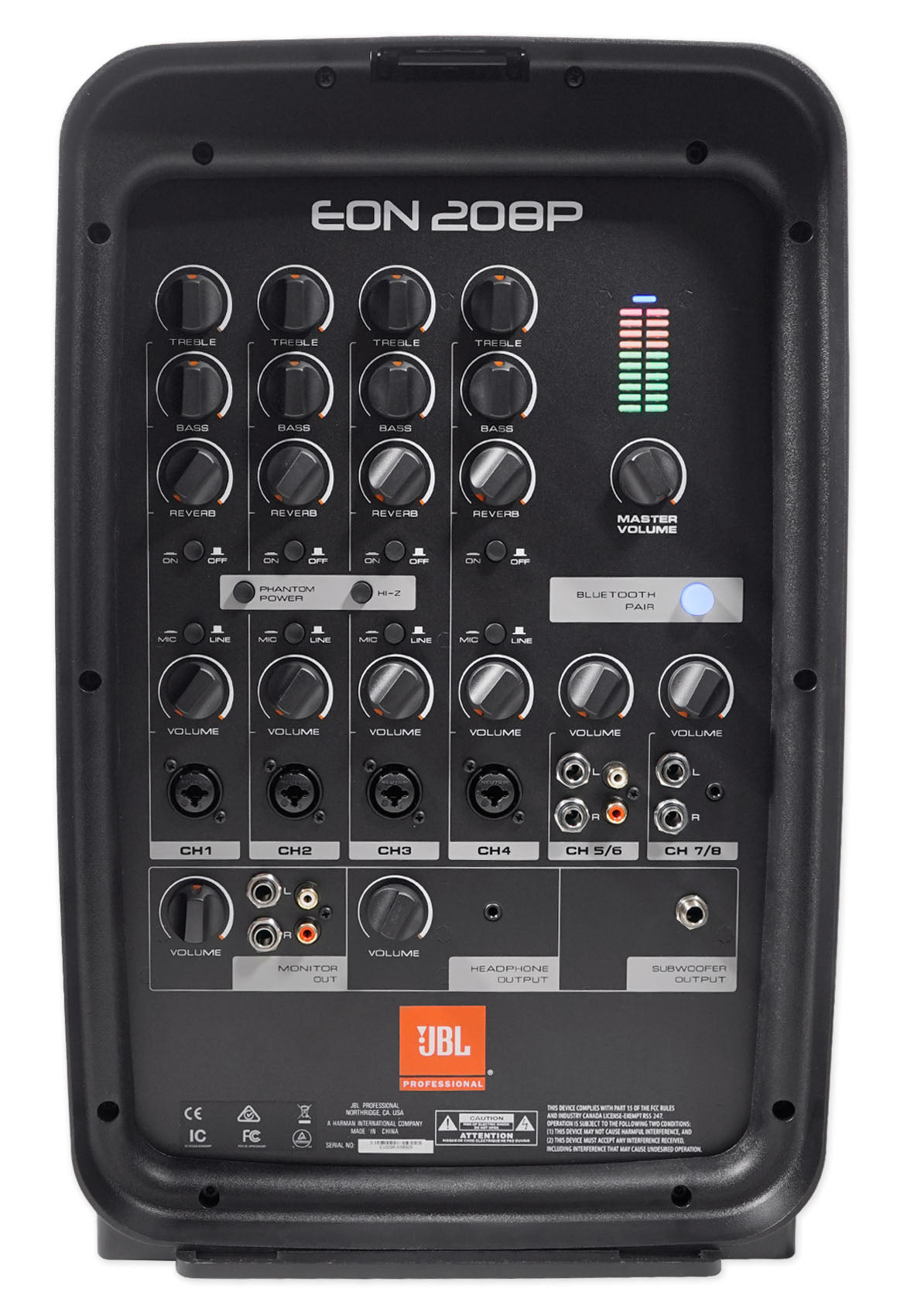

The attached mixer has 6 inputs: 2 mono inputs comprised of a combination input connector, MIC/LINE selector, Treble and Bass controls, Reverb and channel volume controls. The 4 stereo inputs are where you can connect all of the microphones, musical instruments and external sound sources (like MP3 or CD players). The stereo inputs labeled "CH 3/4" offer the option of using RCA with a volume control. The input labeled "CH5/6" is a 3.5 mm stereo input of the type typically found on personal music players. The "Monitor Out" enables sourcing to recording devices, additional powered speakers or mixers via RCA connectors.

Bluetooth Streaming
With Bluetooth connectivity, EON208P lets you stream audio from your mobile device. Now you can DJ a party right from the dance floor, or play pre-recorded material for your meeting, worship event, or health club - all without the hassle of wires.

Capture Your Performance or Set the Vibe
The EON ONE PRO features an accessory mount located at the top of the line-array speakers - simply attach a camera and you're ready to record. You can also add a lighting element to set the perfect vibe.

Features:

• JBL EON208P Portable PA System with Pair 8" Speakers and Powered 8-Chanel Mixer with Bluetooth
• System Type: (2) Portable 2-Way Full-Range Loudspeakers With Powered Mixer
• Power Rating: 300 Watts (2 x 150 Watts)
• Maximum SPL Output: 121 dB peak
• Frequency Range (-10 dB): 60 Hz - 20 kHz
• Frequency Response (+/-3 dB): 70 Hz - 18 kHz
• AC Input 100-120 V, 220-240 V 50/60 Hz
• Amp Design: Class D
• Output Connector: 2 x 1/4" TS (unbalanced) Amplifier Outputs
• Channels:
  • 1-4: XLR/1/4" Jack Combo Connectors
  • 5-6: One pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
  • 7-8: One pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
• Phantom Power:
  • CH1 and CH2 have phantom power control and share the same selection switch
  • Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
• Mixer Output Connectors: Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
• Headphone Out: 3.5mm stereo jack
• Subwoofer Out: 1/4" balanced TRS jack
• Treble/Bass EQ: Per-channel high- and low-shelf filters; +/- 12dB cut and boost
• System Limiter: On-board DSP limiting
• LF Driver: 1x JBL 8" (203mm) woofer
• HF Driver: 1x 1" Neodymuim black aluminum dome tweeter
• Coverage Pattern: 100° horizontal x 60° vertical
• Crossover Frequency: 2 kHz
• Crossover Type: 2-way passive network, 2nd order filters (12dB cutoff per octave)
• Enclosure: Polypropylene

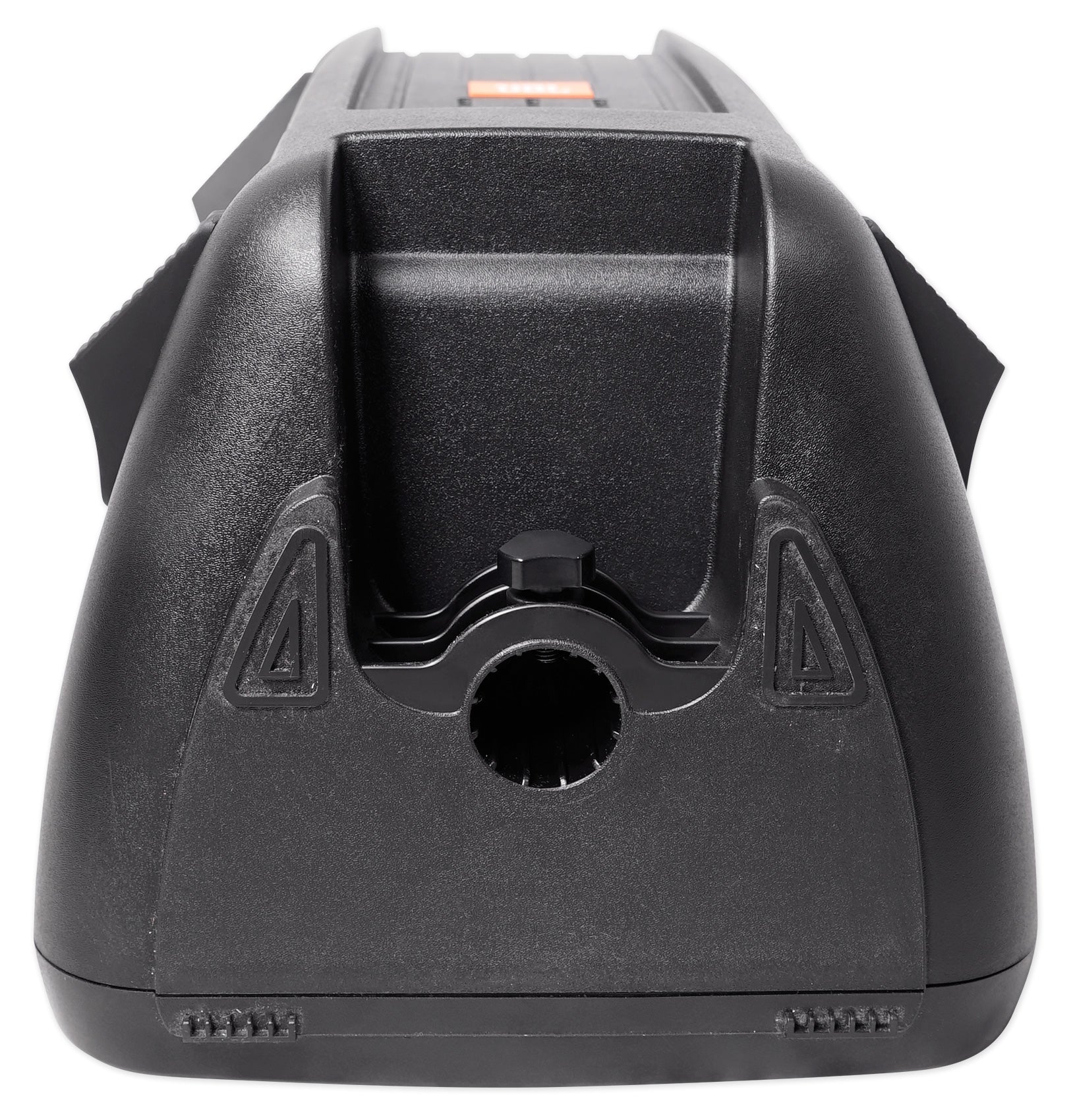

• Suspension/Mounting: 36 mm pole socket
• Handles: One on top
• Speaker Grille: Powder-coated perforated steel
• Product Dimensions (H x W x D): 22.6" x 30.5" x 15.7" inches
• Product Weight: 38.8 Lbs.
