JBL SRX906LA AF Array Frame For SRX906LA Speaker to Support Up to (16) Cabinets

Description:

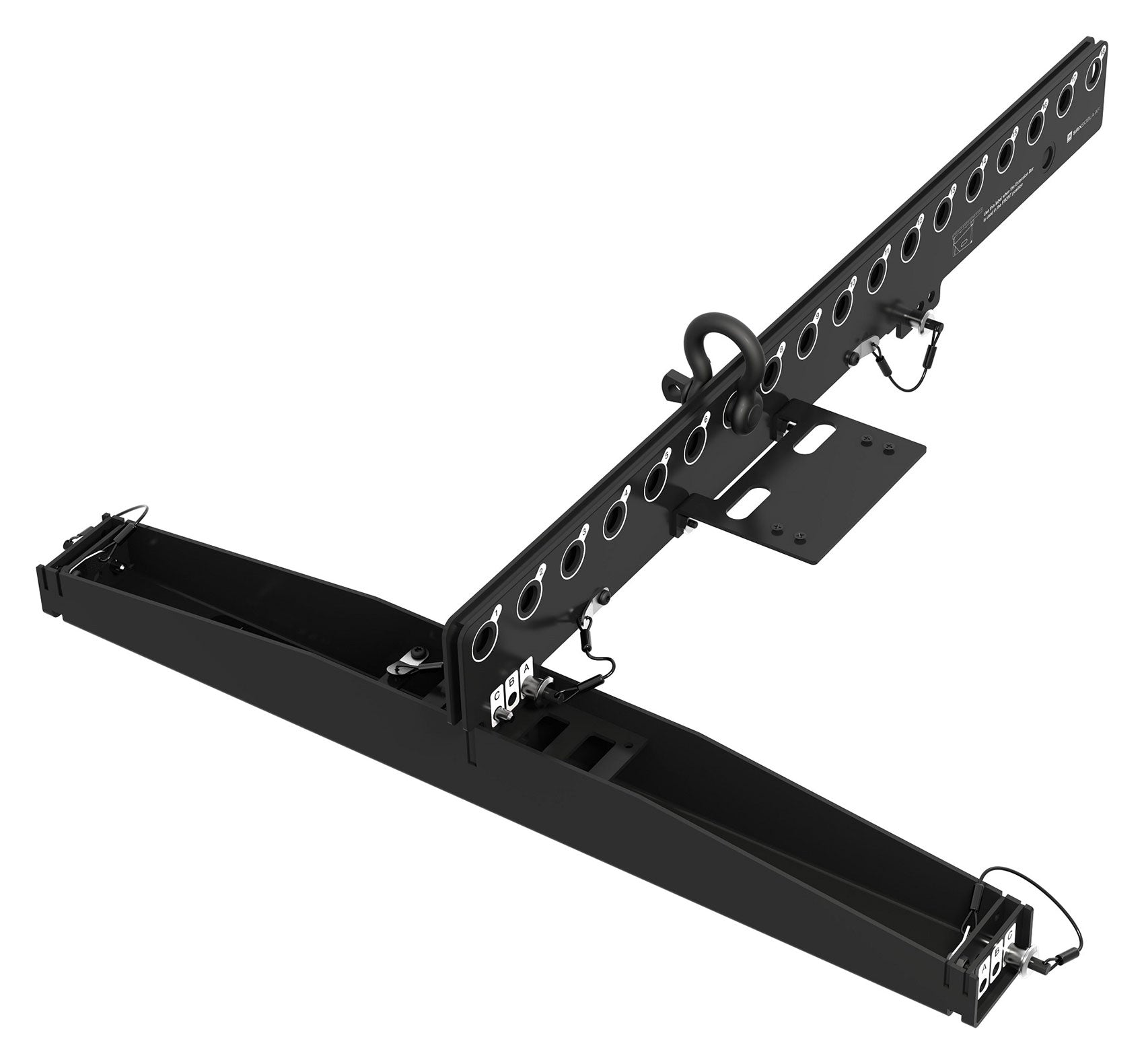

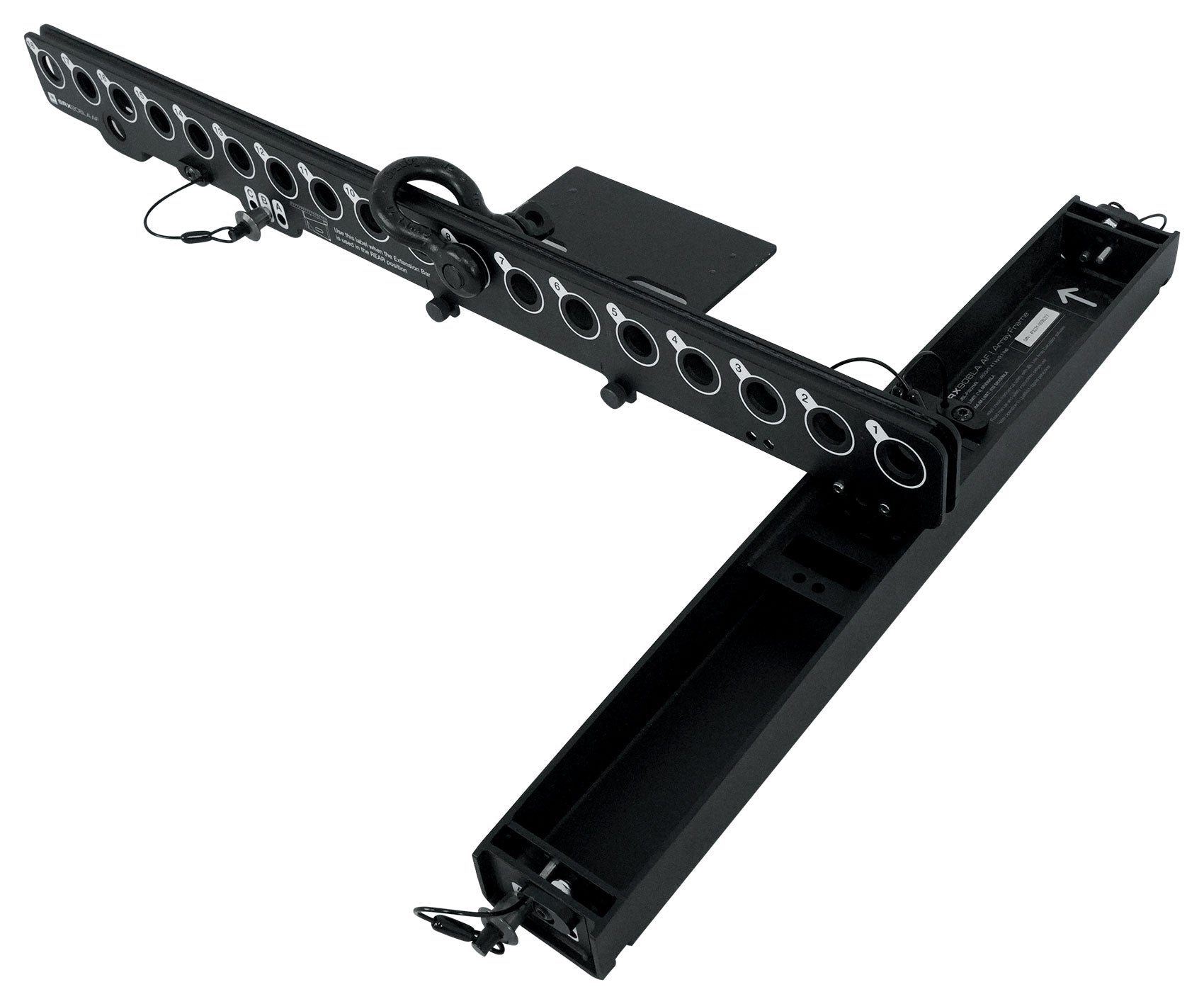

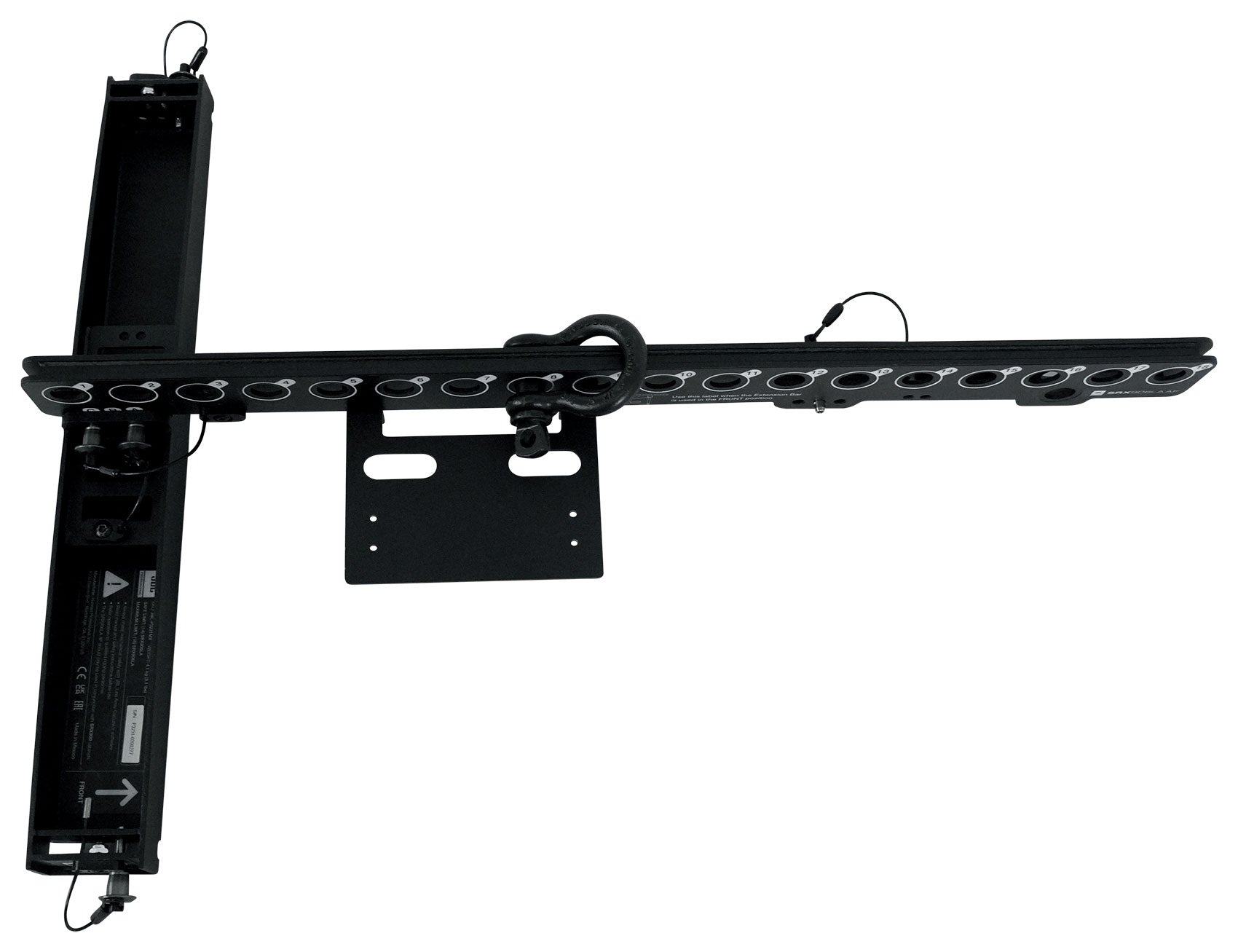

The SRX906LA AF is a lightweight and compact array frame for suspending SRX906LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX906LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed easy for storage. For more information about the array frame and use cases, refer to the SRX900 Series Rigging Manual.

Features:

• Compact and lightweight design
• Precision pick-point resolution

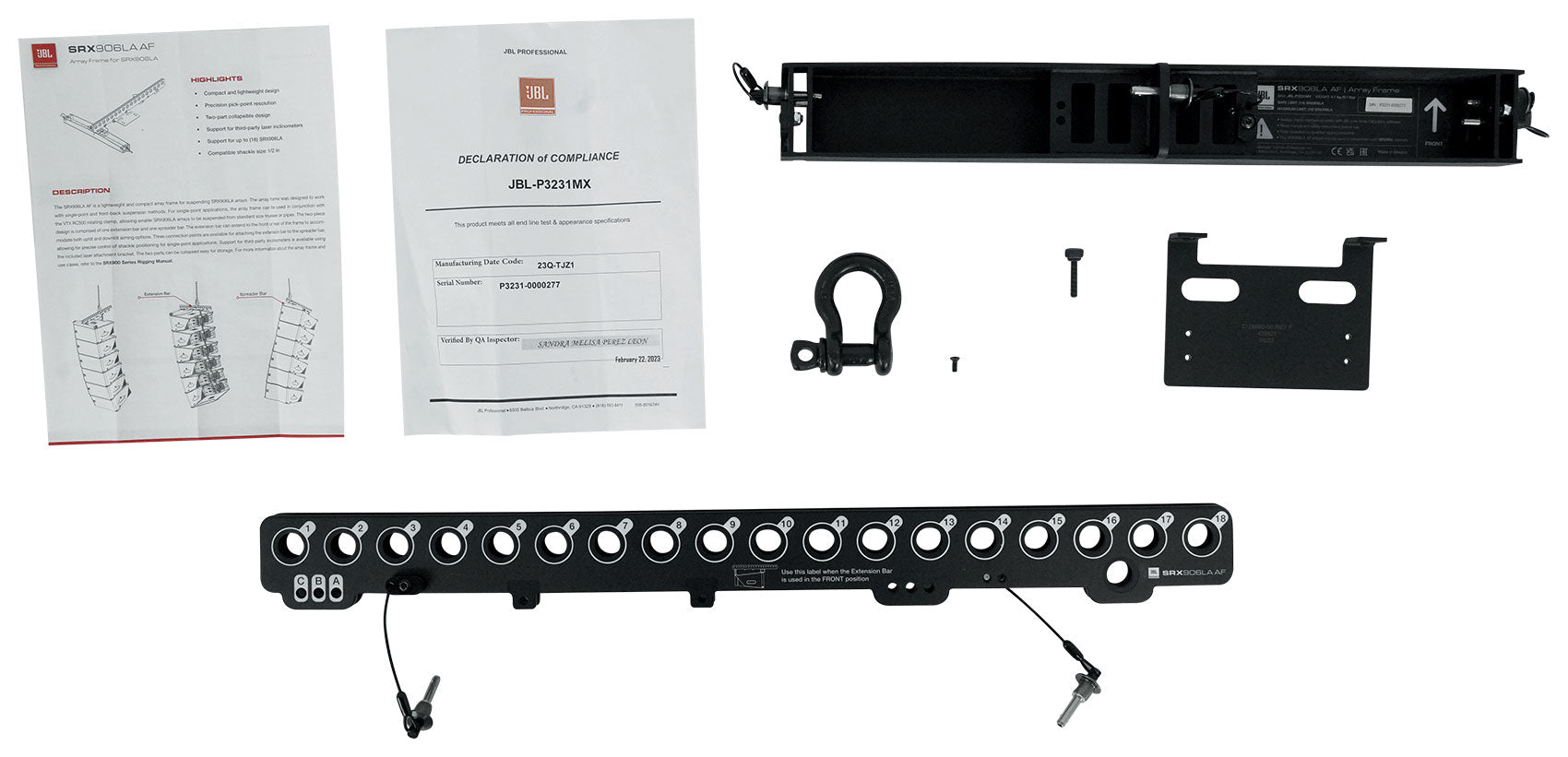

• Two-part collapsible design
• Support for third-party laser inclinometers
• Support for up to (16) SRX906LA
• Compatible shackle size: 1/2 in

Specifications:

• Construction : High-grade steel with anti-corrosion coating
• Finish : Black powder coat
• Compatible Shackle Size : 1/2-inch
• Compatible Lasers : TEQ-SAS, RECLINE
• Mechanical Limits1
• Safe Limit : (14) SRX906LA
• Maximum Limit : (16) SRX906LA
• Dimensions (H x W x D)2 : 3.9 in x 19.2 in x 25.8 in
• Net Weight3: 4.1 kg (9 lbs)
• Shipping Weight : 5.0 kg (11 lbs)
