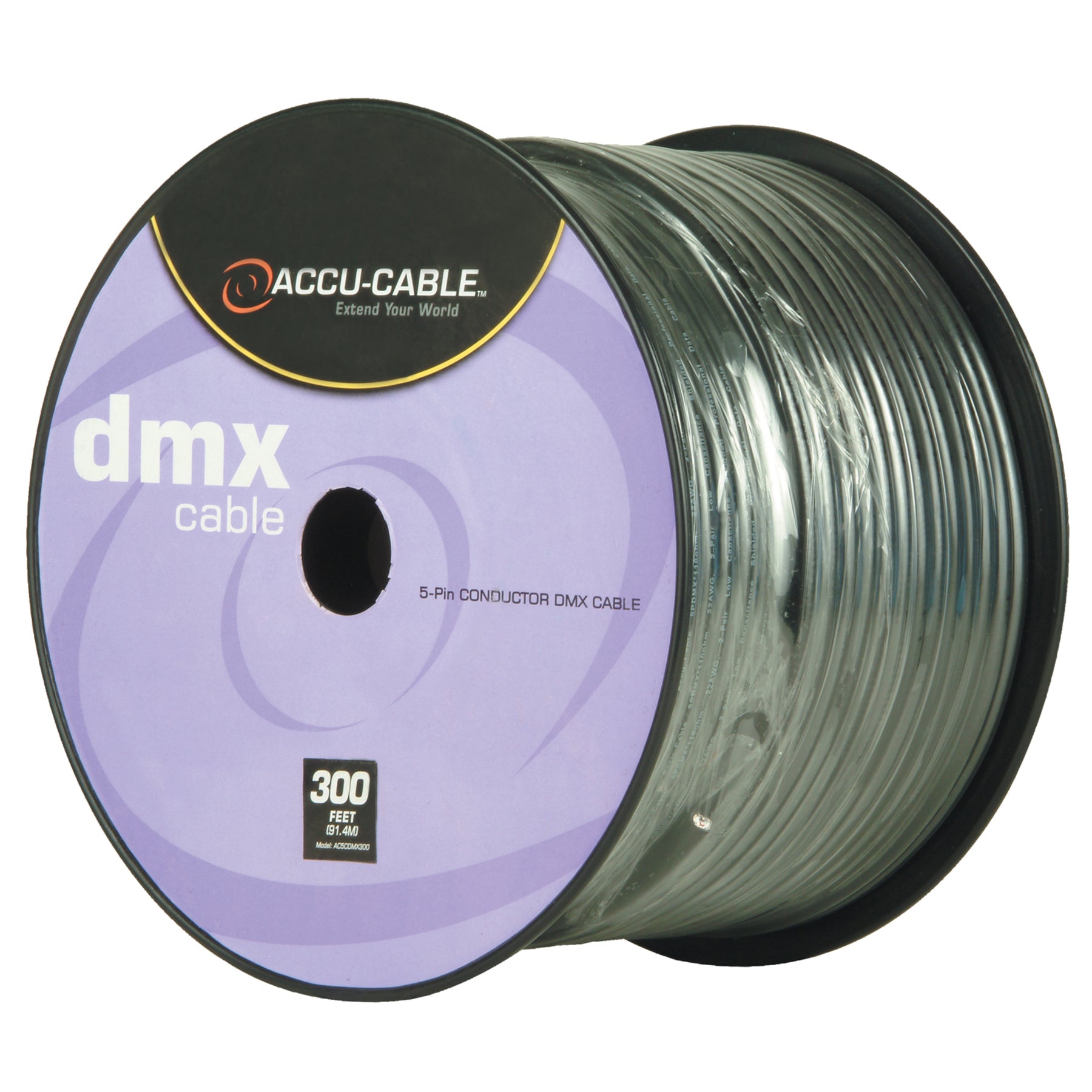

Accu-Cable AC5CDMX300 300 Foot 5-Pin Conductor DMX Lighting Cable Spool ADJ

$307.95 $249.99 Save 19%
Shipping calculated at checkout.
Product Description

What's in the Box:

  • 300 Feet DMX Cable

Description:

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Features:

  • Accu-Cable AC5CDMX300 22 AWG 300 Foot 5-Pin Conductor DMX Lighting Cable Spool ADJ
  • Conductor: Number of Pairs: 2
  • Total Number of Conductors: 4 (plus 1 ground)
  • AWG: 22
  • Stranding: 0.15 x 19
  • Conductor Diameter: .0354"
  • Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:
  • Lay Length: 1.1"
  • Direction: Left Hand Lay
  • Twists: 10.9 per foot Inner Jacket:
  • Inner Jacket Material: PE- Polyethylene
  • Inner Jacket Diameter: .055"
  • Pair Color Code: Green/Black/Red/White Outer Shield:
  • Outer Shield Trade Name: Duofoil®

Specifications:

  • Outer Shield Type: Tape/Braid Outer Shield Material:
  • Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
  • Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:
  • Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:
  • Overall Nominal Diameter: .295" Mechanical Characteristics:
  • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
  • Bulk Cable Weight: 50 lbs./1000
  • Minimum Bend Radius (Install): 3.5"
  • Maximum Recommended Pull Tension: 22 lbs. Electrical Characteristics:
  • Nominal Characteristic Impedance: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft.
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft.
  • Nominal Velocity of Propagation: 76%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft.
  • Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft.
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.
  • Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
