LCMR-8 4 Ohm

Product Description Specifications

LCMR-8 4 Ohm

  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
  • LCMR-8 4 Ohm
1 8

SUNDOWN AUDIO

LCMR-8 4 Ohm

LCMR-8 4 Ohm

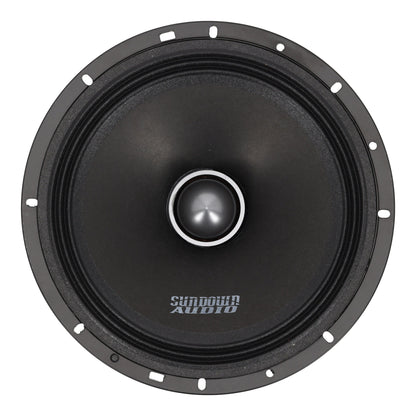

8" Midrange Speaker, 100W RMS, 4-Ohm, 120Hz-6kHz Range, Phase Plug, Sold Individually
$38.95
$38.95 $83.99
Save 53%
Shipping calculated at checkout.
Features
    • 100W RMS handling in a dedicated 120Hz to 6kHz midrange
    • 8" cone adds weight below vocals for a clean subwoofer handoff
    • Phase plug improves off-axis response and cools the coil
    • 94dB sensitivity delivers strong output on moderate power
    • 4-ohm load wires directly to standard amplifier channels
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • 1 x Sundown Audio LCMR-8 8" Midrange Speaker (4 Ohm)

SKU: LCMR-8 4 Ohm

View full details

Product Description

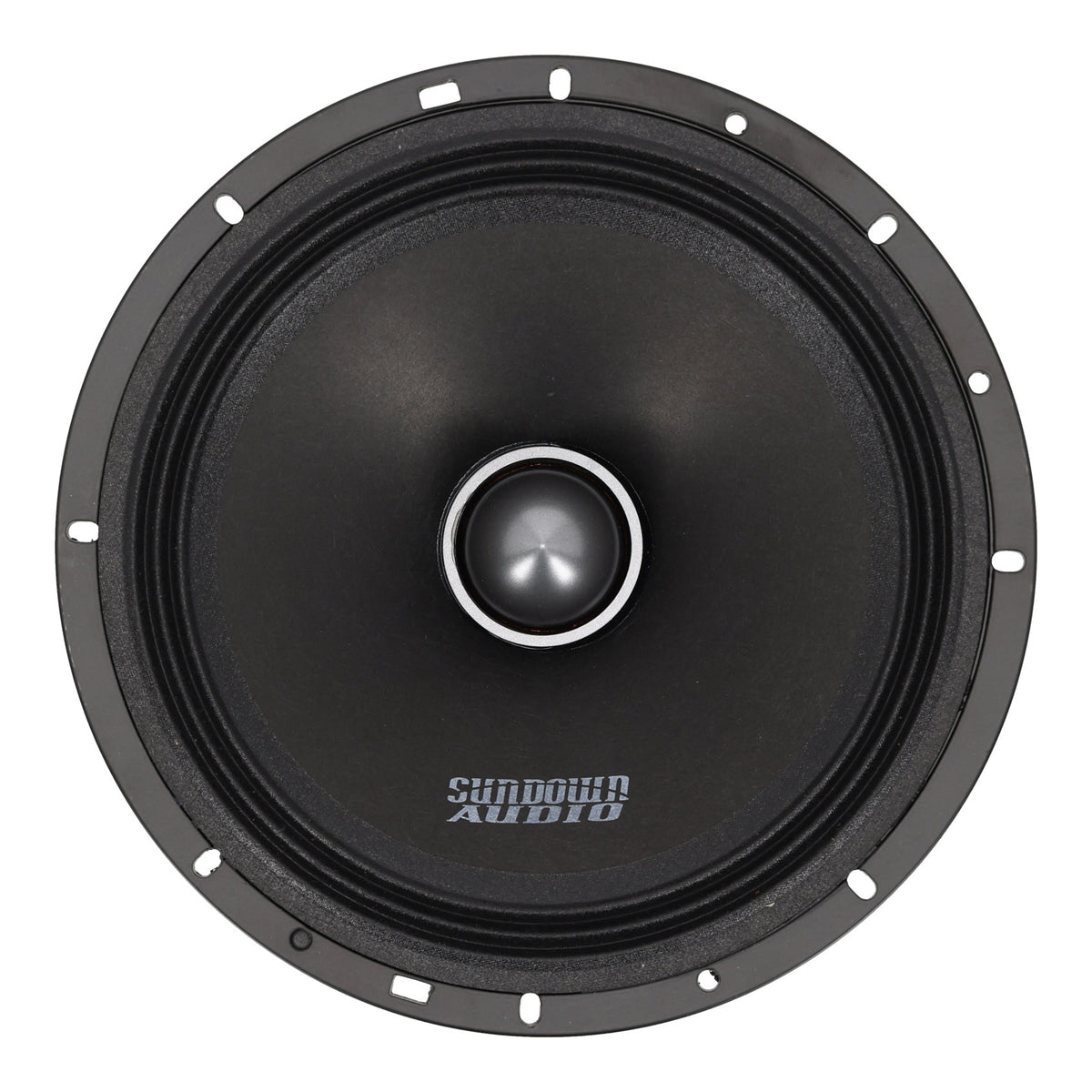

The LCMR-8 is an 8-inch midrange rated 100W RMS at 4 ohms, dedicated to the 120 Hz to 6 kHz band. Eight inches of cone in a midrange means real weight behind vocals and guitars: the lower end of its range overlaps where a subwoofer hands off, so the transition stays connected instead of leaving a hole.

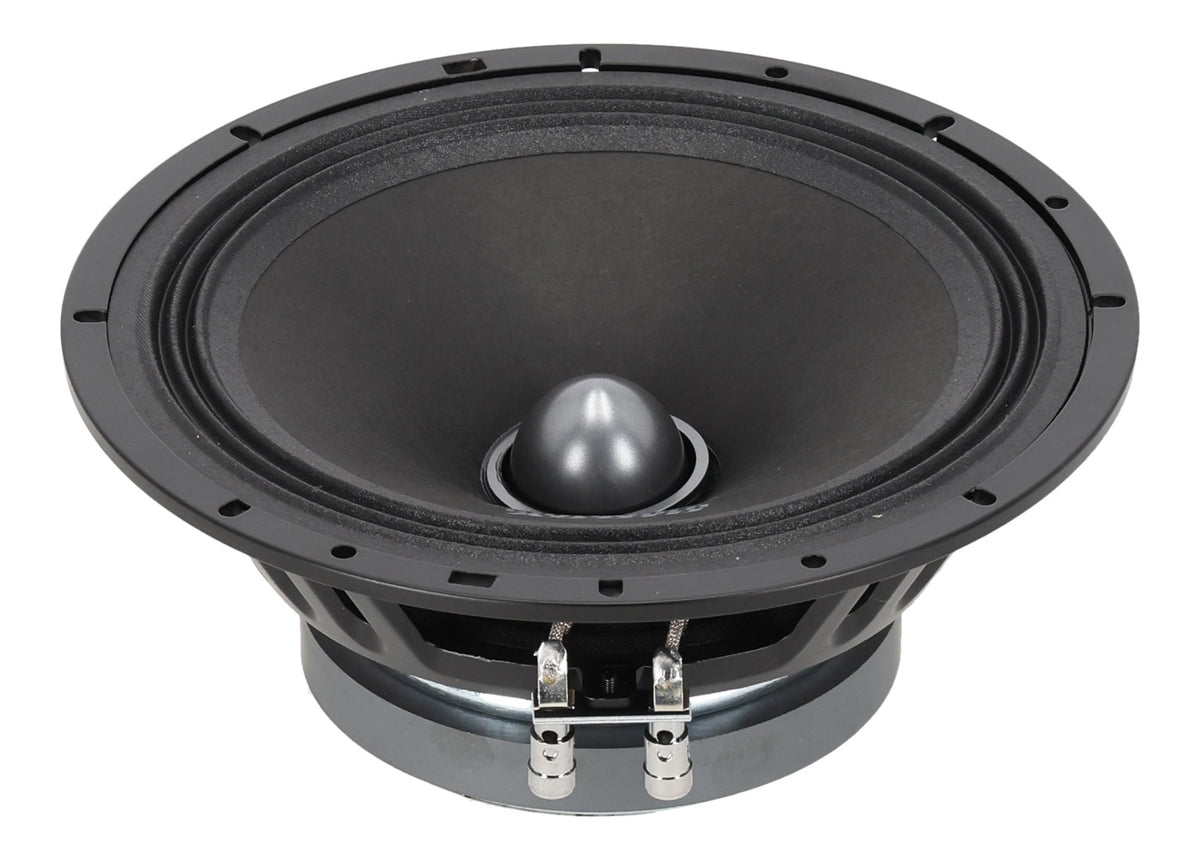

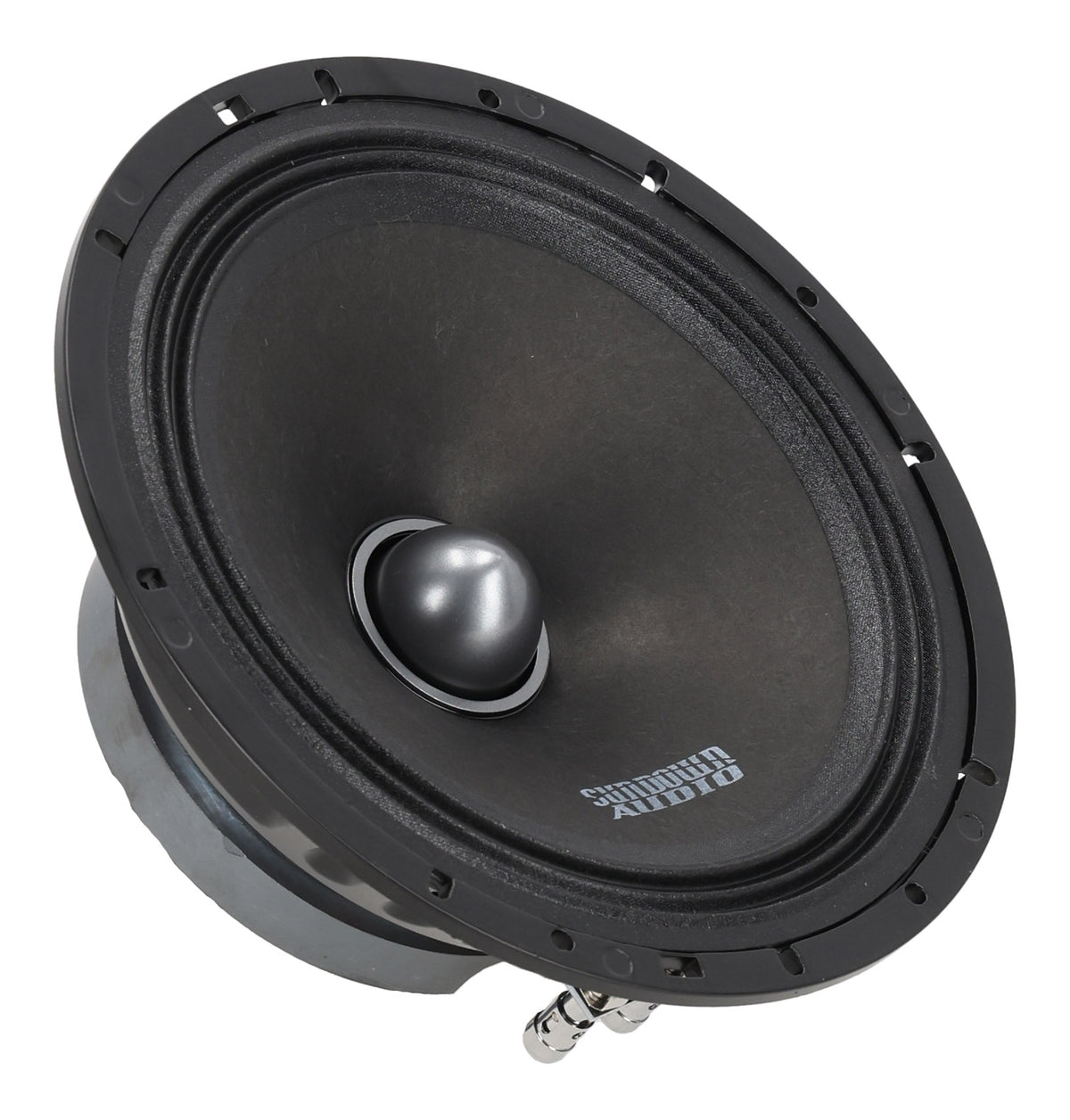

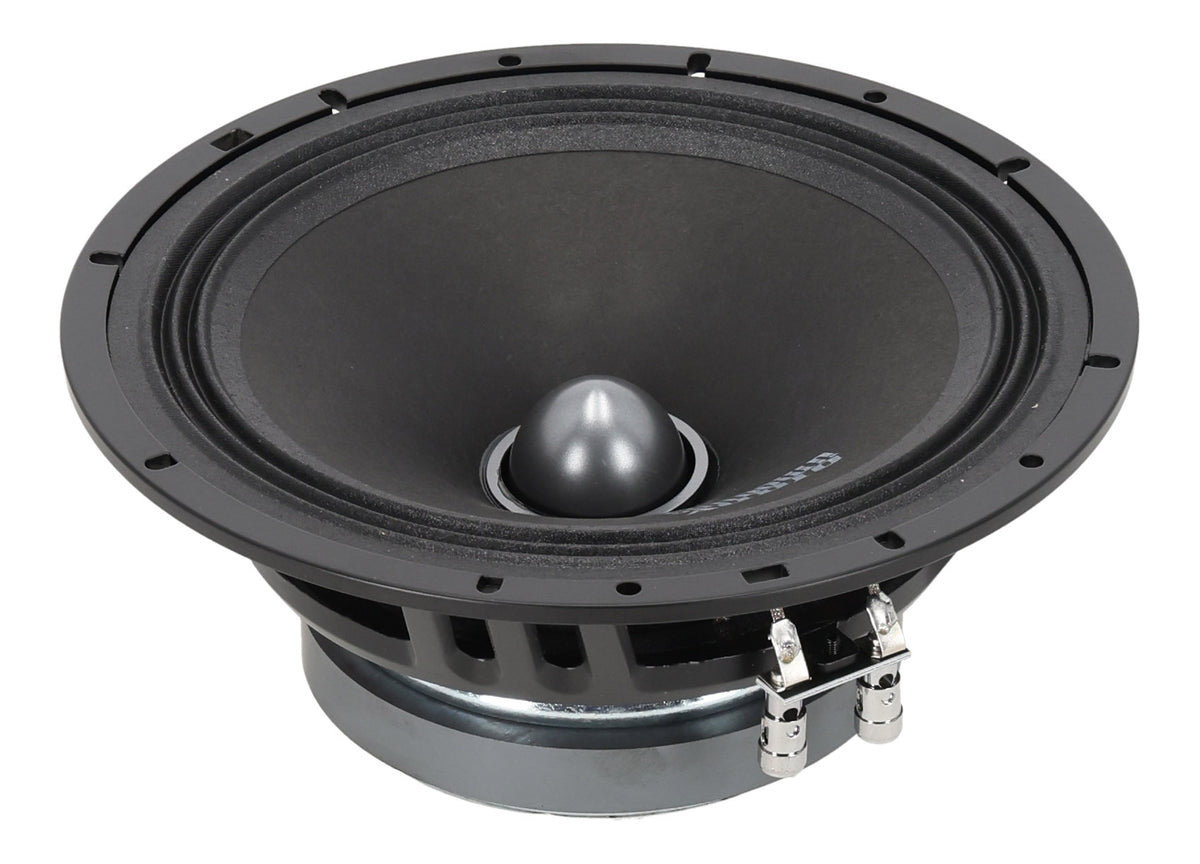

Sensitivity is 94 dB, high enough that 100W produces serious output. A phase plug replaces the dust cap, keeping response consistent off-axis and pulling heat away from the voice coil during long sessions. Published parameters back up the behavior: 81.18 Hz resonance, 0.52 Qts, and a 9.46 mechanical Q, which point to a controlled, well-damped midrange on an active crossover.

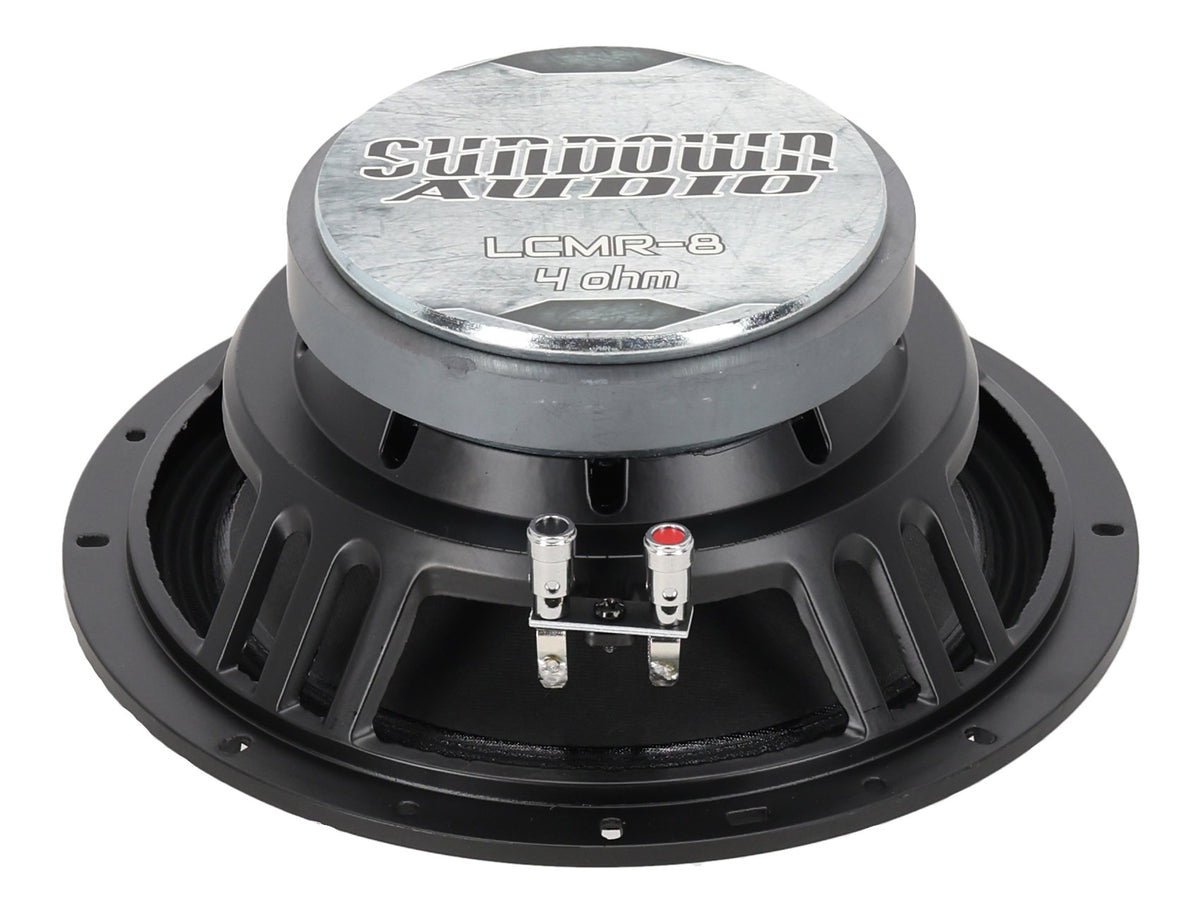

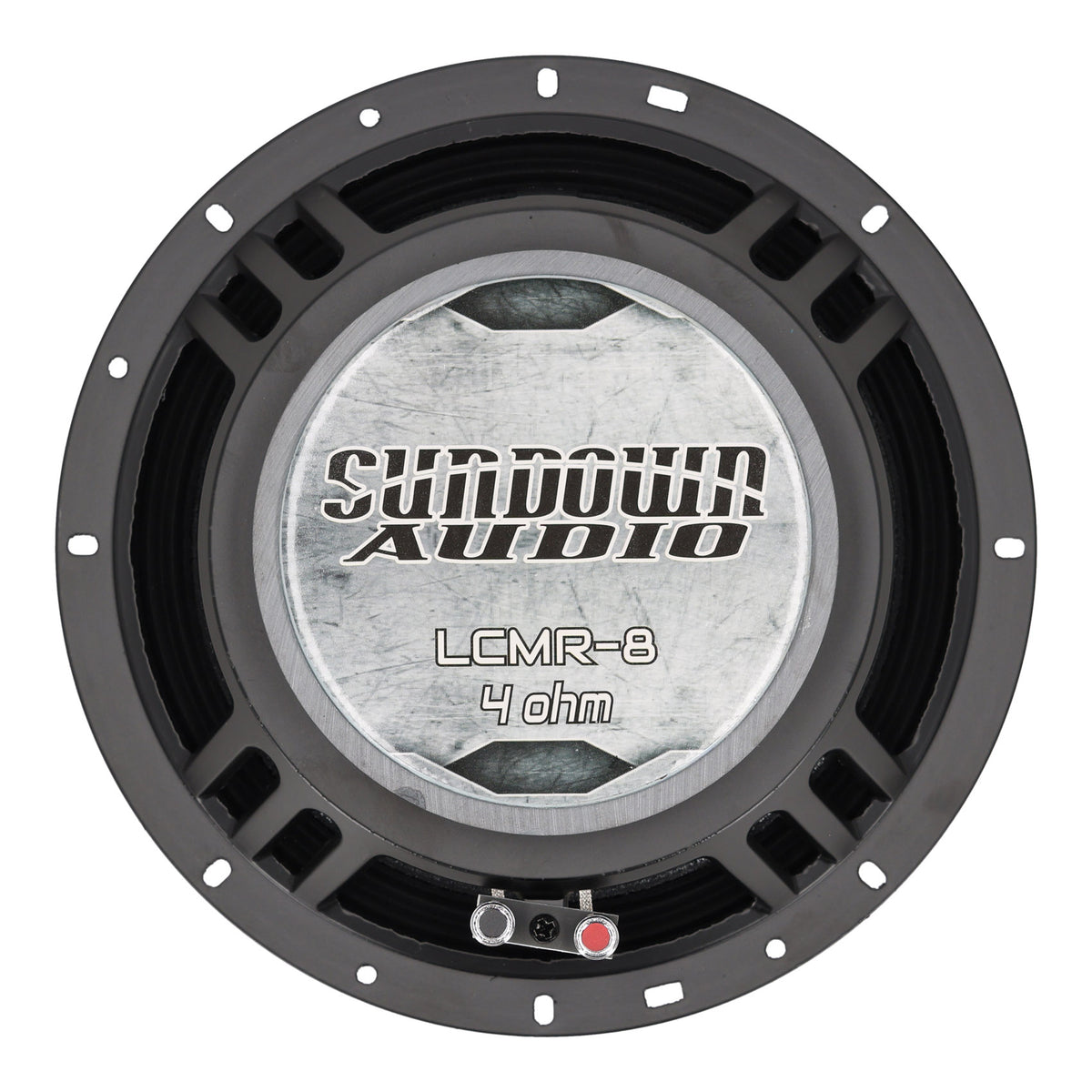

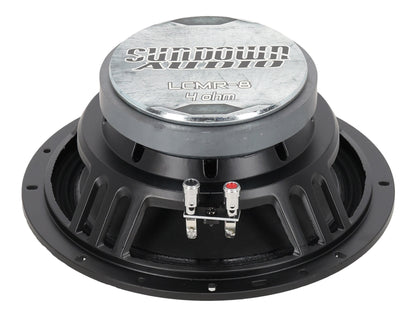

The 4-ohm load wires straight to standard amplifier channels, and two in series land on 8 ohms if you need to raise impedance in a larger array. Installation calls for a 7.125-inch cutout and 3.5 inches of depth behind an 8.25-inch outer frame, dimensions that fit purpose-built pods, kick panels, and custom door baffles.

Sold individually so you buy the exact count your build requires.

Features

    • Midrange With Real Weight

      An 8-inch cone reaching down to 120 Hz keeps vocals and guitars full-bodied and meets a subwoofer without leaving a gap in the middle.

    • Loud On Moderate Power

      94 dB sensitivity paired with 100W RMS handling means this speaker produces high output without demanding an oversized amplifier channel.

    • Consistent Off Axis

      A phase plug in place of a dust cap holds response steady away from center, useful in kick panels and doors aimed across the cabin.

    • Straightforward Wiring

      The 4-ohm load connects directly to standard amplifier channels, and two in series land at 8 ohms when a build needs higher impedance.

    • Numbers For Your Baffle

      A 7.125-inch cutout, 3.5-inch depth, and 8.25-inch outer diameter let you cut and fit pods before the speakers are in hand.

Technical Specifications

  • Product Type 8" Car Audio Midrange Speaker
  • RMS Power 100W
  • Impedance 4 Ohms
  • Frequency Range 120Hz - 6kHz
  • Sensitivity 94 dB +/- 2dB (1W/1m)
  • Configuration Sold individually
  • Dust Cap Phase plug
