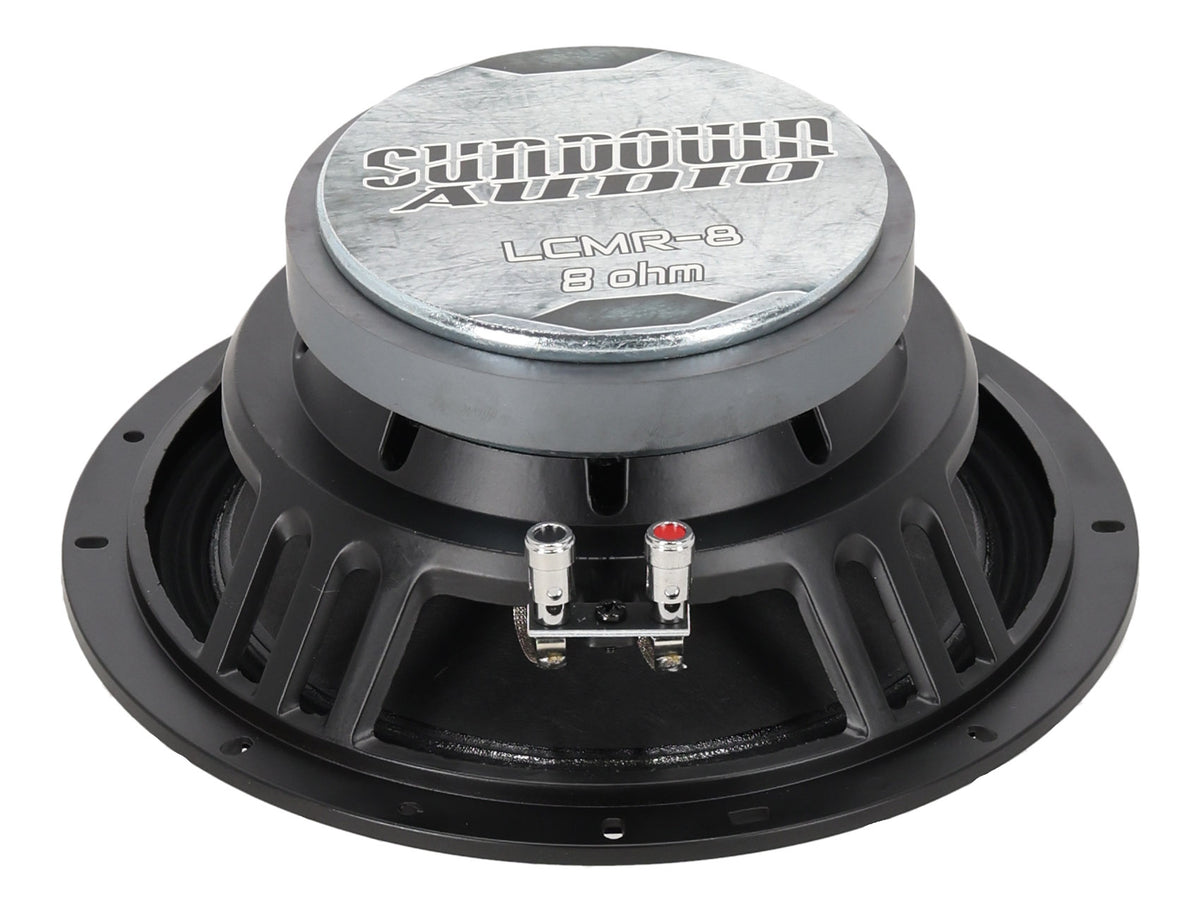

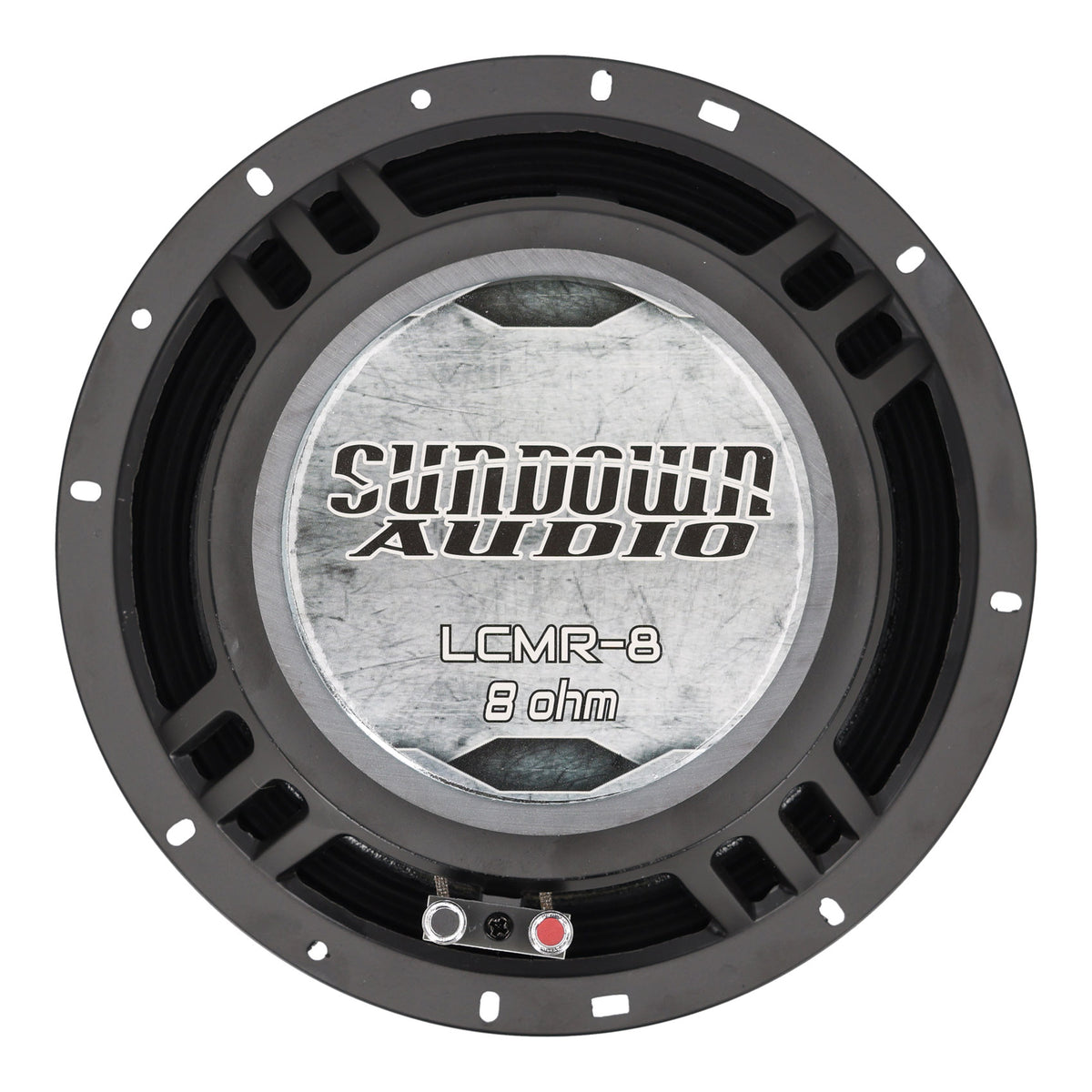

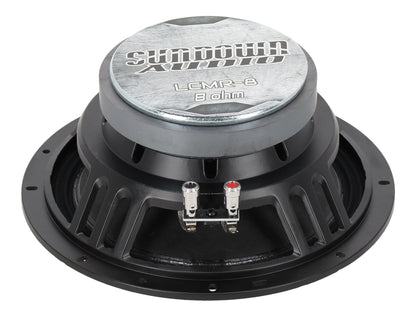

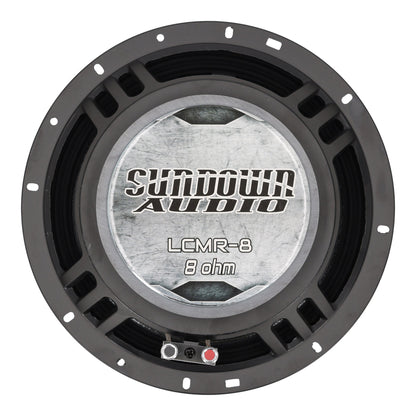

LCMR-8 8 Ohm

LCMR-8 8 Ohm

8" Midrange Speaker, 100W RMS, 8-Ohm, 120Hz-6kHz Range, Phase Plug, Sold Individually
$38.95
$38.95 $83.99
Save 53%
Shipping calculated at checkout.
Features
    • 100W RMS handling in a dedicated 120Hz to 6kHz midrange
    • 8-ohm load suits paralleling several speakers in an array
    • 8" cone adds weight below vocals for a clean subwoofer handoff
    • Phase plug improves off-axis response and cools the coil
    • 94dB sensitivity delivers strong output on moderate power
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • 1 x Sundown Audio LCMR-8 8" Midrange Speaker (8 Ohm)

SKU: LCMR-8 8 Ohm

View full details

Product Description

The LCMR-8 is an 8-inch midrange rated 100W RMS at 8 ohms, dedicated to the 120 Hz to 6 kHz band. Eight inches of cone in a midrange means real weight behind vocals and guitars: the lower end of its range overlaps where a subwoofer hands off, so the transition stays connected instead of leaving a hole.

The 8-ohm load is the reason to pick this version. Two in parallel present 4 ohms and four present 2 ohms, which is how multi-midrange doors, pillars, and pods get built without dropping an amplifier below its rated load. Sensitivity is 94 dB, so each speaker contributes real output rather than just filling space.

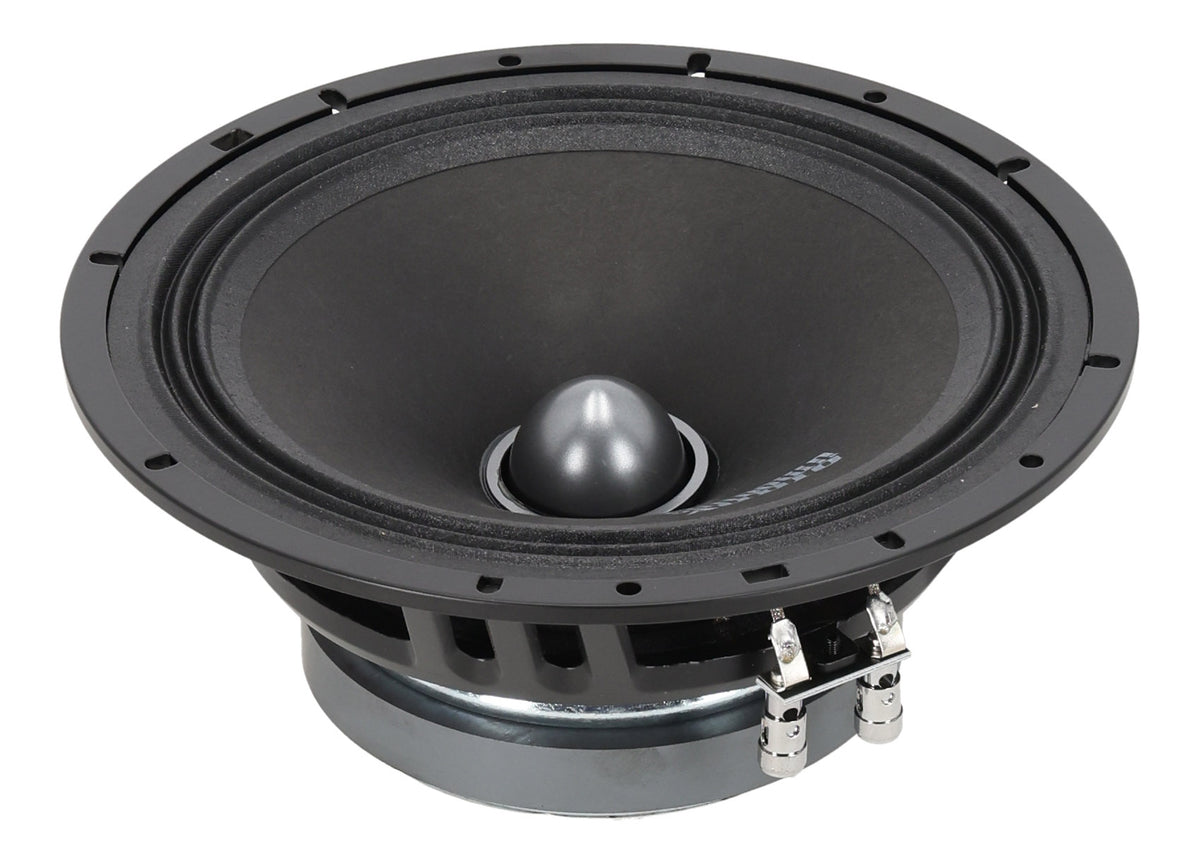

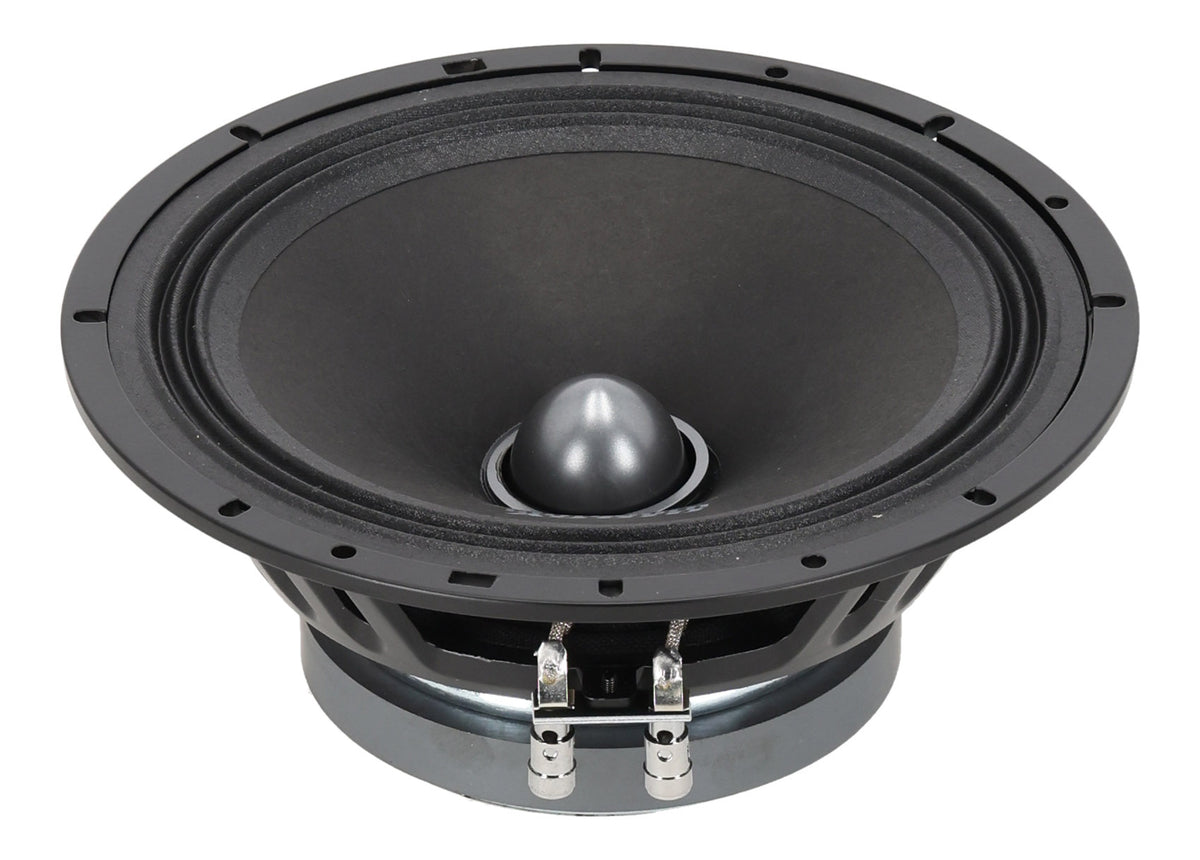

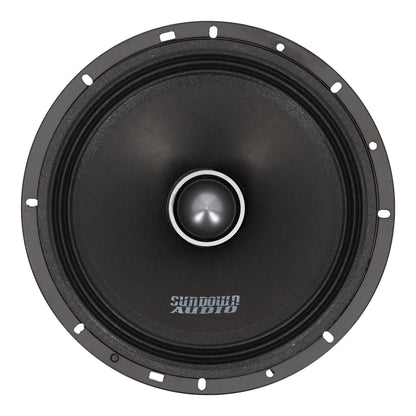

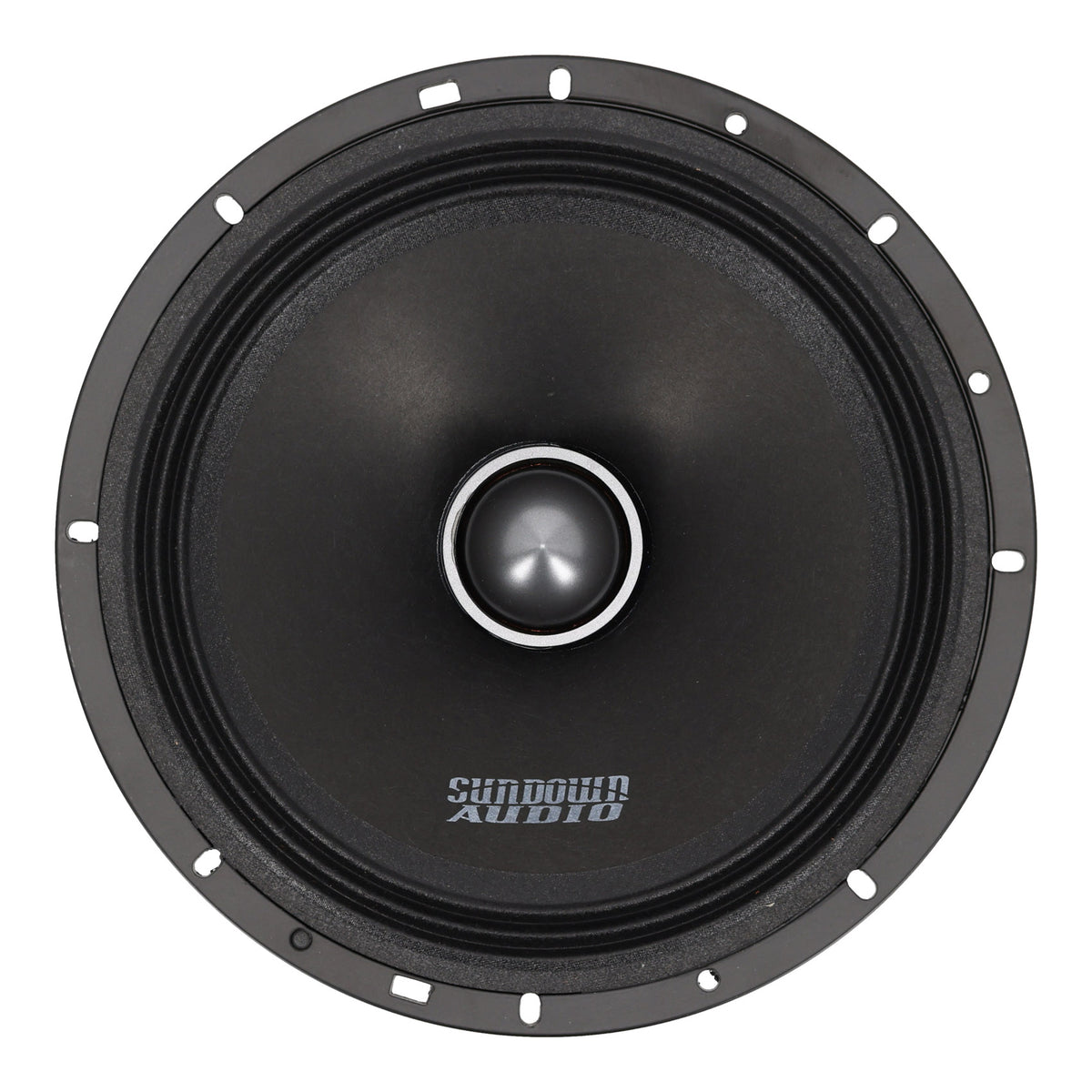

A phase plug replaces the dust cap, keeping response consistent off-axis and pulling heat away from the voice coil during long sessions. Published parameters point to controlled behavior on an active crossover: 81.18 Hz resonance, 0.52 Qts, and a 9.46 mechanical Q.

Installation calls for a 7.125-inch cutout and 3.5 inches of depth behind an 8.25-inch outer frame. Sold individually so you buy the exact count your build requires.

Features

    • Midrange With Real Weight

      An 8-inch cone reaching down to 120 Hz keeps vocals and guitars full-bodied and meets a subwoofer without leaving a gap in the middle.

    • Wire Several At Once

      The 8-ohm load means two in parallel present 4 ohms and four present 2 ohms, so large midrange arrays stay inside an amplifier's rating.

    • Loud On Moderate Power

      94 dB sensitivity paired with 100W RMS handling means this speaker produces high output without demanding an oversized amplifier channel.

    • Consistent Off Axis

      A phase plug in place of a dust cap holds response steady away from center, useful in kick panels and doors aimed across the cabin.

    • Numbers For Your Baffle

      A 7.125-inch cutout, 3.5-inch depth, and 8.25-inch outer diameter let you cut and fit pods before the speakers are in hand.

Technical Specifications

  • Product Type 8" Car Audio Midrange Speaker
  • RMS Power 100W
  • Impedance 8 Ohms
  • Frequency Range 120Hz - 6kHz
  • Sensitivity 94 dB +/- 2dB (1W/1m)
  • Configuration Sold individually
  • Dust Cap Phase plug
