JBL Pro PRX835XW 15” 3-Way 1500w Powered Active Speaker with Wifi + Mobile App

Authorized JBL Dealer!

Description:

High-Powered Sound Reinforcement System with Wireless App Control

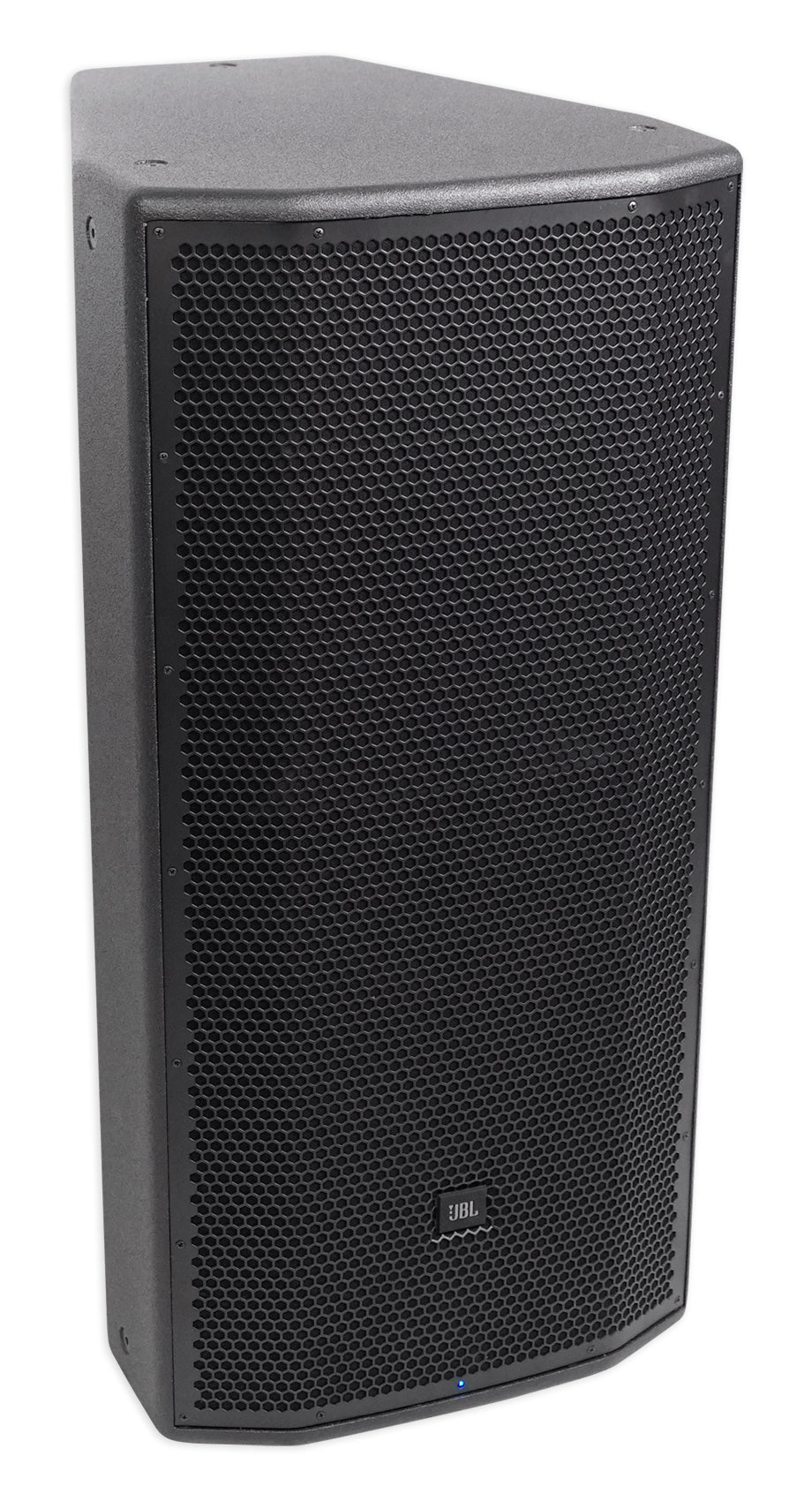

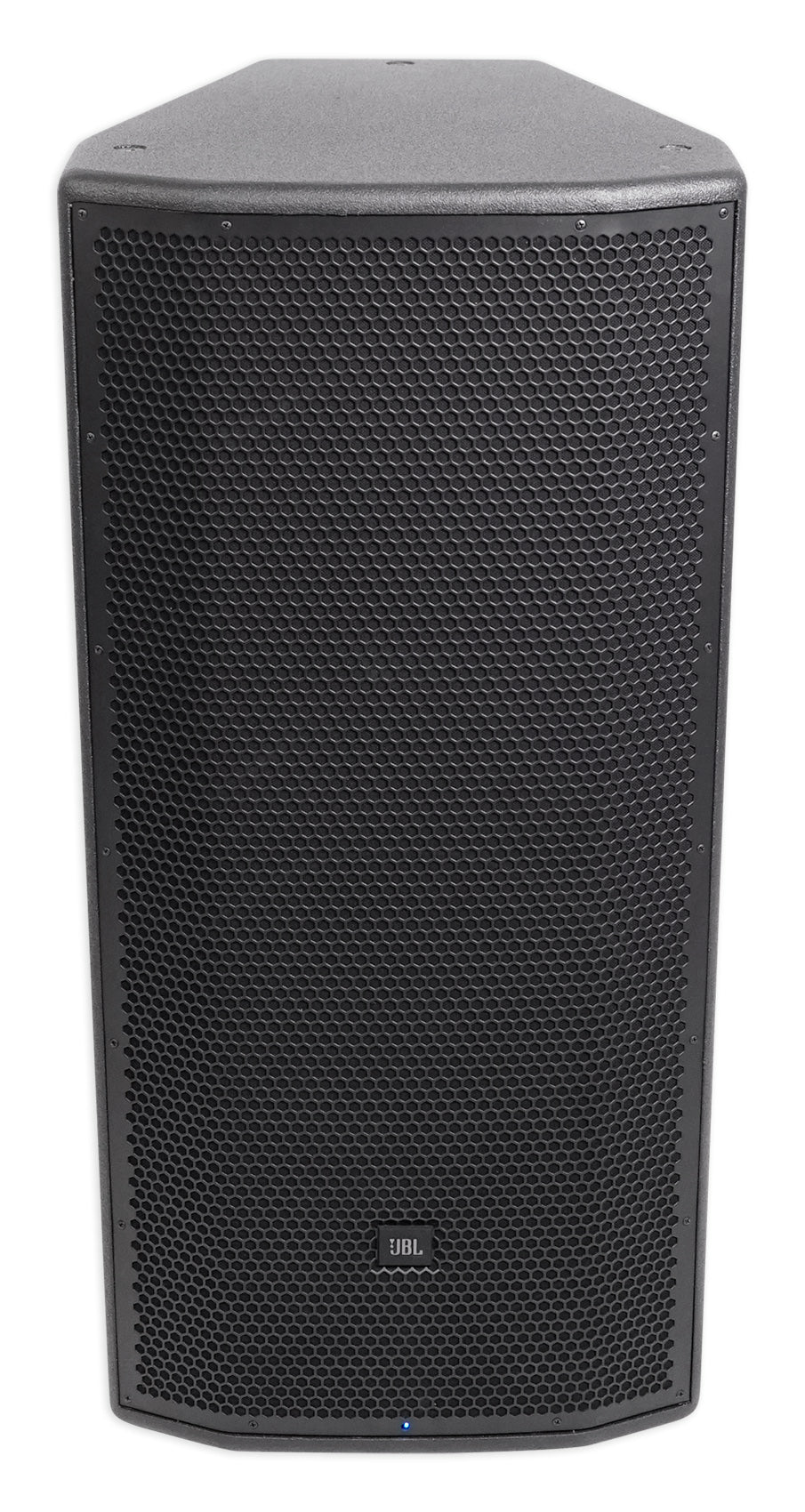

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

Built-in Wi-Fi
For wireless control of your system from anywhere in the venue. Run your entire show from your tablet without having to go to each speaker before or during the show. Added EQ and delay settings are an added benefit of the application.

Free PRX Connect Mobile App for iOS and Android
Provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

Intelligent Variable-Speed Fan
Activates only when needed to reduce noise

Scalable System
Integrates with other JBL portable powered PA's

JBL Differential Drive Transducers
For higher SPL in a lightweight design

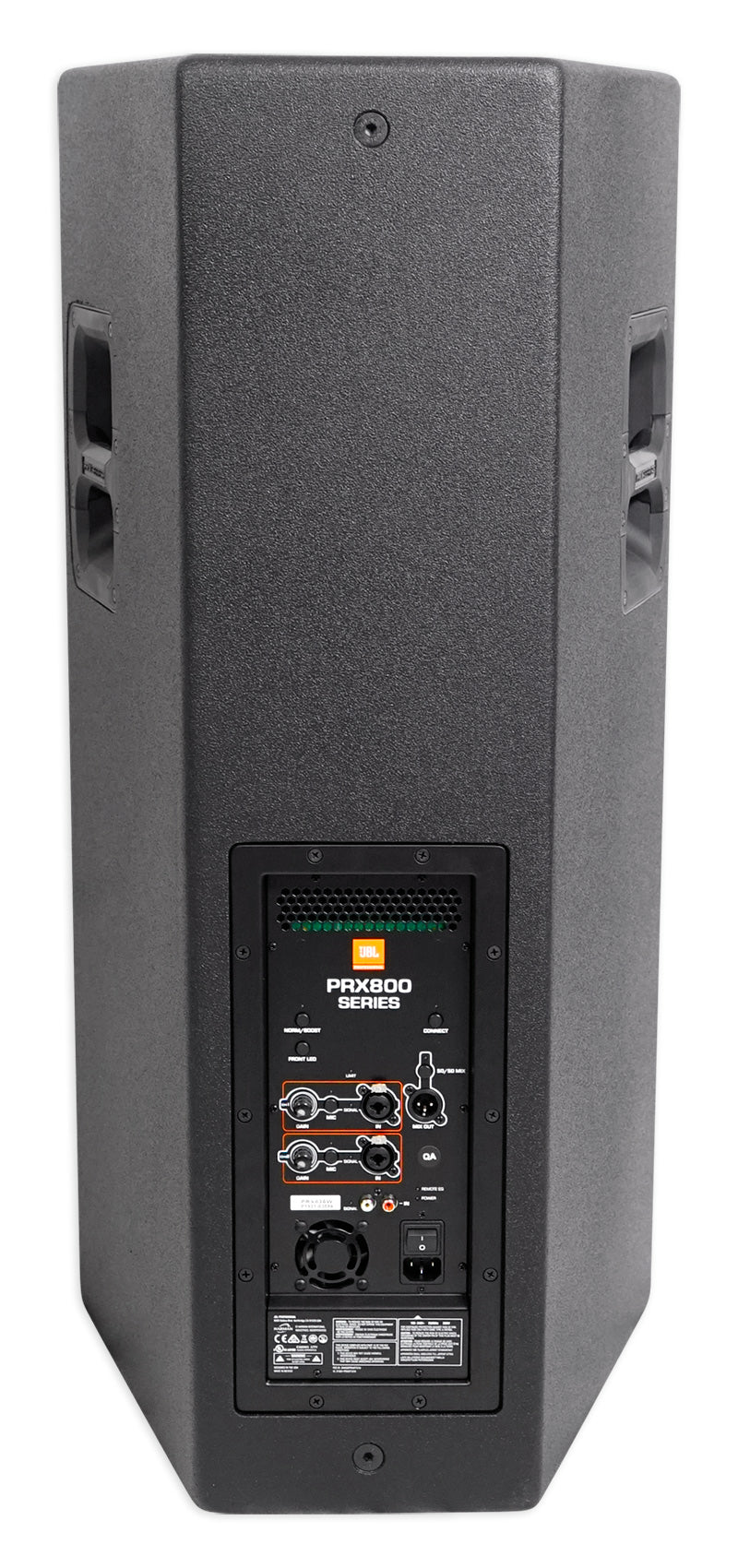

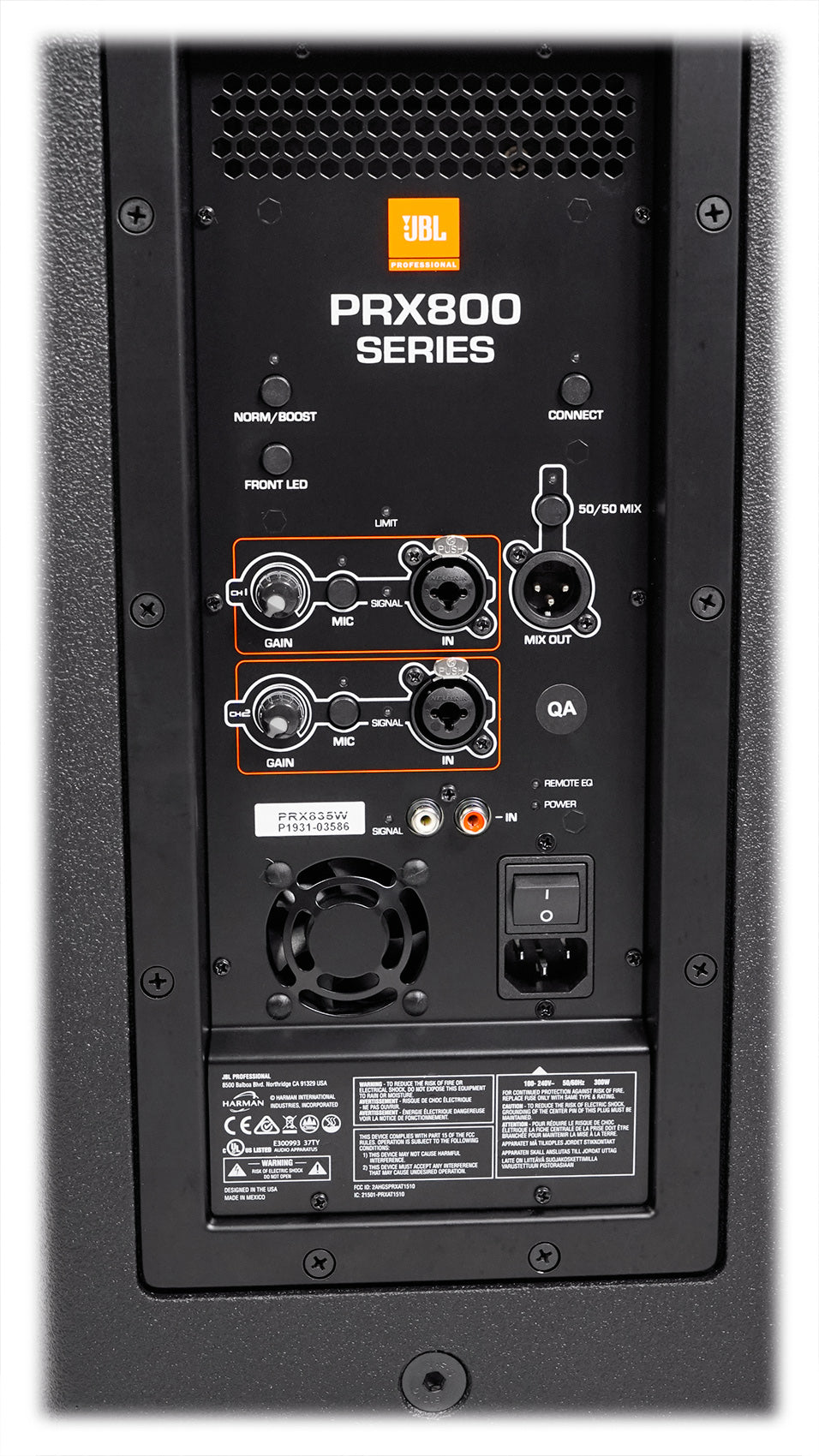

Crown-Designed Input Panel
With XLR, 1/4", and RCA inputs, plus XLR loop-through

Durable Construction
Wooden cabinets, tour-prove DuraFlex finish, and dent-resistant cloth-backed 16-gauge grilles

Universal Power Supply
For worldwide compatibility

Specifications:

• JBL Pro PRX835XW 15” 3-Way 1500 Watt Powered Active Speaker with Wifi and Mobile App
• System Type: Self Powered 15” Three-Way, Bass- Reflex Speaker
• Power Rating: 1500W (750W x 2)
• Maximum SPL Output: 138 dB peak
• Frequency Range (-10 dB): 35 Hz - 20 kHz
• Frequency Response (±3 dB): 42 Hz – 20 kHz
• Input Connectors: (2) Balanced XLR / 1/4" input, (2) Unbalanced RCA Input
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal Indicators:
  • Limit - Yellow LED indicates peak output has been reached and DSP Limiter is acting
  • Signal - Green LED indicates signal present
  • Power - Blue LED indicates system has power and ready to pass audio
• EQ: User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application
• Dynamic Control (Input): DBX Type IV limiter circuit
• System Low Pass: 80 Hz DSP
• Crossover Frequency: 580 Hz, 2.1 kHz
• Design: Highly Efficient Class-D Amplifier

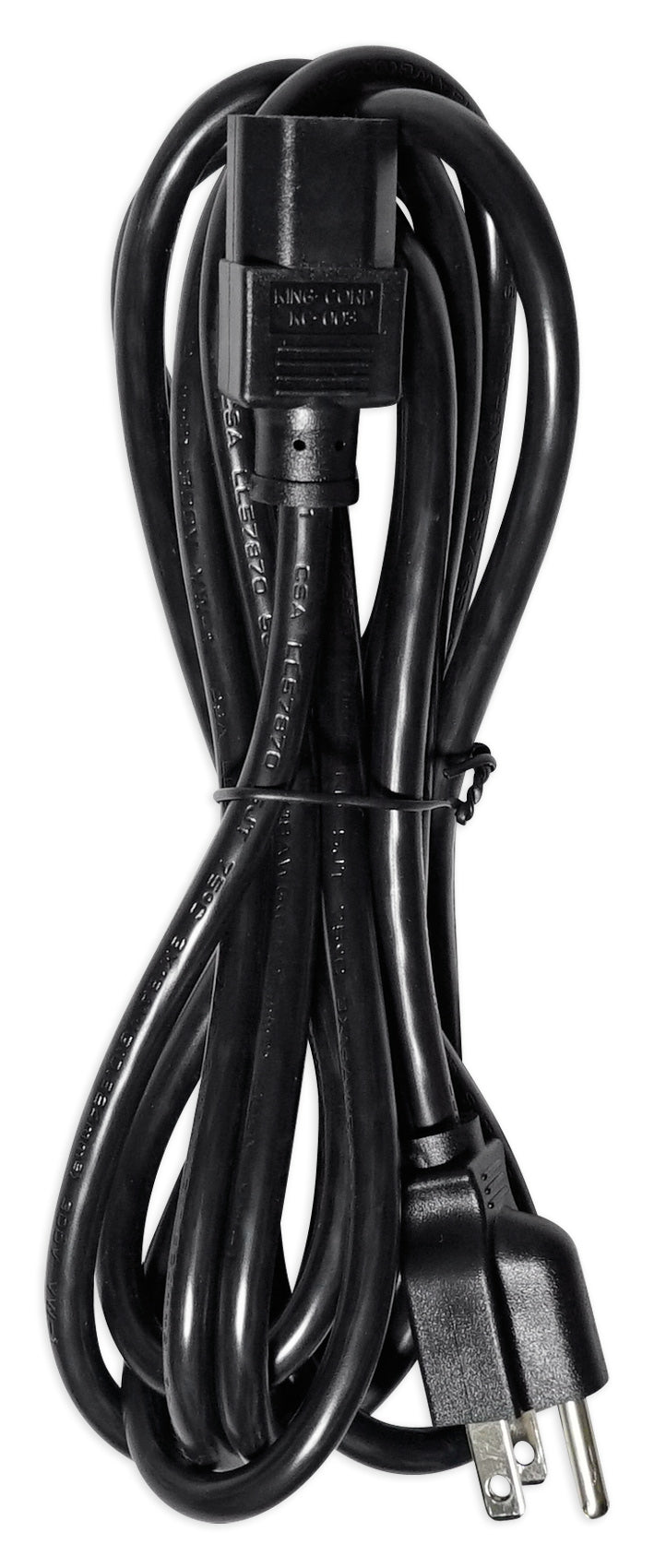

• AC Power Input: 100V - 240V ~ 50/60 Hz
• LF Driver: 1 x JBL 2275H (15 in) woofer
• MF Driver: 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern: 90° x 50° nominal
• Directivity Index (DI): 10.5 dB
• Directivity Factor (Q): 11.2
• Enclosure: Trapezoidal, 18mm, Plywood

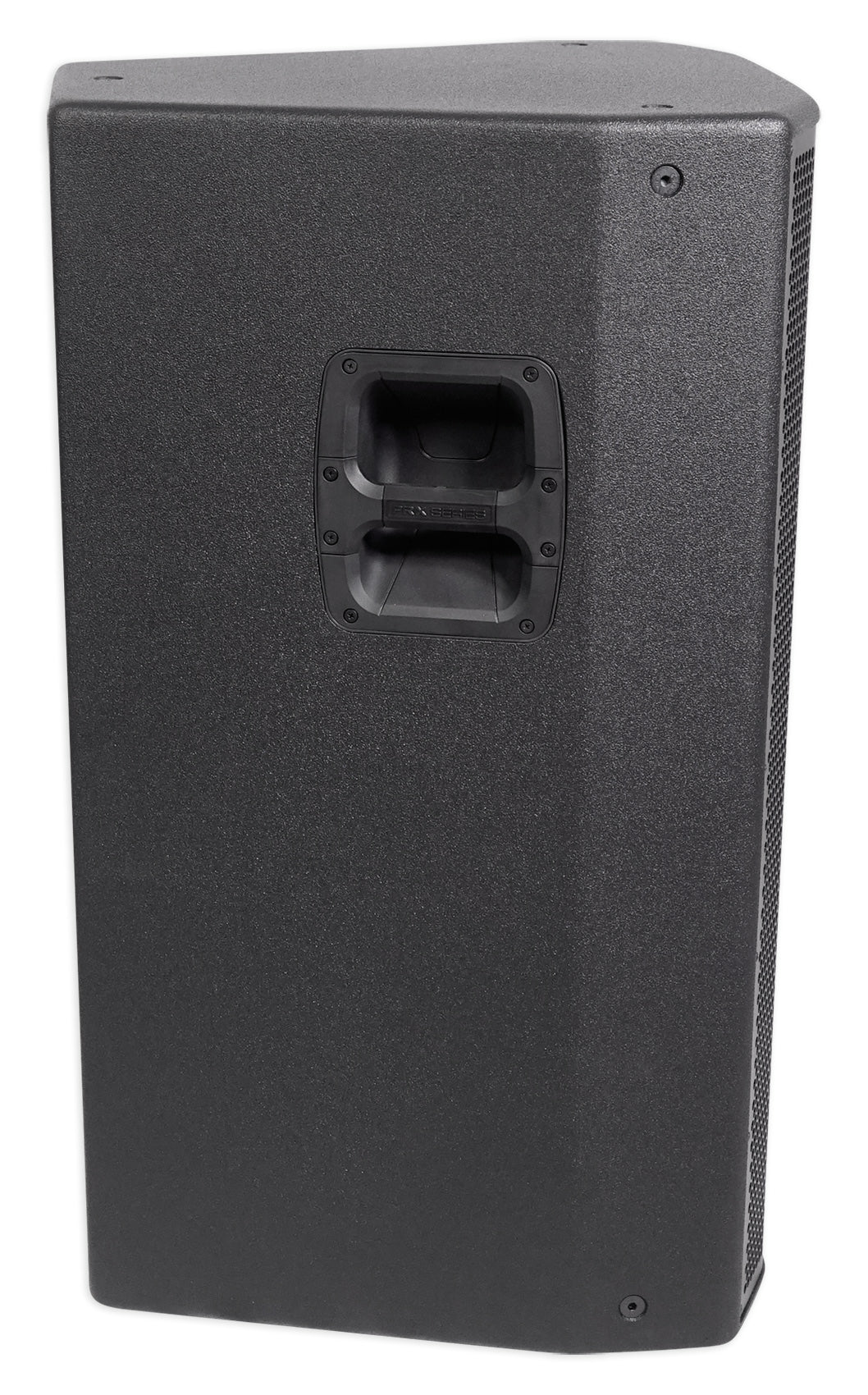

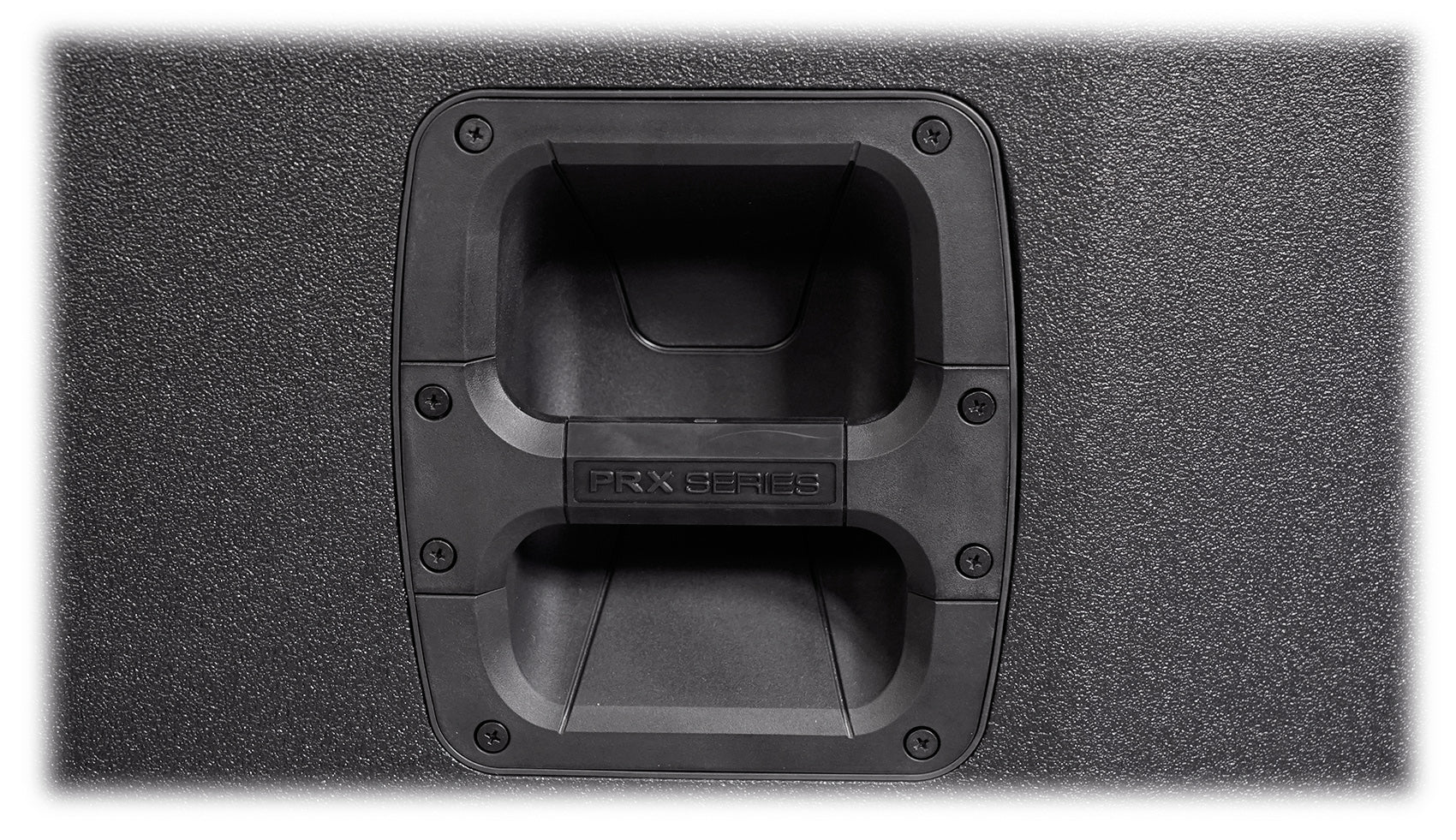

• Transport: 2x integrated handles with injection molded backing cup

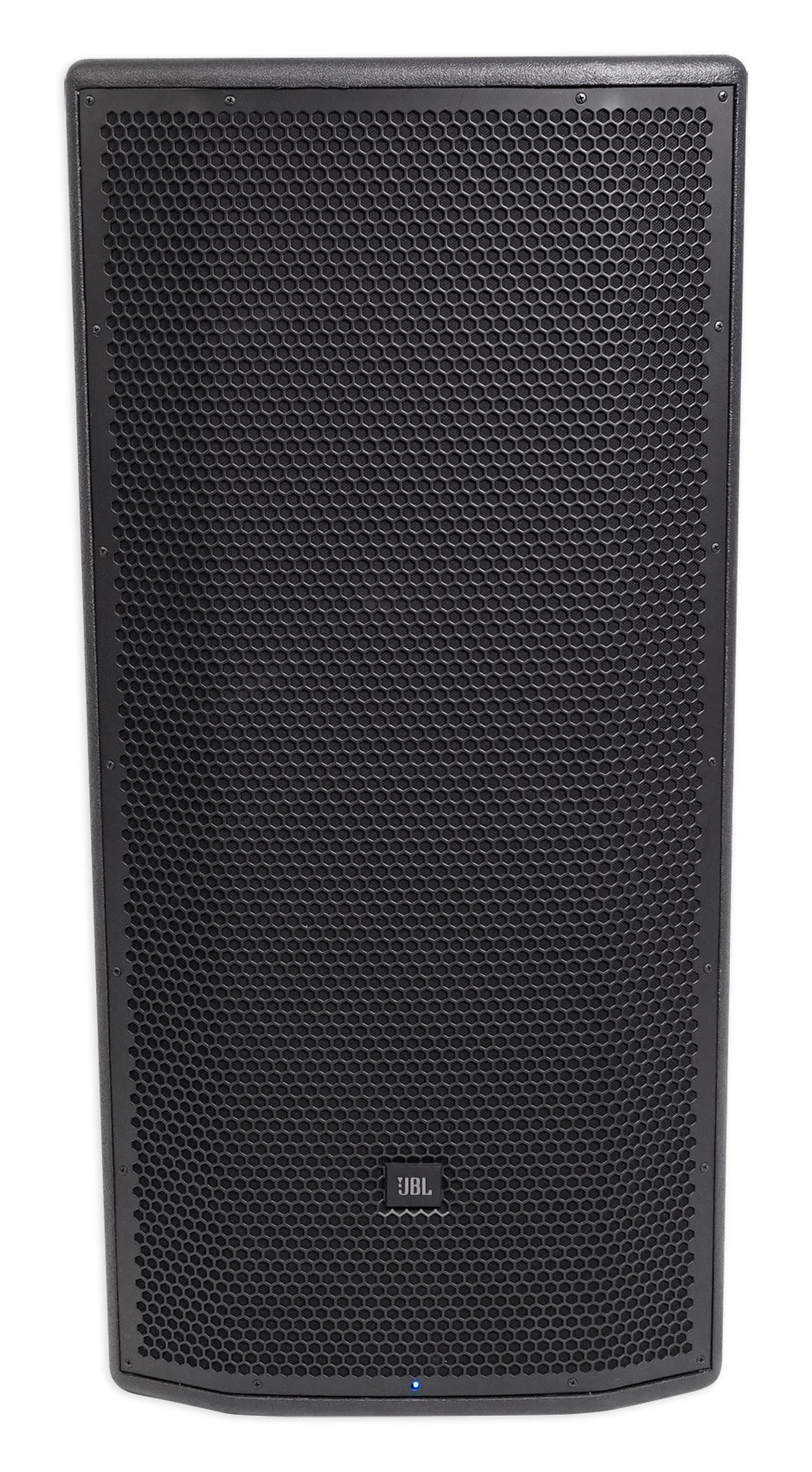

• Grille: Powder Coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing
• Product Dimensions (H x W x D): 36.9" x 17.5" x 21.2" inches
• Product Weight: 71.4 Lbs.

Click here for the Owner's Manual
