JBL CSA 2120 Commercial Amplifier Amp+(4) 6.5" Ceiling Speakers For Restaurant

$1,607.69 $1,545.00 Save 4%
Shipping calculated at checkout.
Product Description

Package Includes:

  • (1) JBL CSA 2120 2 x 120w 2-Channel Power Amplifier Commercial Amp 4 Restaurant/Bar
  • (2) (2) JBL Control 26C 6.5" 150 Watt In-Ceiling White Home Theater Speakers 16-ohm

Description:

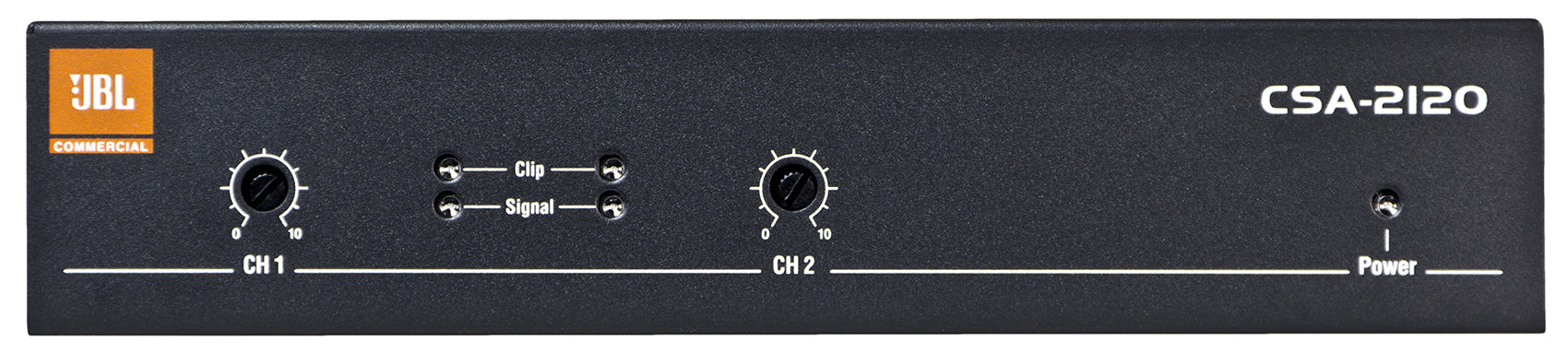

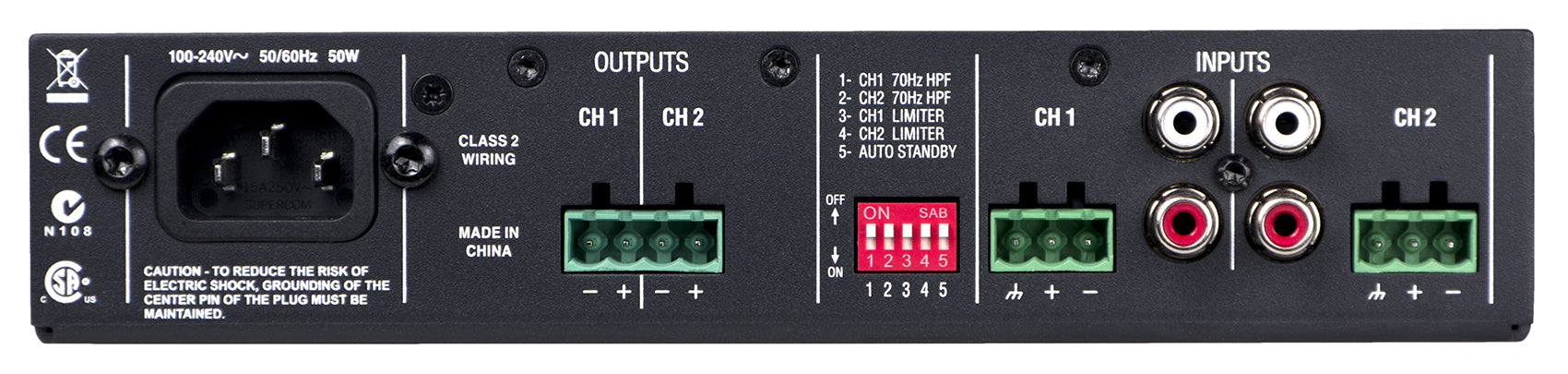

The CSA-2120 is a professional-grade power amplifier built for commercial and installed sound applications.  The amplifier is a two-channel model providing simple analog front-end processing with a switch-mode universal power supply.

Features:

  • 2 x 120W at 4/8Ohms
  • Plenum Rated (UL2043)
  • Compact size and light weight
  • Convection Cooled
  • Auto-standby mode for energy savings
  • Summing RCA inputs for each channel

Specifications:

  • Output: 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%)
  • Frequency Response: +/- 1dB (@1W into 4 or 8 Ohms)
  • Load Impedance: Stable from 2 - 16 Ohms
  • Sensitivity: 1.4Vrms
  • Signal to Noise Ratio: Greater than 100 dB - 1kHz, A-weighted
  • Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
  • Max Input: +20dBu Typical
  • Dimensions: 8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
  • Shipping Weight: 2.9 Lbs (1.3 Kg)
  • Included Accessories: Rack mounting kit

Description:

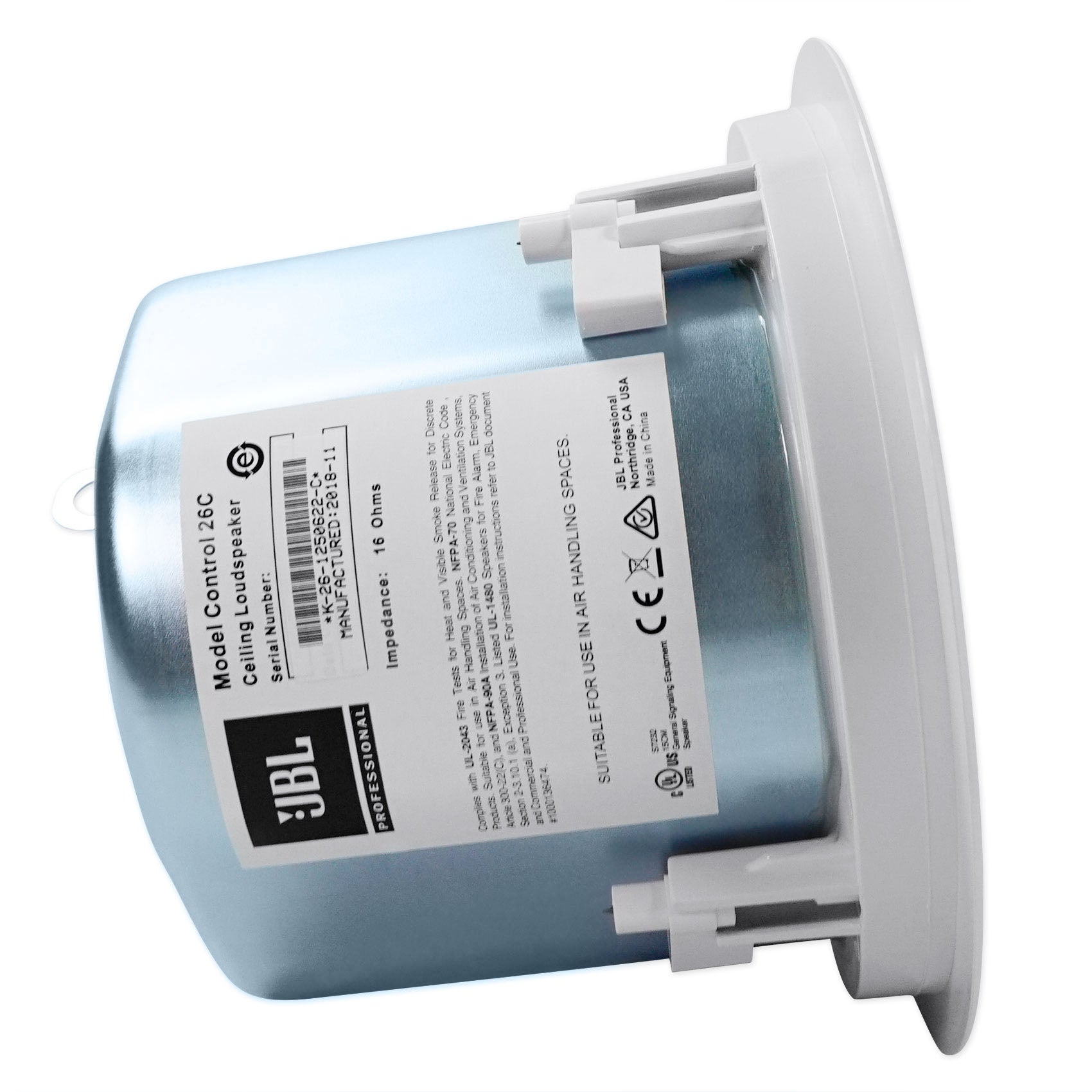

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

Features:

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
  • High power, wide frequency response and low distortion for high sound level capability.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications:

  • Frequency Range: 75 Hz - 20 kHz
  • Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
  • Nominal Sensitivity: 89 dB, 1m/1 W
  • Nominal Coverage Angle: 110°
  • Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
  • Nominal Impedance: 16-ohms
  • Rated Maximum SPL: 107 dB SPL @ 1m (3.3 ft)
  • Low Frequency: 165 mm (6.5 in)
  • High Frequency: 19 mm (.75 in) titanium
  • Terminations: Screw locking barrier strip
  • Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
  • Net Weight (ea): 2.7 kg (6 lbs)
  • Shipping Weight (pair): 6.4 kg (15 lbs)
