Mackie 1402VLZ4 14-ch Compact Analog Low-Noise Mixer w/ 6 ONYX Preamps+Blue Mic

$619.98 $449.99 Save 27% Sold out
Shipping calculated at checkout.
Product Description

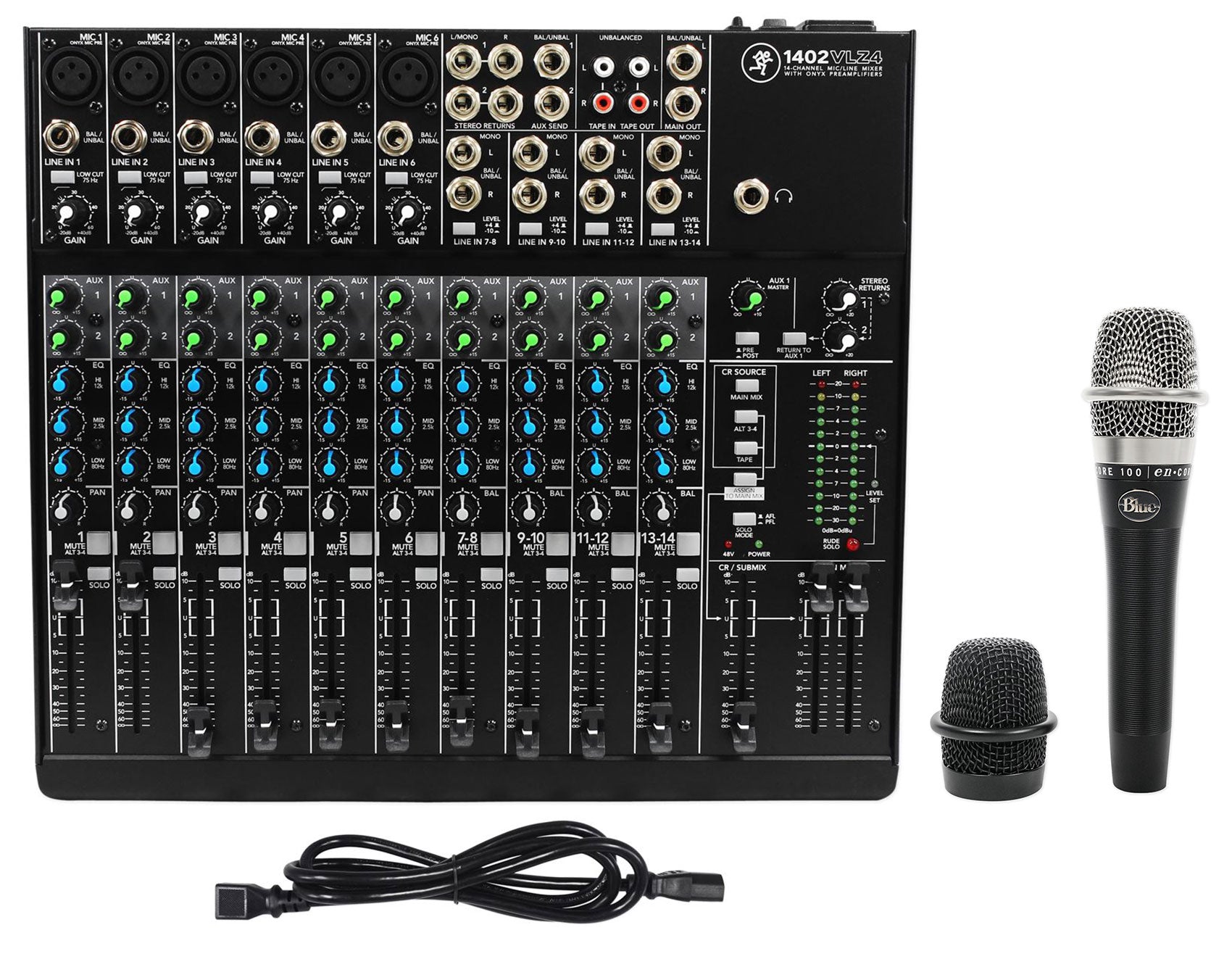

Package Includes:

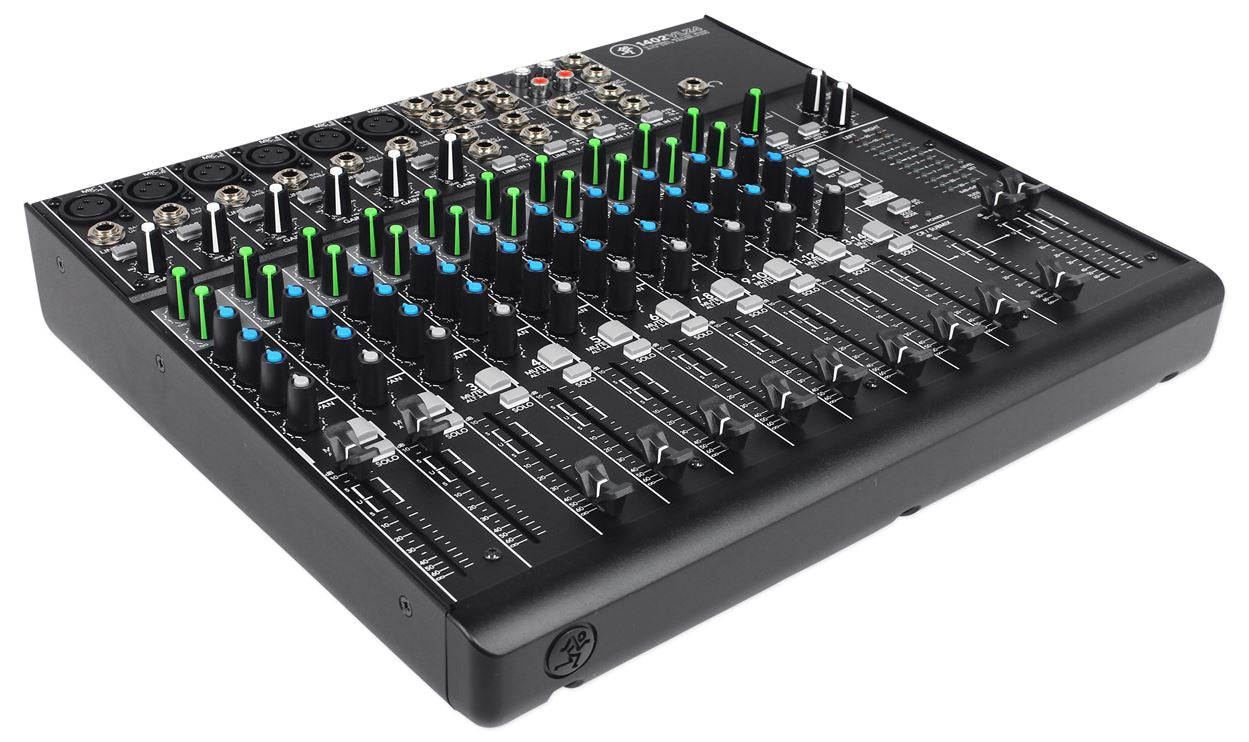

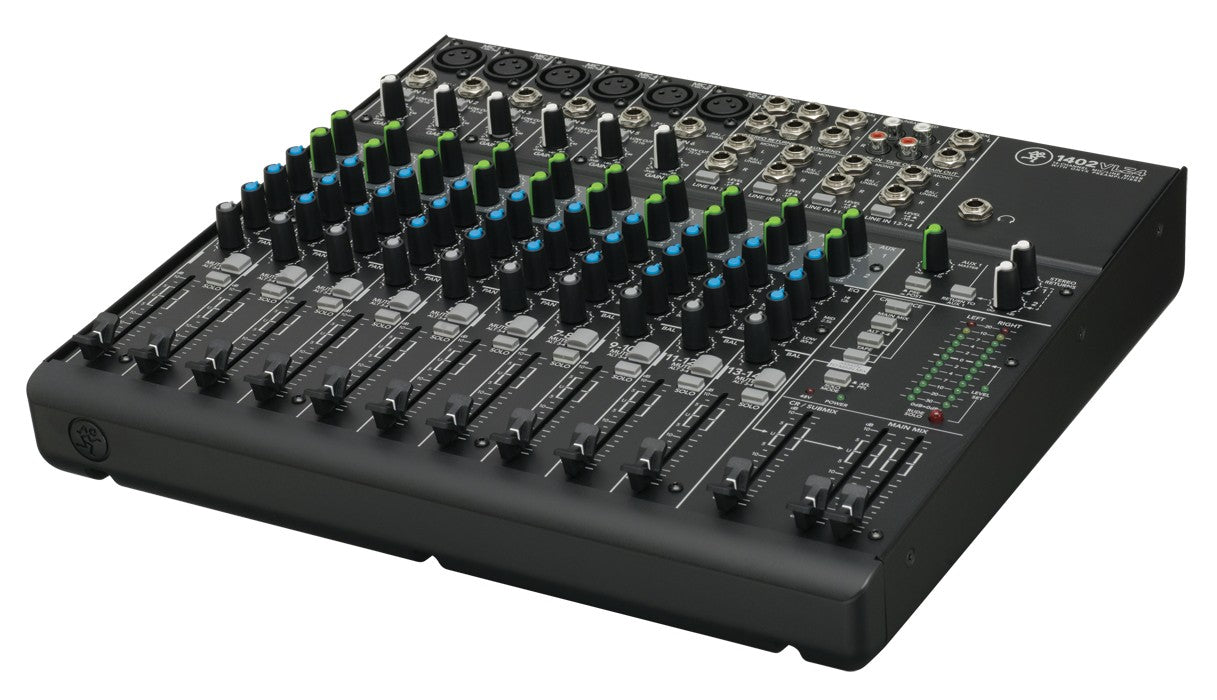

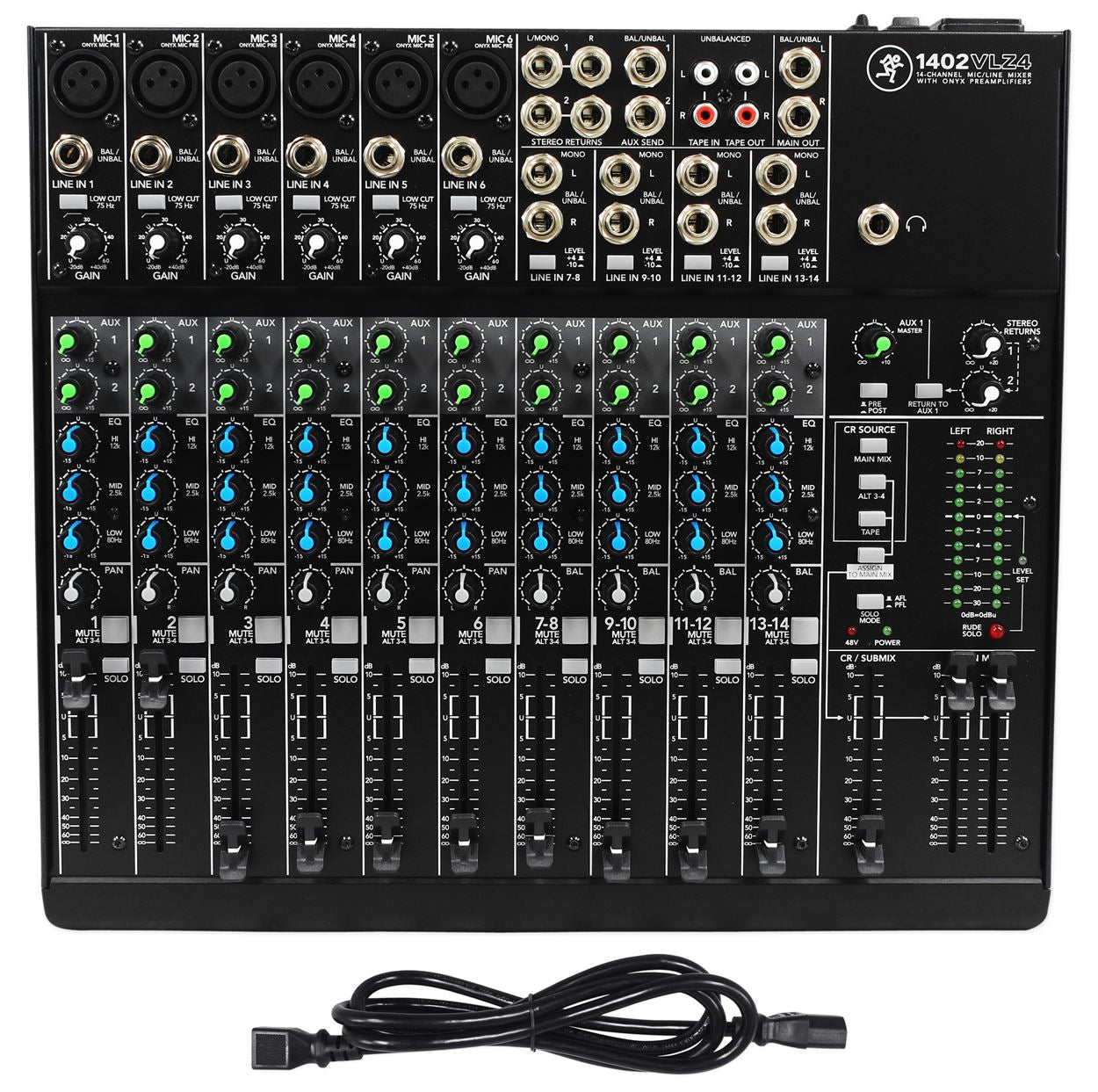

  • (1) Mackie 1402VLZ4 14-channel Compact Analog Low-Noise Mixer w/ 6 ONYX Preamps

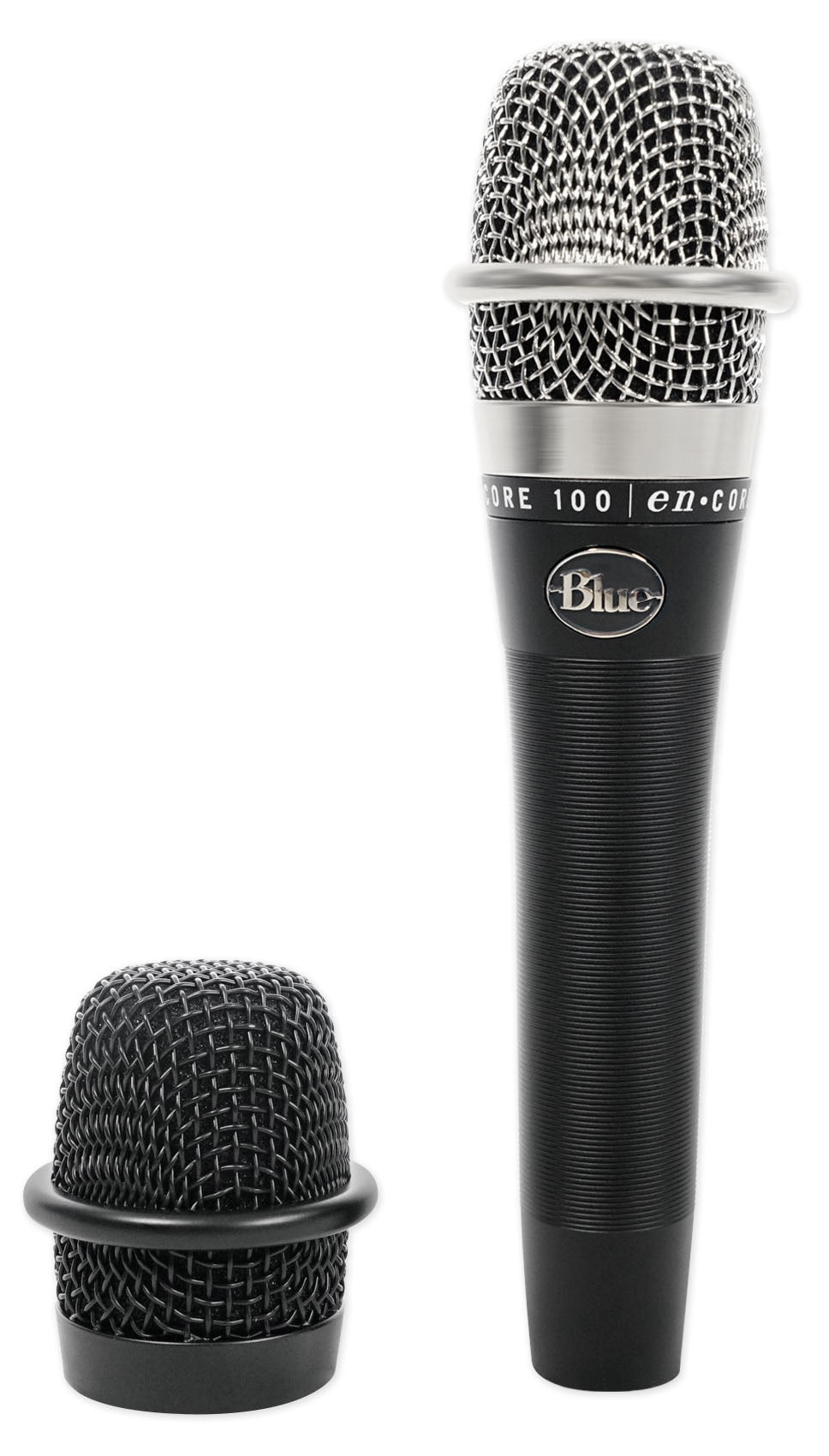

  • (1) Blue Encore 100 Black Dynamic Handheld Live Sound Microphone Vocal Mic+Clip+Case
Authorized Chauvet Dealer

Authorized Mackie Dealer!

Video of 1402VLZ4:




Description:

UNMATCHED PERFORMANCE

Each generation of VLZ mixers benefits from a reinvestment in performance, all without raising prices. By continuing to ignore the “race to the bottom,” VLZ4 benefits from generations of performance improvements like transparent EQ, class-leading negative summing bus architecture and custom-designed op-amps to ensure signal integrity from every input to every output. The result is a mixer that is at the peak of performance and is the obvious go-to compact analog mixer for engineers who demand professional results.

ONYX PREAMPS

The performance of Mackie’s Onyx mic preamps is more than proven. Just check all the amazing reviews and customer testimonials. Their boutique quality sound and unmatched performance rival any high-priced, boutique preamp on the market. Adding these flagship preamps to our VLZ4 Series compact mixers underlines our commitment to continually improving the performance of the VLZ line with each generation.

HIGH HEADROOM / LOW NOISE

The VLZ4 design goal was simple: every VLZ4 mixer must have the highest headroom and lowest noise possible. Strict attention to component quality and tolerances has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture that add yet another level of assurance that a Mackie VLZ4 mixer is the right choice for your professional audio application.

BUILT LIKE A TANK

Mackie VLZ mixers are truly “Built-Like-A-Tank.” From beer spills to drops from moving vehicles, the testimonials are as endless as the applications Mackie mixers serve. The VLZ4 series is certainly no exception. With a nearly indestructible steel wrap-around chassis and features like grime-resistant rotary sealed pots, you can be sure that buying a Mackie VLZ4 mixer is a solid investment.

VLZ4’s new black powder coat finish, cockpit-inspired controls and high-contrast knobs not only optimize your mixer’s usability in low-light scenarios, it also means your mixer looks as good as it performs.

COMPREHENSIVE AND PROVEN

Mackie’s VLZ4 line is extremely comprehensive, offering mixers of every channel count, every price point, for every application. From the ultra-compact 402VLZ4 for desktop applications to the tour-friendly 3204VLZ4, you can be sure there is a VLZ4 mixer with the right feature set for your needs.

Features:

  • Mackie 1402VLZ4 14-channel Compact Mixer
  • 14-channel mixer featuring Mackie signature high-headroom/low-noise design
  • 6 boutique-quality Onyx mic preamps
    • Ultra-wide 60dB gain range
    • 128.5 dB dynamic range
    • +22 dBu line input handling
    • Extended frequency response
    • Distortion under 0.0007% (20Hz – 50kHz)
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • 14 high-headroom line inputs with +4/-10 operation control
  • 3-band EQ (80Hz, 2.5kHz, 12kHz)
  • 18 dB/oct 75Hz low-cut filter on mic input channels
  • 2 aux sends, level, pan and PFL solo on each channel
  • 60mm long-wearing log-taper faders
  • 2 stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary control resist dust and grime
  • “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
  • High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
  • Rack-mountable design using optional rack ear kit
  • Multi-voltage power supply for worldwide use

Details:

  • Main Mix Noise
  • (20 Hz–20 kHz bandwidth, 1/4" main out, channels 1-6 gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1, 3 and 5 panned left, 2, 4 and 6 panned right.)
  • Main mix fader down, channel faders down: –101 dBu
  • Main mix @ unity, channel faders down: –91 dBu
  • (95 dB Signal to Noise Ratio, ref +4 dBu)
  • Main mix fader @ unity, channel faders @ unity: –86 dBu
  • Total Harmonic Distortion (THD): (1 kHz @ 35 dB gain, 20 Hz–20 kHz  bandwidth) Mic pre @ insert <0.0007%
  • Attenuation / Crosstalk
  • (1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, line in, 1/4"main out,  gain @ unity)
  • Main mix fader down: –100 dBu
  • Channel Alt / Mute switch engaged: –90 dBu
  • Channel fader down: –90 dBu
  • Frequency Response (Mic input to main output (gain @ unity)
  • +0, –1 dB, 20 Hz to 50 kHz
  • +0, –3 dB, <10 Hz to >100 kHz
  • Equivalent Input Noise (EIN)(Mic input to insert send out, max gain)
  • 150 ohm termination –128.5 dBu, 20 Hz–20 kHz
  • Common Mode Rejection Ratio (CMRR)
  • 1 kHz better than –70 dB
  • Maximum Levels
  • Mic in: +22 dBu
  • Tape in: +16 dBu
  • All other inputs: +22 dBu
  • Main mix XLR out: +28 dBu
  • All other outputs: +22 dBu
  • Impedances
  • Mic in: 2.5 k ohm
  • Channel insert return: 2.5 k ohm
  • All other inputs: 10 k ohm or greater
  • Tape out: 1.1 k ohm
  • All other outputs: 120 ohm
  • EQ
  • High Shelving:  ±15 dB @ 12 kHz
  • Mid Peaking: ±15 dB @ 2.5 kHz
  • Low Shelving: ±15 dB @ 80 Hz
  • AC Power Requirements
  • Power Consumption: 25 watts
  • US, JP: 100 – 120 VAC, 50 – 60 Hz
  • EU, UK, AU, CN: 200 – 240 VAC, 50 – 60 Hz
  • Operating Temperature: 0° – 40°C, 32° – 104°F
  • Fuse Rating
  • 100-120V 500 mA slo blo, 5 x 20 mm
  • 220-240V 250 mA slo blo, 5 x 20 mm
  • Physical Properties (product): 12.5" x 3.2" x 14"
  • Weight 9.5 lb / 4.5 kg
  • Physical Properties (packaged product): 6.9" x 16.1" 15.2"
  • Weight 12.0 lb / 5.4 kg


Description of Encore 100 Black:

Exceptional Mics for Exceptional Performances

Hear your music’s full potential with enCORE 100—the studio-grade dynamic microphone that reproduces your voice exactly as you hear it. Achieve true-to-life sound for live vocals, studio tracking, broadcast and more with our proprietary hand-tuned dynamic capsule, and be heard clearly with a cardioid polar pattern that delivers impressive off-axis rejection and high SPL handling. The enCORE 100 comes with a new all-black finish plus an additional chrome mic grille, so you can customize the look to your application. You’ve tried other mics—now hear how you should sound with enCORE 100.

Natural, Detailed Sound on Stage
enCORE 100 stands head and shoulders above traditional-sounding live mics. With a proprietary dynamic capsule custom-tuned for exceptional detail and clarity, and internal copper windings wound for optimal frequency response, enCORE 100 pulls the blanket off your sound so the audience can hear your voice in clear, detailed quality. And if public speaking is your game, enCORE 100 maximizes speech intelligibility. Simply put, it makes sure your message is heard with power and clarity. It even minimizes handling noise and feedback with a precision-designed capsule mount and cardioid polar pattern.

Exceptional All-Around Performance
enCORE 100 brings Blue studio sound to any project—from lead and backing vocals, to guitars and drums, voice over and broadcast. And its true-to-life sound reproduction and versatility make enCORE 100 ideal for any venue—from the House of Blues to house of worship.

Withstand the Rigors of the Road

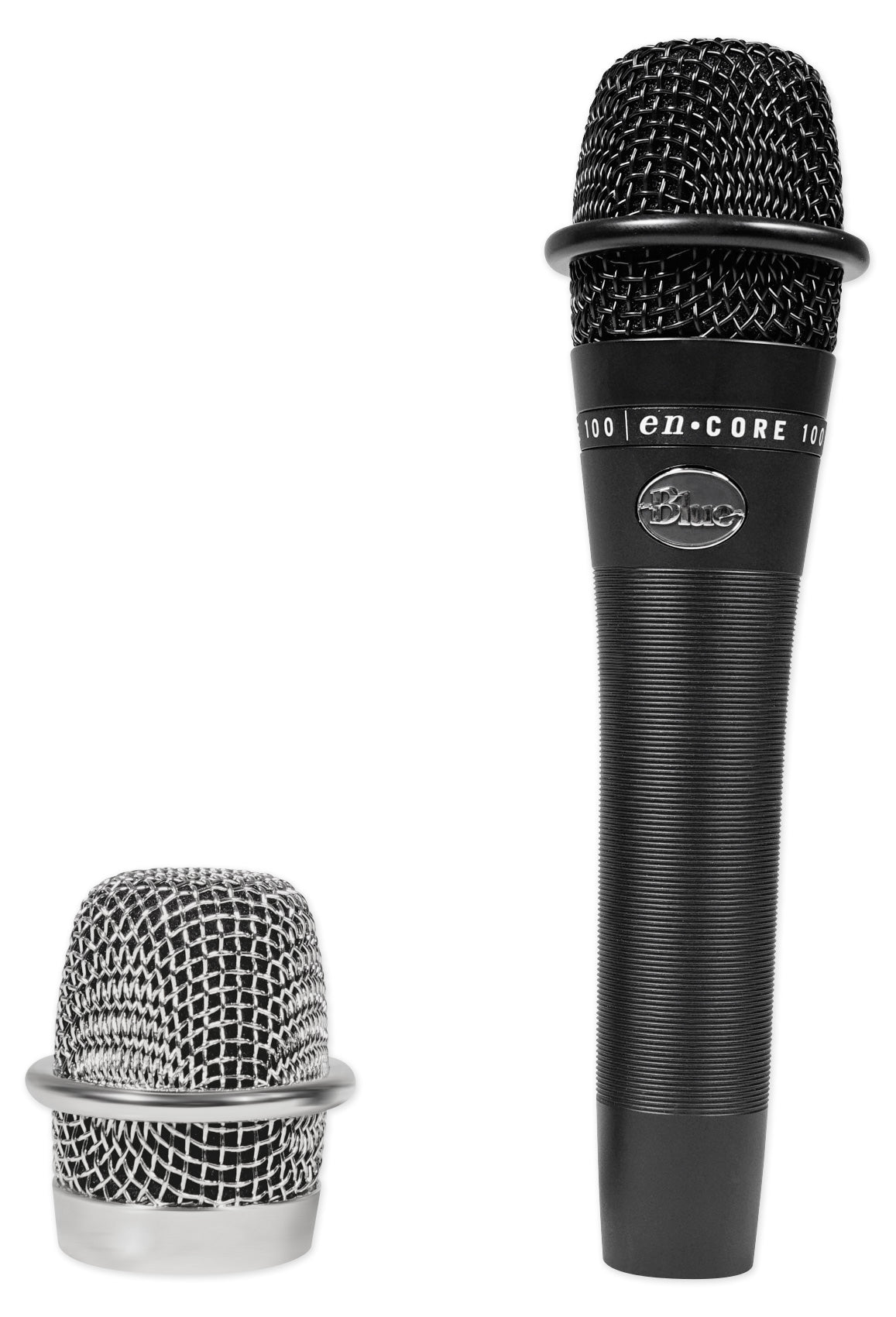

>We build enCORE 100 with the strictest quality standards. It features stage-ready construction, including a heavy-gauge barrel, reinforced grill with integrated guard ring, and hardened metal-plate finish that ensures your mic will be left standing after ferocious live sets and brutal tour schedules.

Blue’s Studio Legacy on Center Stage
Blue is known for creating some of the world’s finest, most unique studio mics. The enCORE series brings that legacy of industry-leading innovation and unmatched quality to the live arena. With custom Blue components and hand-selected capsules, enCORE guarantees that your music will be heard with clarity and Blue’s legendary studio-quality sound.

Features:

  • Blue Encore 100 Black Dynamic Handheld Live Sound Microphone Vocal Mic and Clip, Case
  • Hand-tuned capsule delivers renowned Blue studio sound
  • Perfect for vocals, instruments and more
  • Reinforced construction with heavy-duty metal-plated finish
  • Includes microphone clip, additional mic grille and storage pouch

Specifications:

  • Transducer Type: Dynamic moving coil
  • Polar Pattern: Cardioid
  • Frequency Response: 50Hz – 15kHZ
  • Sensitivity: 1.55 mV/PA
  • Output Impedance: 250 ohms
  • Maximum SPL: 147dB SPL
  • Weight: 0.4 kg (0.88 lbs.)
  • Dimensions – Length: 185mm / 7.3 inches
  • Dimensions – Diameter: 28mm / 1.10 inches (min); 50mm / 1.97 inches (max)
