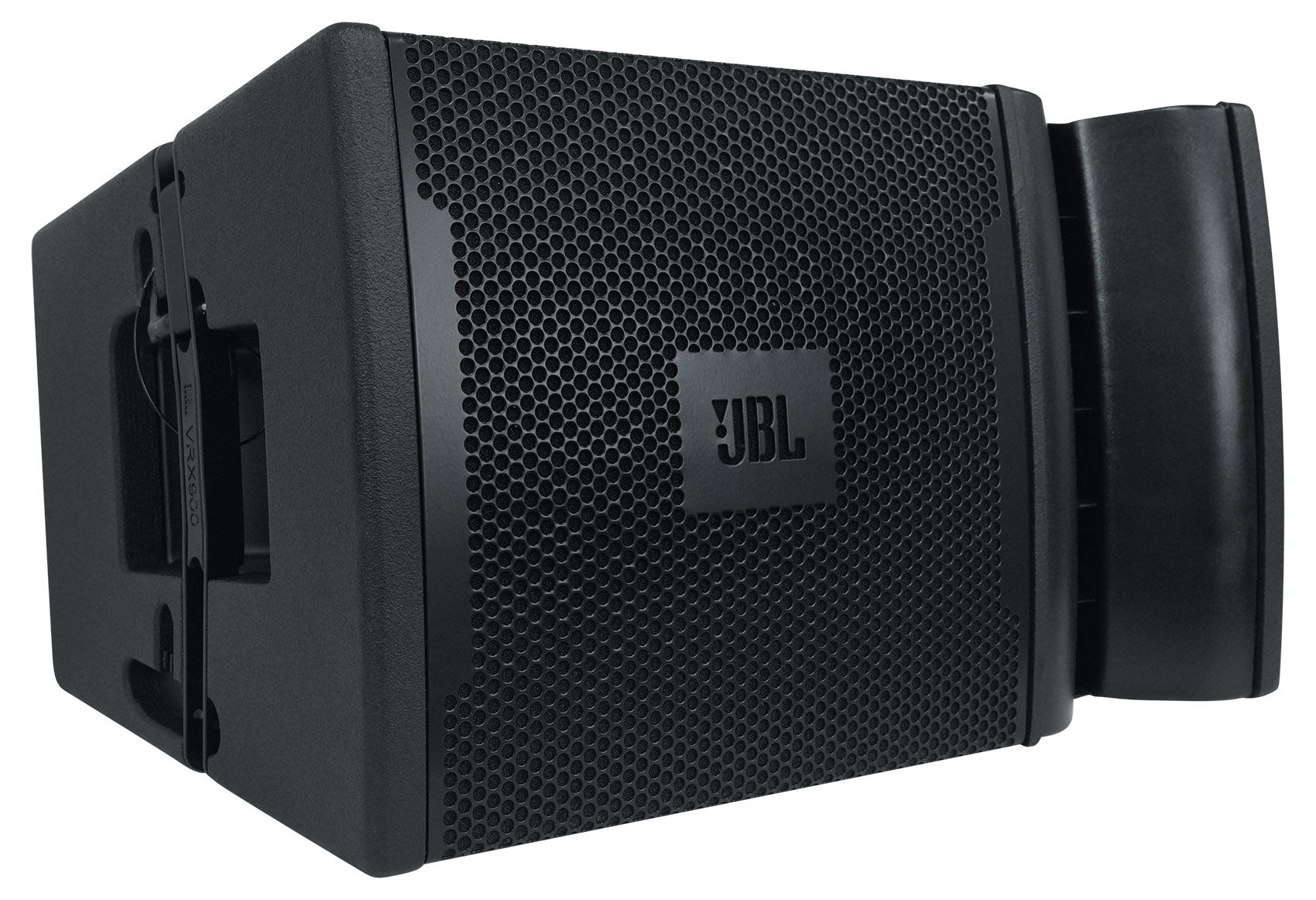

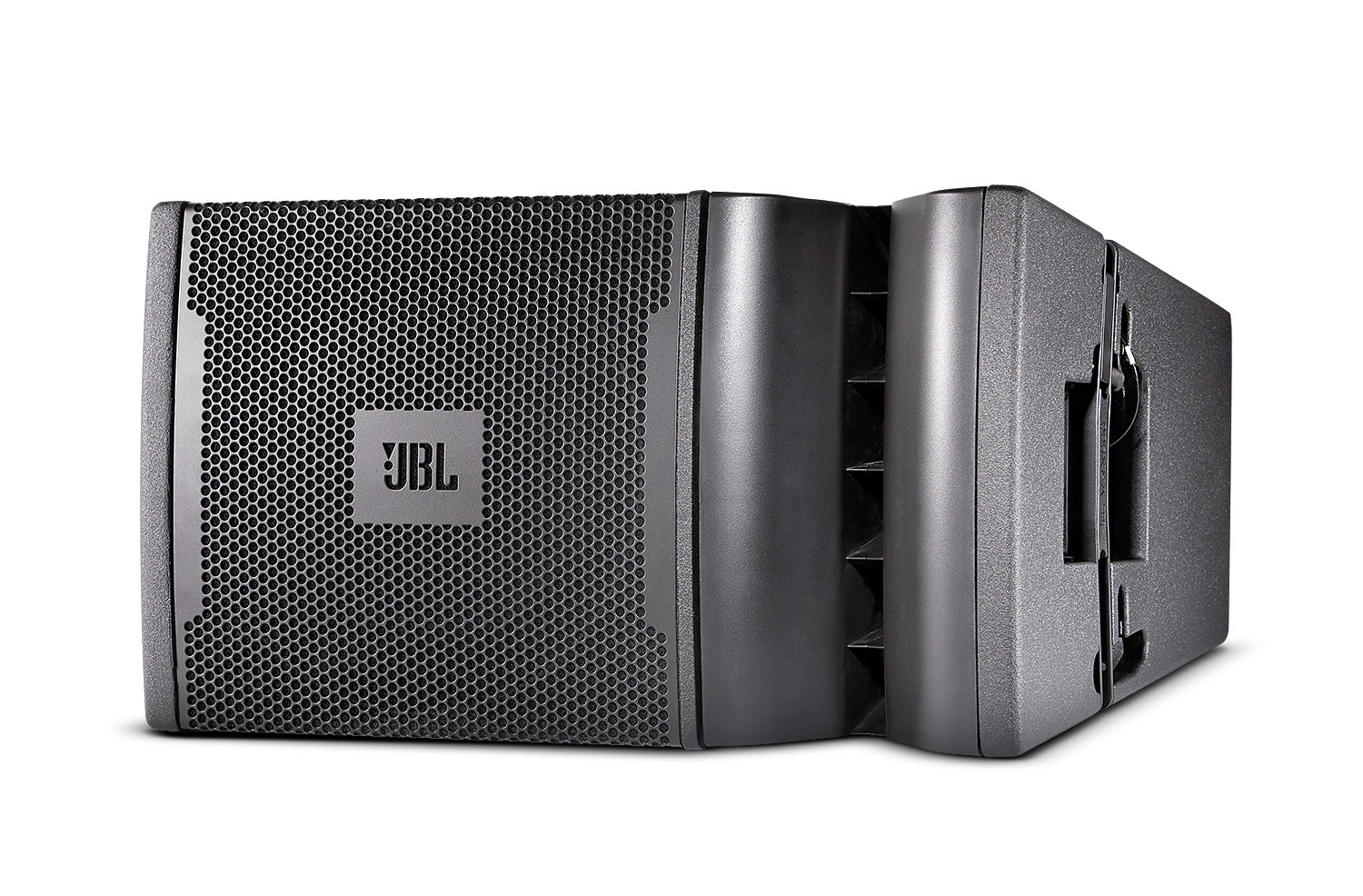

JBL VRX932LA-1 12" 800 Watt 2-Way Passive Line-Array Speaker in Black
Shipping calculated at checkout.
Product Description
Description:
12 in. Two-Way Line Array Loudspeaker System.
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
Features:
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

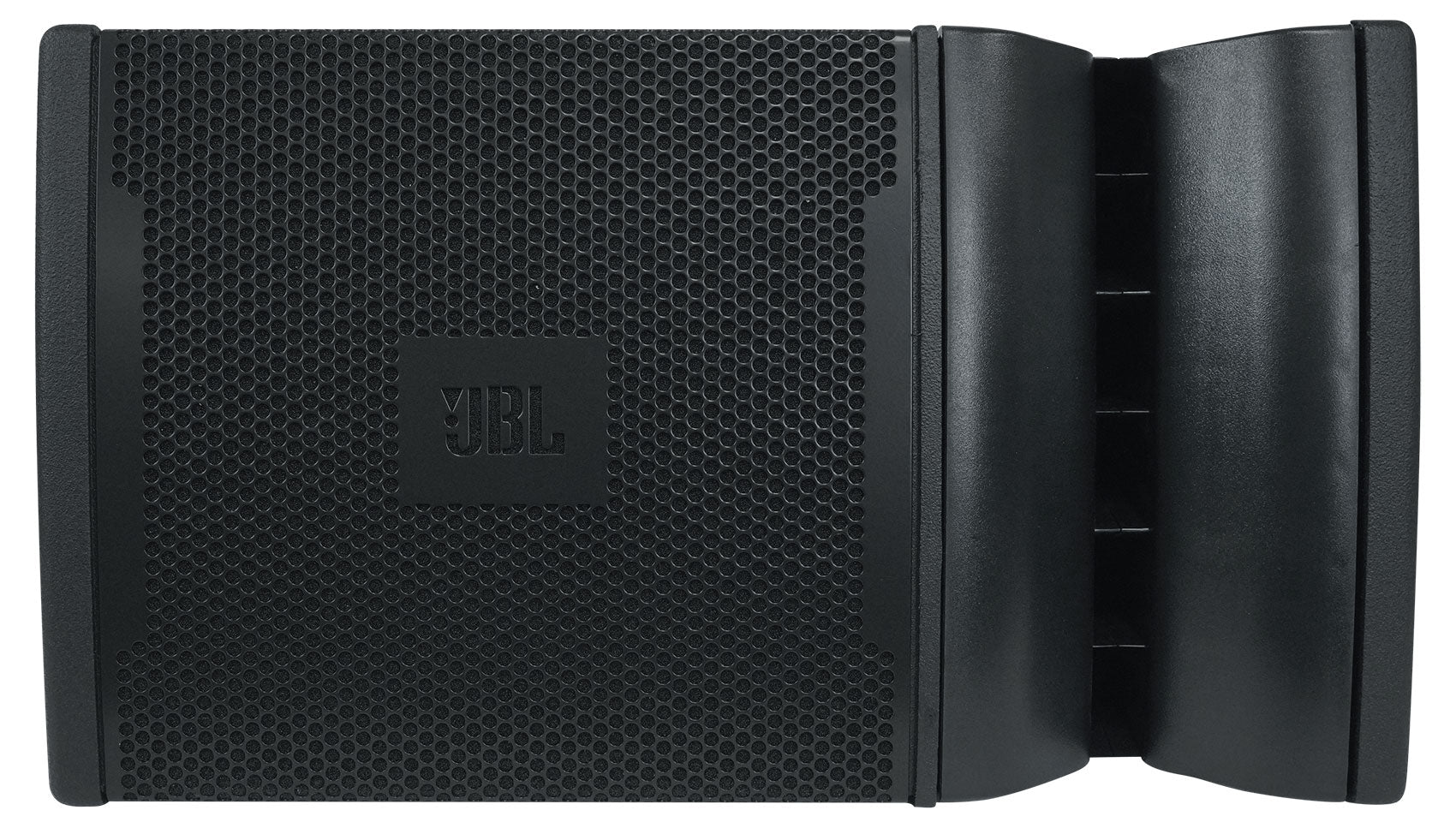

- Constant Curvature waveguide for unprecedented array coherence.

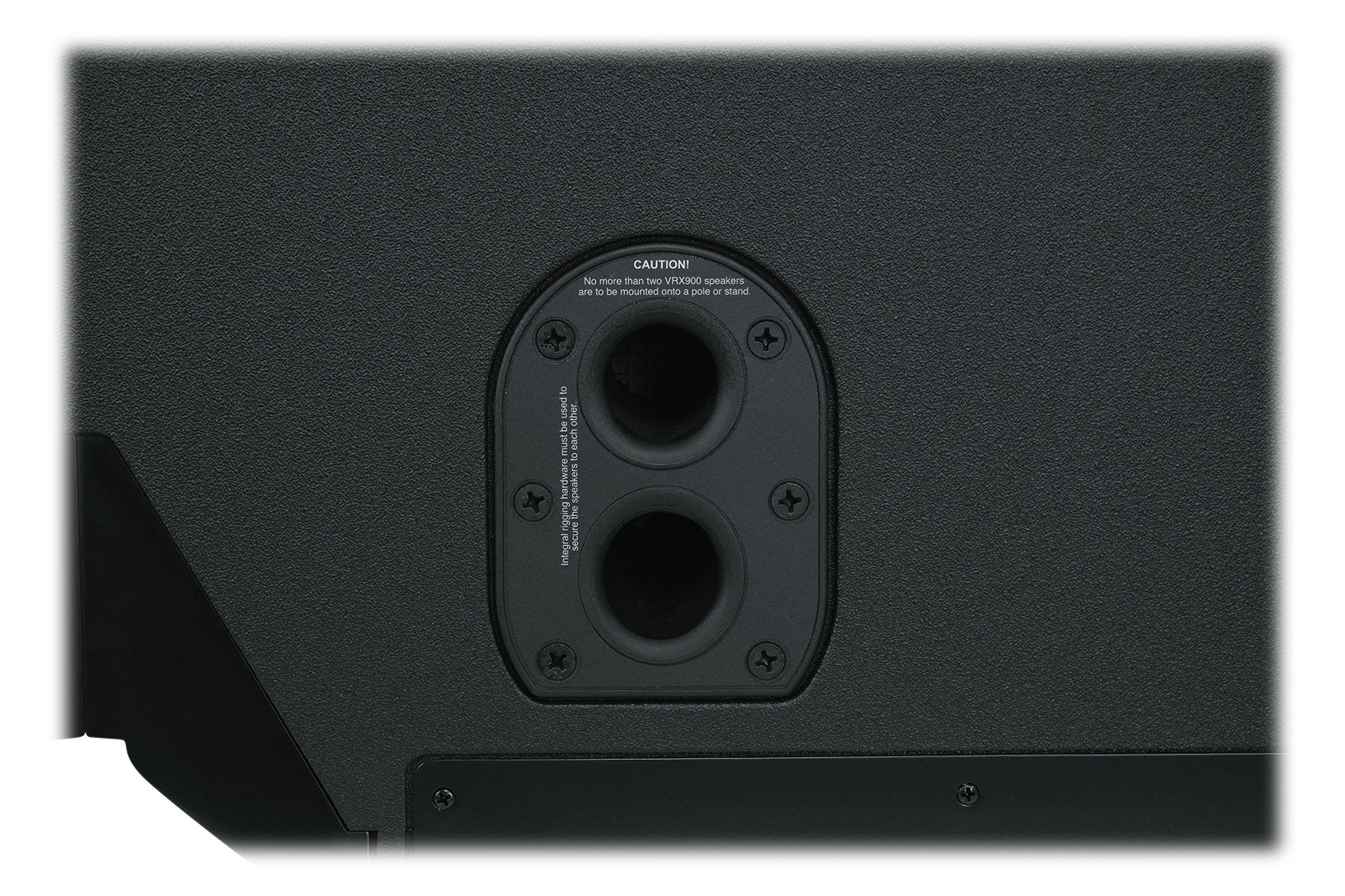

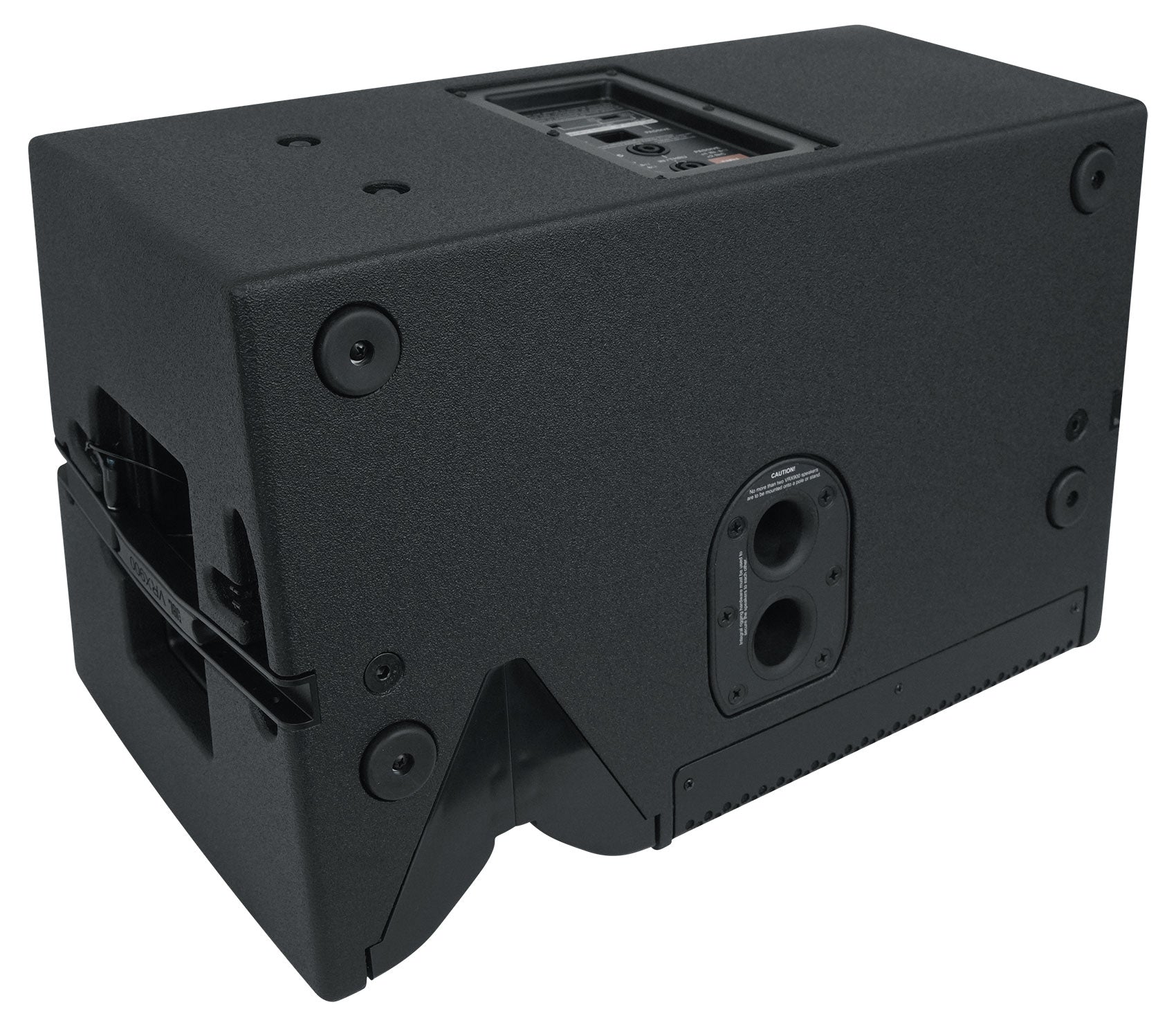

- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.

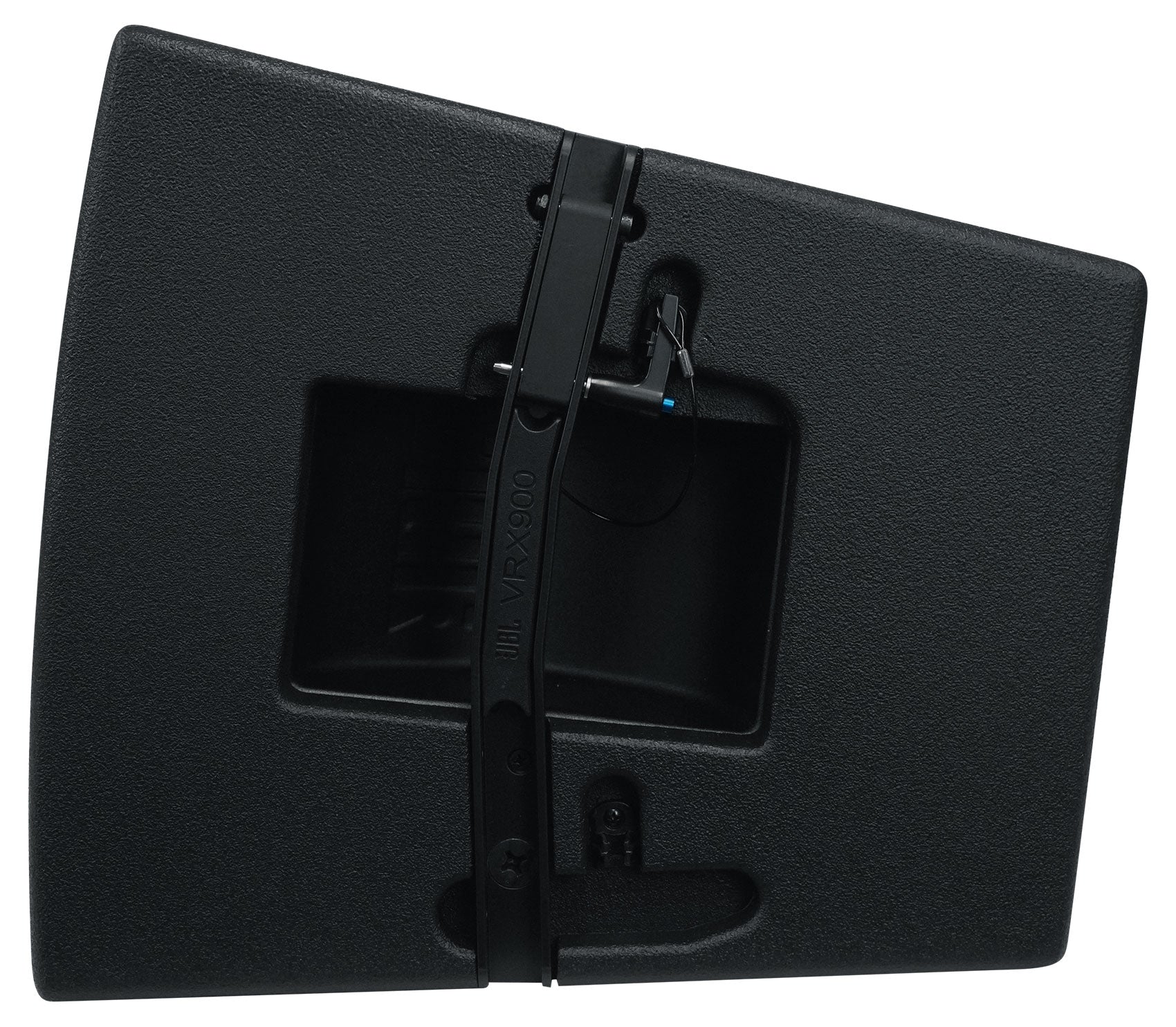

- Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

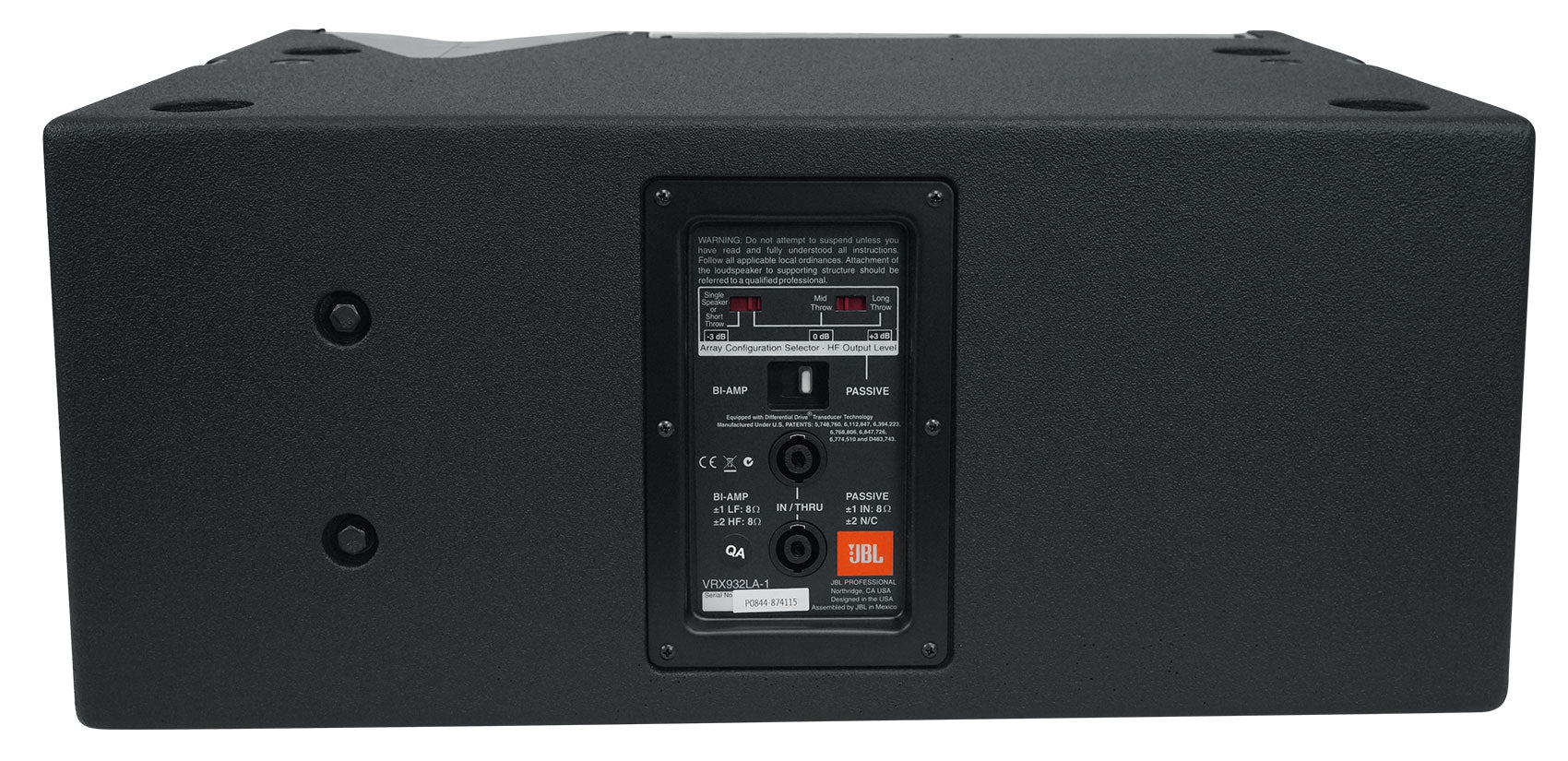

- Array Configuration Selector permits “array shading” in passive mode.
Specifications:
- Power Rating: 800 W / 1600 W / 3200 W
- Frequency Range (-10dB): 57 Hz - 20 kHz
- Dimensions (H x W x D): 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
- Frequency Response (±3 dB): 75 Hz - 20 Hz
- Coverage Pattern: 100 x 15 nominal
- Crossover Modes: Bi-amp / passive, externally switchable
- Crossover Frequency: 132 dB SPL peak 1.2 kHz
- Maximum SPL (1m): 130 dB SPL peak (passive mode), LF: 130 dB HF: 139 dB
- Sensitivity: Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
- LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
- HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
- Nominal Impedance: Passive = 8 ohm, Bi-amp LF = 8 ohm , Bi-amp HF = 8 ohm
- Active Tunings: Tunings available at www.jblpro.com
- Enclosure: 18 mm, 11-ply birch plywood
- Suspension / Mounting: Optional VRX932LA-AF line array frame kit
- Finish: Black DuraFlex™ finish
- Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
- Inputs: Neutrik® Speakon® NL-4 (x2)
- Net Weight (each): 21 kg (46 lb)
- Optional Accessories: VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
- Outputs: 1 x XLR
- System Type: Constant Curvature 12" Two-Way Line Array System
