JBL VRX932LA-1WH 12" 800 Watt 2-Way Passive Line-Array Speaker in White
Product Description
Description:

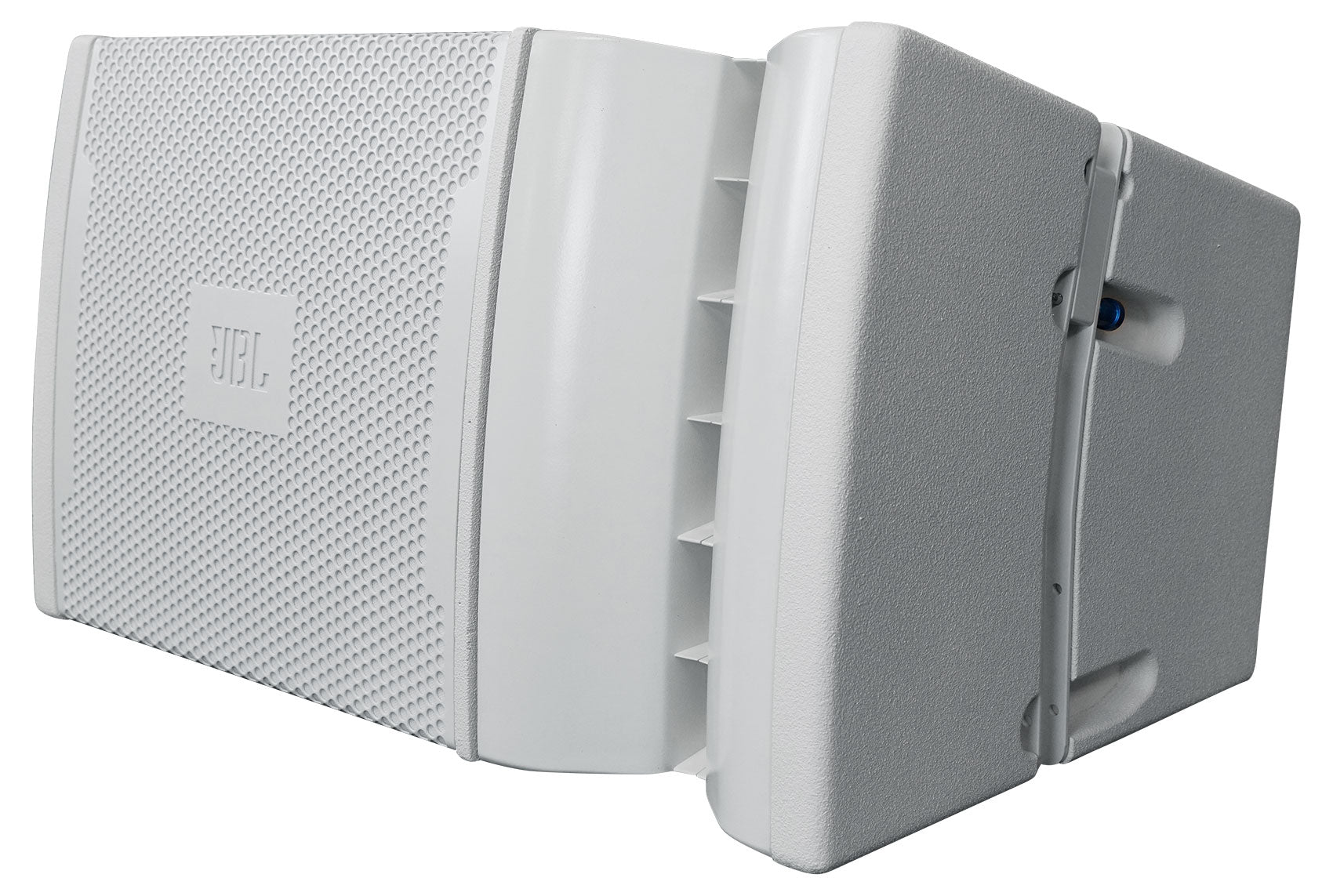

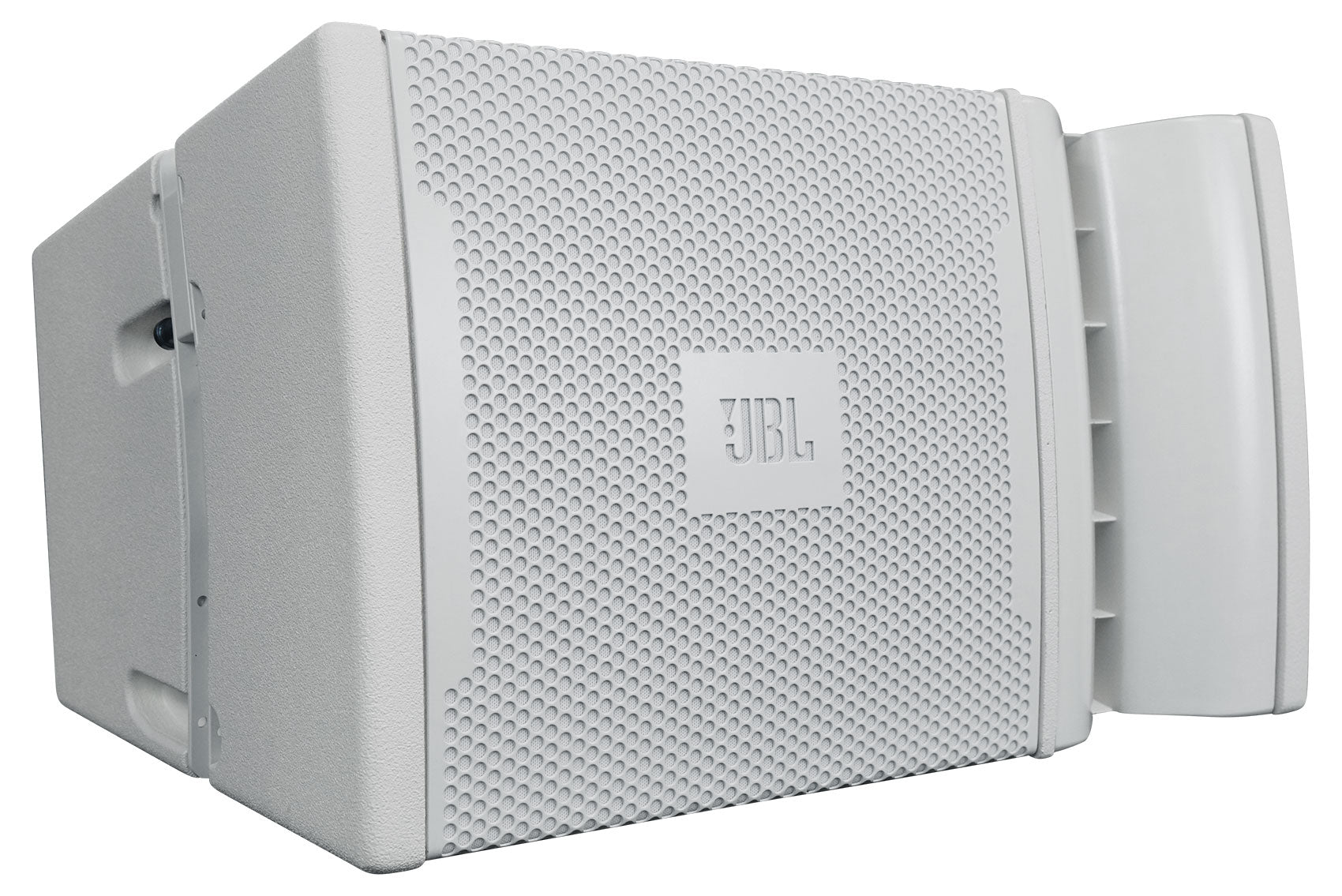

The VRX932LA-1WH is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
VRX932LA-1WH is painted JBL’s white Duraflex™ making it appropriate for many houses-of-worship, auditoriums or theaters where the existing décor demands an alternative to a black loudspeaker system. The VRX932LA-1WH is optimized for permanent installation with no handles or pole mount attached.
VRX932LA-1WH is the ideal choice when line array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line arrays such as JBL’s VERTEC®.

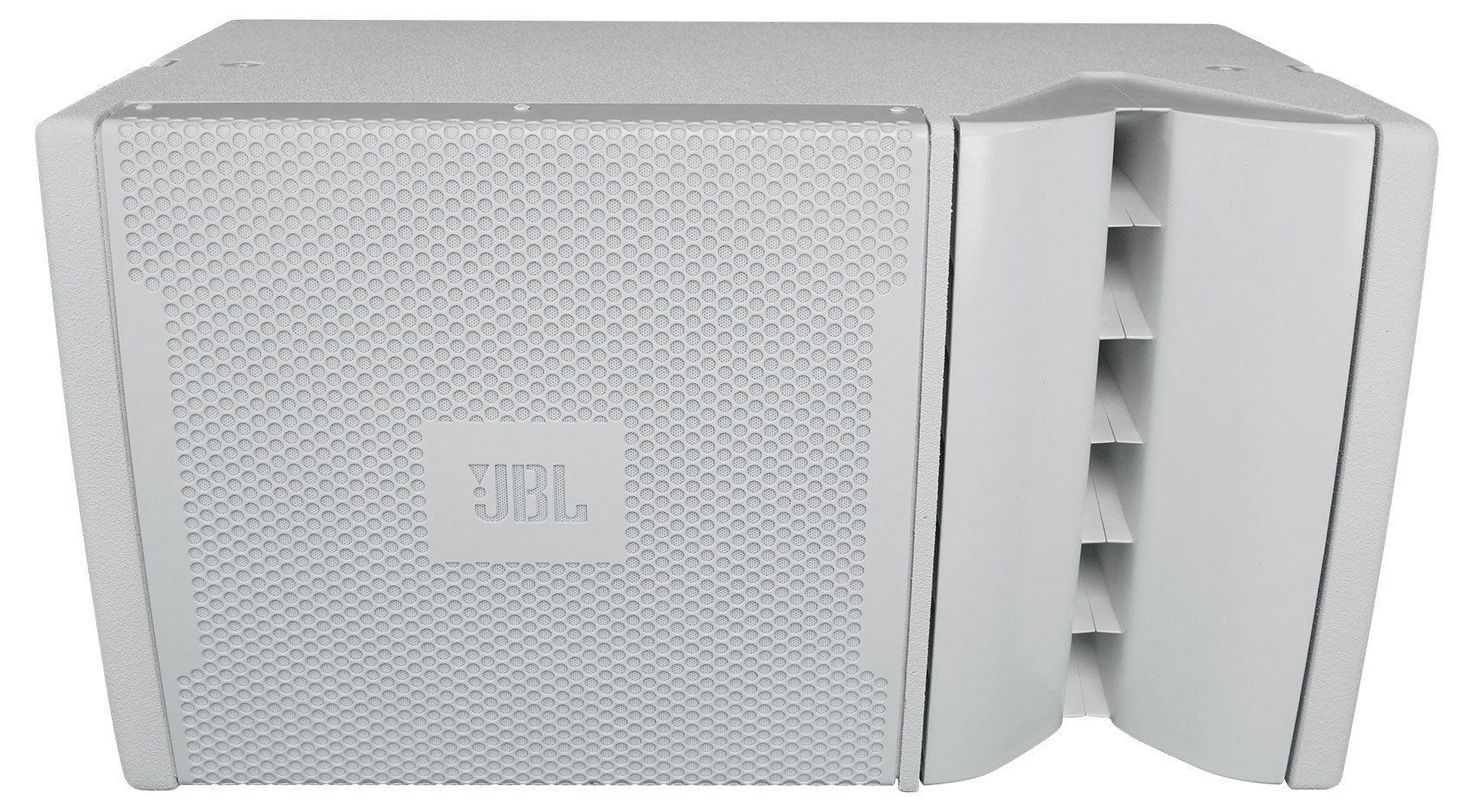

The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1WH speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1WH, the combined power handling and acoustic output of the system is far greater than a single driver could achieve. VRX932LA-1WH uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.
As many as six VRX932LA-1WH speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX-AF array frame (available separately). For applications in which the array must be aimed sharply down, a second array frame may be installed to the bottom of the array serving as a pull-back.
The VRX932LA-1WH was designed for compatibility with VRX918S-WH subwoofers.
Features:
- JBL’s white Duraflex™ finish
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high power capacity and light-weight.
- Three neodymium, Annular Ring Diaphragm drivers for high power capacity and high-frequency extension.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

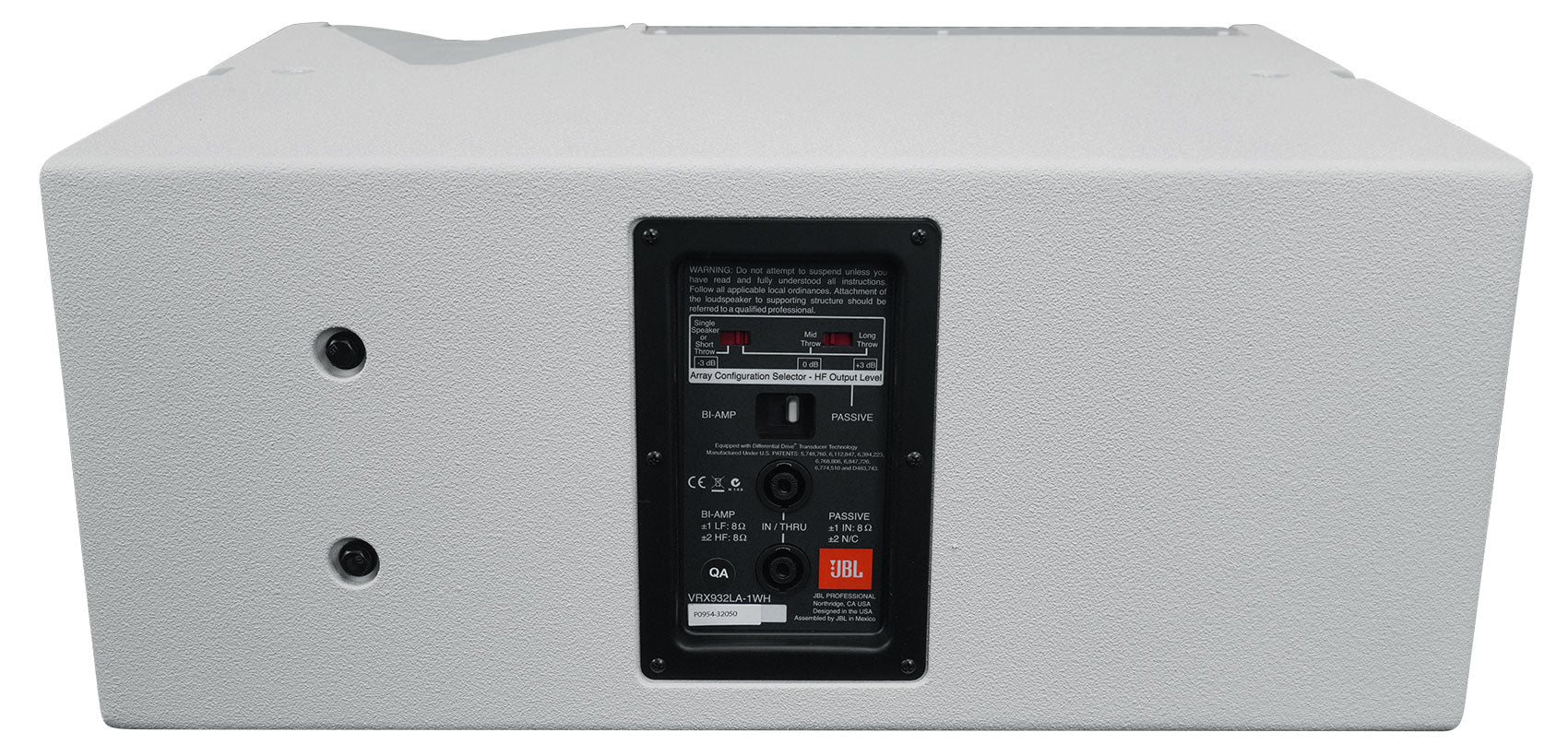

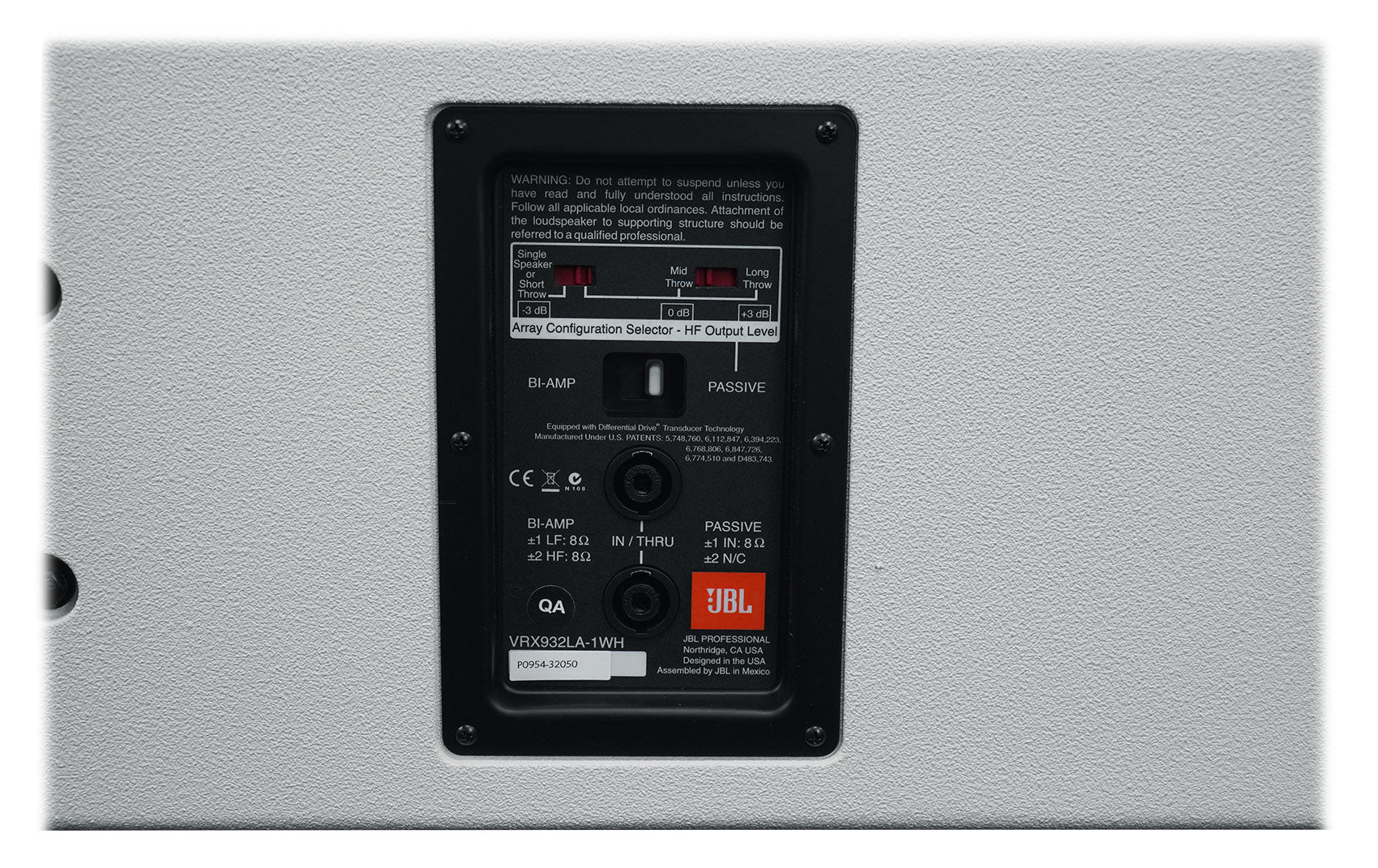

- Array Configuration Selector permits “array shading” in passive mode.
Specifications:
- Power Rating: 800 W / 1600 W / 3200 W
- Frequency Range (-10dB): 57 Hz - 20 kHz
- Dimensions (H x W x D): 349mm x 597mm x 381mm (13.75in x 23.5in x 15.0in)
- Frequency Response (±3 dB): 75 Hz - 20 kHz
- Coverage Pattern: 100 x 15 nominal
- Crossover Modes: Bi-amp / passive, externally switchable
- Crossover Frequency: 132 dB SPL peak 1.2 kHz
- Maximum SPL (1m): 130 dB SPL peak (passive mode), LF: 130 dB HF: 139 dB
- Sensitivity: Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
- LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
- HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
- Nominal Impedance: Passive = 8 ohm, Bi-amp LF = 8 ohm , Bi-amp HF = 8 ohm
- Active Tunings: Tunings available at www.jblpro.com
- Enclosure: 18 mm, 11-ply birch plywood
- Suspension / Mounting: Optional VRX-AF array frame; M-10 eyebolt kit # 229-00009-01
- Finish: White DuraFlex™ finish
- Grille: Power coated, white, 16-guage perforated steel with acoustically transparent white cloth backing
- Inputs: Neutrik® Speakon® NL-4 (x2)
- Net Weight (each): 21 kg (46 lb)
