Crown XLC21300 2-Channel 1300 Watt Power Amplifier For Pro/Cinema XLC 21300

Description:

The Crown XLC 21300, the newest, most powerful model in Crown's XLC Series of high-output, competitively-priced professional cinema amplifiers, delivers clean, reliable power in a versatile package.

The 2-channel XLC 21300 provides 1,300 watts of rated power per channel at 4 ohms, giving it the capability to power subwoofers at both 8O and 4O loads. Front-panel indicators let you monitor signal and amplifier status at a glance.

The XLC 21300 supports parallel, input Y and bridged-mono-output modes for versatile configuration. Combine the XLC 21300 with the JBL CPi2000 cinema processor and JBL Cinema Expansion Series speakers to build a complete, fully integrated JBL cinema sound solution.

Compact, powerful and cost-effective, the XLC 21300 provides outstanding sound quality, ease of installation and the rock-solid reliability you expect in every Crown product.

More Power for the Price

The XLC 21300 amplifier sets a new benchmark of power capability for Crown's cost-conscious XLC Series, delivering 1,000W at 8O and 1,300W at 4O; the XLC21300's high power output provides an affordable solution to drive subwoofers at both 8O and 4O loads.

Versatility and Value

The XLC 21300 is designed to integrate with a range of sound system configurations, supporting parallel, input Y and bridged-mono-output modes. Its HD-15 input allows simple connectivity with the JBL CPi2000 cinema processor, which provides audio enhancement including DSP, room EQ tuning, volume control and system fault detection. Add JBL Cinema Expansion Series speakers and subs to build a complete, fully integrated JBL cinema sound solution.

Monitoring and Diagnostics

Accurate diagnostics help keep your system running at peak performance: The XLC 21300 monitors the status of amplification and speaker loads through third-party control and TMS systems when used with the JBL CPI2000 processor; front-panel indicators monitor key statistics such as Signal, Clip, Power, Bridged Output and Fault; a Power LED indicates standby, normal operation and default.

Features:

• Output power: 1,000W at 8O; 1,300W at 4O
• Input mode: input Y, dual
• Output modes: stereo; bridged mono
• Load impedance: 4-8O per channel in stereo; 8O bridged
• HD-15 input allows easy connectivity with the JBL CPi2000 cinema processor to report amplifier status, load status and errors to NOC systems
• Built-in diagnostics monitor amp and speaker loading on third-party control and TMS systems

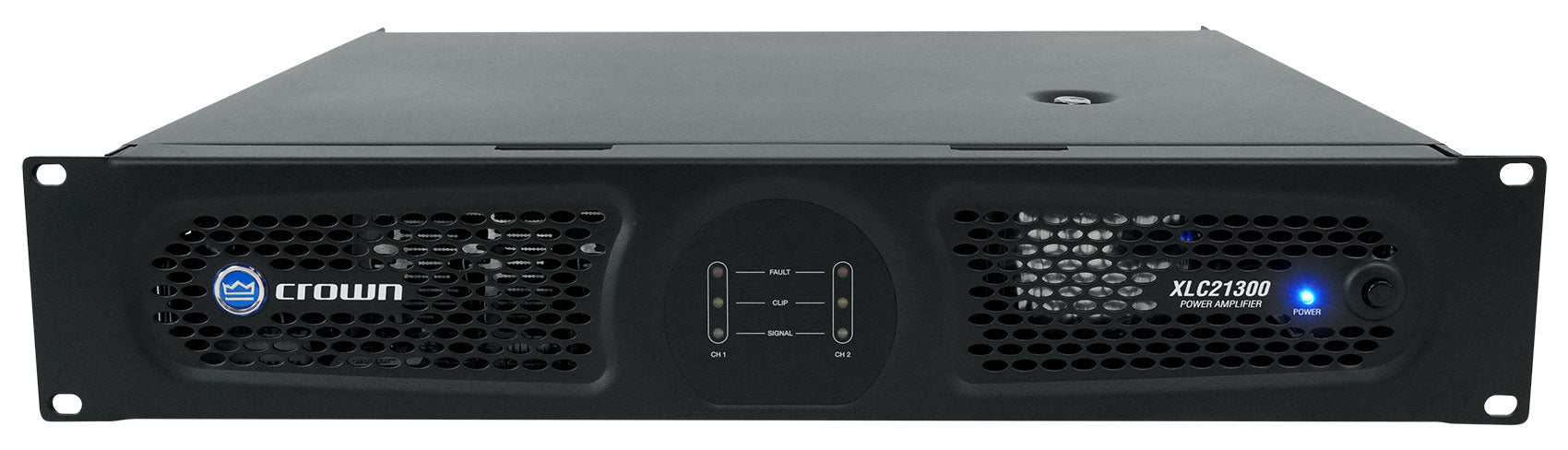

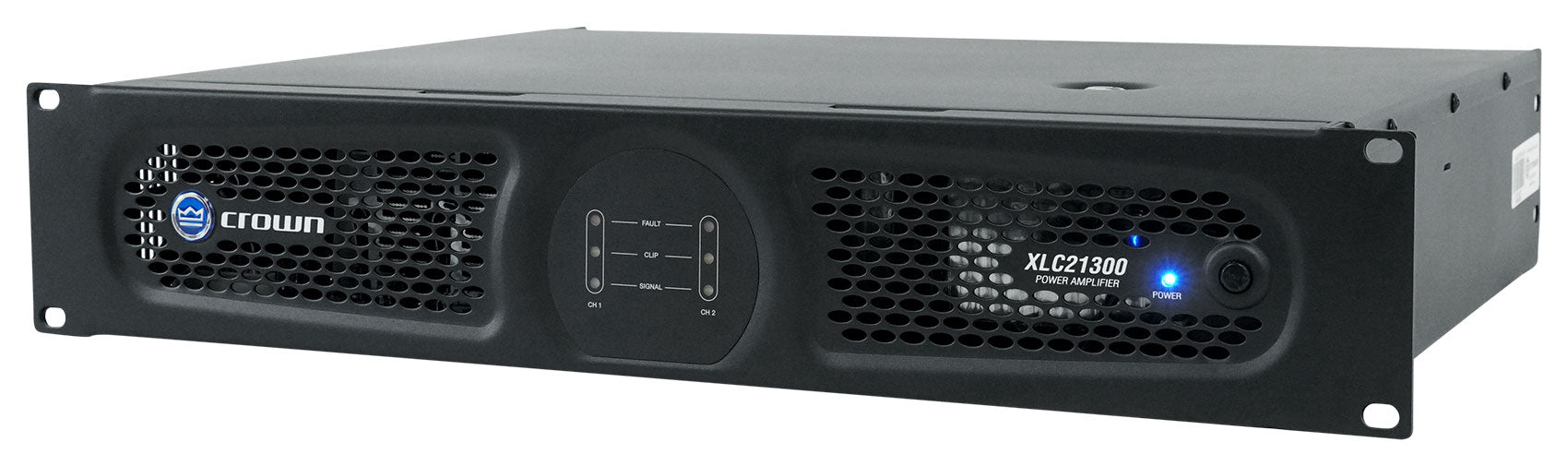

• Front-panel Power, Signal, Clip, Bridged Output and Fault LED indicators
• Power LED indicates standby, normal operation and default

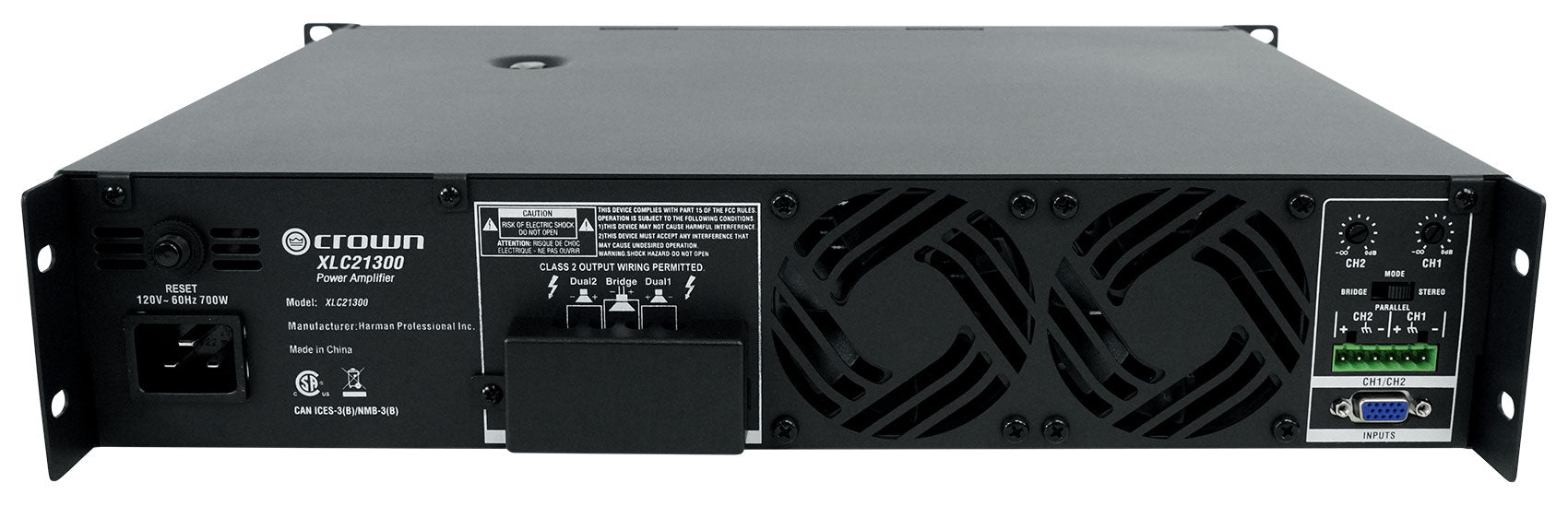

• Rear-panel volume control
• Forced-air cooling provides stable performance
• Output connectors: 4-pin barrier strip
• Sensitivity: 1.4V (@ 4 O)
• Signal-to-noise ratio: > 100 dB
• THD: <0.5%, 20 Hz-20 kHz

Specifications:

• CHANNELS: 2
• OUTPUT POWER (@ 1 kHz): 8O: 1000 watts x 2
• 4O: 1300 watts x 2
• 8O Bridged: 2,700 watts x 1
• FREQUENCY RESPONSE (@ 1W, 20 Hz-20 kHz): +0 / -1 dB
• SIGNAL-TO-NOISE RATIO (REF. RATED POWER, 8O, 1 kHz): >100 dB
• THD: <0.5%, 20 Hz-20 kHz
• DAMPING FACTOR (8O, 10 Hz-400 Hz): >200
• INTERMODULATION DISTORTION: <0.35% (60 Hz and 7 kHz at 4:1 from full rated output to -30 dB)
• CROSSTALK SEPARATION: >75 dB (below rated 8 ohms power at 1 kHz); >59 dB (below rated 8 ohms power at 20 kHz)
• INPUT IMPEDANCE (NOMINAL): 20kO balanced, 10kO unbalanced
• VOLTAGE GAIN: 36 dB
• LOAD IMPEDANCE: 4–8O per channel in stereo, 8O bridged
• INPUT CONNECTORS: 1 x 6-pin Phoenix female, 1x HD-15 female
• OUTPUT CONNECTORS: 4-pin barrier strip
• INPUT MODES: Dual, input Y
• OUTPUT MODES: Stereo, bridged mono
• INPUT SENSITIVITY(FULL RATED POWER @ 4O): 1.4V
• LED INDICATORS: Power, signal, clip, bridged output and fault (Power LED = standby, normal operation and default)
• AC LINE VOLTAGE AND FREQUENCY (±10%): 120 VAC, ~60 Hz; 220 VAC, ~50/60 Hz; 230-240 VAC, ~50 Hz
• UNIT DIMENSIONS (D x W x H): 366 x 482.6 x 88.9 mm (14.4 x 19 x 3.5 in)
• NET WEIGHT: 17.9 kg (39.46 lb)
