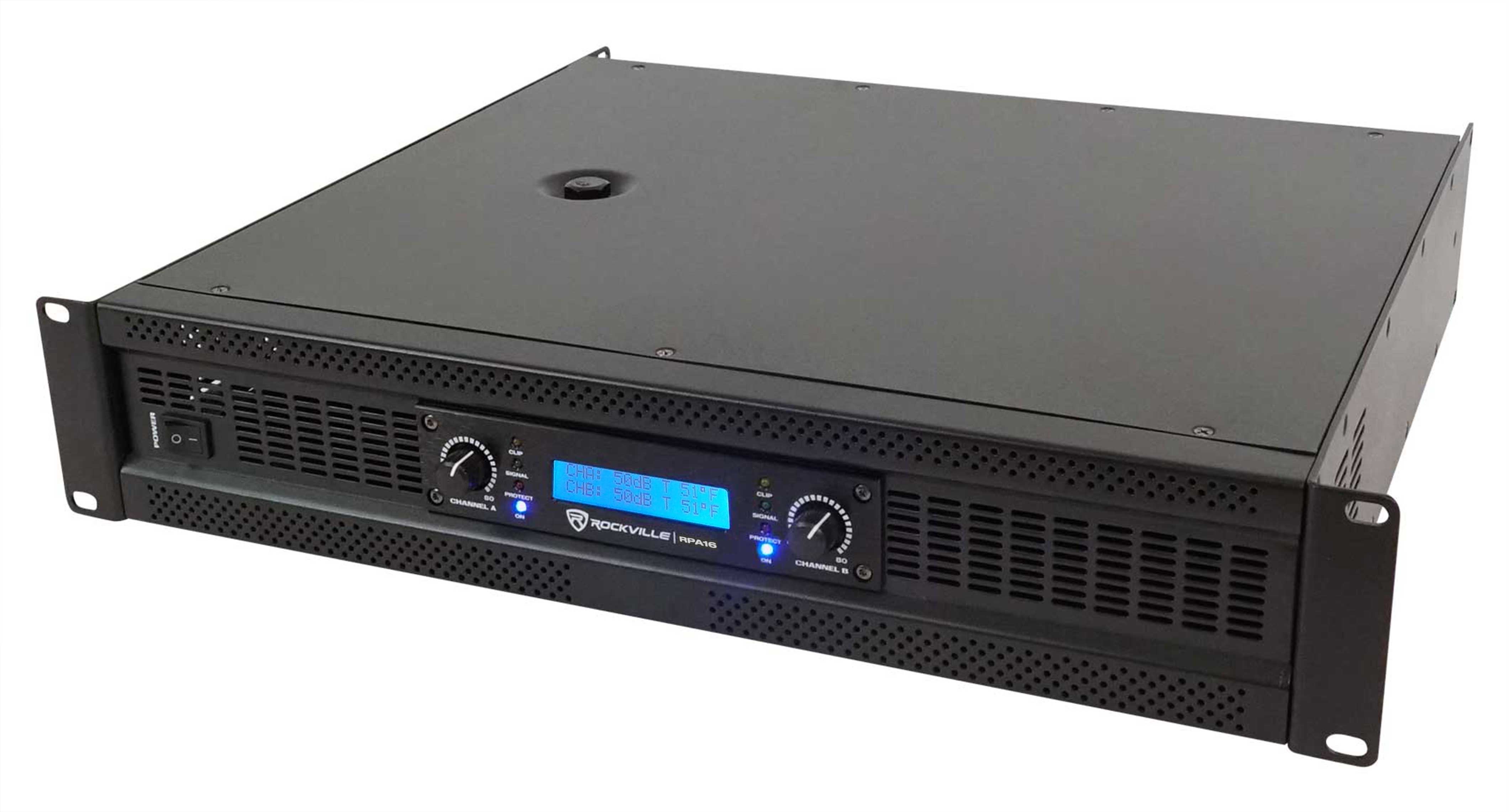

Rockville RPA16 10000 Watt Peak / 3000w RMS 2 Channel Power Amplifier Pro/DJ Amp

$720.00 $267.90 Save 63% Sold out
Shipping calculated at checkout.
Product Description
Video of RPA16:

Power Ratings:

  • RMS Power Output:
  • Stereo 8 Ohm: 2 x 1,000W
  • Stereo 4 Ohm: 2 x 1,500W
  • Bridged 8 Ohm: 1 x 3000W
  • Peak Power Output:
  • Stereo 4 Ohm: 2 x 5,000W Max
  • Bridged 8 Ohm: 1 x 10,000W Max

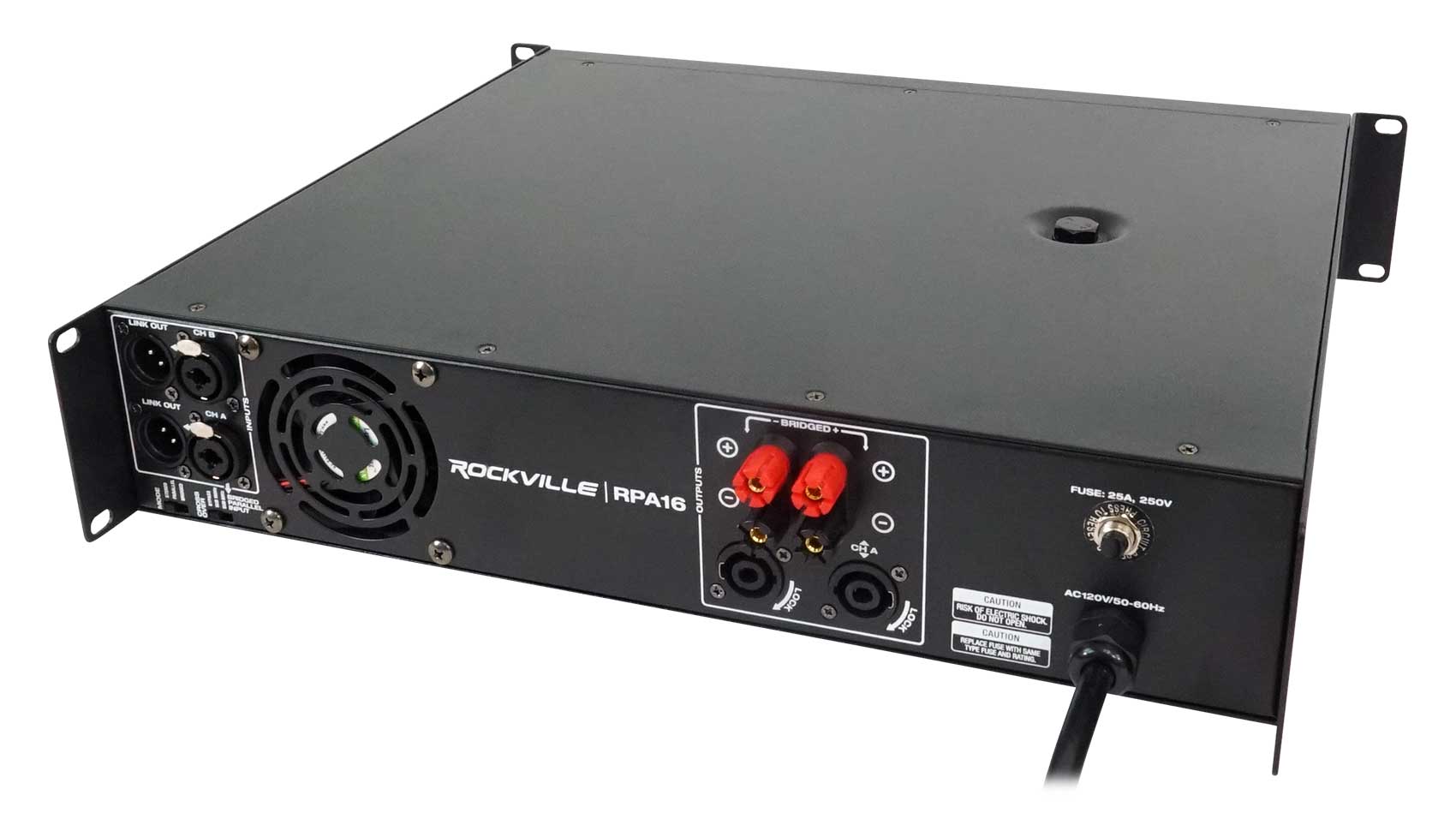

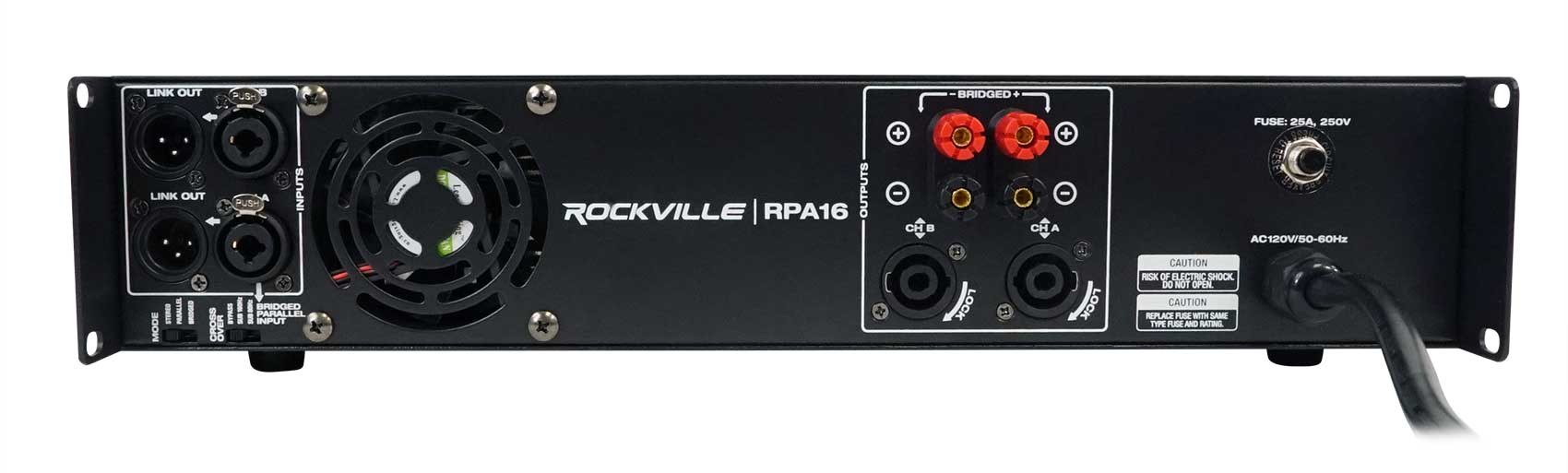

Terminals:

  • Input Terminals:
  • Combo jack (XLR and ¼”) A & B inputs
  • Output Terminals:
  • Banana binding post speaker output
  • Speak on output
  • XLR output to connect another amplifier or powered sub

Features:

  • Rockville RPA16 10,000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier

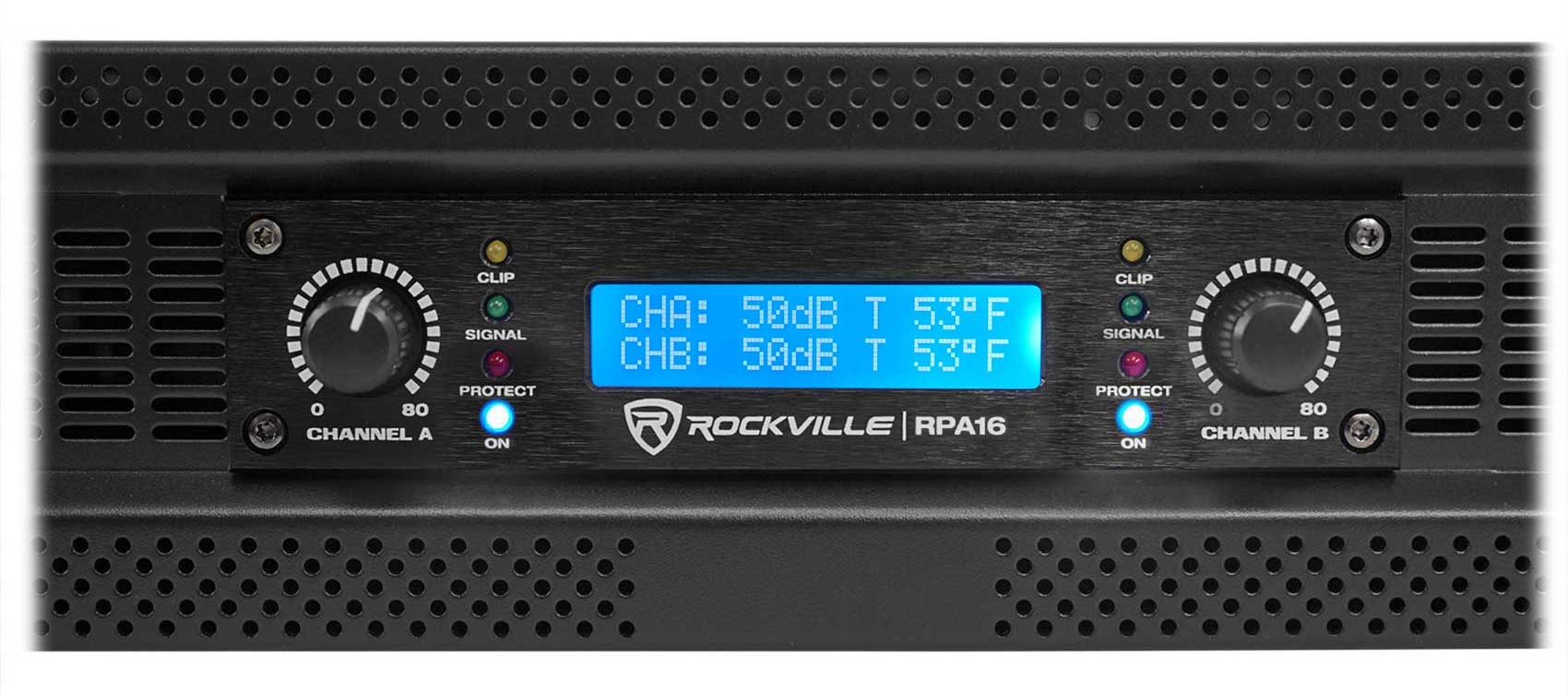

  • LCD displays volume in dB per channel and operating temperature
  • 2U rack space
  • Built in limiter protects your speakers from distortion and clipping
  • Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
  • Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
  • Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
  • Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
  • Channel A & B Clipping Led Indicators
  • Channel A & B Separate Level Controls

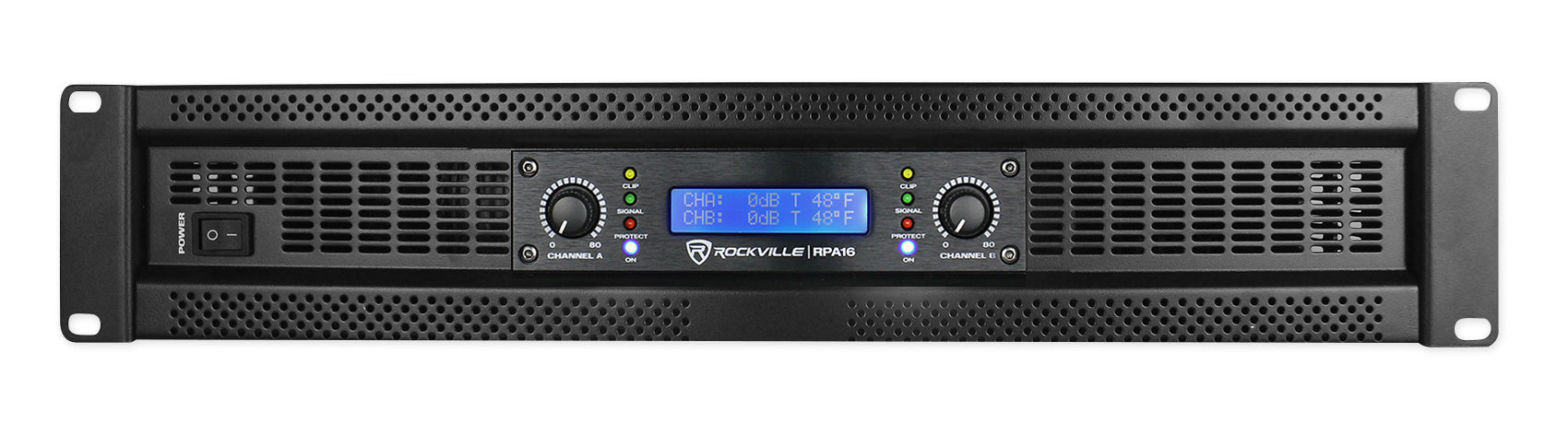

  • Power, signal, clipping, and protection LED indicators on front of amp
  • Heavy duty rack mount ears with handles
  • Built-in variable high velocity quiet cooling fans
  • Maximum headroom for 4-ohm and 8-ohm Speakers
  • Level controls for precise setting and matching of sensitivity
  • Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
  • User serviceable fuse (25A, 250V)
  • Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
  • THD + Noise @ 1Khz full power: <0.04%
  • Input Impedance: 10K Ohm Balanced
  • Input signal voltage: 660mV – 1.5V
  • Input sensitivity: 0.7v
  • Damping factor: ( 100Hz, 10w, 4 ohms): 36.5
  • Damping factor: (1Khz @ 8 ohm): >400:1
  • Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
  • Output impedance at speaker terminals: 0.10975 Ohms
  • Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%
  • Signal to Noise Ratio: > 100dB
  • IMD 60Hz & 1kHz, 4:1: <0.04%
  • SLEW RATE (input filter limited) : 40v/uS
  • Power Requirements: 120V / 50-60Hz
  • Weight: 40.8 lbs
  • Dimensions: 19.09 x 16.93 x 3.35 inch
