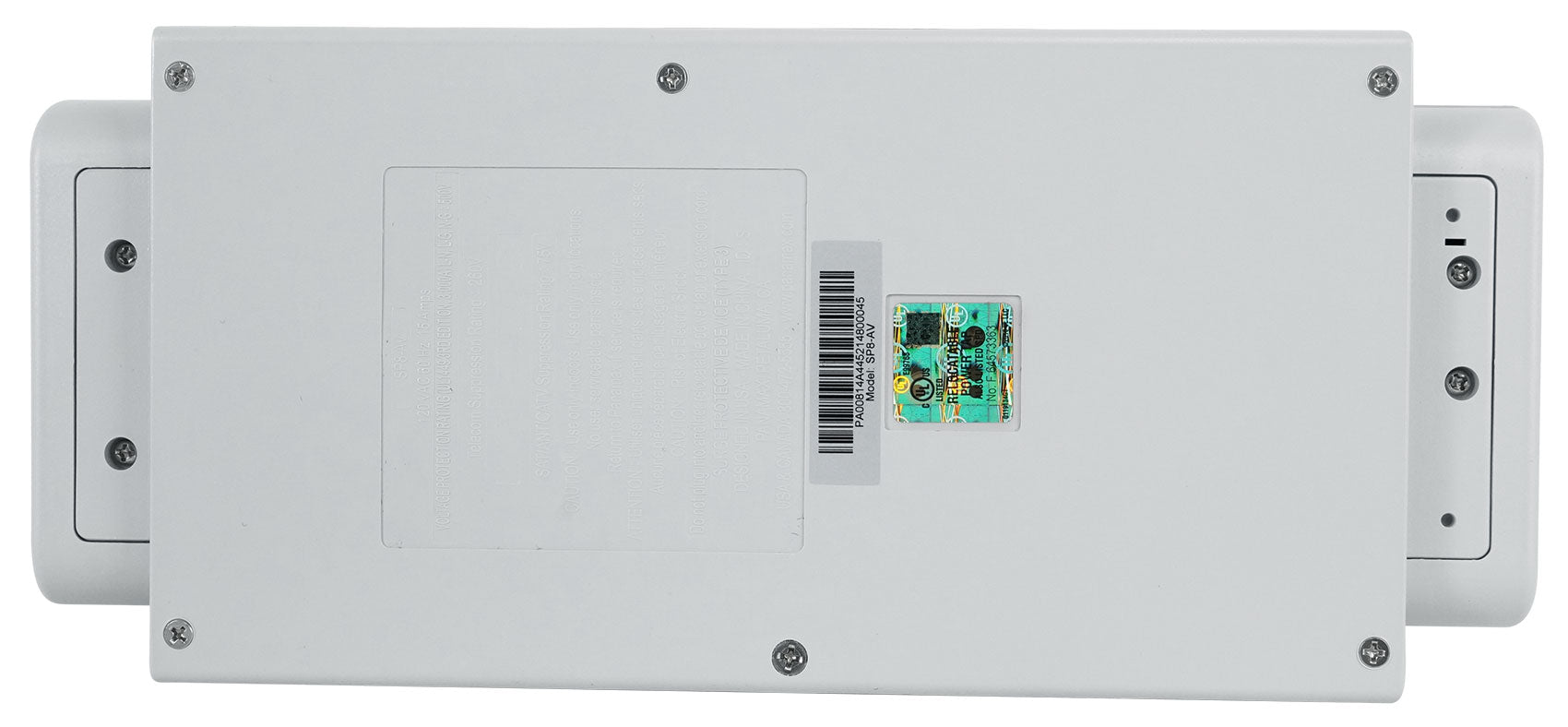

Panamax SP8-AV AC-Telephone-Coax Surge Protect, 6 feet Power Cord w/ 8 Outlets

$99.95 $48.95 Save 51%
Shipping calculated at checkout.
Condition: Open Box
Product Description

Description:

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.

Features:

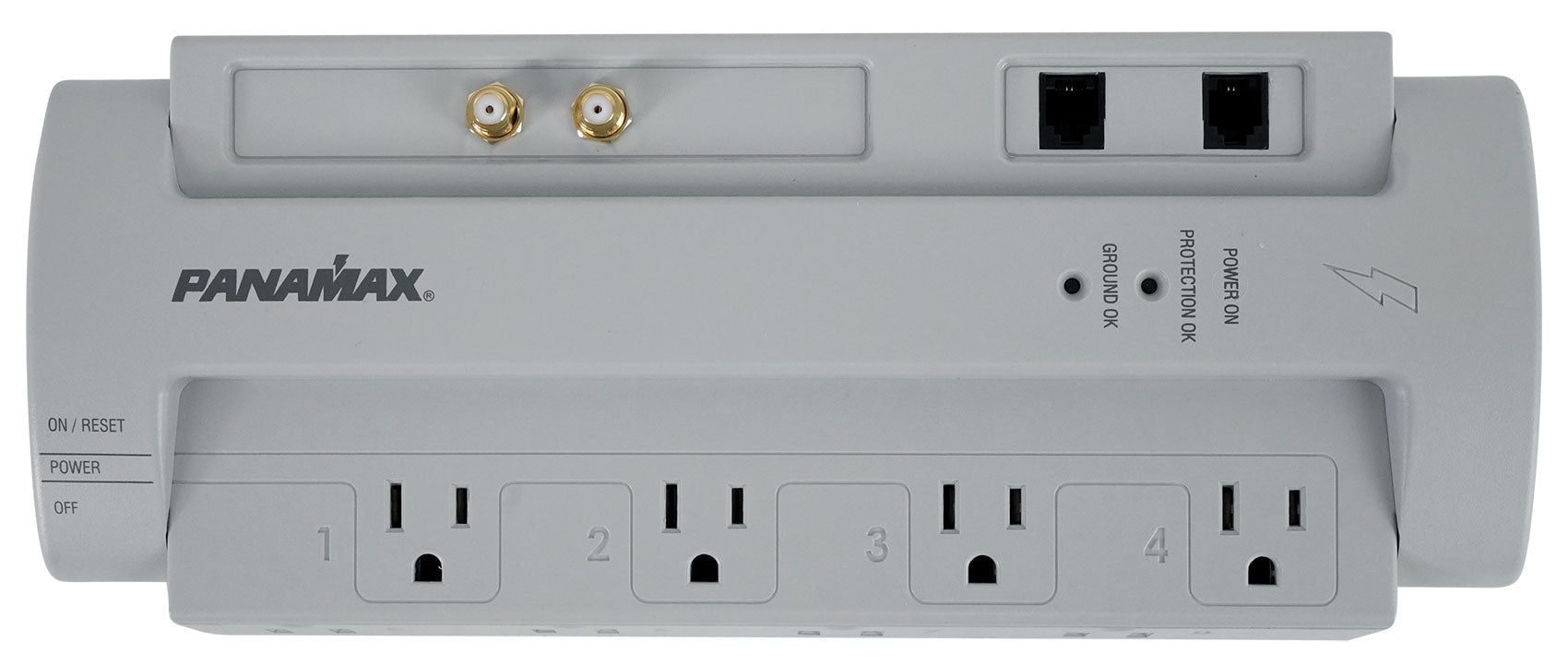

  • Power Status LED.

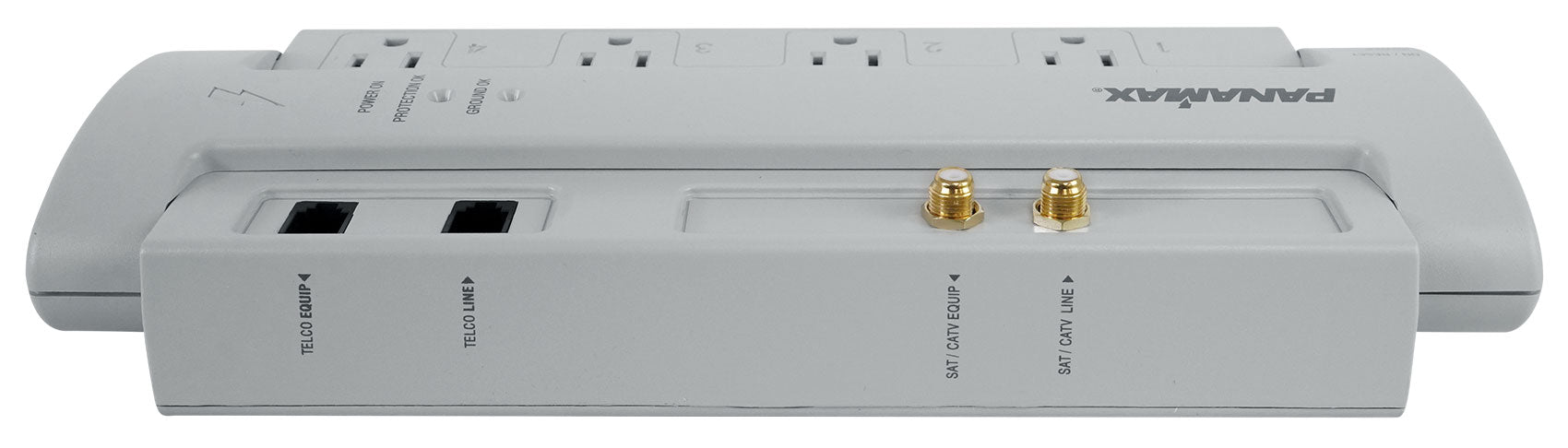

  • In / Out Telephone Connectors.

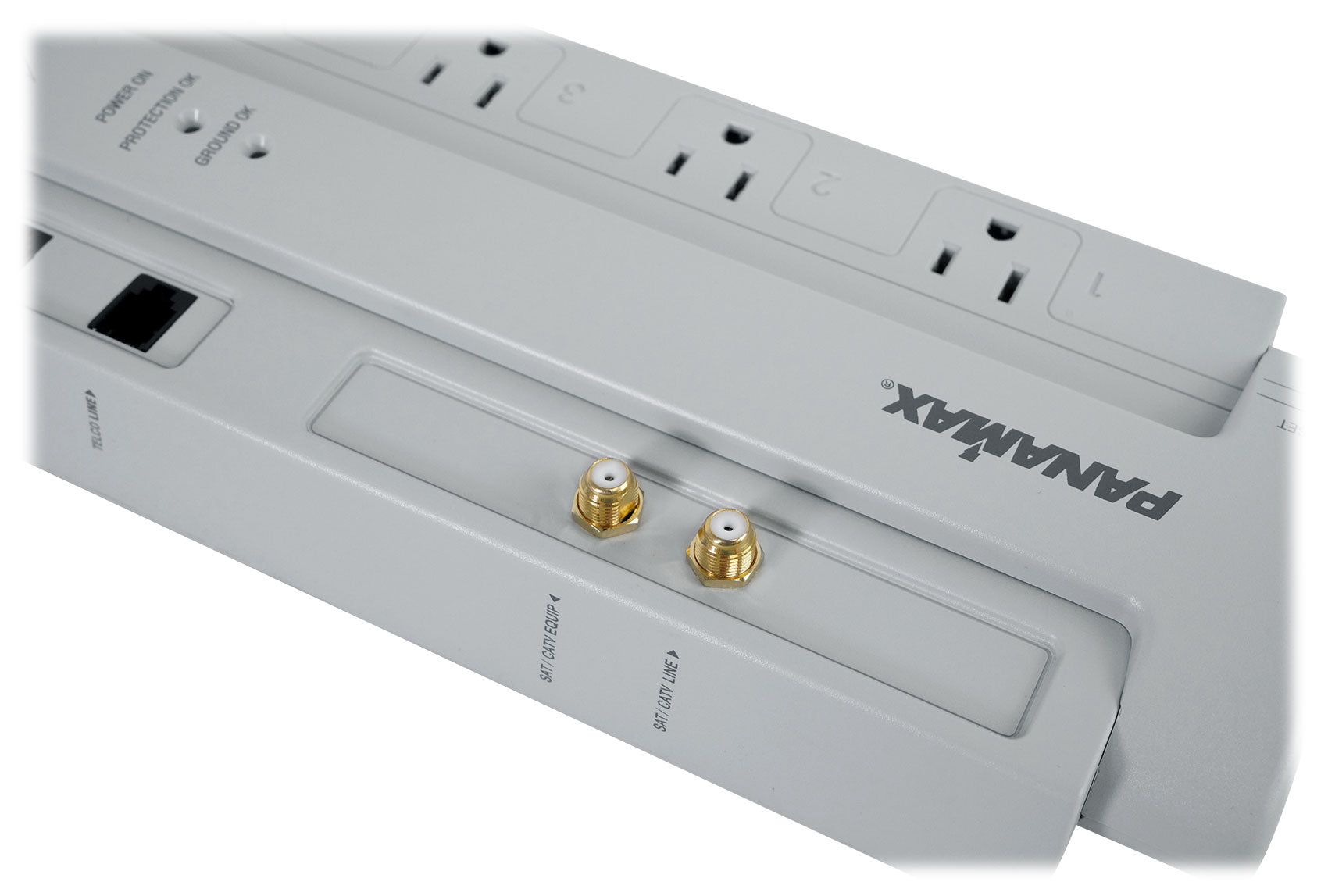

  • In / Out Coax Connectors for Cable/Sat.

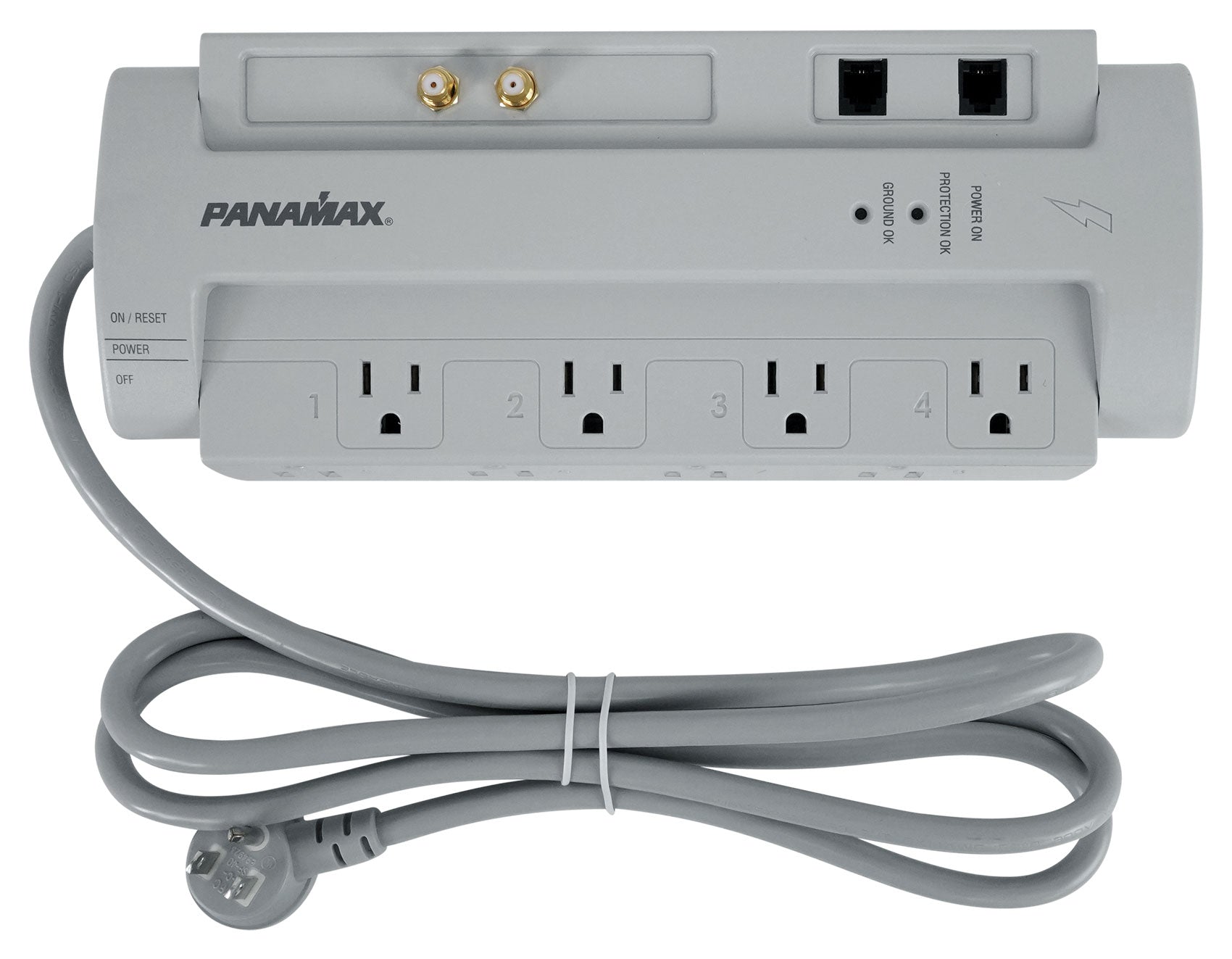

  • Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
  • Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

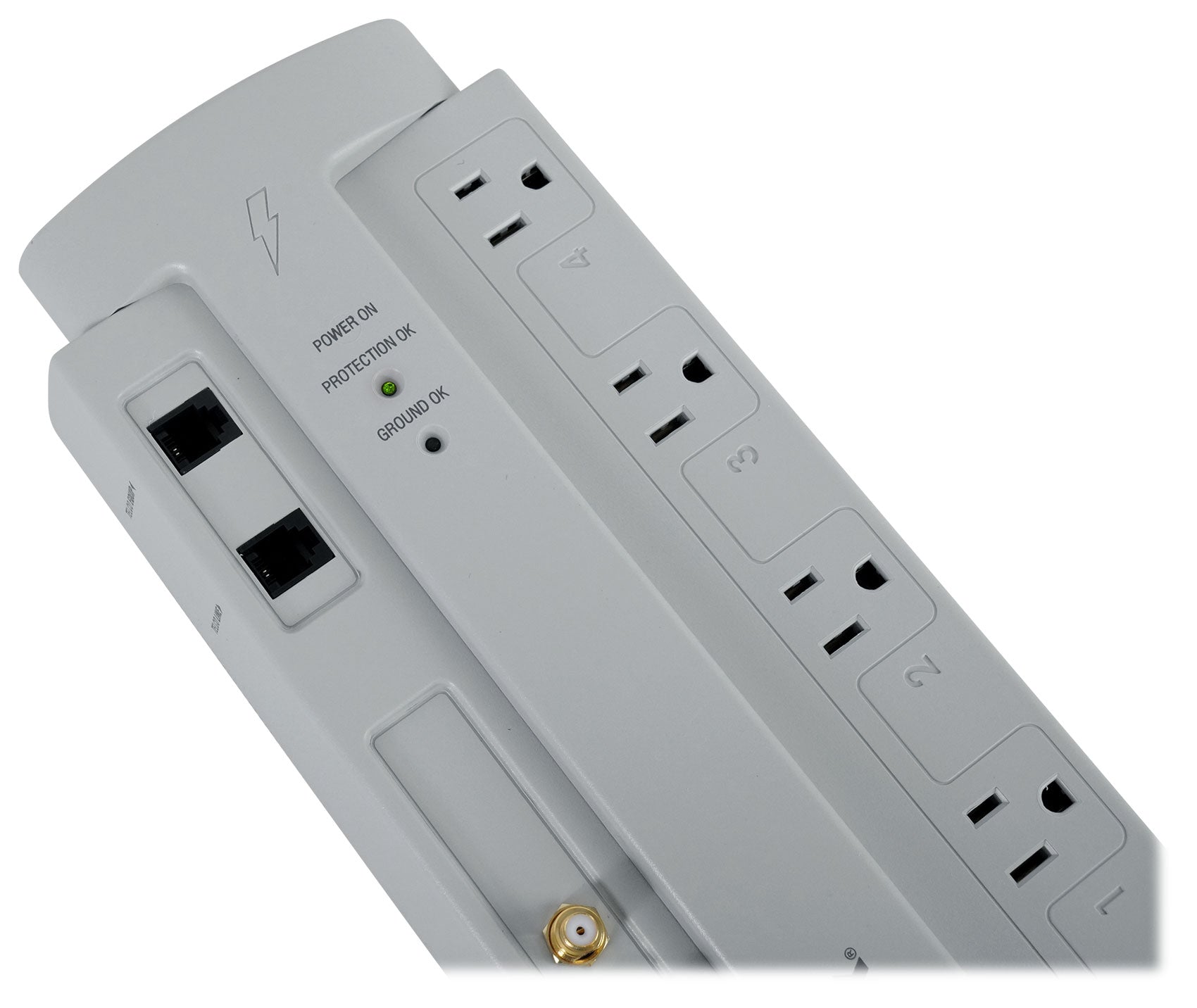

  • Ground OK LED.

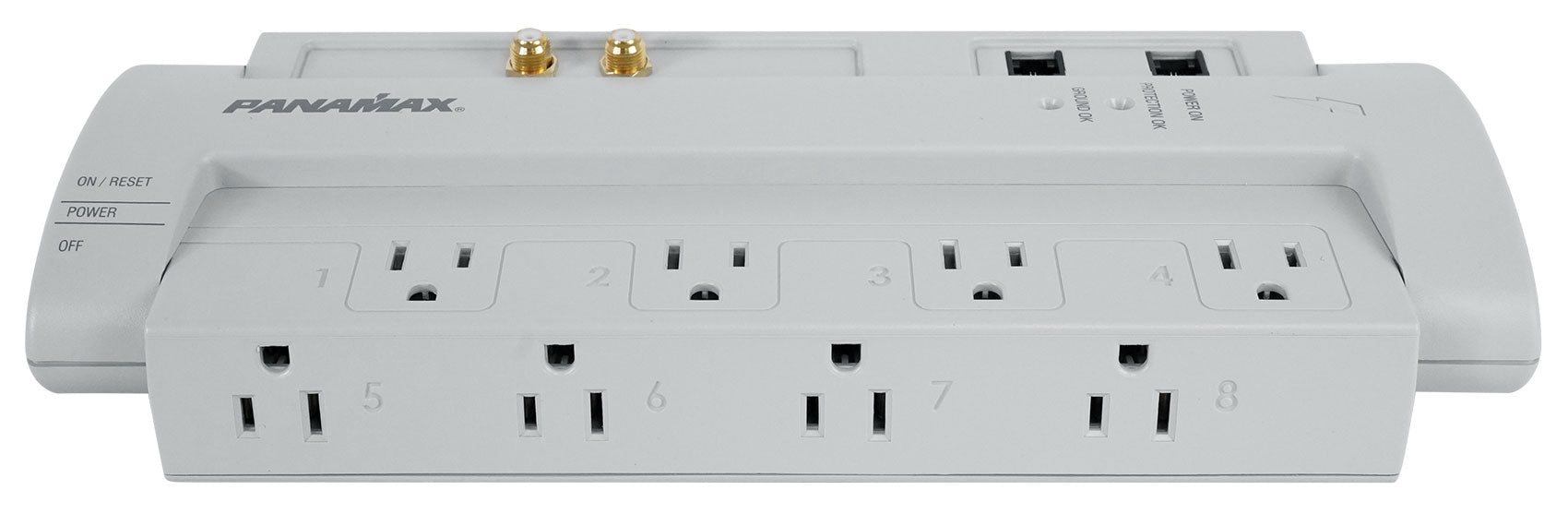

  • 8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
  • ON / OFF Power Switch and 15A Circuit Breaker.

Specifications:

  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1125 Joules
  • Response Time: < 1 ns
  • Peak Impulse Current: 60,000 Amps

Telco Protection

  • Wires Protected: 1 Line (3, 4)
  • Suppression Modes: Metallic & Longitudinal
  • Fuseless / Auto-reseting: Yes
  • Connectors: RJ-11
  • Clamping Level: 260V
  • Capacitance: 30pf (approx.)

Universal Coaxial Protection

  • Shielded: Yes
  • Insertion Loss: < 0.5 dB
  • Frequency Range: OMHz – 2.2 GHz
  • Connections: Female “F”, Gold Plated
  • Clamping Level: 75V
  • Bidirectional: Yes

General

  • Family: Floor Models
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 8
  • Outlet Descriptions: All 8 outlets filtered and surge protected
  • Control: On/Off control to all outlets through power switch.
  • Compliance: UL 1449 3rd Edition, 3000A
  • USB Charging: N/A
  • Low Voltage Trigger: N/A
  • AC Power Cord: 6 ft. captive cord
  • Dimensions: 12? L x 5? W x 1.75? H
  • Weight: 3.5 lbs

AC Protection

  • AC Protection Technology: Protect or Disconnect
  • L-N, L-G, N-G Protection Modes
  • Thermal Fusing
  • Undervoltage Shutoff: N/A
  • Over-Voltage Shutoff: N/A
  • Maximum Current Rating: 15 (Amps)
  • Initial Clamping Level: 200V Peak

Filtration

  • Filtration Technology: RFI/EMI Filtration
  • Filtration Rating: 45dB @ 100kHz – 1 MHz
  • Signal Line Protection1 Tel
  • 1 Cable/Satellite

Shipping Info

  • Length: 8.5 (Inches)
  • Width: 2.2 (Inches)
  • Height: 12.2 (Inches)
  • Weight: 2.3 (Lbs)
  • Unit of Measure: Each
  • UPC: 050616008143
