Audio Technica ATW-2120CI Wireless Handheld Microphone System - I Band ATW-2120C

Description:

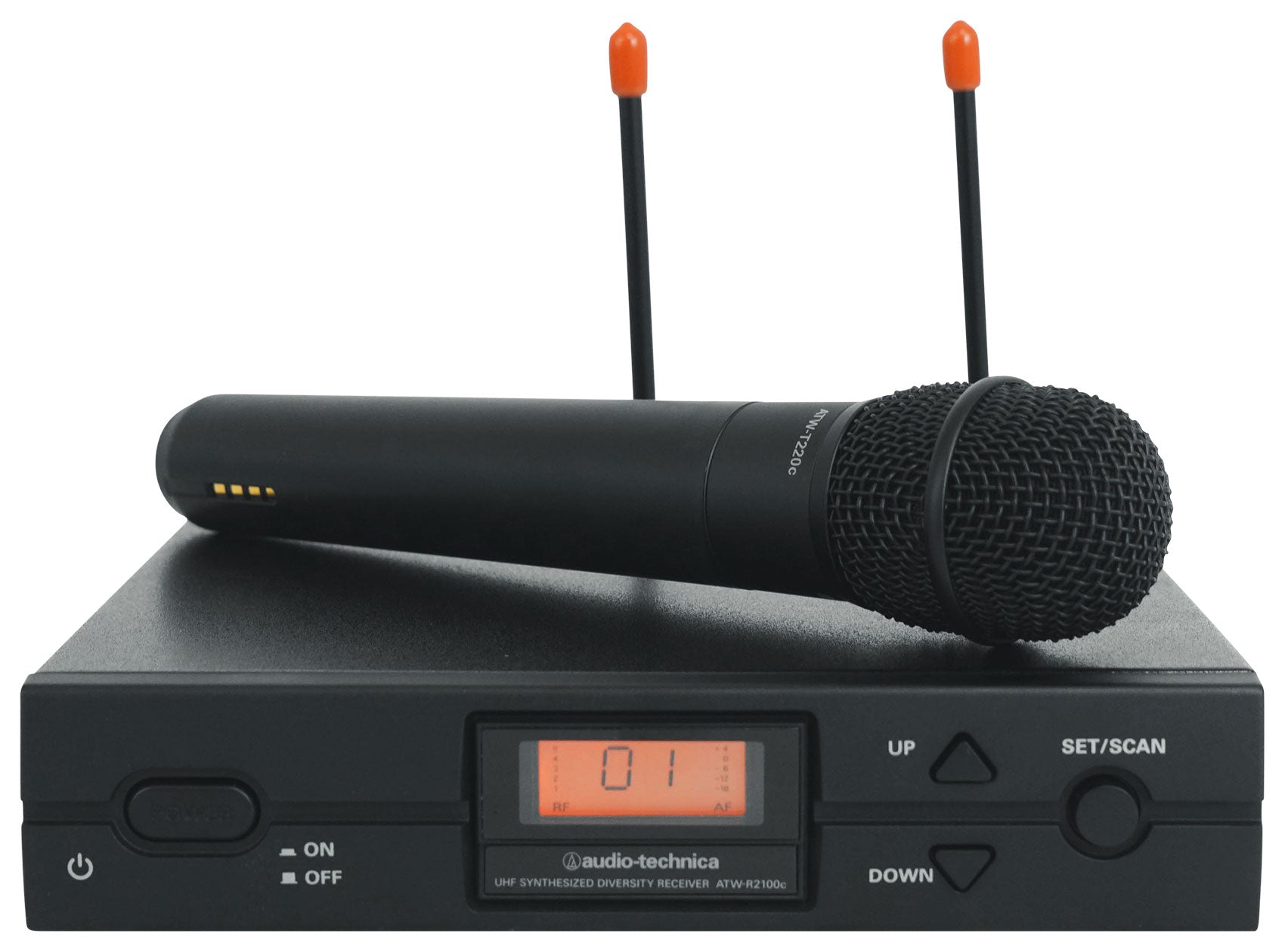

ATW-R2100c receiver and ATW-T220c handheld cardioid dynamic microphone/transmitter.

Specifications:

Overall System:

• Operating Frequencies: UHF Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA Band I : 487.125 to 506.500 MHz
• Modulation Mode: FM

• Maximum Deviation: ±40 kHz

• Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)

• Operating Range: 100 m (300'), typical (Open range environment with no interfering signals)

• Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)


Operating Temperature Range:

• 5º C to 45º C

• 41º F to 113º F

• Battery and LCD performance may be reduced at very low temperatures

• Number Of Channels: 10 total

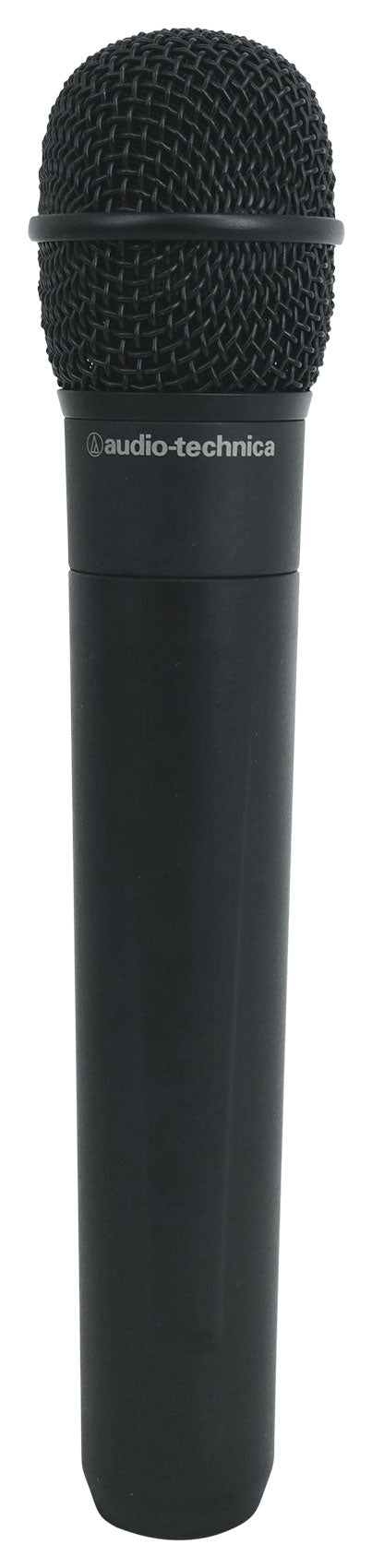

Handheld Transmitter:

• RF Power Output: High: 30 mW; Low: 10 mW (switchable), at 50 ohms

• Spurious Emissions: Following federal and national regulations

• Microphone Element: Dynamic cardioid


Battery Type:

• Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)

• Recharging power for NiMH batteries (with ATW-CHG2)

• U.S./Canada/Latin America: 3.2 V DC, 230 mA x2

• Other world areas: 3.2 V DC, 320 mA x2


Battery Life:

• High: 7 hours (alkaline)

• Low: 9 hours (alkaline)

• Depending on battery type and use pattern.

• Dimensions: 232.0 mm (9.13") long, 48.0 mm (1.89") diameter

• Net Weight: 252 g (8.9 oz), without batteries

• Accessories Included: AT8456a Quiet-Flex™ stand clamp


Body Pack:

Input Connections:

• Four-pin Locking Connector

• Pin 1: GND

• Pin 2: INST INPUT

• Pin 3: MIC INPUT

• Pin 4: DC BIAS +9V

• Net Weight: 81 g (2.9 oz), without batteries

• Spurious Emissions: Following federal and national regulations

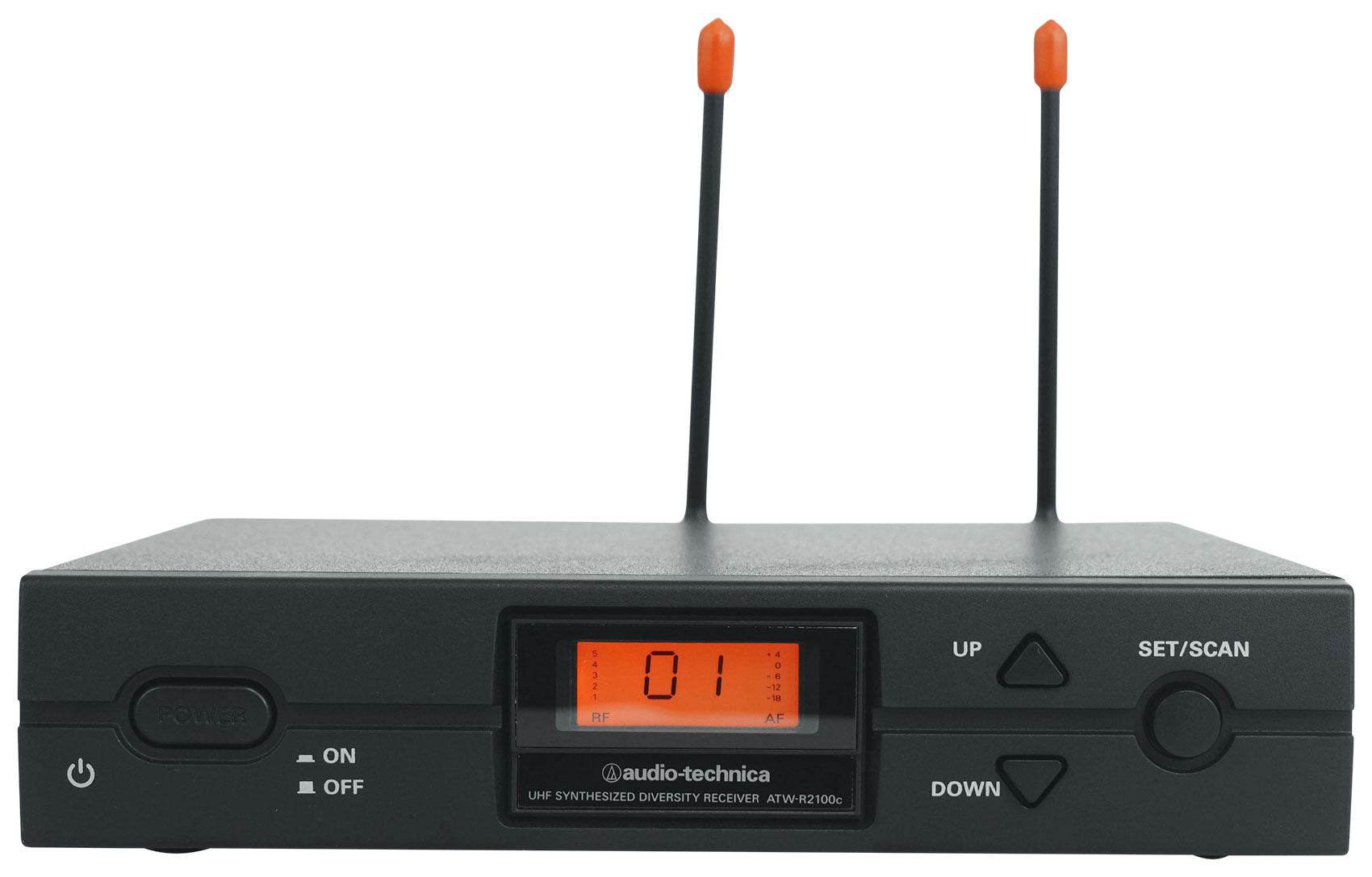

Receiver:

• Receiving System: True diversity

• Image Rejection: 60 dB nominal, 55 dB minimum

• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)

• Maximum Output Level: XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV

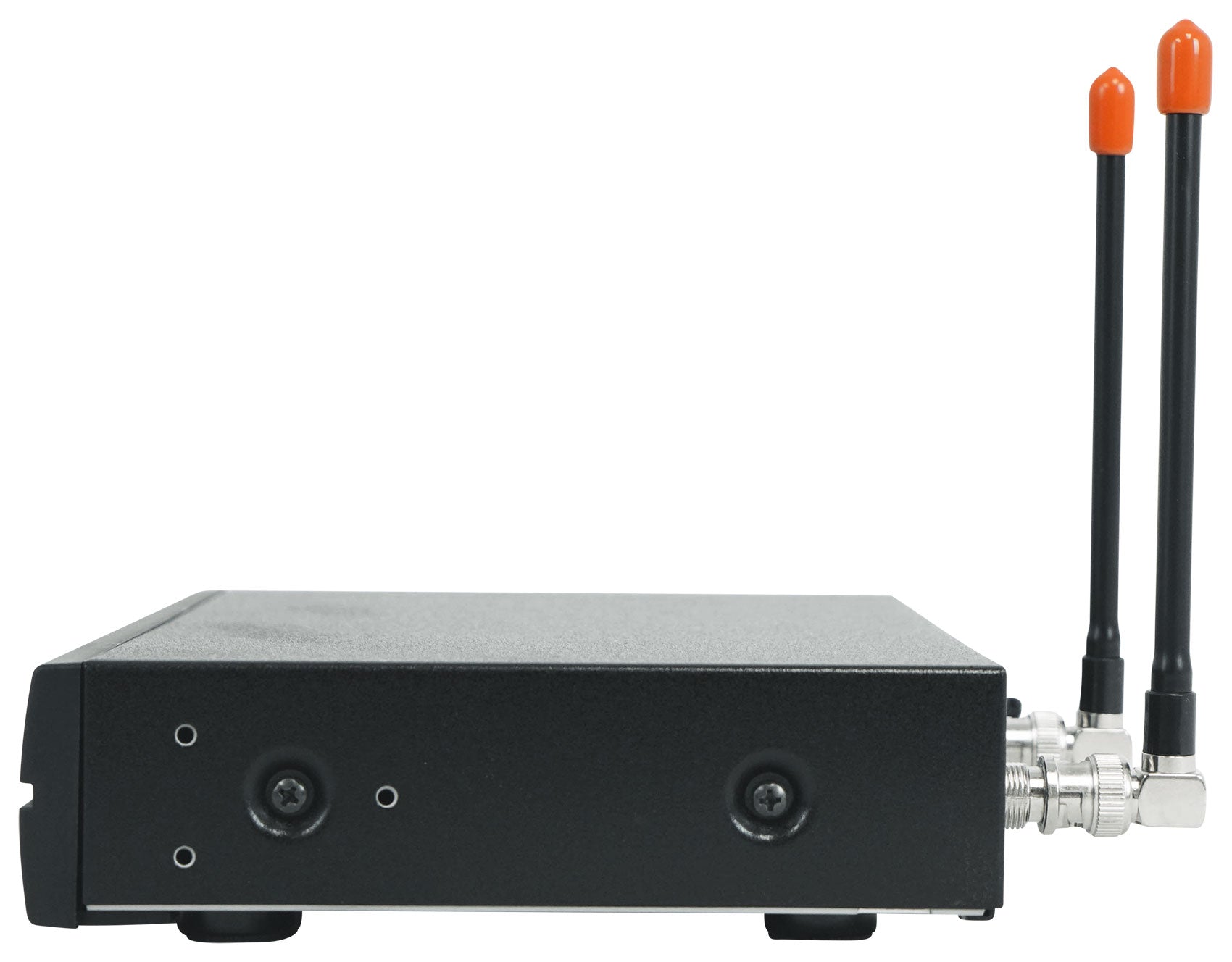

Antenna Input:

• BNC-type, 50 ohms

• Bias voltage 12V DC, 60 mA, each

• Power Requirements: 12-18V DC, 500 mA

• Dimensions: 210.0 mm (8.27") W x162.2 mm (6.39") D x44.0 mm (1.73") H,br>Not including BNC connectors or feet.

• Weight: 1.0 kg (35.3 oz), without accessories

• Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters

• Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
