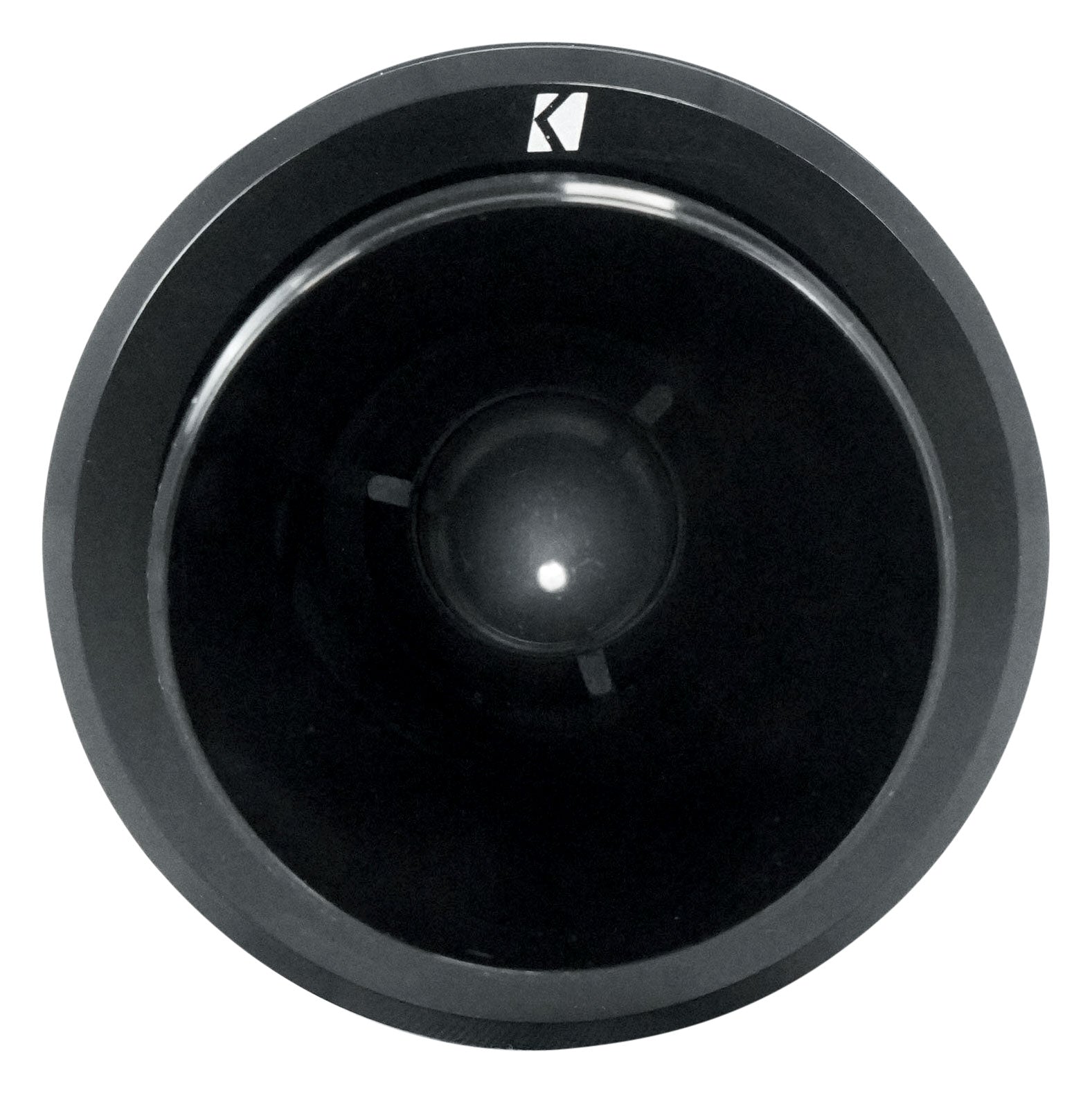

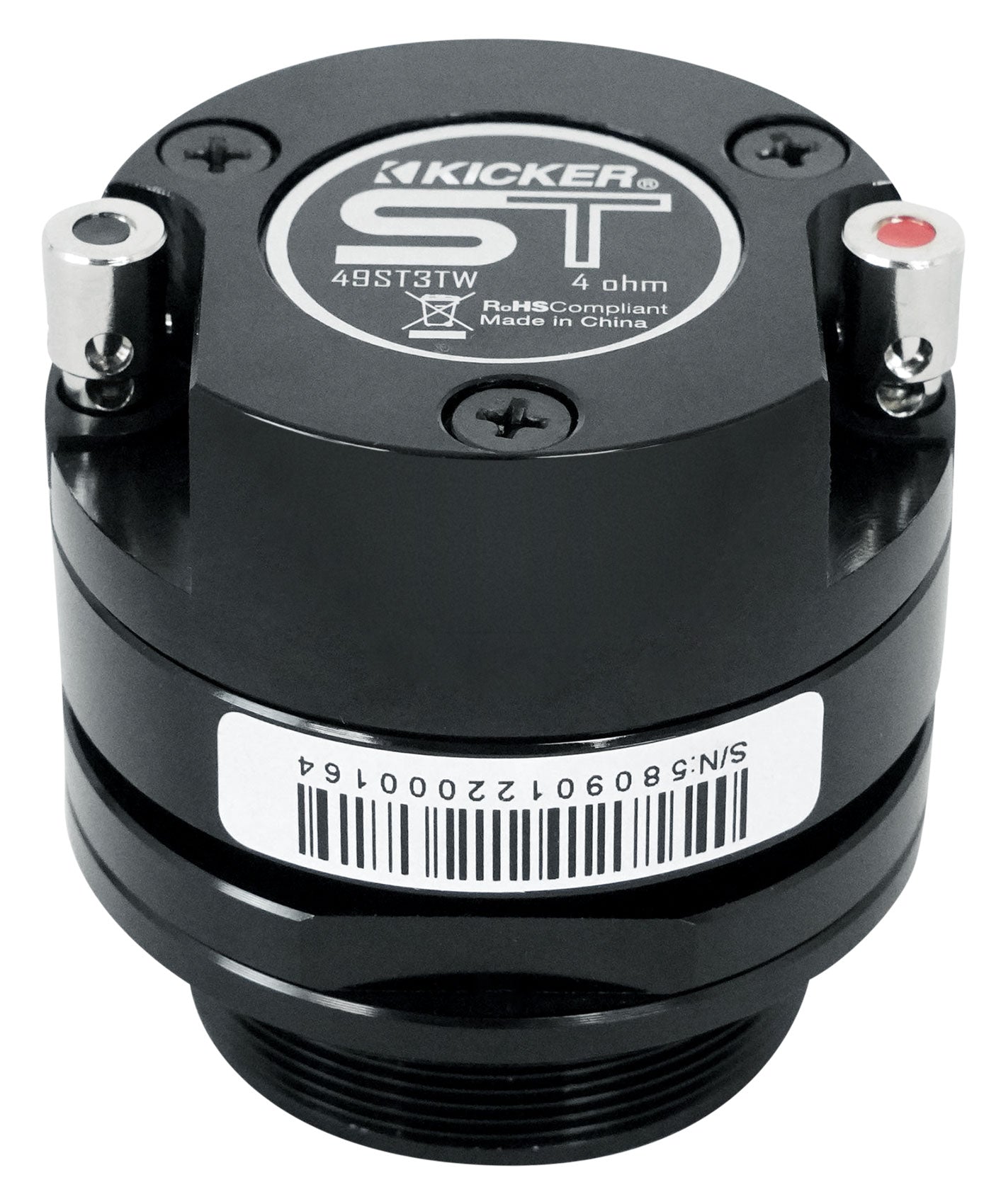

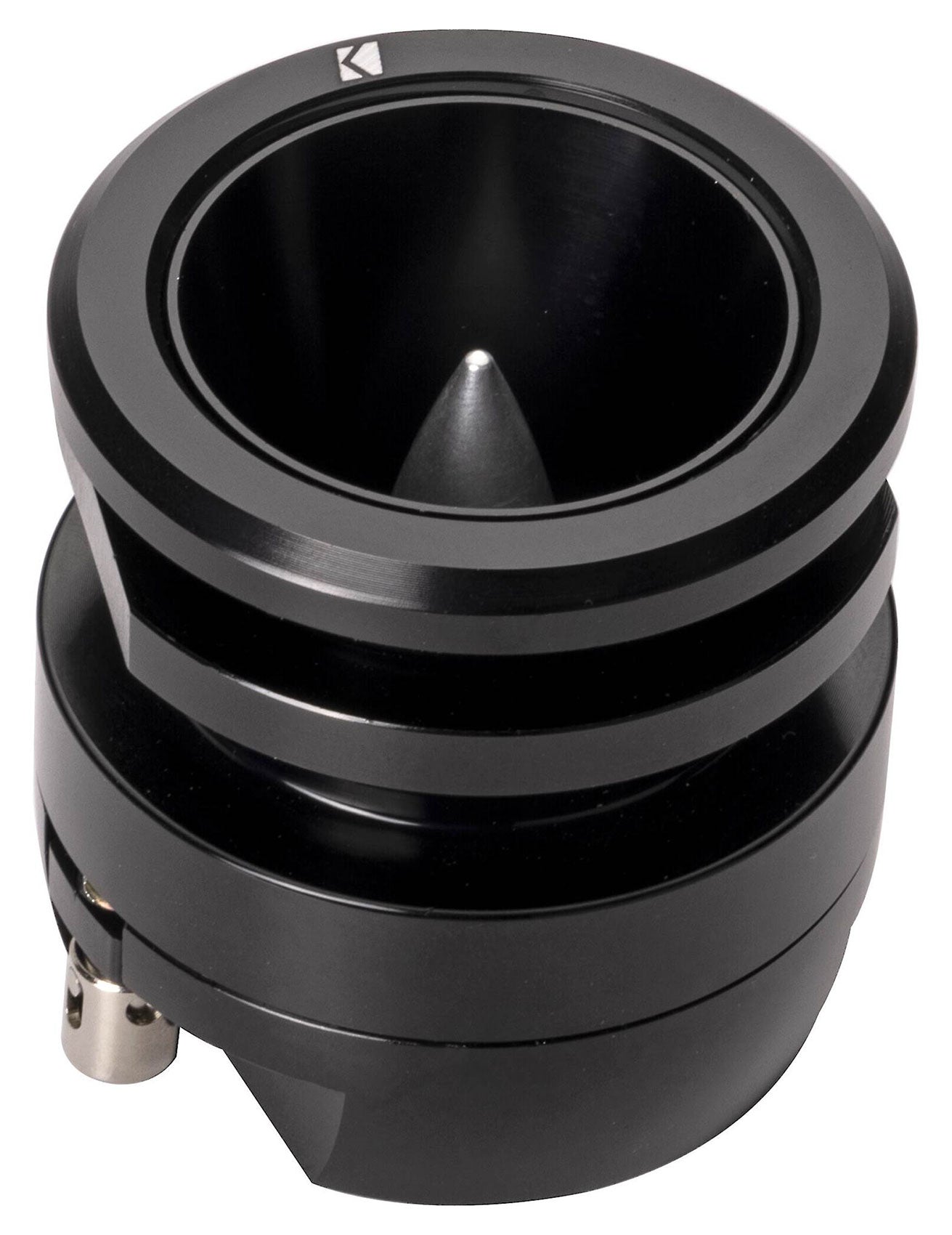

Kicker ST3TW 1" Street Series Dual Mount Bullet Tweeter Single 4-ohm 49ST3TW

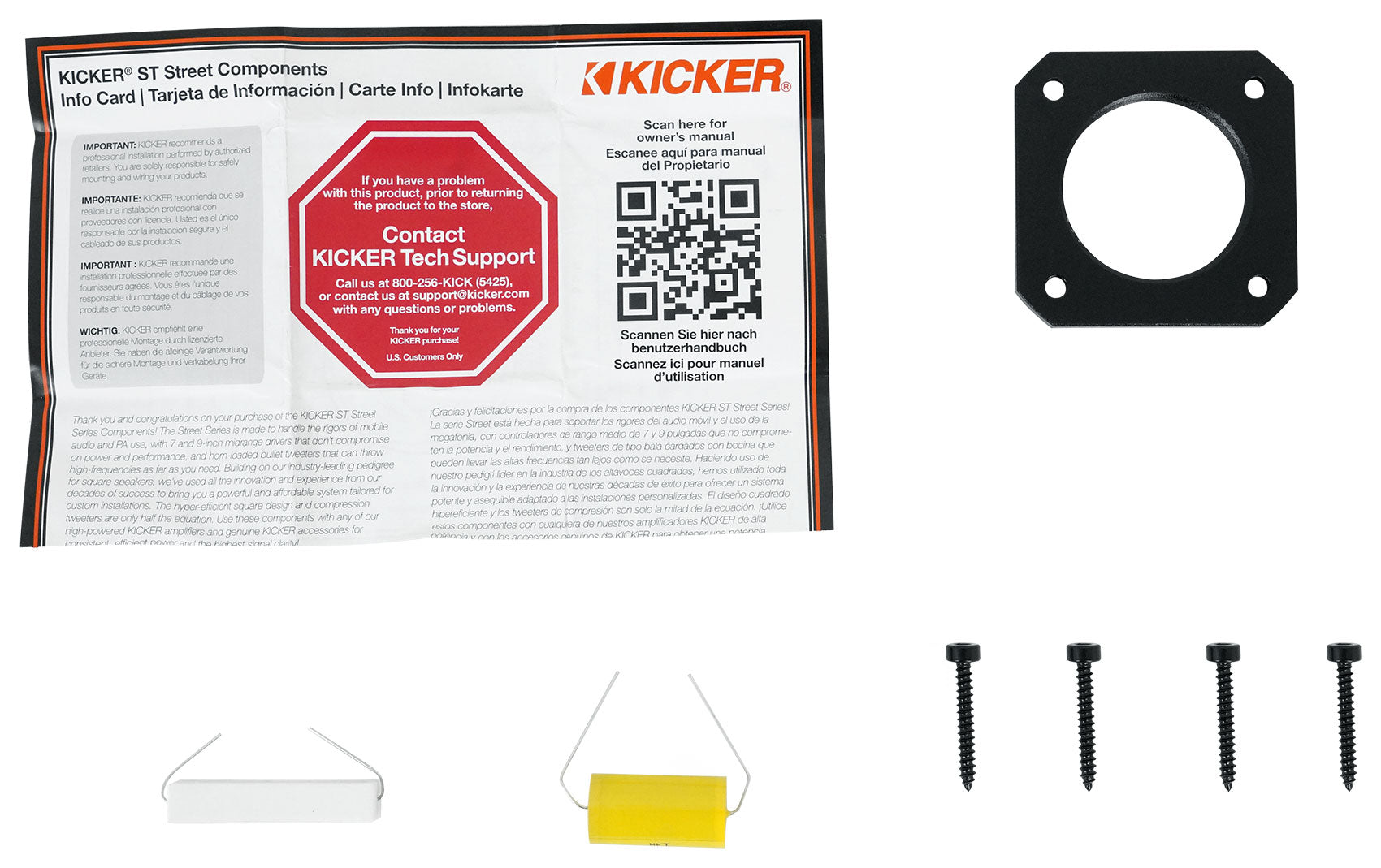

What's In The Box:

• 1 - Tweeter

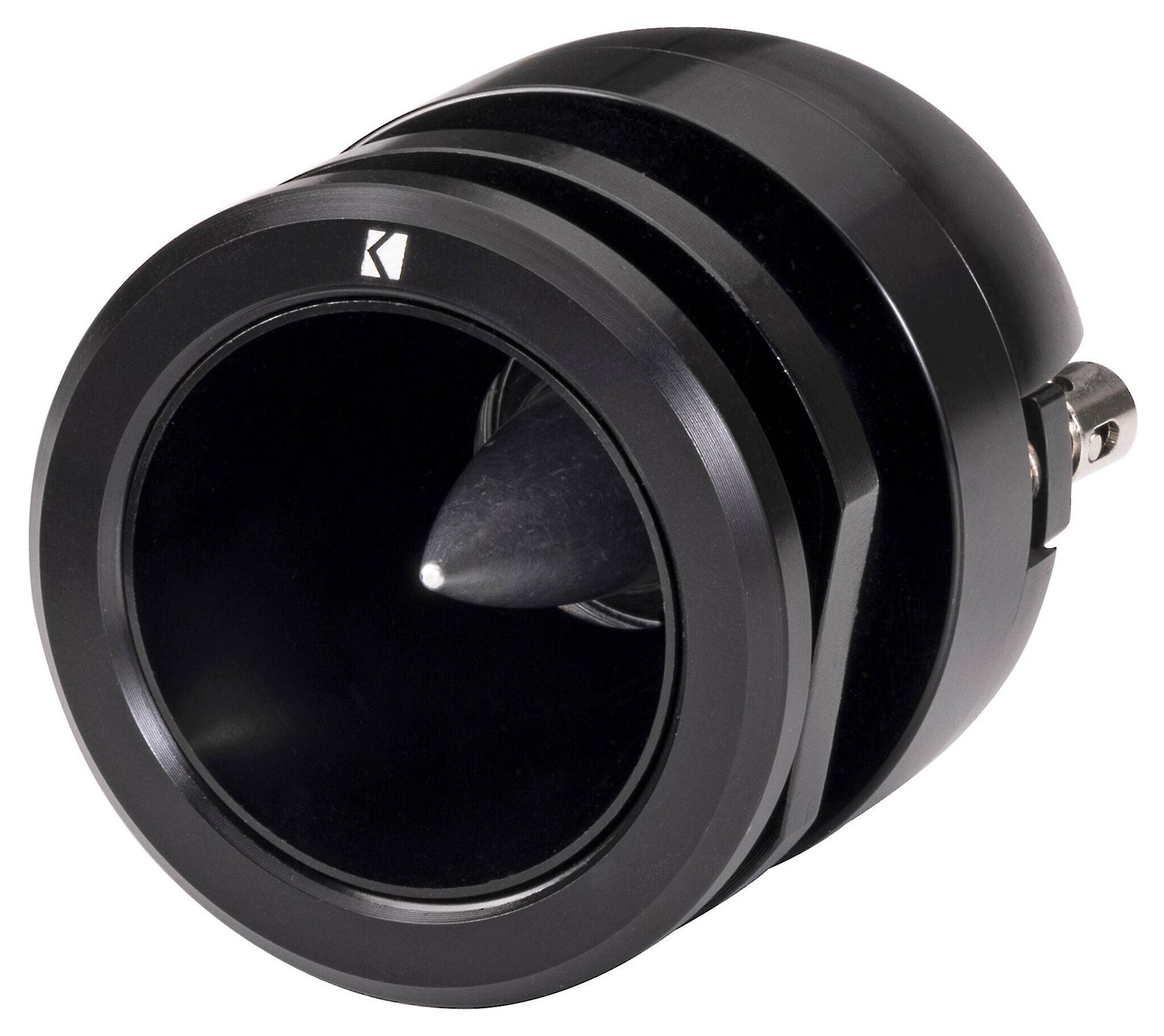

• 1 - Round Mounting Flange
• 1 - Backing Nut

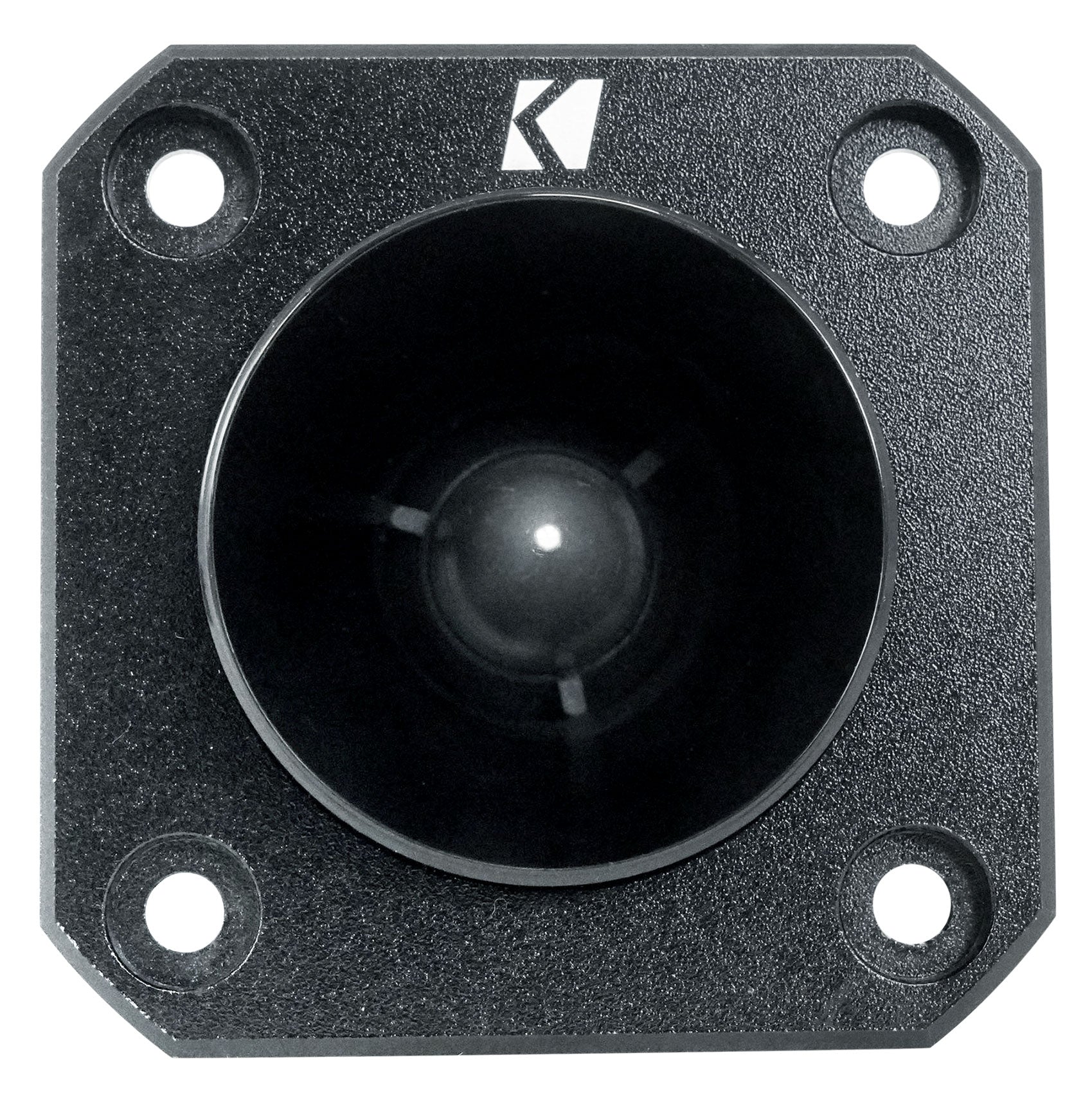

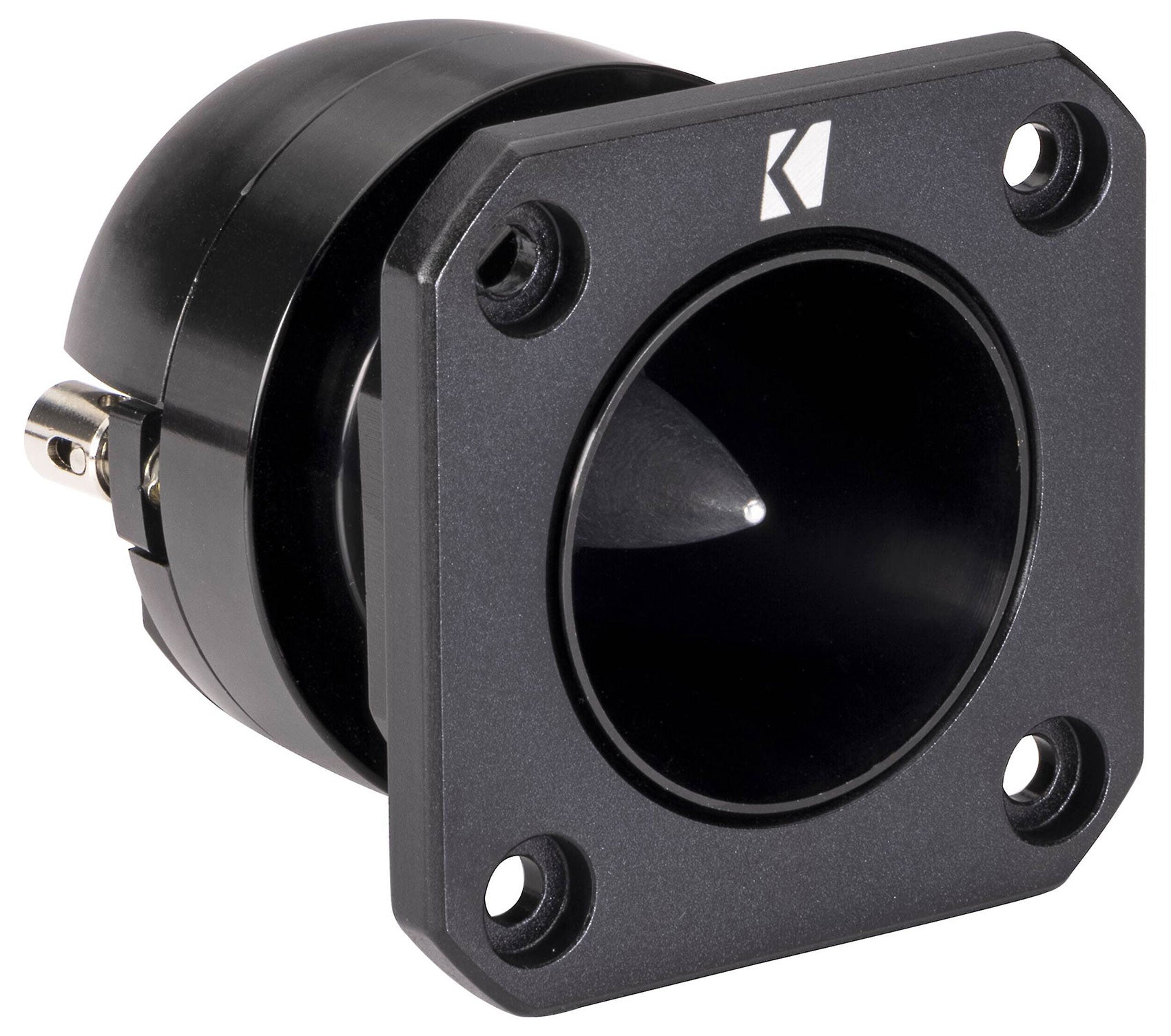

• 1 - Square Mounting Flange
• 4 - Mounting Screws
• 1 - Capacitor
• 1 - Resistor

Features:

PA Style, High Output

• Extremely efficient, horn-loaded aluminum diaphragm for extreme output
• Single-unit, PA-style tweeter perfect for competition-level SPL systems
• Voiced for clear vocals to match with high-output bass
• Includes front or rear mount options, in addition to trim bezel options

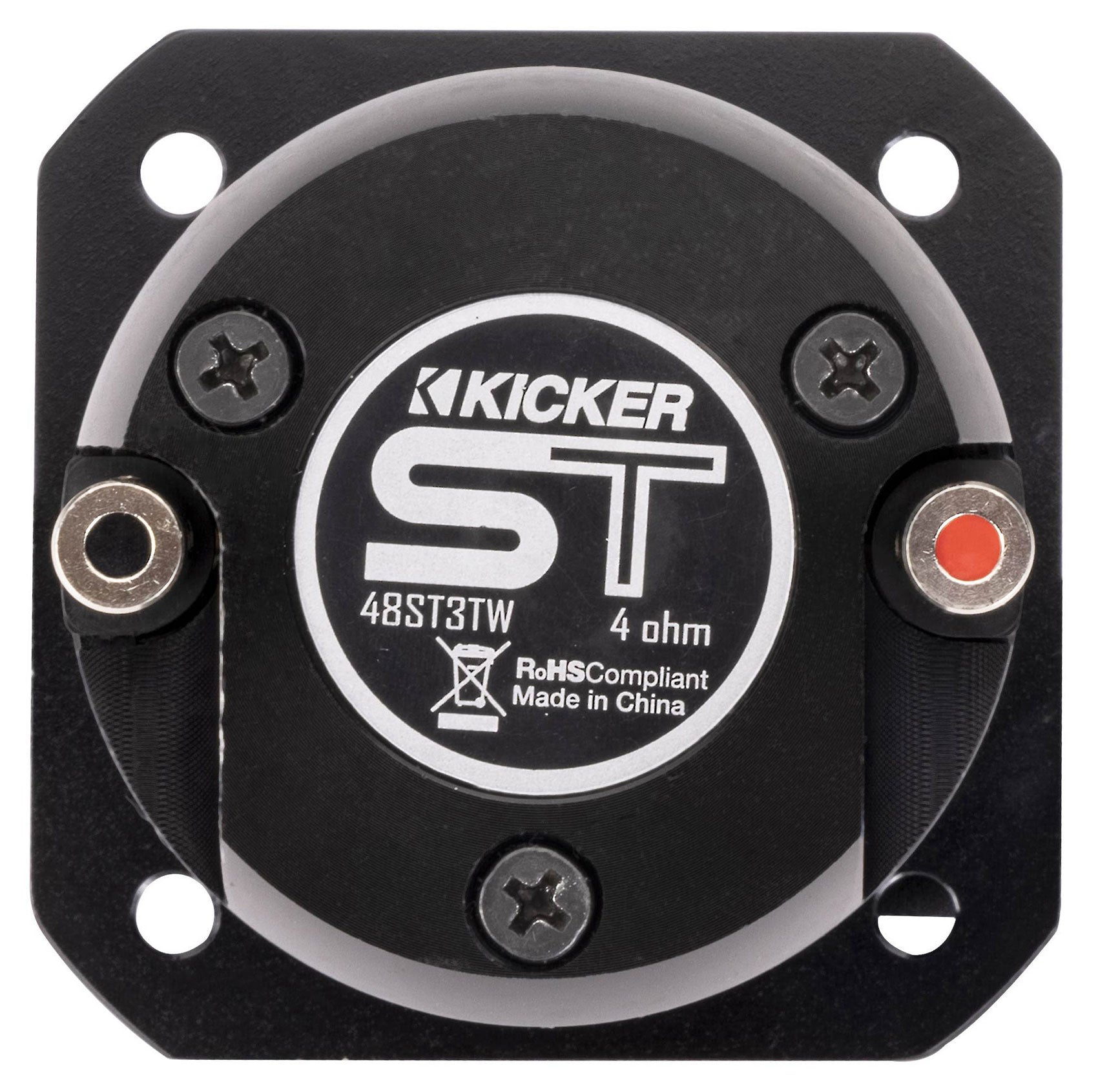

• Spring-loaded terminals accept 16 AWG wire
• In-line 6dB crossover
• Field-replaceable voice-coil assembly available (ST3RK/ST4RK)

Specifications:

• SingleTweeter [in, mm]: 1, 25
• Dome Material: Aluminum
• Design: Bullet
• Impedance [Ohms]: 4
• Recommended Amp Power [watts RMS]: 15-50
• Peak Power Handling [watts]: 100
• Frequency Response [Hz]: 3.5k-20k
• Sensitivity [1W, 1m]: 106
• In-Line Crossover [dB]: 6, high-pass
• Mounting Depth [in, mm]: 1-3/16, 30
• Mounting Diameter [in, mm]: 2-5/16, 58

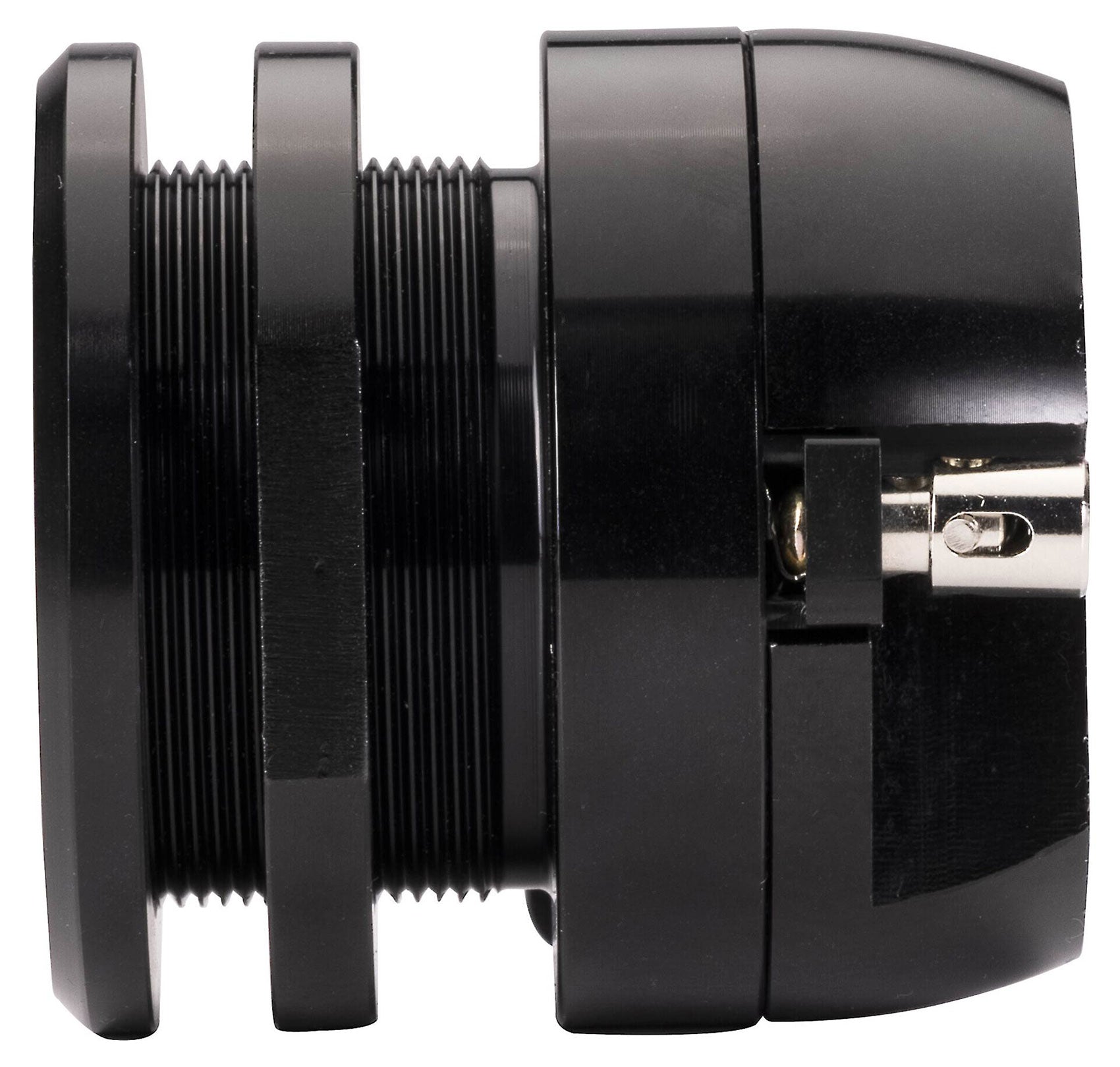

• Thread Length [in, mm]: 1-1/16, 27
• Thread Diameter [in, mm]: 1-11/16, 43
