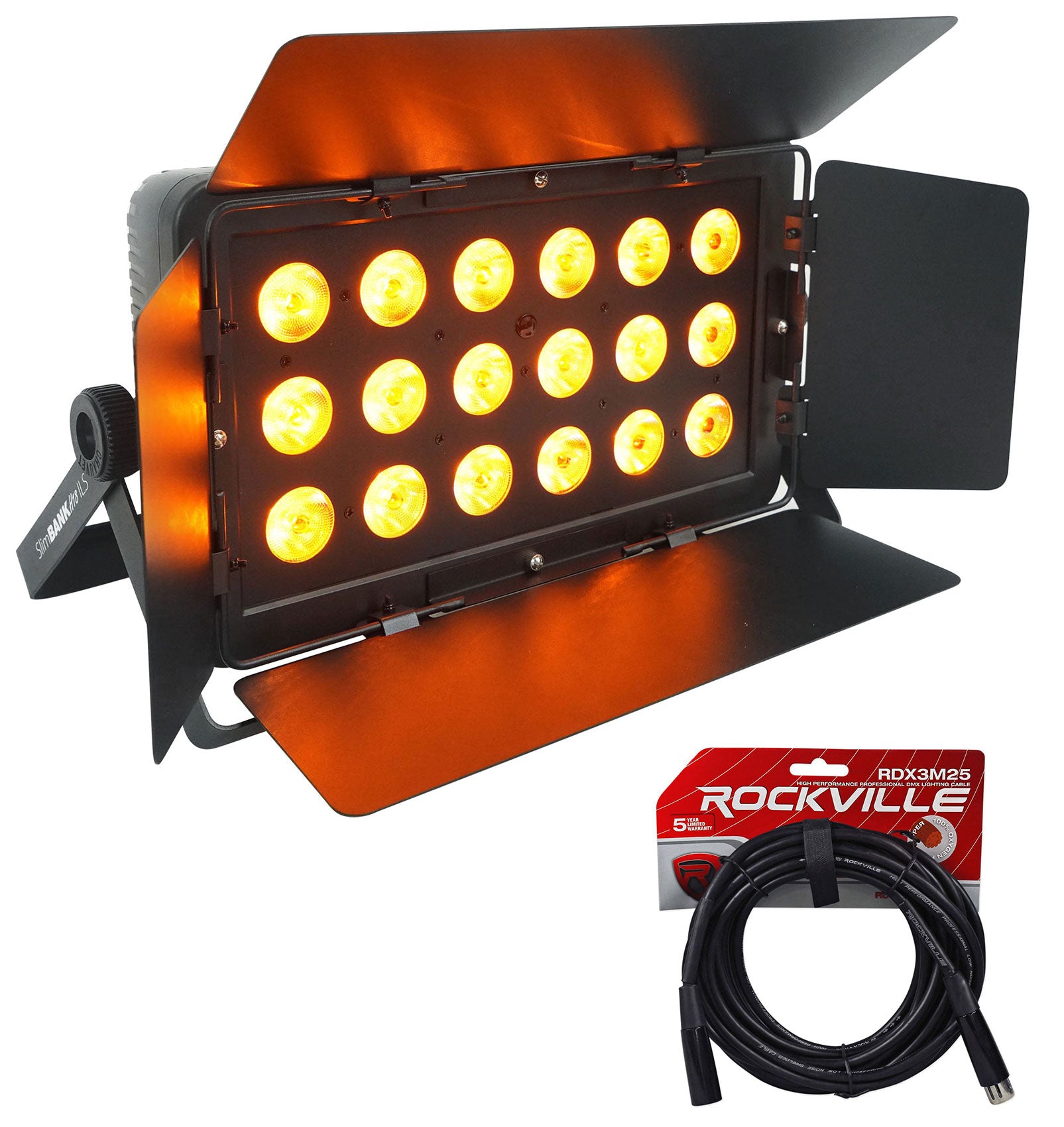

Chauvet DJ SLIMBANK H18 ILS RGBAW+UV LED Wash Par Light+Eye Candy FX+DMX Cable

Package Includes:

• (1) Chauvet DJ SLIMBANK H18 ILS DMX RGBAW+UV LED Wash Par Up-Light w/ Eye Candy FX
• (1) Rockville RDX3M25 25 Foot 3 Pin DMX Lighting Cable 100% OFC Copper Female 2 Male

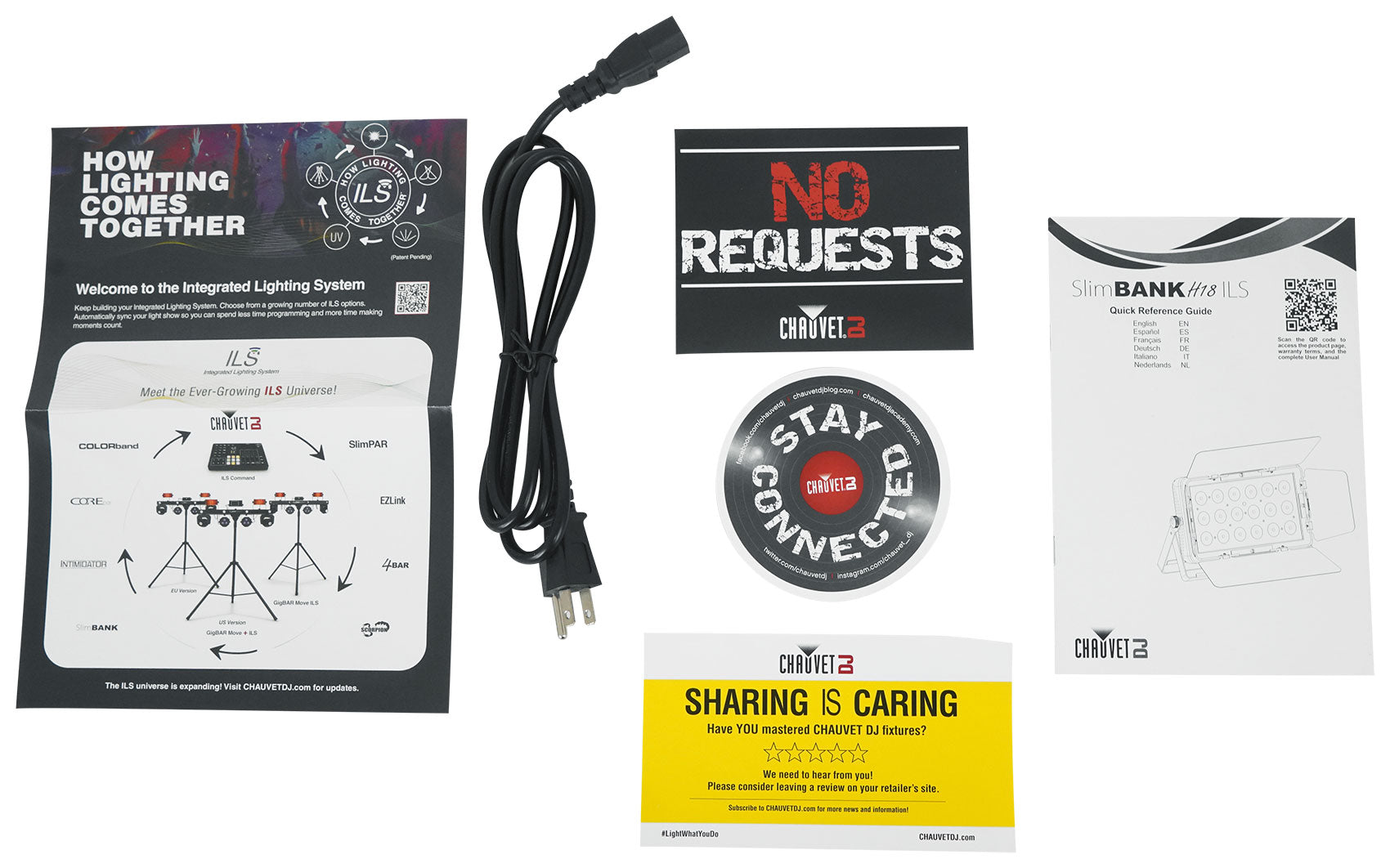

What's In The Box:

• SlimBANK H18 ILS
• Power Cord

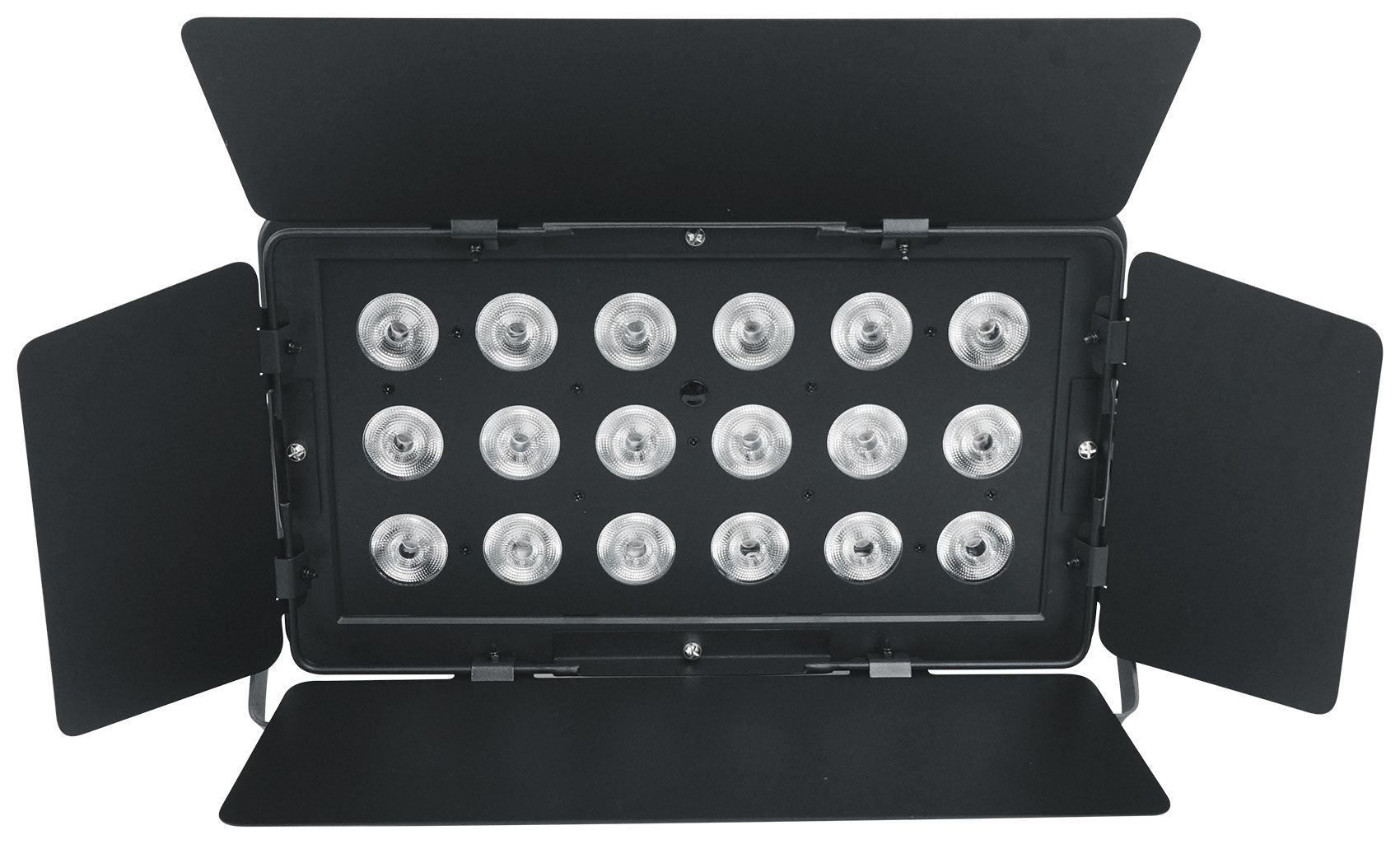

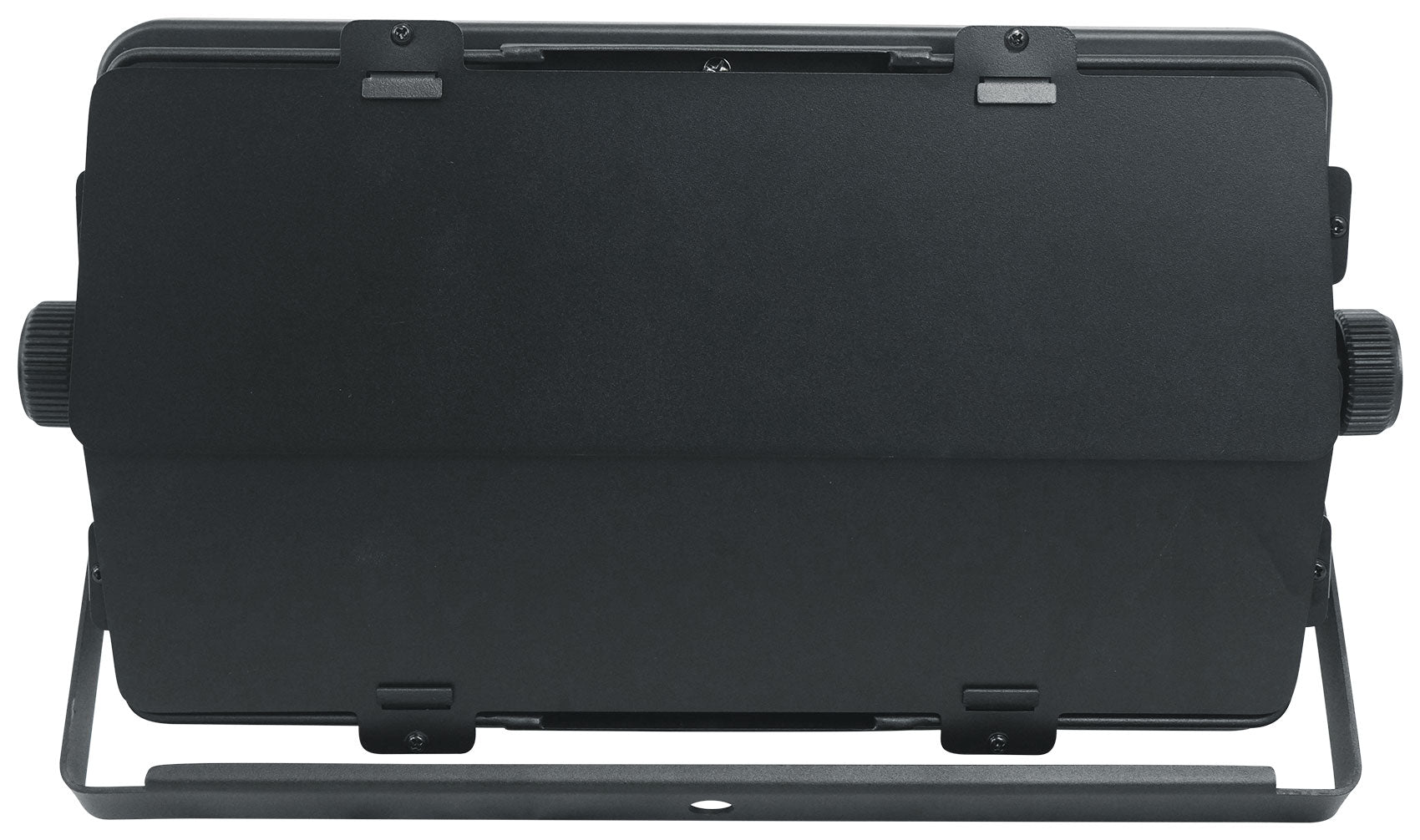

• Barn Doors
• Quick Reference Guide

Description:

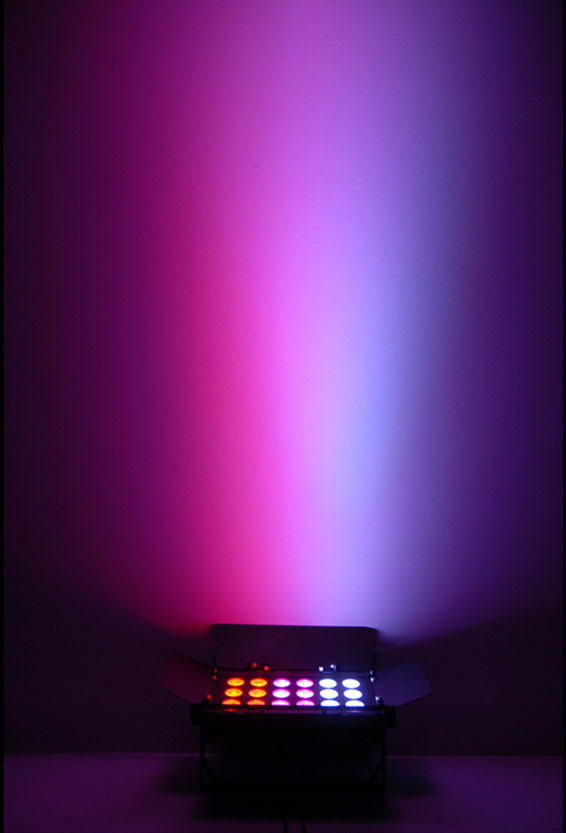

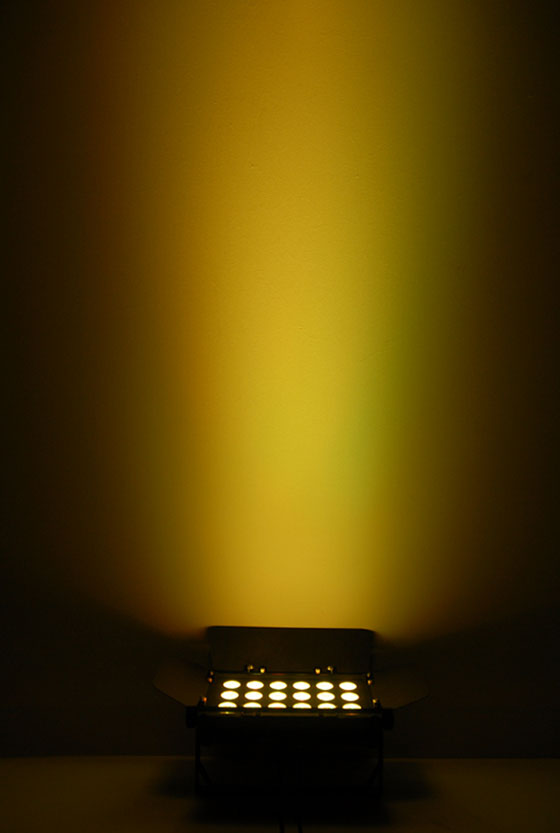

SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments

Features:

• Versatile hex-color LED wash light with brilliant eye candy effects
• ILS compatibility for use in the ILS ecosystem
• Generate complex looks easily with built-in, eye-catching auto programs with sectional control

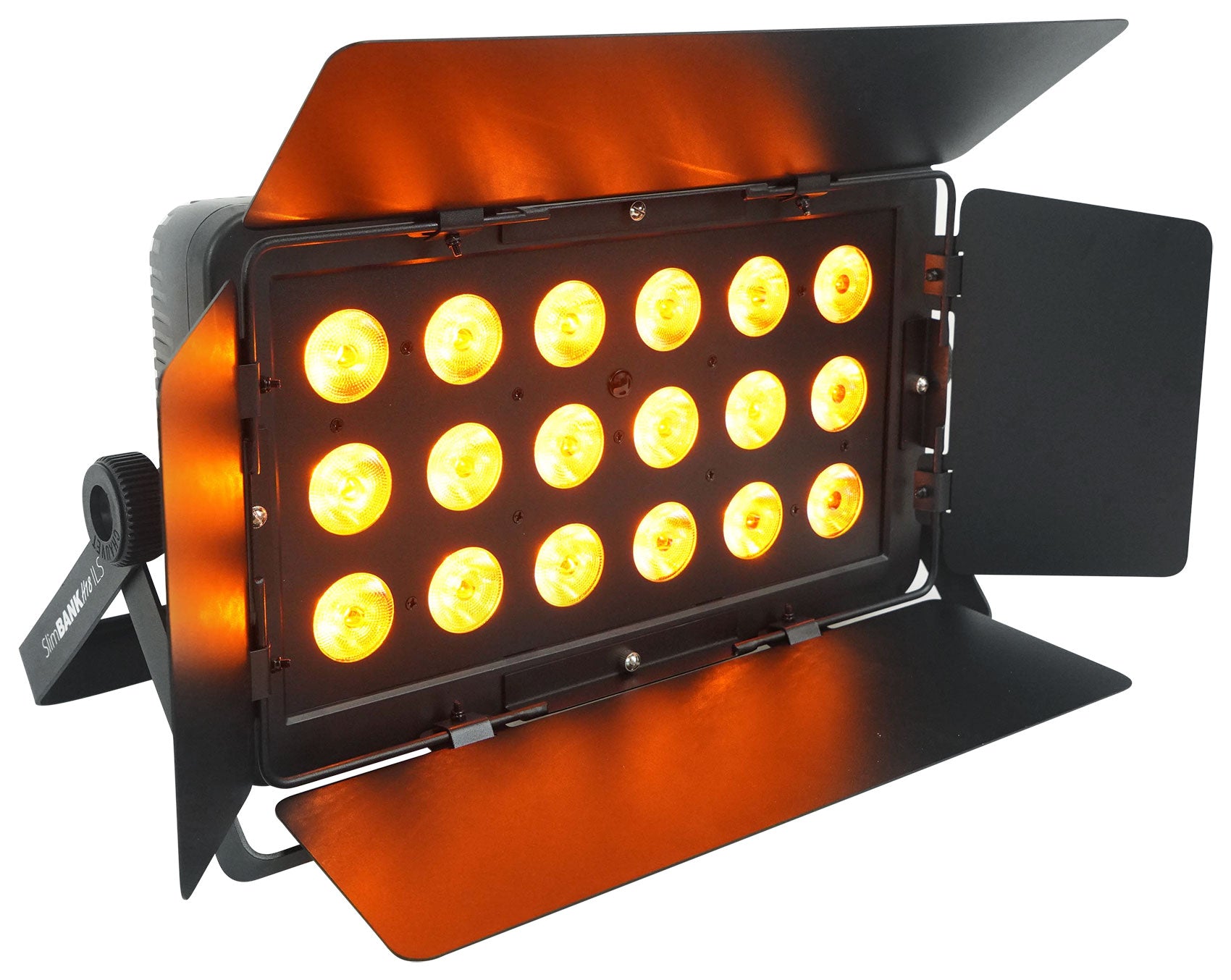

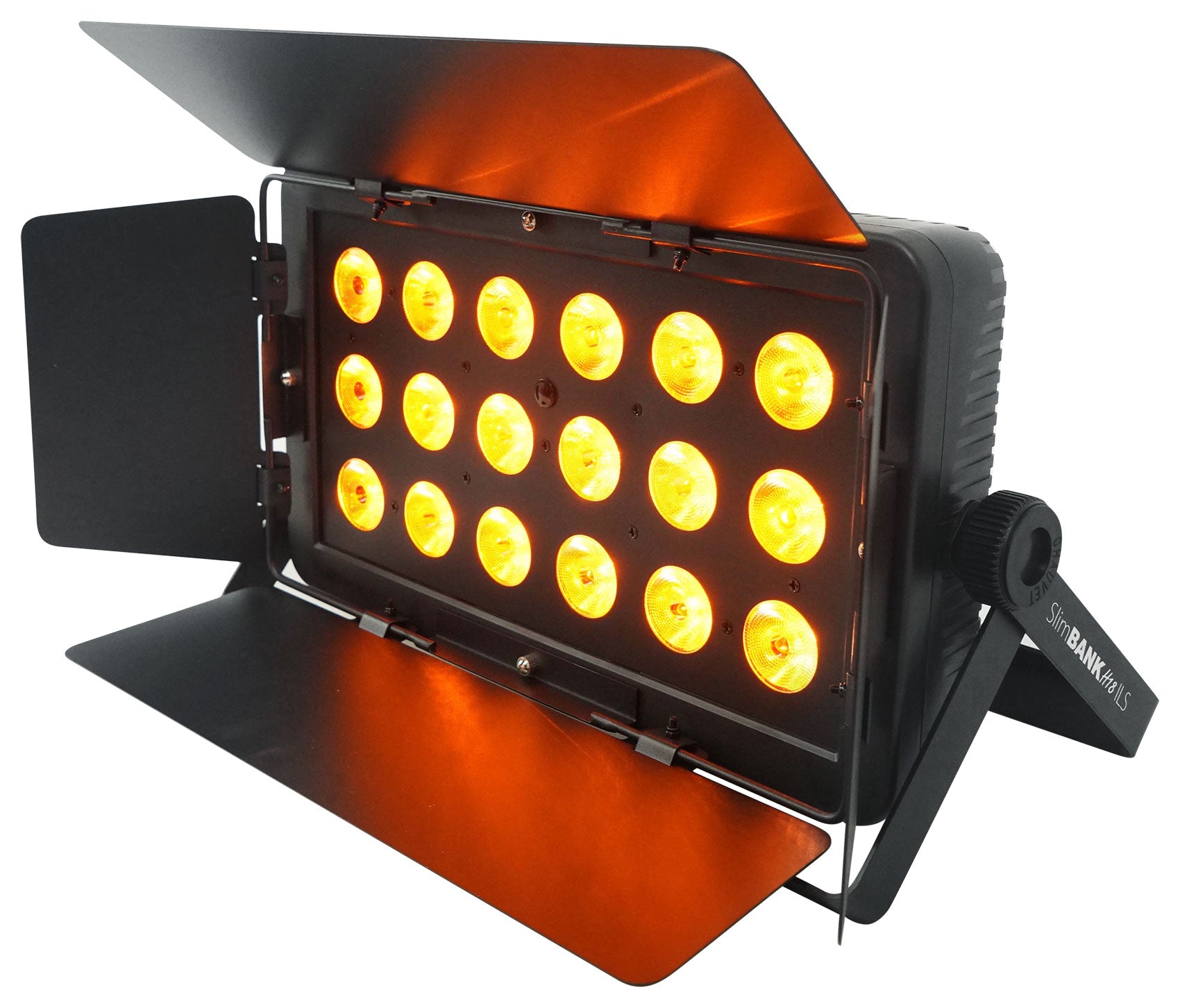

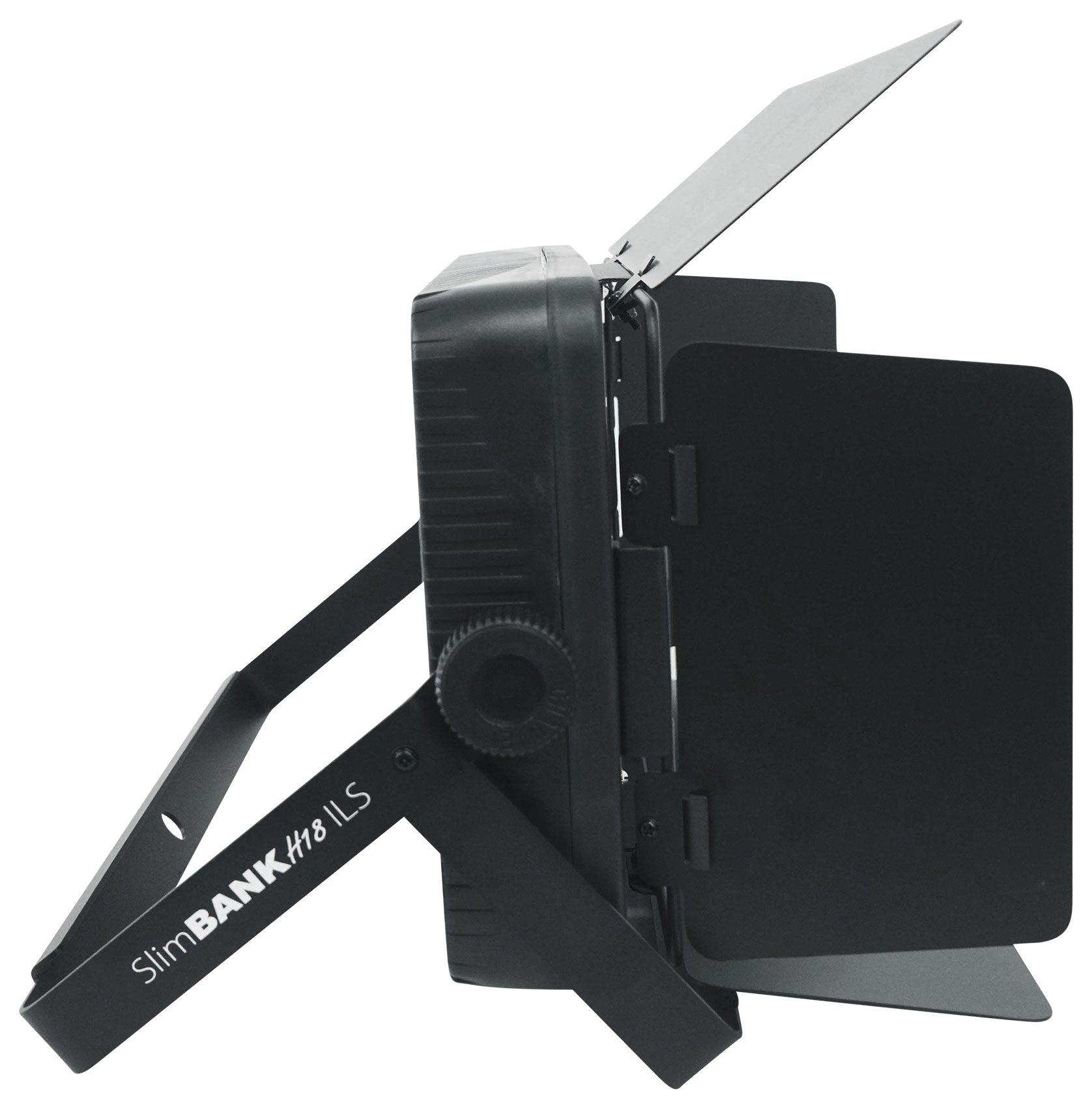

• Adjustable barn doors help direct and focus the light
• Control options include IRC-6 remote, Master/Slave, DMX, or ILS
• Achieve smooth LED fading with built-in dimming curves
• Ideal for sound-sensitive environments due to the radiant cooling design and no fan
• Save time running extension cords by power linking multiple units.

Specifications:

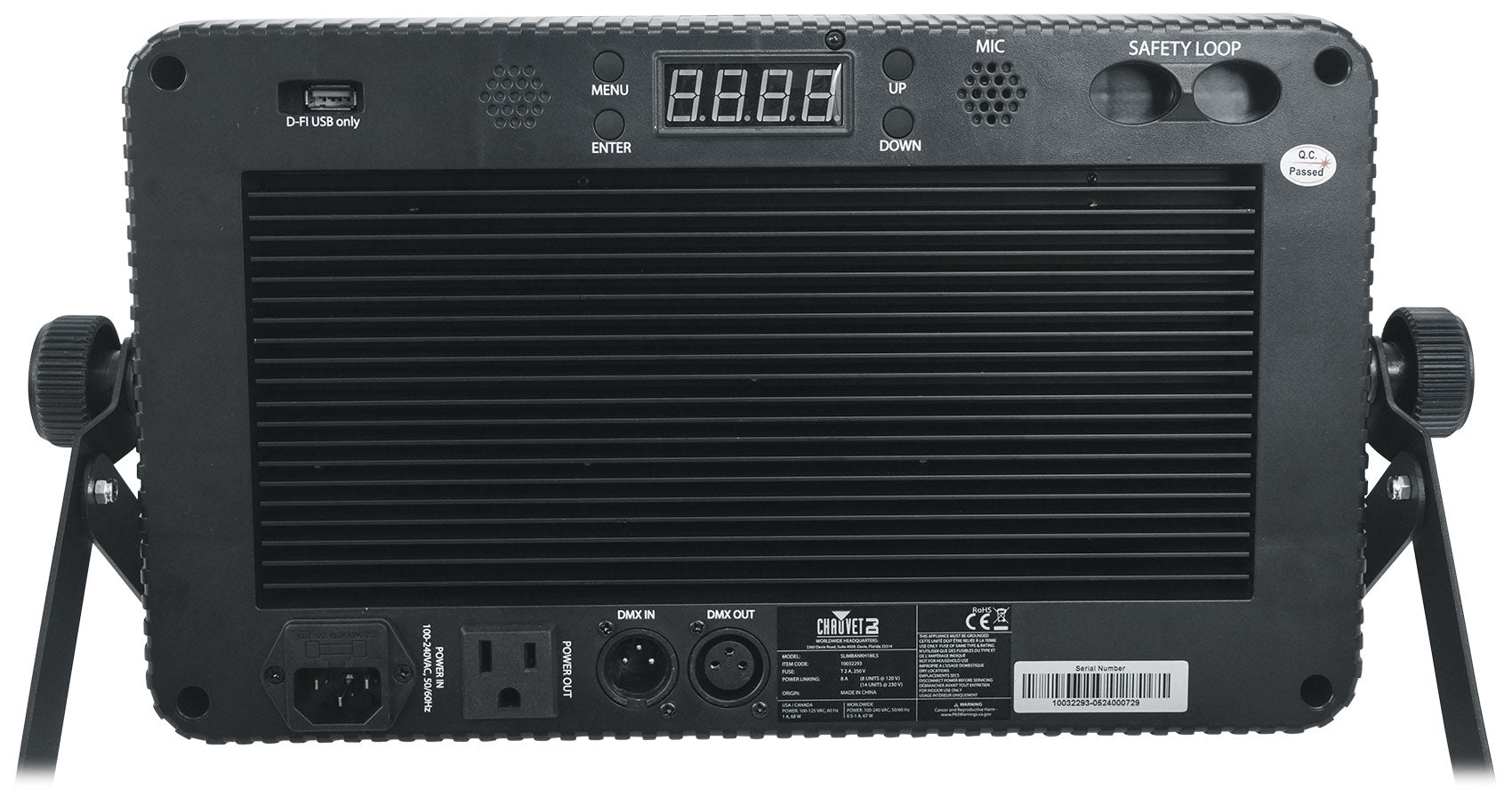

• DMX Channels: 6, 8, 12 or 22
• DMX Connectors:3-pin XLR
• Light Source: 18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 27°
• Field Angle: 43°
• Illuminance: 3,111 lux @ 2 m
• Lumens: 3,356
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
• Weight: 6 lb. (2.7 kg)
• Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
• Approvals: CE, RoHS
• Optional Controllers: IRC-6, ILS Command
• Bracket Mounting Hole: 13 mm
• Beam Angle: 27°
• Field Angle: 43°
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Video of RDX SERIES:

Description:

Rockville High Performance Cables are designed to provide efficient signal transfer for every application. Our Nickel-Plated, OFC (Oxygen-free copper) conductors assure that you have enhanced signal clarity with every use. Shielded for Superior EMI and RFI rejection, Rockville High Performance Cables are an ideal choice for all your lighting connection needs.

True, real DMX cables must be 120 ohms. Rockville DMX cables meets this specification.
Microphone cables are a lower impedance (ohms), and the difference in capacitance and twisting ratio makes it terrible for DMX signals.

Be sure to buy true 120 ohm DMX cables from reputable brands such as Rockville, Chauvet, American DJ.

Features:

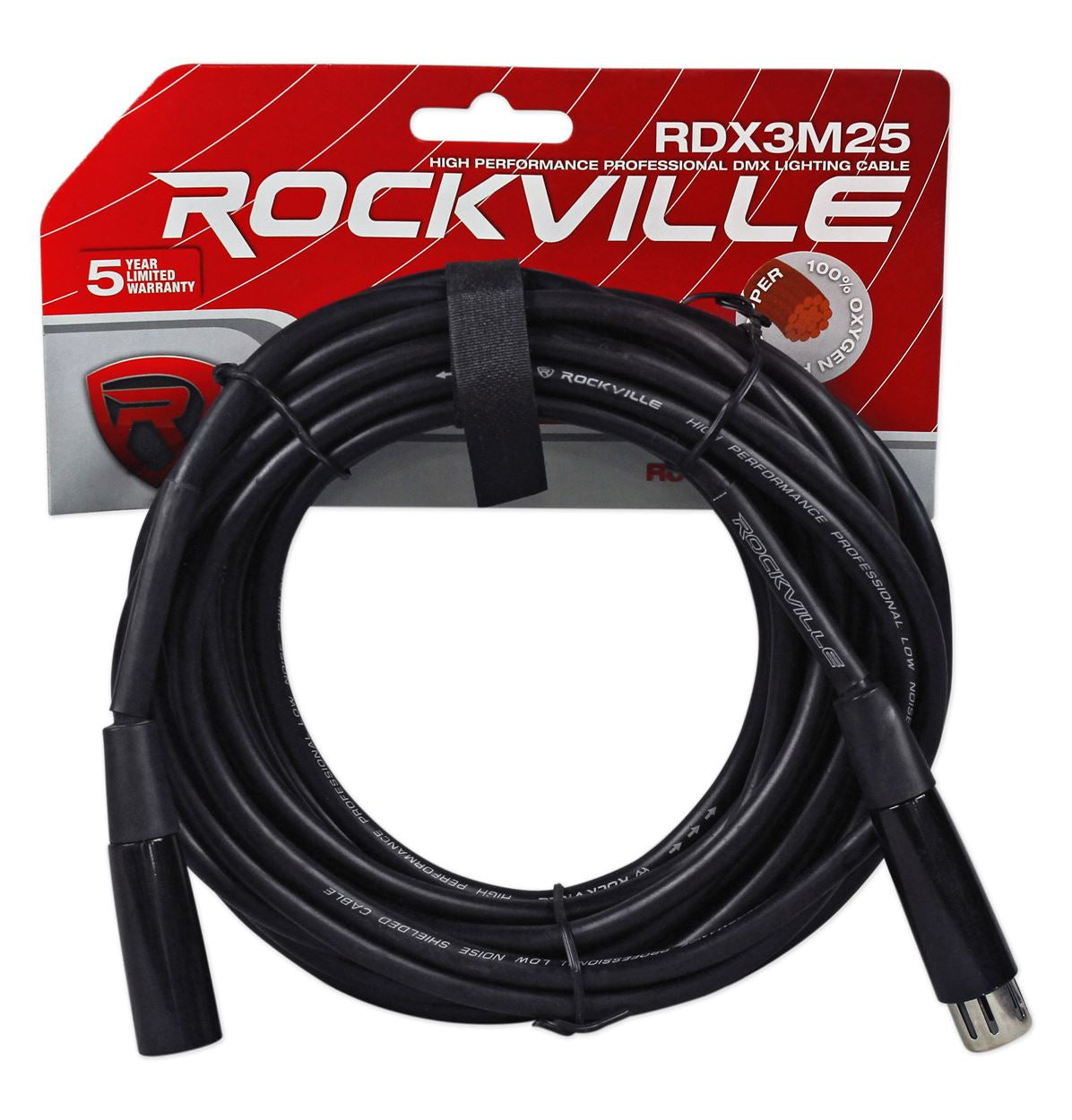

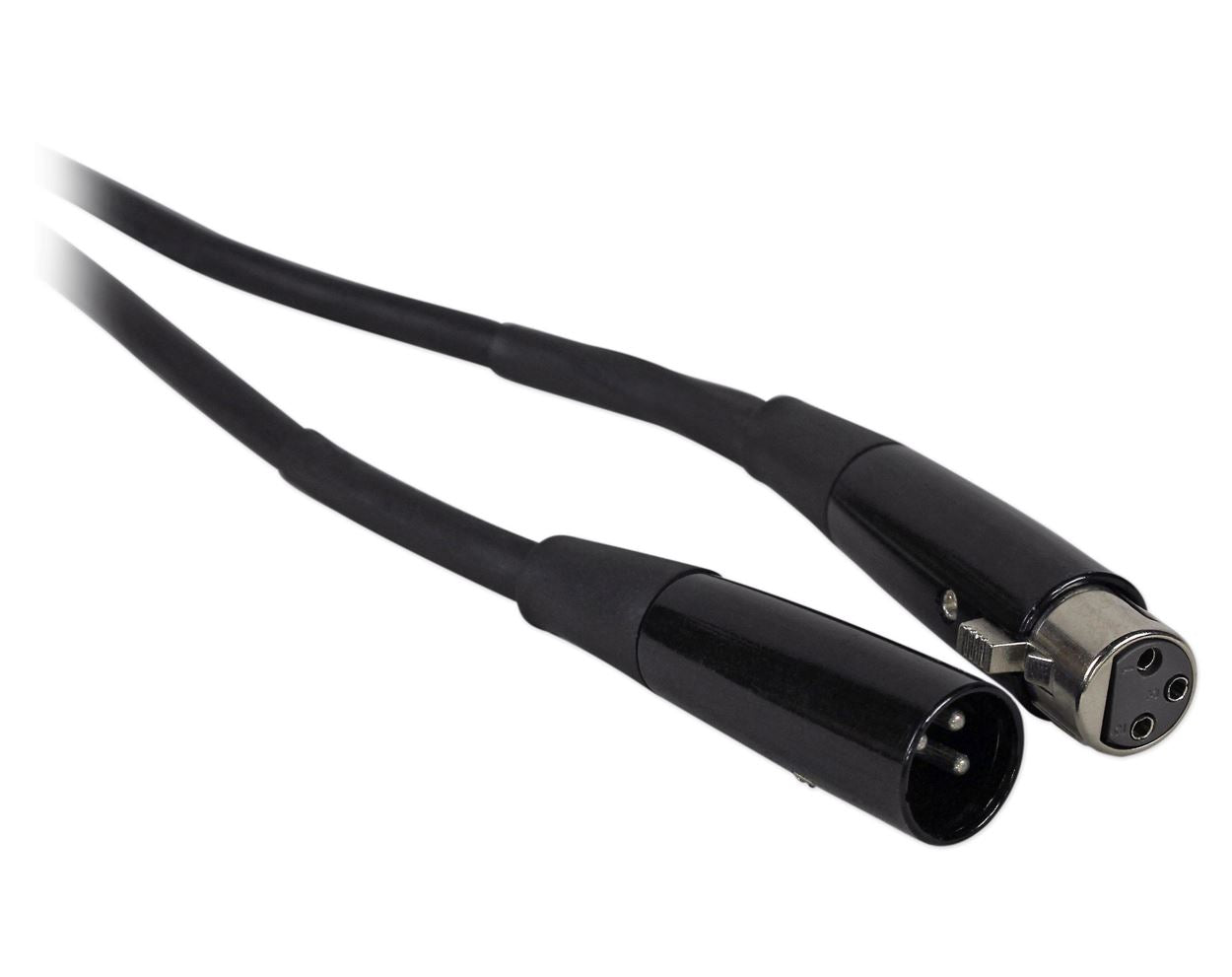

• Rockville RDX3M25 Black Nickel Plated 3-Pin Male-Female DMX Cable
• OFC Conductors for Enhanced Signal Clarity
• XLR Connectors with Internal Strain Relief for Rugged Reliability
• Hi-density OFC Braided Shield for Superior EMI and RFI Rejection
• Impedance: 120 Ohm
• Length: 25 Ft
