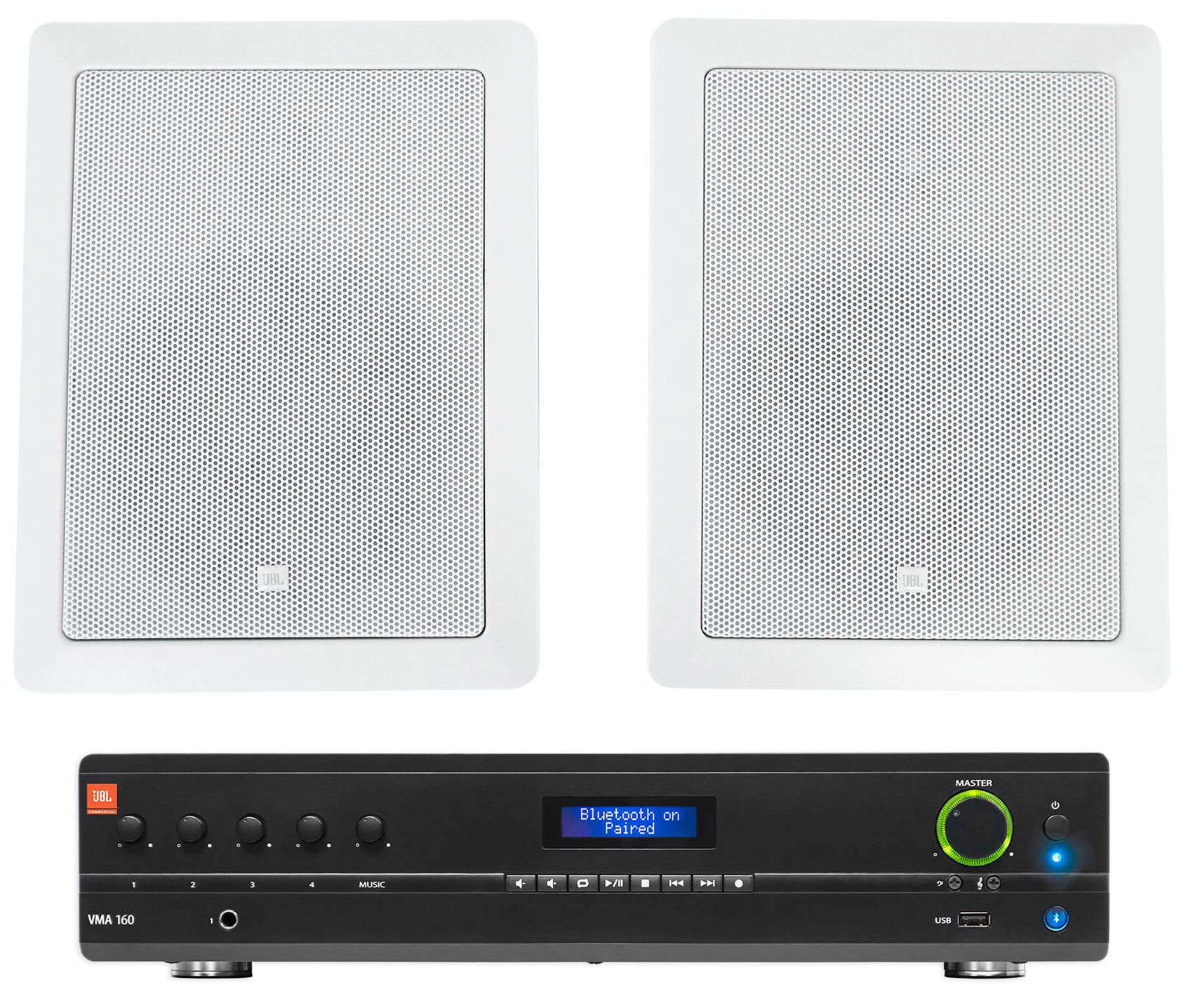

(2) JBL Control 126 WT 6.5" 30w Commercial 70v In-Wall Speakers+Amplifier

• (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
• (1) 2 JBL Control 126 WT 6.5" 30w Commercial 70v In-Wall Speakers For Restaurant/Bar

Authorized JBL Dealer!

Description:

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features:

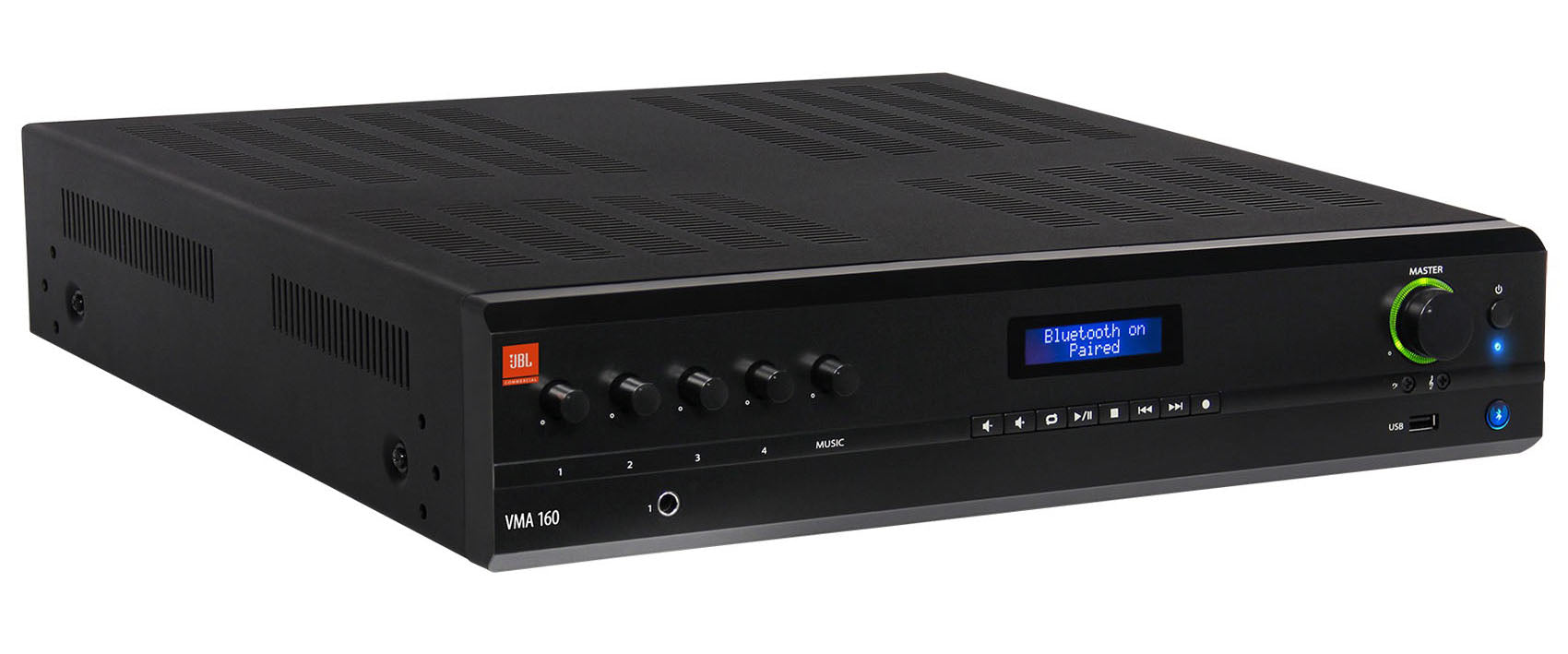

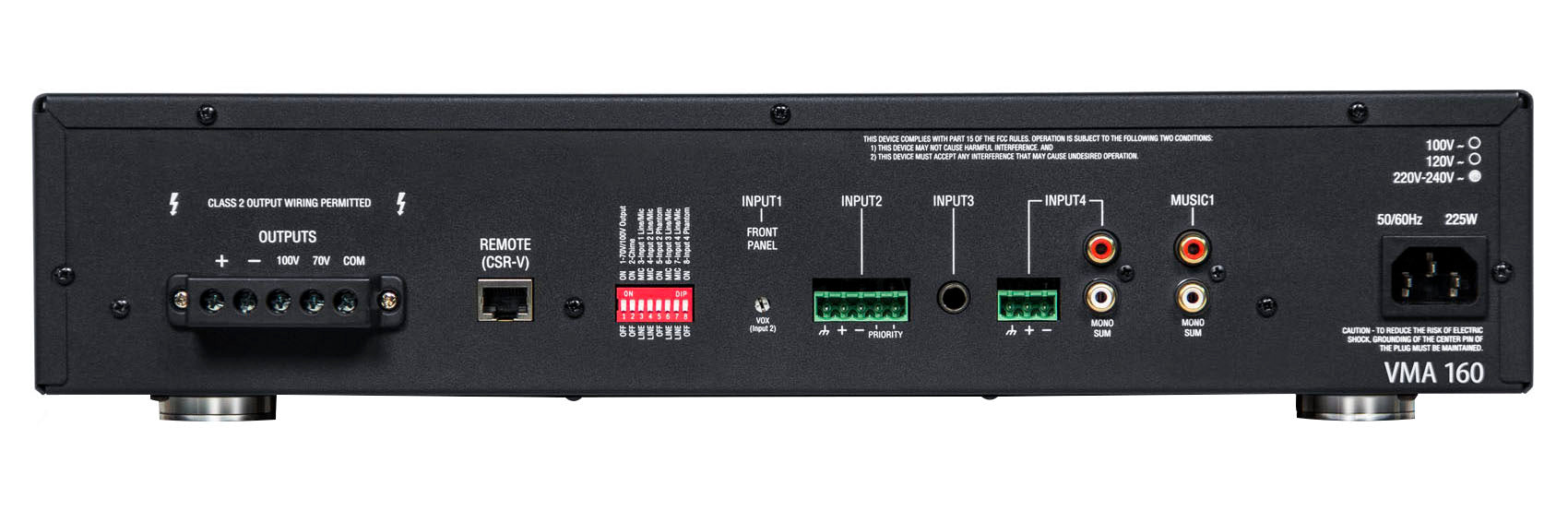

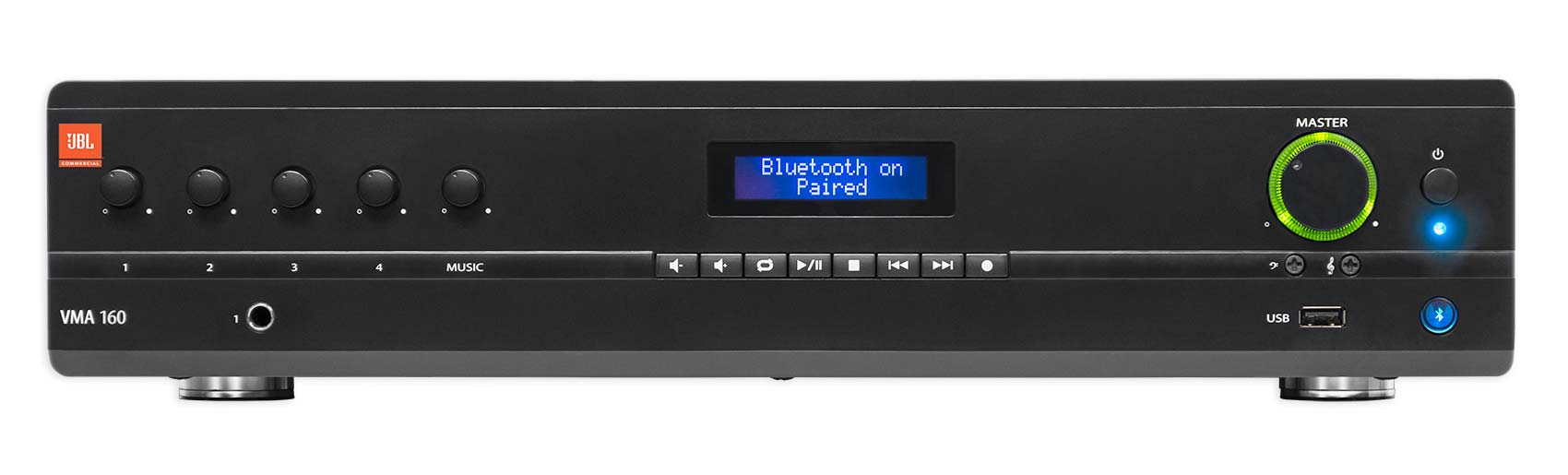

• JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs
• Max Output Power: 60 Watts
• Frequency Response: 20 Hz - 20 kHz
• THD (Total Harmonic Distortion): <0.5%
• Signal-to-Noise Ratio: > 76 dB
• Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
• Phantom Power: 27VDC
• Crosstalk: -70 dB
• Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
• Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms
• Insertion Loss: 1 dB Maximum
• Number of Inputs: 5
• Number of Outputs: 1
• Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
• Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
• Independent bass and treble controls for each output channel
• Paging Chime, and Priority Muting
• Rack mounting hardware included
• Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
• Product Weight: 19.4 Lbs.

Description:

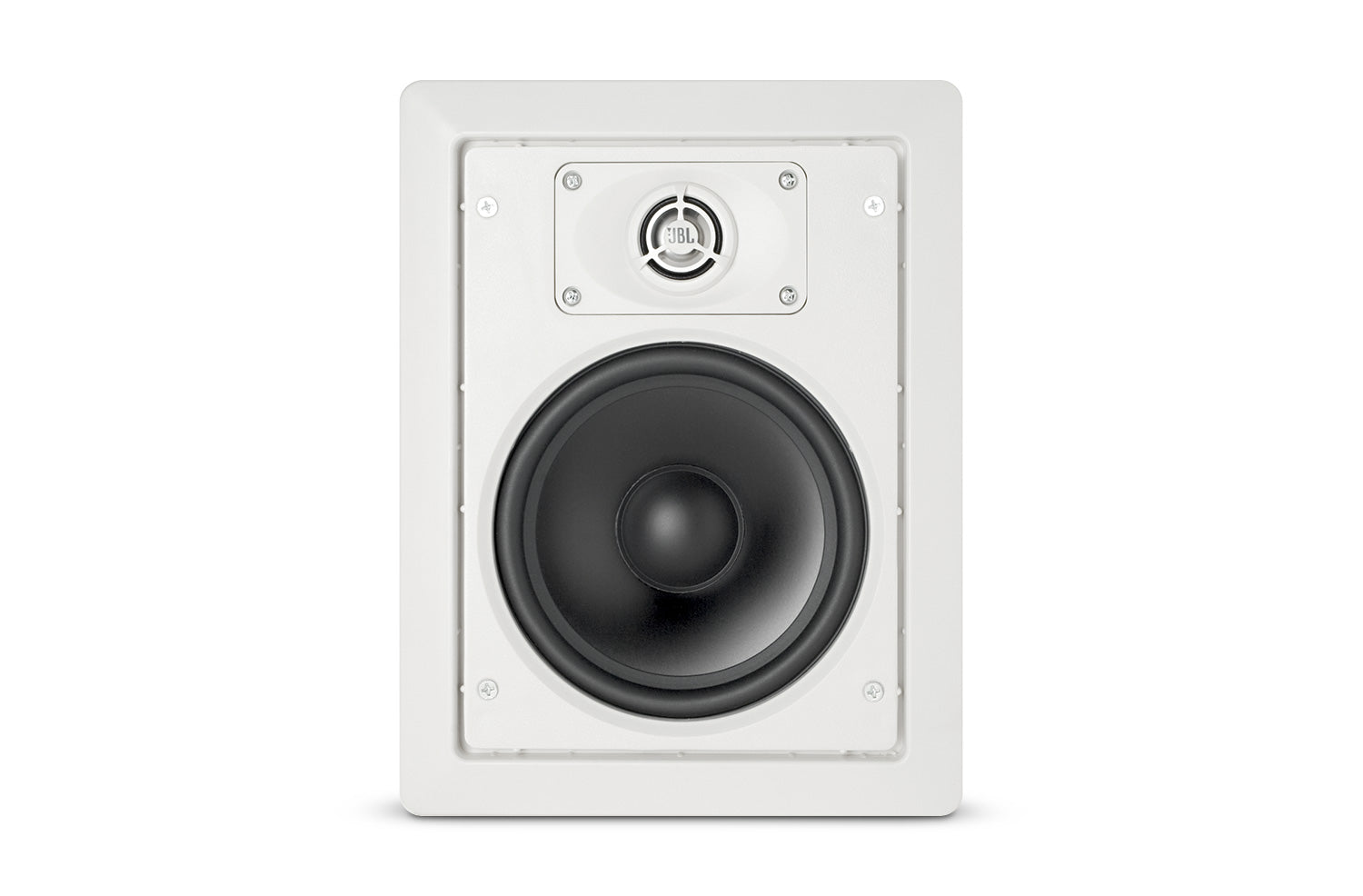

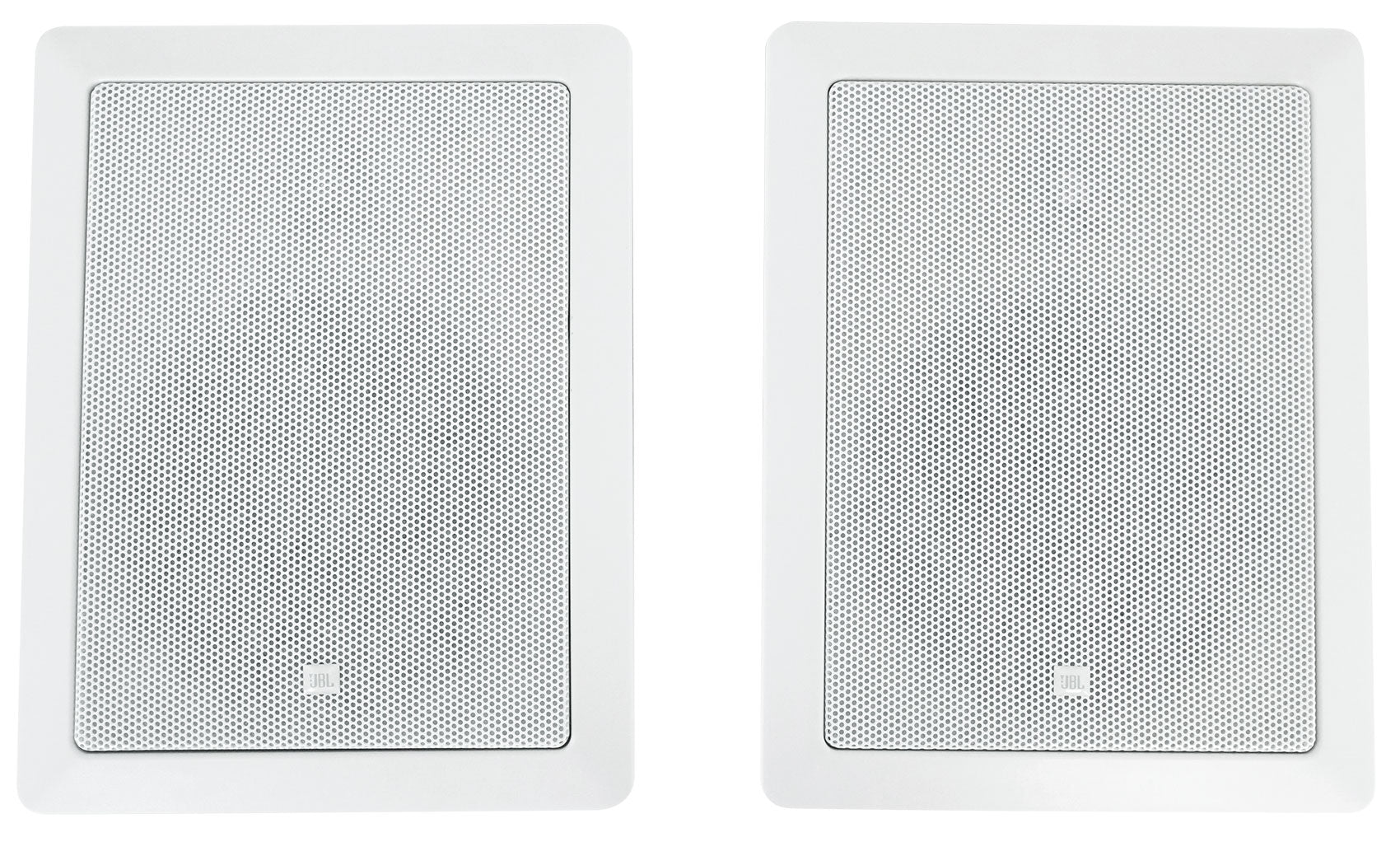

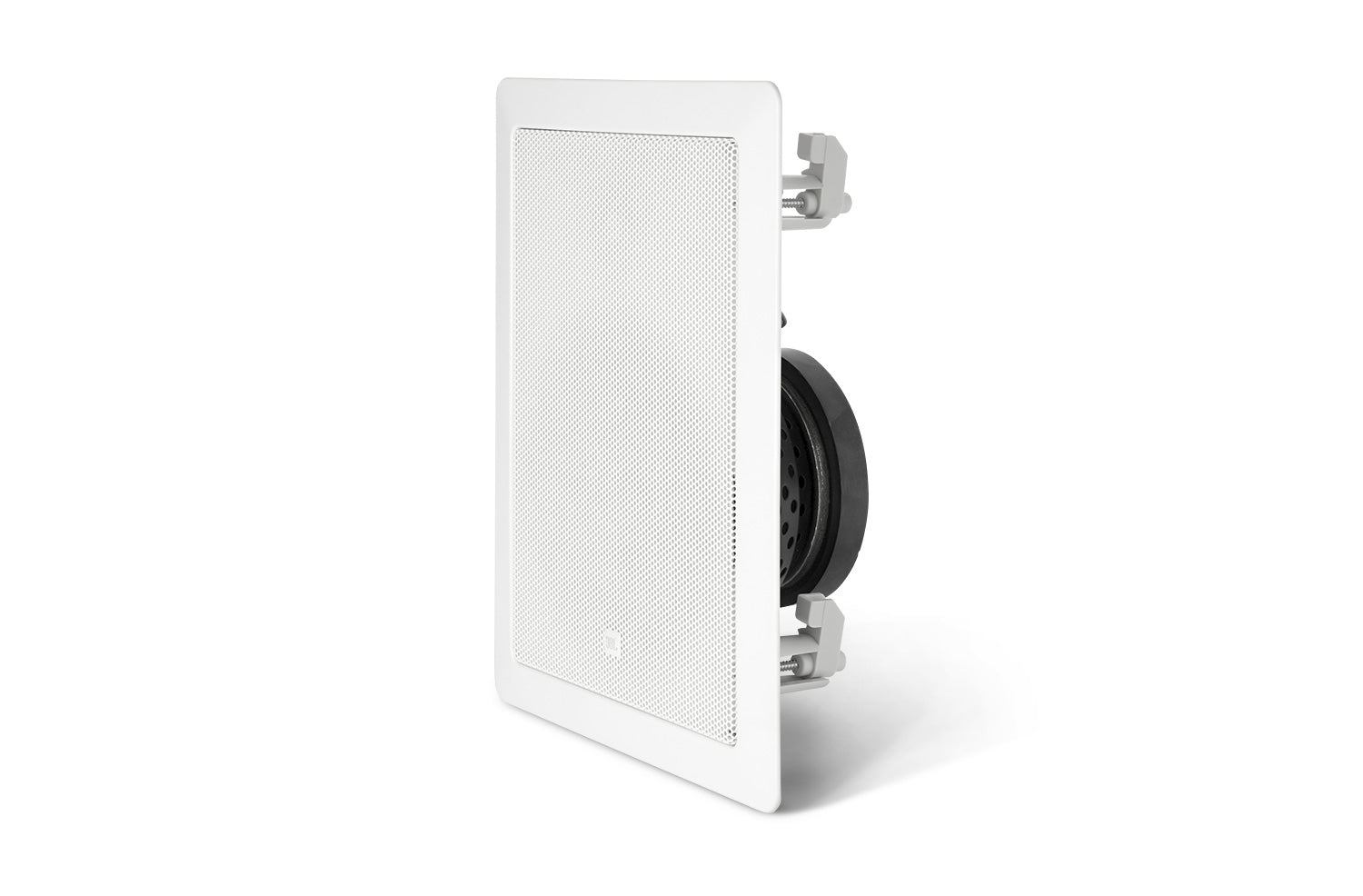

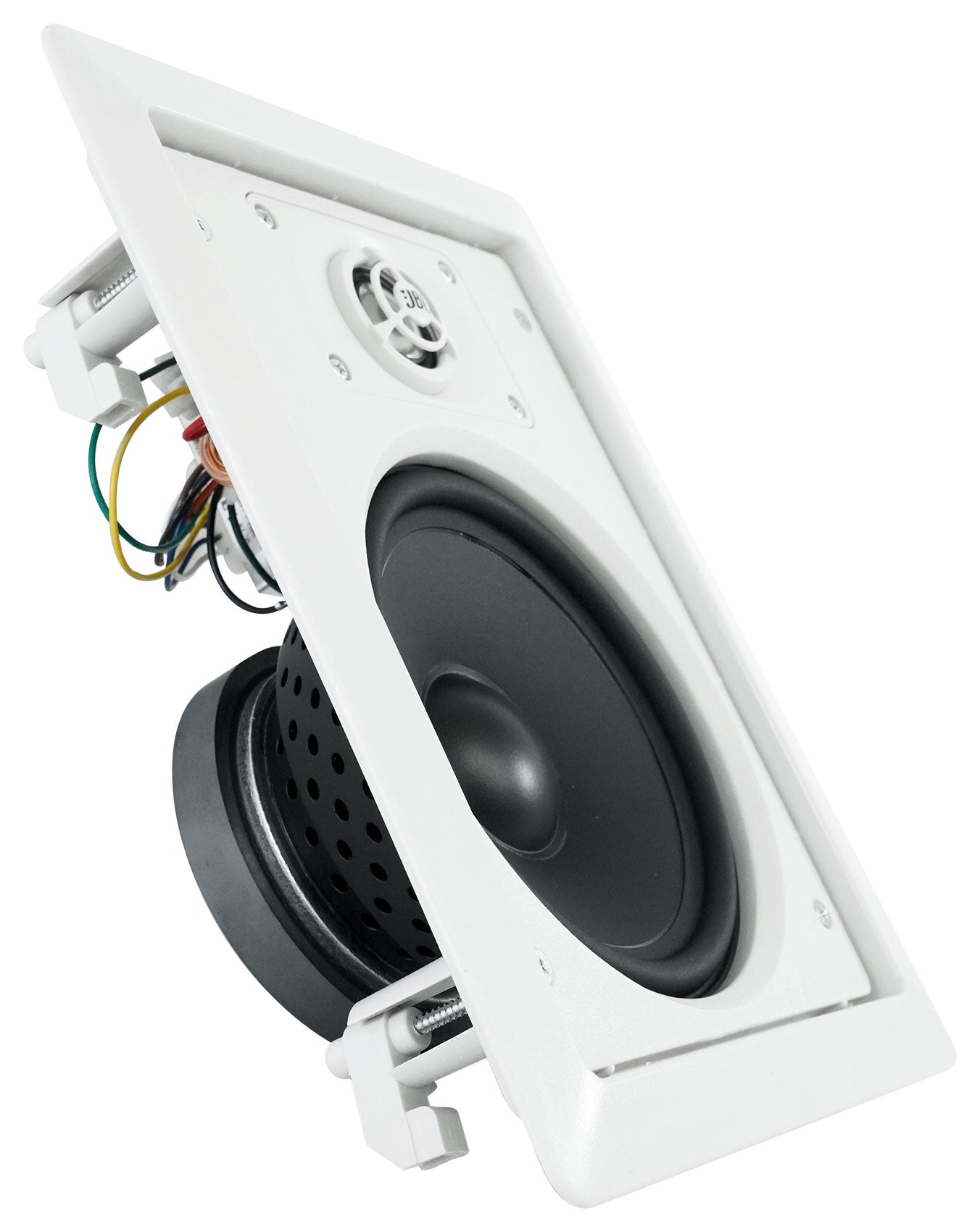

Premium In-Wall Loudspeaker

The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Features:

• Components:

• 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
• 25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
• High-slope crossover for natural midrange sound.

• Extended bandwidth performance of 38 Hz - 20 kHz.

• 50W continuous (100W program, 200W peak) power handling (126W).


Specifications:

• Frequency Range: 38 Hz - 20 kHz (-10 dB)
• Power Rating: 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise

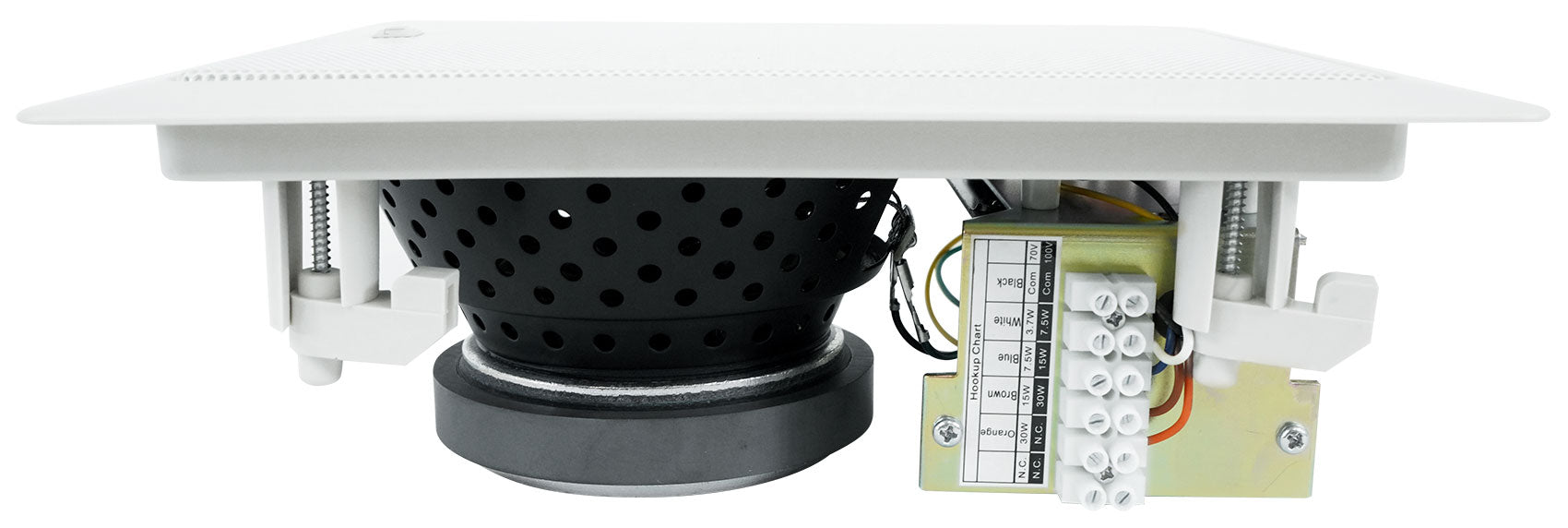

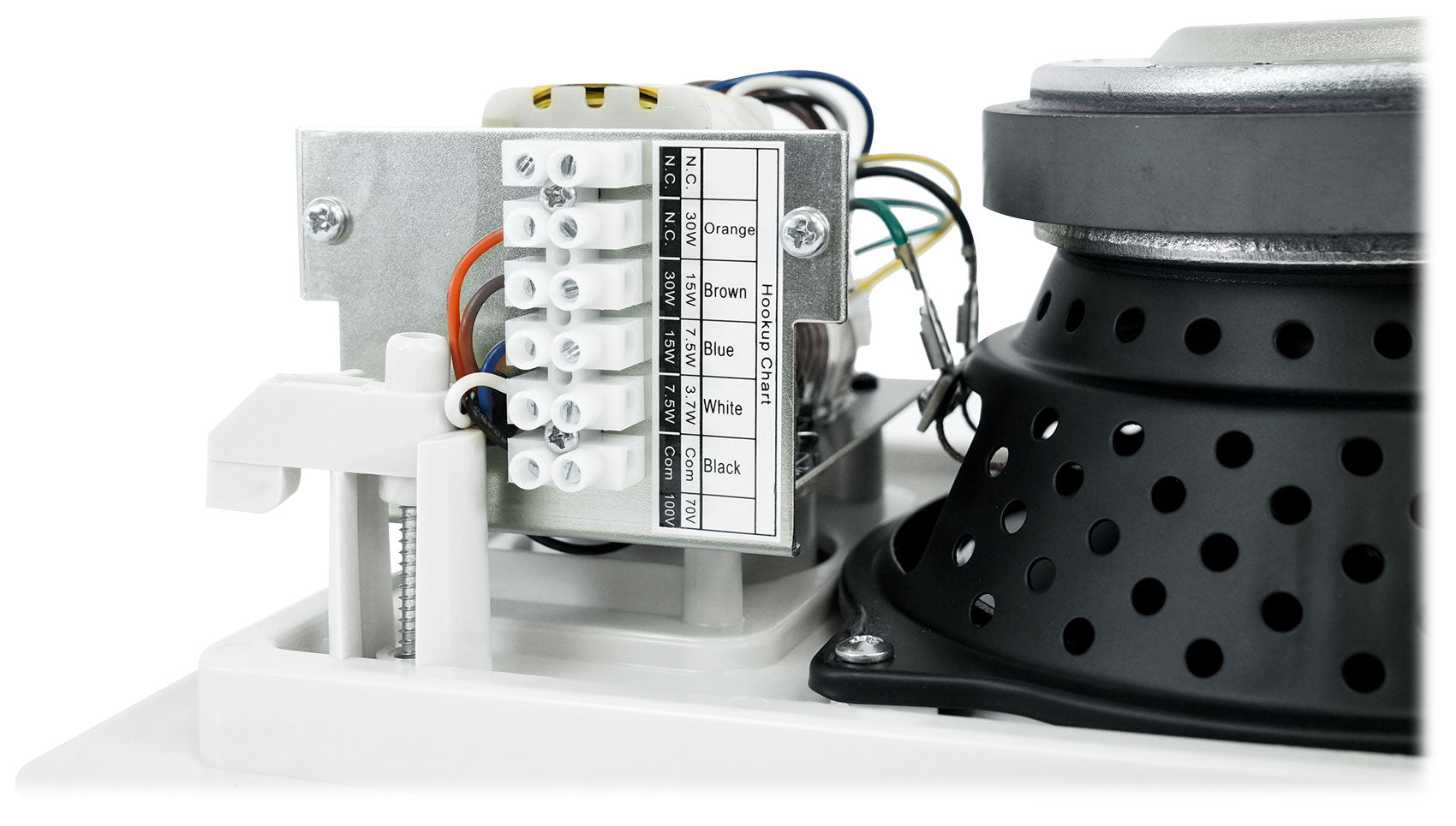

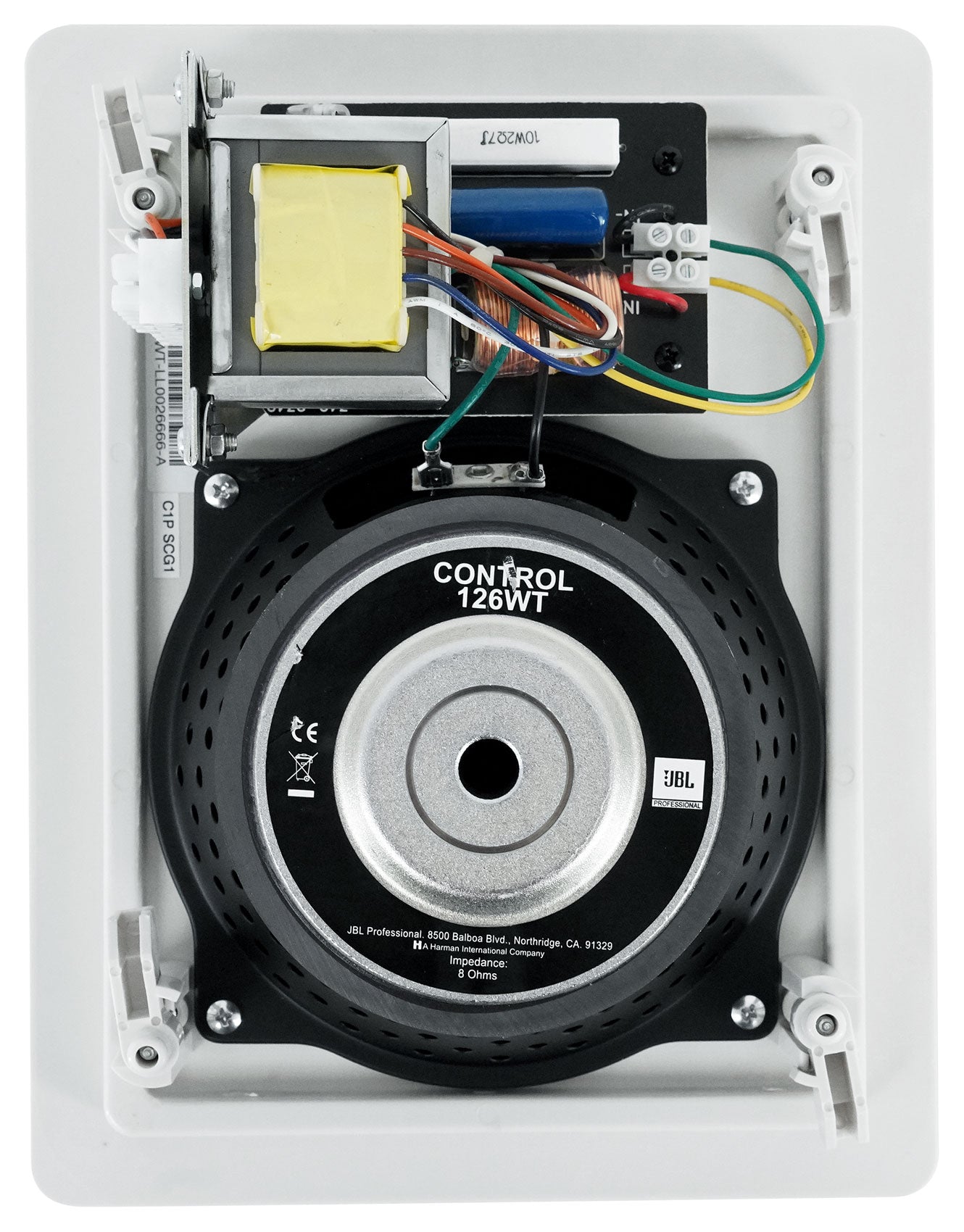

• Transformer Taps: 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
• Sensitivity: 88 dB SPL
• Coverage: 180°H x 160°V (ave. 1 kHz - 8 kHz)
• Impedance: 8 ohms
• Drivers: LF: 165 mm (6.5 in) polymer-coated aluminum cone., HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
• Input Connectors: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
• Crossover Network: 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
• Optimum Air Cavity Behind Speaker: 20 to 40 liters (0.7 to 1.4 cu ft)
• Outside Dimensions (H x W x D): 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
• Maximum Wall Thickness: 2 mm (1.25 in)
• Cutout Size (H x W): 246 x 181 mm (9.7 x 7.2 in),
• Net Weight (each): 2.7 kg (5.9 lb)
• Shipping Weight (ea): 6.2 kg (13.5 lb)
• Included Accessories: Cutout template & paint shield
• Optional Accessories: WB6 Rough-In Frame for newconstruction installation to wallstuds
