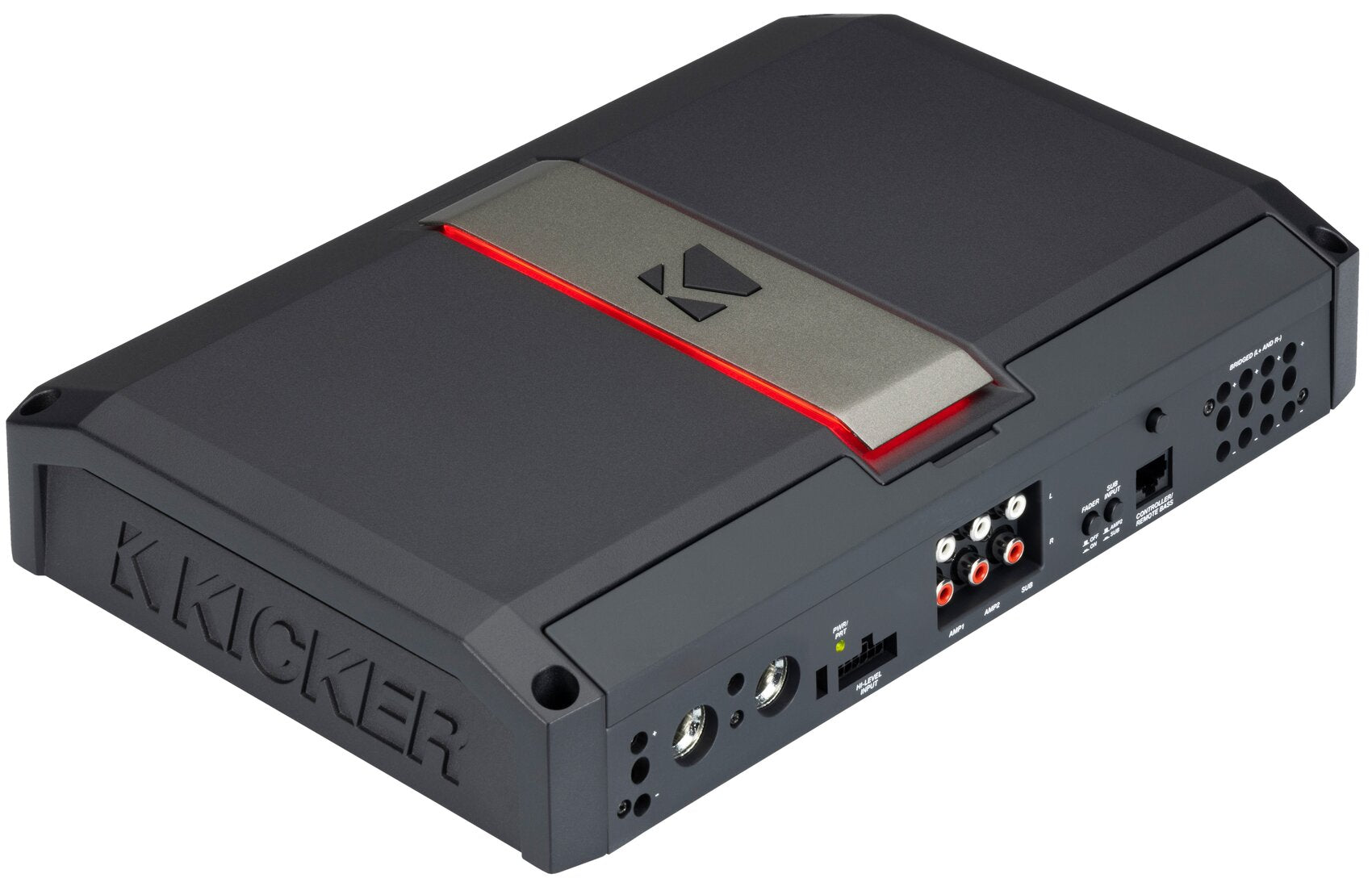

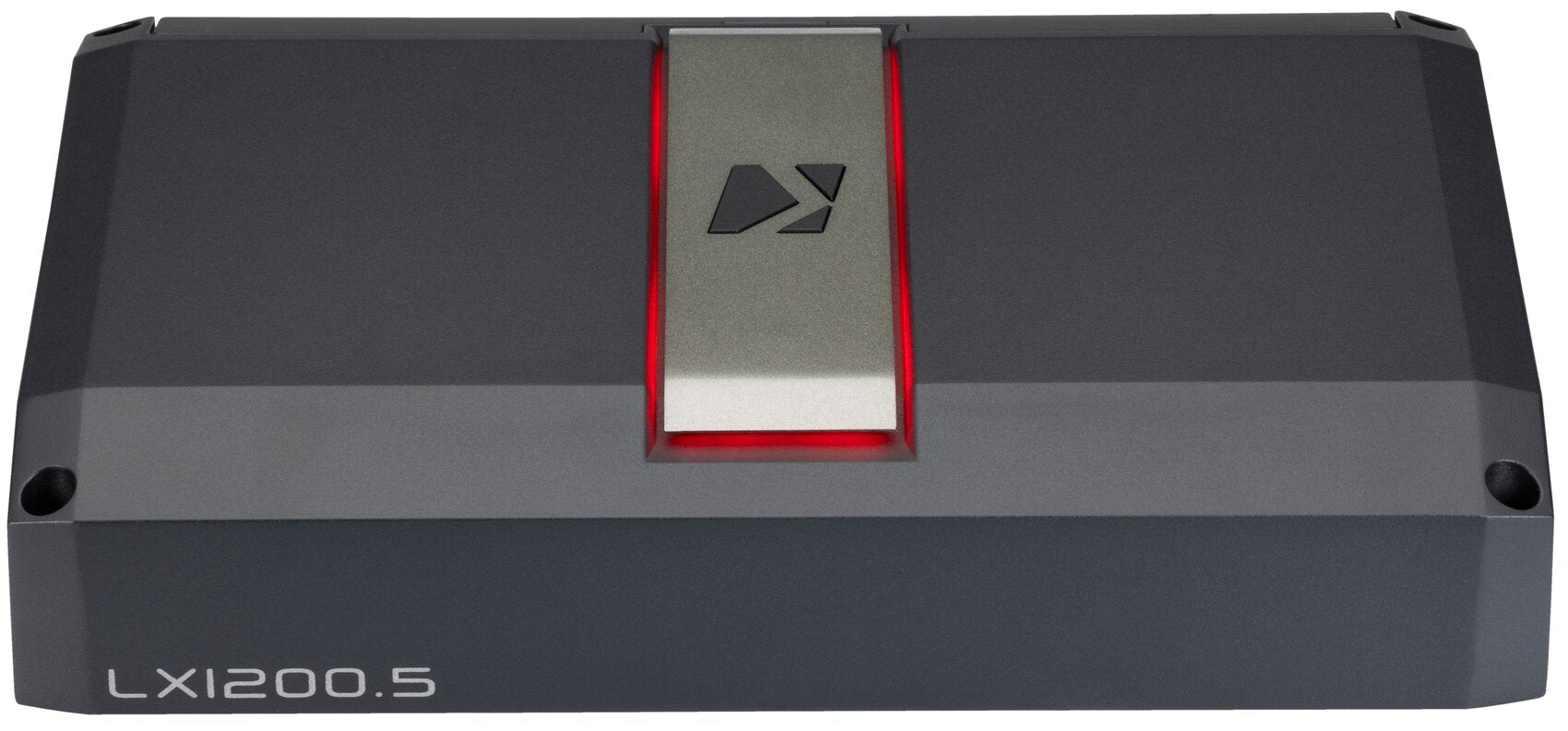

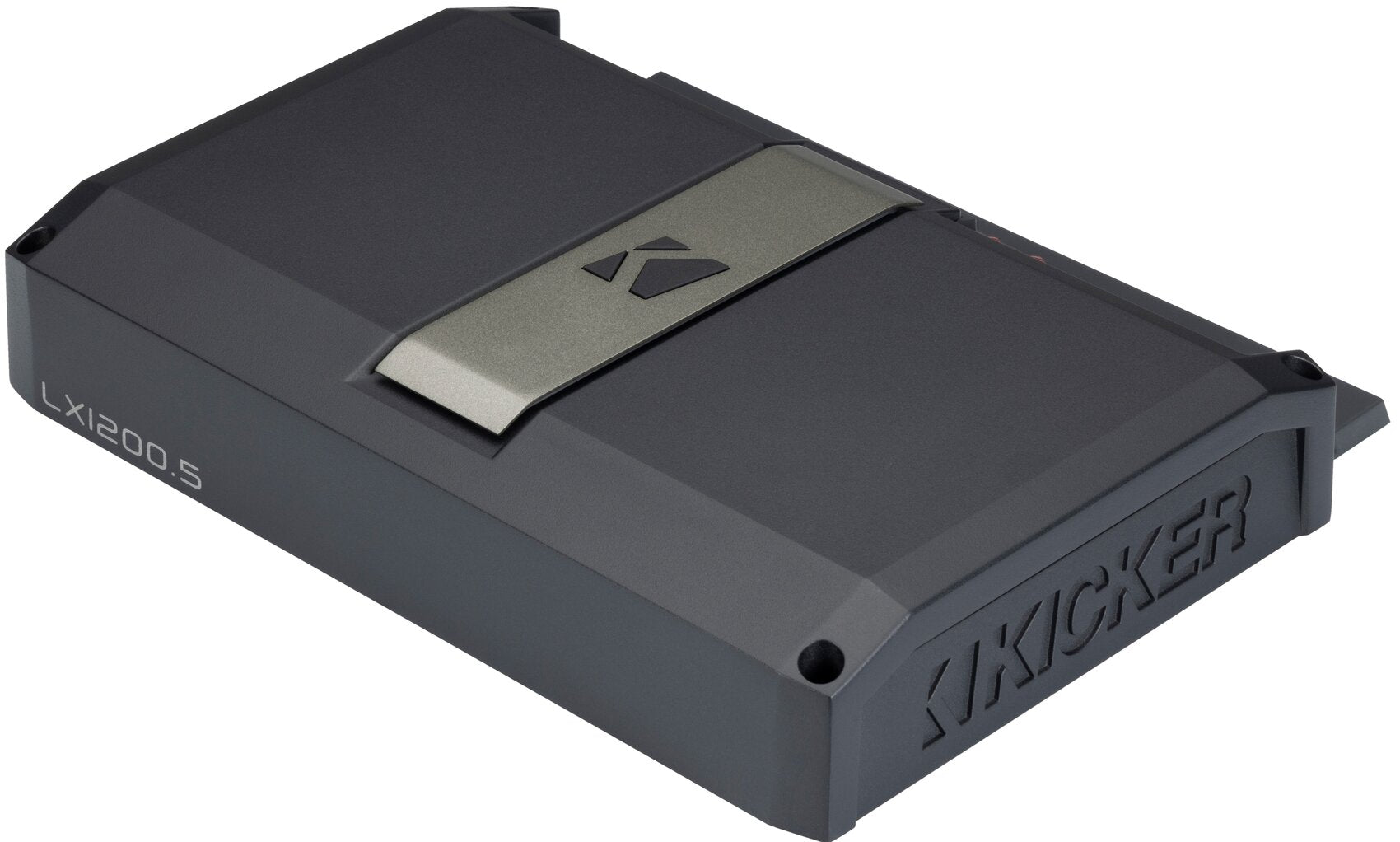

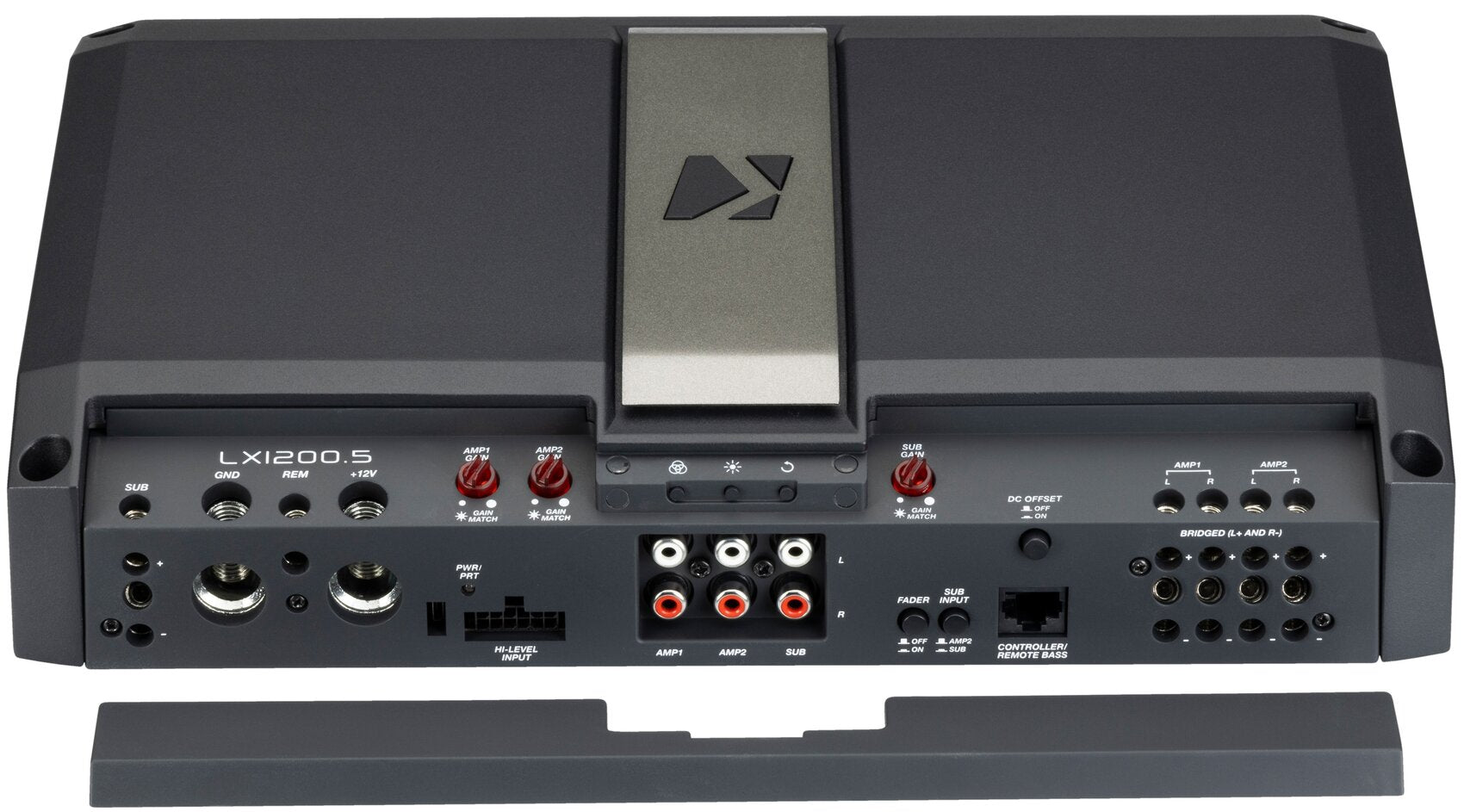

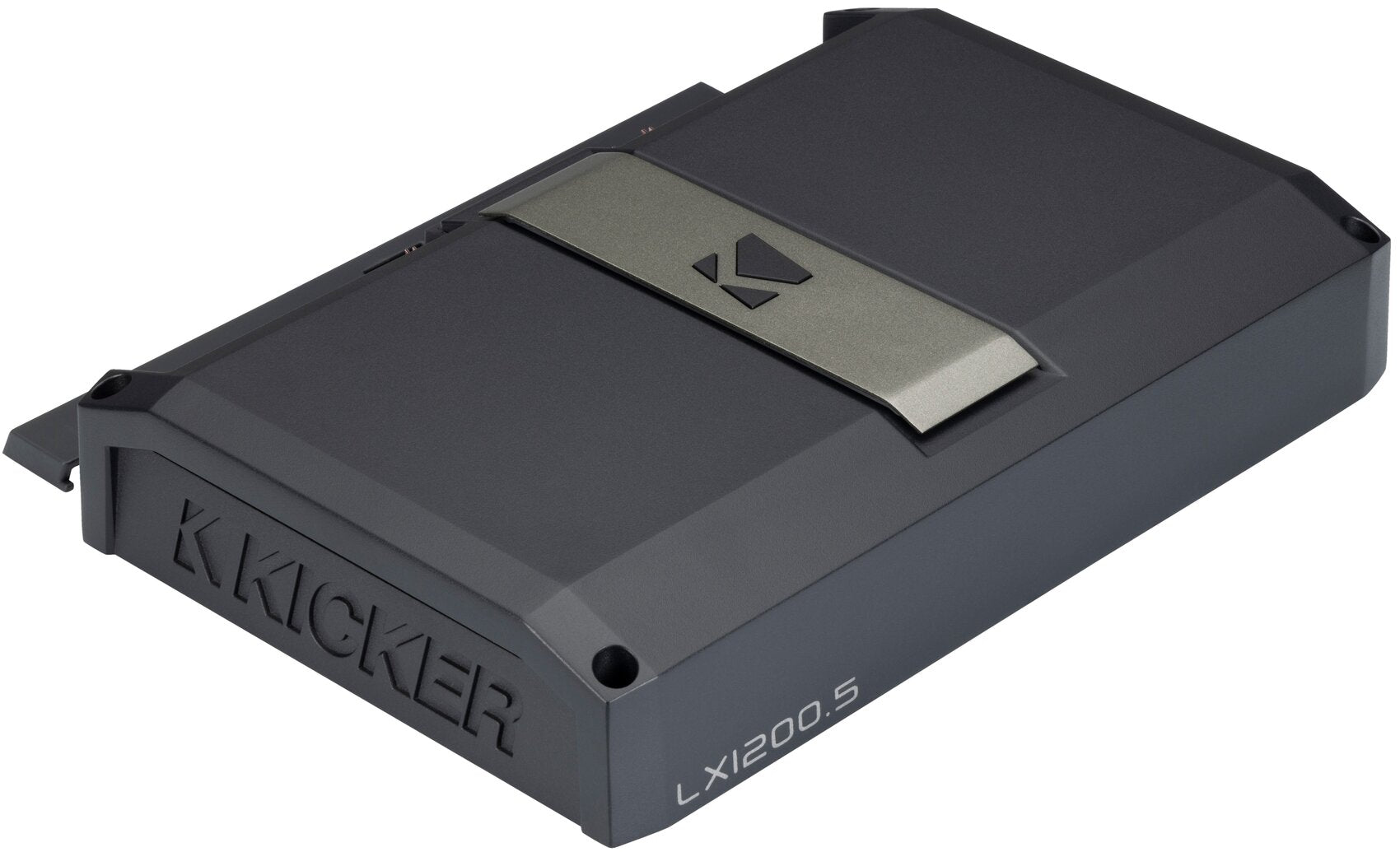

Kicker 51LX12005 5-Channel Car Stereo Amplifier Class D Amp LX1200.5

Description:

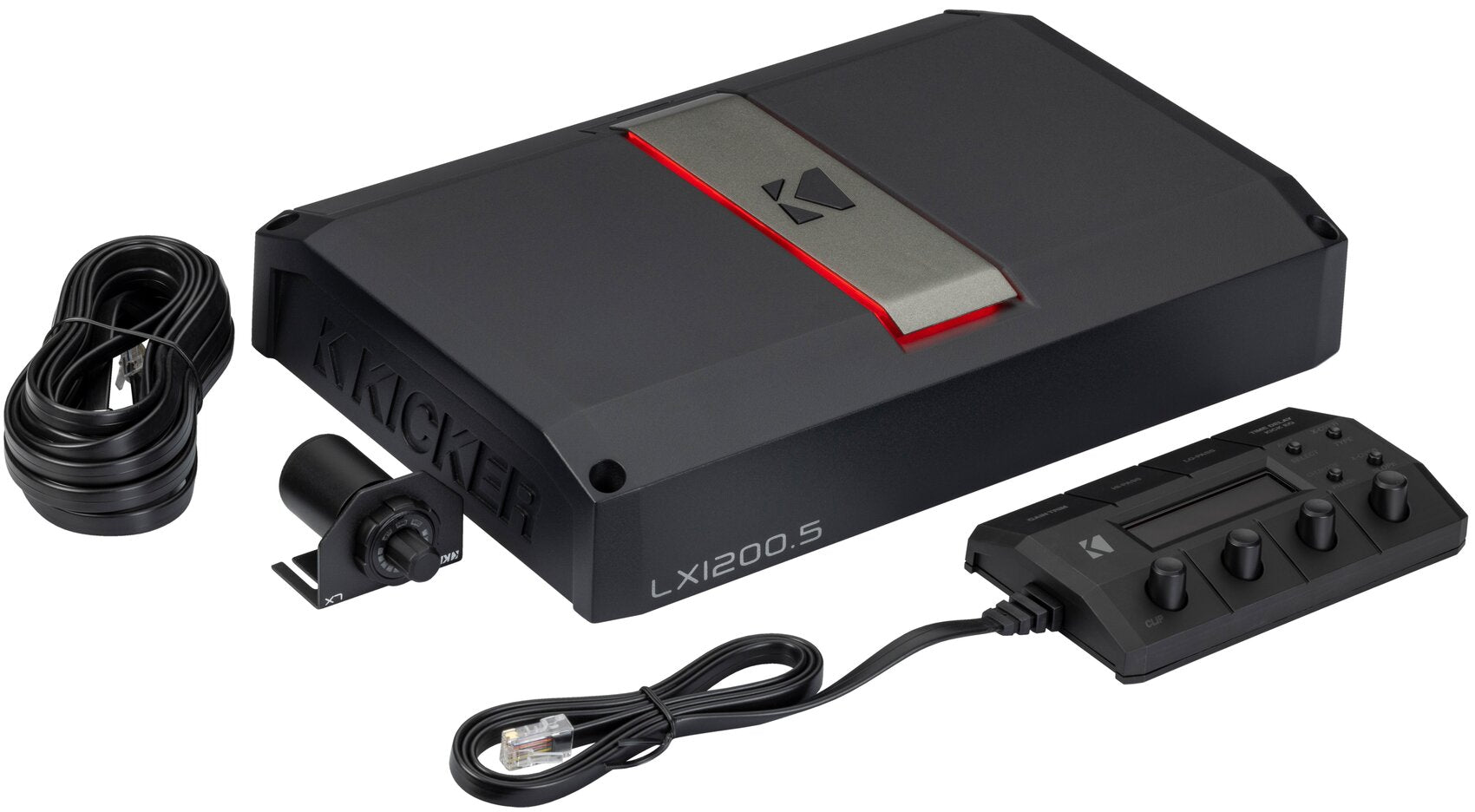

The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuring SHOCwave2.0™.

From the Ground Up

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.

• Incrementally dial in entire system with the included LX Control Center

• Monitor and adjust sub section with the included LXRC Dash Remote

• Class-D design for lower current draw, longer playing times, and lower operating temperatures

• Gain-match LEDs show you perfect gain setting

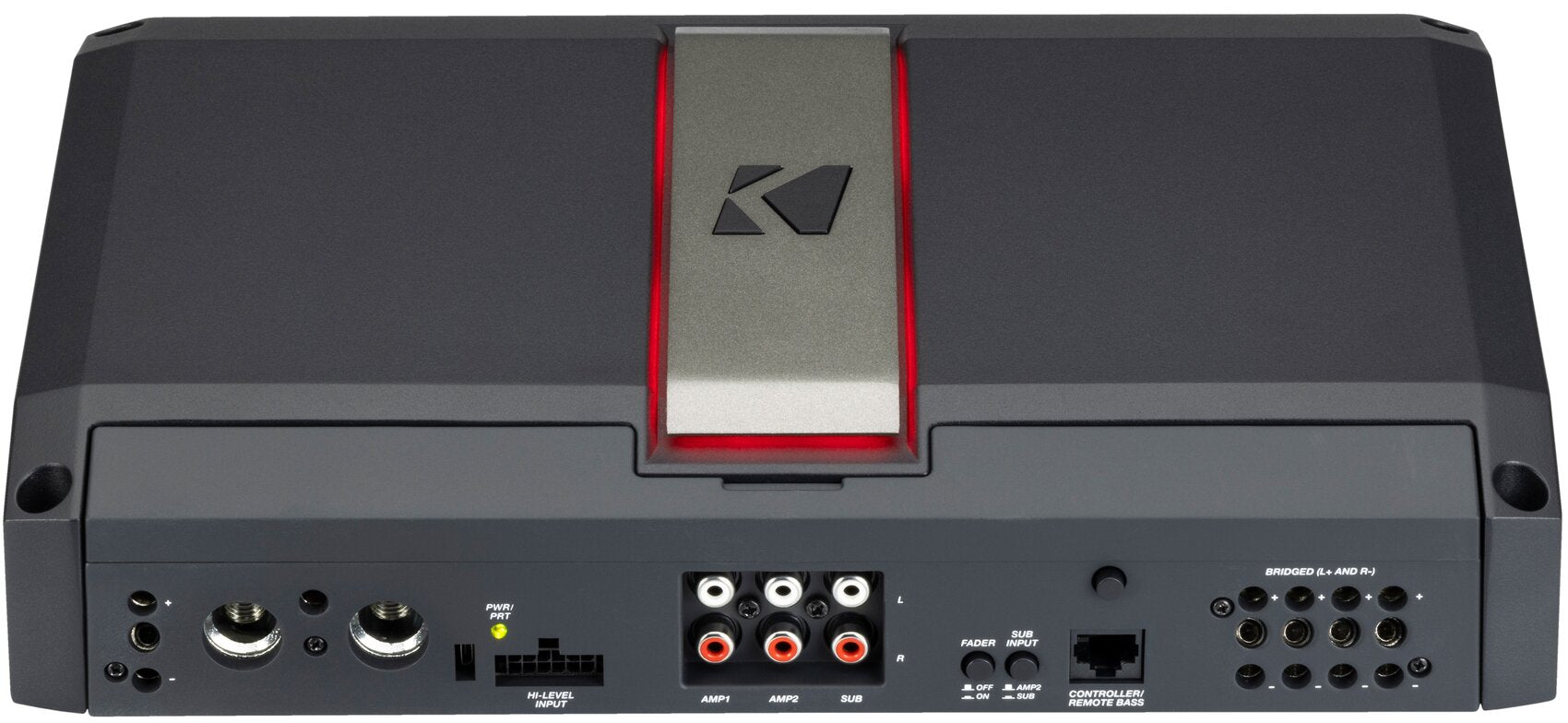

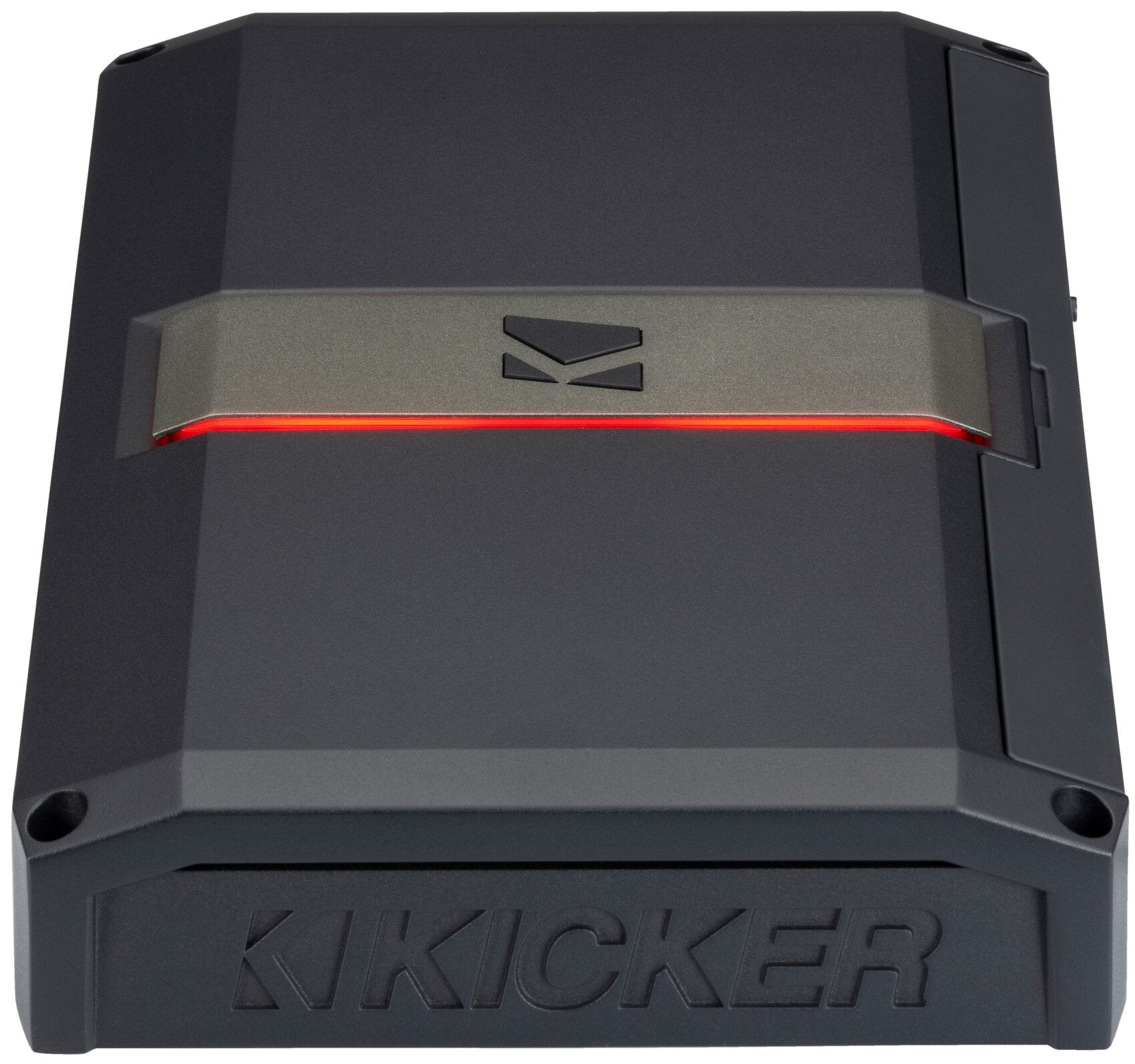

• Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors

• Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound

• LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

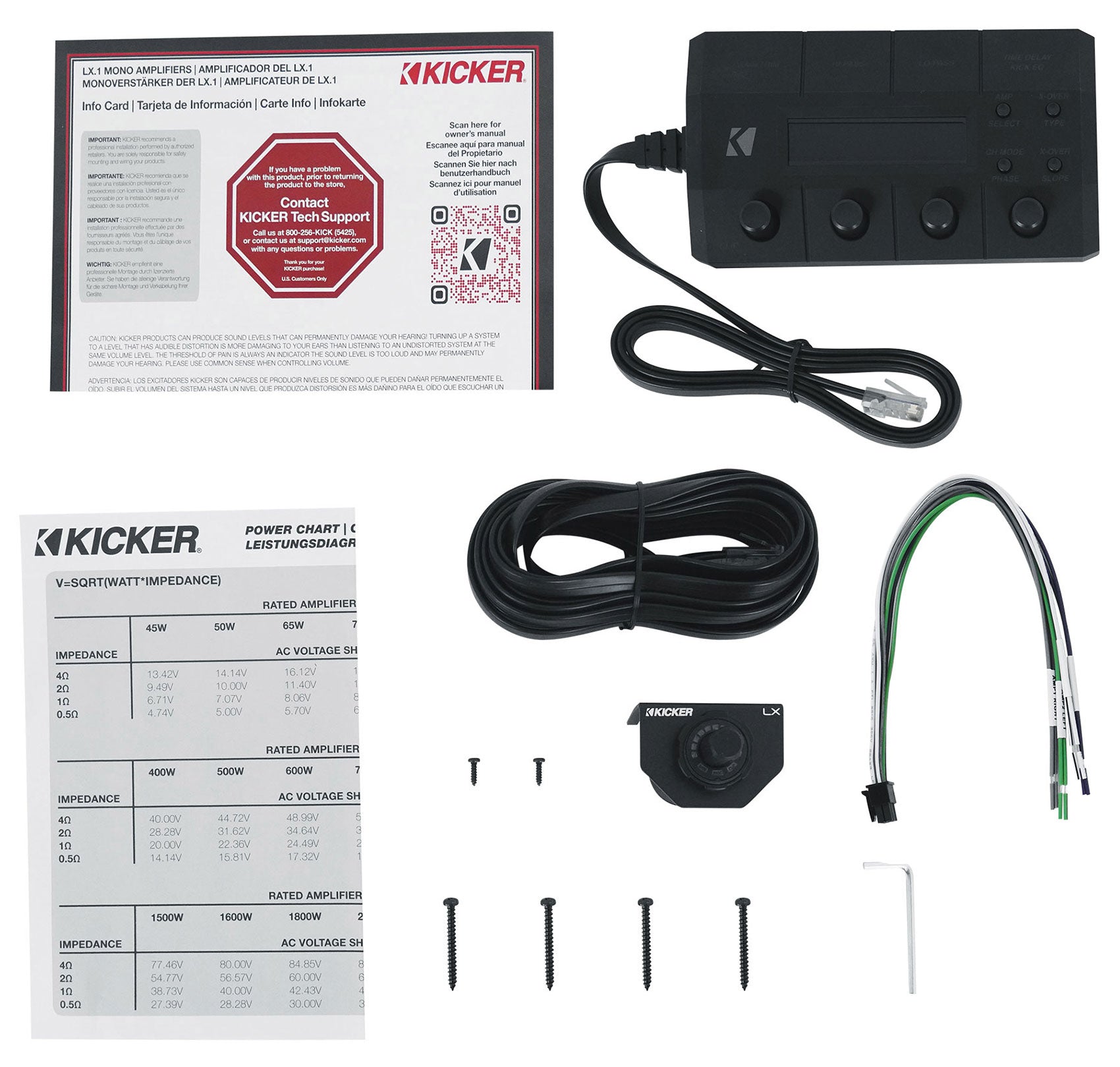

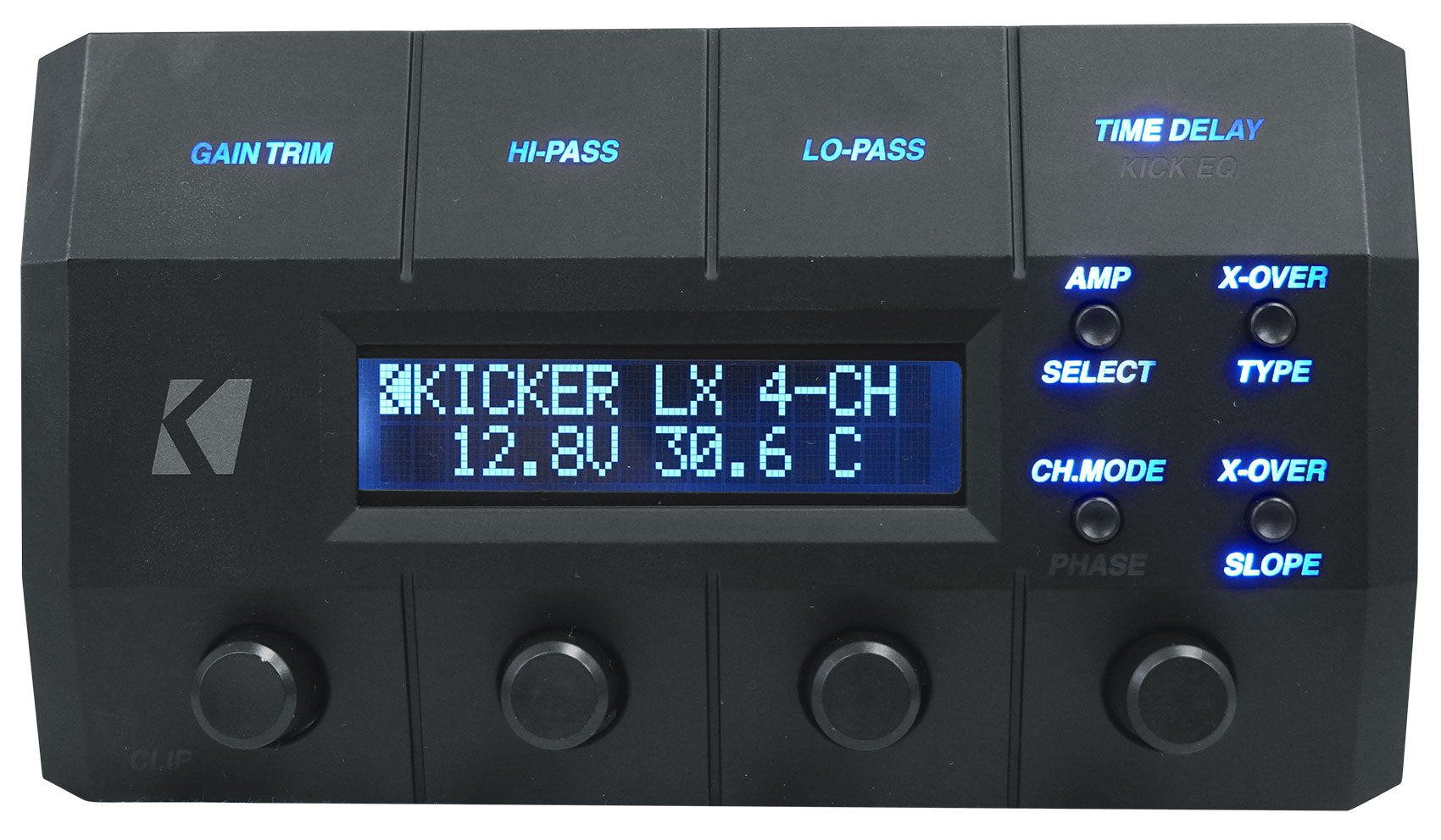

Comes with the LX CONTROL CENTER (LXCC)

• Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time

• Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels

• Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel

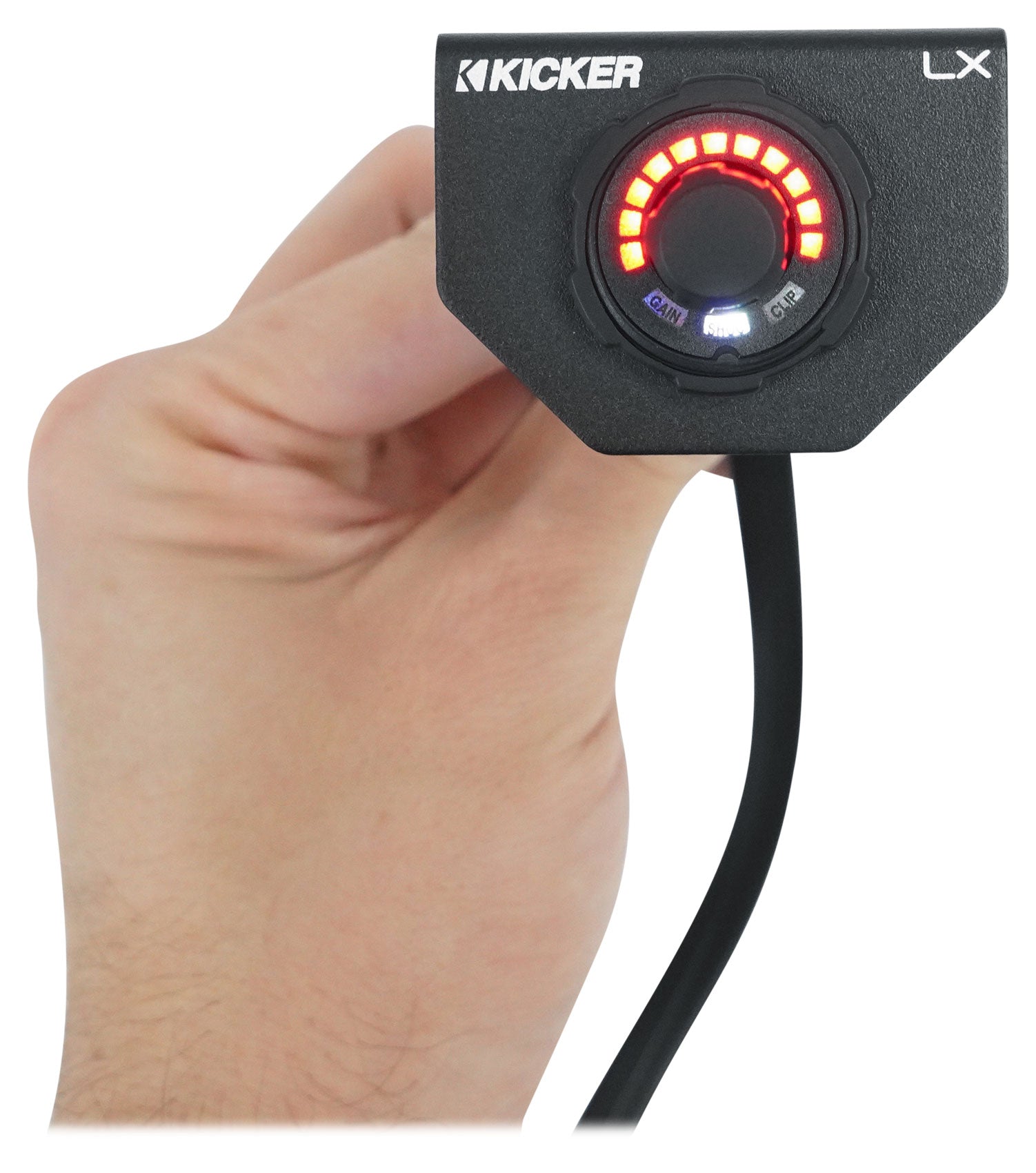

Comes with the LX REMOTE CONTROL (LXRC)

• Dynamic fingertip dash remote of bass level adjustment

• Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections

• Displays battery voltage in fuel-gauge-style readout

• Control of its RGB LED brightness

• Output clipping indicator to prevent distortion and protect your system


Specifications:

RMS Power [Watts/Channel] @ 14.4V Amp 1 & Amp 2 (Stereo Channels):

• 2Ω Stereo: 175 x 4

• 4Ω Stereo: 125 x 4

• 4Ω Bridged: 350 x 2


Sub Channel:

• 1Ω mono: 700W

• 2Ω mono: 550W

• 4Ω mono: 300W

• Dynamic Power [Watts]: 1500


Frequency Response [Hz]:

• Stereo Channels: 20–20k

• Sub Channel: 10–160 (+0/-1dB)

• Signal-to-Noise Ratio (a-weighted, re: rated power) >95dB

• Signal-to-Noise Ratio (ref: 1W output) >75dB


Dimensions [in, cm]

• Height: 2-3/8 (6 cm)

• Width: 8-7/16 (21.4 cm)

• Length: 12-5/8 (32 cm)


Input Sensitivity

• High level 1V–40V

• Low level 125mV–5V


Variable Electronic Crossover Amp 1 & Amp 2 (Stereo Channels):

• Off/HP/LP/BP

• HP: 20–5kHz

• LP: 40–5kHz

• Sub Channel: LP 40–160Hz, 24dB/octave Linkwitz-Riley

• Selectable Topology: 12, 18, or 24dB/oct Butterworth;12 or 24dB/oct Linkwitz-Riley

• Variable Subsonic Filter: 24dB/octave Linkwitz-Riley, variable hi-pass @ 10–80Hz (sub channel only)

• KickEQ+™ (Sub Channel): 0–6dB, variable center 20–80Hz, variable bandwidth 1–5
