American DJ ADJ MDF2 PSUX9 200W Power Supply For Up To 9 MDF2 Dance Floor Panels

What's in the Box:

• Power Supply
• Power Cable

Description:

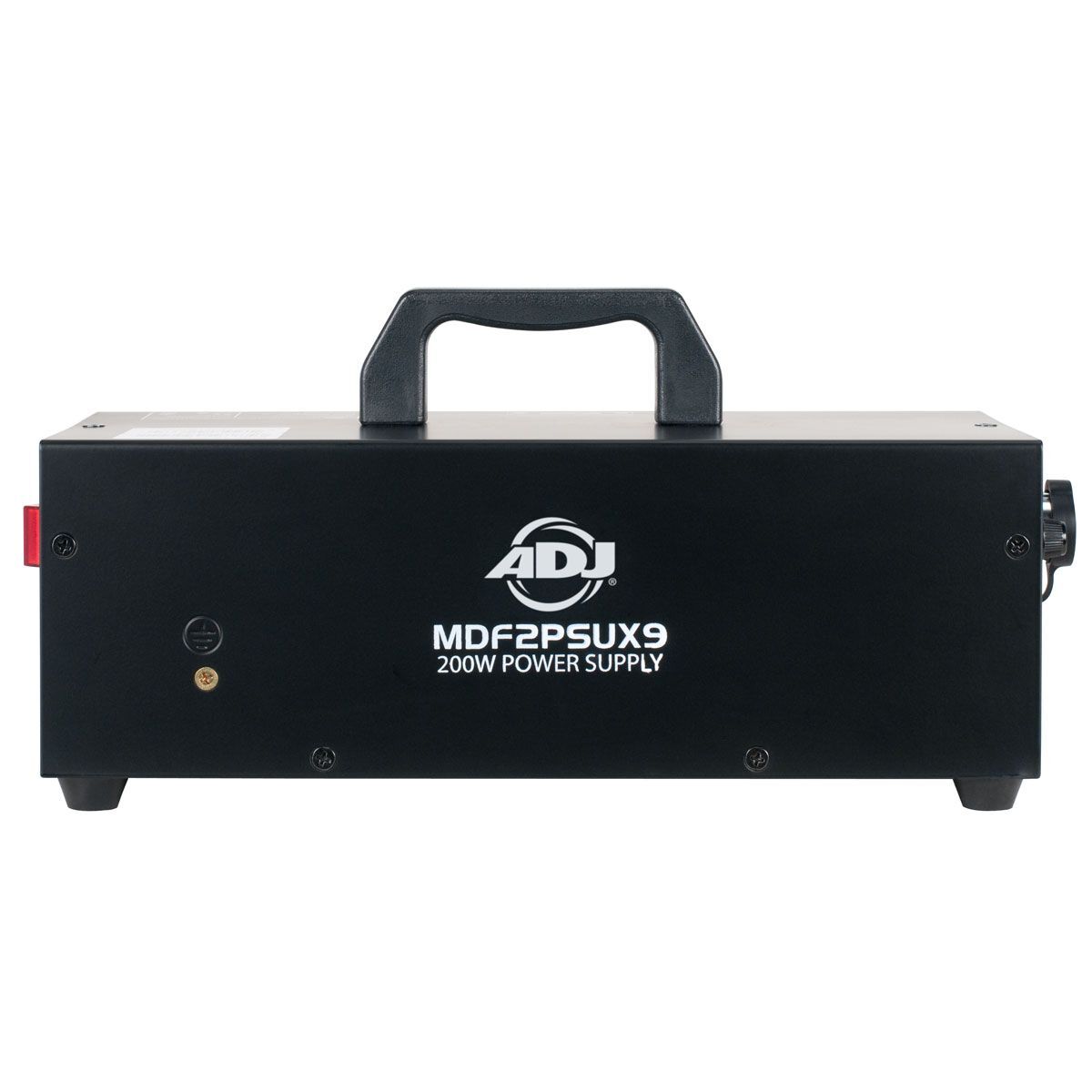

The American DJ MDF2PSUX9 Power Supply is a 200W power supply that powers up to nine MDF LED Dance Floor panels. The robust metal enclosure features a built-in carrying handle for ease in transport.

Features:

• American DJ ADJ MDF2 PSUX9 200W Power Supply For Up To 9 MDF2 Dance Floor Panels

• Powers Up to 9 MDF2 Dance Floor Panels

• 200W Power Supply

Specifications:

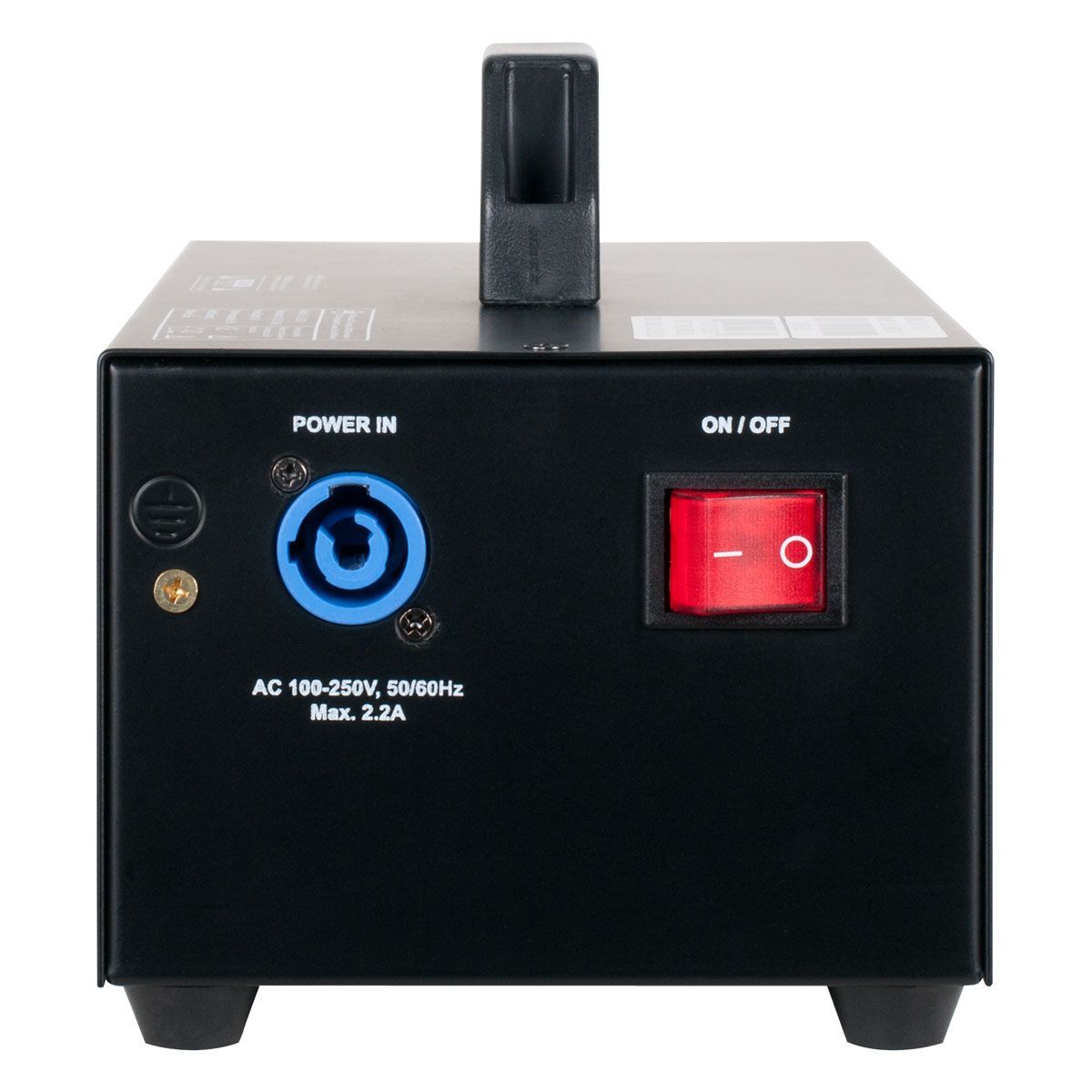

• Input Voltage: AC 100-240V, 50/60 Hz Output Voltage: DC 24V

• Maximum Load Power: 2250 W Load Current: 90 A

• Current Overload Protector Trip Time: Within 10A of max load: no trip, 10-15A over max load: trip within 1 hour, 15-20A over max load: trips in 5.2 to 30 seconds, 20-30A over max load: trips in 1.5 to 5.5 seconds

• Length: 12.8” (326.0mm)

• Width: 5.6” (142.0mm)

• Height: 1.1” (155.5mm)

• Weight: 30.0 lbs. (13.6 kg)

• Ambient Operating Temperature: -4°F to 158°F (-20°C to 70°C)

• IP Rating: IP20
