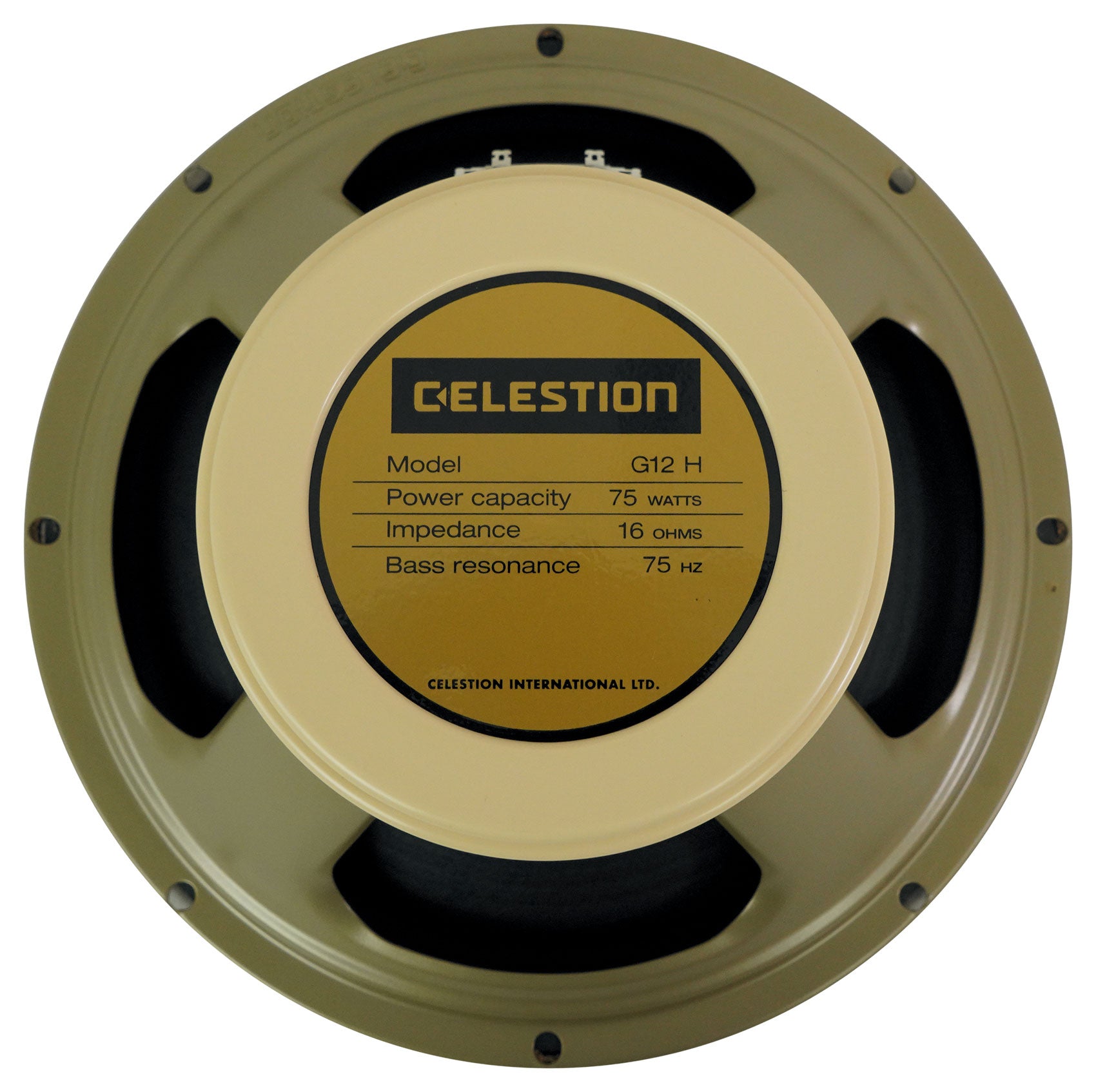

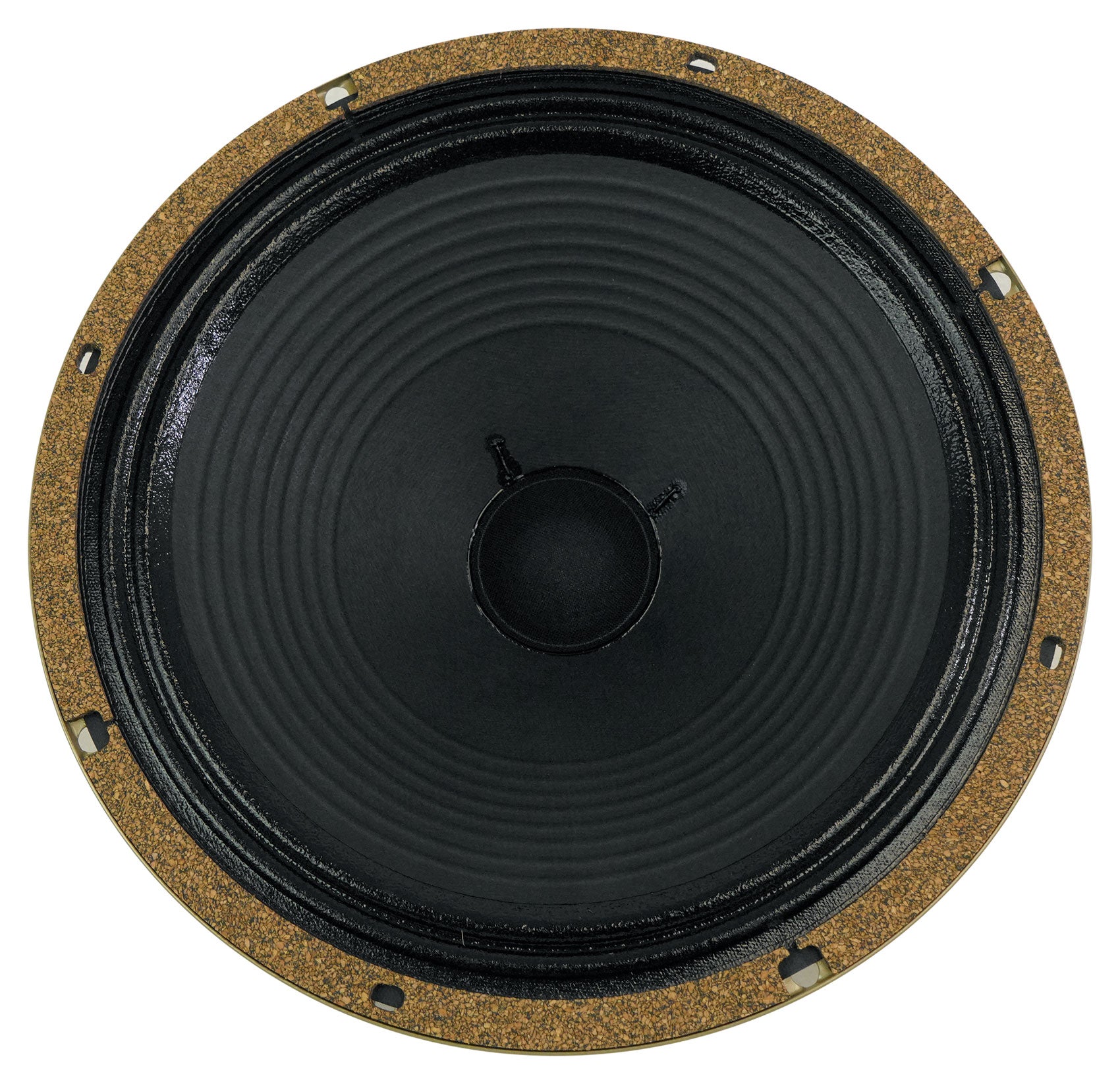

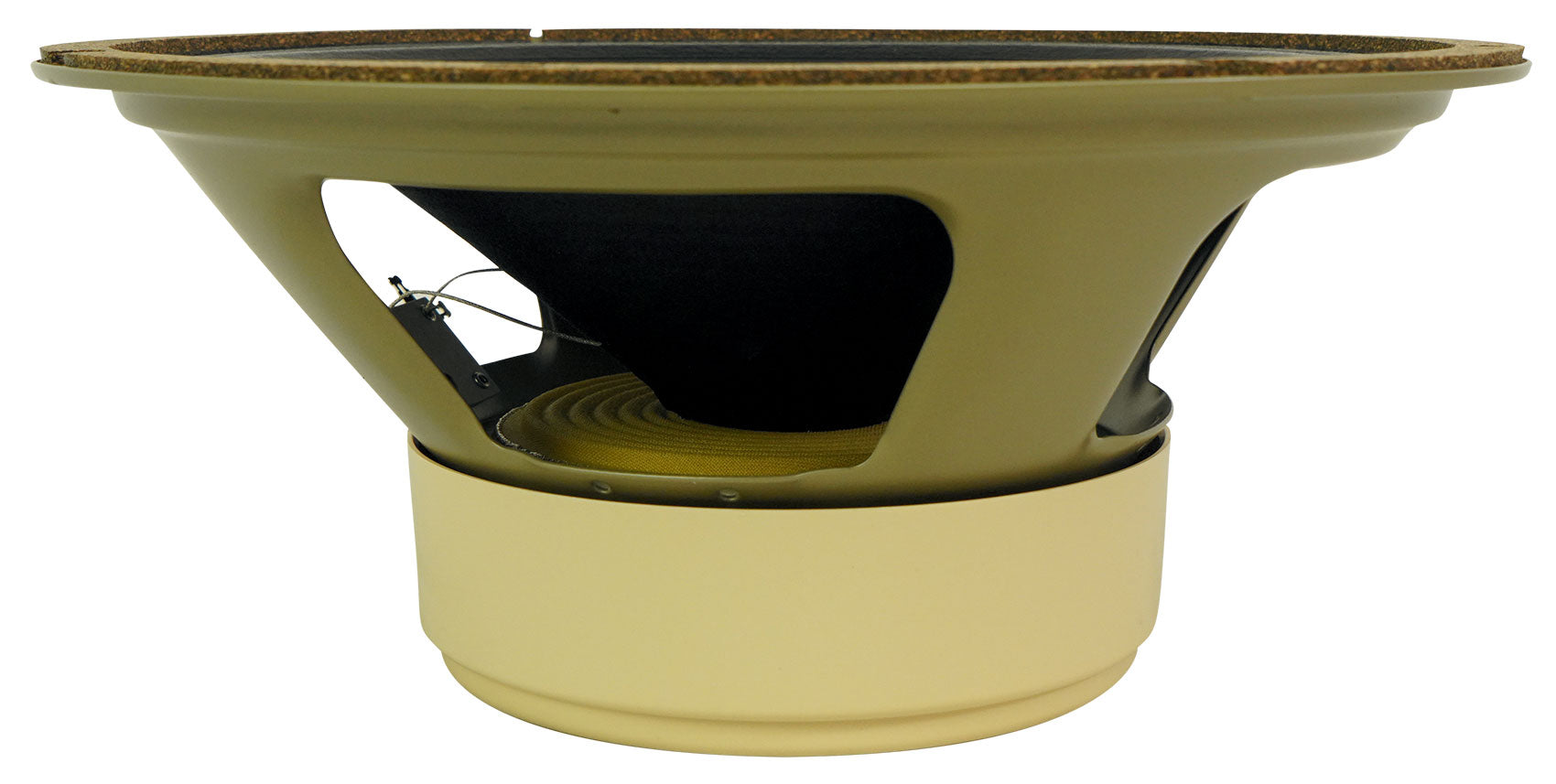

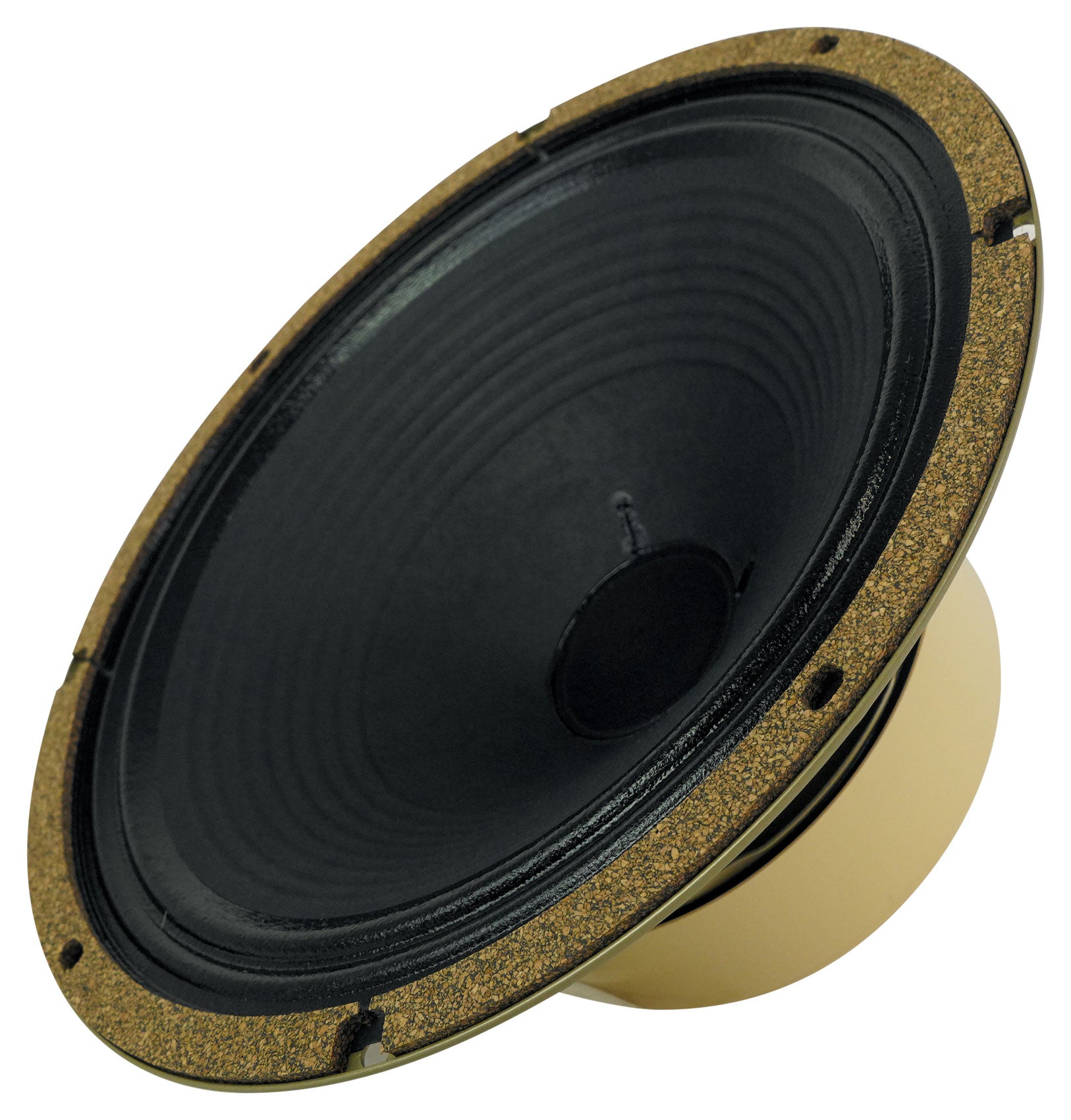

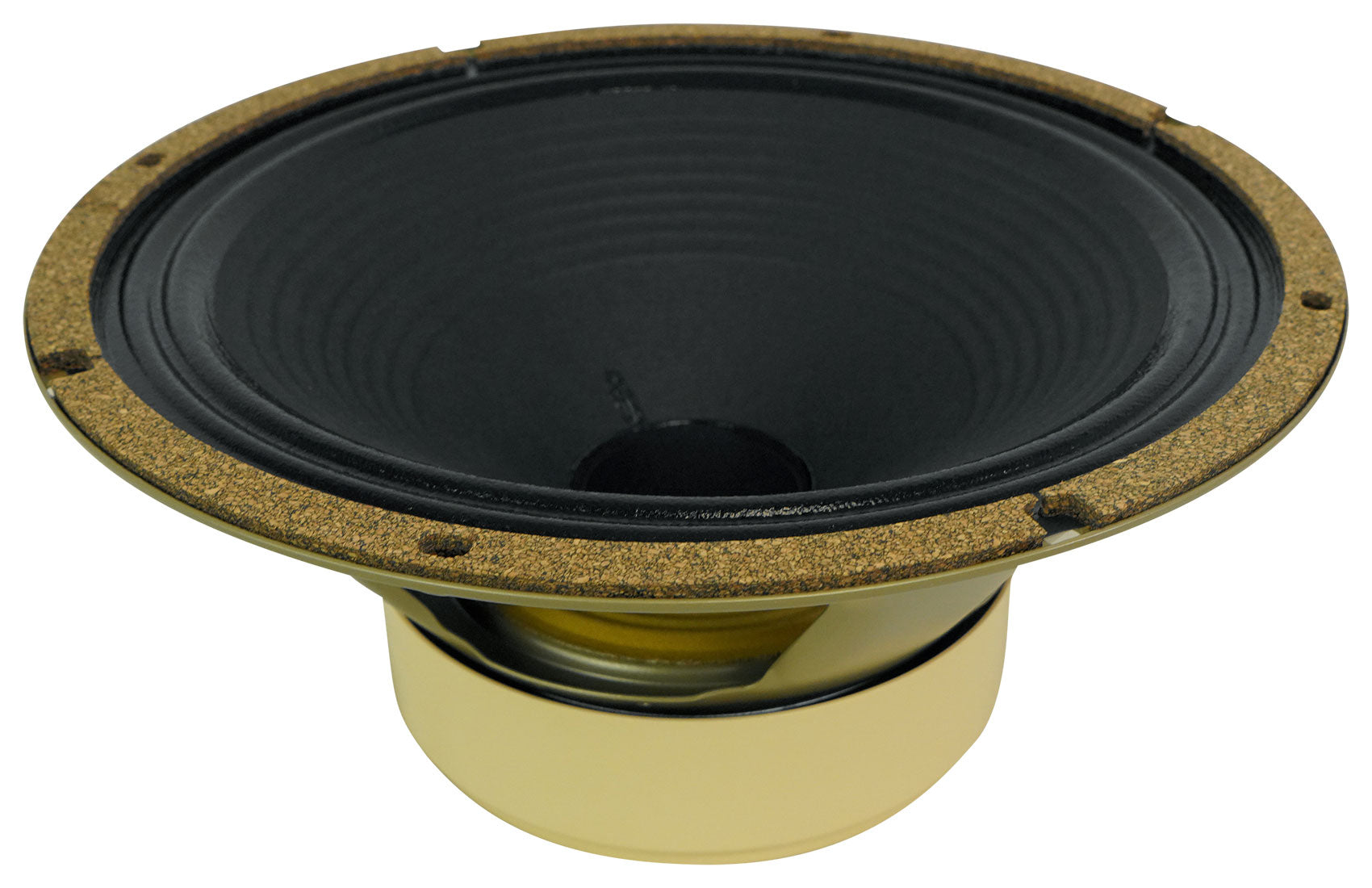

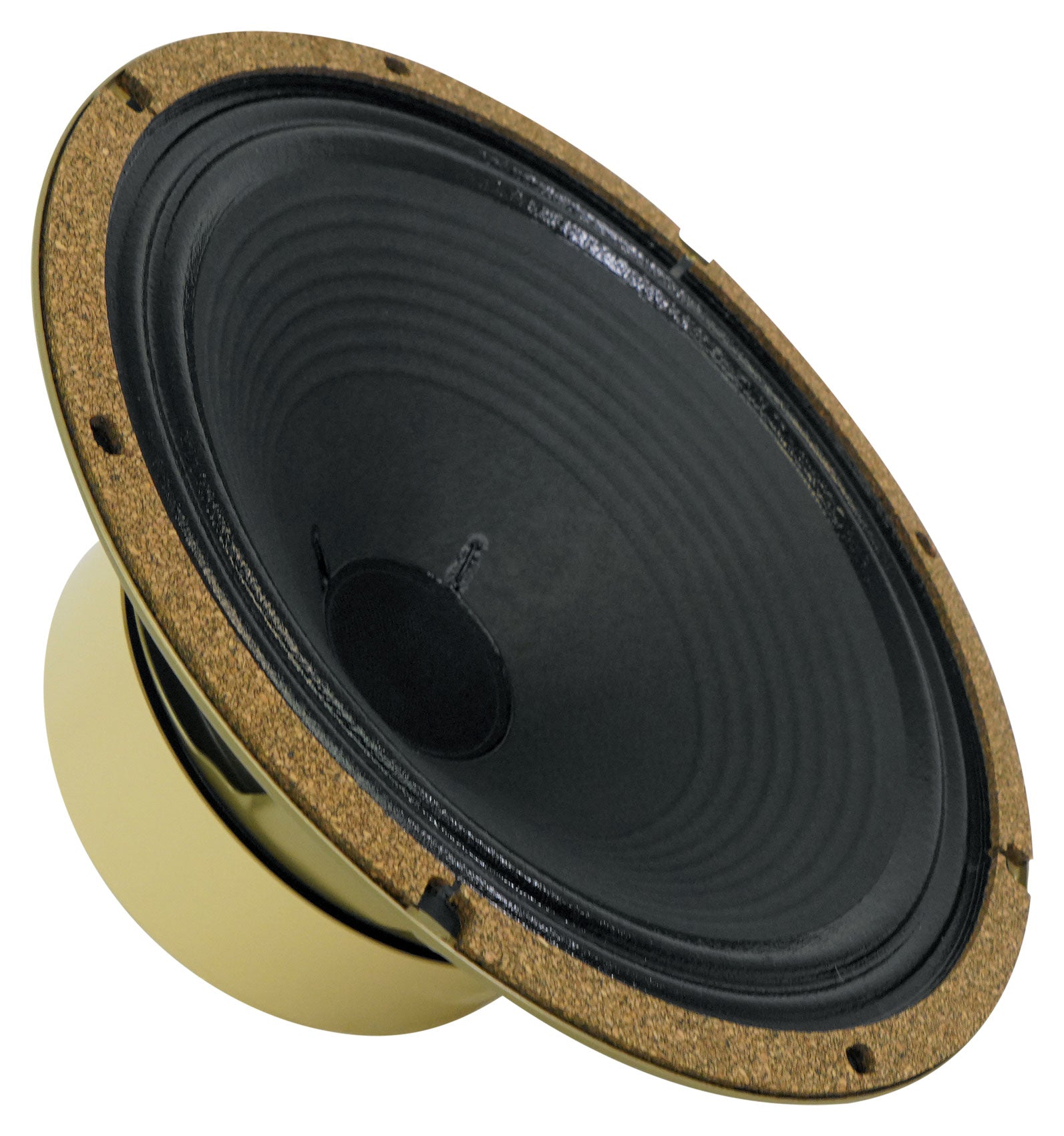

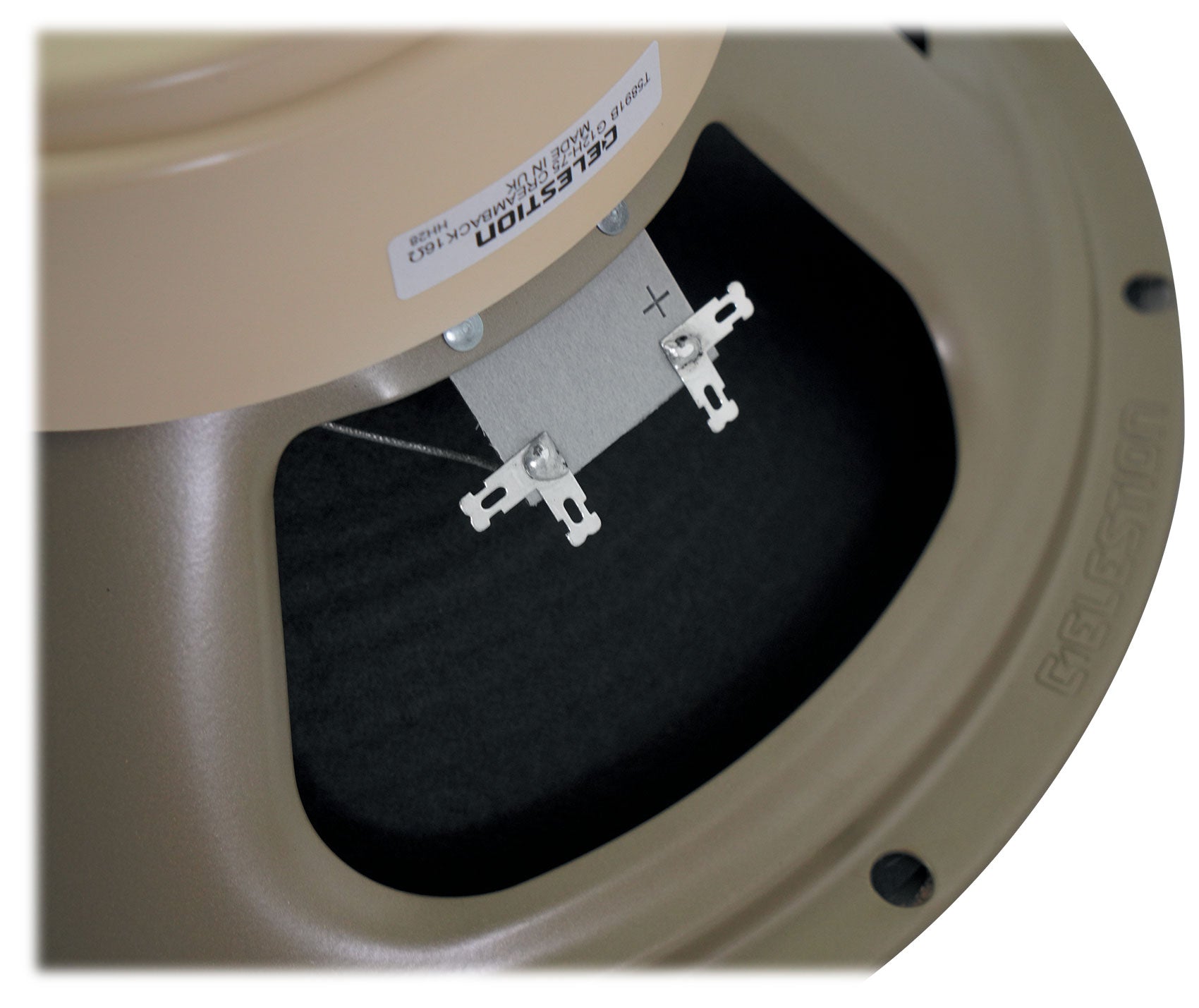

Celestion G12H-75 Creamback 12" 75W Guitar Speaker 16 Ohm with Large Magnet

Description:

Back in the late 60s the G12H was created by fixing an 'H' type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an 'H' magnet to the G12M-65 Creamback to create a guitar speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone with a tighter low end than the G12M-65 Creamback and a punchier more dynamic high end. The H magnet brings additional focus body and girth to the Creamback tone. It thickens single notes resulting in a highly articulate vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4×12 cab!

Specifications:

• Nominal diameter: 305mm / 12in
• Power rating: 75W
• Rated impedance: 16Ω
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Magnet type: Ceramic
• Magnet weight: 1.42kg / 50oz
• Voice coil diameter: 1.75in / 44mm
• Voice coil material: Round copper
• Frequency range: 70-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 6.37Ω and 12.5Ω

Mounting Information:

• Cut-out diameter: 283mm / 11.1in
• Diameter: 309mm / 12.2in
• Magnet structure diameter: 168mm / 6.6in
• Mounting hole dimensions: 7.9mm / 0.31in Ø
• Mounting hole PCD: 297mm / 11.7in
• Number of mounting holes: 8
• Chassis depth (inc gasket): 94mm / 3.67in
• Magnet depth: 44mm / 1.73in
• Overall depth: 138mm / 5.4in
• Unit weight: 4.7kg / 10.4lb
