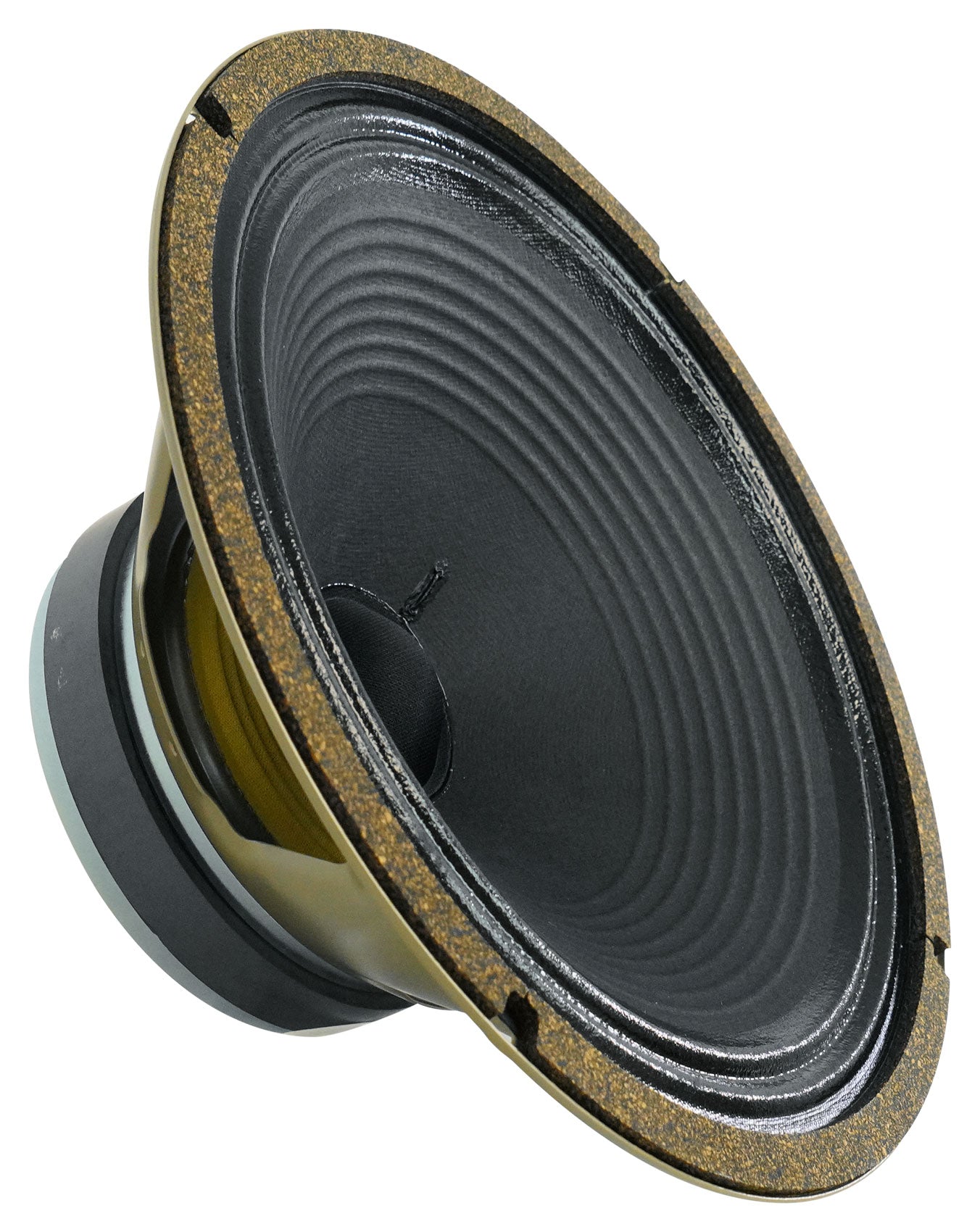

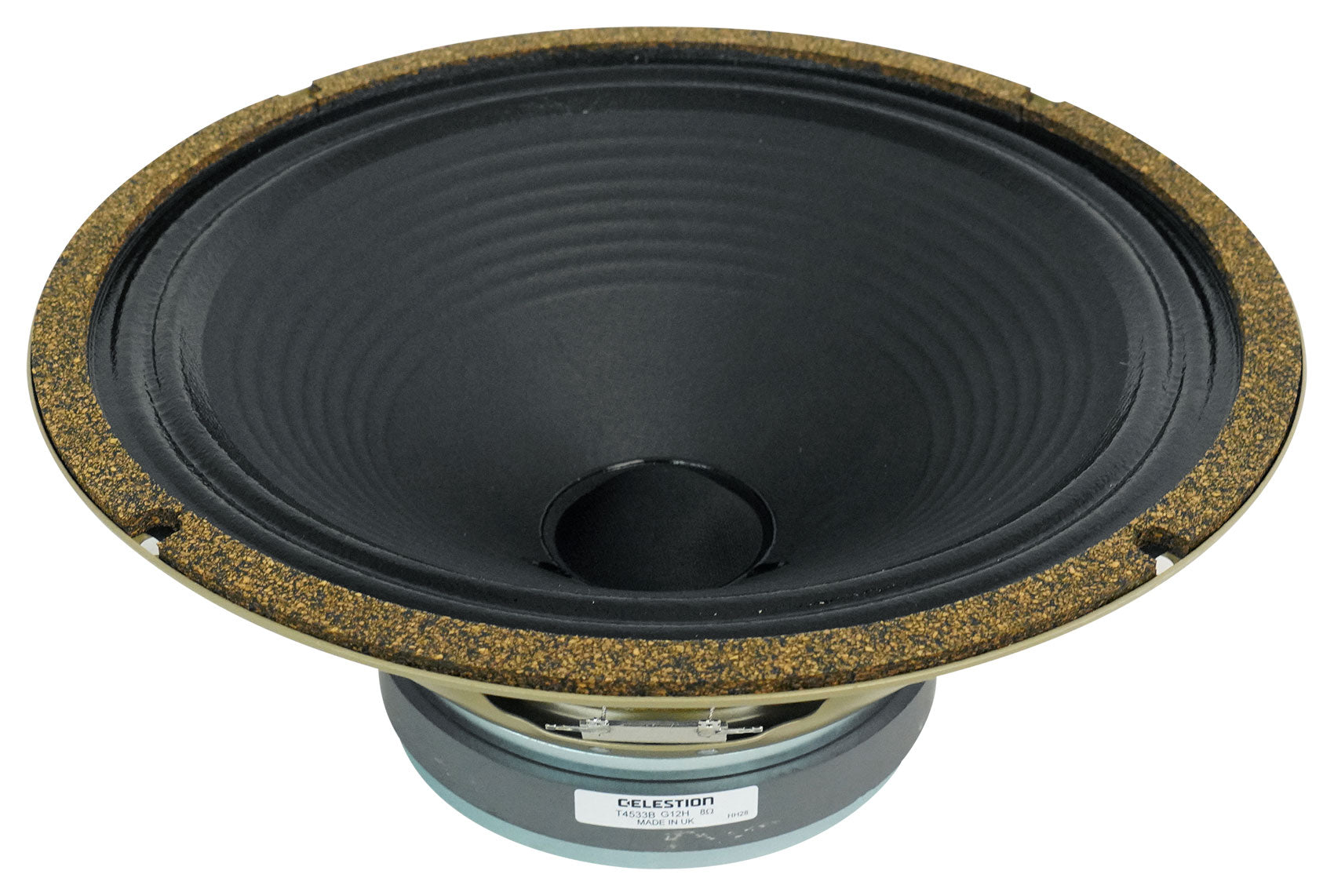

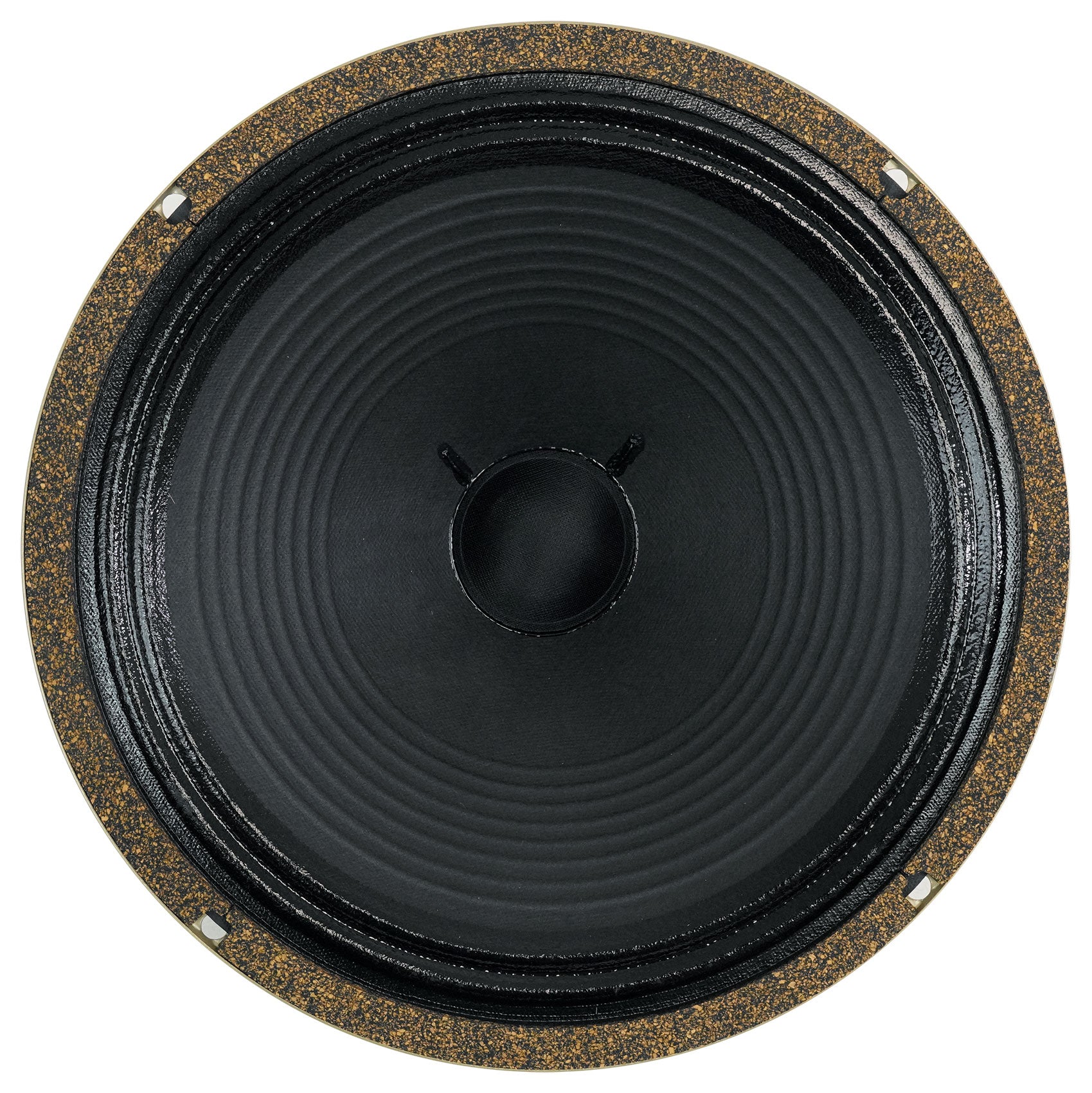

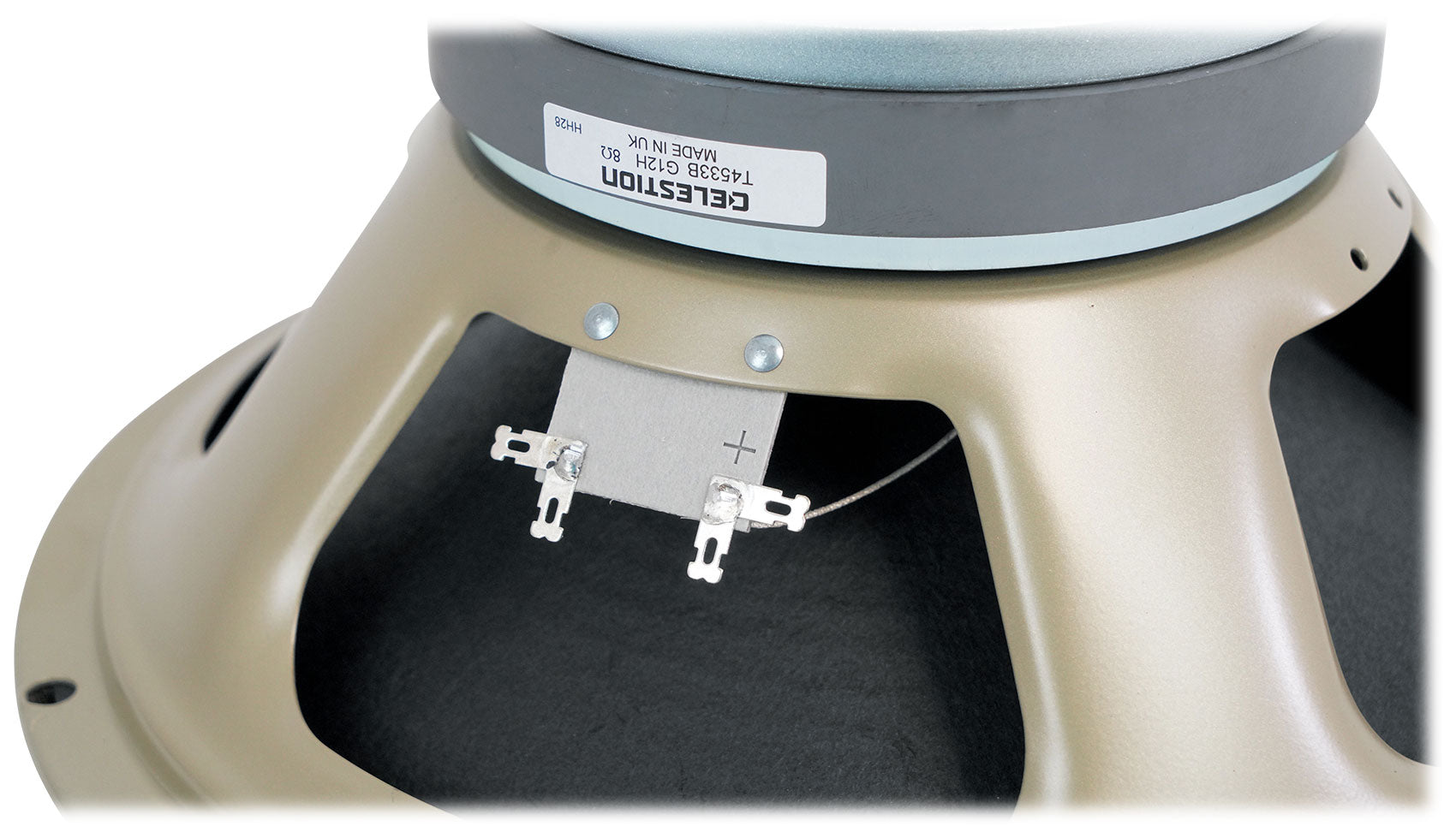

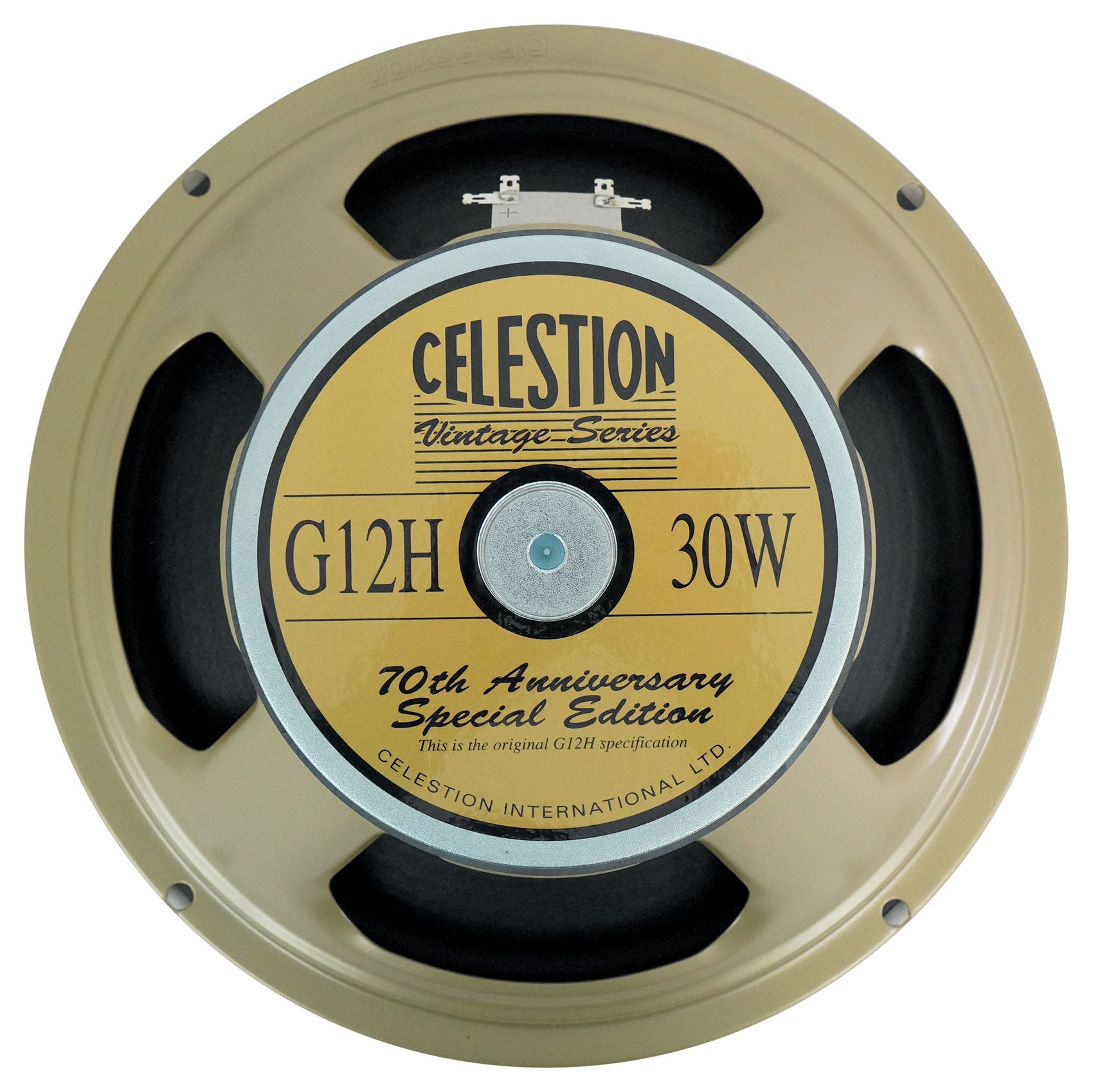

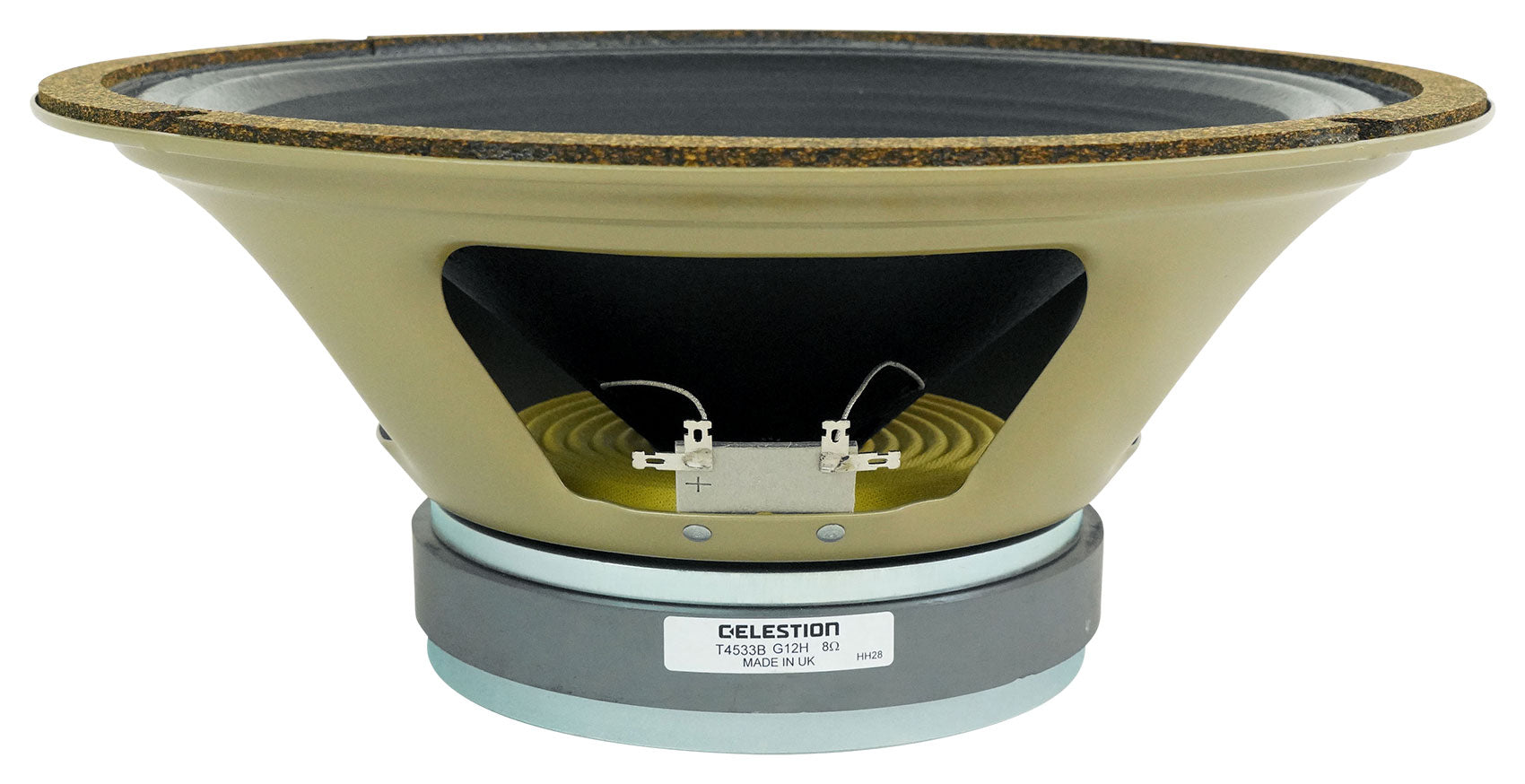

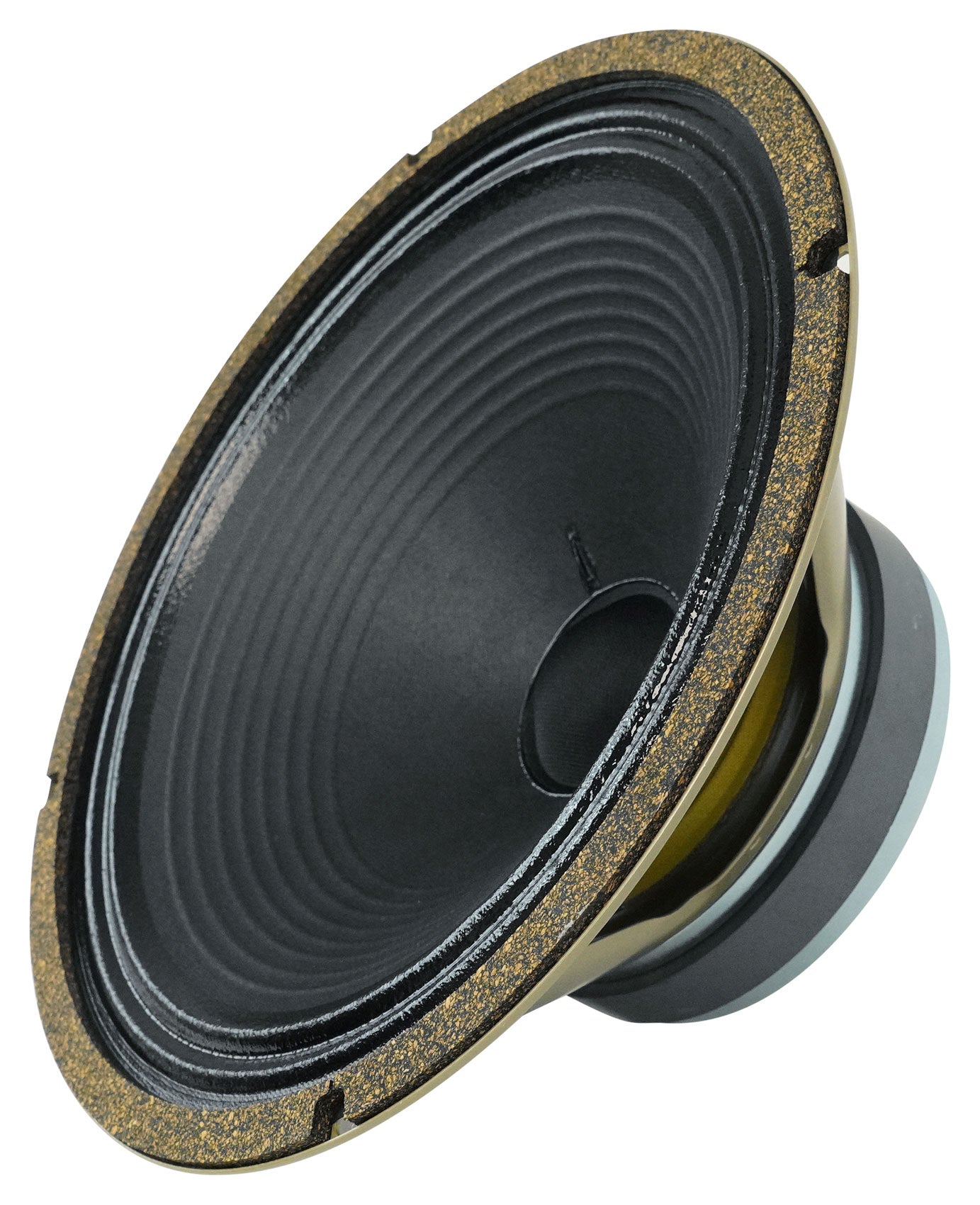

Celestion G12H Anniversary 12" Inch 30W Guitar Speaker 8 Ohm With Ceramic Magnet
Product Description
Description:
Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.
With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the 'boutique' amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.
Specifications:
- Nominal diameter: 305mm / 12in
- Power rating: 30W
- Rated impedance: 8Ω
- Sensitivity: 100dB
- Chassis type: Pressed steel
- Magnet type: Ceramic
- Magnet weight: 1.42kg / 50oz
- Voice coil diameter: 1.75in / 44mm
- Voice coil material: Round copper
- Frequency range: 75-5000Hz
- Resonance frequency, Fs: 85Hz
- DC resistance, Re: 6.7Ω and 13.1Ω
Mounting Information:
- Cut-out diameter: 283mm / 11.1in
- Diameter: 309mm / 12.2in
- Magnet structure diameter: 156mm / 6.1in
- Mounting hole dimensions: 7.9mm / 0.31in Ø
- Mounting hole PCD: 297mm / 11.7in
- Number of mounting holes: 4
- Chassis depth (inc gasket): 97mm / 3.79in
- Magnet depth: 38mm / 1.51in
- Overall depth: 135mm / 5.3in
- Unit weight: 4.7kg / 10.4lb
