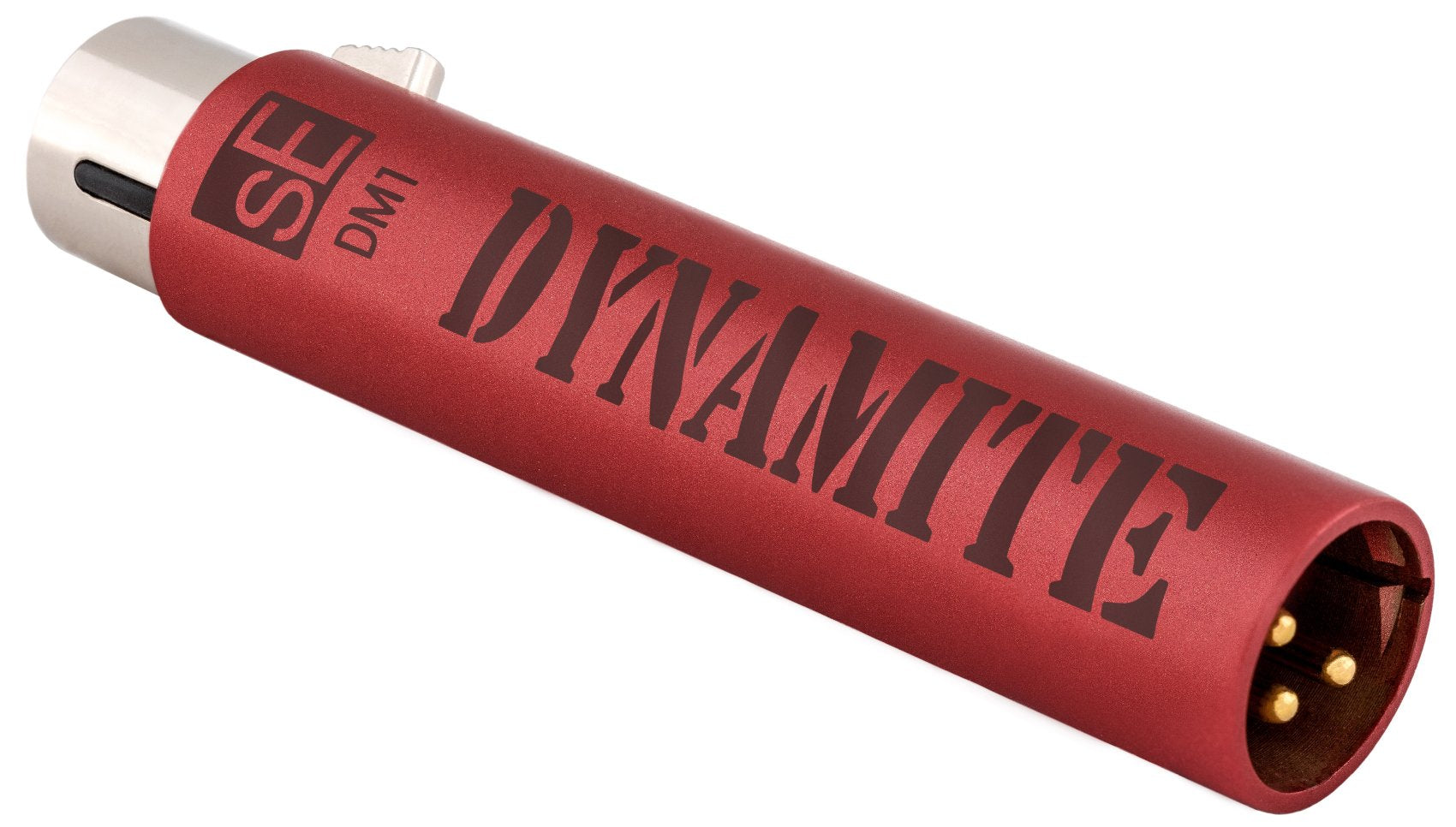

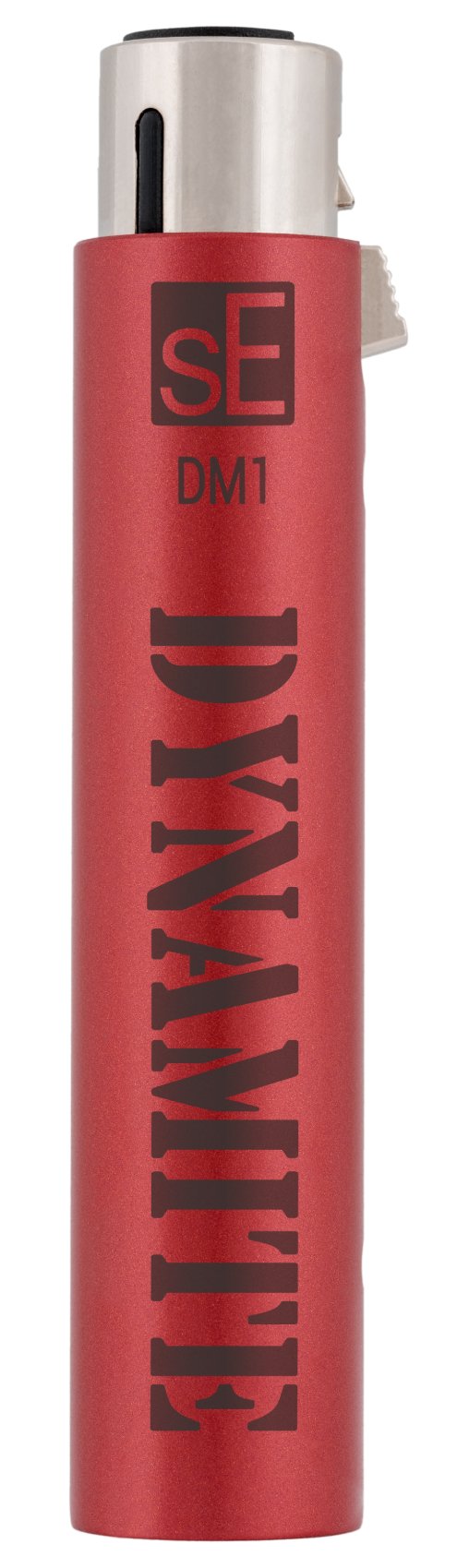

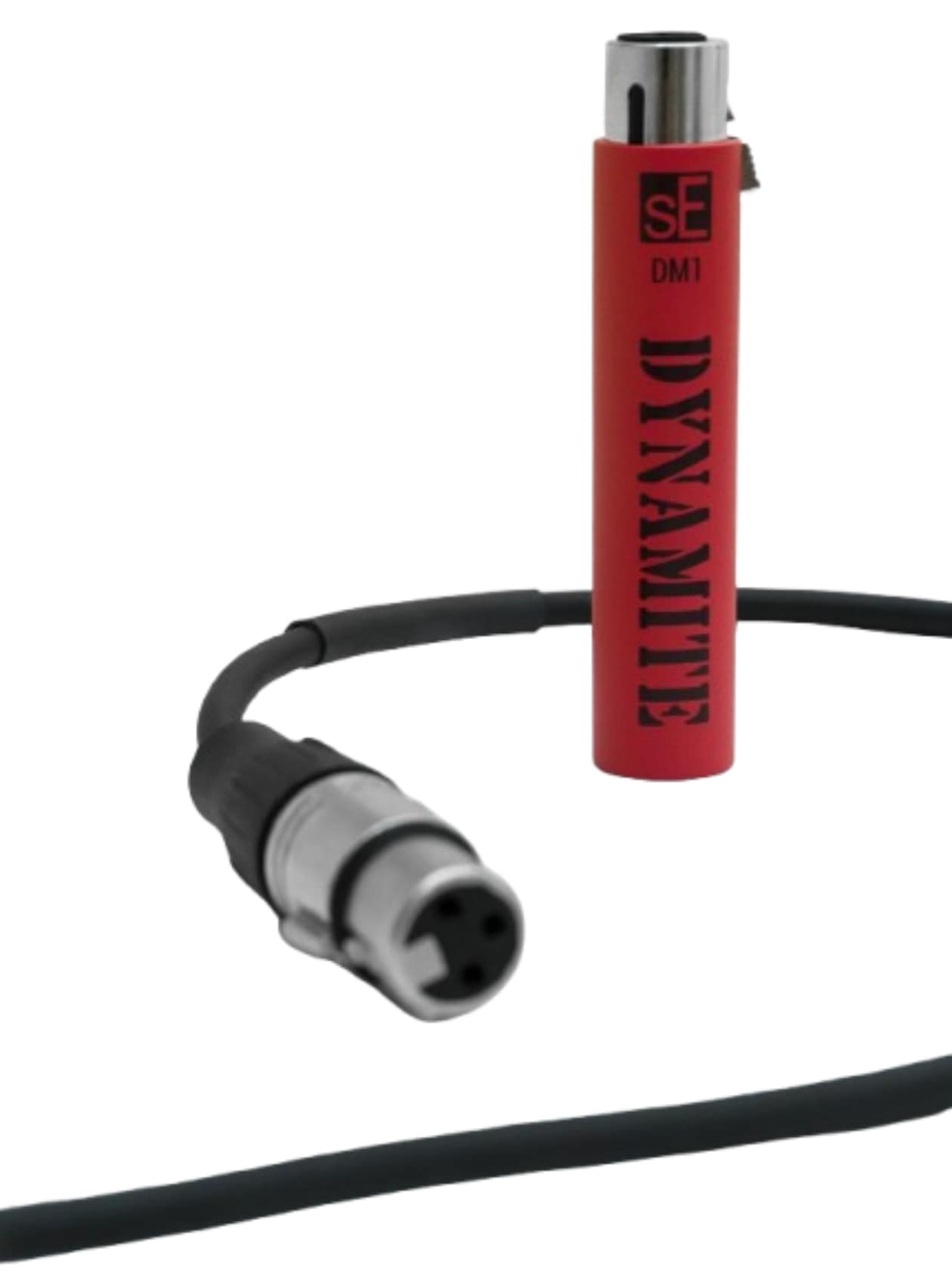

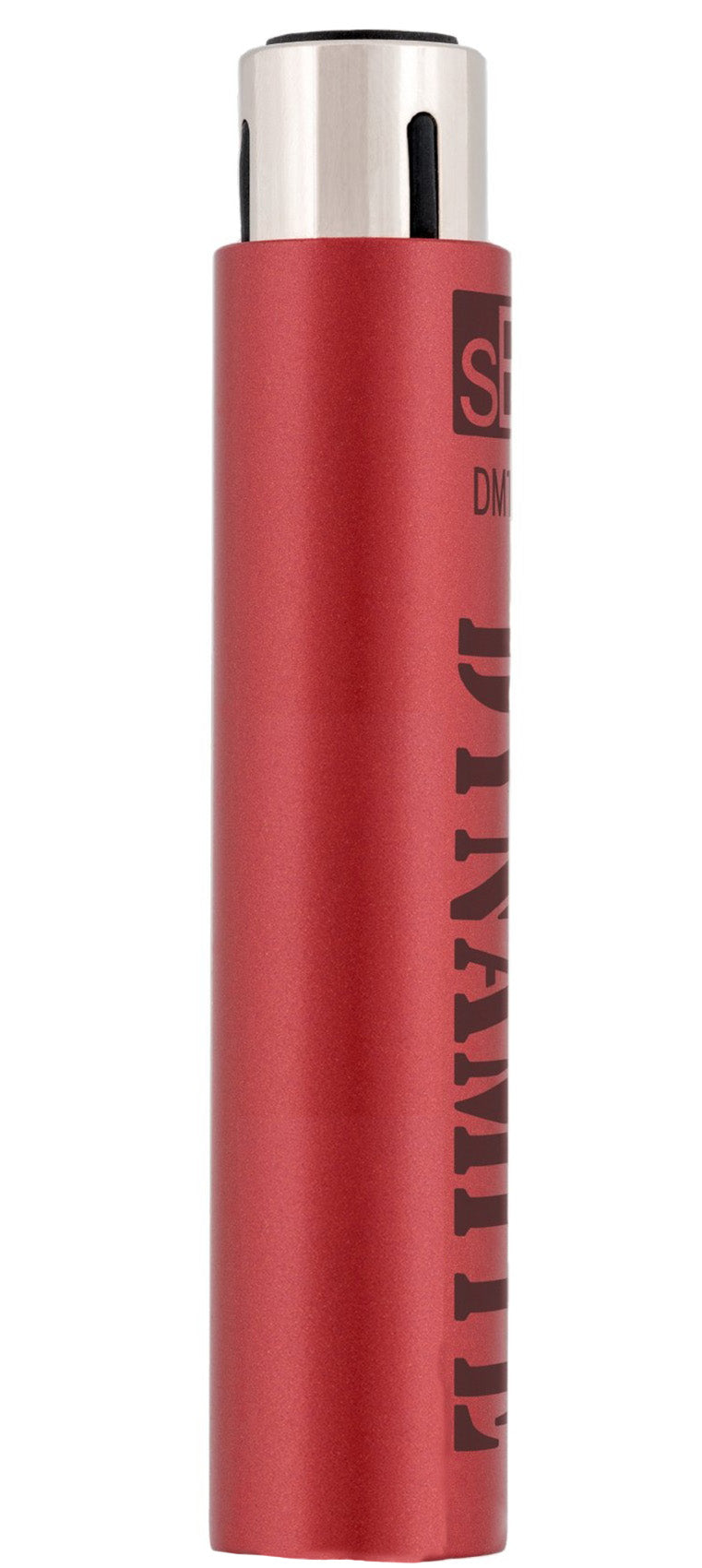

Se Electronics DM1 Active Inline Microphone Preamp 4 Dynamic+Passive Ribbon Mics

What's in the box:

• DM1
• sE Logo Sticker
• User Manual with Warranty Card

Description:

Explosive level for all your passive mics

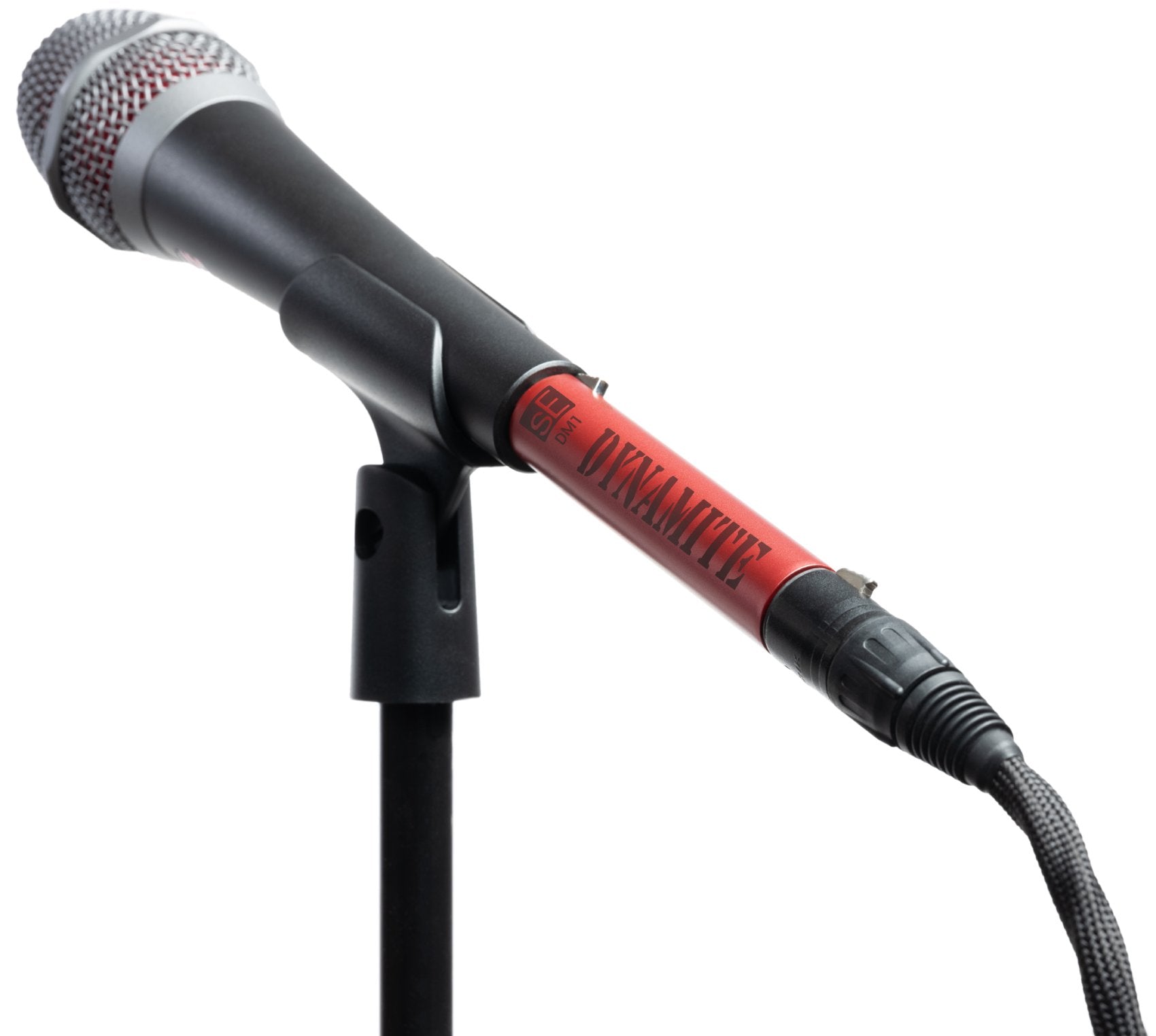

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

Features:

• Now also available in a matte-black finish
• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• Always a consistent +28dB regardless of the connected load to enable mics with a lower output
• Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
• All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection
• Perfect for podcasting, recording, or live sound

Specifications:

• Recommended Use:

  • Dynamic & passive ribbon microphones
• Power:

  • Electrical Impedance: 135 Ohms
  • Recommended Load Impedance: >1K Ohms
  • Connectivity: 3-pin male/female XLR connector
  • Powering: 48V Phantom Power (P48 according to IEC 61938)
• Sound:

  • Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
  • Gain: 28 dB
  • Current Consumption: 3.0 mA
  • Max Output Level (0.5% THD): 8.3 dBV (2.6 V)
  • Output Noise Level: 9 µV (a-weighted)
  • Input Impedance: 10k Ohms
• Dimensions:

  • Preamp Diameter: 19 mm (0.75 in.)
  • Preamp Length: 96 mm (3.78 in.)
  • Preamp Weight: 96 mm (3.78 in.)
