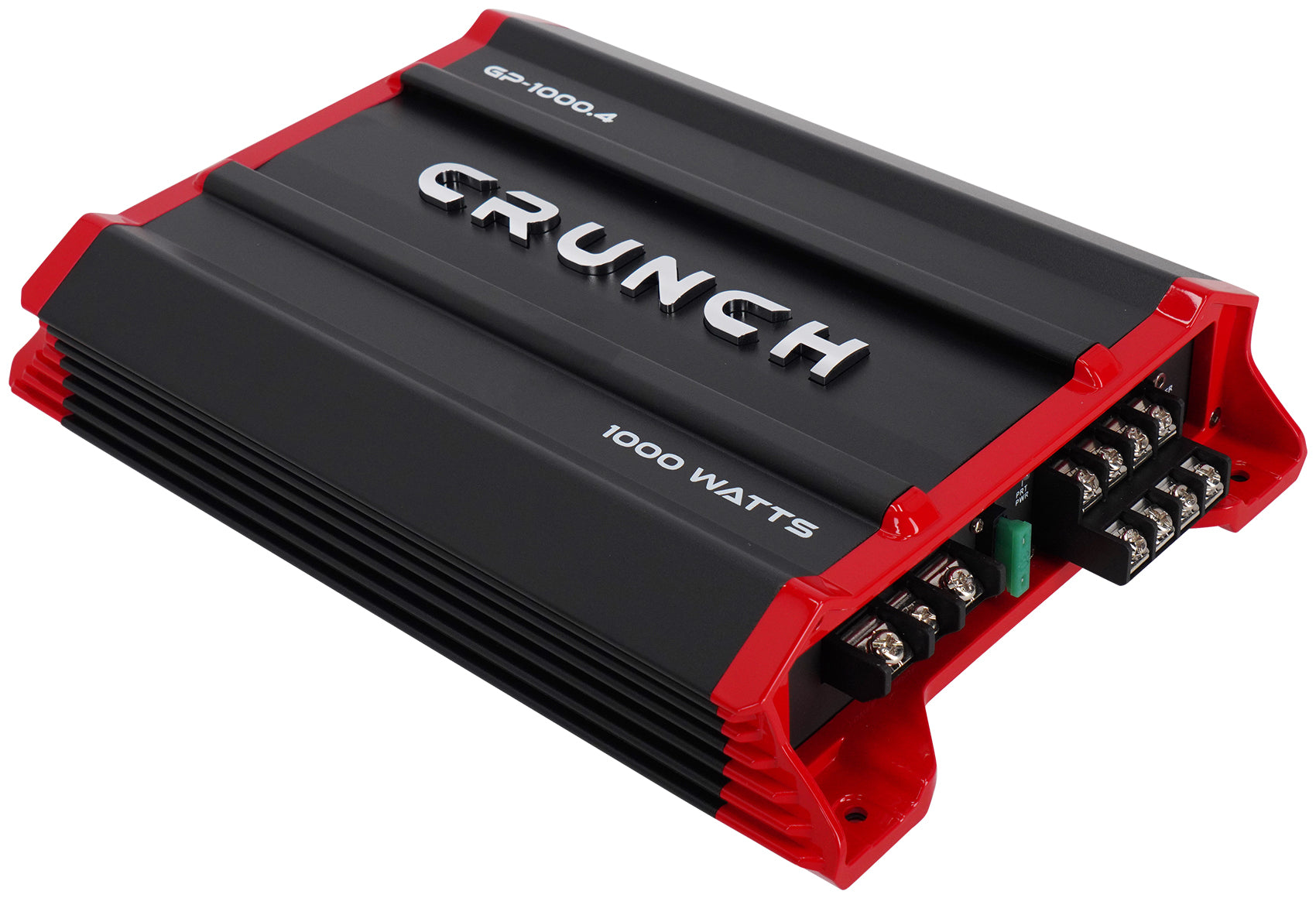

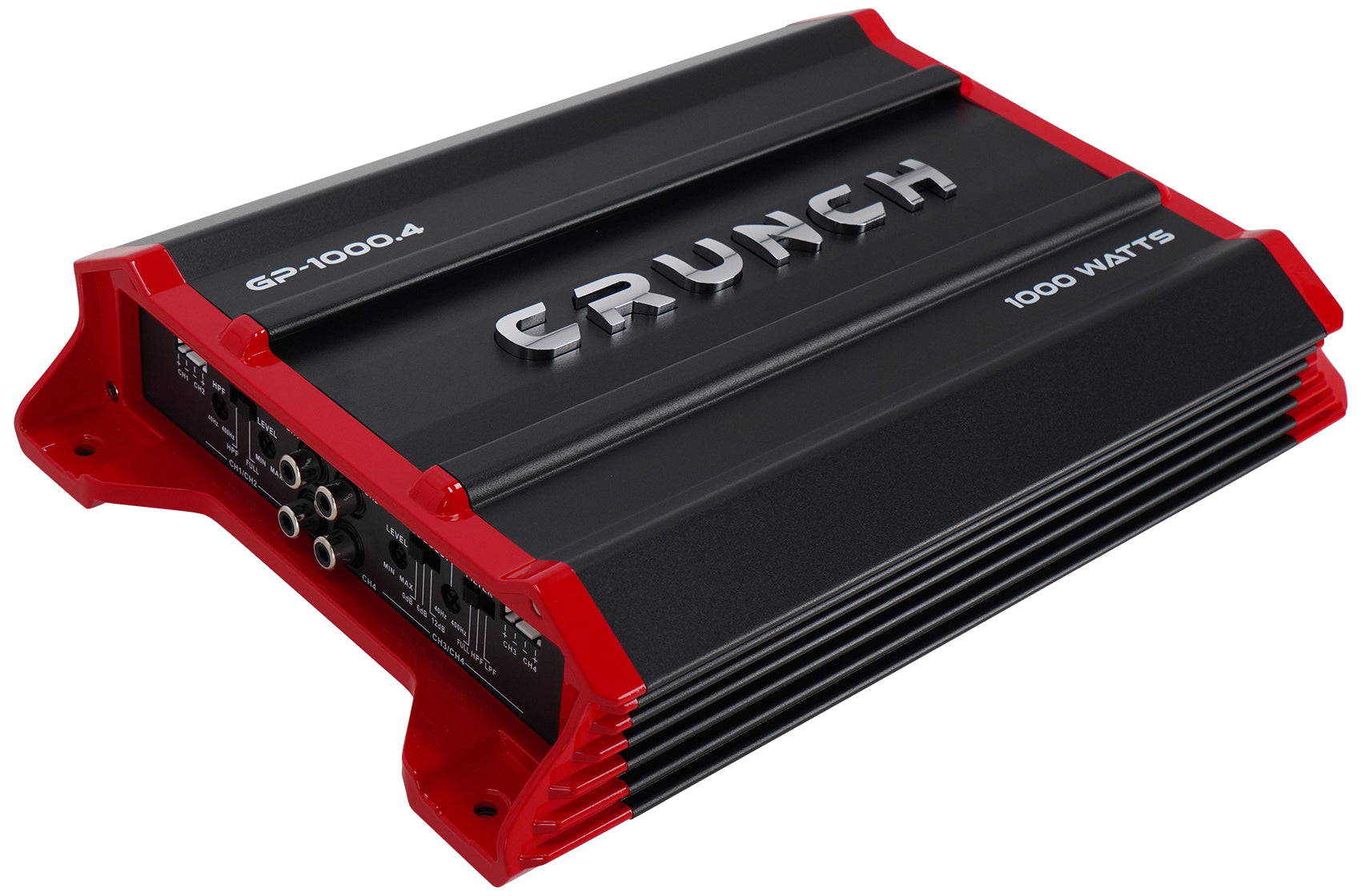

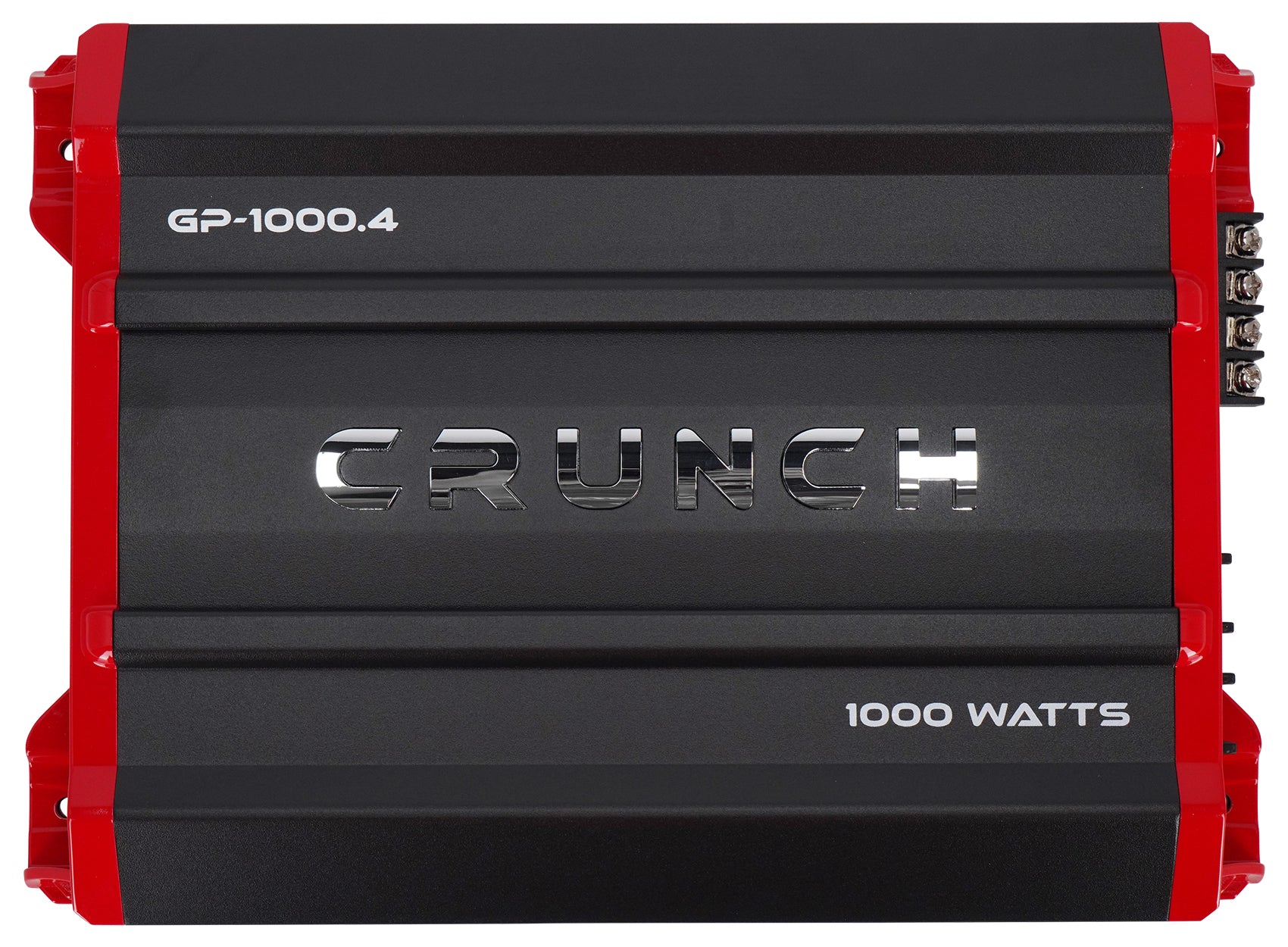

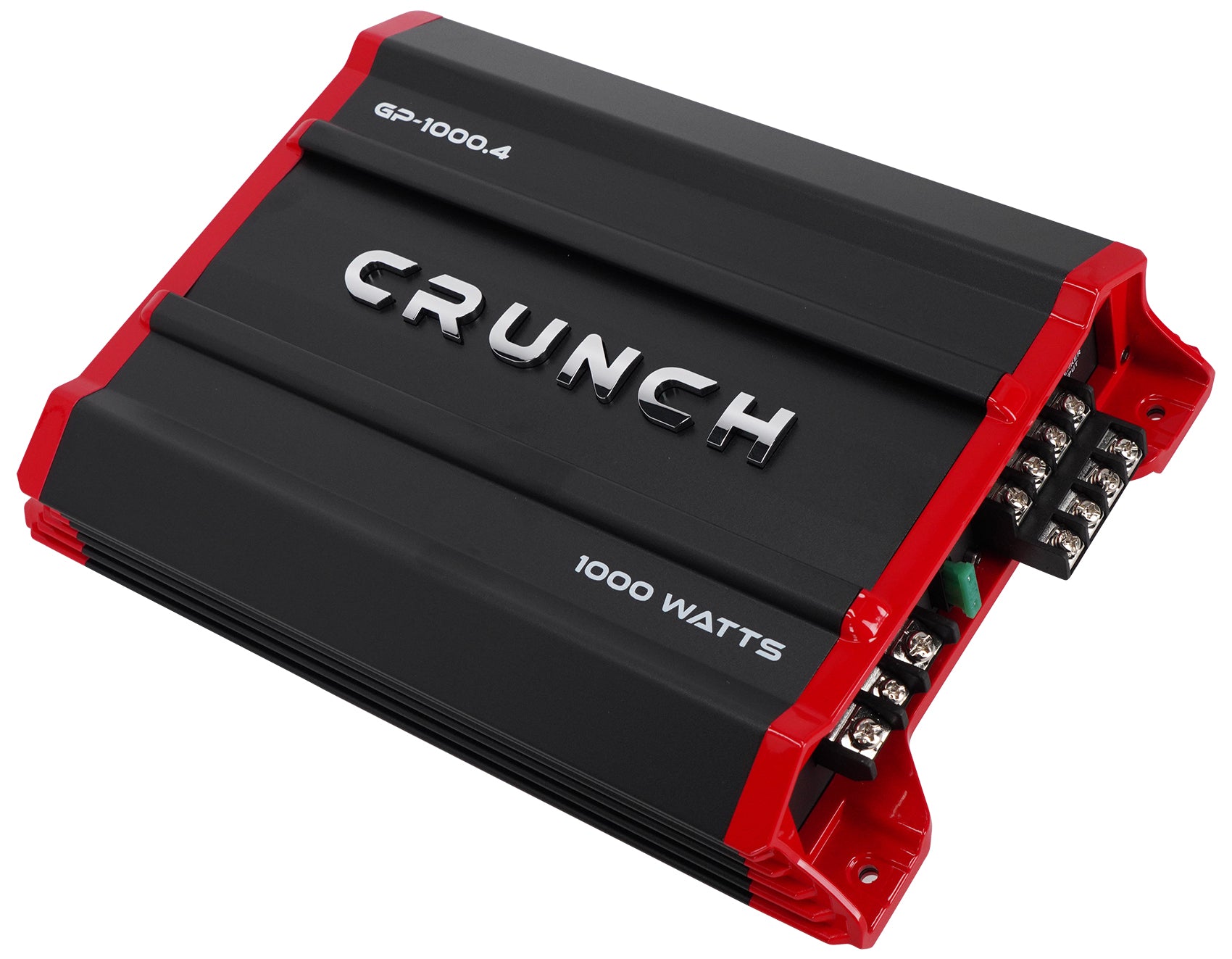

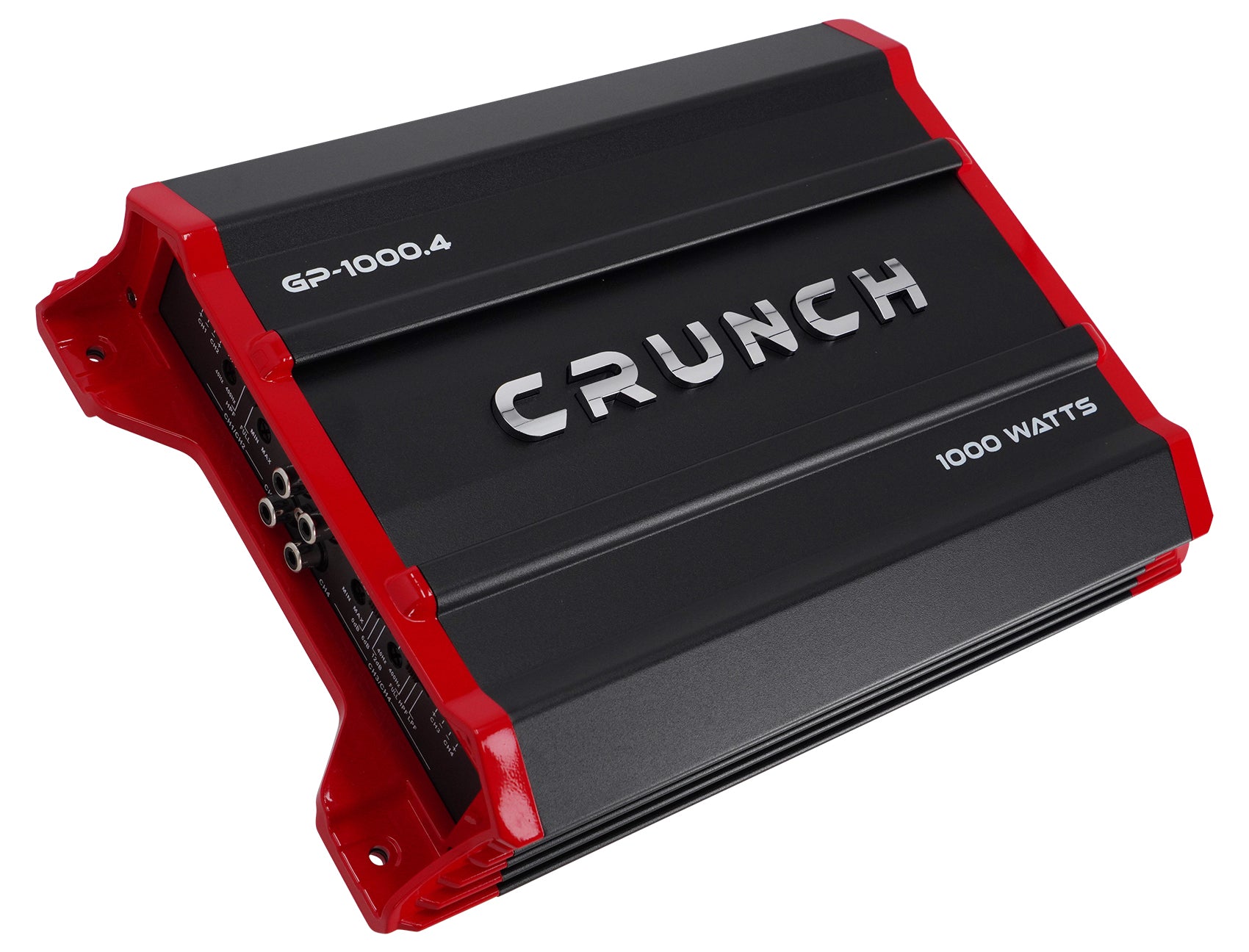

Crunch GP-1000.4 1000w 4 Channel Car Audio Amplifier Stereo Amp

Description:

Crunch Ground Pounder with QTD Technology delivers 1000 watts to subwoofers and includes built-in electronic crossovers.

Features & Benefits:

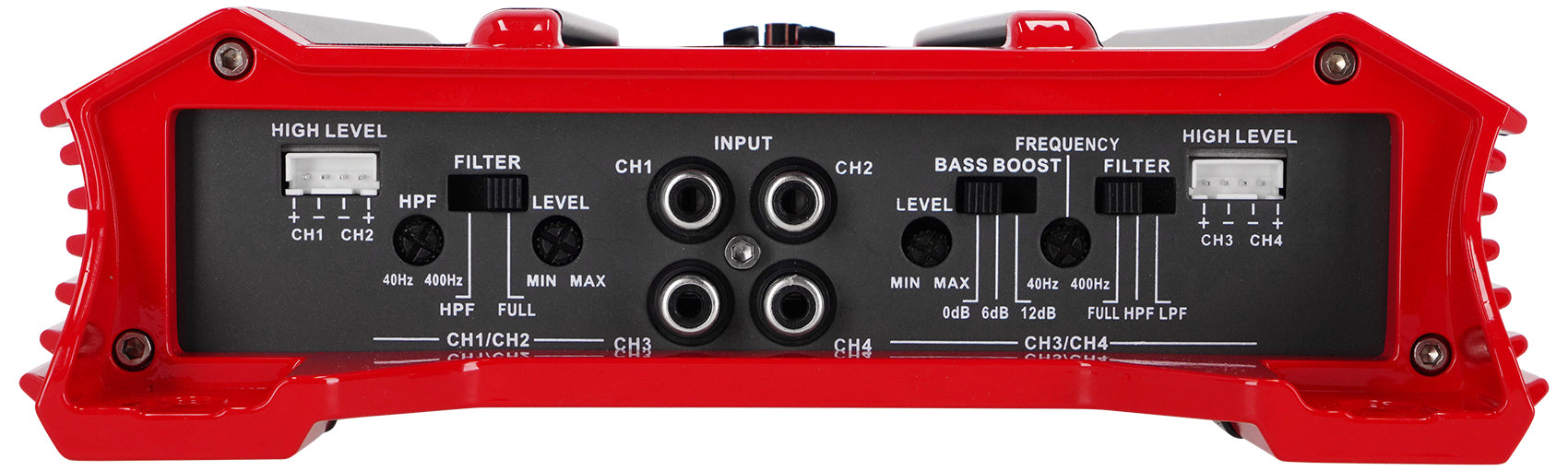

• Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
• RCA Inputs: Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• Operation Mode: Four Channel Stereo, Dual Stereo Bridged, Stereo + Bridged Mono, Dual Bridged Mono
• Crossover Type: Variable Electronic 12dB Per Octave
• Electronic Equalizer: Fully Adjustable 12dB Crossovers
• Class / Topology: Class A/B: High sound quality circuit that allows POWER DRIVE to develop high levels of power with minimal distortion.
• Output Device Technology: Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
• Heat Sink: QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• Power Supply: High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

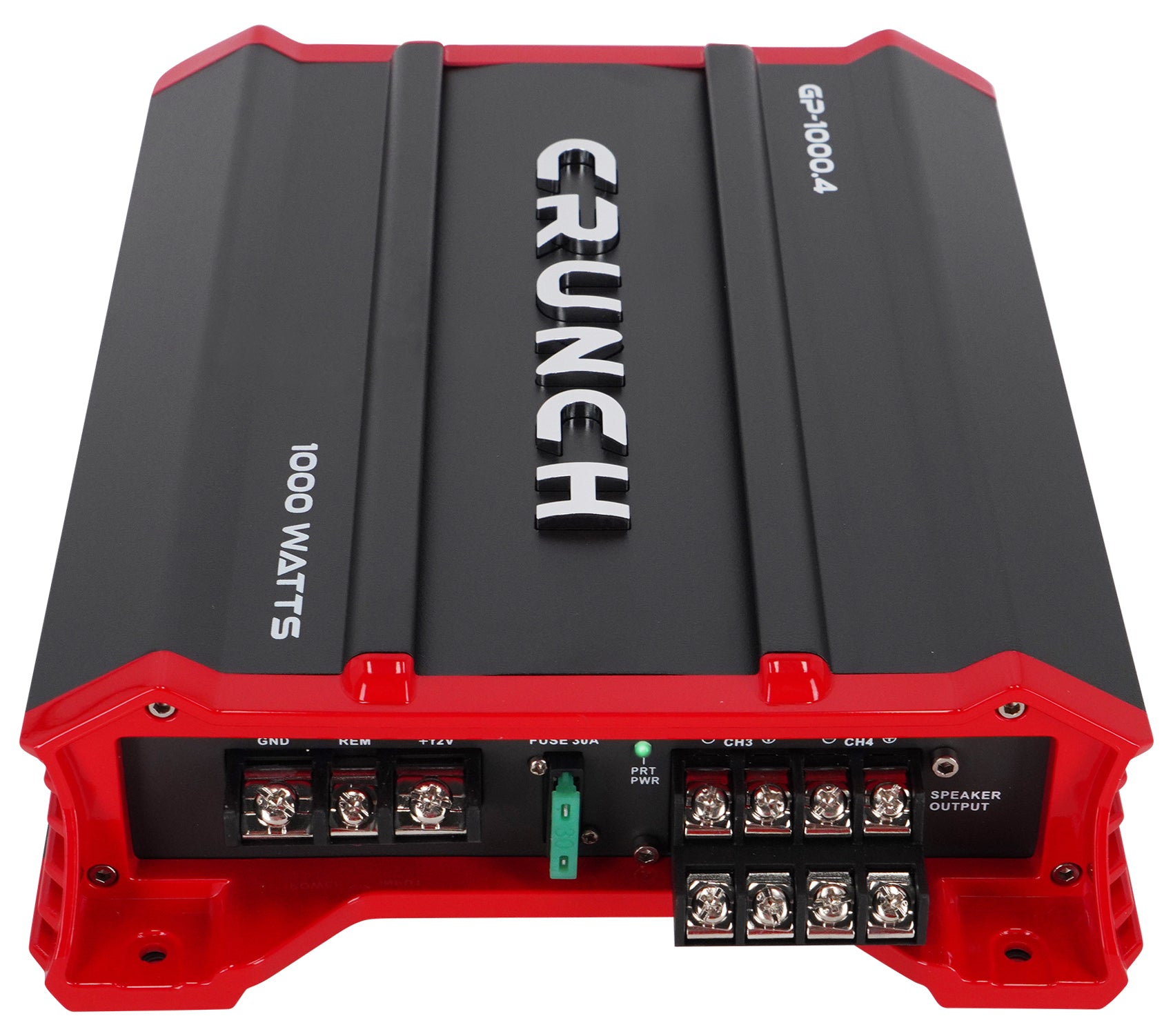

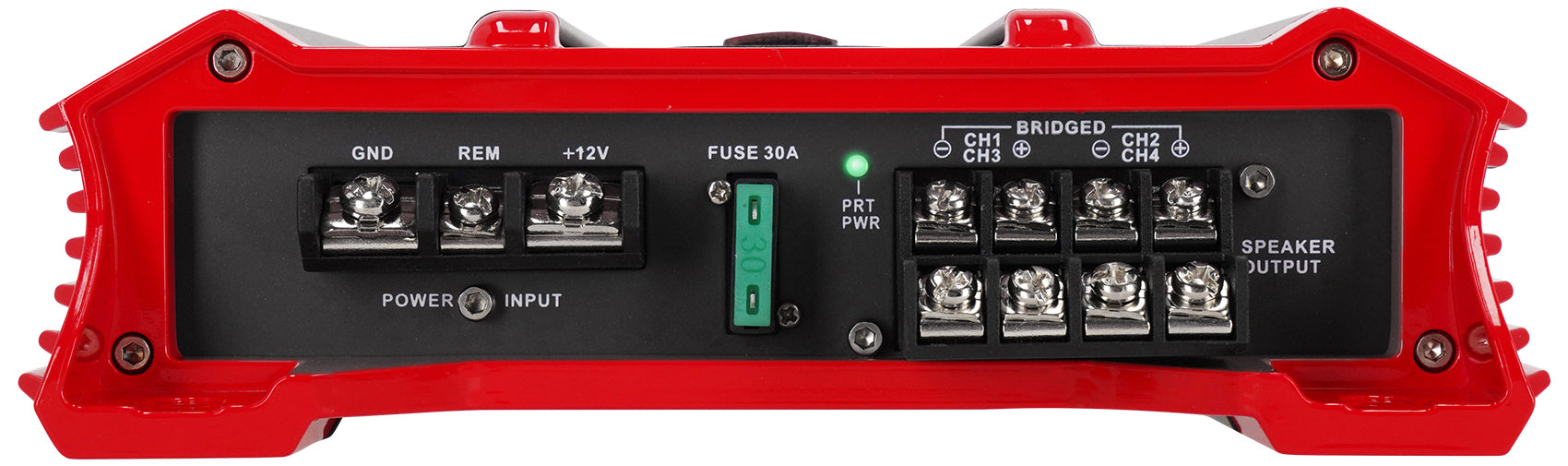

• Output Connections: Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
• Connection Type: Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.

Details & Specs:

• Weight: 6.25 lbs
• Dimensions: 10 × 8 × 2.375 in
• Color: Black/Red
• Model Replaced: PD-1000.4
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Class A/B
• Amp Total Channels: 4
• Amp Max Power (watts): 1000
• Amp Power @ 2 Ohms (ch x watts): 4 x 250
• Amp Power @ 4 Ohms (ch x watts): 4 x 125
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 500
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Tone Control / Parametric EQ: Built-in Bass Control
• Amp Bass Boost: Switchable: 0/+6/+12dB
• Amp Variable Voltage: 0.2-9V
• Amp Frequency Response: 10Hz-22kHz
• Amp Speaker Level Audio Inputs: Yes
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 30A
