Zapco HB 810 II 8AD 10-Channel DSP/8-Ch. Amplifier-4 Class AB/4 Class D Channels

Features and Functions:

The HB 810 II 8AD is a 10-Ch. DSP with 31-bands eq. and all the control features you need. The integrated 8-Ch. Class-AB + D Amp can deliver up to 4 x 35W (AB) + 4 x 100W (D) at 4Ω and 4 x 50W (AB) + 4 x 150W (D) at 2Ω. With the BT module and with the totally new customized APP you can now control and setup your system with your smartphone, and with the added Music Player you can now also navigate and listen to your favorite song. With the opt. Remote you can control the main and sub volume, select Presets and input Source, and switch to previous or next song with the Music Player, from your dashboard.

Technical Specifications:

• DSP Channels: 10

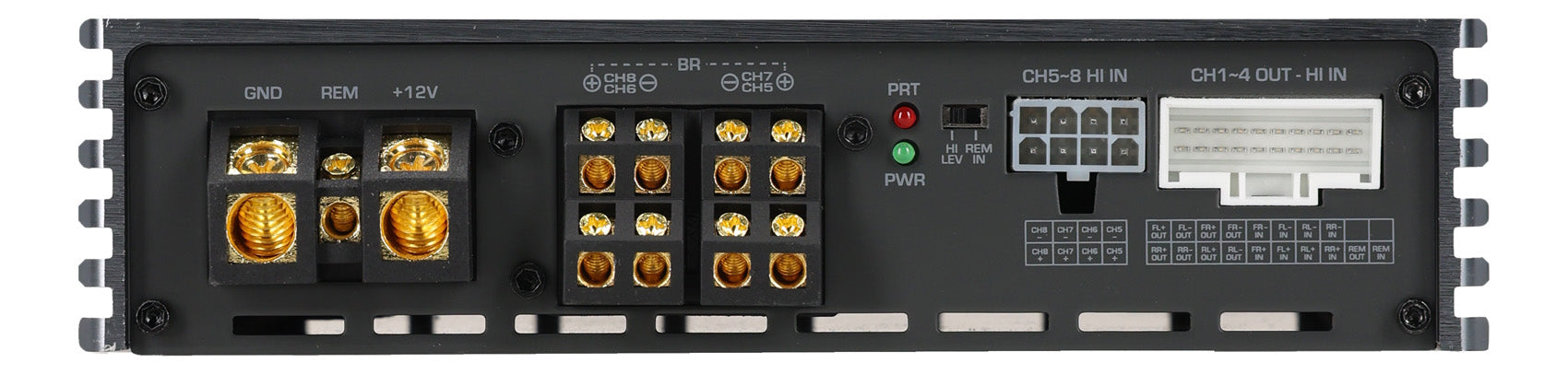

• High Level Inputs: 8-Channels

• RCA Inputs: 2-Channels

• RCA Outputs: 10-Channels

• RMS Power (4Ω): 4 x 35W (AB) + 4 x 100 (D)

• RMS Power (2Ω): 4 x 50W (AB) + 4 x 150 (D)

• MAX Power: 4 x 100W (AB) + 4 x 300 (D)

• RMS Power (4Ω, Br.): 2 x 300 (D)

• Amplifier Class: AB + D

• BT Streaming: Yes (ext. module)

• Music Player: Yes (App)

• DSP Tools: PC and APP

• DSP Equalizer: 31-Bands

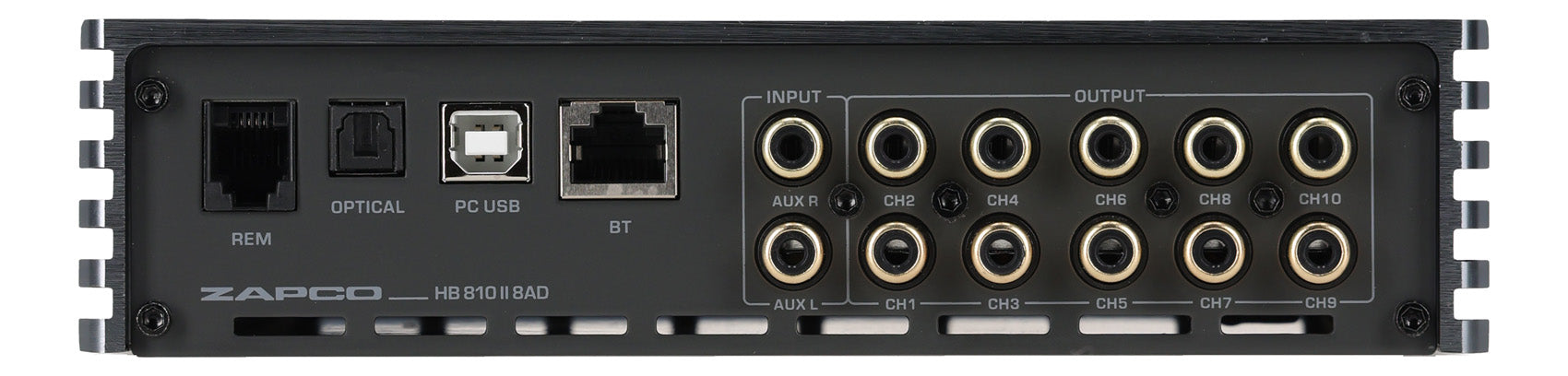

• Input Choice: Aux, BT, Hi-Lev, Player, OTG, Optical

• I/O Mixing Matrix: Yes

• Crossover Type: Butterw., Bessel, Linkwitz-Riley

• Crossover Slope: 6 ~ 48 dB/Oct.

• Freq. Response: 20Hz - 20KHz

• S/N Ratio: > 100dB

• THD: < 0.05%

• Supply Voltage: 12V -14.4V

• Input Impedance:

  • 20 KOhm (Low)

  • 22 Ohm (High)

• Signal I/O Range:

  • RCA Output 3Vpp (Ch. 1/8)

  • RCA Output 9Vpp (Ch. 9/10)

  • High-Lev. 12Vpp (Ch. 1/4)

  • High-Lev. 26Vpp (Ch. 5/8)

• Power Supply Cons.: DC 9V-16V < 0.1W

• Unit Dim. (mm):

  • 190 (L)

  • 166 (W)

  • 45.5 (H)
