Power Acoustik MOFO1-6KD 6000 Watt Mono Amplifier 1-Ohm Class D Car Audio Amp

Description:

Power Acoustik MOFO1‑6KD – 6000W Class D 1‑Ohm Stable Monoblock Amplifier

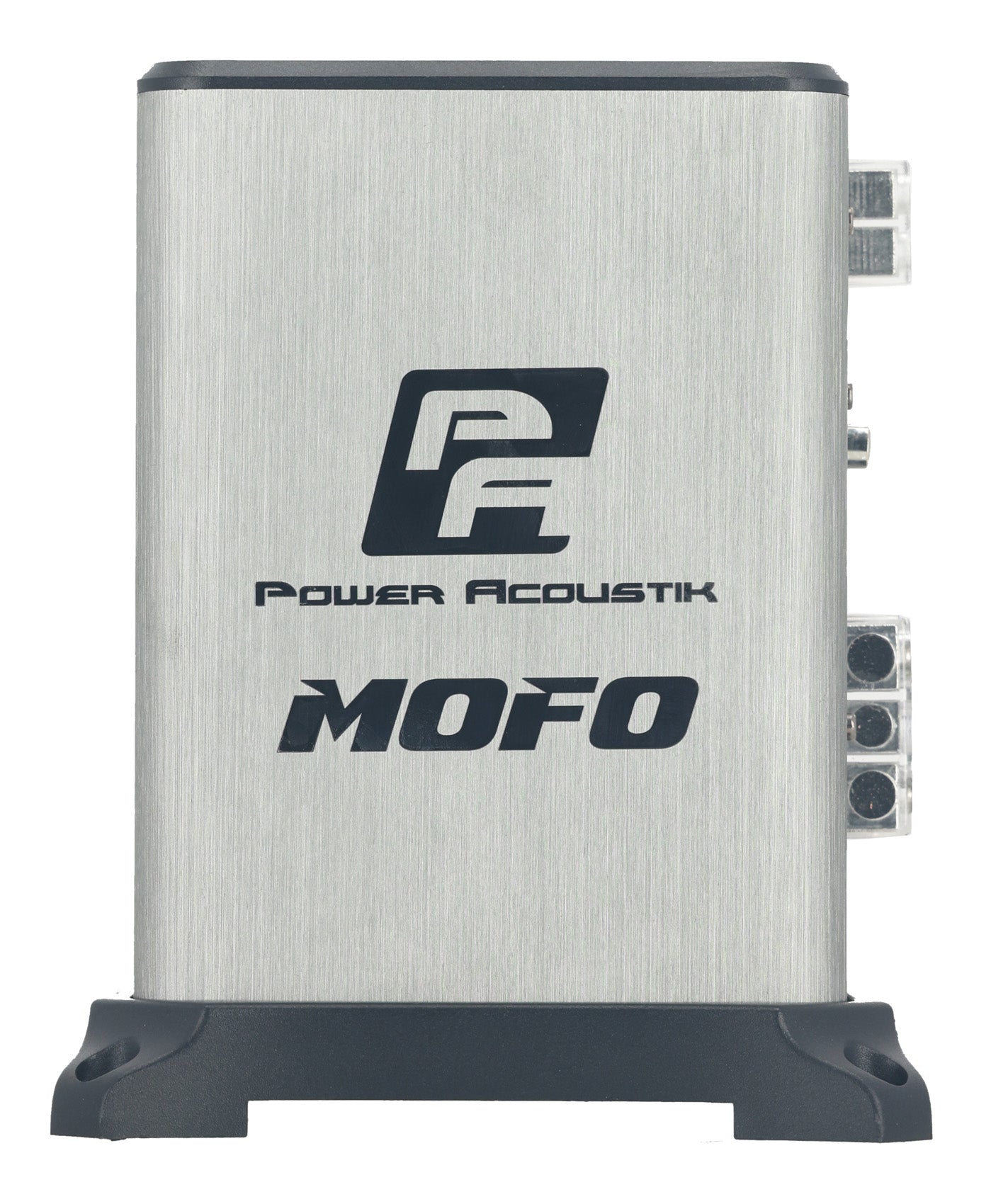

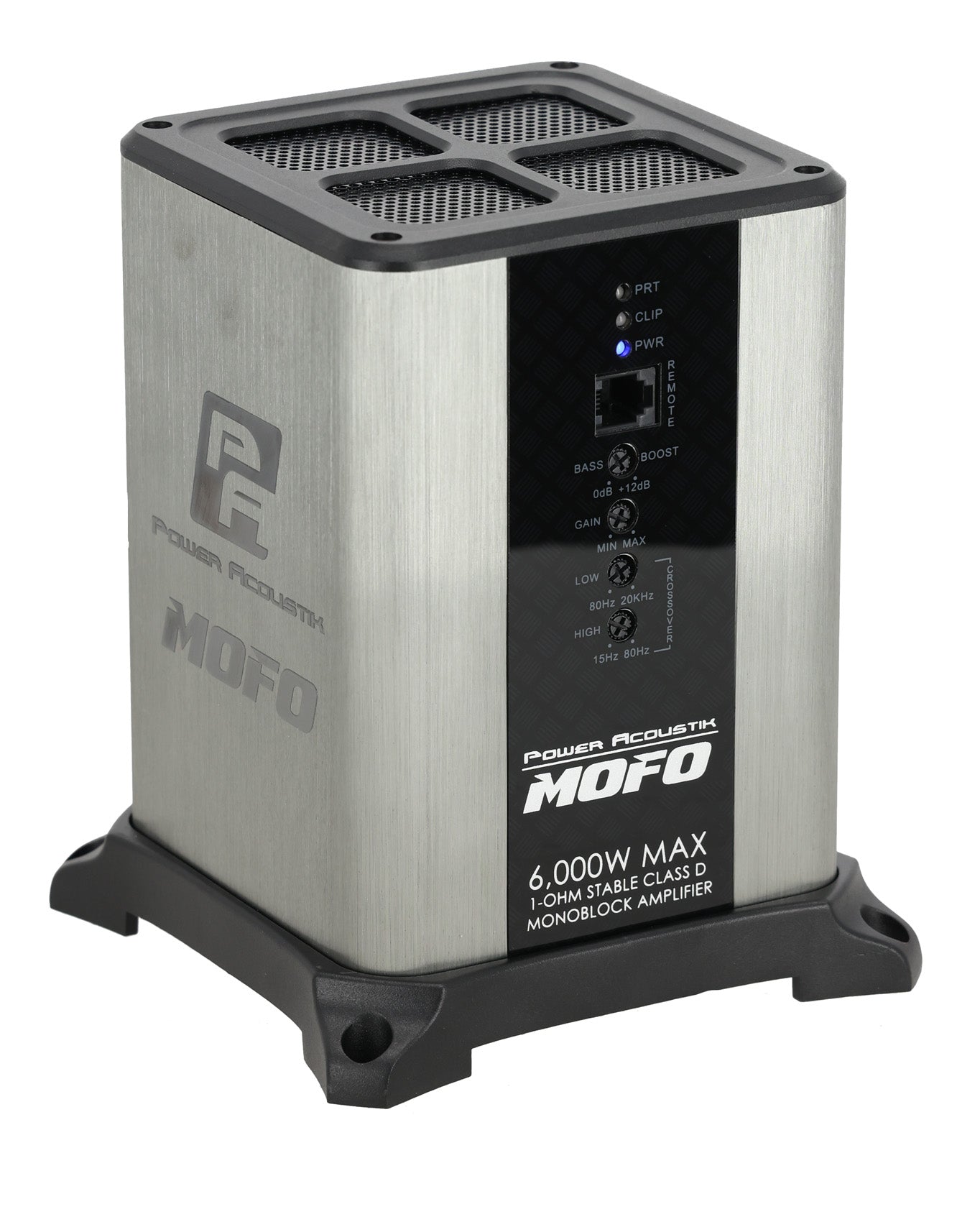

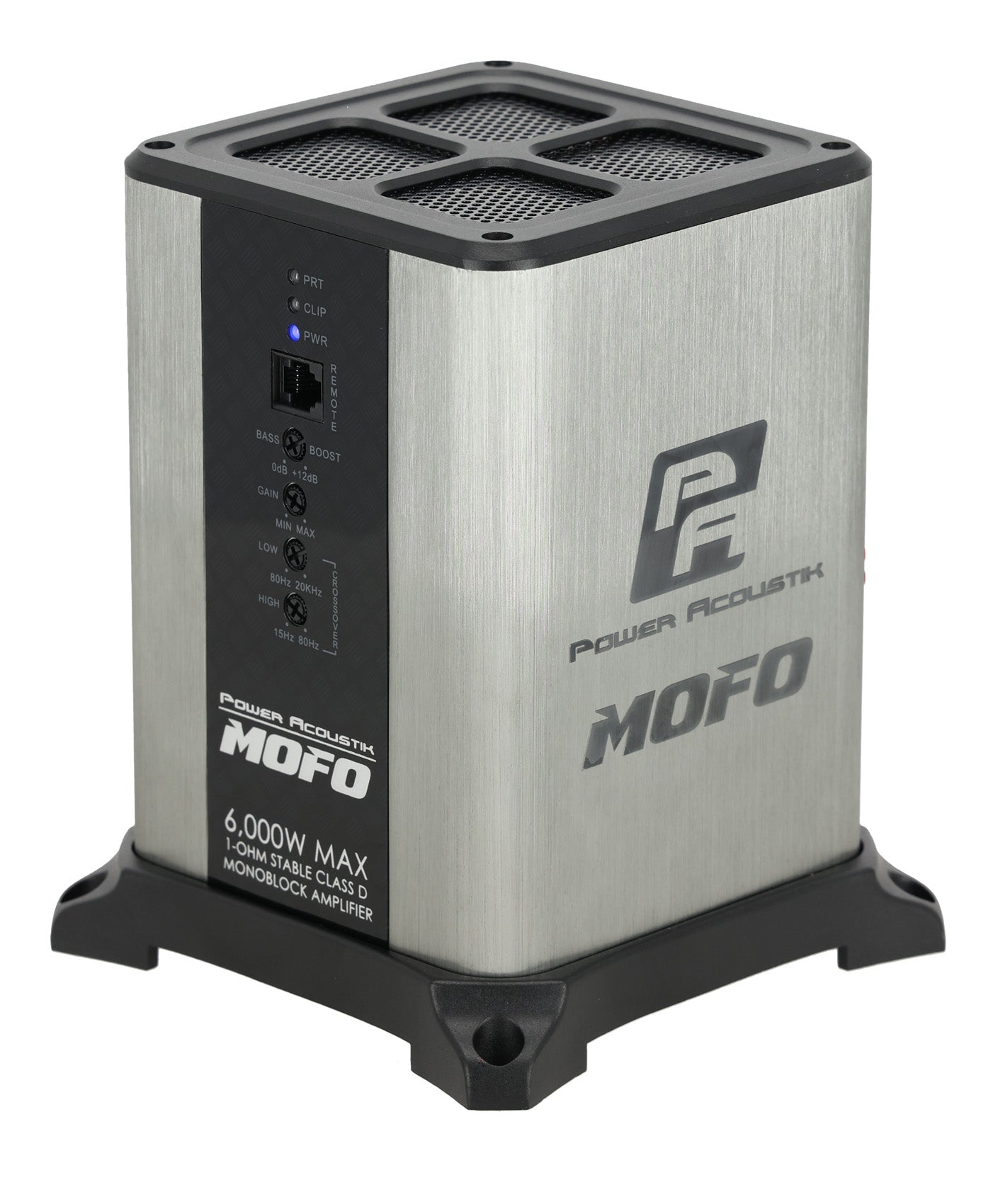

The Power Acoustik MOFO1‑6KD is built for serious power and bold installations. This amplifier breaks away from dated, horizontal chassis conventions with a vertical, tower-mounted design, built around a compact 5″ × 5″ footprint and secured by a die-cast aluminum pedestal. Whether floor-mounted in a trunk or bolted to a panel using the included bracket, the MOFO1‑6KD adapts to tight spaces without sacrificing output.

Design That Defies Convention

• Most car amplifiers adhere to a standard format. The MOFO series doesn't. Its upright 4-leg chassis not only minimizes mounting space but also introduces a modular look ideal for performance builds, custom panels, or compact installations where horizontal space is at a premium.

  • Die-cast aluminum vertical pedestal
  • Includes wall-mount bracket for flexible positioning
  • 5.75″ (L) × 5.75″ (W) × 7″ (H) – tower form factor

Power Ratings & Efficiency

• Backed by a high-current power supply and efficient Class D output topology, the MOFO1‑6KD delivers uncompromising performance for demanding subwoofer setups.

  • Peak Power: 6000 Watts
  • RMS Output:

    • 2500W @ 1Ω
    • 1700W @ 2Ω
    • 1100W @ 4Ω
  • 1‑Ohm Stable: Runs cool and clean even under low-impedance loads
  • This amplifier is engineered for subs that demand serious current—and for listeners who don't settle for weak bass or underpowered setups.

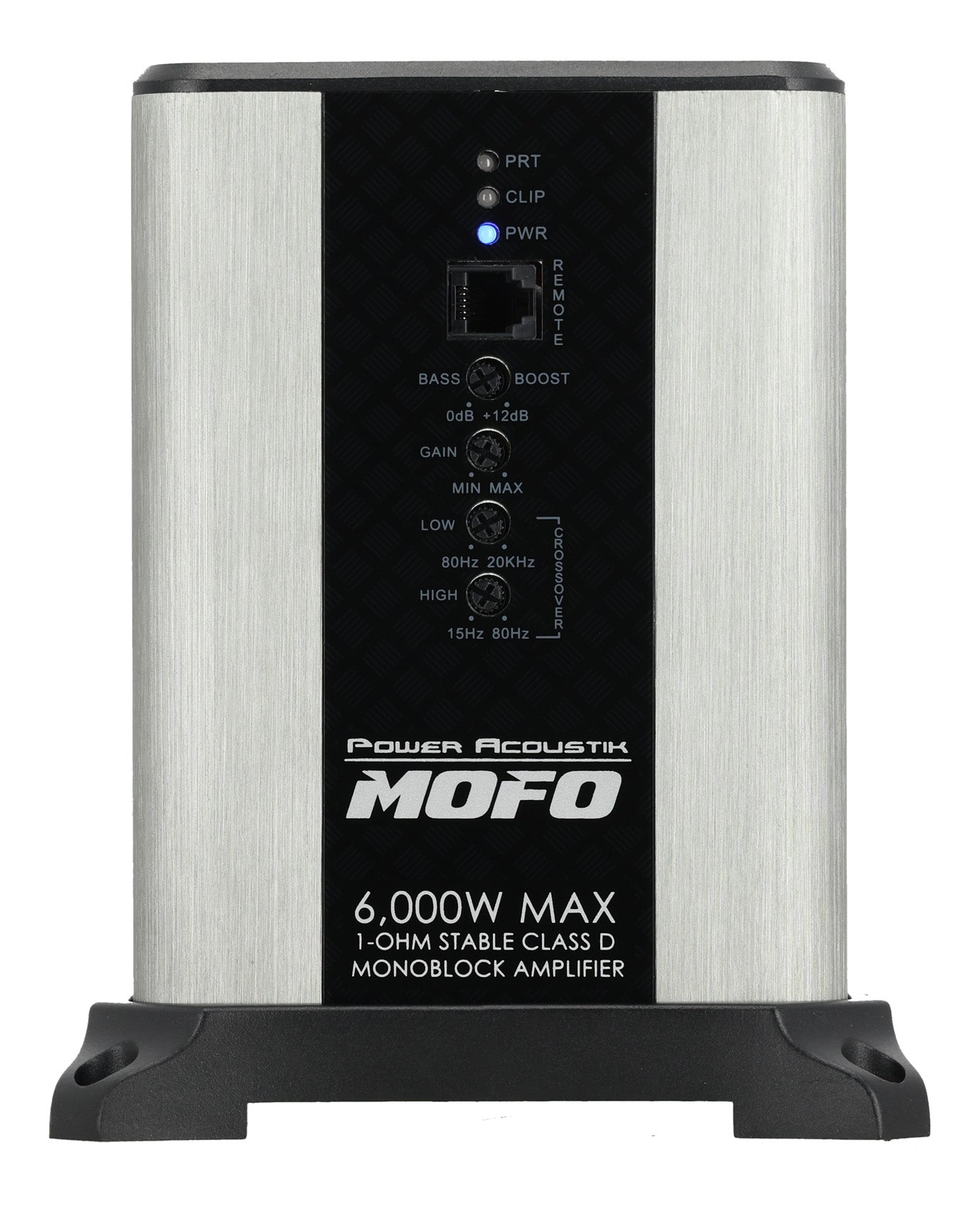

Tuning & Audio Control

• Precision tuning is built in. Whether you’re pairing with a MOFO sub or another high-SPL driver, the MOFO1‑6KD gives you complete control over your output curve:

  • Variable Low-Pass Filter: 80Hz–20kHz
  • Variable Subsonic Filter: 15Hz–80Hz
  • Selectable Bass Boost: 0–12dB @ 45Hz
  • RCA input sensitivity: 200mV–6V
  • Remote gain controller included

Protection Circuitry

• The amplifier includes intelligent protection circuits designed to prevent failure during extreme use:

  • Short circuit protection
  • Thermal overload shutdown
  • Clipping indicator light
  • Stable at 1 ohm under continuous load

Installation-Ready

• Supports 4-gauge power and ground connections
• Includes 0-gauge adapter
• Remote bass level control included

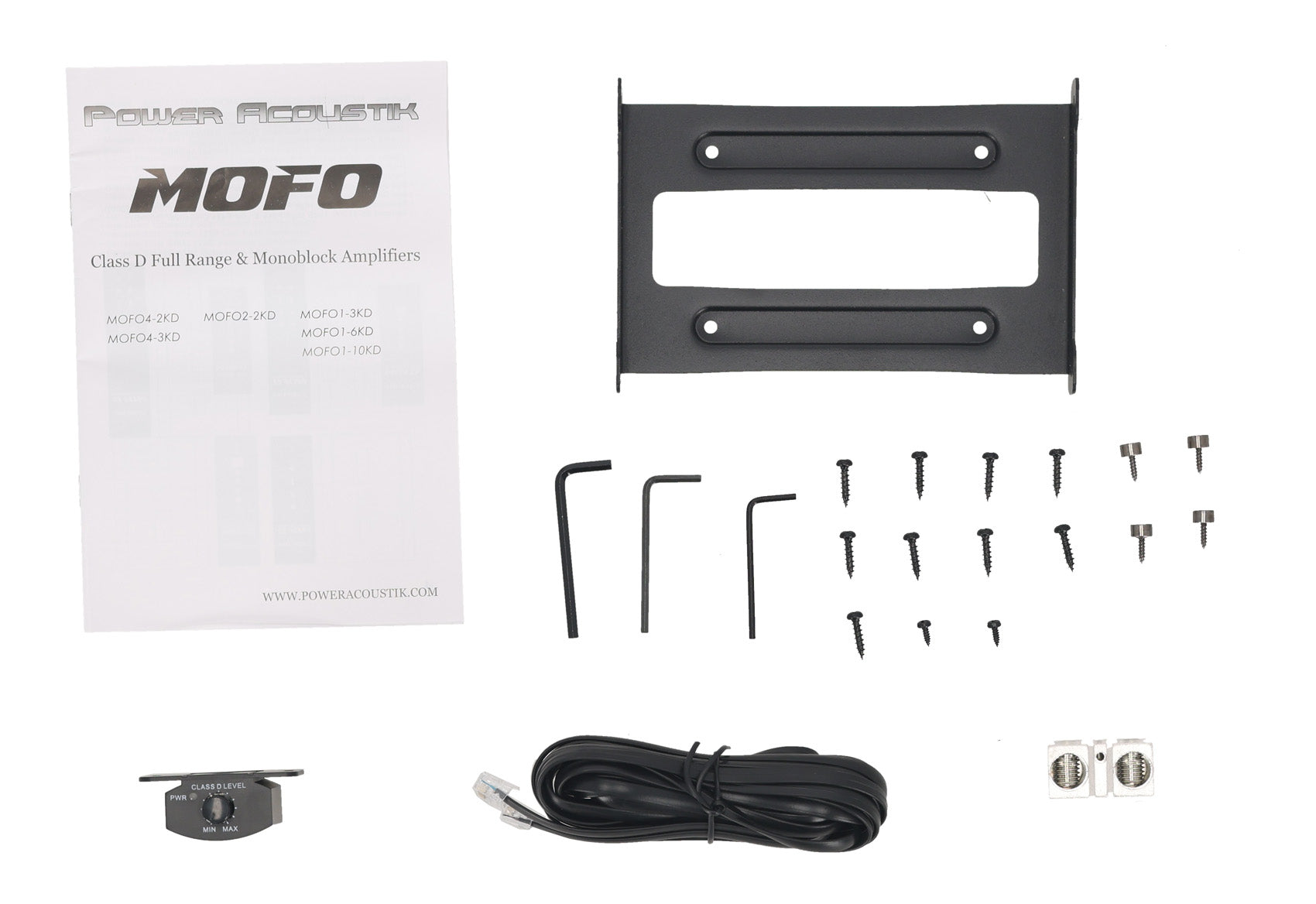

• Mounting bracket and hardware included

Features:

• MOFO Series Monoblock Class D Car Amplifier
• Max Power (Watts): 6000 Watts
• RMS Power @ 4Ω: 1100w x 1
• RMS Power @ 2Ω: 1700w x 1
• RMS Power @ 1Ω: 2500w x 1
• MOFO Standard Features:

  • 5” Square Monolith Chassis Design for Installation Versatility
  • Die-cast Aluminum 4-leg Pedestal for Vertical Installation
  • Mounting Bracket for Wall or Horizontal Mounting Included
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • On-board Protection Mode & Signal Clipping Indicators
  • 1-ohm Stability Accommodates Various Speaker Configurations
  • 200mv-6V Low Level RCA Input Accepts Balanced Signal
  • Variable 12dB High Pass/Subsonic & Low Pass Crossovers
  • Variable 0-12dB 45Hz Bass Boost Increases Bass Harmonics

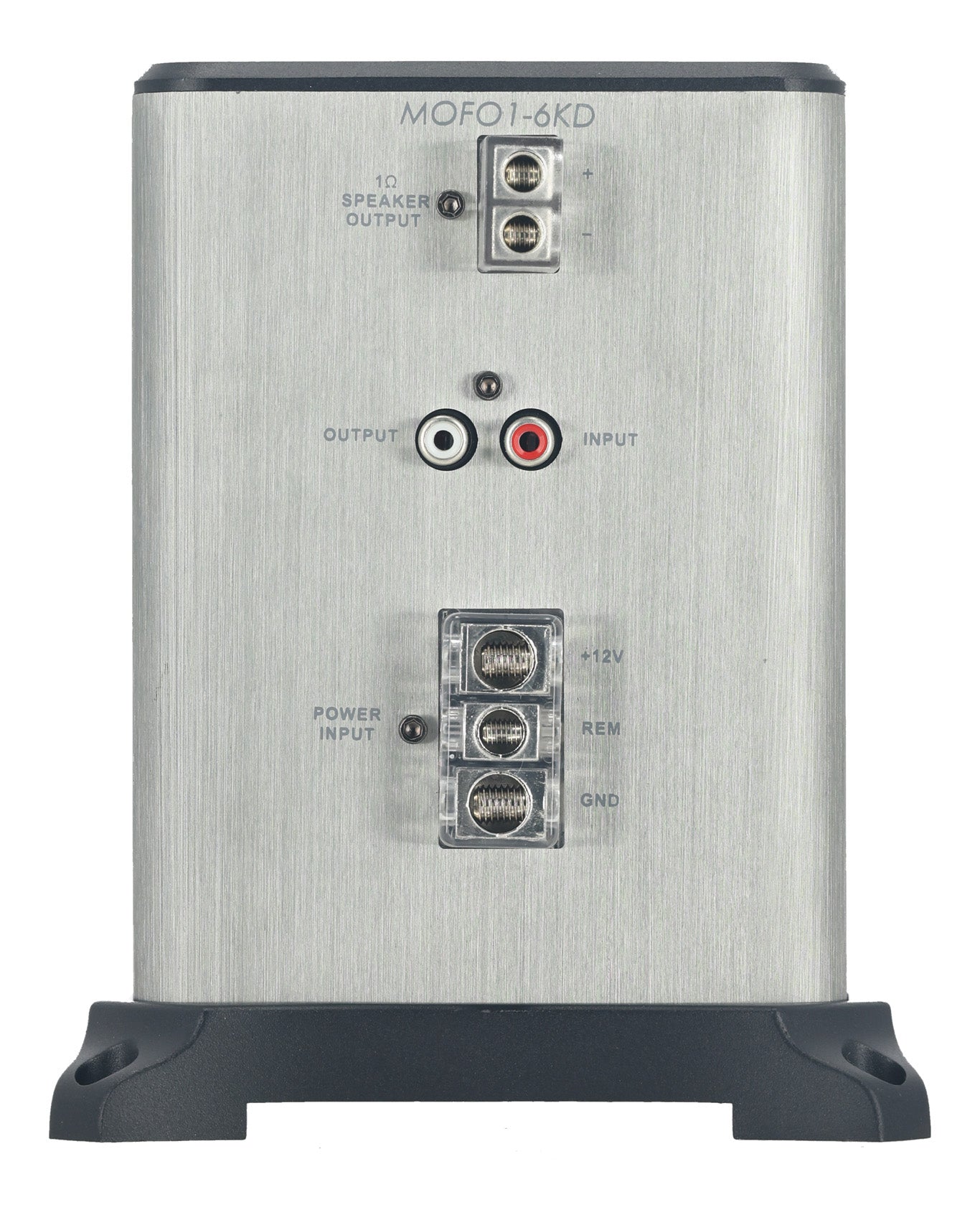

  • 4ga Power/Ground Wire Terminals, 0ga Adapter Included
  • 8ga Direct Connect Speaker Output Wire Terminals

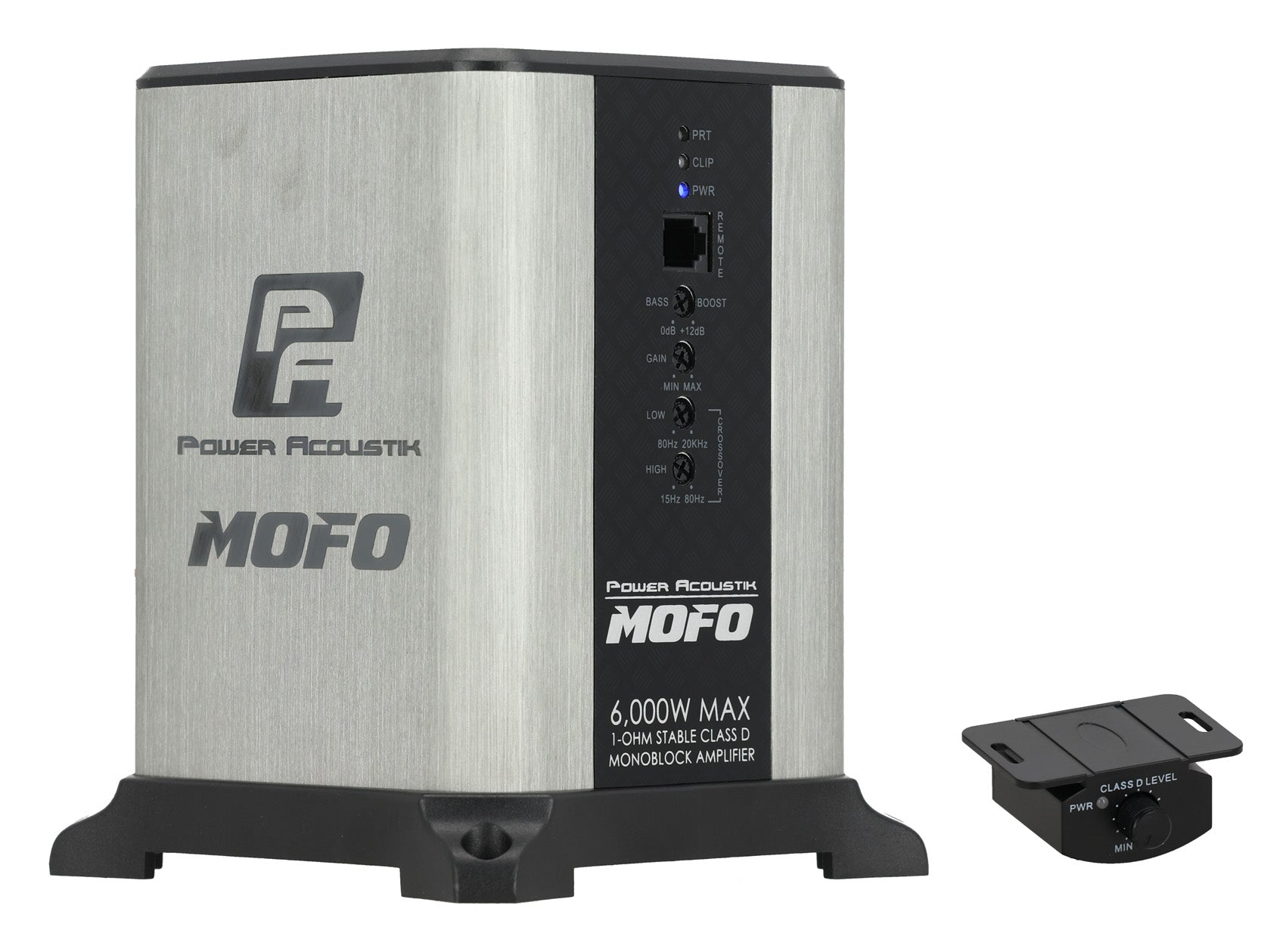

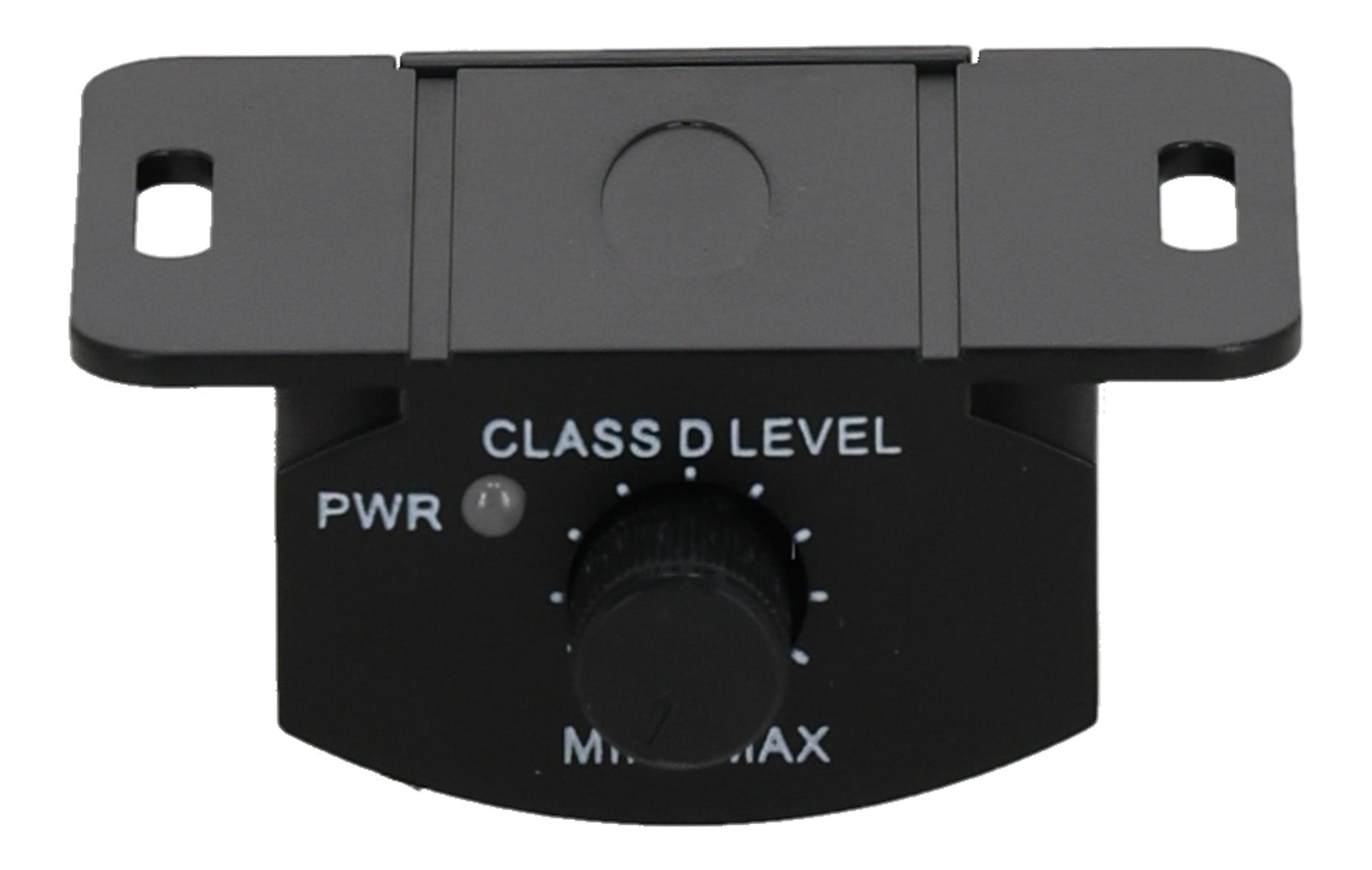

  • Dash-Mount Remote Level Control Included
• MOFO1-6KD Details:

  • 1,100w x 1 @ 4 ohm
  • 1,700w x 1 @ 2 ohm
  • 2,500w x 1 @ 1ohm
  • 6,000w MAX Power
  • 80Hz-20kHz Low Pass Crossover
  • 15-80Hz Hi Pass/Subsonic Crossover
  • 0-12dB Variable 45Hz Bass Boost
  • Dimensions: 5.75” sq. x 7.00”h
