American DJ PIXIE DRIVER 8000 V2 Lighting Controller for Pixie Strip 30/60/120

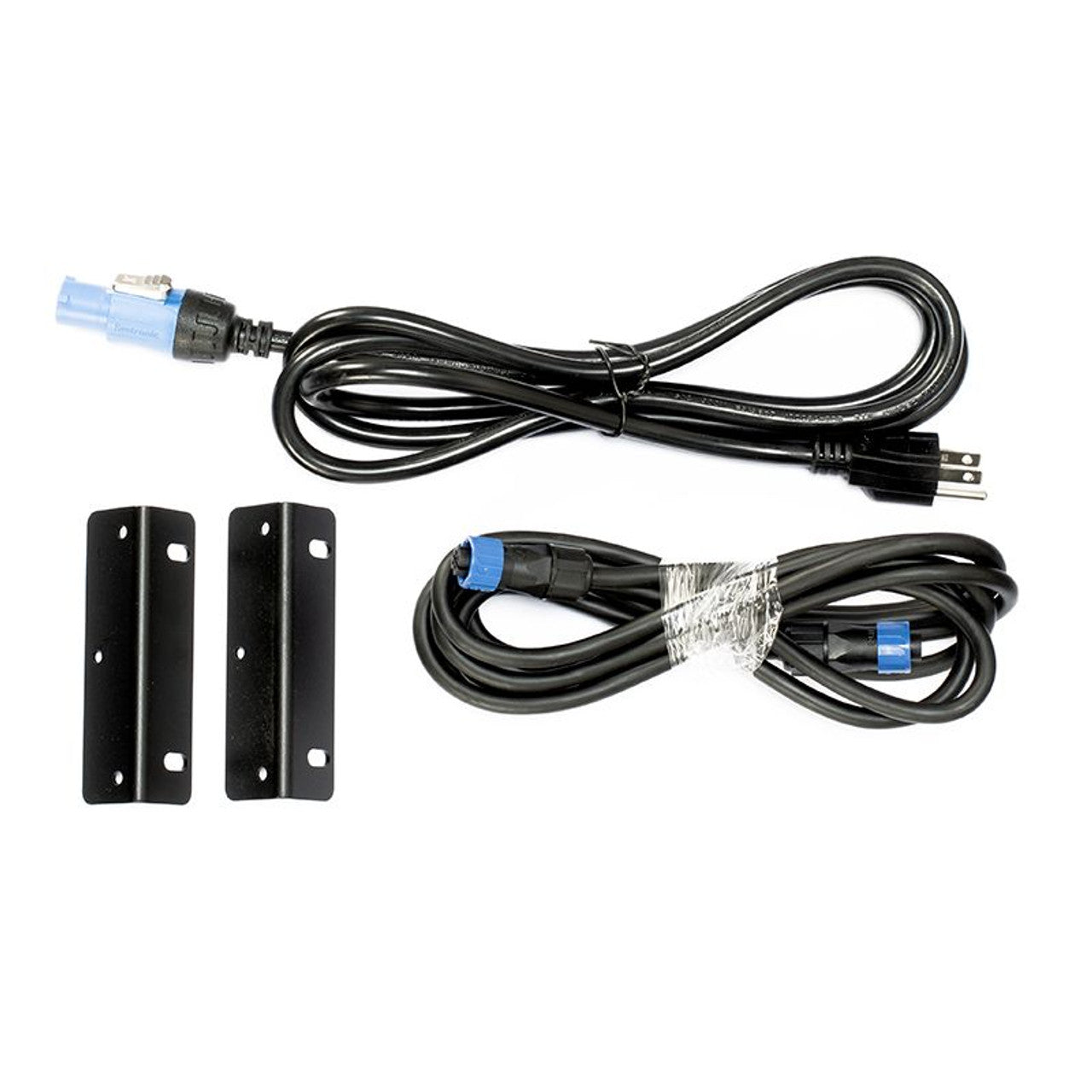

Includes:

• (1) 10ft 4-pin Cable.
• (1) Power Input Cable
• (2) 19" Rack Ears

Description:

ADJ's Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.

Specifications:

Control Features:

• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via KlingNet, ArtNet and sACN (1,020 Pixels per port)

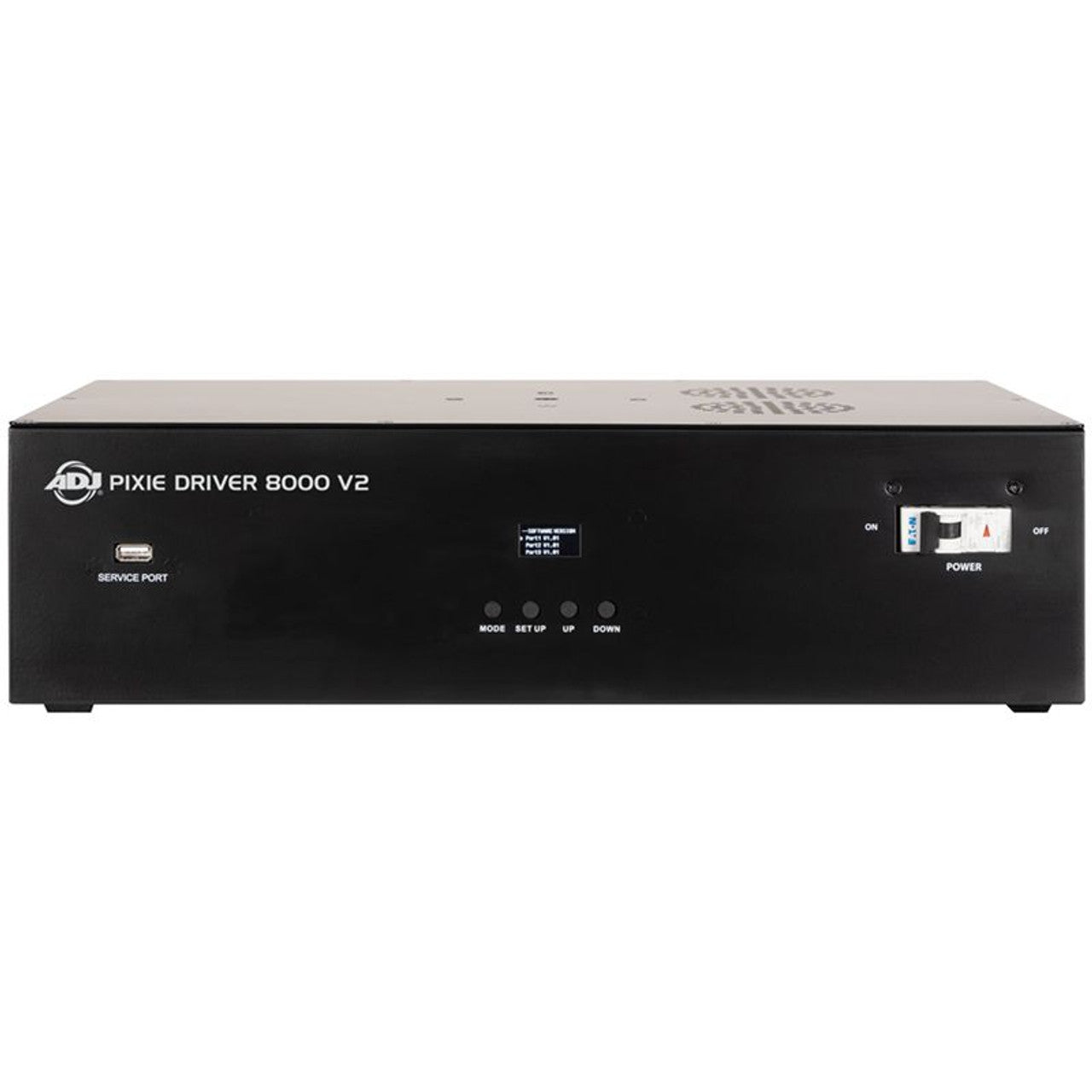

• OLED screen with 4-button menu
• USB port for Firmware Updates

Control Quantity:

• KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's (8) Pixie Strip 120's or (17) Pixie Curve 60's (Per port. Or any combination not exceeding 1,020 pixel per port)
• ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)
• sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)

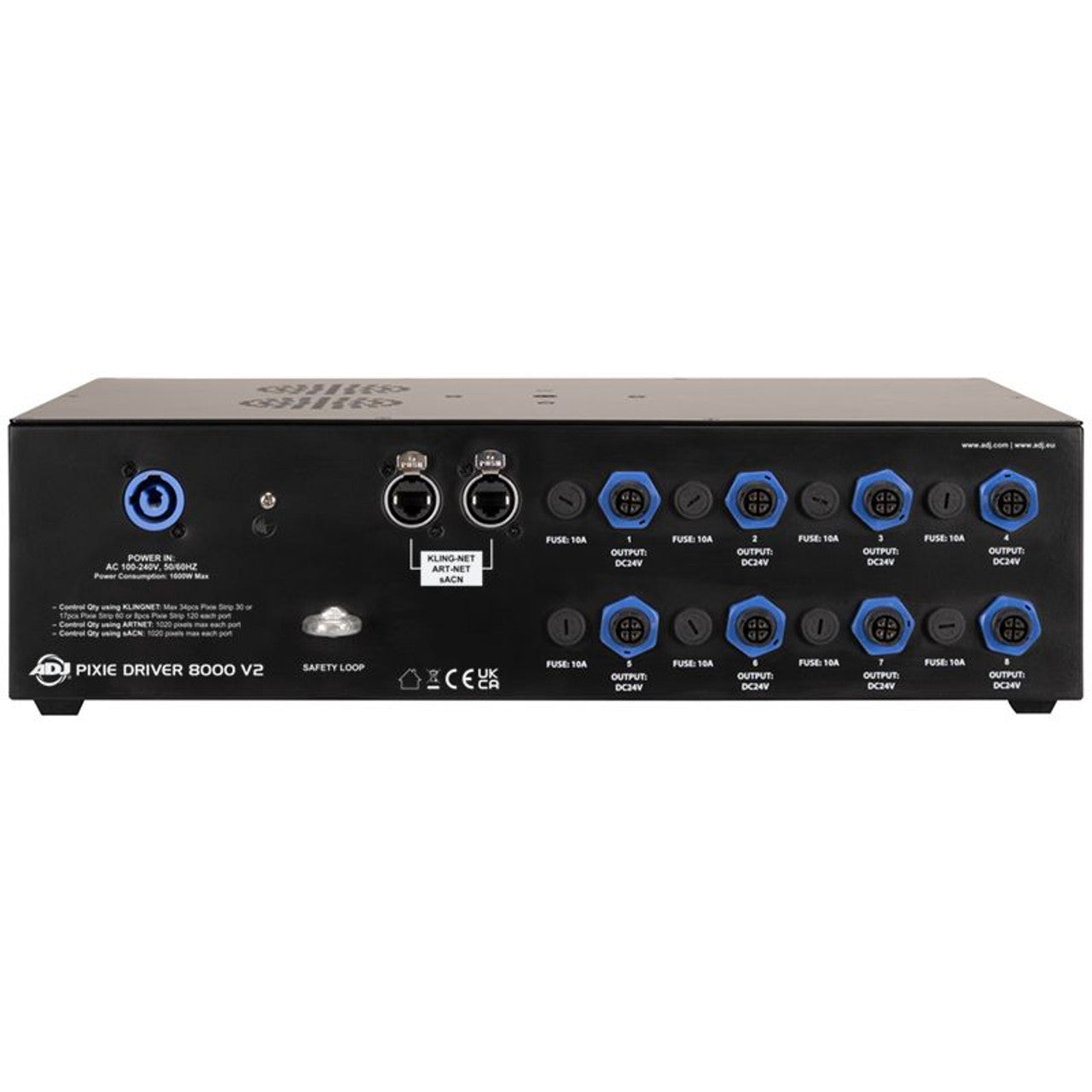

Connections:

• Power: PowerLock Input
• Two locking RJ45 ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:

• Multi-voltage Operation: AC 100-240V, 50/60Hz
• Power Consumption: 1,600W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
• Weight: 13.4 lbs. / 6.1 kg.

Approvals:

• CE | cETLus (Pending)

Accessories Sold Separately:

• PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
• PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
