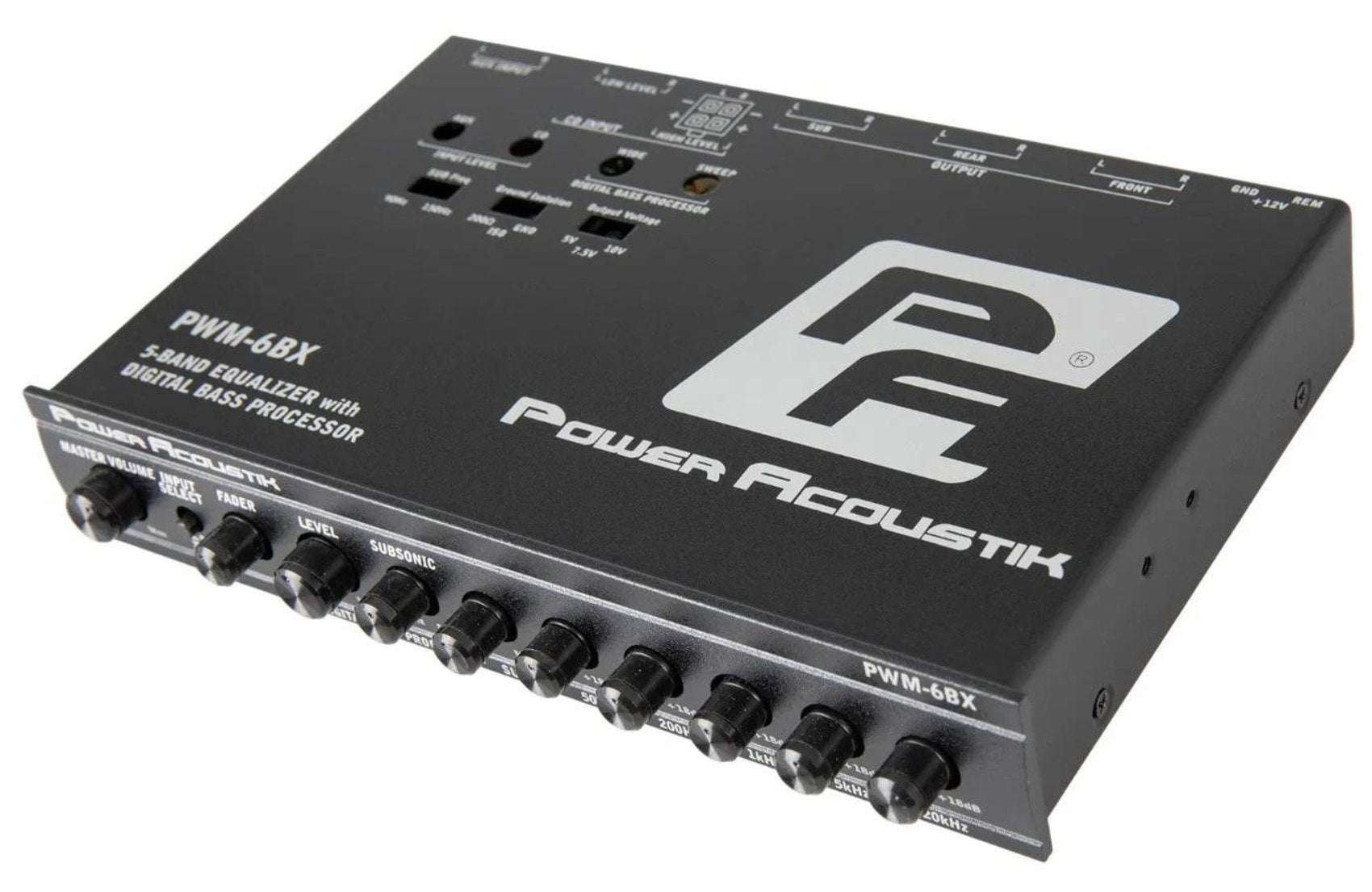

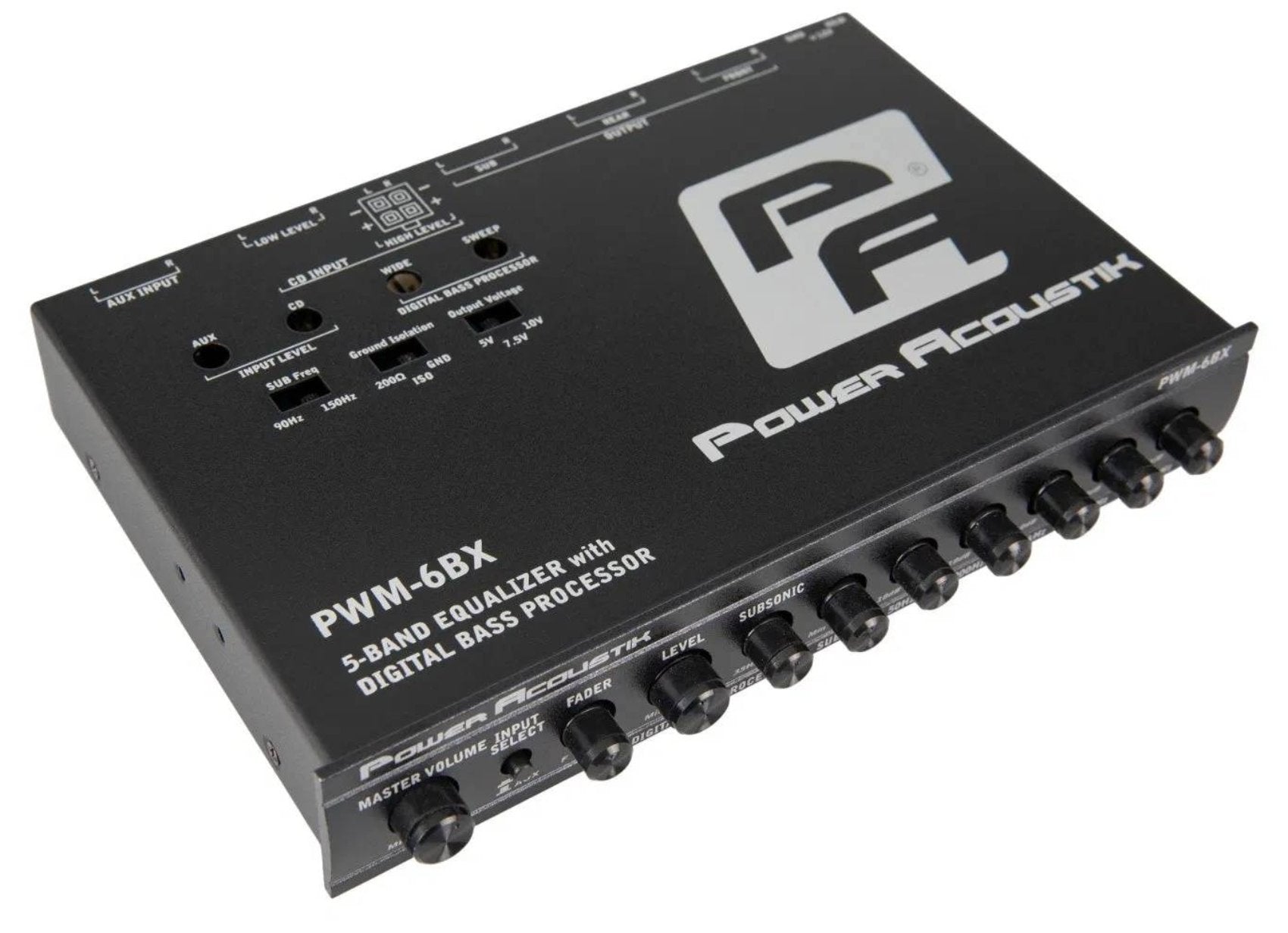

Power Acoustik PWM-6BX Equalizer w/Bass Processor 5-Band Car Audio EQ

Description:

The Power Acoustik PWM-6BX is a digital bass processor designed to maximize subwoofer performance. With multiple inputs, ParaBASS low-frequency contouring, and wide parametric bass control, this processor restores and enhances bass for a fuller, more impactful sound.

Elevate your audio experience with the Power Acoustik PWM-6BX Bass Restoration Processor. Built for enthusiasts who want maximum bass impact, the PWM-6BX uses advanced digital processing to restore low frequencies often lost in today’s compressed music formats — giving your system the punch it deserves.

Equipped with multiple input options (AUX/Low/High), the PWM-6BX integrates seamlessly into a variety of systems. Its ParaBASS low-frequency contouring allows precise shaping of bass response, while the wide and sweep parametric bass control lets you target and boost the exact frequencies you want. Add in subwoofer level control and the Bass Maximizer effect, and you gain complete authority over how your low end sounds and feels.

With a powerful 20dB pre-amp gain and three preamp outputs (6 channels), the PWM-6BX ensures your amplifiers receive a strong, clean signal. Delivering up to 7V RMS / 12V peak output, this processor keeps distortion low with an impressive 0.01% THD, 110dB signal-to-noise ratio, and 20Hz–20kHz frequency response. Adjustable equalizer bands (50Hz, 200Hz, 1kHz, 5kHz, 20kHz) and subsonic filtering (35–80Hz) allow for extensive system tuning with ±18dB cut/boost flexibility.

Compact and efficient, the PWM-6BX features a high-headroom PWM switching power supply, drawing just 250mA of current. Measuring 7”W x 5.1”D x 1.2”H, it installs easily while delivering professional-grade sound processing. Unlock the hidden depth in your music and redefine your bass with the PWM-6BX.

Features:

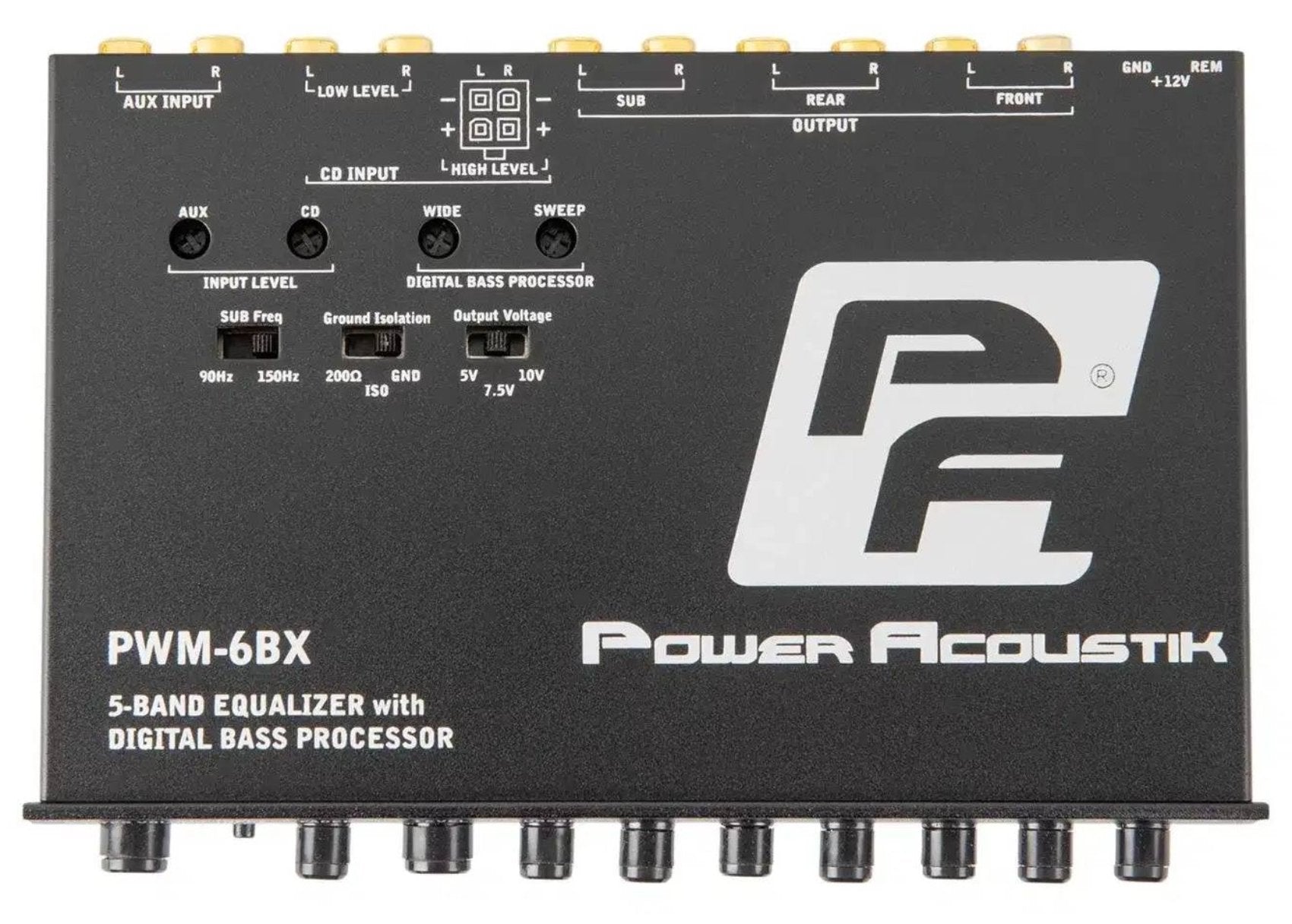

• Multiple Inputs – AUX, low-level RCA, and high-level speaker inputs for flexible integration

• ParaBASS Low-Frequency Contouring – precisely shape and enhance bass response

• 20dB Pre-Amp Gain – delivers a strong, clean signal to your amplifiers

• Wide & Sweep Parametric Bass Control – fine-tune target frequencies for optimal sound

• Dedicated Subwoofer Level Control – adjust bass output independently of main volume

• Bass Maximizer Effect Control – restore and enhance low-frequency harmonics

• Digital Bass Processing – advanced circuitry for accurate, impactful sound


Specifications:

Inputs:

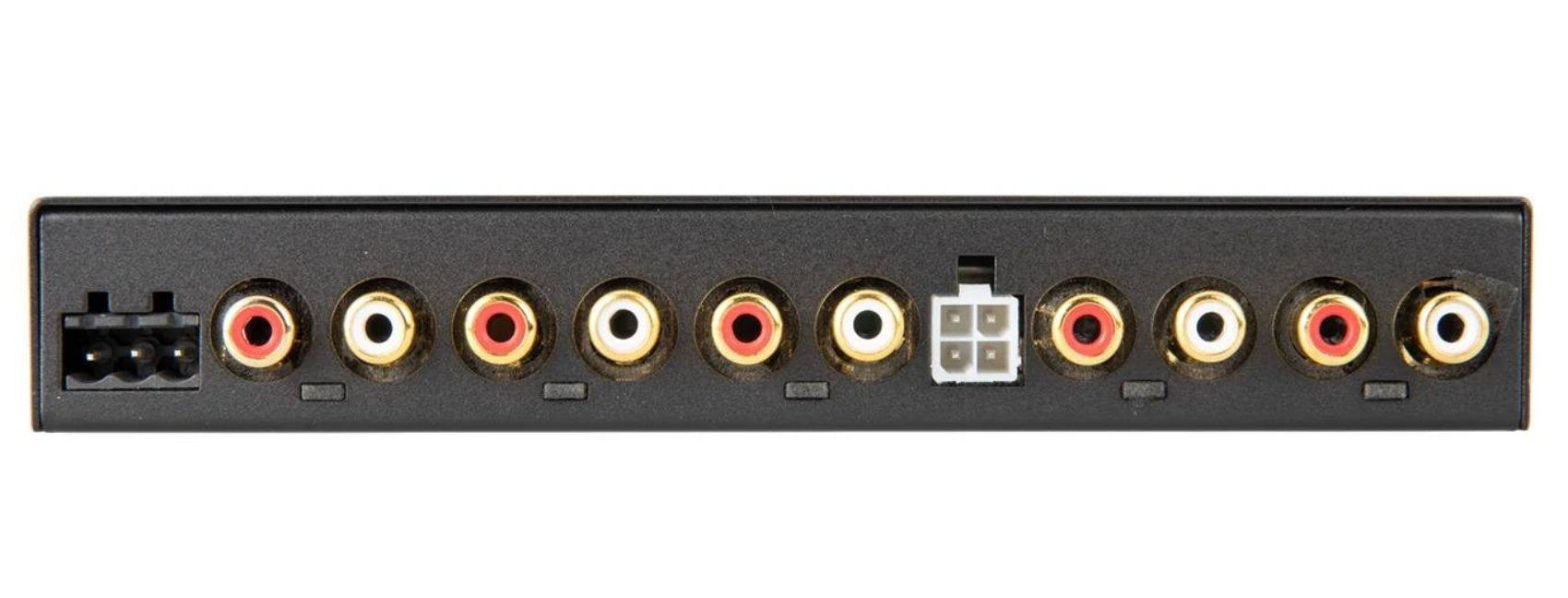

• Inputs: 3 (AUX/Low/High)

• Input Impedance: 20kΩ/60Ω(High Input)


Outputs:

• Preamp Outputs: 3 (6 channels)

• Maximum Output Level: 7V RMS/12V Peak

• Output Impedance: 150Ω


Performance:

• Total Harmonic Distortion: 0.01%

• Frequency Response: 20Hz-20kHz

• Signal to Noise: 110dB

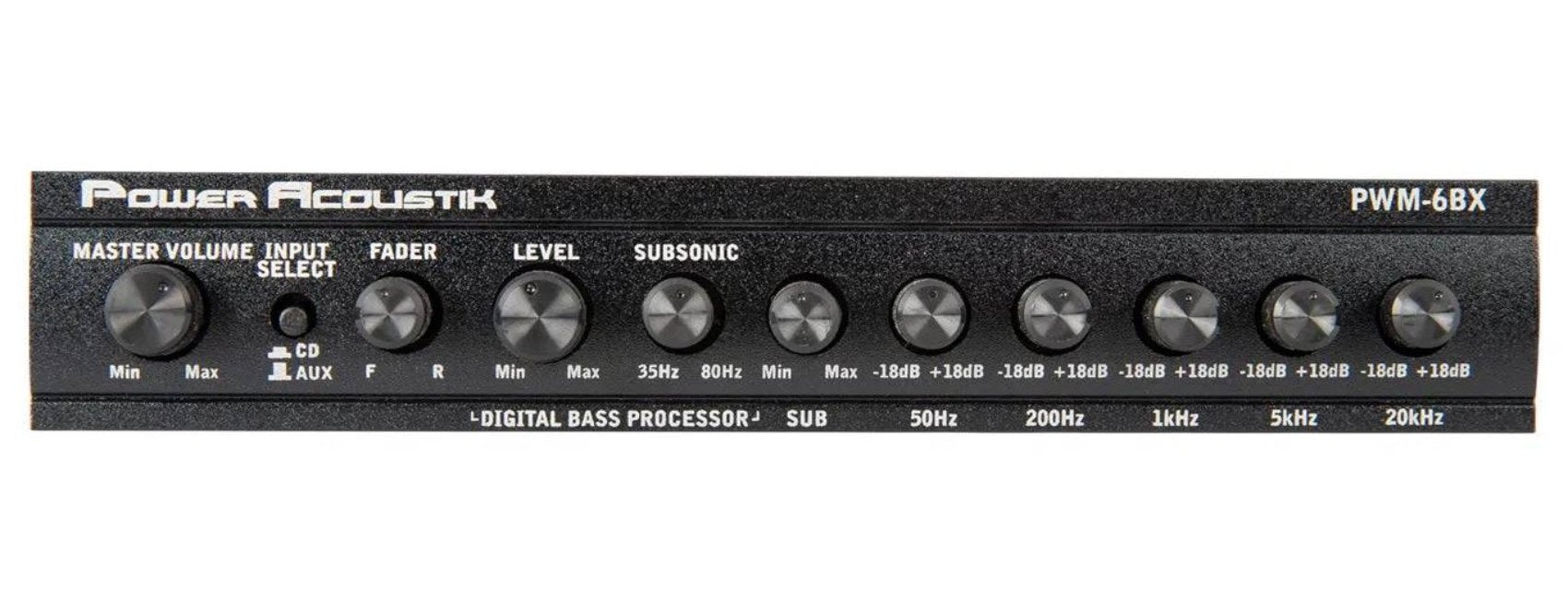

• Equalizer Frequencies:  50Hz, 200Hz, 1KHz, 5KHz, 20KHz

• Subsonic Frequencies: 35-80Hz

• Equalization Cut/Boost: ±18dB


General:

• Power Supply: High Headroom

• PWM Switching

• Current Draw: 250mA

• Recommended Fuse Rating: 1A

• Dimensions: 7”W x 5.1”D x 1.2”H
