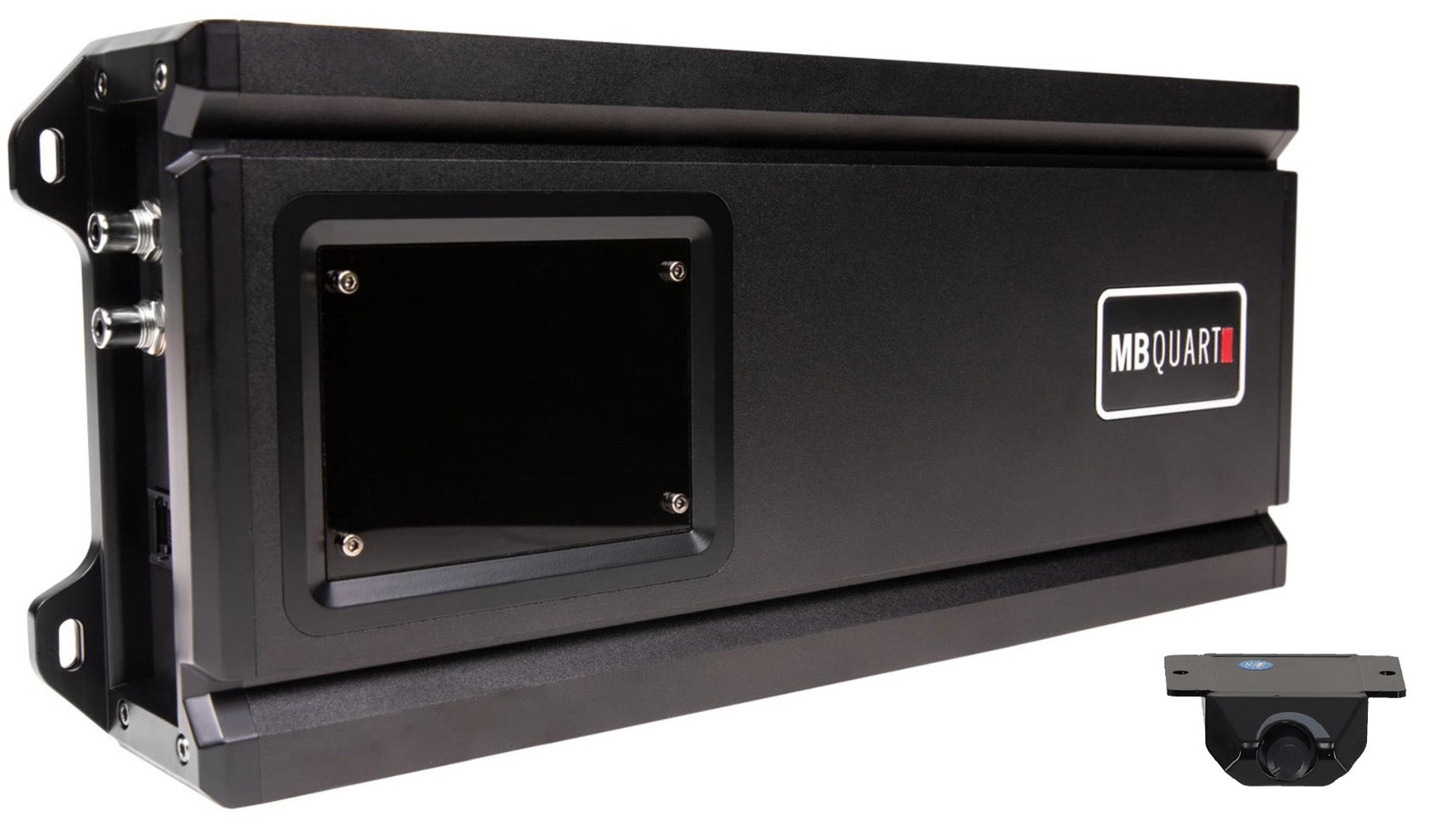

MB Quart RA1-1500.1 1500 Watt Mono Amplifier Class D Car Audio Amp+Bass Remote

Description:

MB Quart Reference series mono subwoofer car audio amplifier featuring innovative sound quality and power technology. The RA1-1500.1 is a 1500 watt 1 ohm stable car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Bass remote is included.

Features & Benefits:

• Low Noise Preamplifier Circuit

  • Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

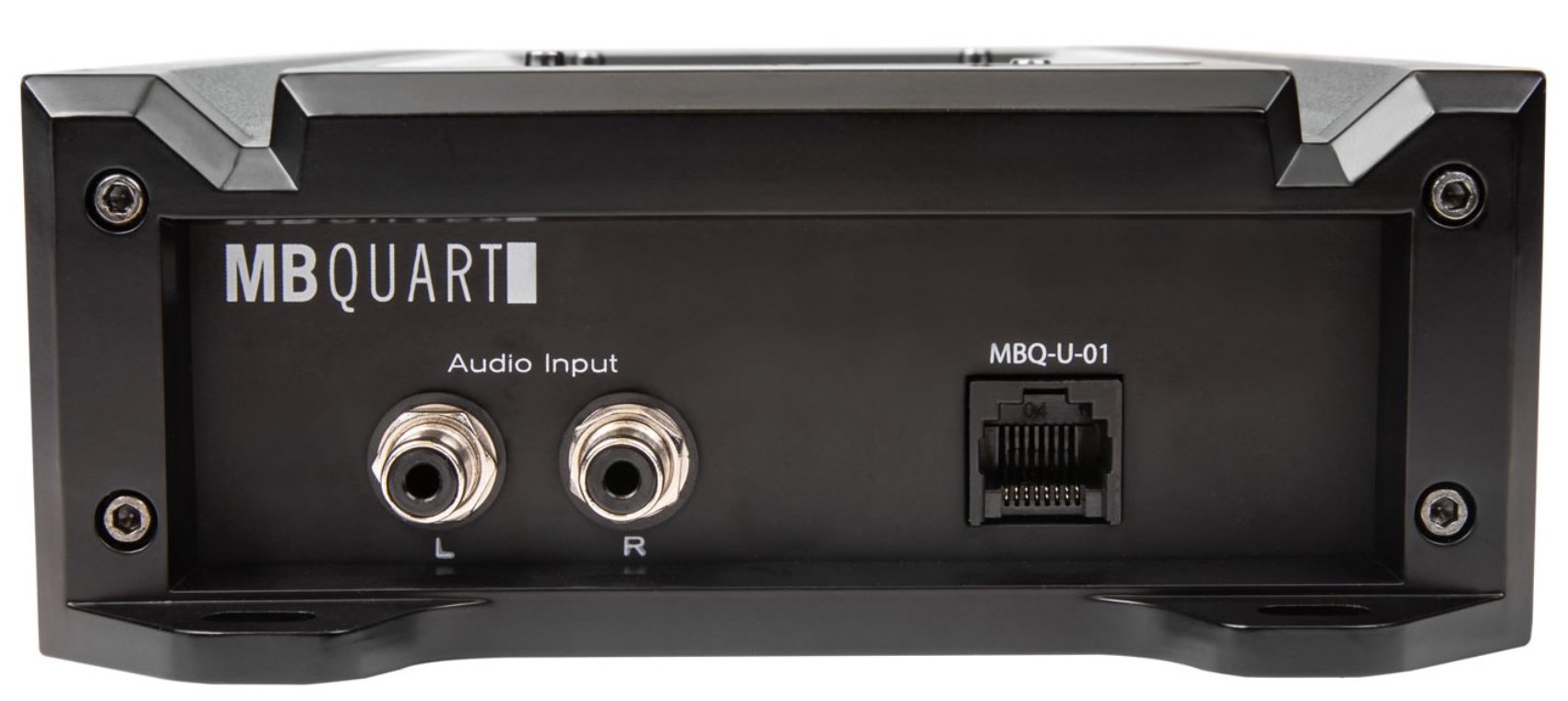

• RCA Inputs

  • Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs

  • See Auto-Sense Feature.
• Operation Mode

  • Mono only
• Crossover Type

  • Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer

  • Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology

  • Class Q1 Mono (Class D): MB Quart’s Class Q1 offers the efficiency of today’s D-Class with increased engineering to focus on sound quality from the power supply through the output devices, the FLUID-FETS.
• Output Device Technology

  • FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink

  • Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply

  • Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.

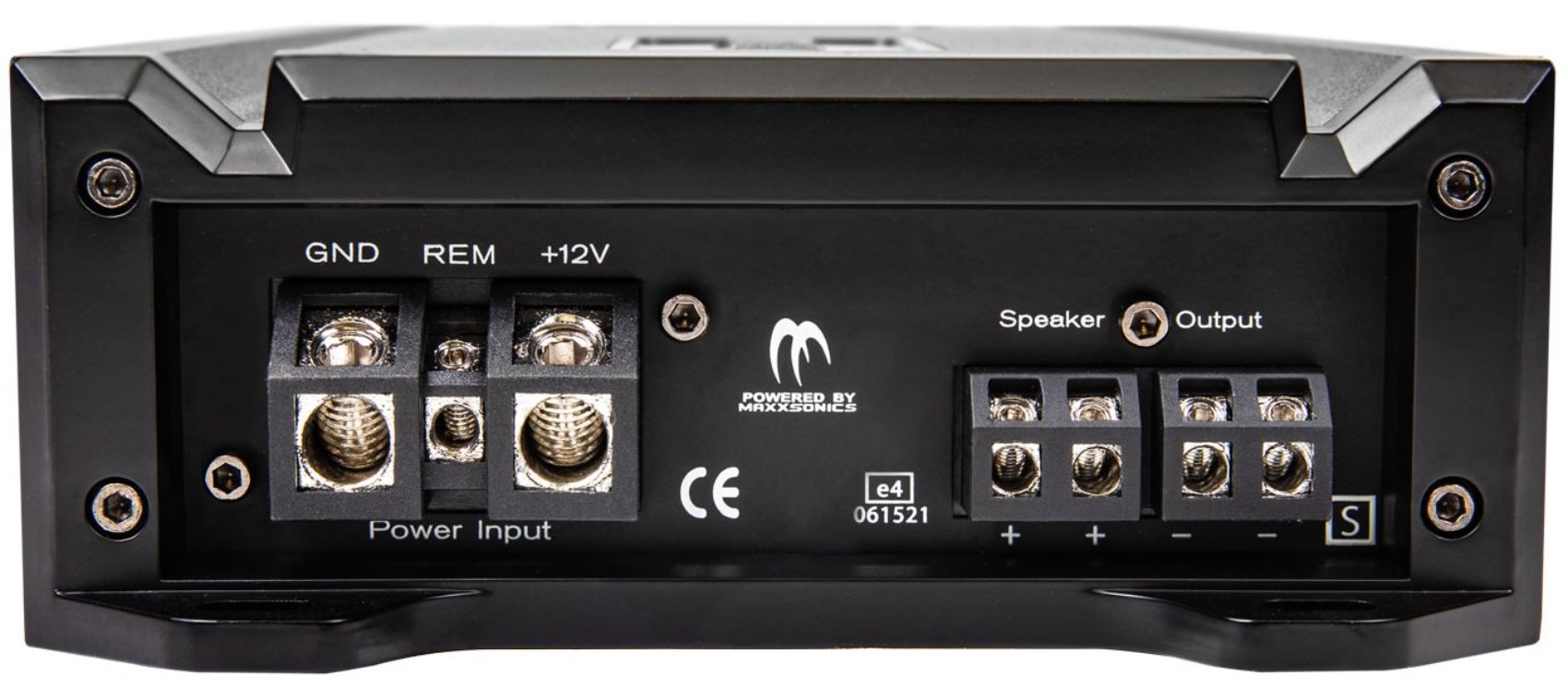

• Output Connections

  • Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
• Connection Type

  • Secure connection for all power, ground and speaker connections.

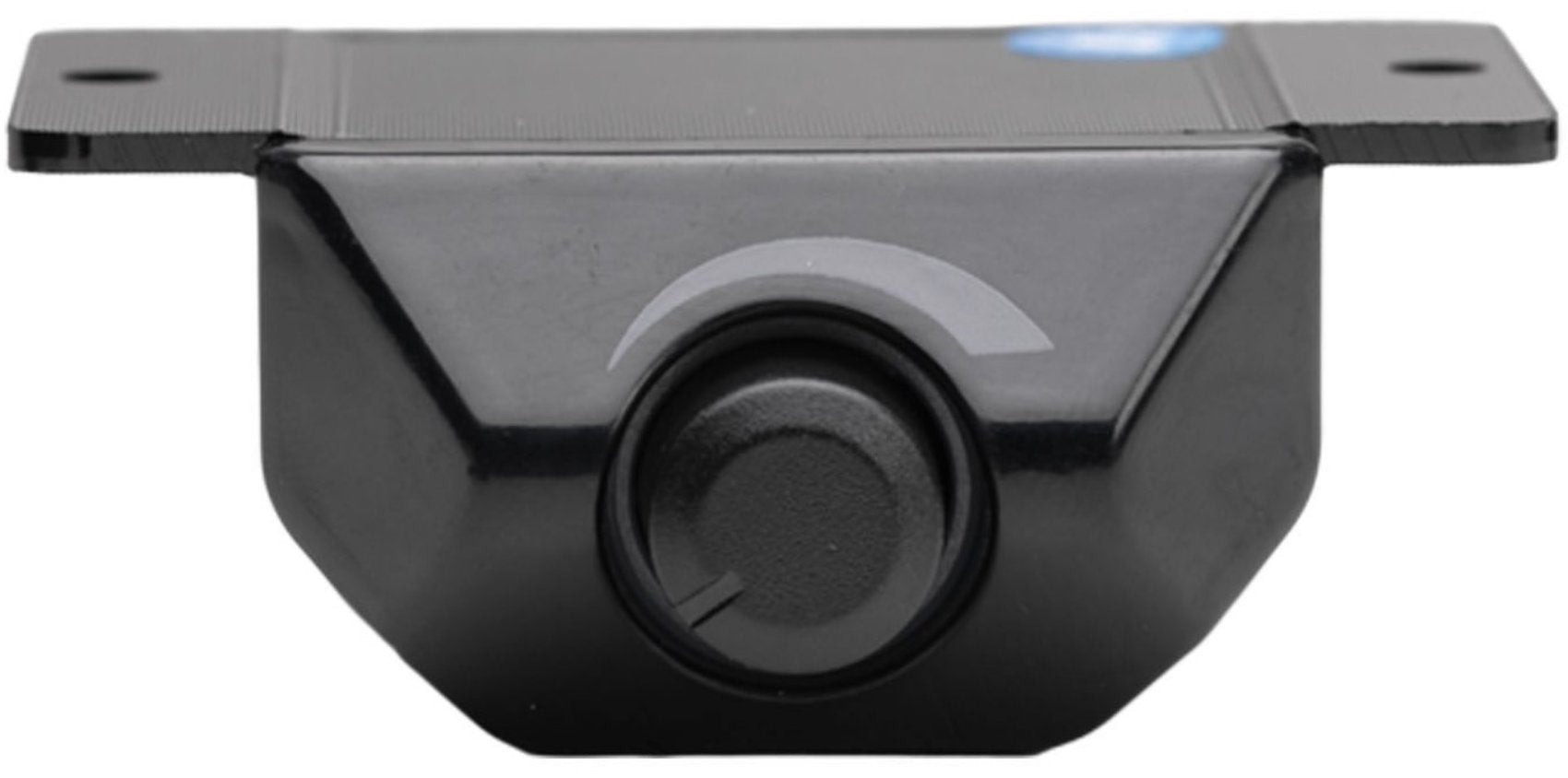

• Bass Remote Included

  • Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
• Auto Turn-On

  • DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

Details & Specs:

• Color: Black
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Class Q1 Mono (Class D)
• Amp Total Channels: 1
• Amp Max Power (watts): 1500
• Amp Power @ 1 Ohm (ch x watts): 1 x 1500
• Amp Power @ 2 Ohms (ch x watts): 1 x 1000
• Amp Power @ 4 Ohms (ch x watts): 1 x 750

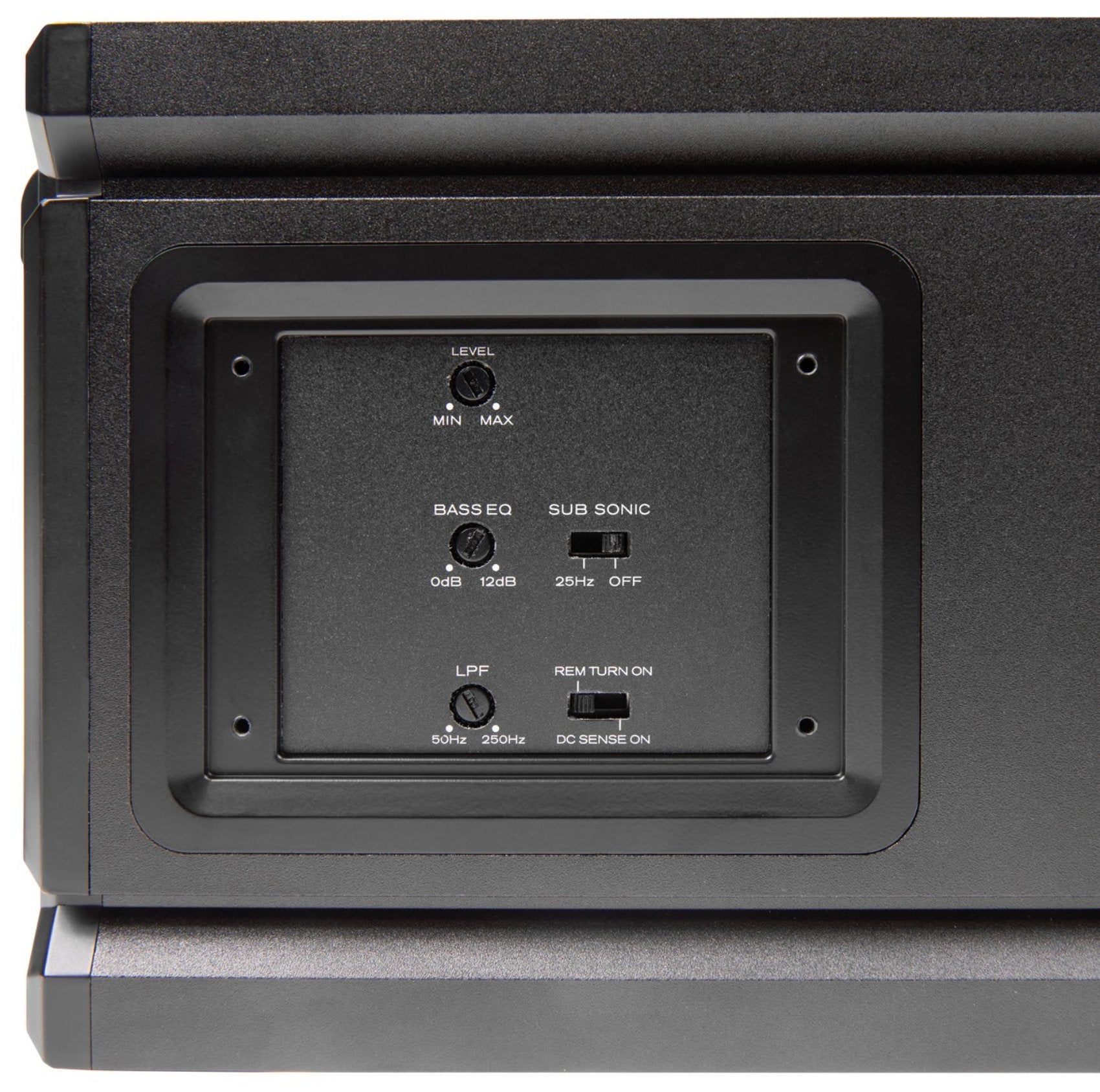

• Amp Crossover: Electronic
• Amp Variable Low Pass Crossover 12dB per Octave: Variable 50Hz-250Hz
• Amp Bass Boost: 0-12dB
• Amp Subsonic Filter: OFF/25Hz
• Amp Variable Voltage: 0.02-9V
• Amp Signal to Noise: > 99dB
• Amp Frequency Response: 25Hz-250Hz
• Amp Total Harmonic Distortion (THD): < 0.07%
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 150A External
