Sundown Audio SA-12 D2 Classic 12" 1000w RMS Car Subwoofer DVC 2-Ohm SW-SACL12D2

Description:

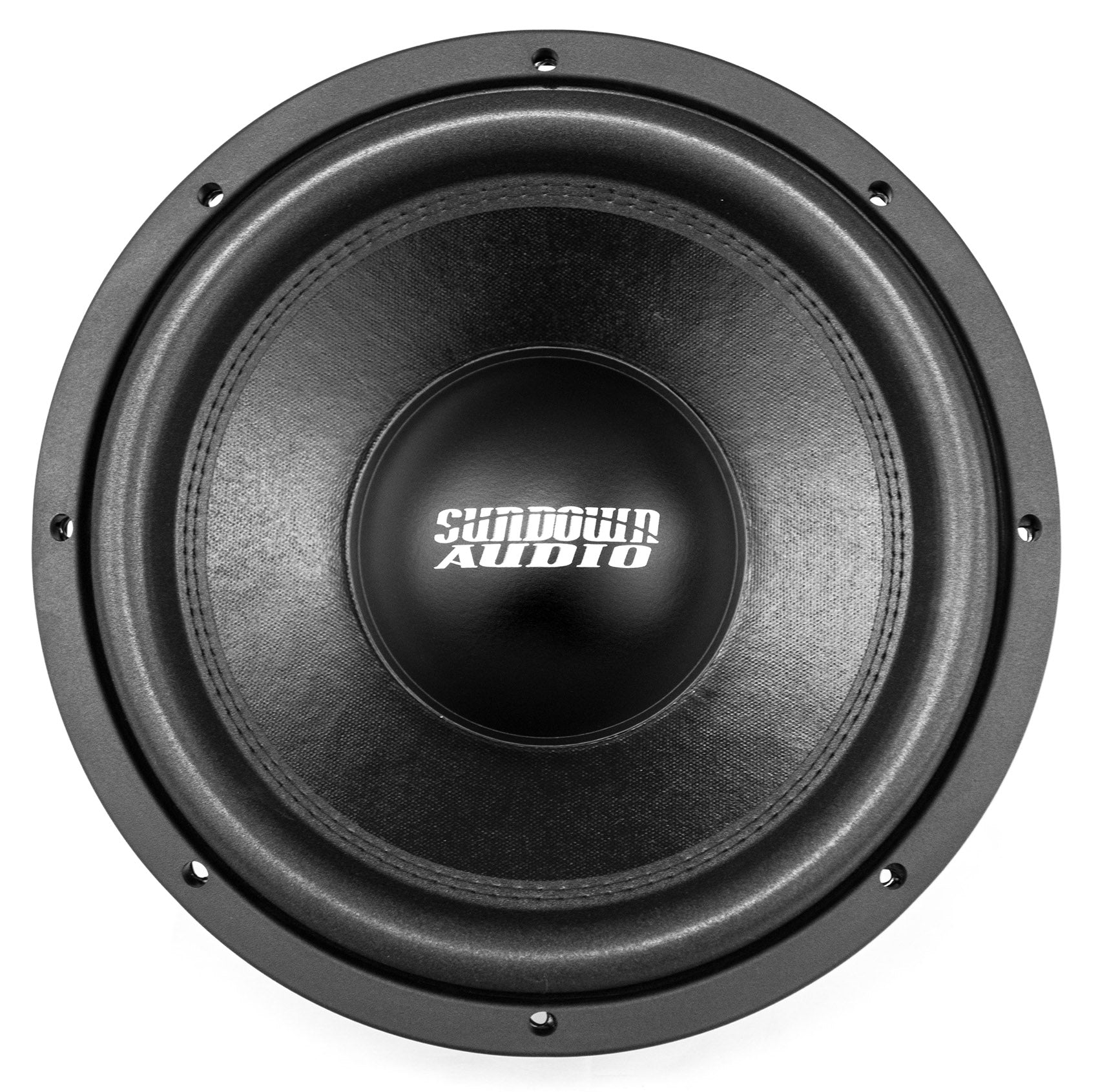

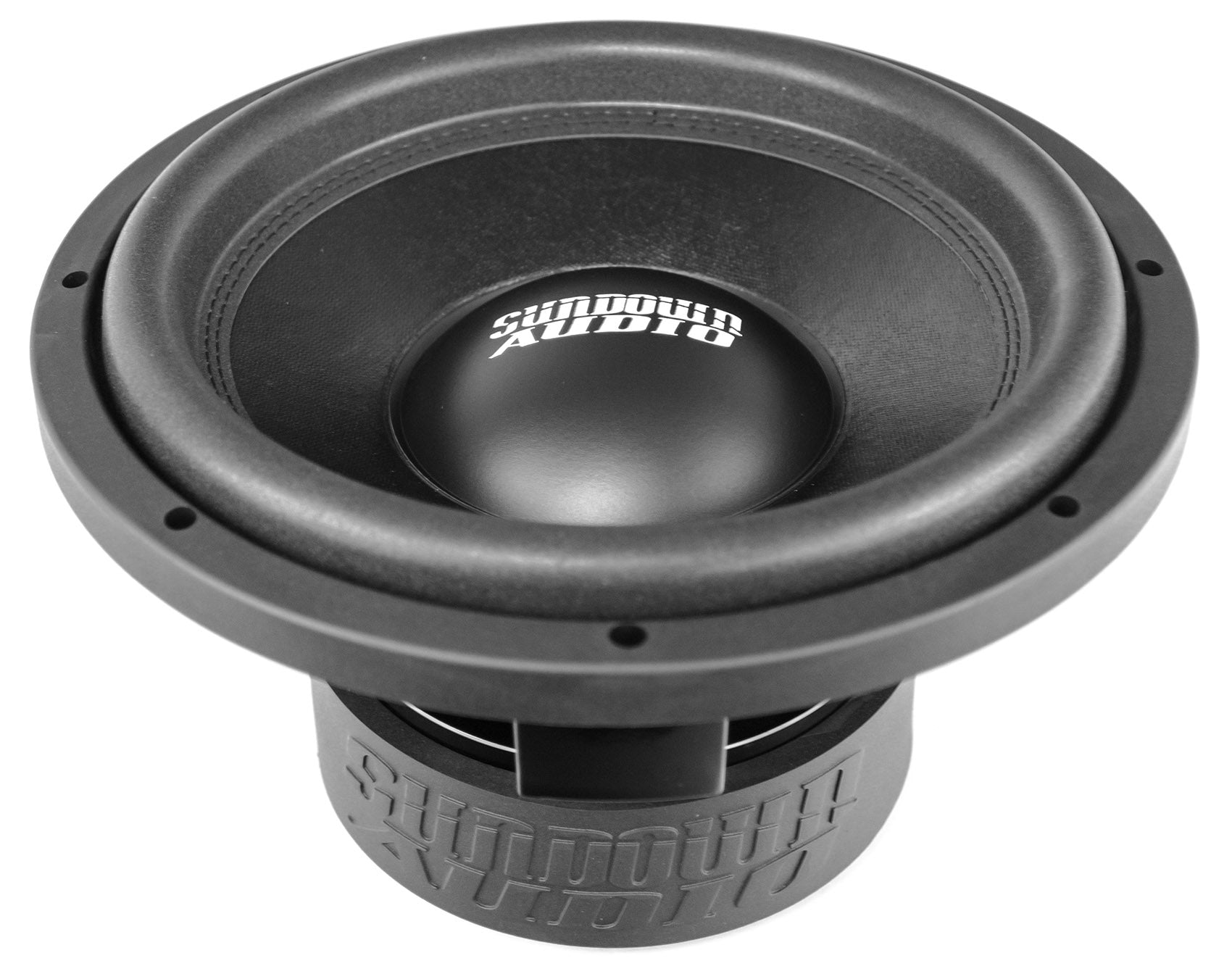

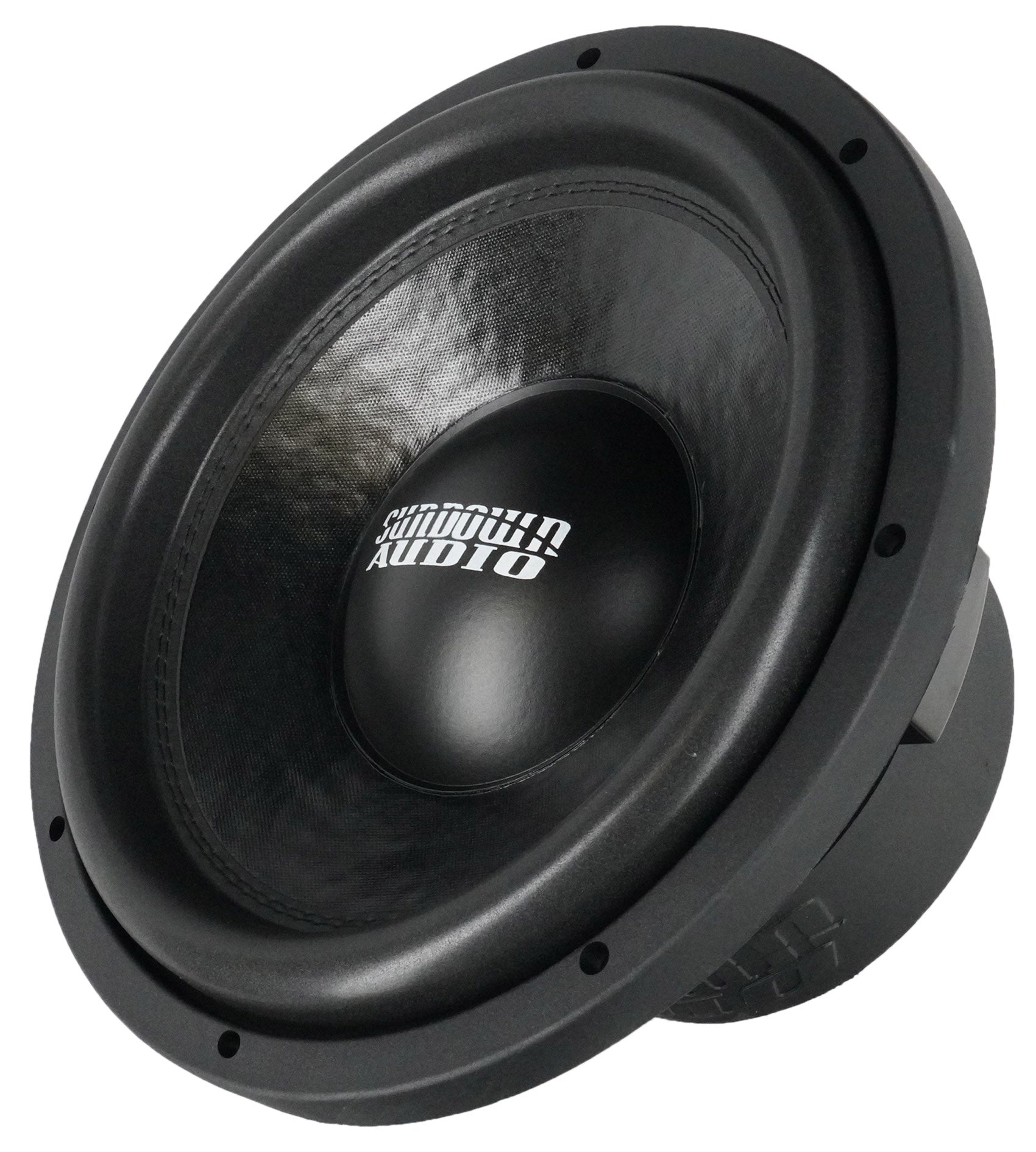

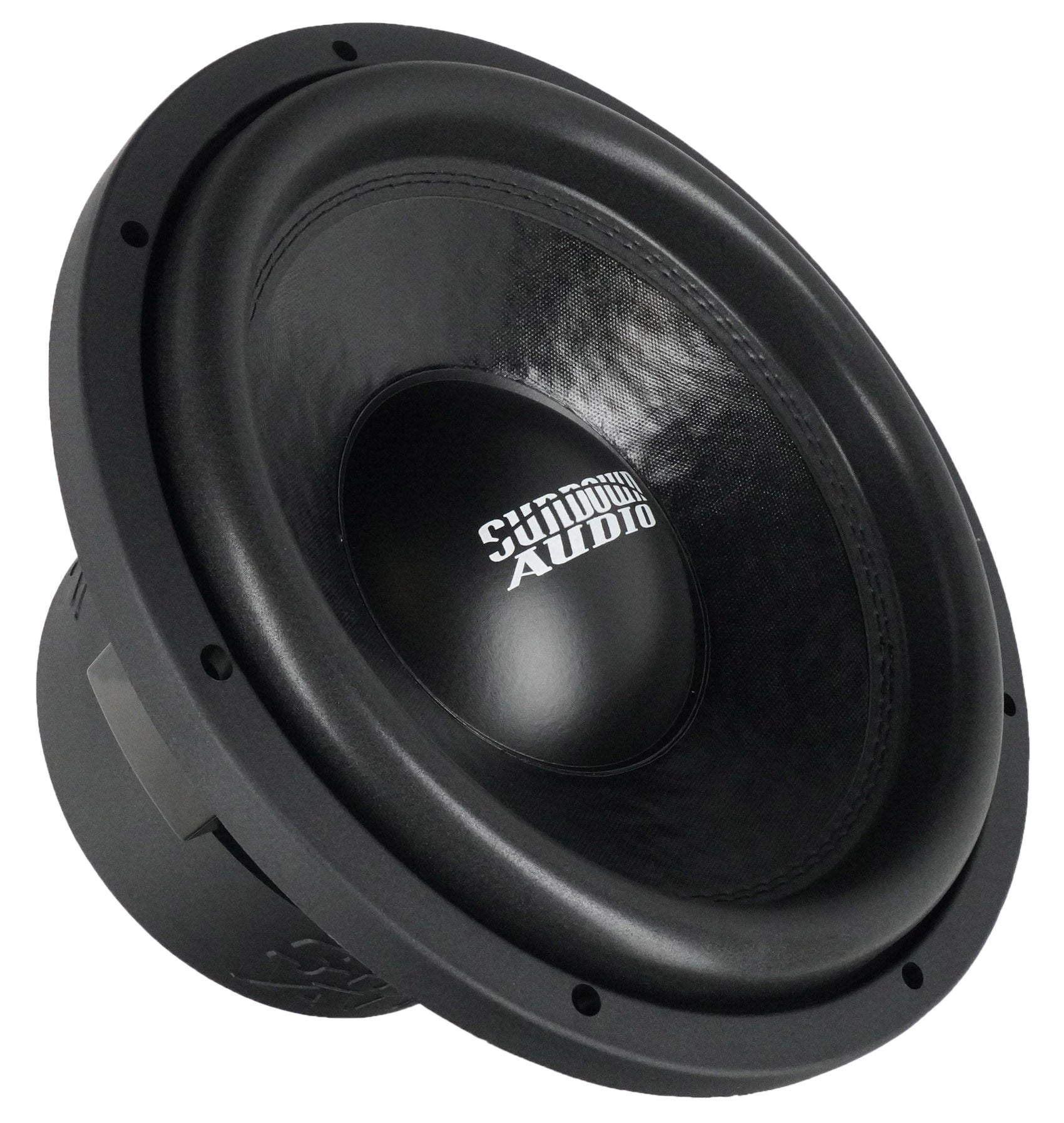

The SA Classic sub is a stunning combination of value, power handling, and deep excursion. It features a cast aluminum frame that houses a bulletproof custom 2.5-inch voice coil, robust double-layered Nomex spider, and SPL competition-grade paper cone. These components are built into a flexible design that works well in any type of enclosure.

Features:

• 1000 Watt RMS/ 2000 Watt Peak
• Dual 2 ohm
• Optimized for small ported, sealed, & band-pass enclosures
• Large aluminum Faraday ring for smooth acoustic response

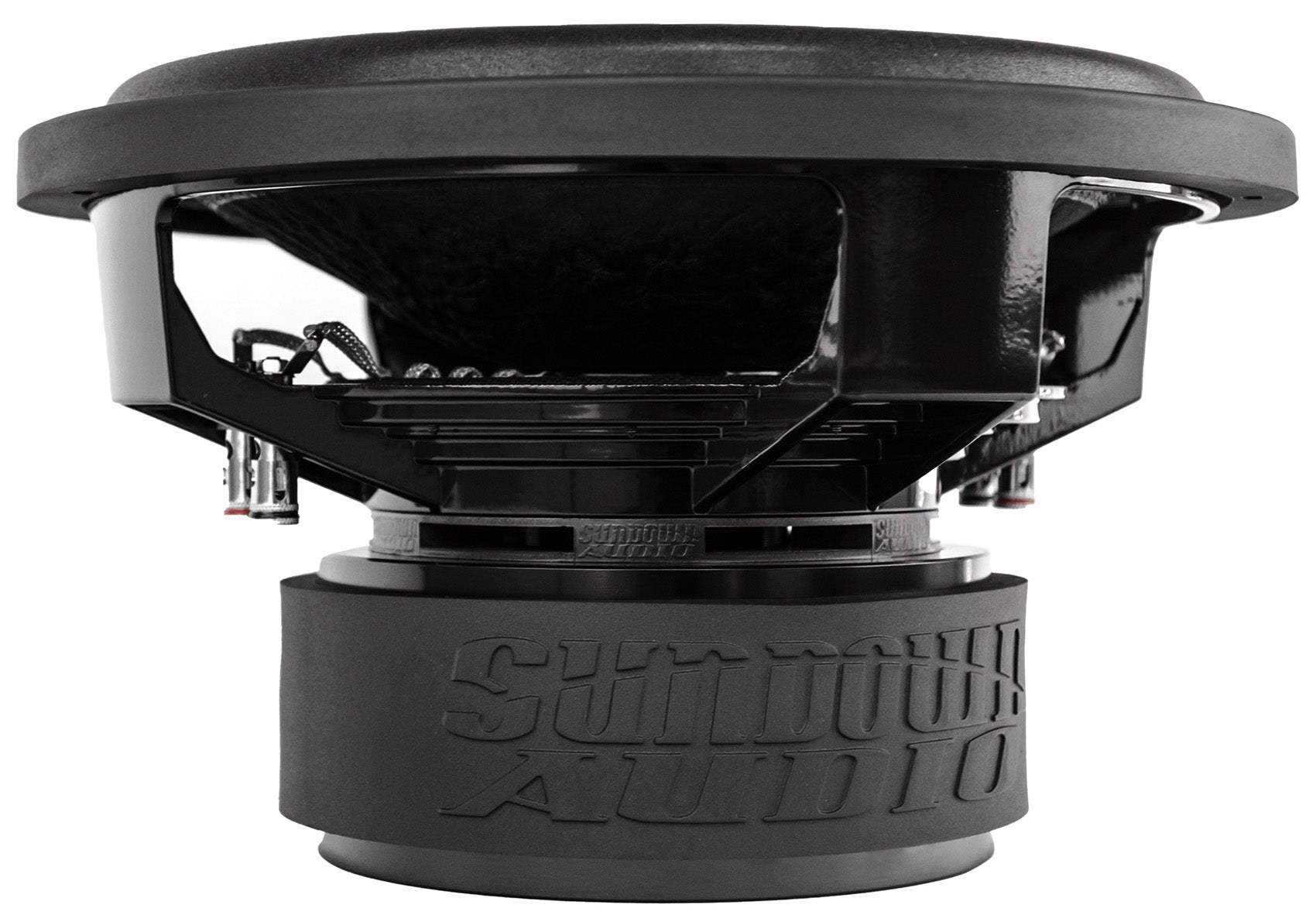

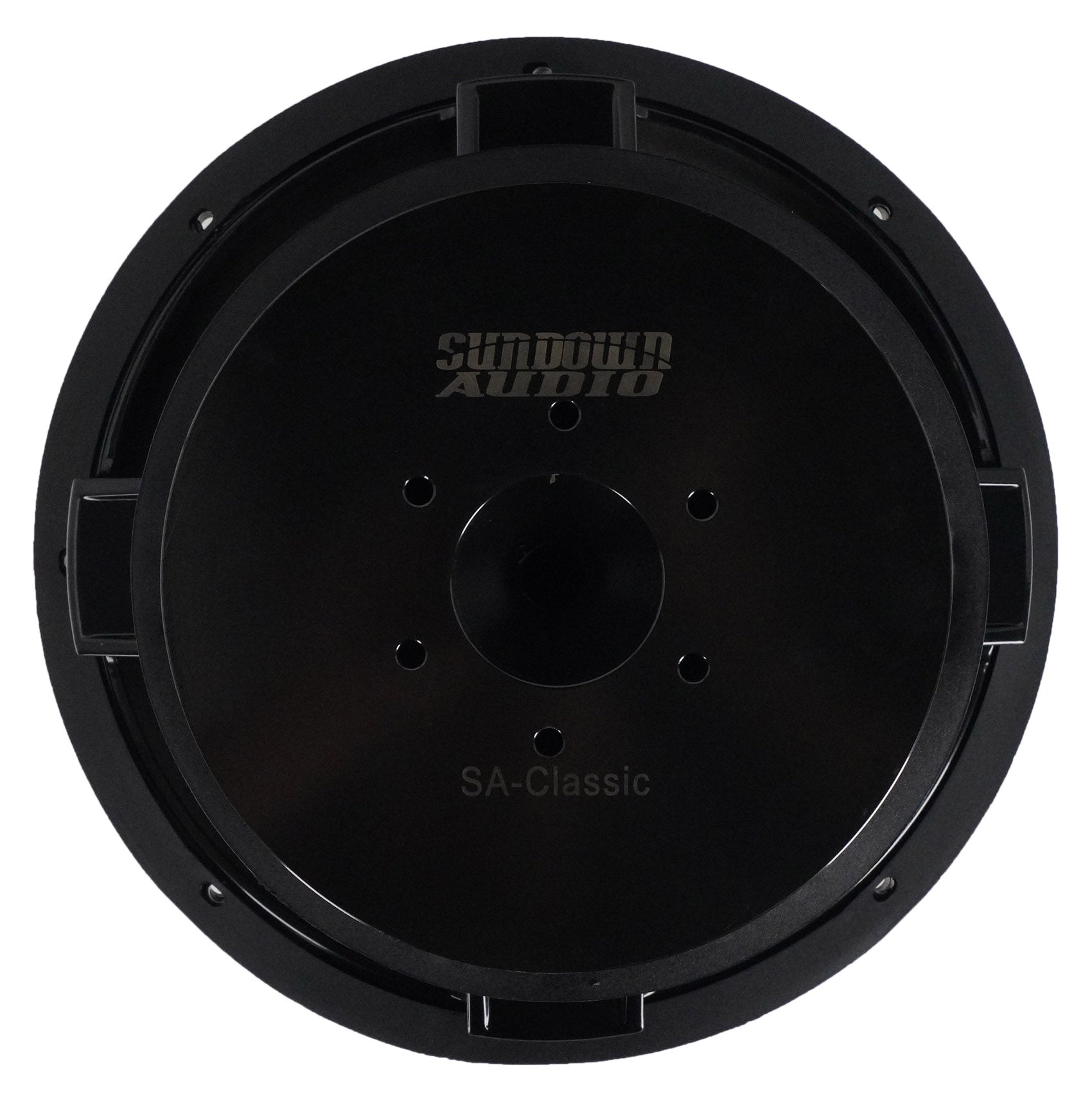

• High strength cast aluminum frame
• Low distortion motor construction
• High-temperature voice coil wire

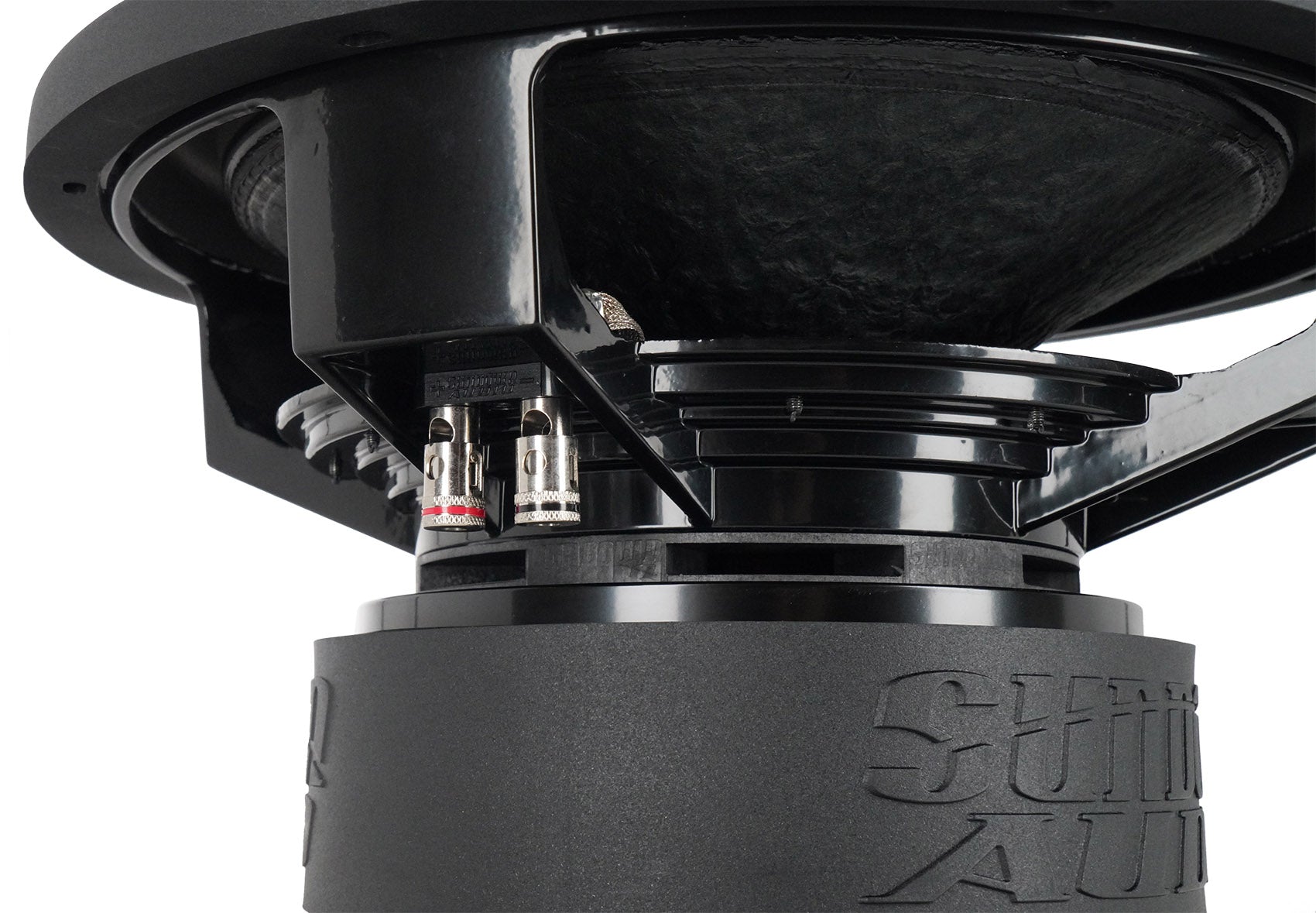

• Spring-loaded terminals
• Stitched-on “XL” tinsel lead wires

Specifications:

• RE (Ohms): 4.57
• FS (Hz): 33.71
• VAS (L): 21.21
• Qes: 0.58
• Qms: 5.34
• Qts: 0.52
• Le (mH): 3.4
• BL (NA): 21.64
• Mms (Grams): 280
• Cms (uM/N): 79.43
• Sens (dB @ 1w/1m): 83.21
• Xmax: 19mm

Subwoofer Measurements:

• Displacement (Inches): .10cu ft
• Depth (Inches): 6.5"
• Cutout (Inches): 12.625"
• Motor Diameter (Inches): 7.4

Ported Enclosure Specs:

• Ported Enclosure Size: 1.75 cu ft
• Recommended Port Area: 26 sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 1.0 cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: .75cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 45sq in
• 4th Order Port Length: 6"
