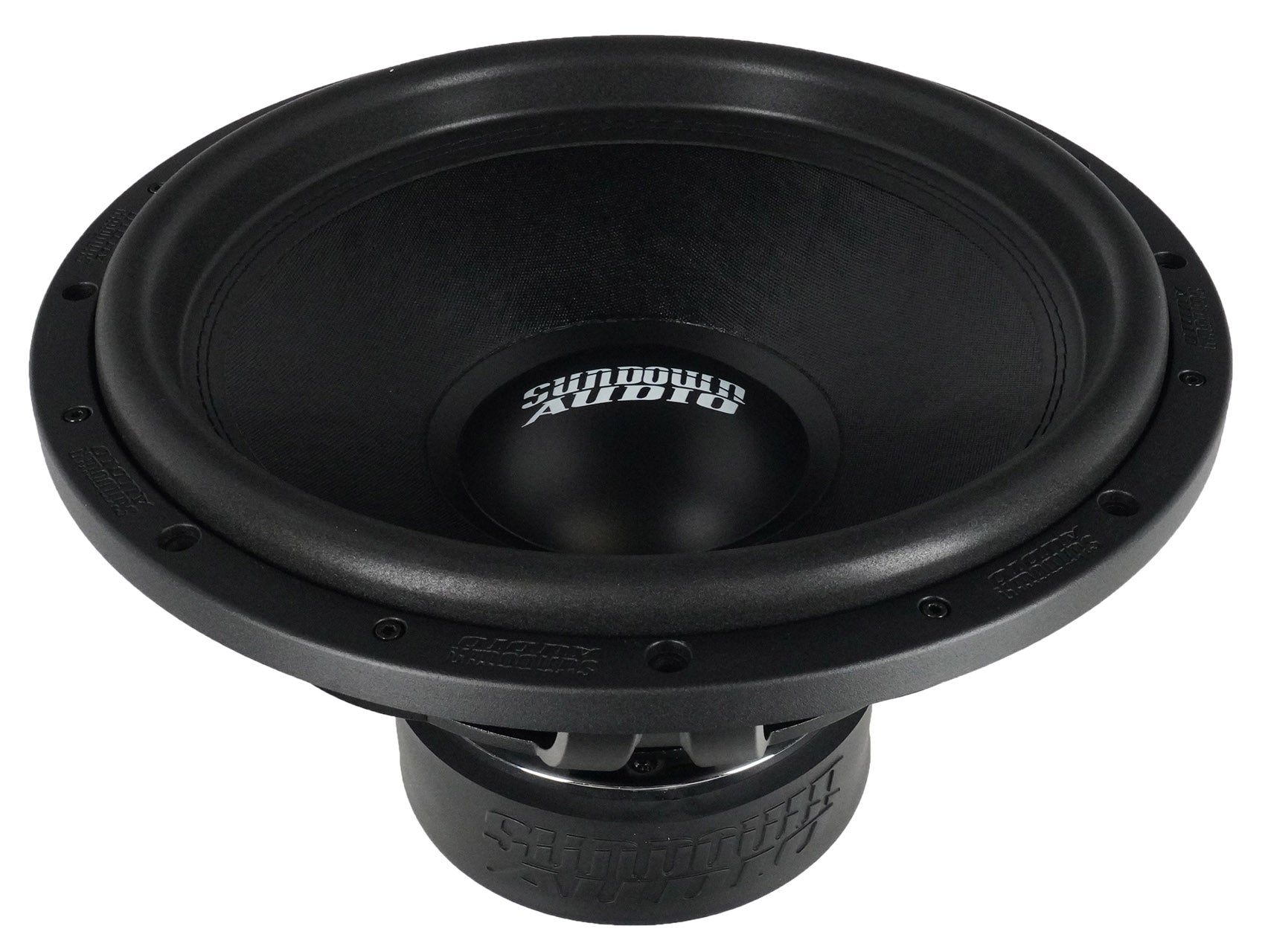

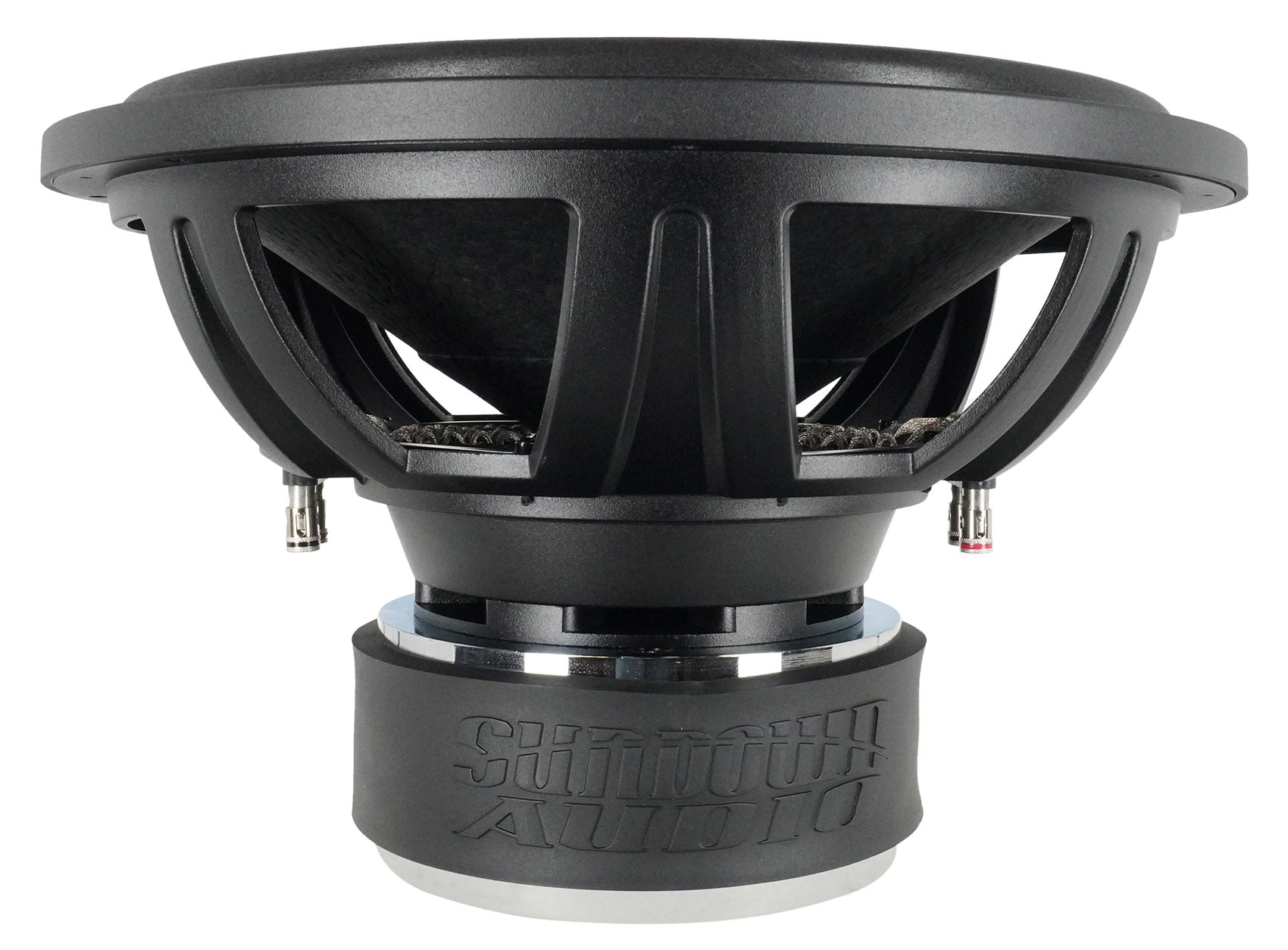

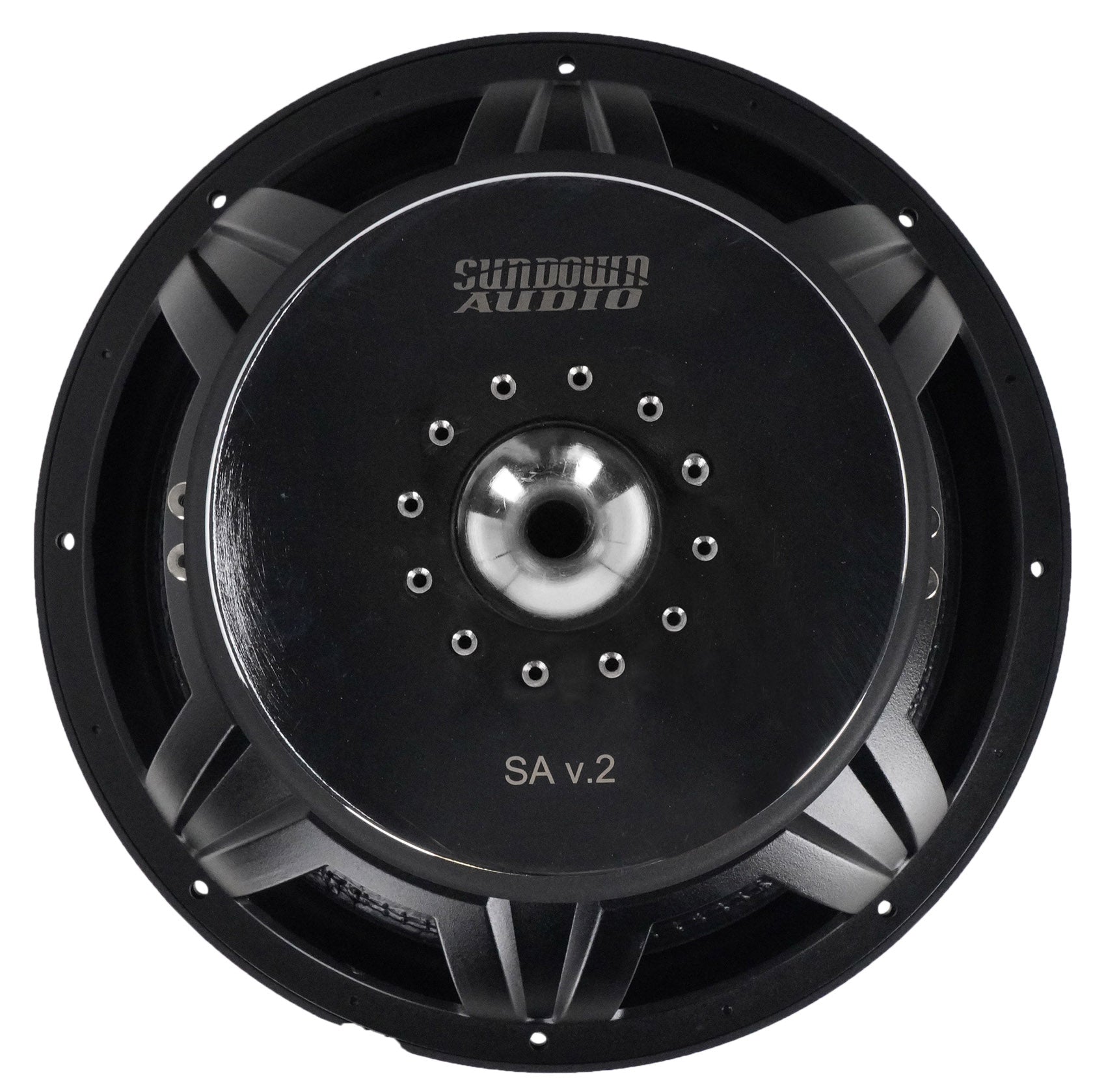

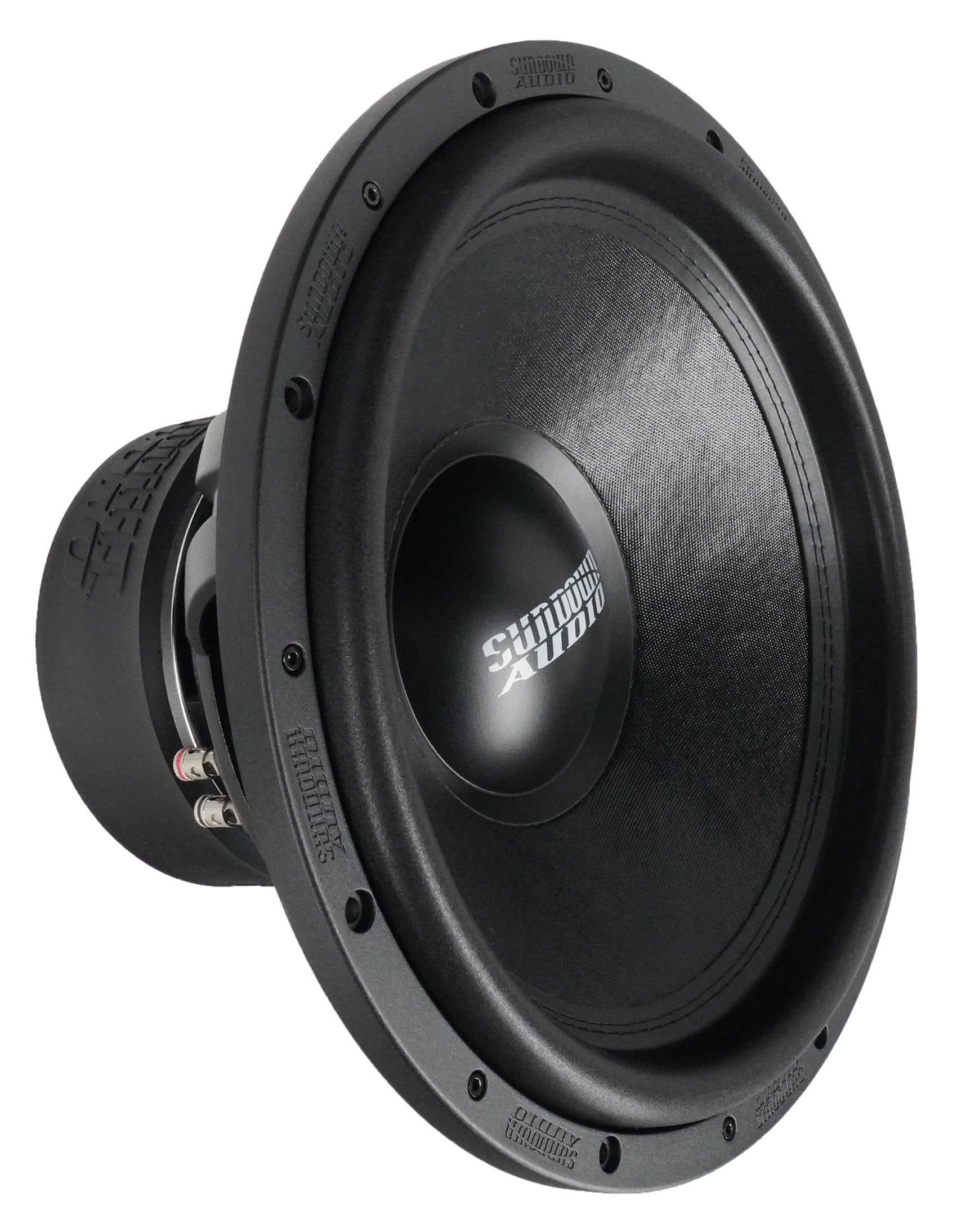

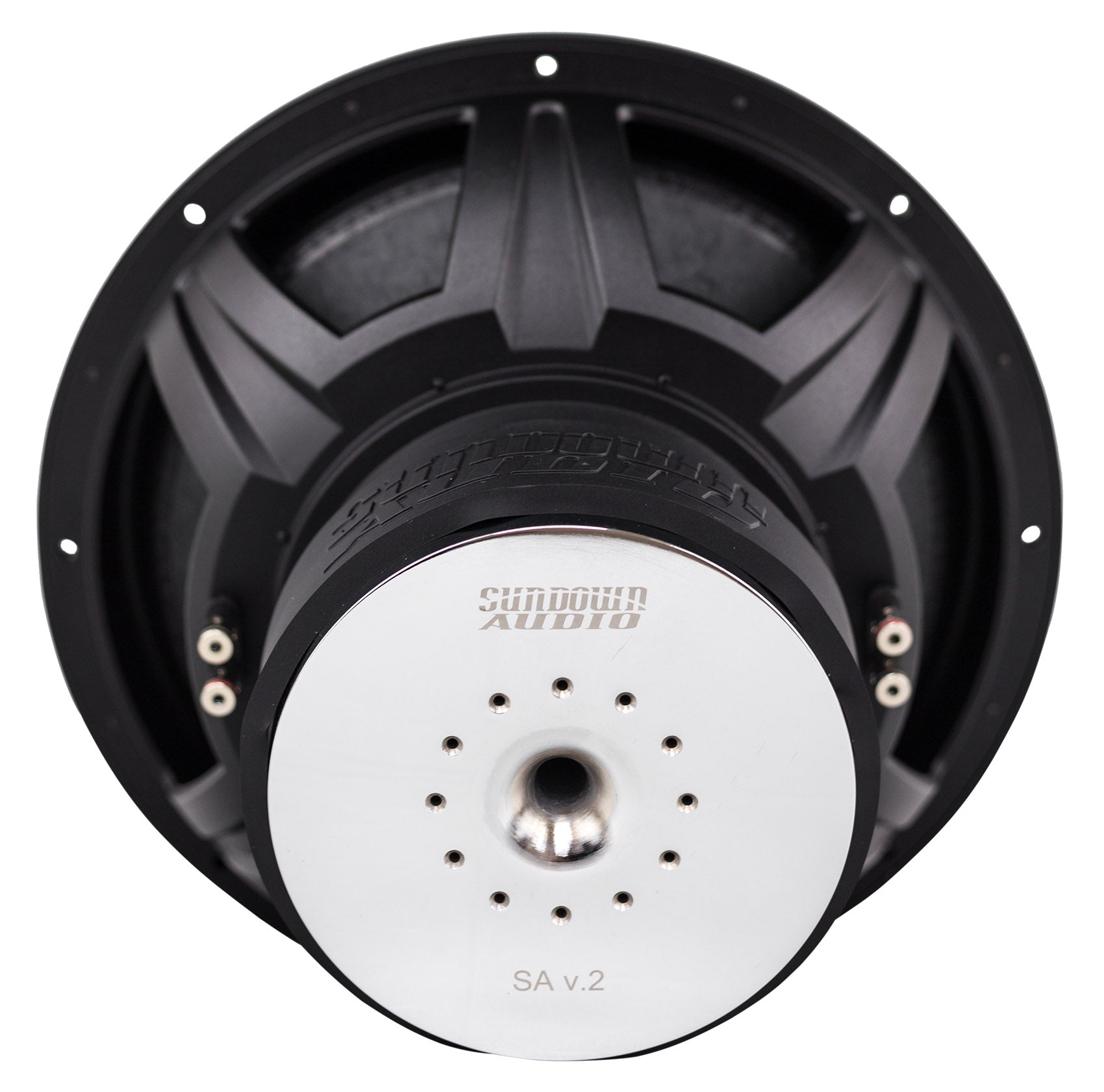

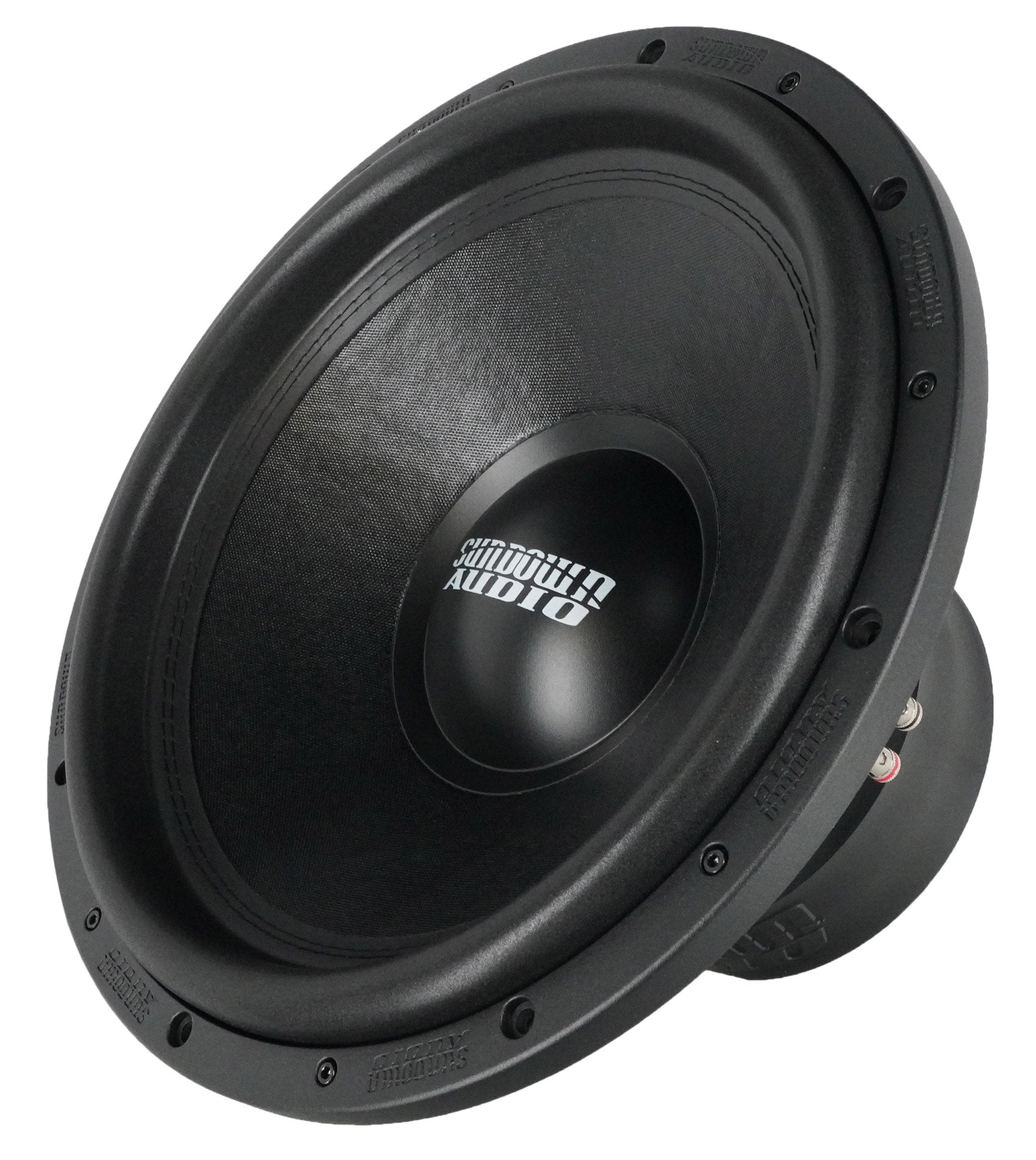

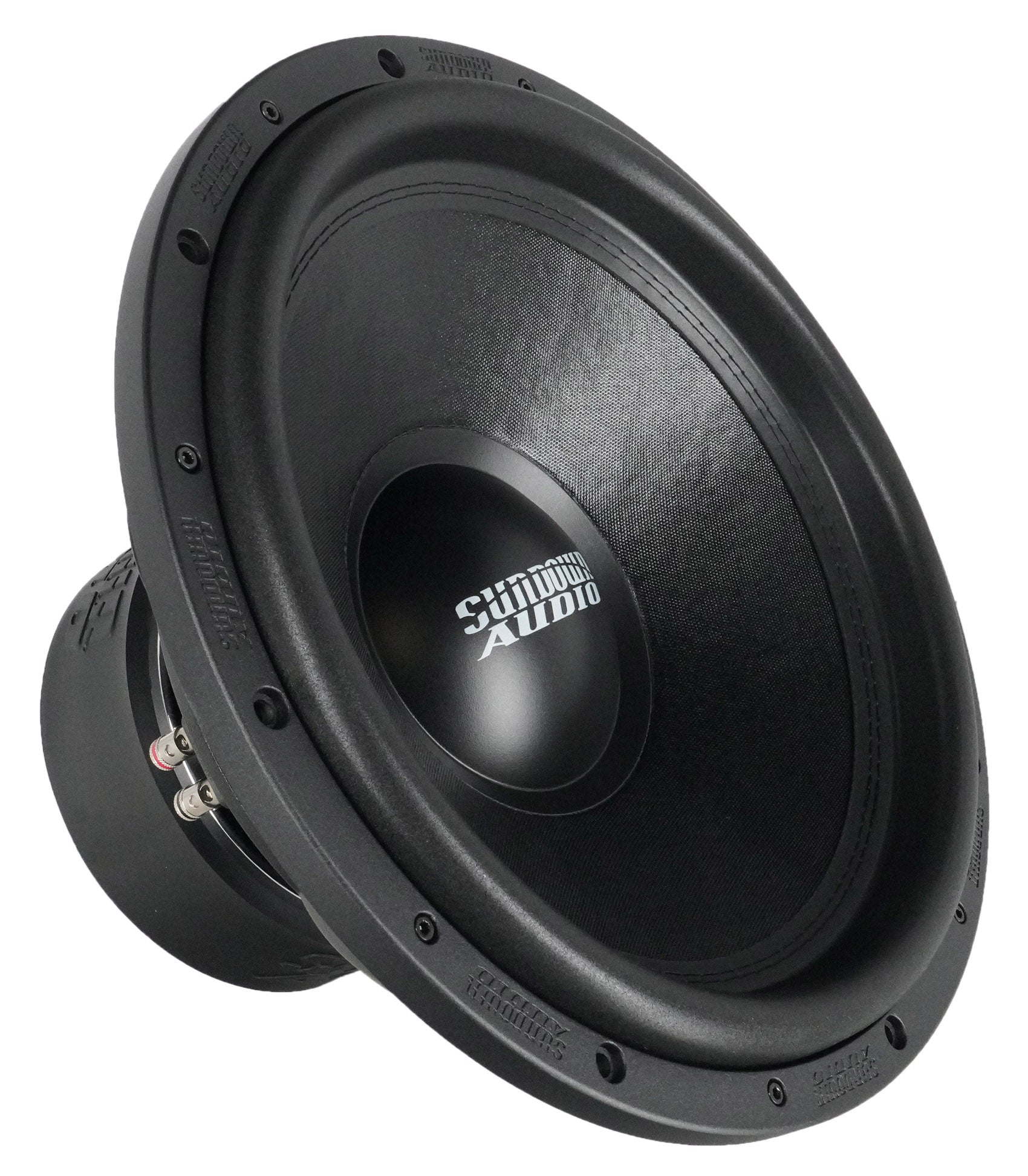

Sundown Audio SA-15 V.2 D4 15" 1250w RMS Car Subwoofer DVC 4-Ohm Sub SW-SAV215D4

$491.99 $348.49 Save 29% Sold out
Shipping calculated at checkout.
Condition: New
Product Description

Description:

This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.

The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."

The 18" model features a larger diameter motor to drive the higher mass.

Features:

  • 1250 Watts RMS / 2500 Watts Peak
  • Dual 4 ohm
  • Vented magnetic gap & pole piece
  • Aluminum 2.75” voice coil former for superior heat dissipation
  • Innovative high velocity, cast aluminum vented frame spacer ring
  • Magnet ID faraday ring for smooth acoustic response
  • High-temperature copper voice coil wire

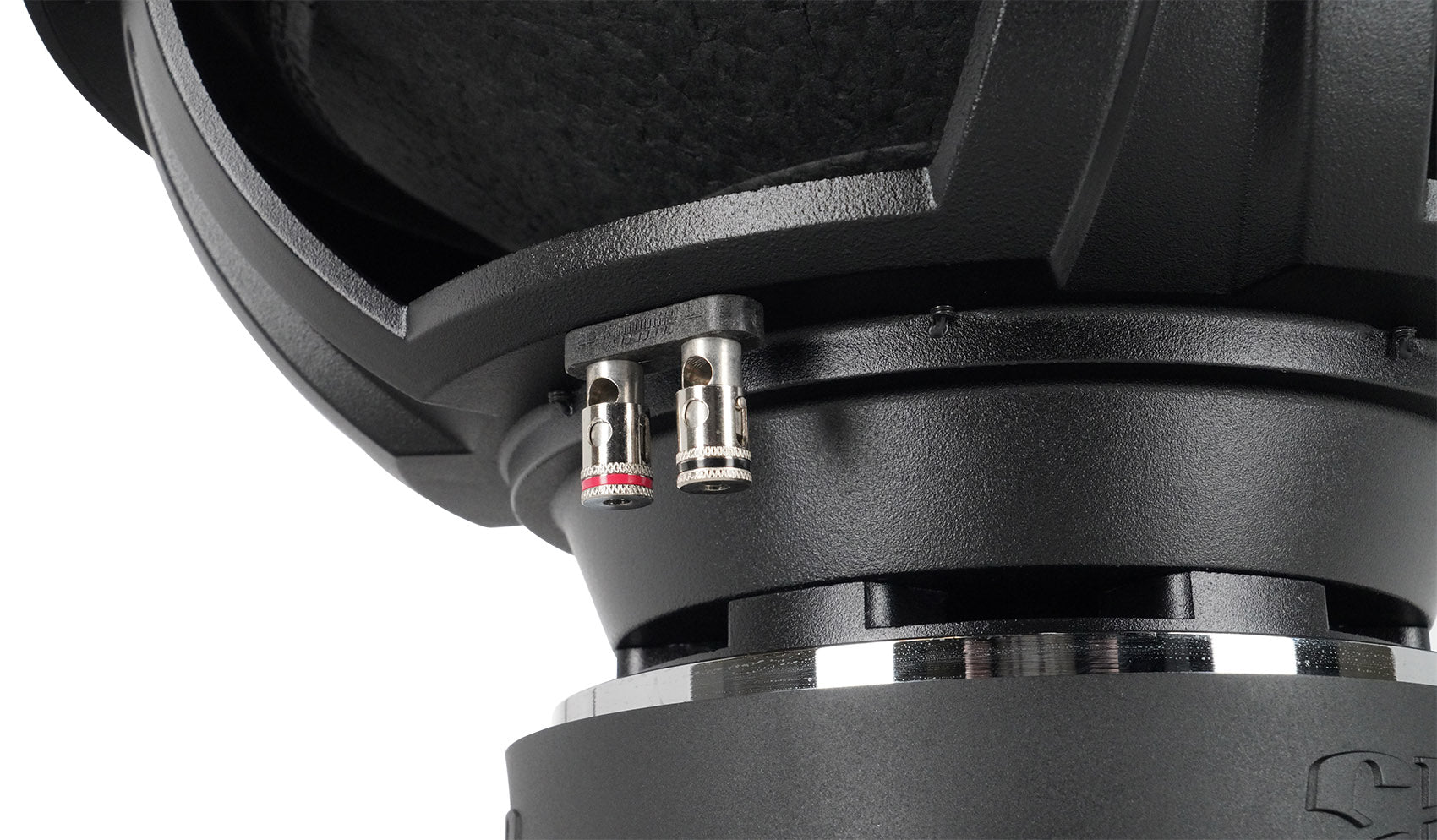

  • Spring-loaded terminals
  • Stitched-on double “XL” tinsel leads

Specifications:

  • RE (Ohms): 5.83
  • FS (Hz): 37.4160
  • VAS (L): 45.3391
  • Qes: 0.6963
  • Qms: 5.7094
  • Qts: 0.6206
  • Le (mH): 4.7903
  • BL (NA): 29.1578
  • Mms (Grams): 431.9464
  • Cms (uM/N): 41.8886
  • Sens (dB @ 1w/1m): 87.08
  • Xmax: 19mm

Subwoofer Measurements:

  • Displacement (Inches): .16cu ft
  • Depth (Inches): 9.00"
  • Cutout (Inches): 14.01"
  • Motor Diameter (Inches): 9.68

Ported Enclosure Specs:

  • Ported Enclosure Size: 3.0 cu ft
  • Recommended Port Area: 44 sq in
  • Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

  • Sealed Enclosure Size: 2.0 cu ft

4th Order Enclosure Specs:

  • 4th Order Sealed Side: 1.5cu ft
  • 4th Order Ported Side: 4.5cu ft
  • 4th Order Port Area: 90sq in
  • 4th Order Port Length: 6"
