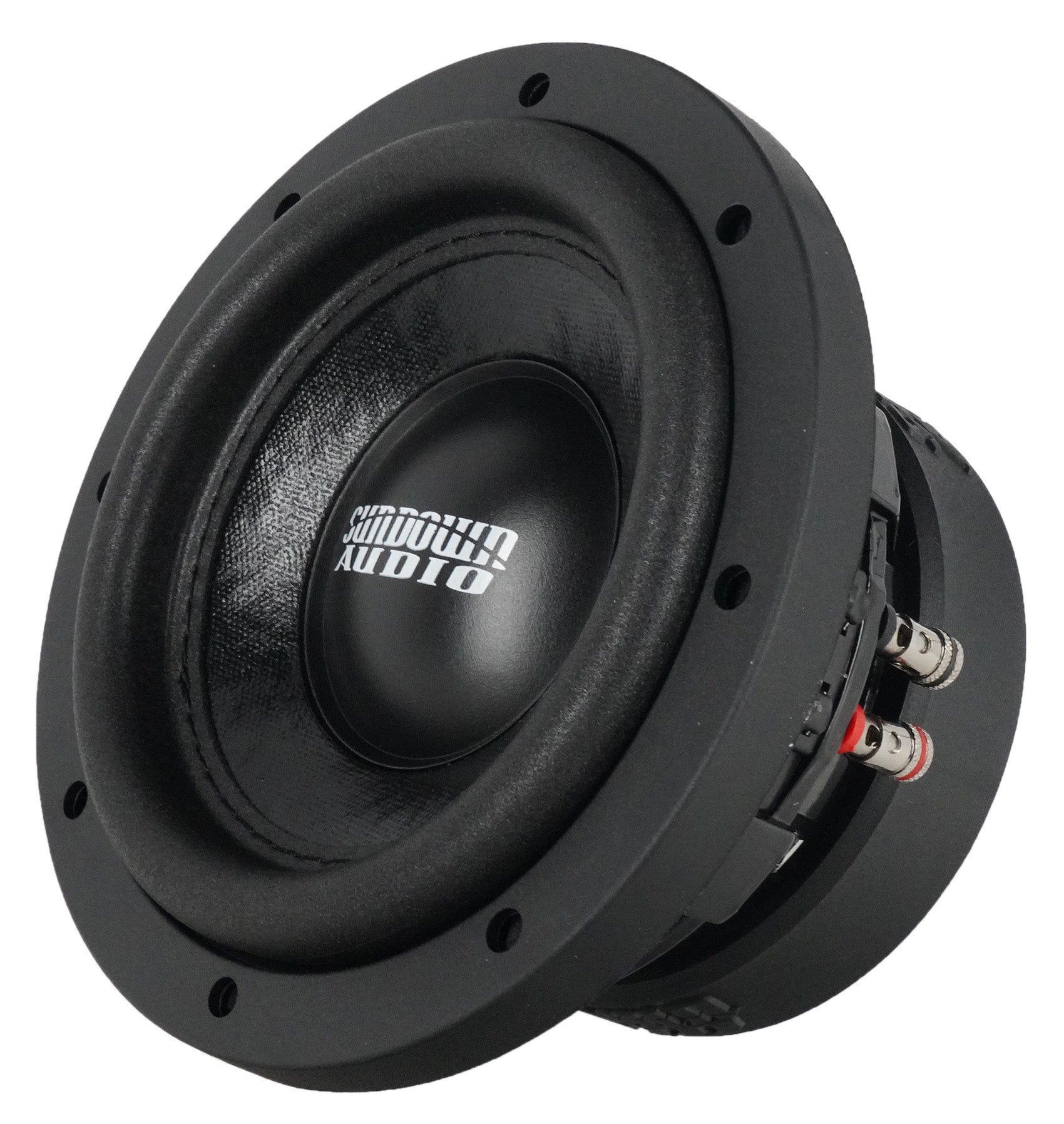

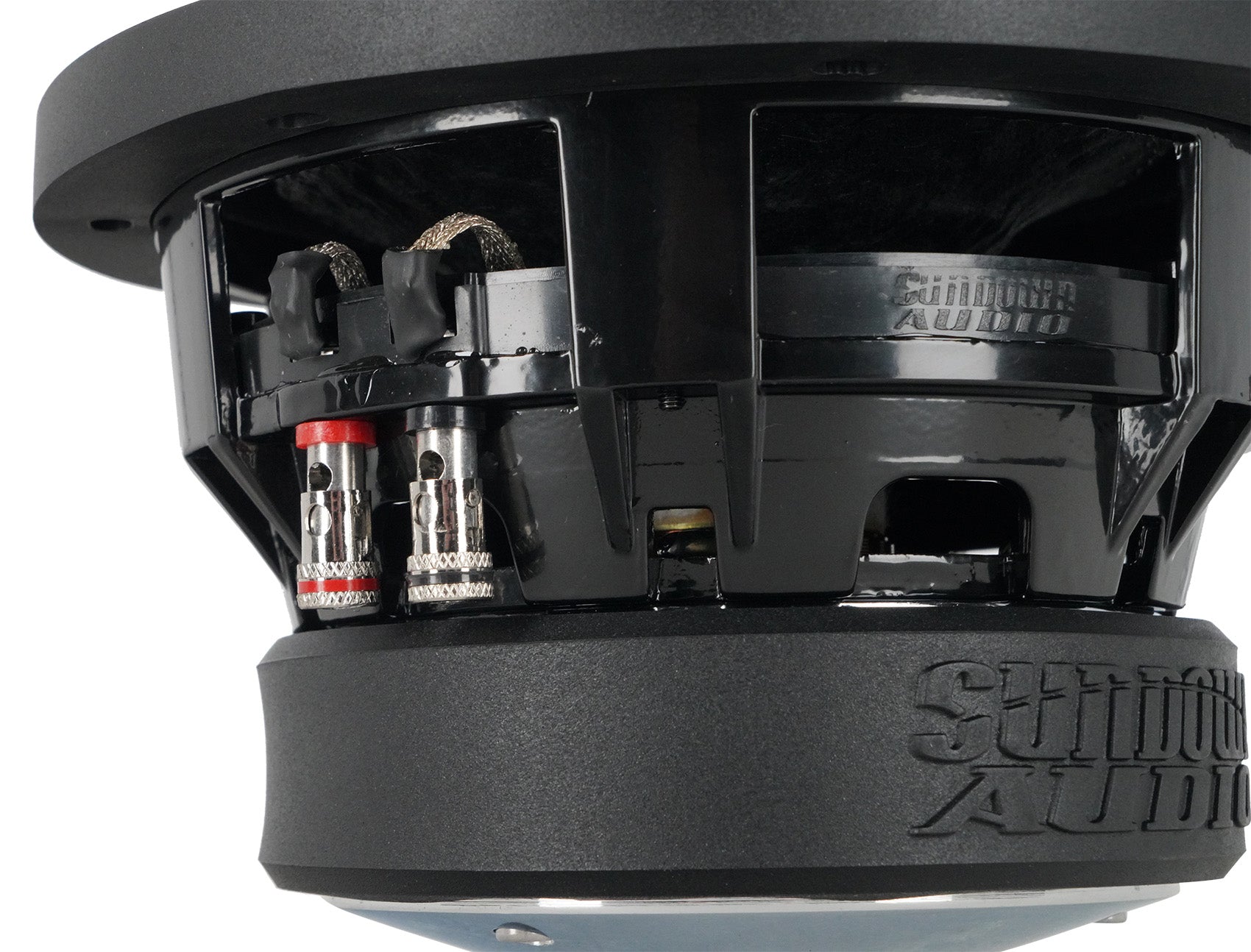

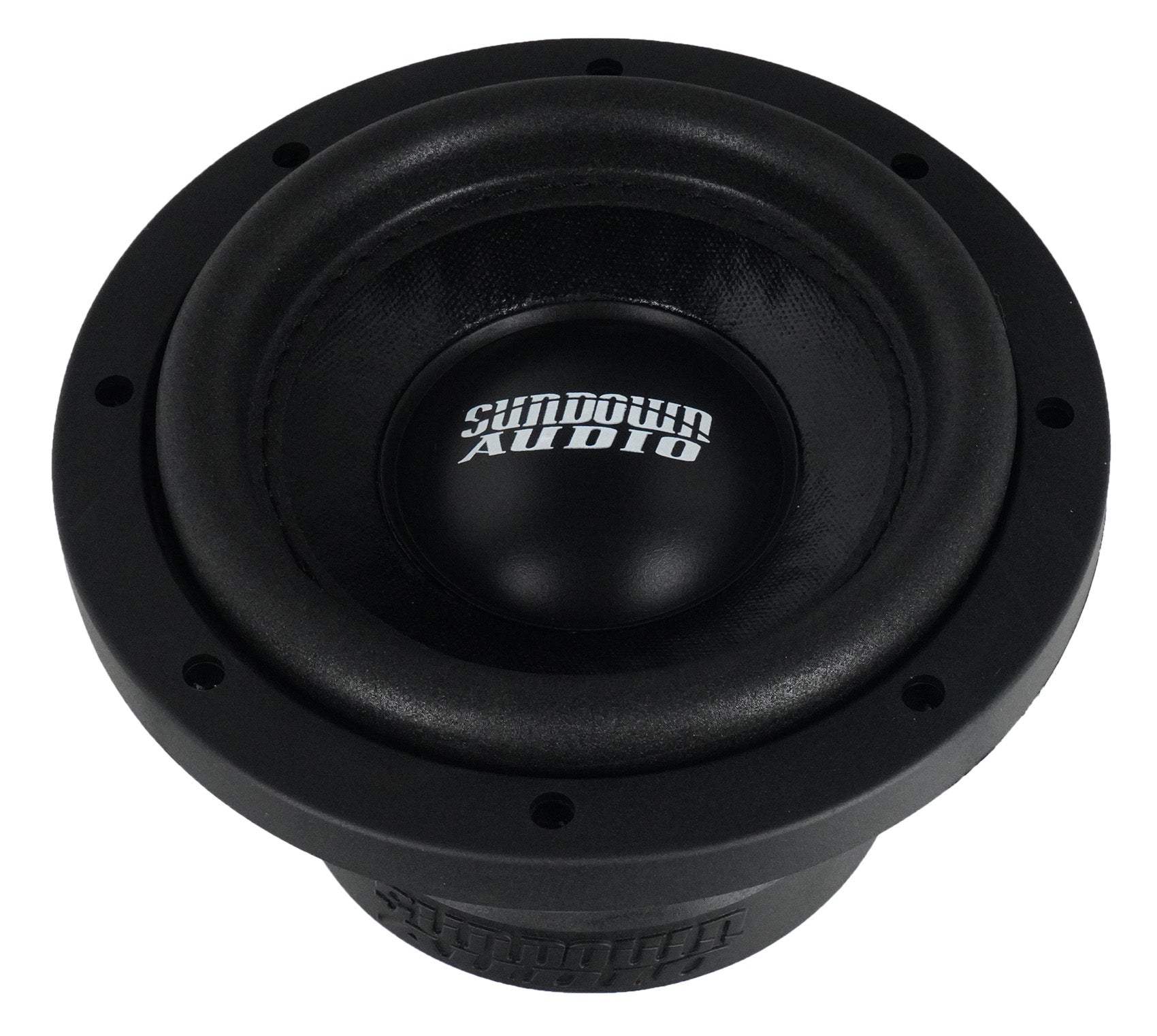

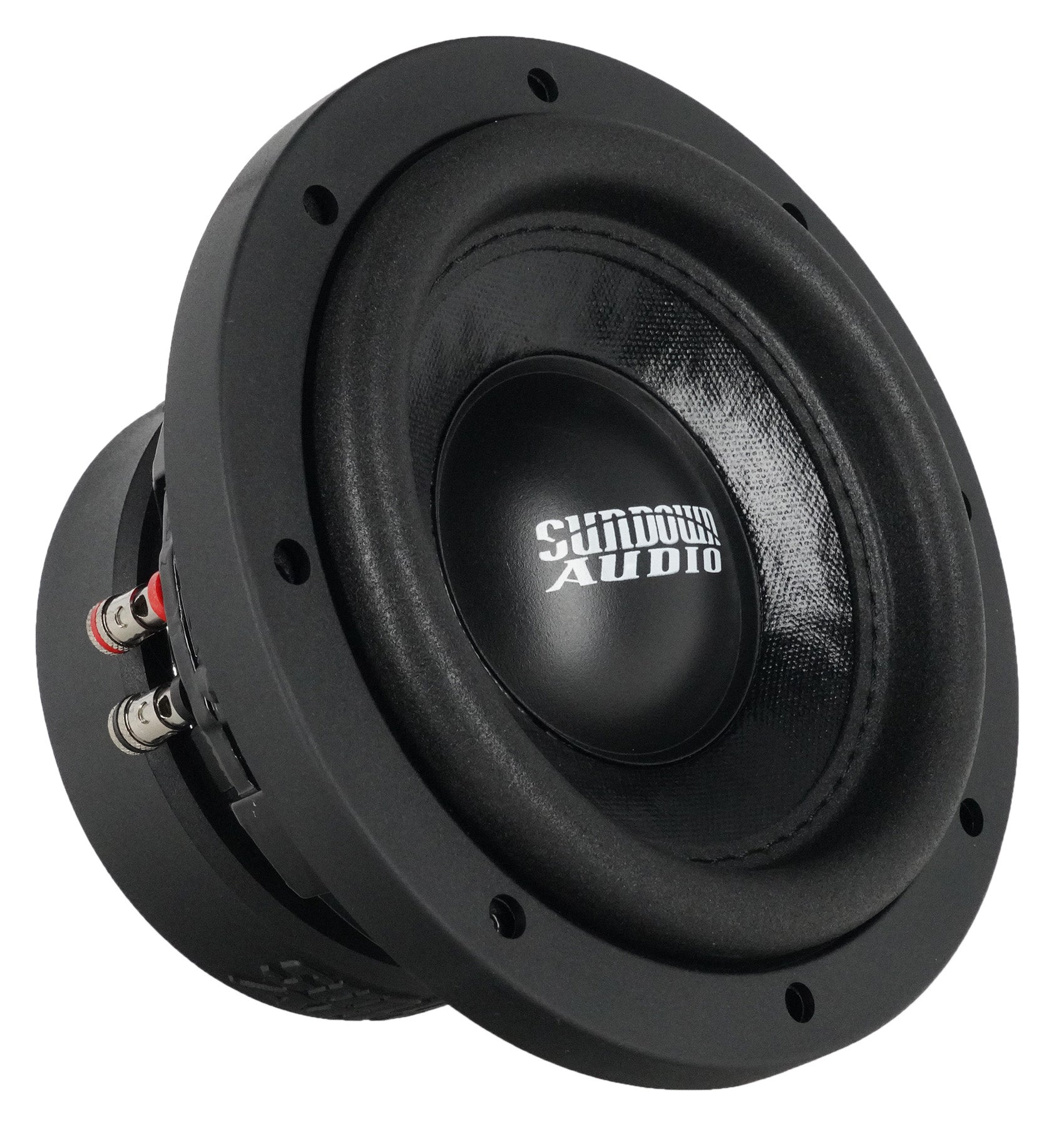

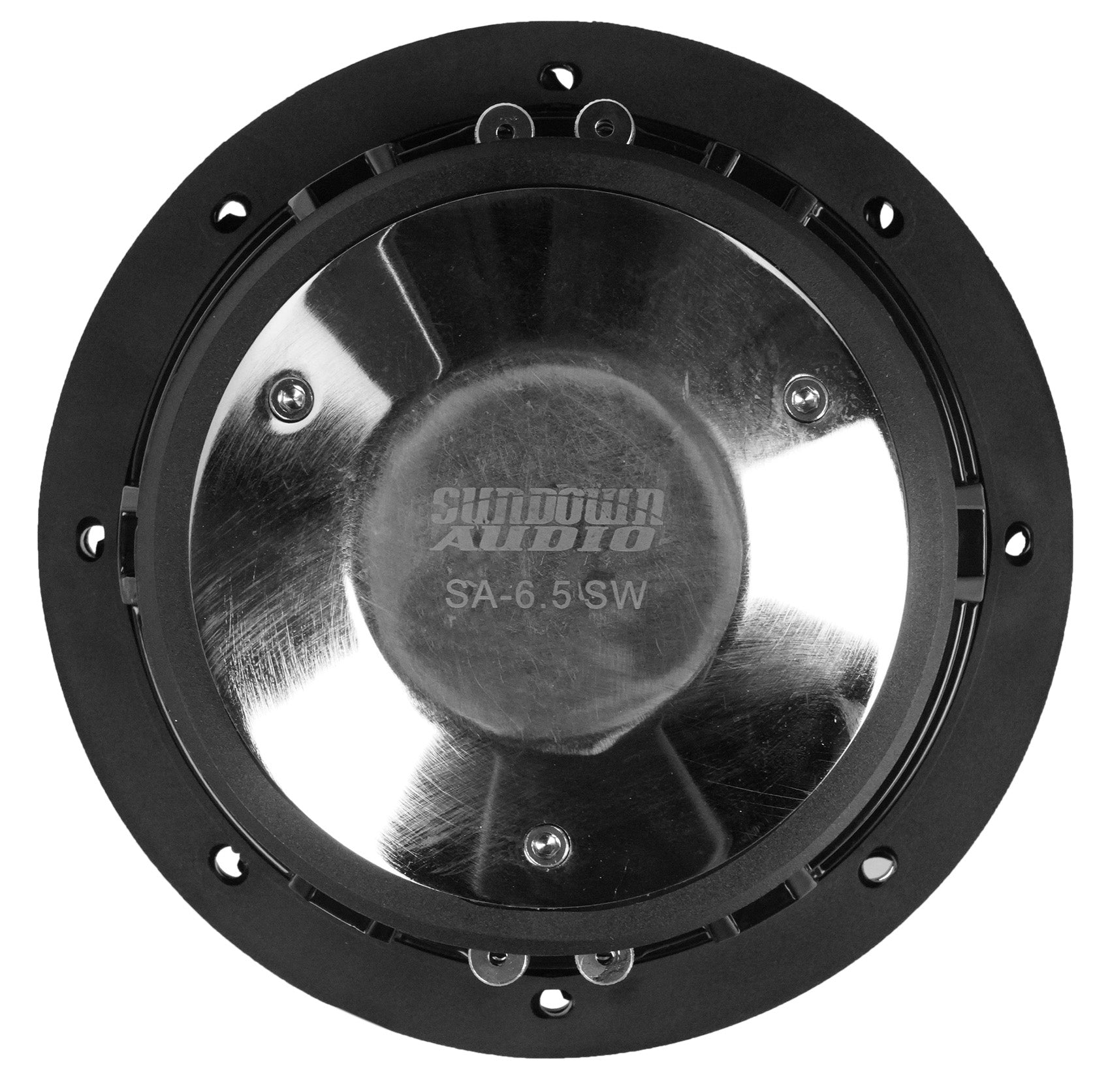

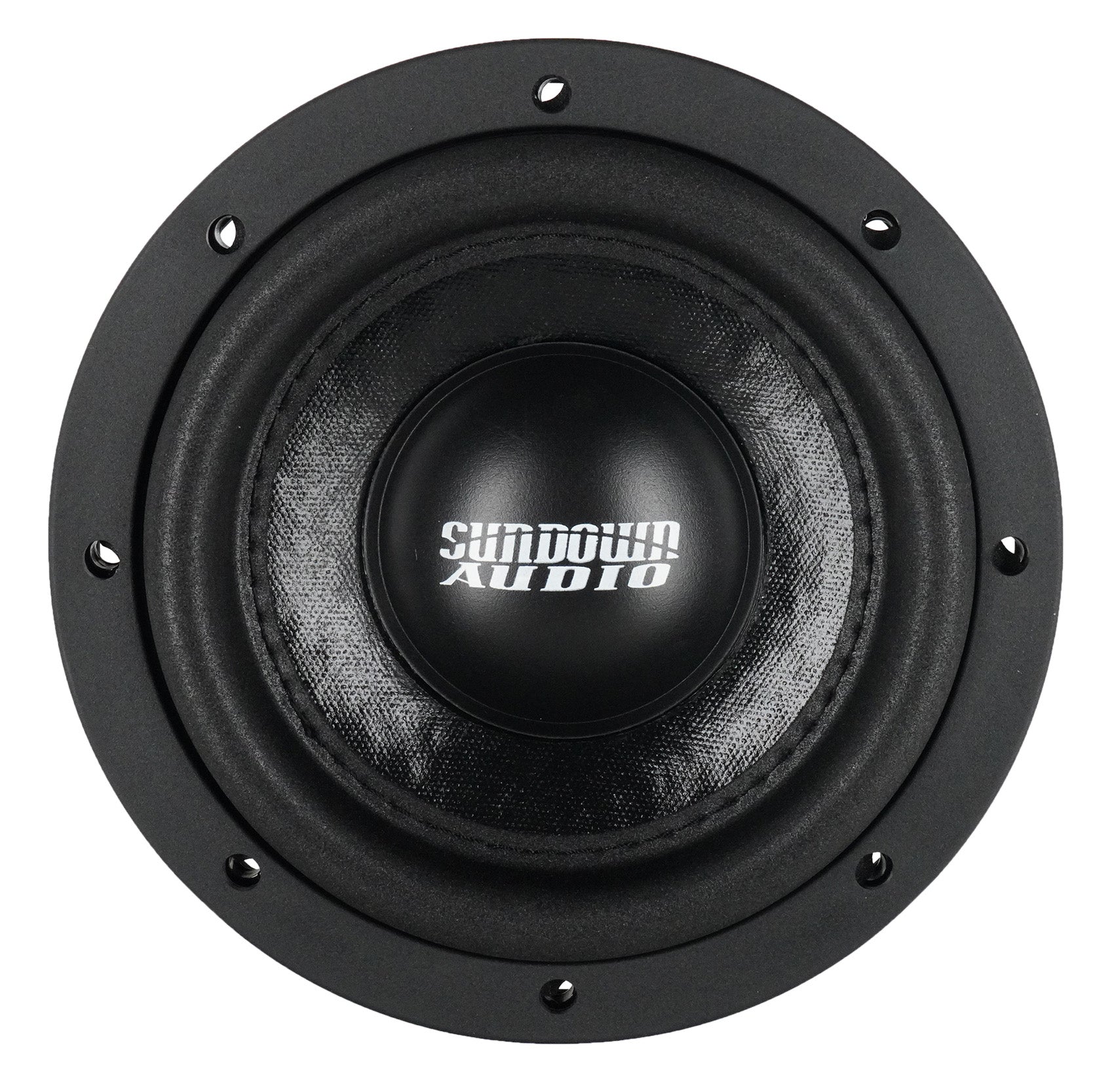

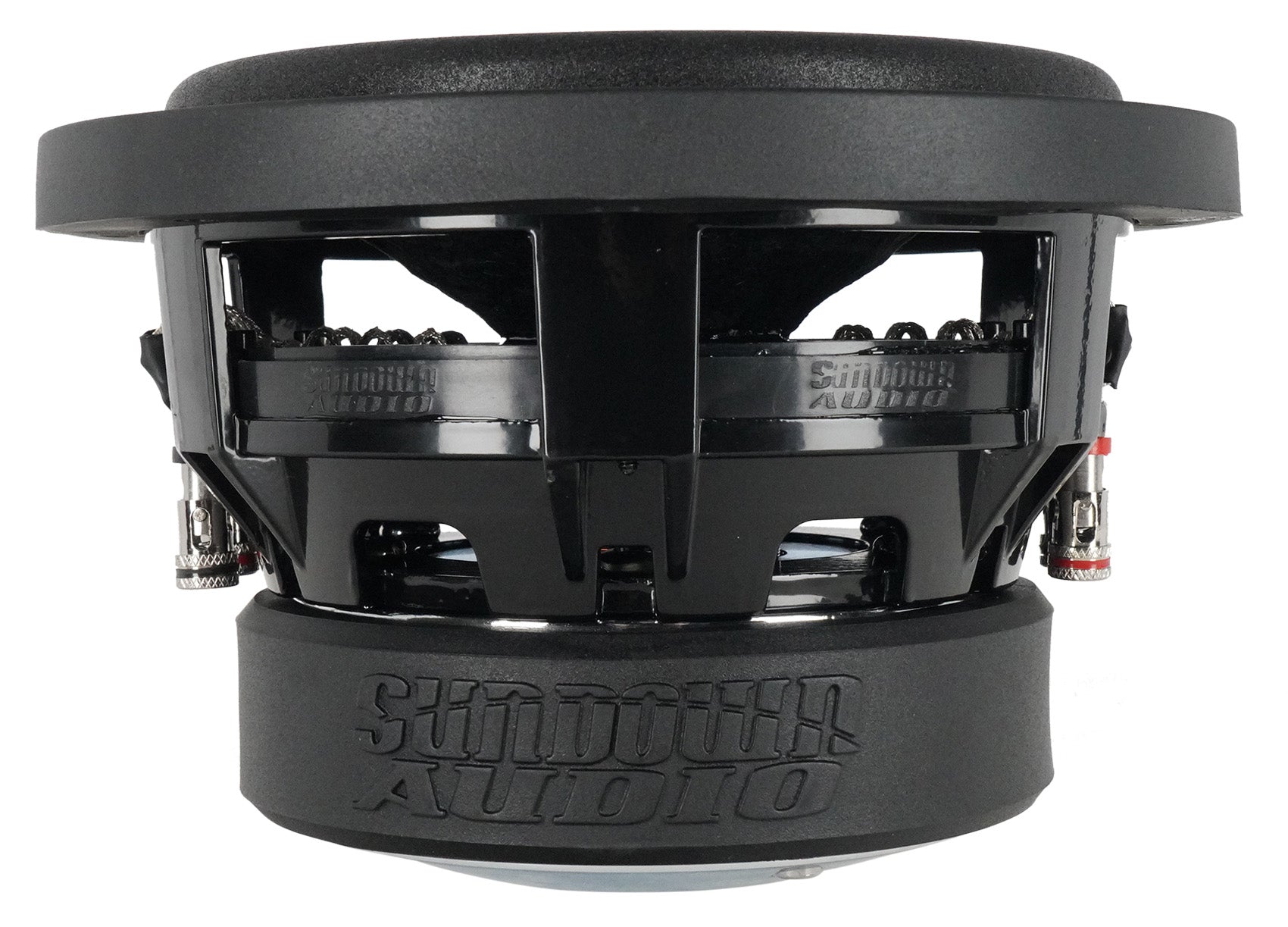

Sundown Audio SA-6.5SW 6.5" 300w RMS Car Audio Subwoofer DVC 4-Ohm SA Series Sub

Description:

The SA-6.5SW was created to achieve extremely high performance with less than 4” of mounting depth. Sundown uses a solid-pole design, allowing the back plate to rest against the back wall of the enclosure to reduce the mounting depth requirements even more. Twenty millimeters of mechanical excursion means surprisingly deep bass out of this mighty 6.5” sub!

Features:

• 300 Watts RMS/ 600 Watts Peak
• Large aluminum Faraday ring for smooth acoustic response
• High-temperature voice coil wire
• Spring-loaded terminals
• Integrated vent channels for enhanced cooling
• Perfect for under/behind seat sub enclosures

Specifications:

• Impedance: Dual 4 ohm
• RE (Ohms): 7.1
• FS (Hz): 51.8
• VAS (L): 3.6
• Qes: 0.54
• Qms: 4.65
• Qts: 0.49
• Le (mH): 2.45
• BL (NA): 13.5
• Mms (Grams): 75.6
• Cms (uM/N): 0.12
• Sens (dB @ 1w/1m): 81.5
• Xmax: 10mm
• Displacement:
  • Depth: 3.79"
  • Outside Diameter: 7.16″
  • Cut-Out: 5.93″

Subwoofer Measurements:

• Displacement (Inches): .02cu ft
• Depth (Inches): 3.75"
• Cutout (Inches): 5.875"
• Motor Diameter (Inches): 5.51

Ported Enclosure Specs:

• Ported Enclosure Size: 0.3 cu ft
• Recommended Port Area: 4 sq in
• Recommended Port Tuning: 40hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 0.15 cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: .112cu ft
• 4th Order Ported Side: .375cu ft
• 4th Order Port Area: 7sq in
• 4th Order Port Length: 6"
