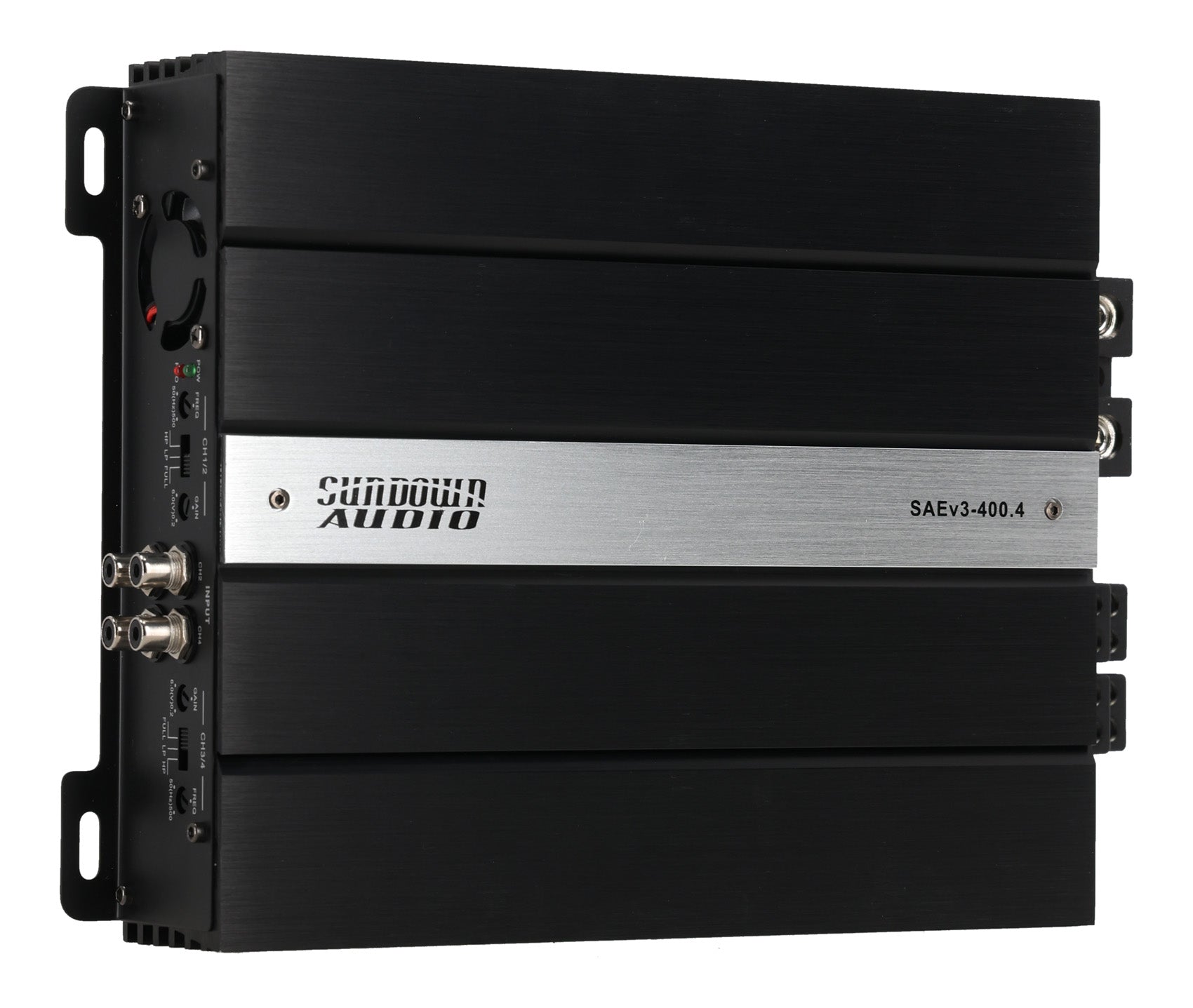

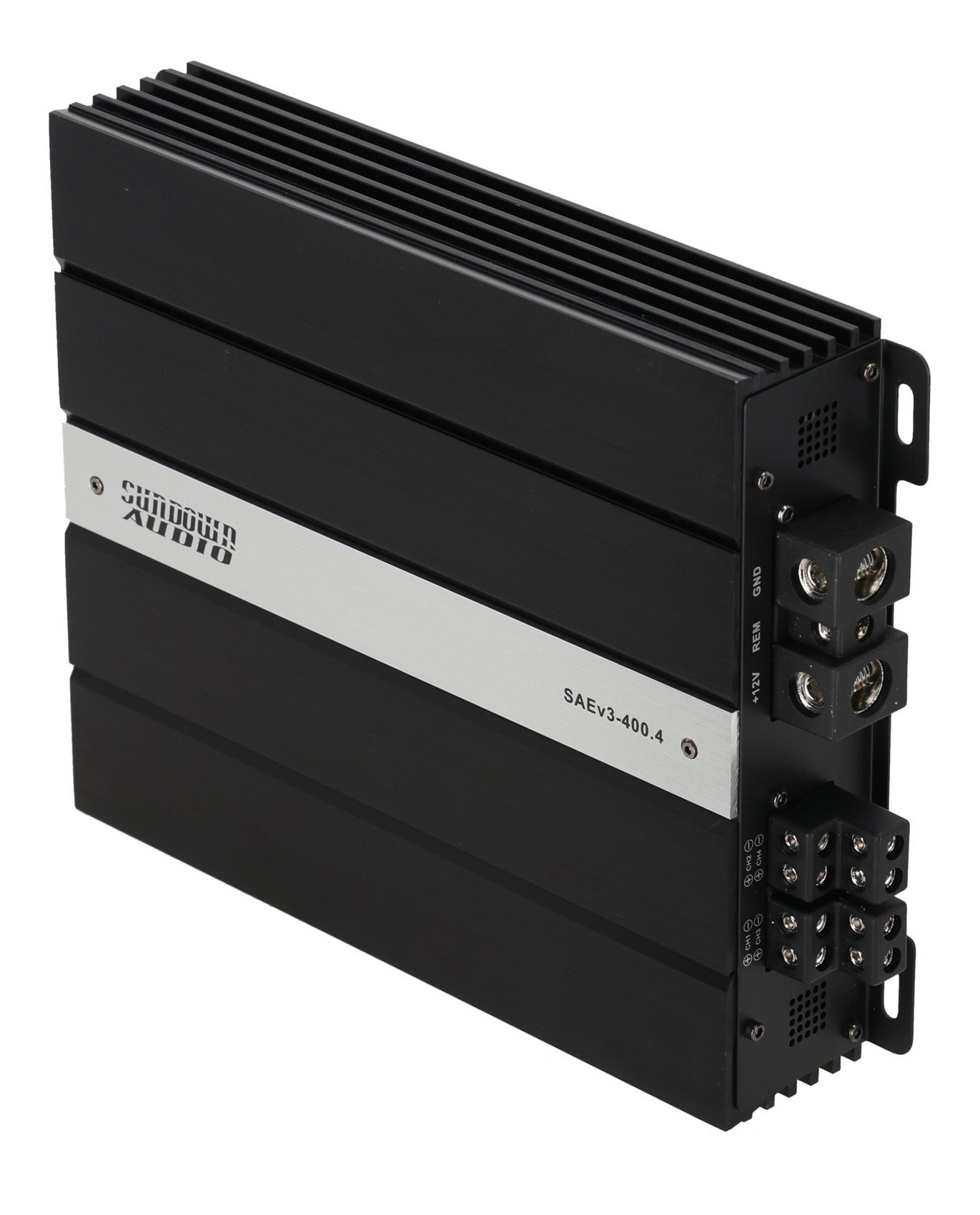

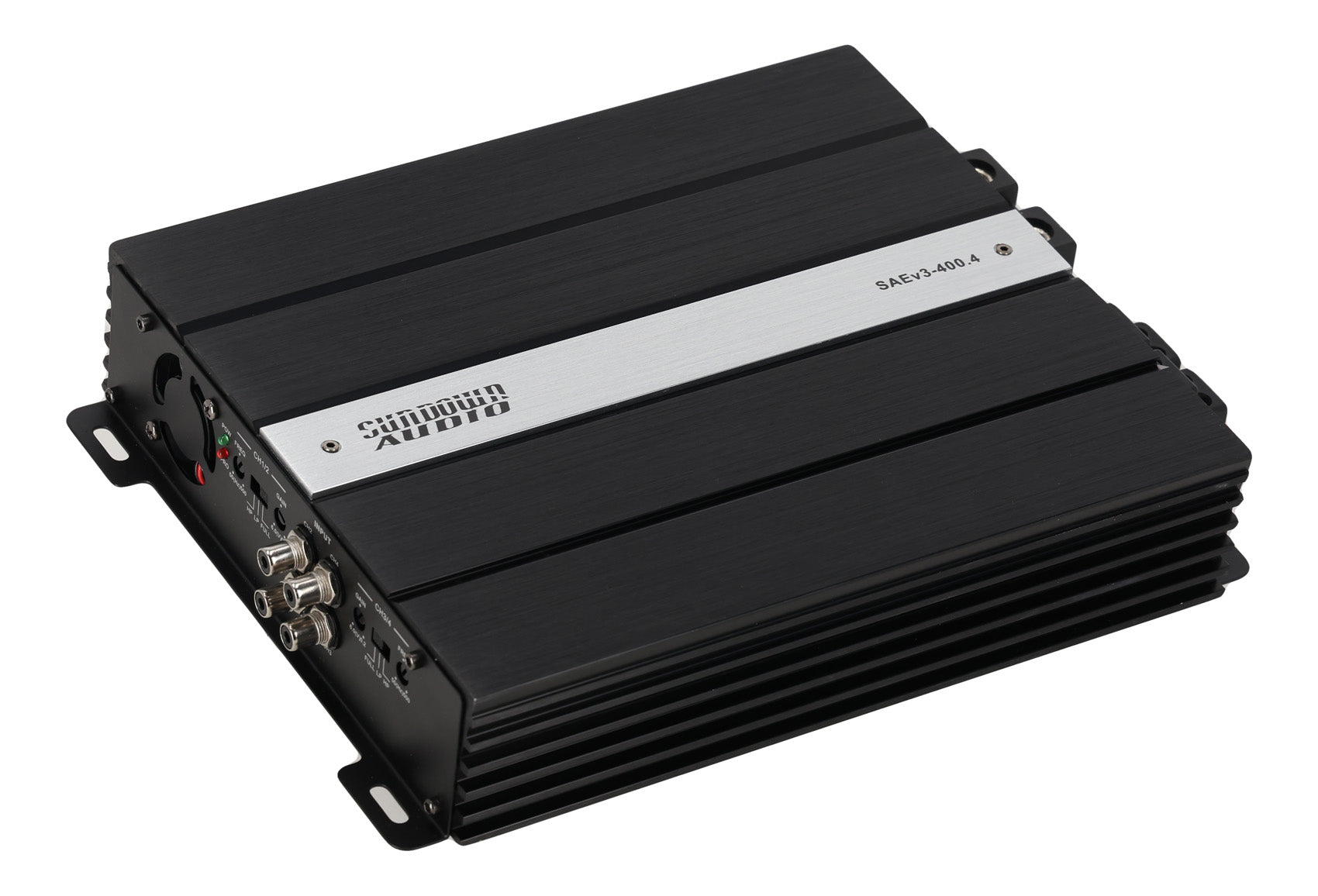

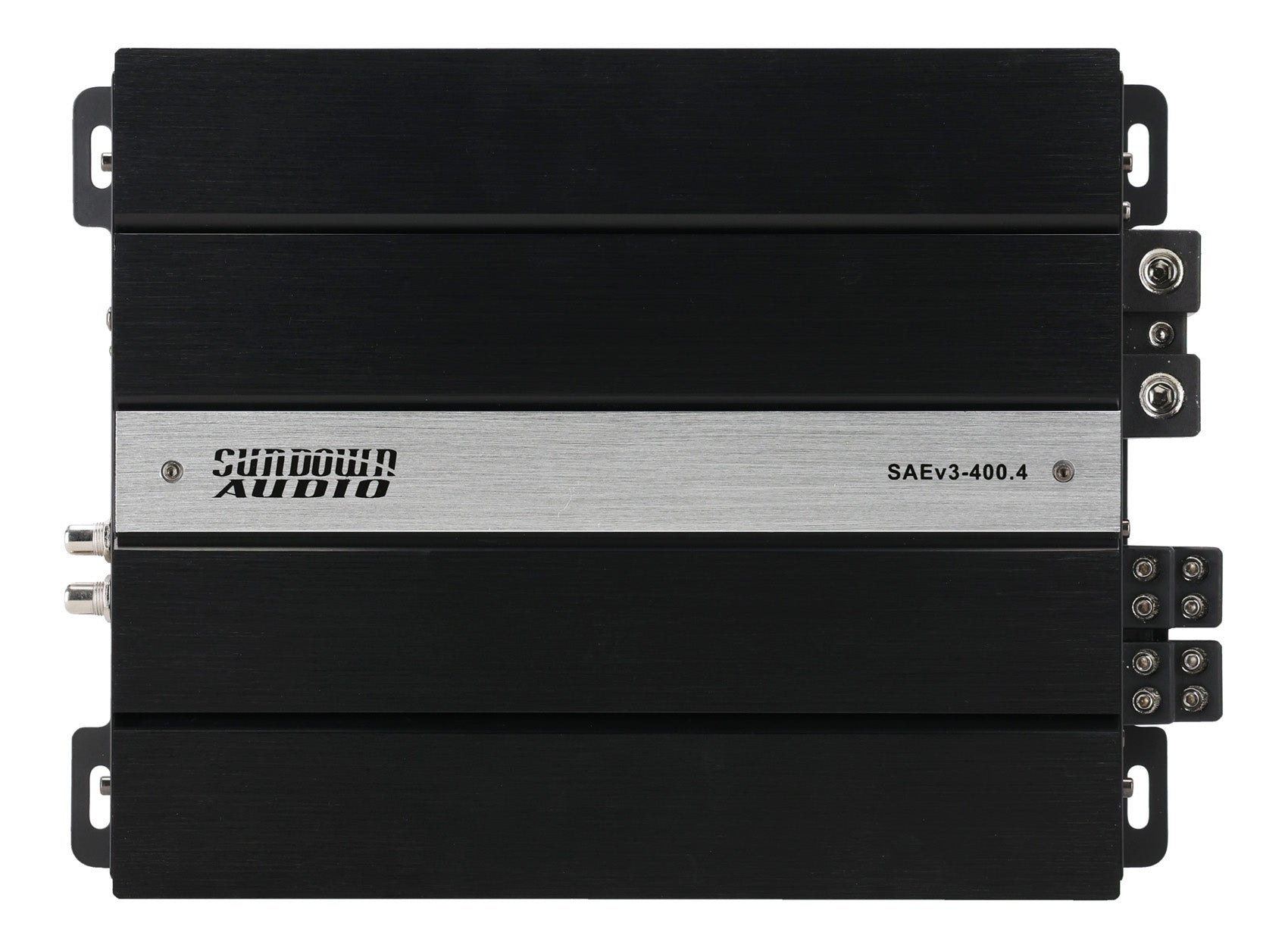

Sundown Audio SAEv3-400.4 4-Channel Amplifier Car Stereo Amp SAEv.3-400.4

Specifications:

• 4 Channel Class D Power Amplifier

• RMS Power: 400W x 4 @ 2Ohm

• RMS Power: 250W x 4 @ 4Ohm

• LPFL: 50Hz - 500Hz

• HPF: 50Hz - 500Hz

• Frequency Response: 20Hz - 20KHz

• S/N: 88dB

• T.H.D.: 0.10%

• Gain: 0.2 ~ 6V

• Input Impedance: 22k ohms

• Operation Voltage: DC 9-16V

• Minimum Impedance: 2 Ohm

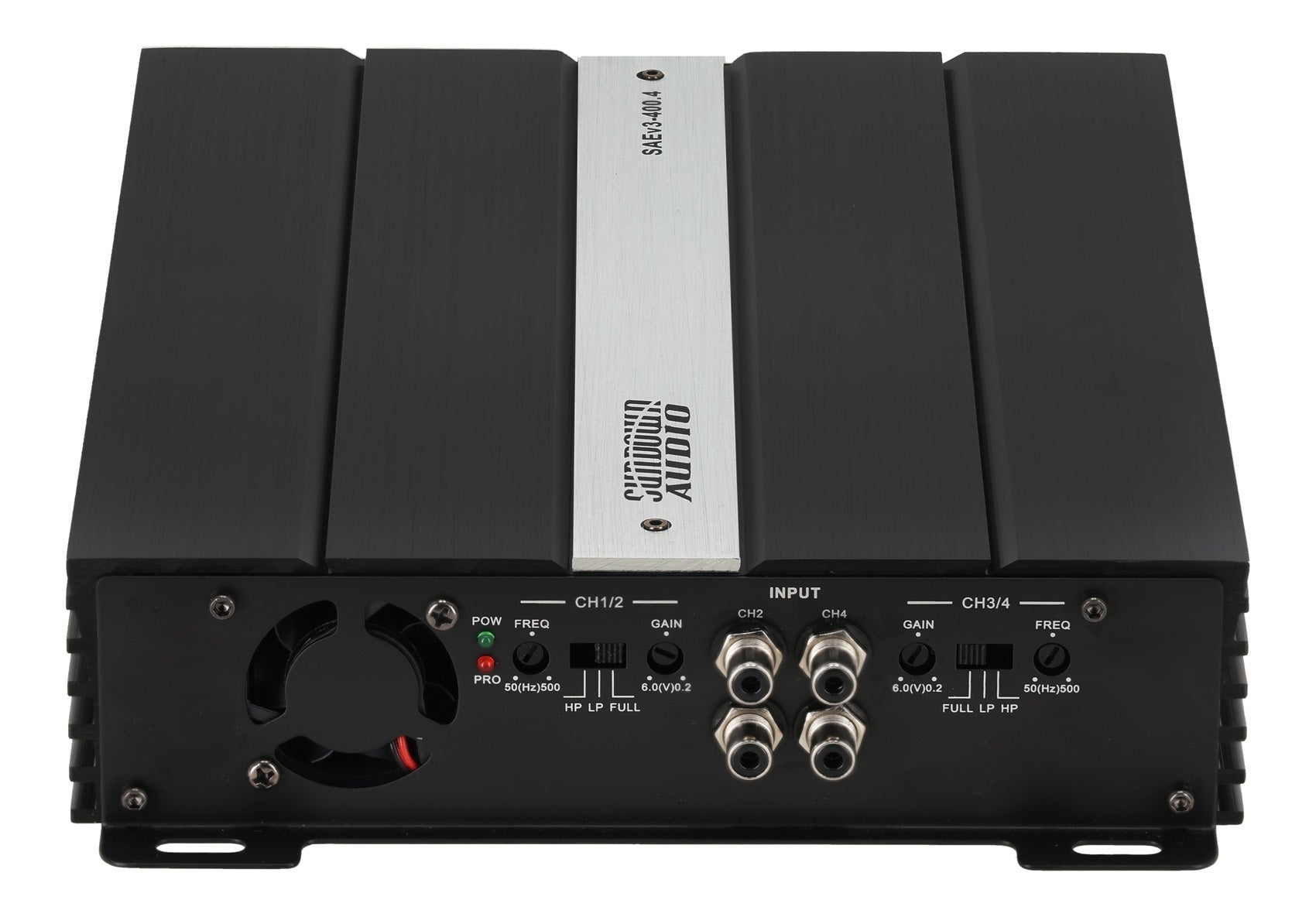

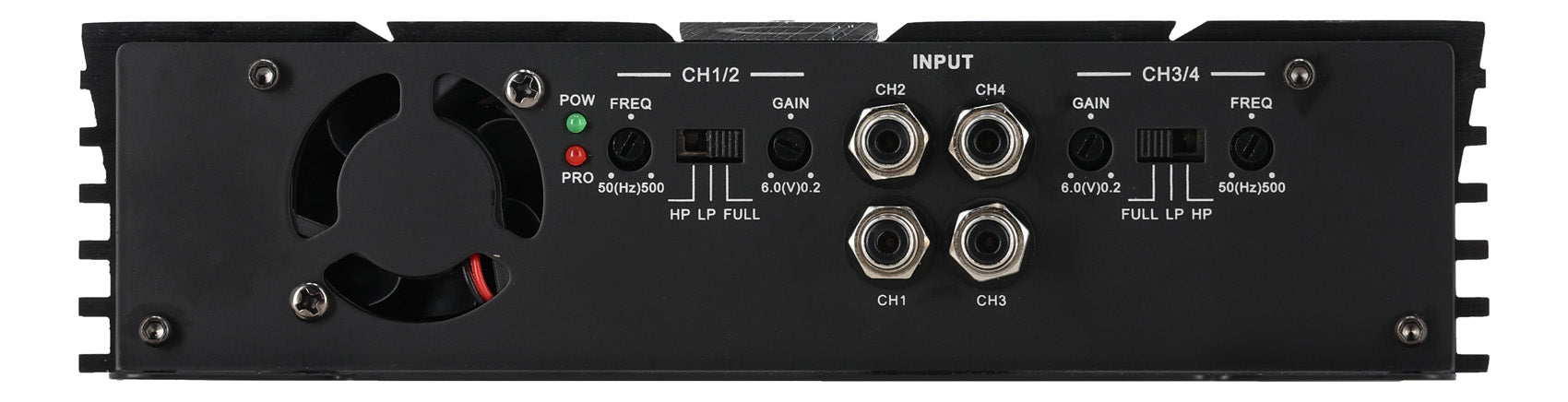

• Continuously - Variable Input Gain Control

• Remote Turn-on/Turn-off Circuit

• MOSFET Pulse Width Modulated Power Supply

• Soft Turn-on Circuit

• LED Power & Protection Indicators

• Thermal Management Smart Cooler

• High-Efficiency Multi-Channel Design

• Stable - 2-Ohm Stereo / 4-Ohm Bridge

• 4-Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)

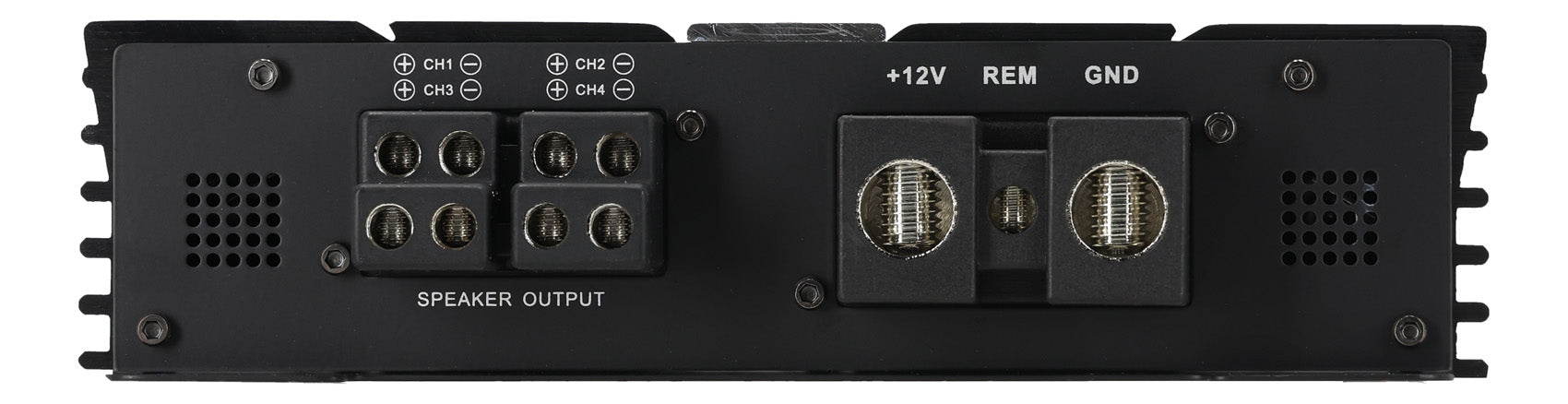

• Power/Ground Input: 1/0 AWG

• Speaker Output: 8 Ga AWG

• Dimensions (inch): L 9.57" x W 11.14"  x H 2.52"

• Recommended Fuse Rating: 165A
