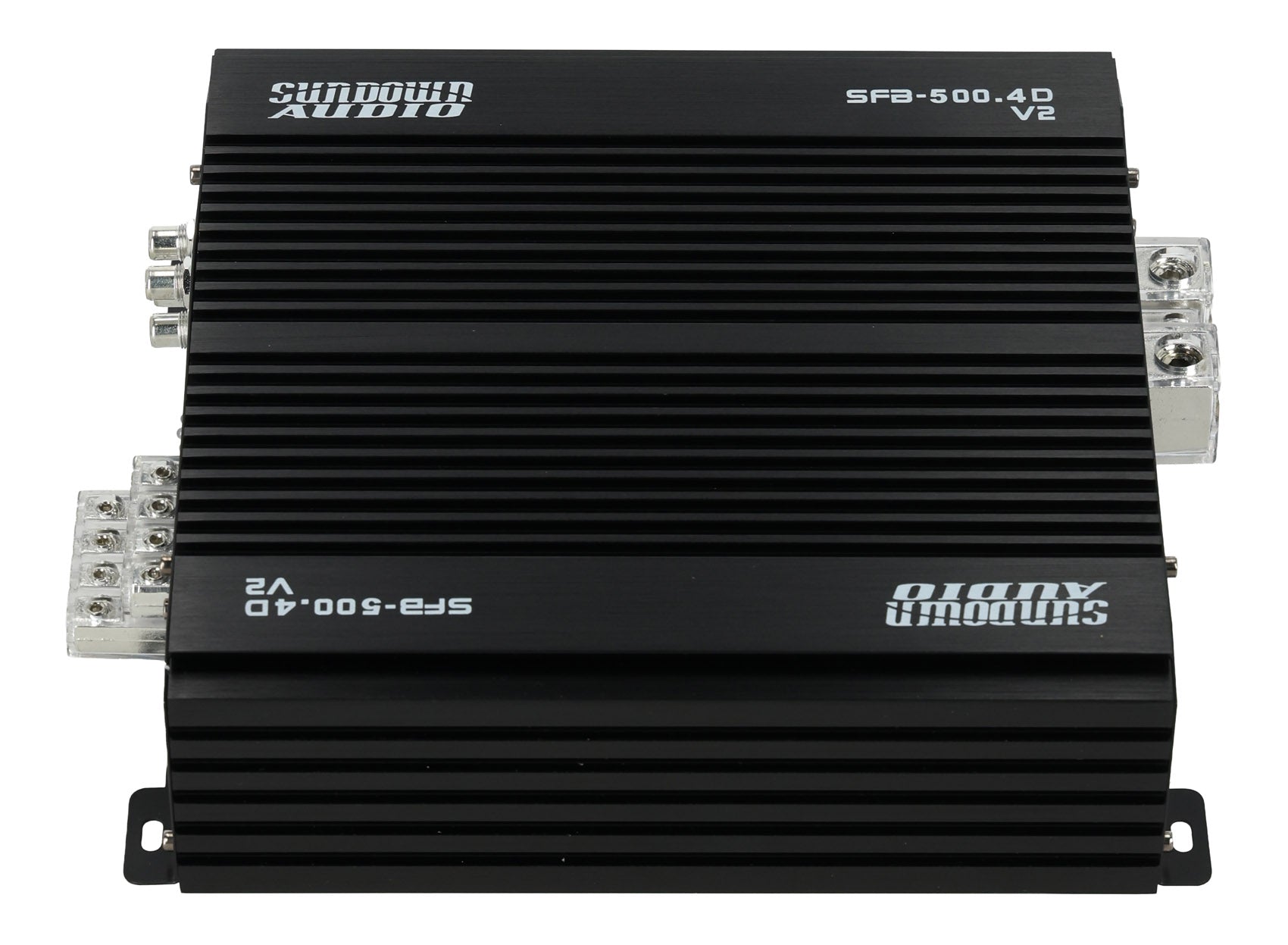

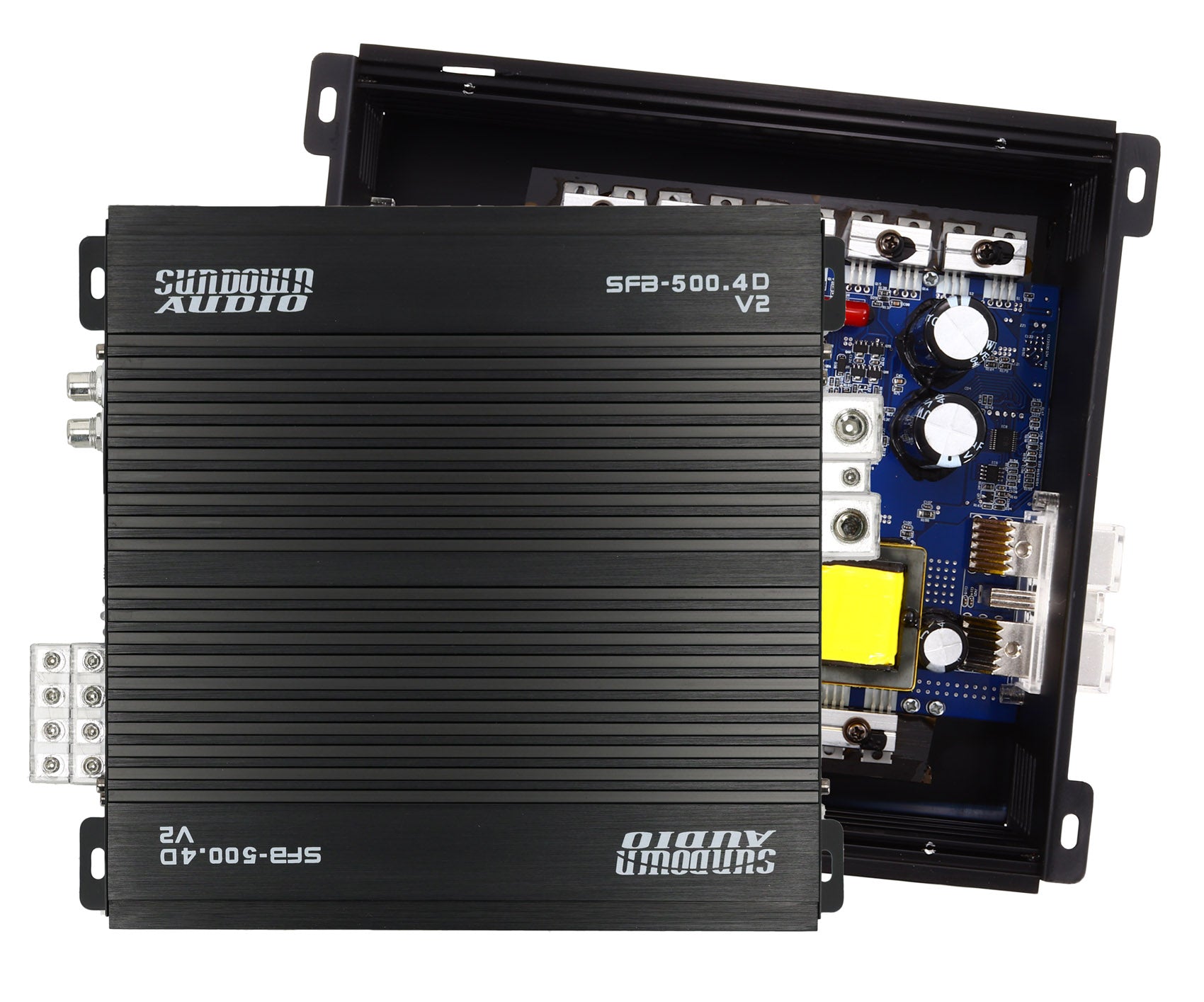

Sundown Audio SFB-500.4 V2 2000w RMS 4-Channel Amplifier Full Range Car Amp

Description:

Introducing the Sundown Full Bridge line of amplifiers! The “Brazilian Style” SFB packs a powerful punch in a compact size, stable down to 1 ohm per channel. Use the SFB to wire several speakers together on every channel - an ideal amp for a PA mid/high speaker array, a large marine system, or your favorite set of separates. If you are looking for raw power on a budget – look no further!.

Features:

• 500 x 4 @ 1 ohm RMS
• 300 x 4 @ 2 ohms RMS
• 200 x 4 @ 4 ohms RMS
• 4-channel full-range amplifier
• Variable 12dB low pass filter: 50Hz – 6kHz
• Variable 12dB high pass filter: 15Hz – 6kHz
• Variable 12dB Bass Boost @ 50Hz
• Power, protection & clipping indicators included
• Thermal, voltage, speaker short, and dc-offset protection circuitry
• Optional wired remote control with clipping indicator

Specifications:

• Frequency Response: 10HZ-20KHZ(-3dB)
• Input Impedance: 56k ohms
• Input Sensitivity 5V Max

• Minimum Supply Voltage: 9VDC
• Maximum Supply Voltage: 16VDC
• Amplifier Type: 4-channel full-range amplifier
• 1 Ohm RMS Power: 500 x 4 @ 1 ohm RMS
• 2 Ohm RMS Power: 300 x 4 @ 2 ohms RMS
• 4 Ohm RMS Power: 200 x 4 @ 4 ohms RMS
• Operation Voltage: 10.5v-15.5v
• Recommended Fuse: 180A
• Signal / Noise Ratio: 100dB
• Variable 12dB High Pass Filters: 15Hz – 6kHz
• Variable 12dB Low Pass Filters: 50Hz – 6kHz
• Dimensions:

  • Length: 9.75"
  • Width: 2.75"
  • Height: 8.28"
