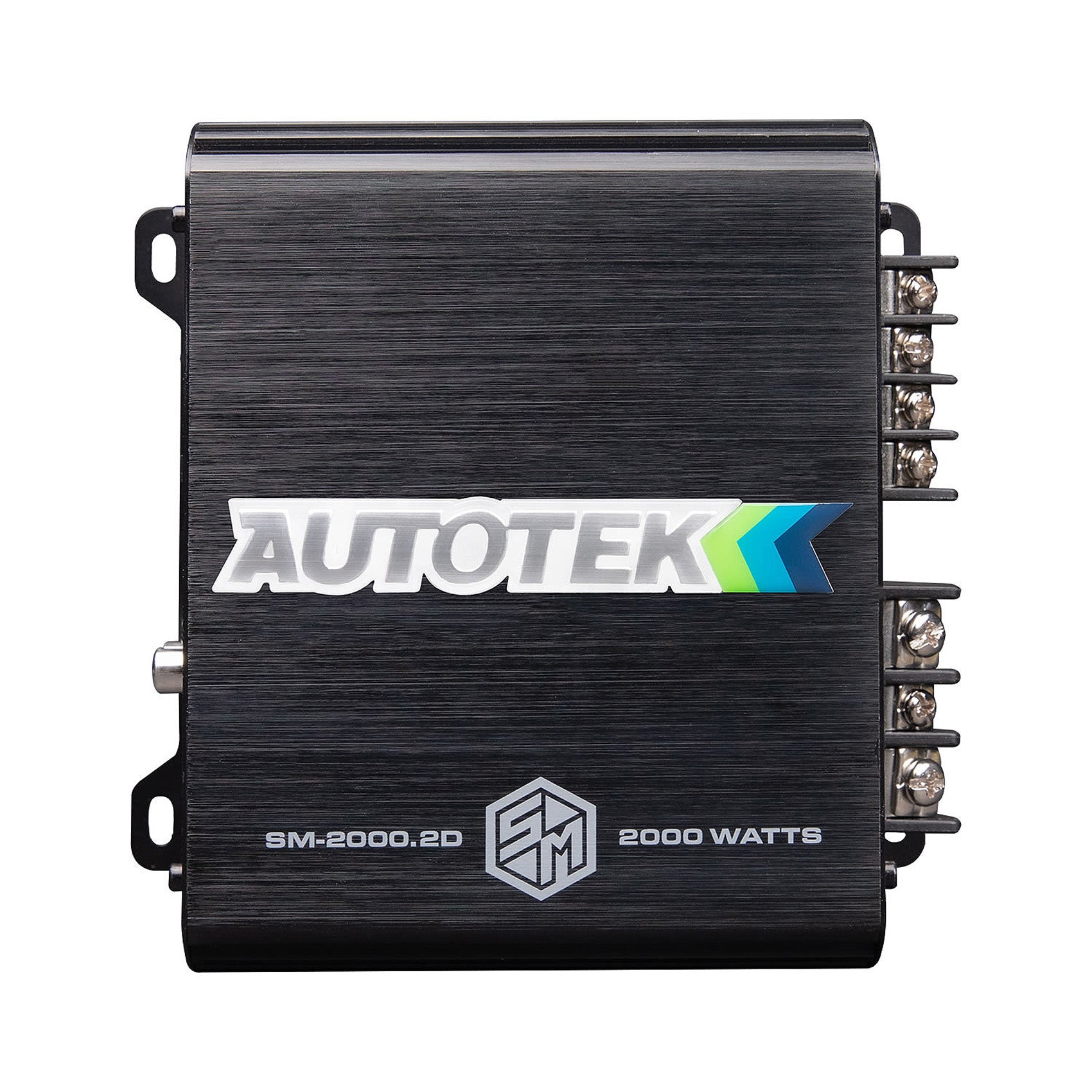

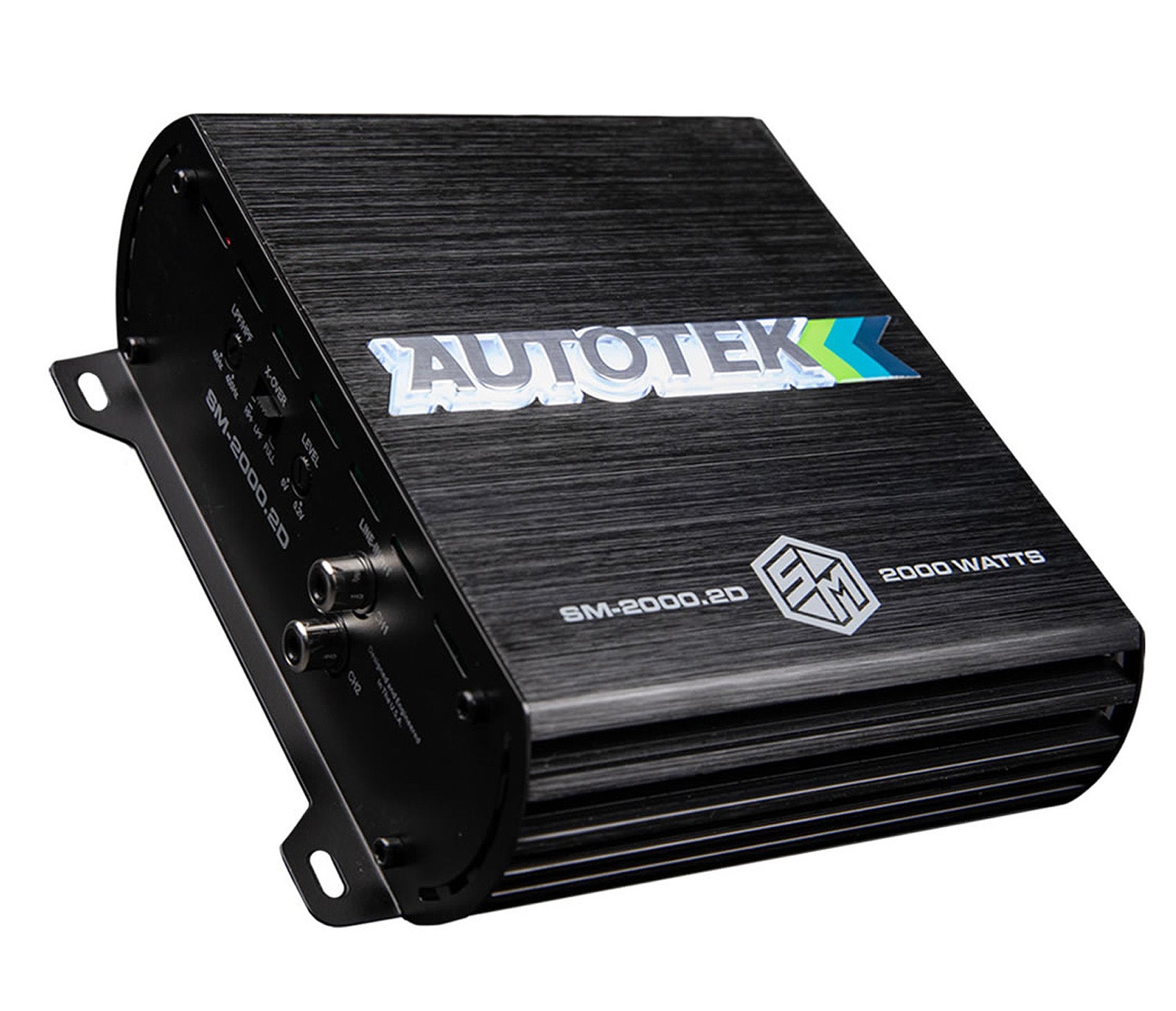

Autotek SM-2000.2D 2000 Watt 2-Channel Car Audio Amplifier Class D Amp

Description:

Autotek SM-2000.2D STREET MACHINE amplifier series with QTD Technology delivers 2000 watts to speakers and features built-in electronic crossovers.

Features & Benefits:

• Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
• RCA Inputs: Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• Operation Mode: Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously
• Crossover Type: Fully Adjustable 12dB Crossovers

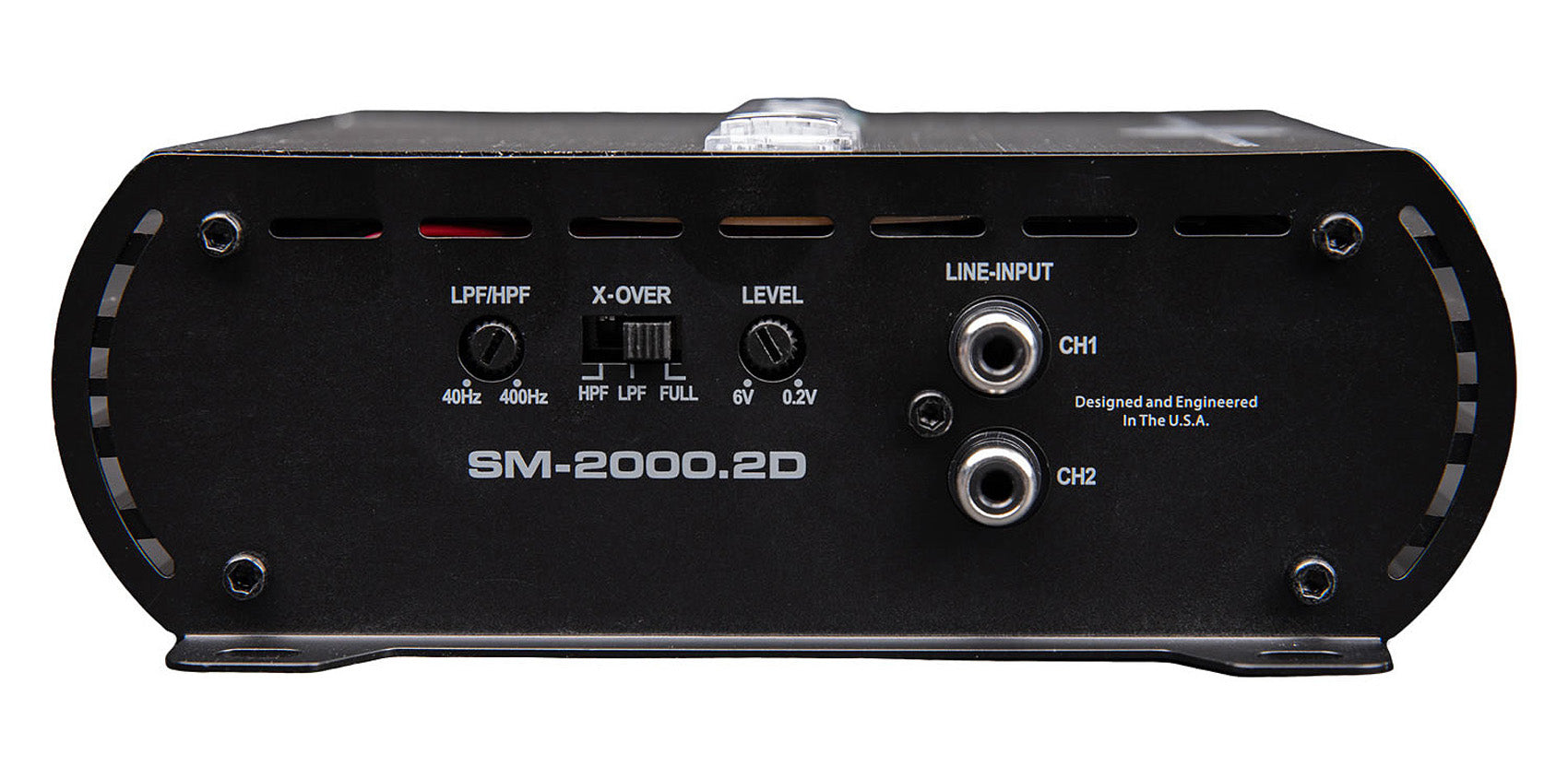

• Electronic Equalizer: Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• Class / Topology: Class D: Very efficient Class D design to drive additional power to speaker frequencies while remaining a small footprint
• Output Device Technology: Pro-Fi™ High Speed MOSFET’s components maximize power efficiency while improving sound quality and minimizing distortion.
• Heat Sink: Sound Shield™ Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool while shielding music from distortions that can be caused by heat.
• Power Supply: High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

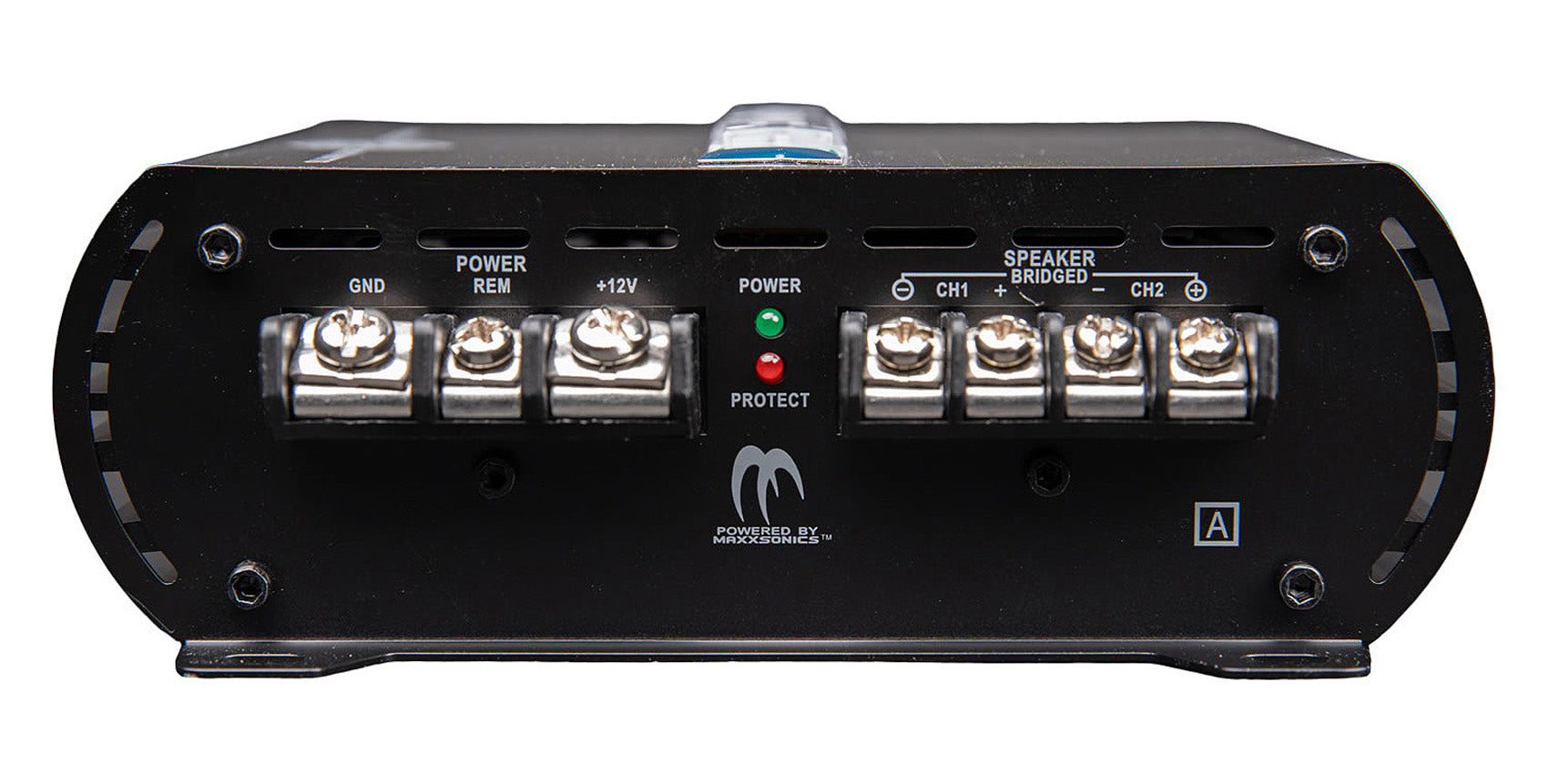

• Output Connections: Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
• Connection Type: Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.

Details & Specs:

• Type: Amplifier
• Color: Black
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Class D
• Amp Total Channels: 2
• Amp Max Power (watts): 2000
• Amp Power @ 2 Ohms (ch x watts): 2 x 1000
• Amp Power @ 4 Ohms (ch x watts): 2 x 500
• Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 2000
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Voltage: 0.2-6V
• Amp Signal to Noise: >100dB
• Amp Frequency Response: 20Hz-20kHz
• Amp Total Harmonic Distortion (THD): < 0.5%
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: 4 GA
• Amp Speaker Terminal Wire Gauge: 8 GA
• Amp Fusing: External 40A
