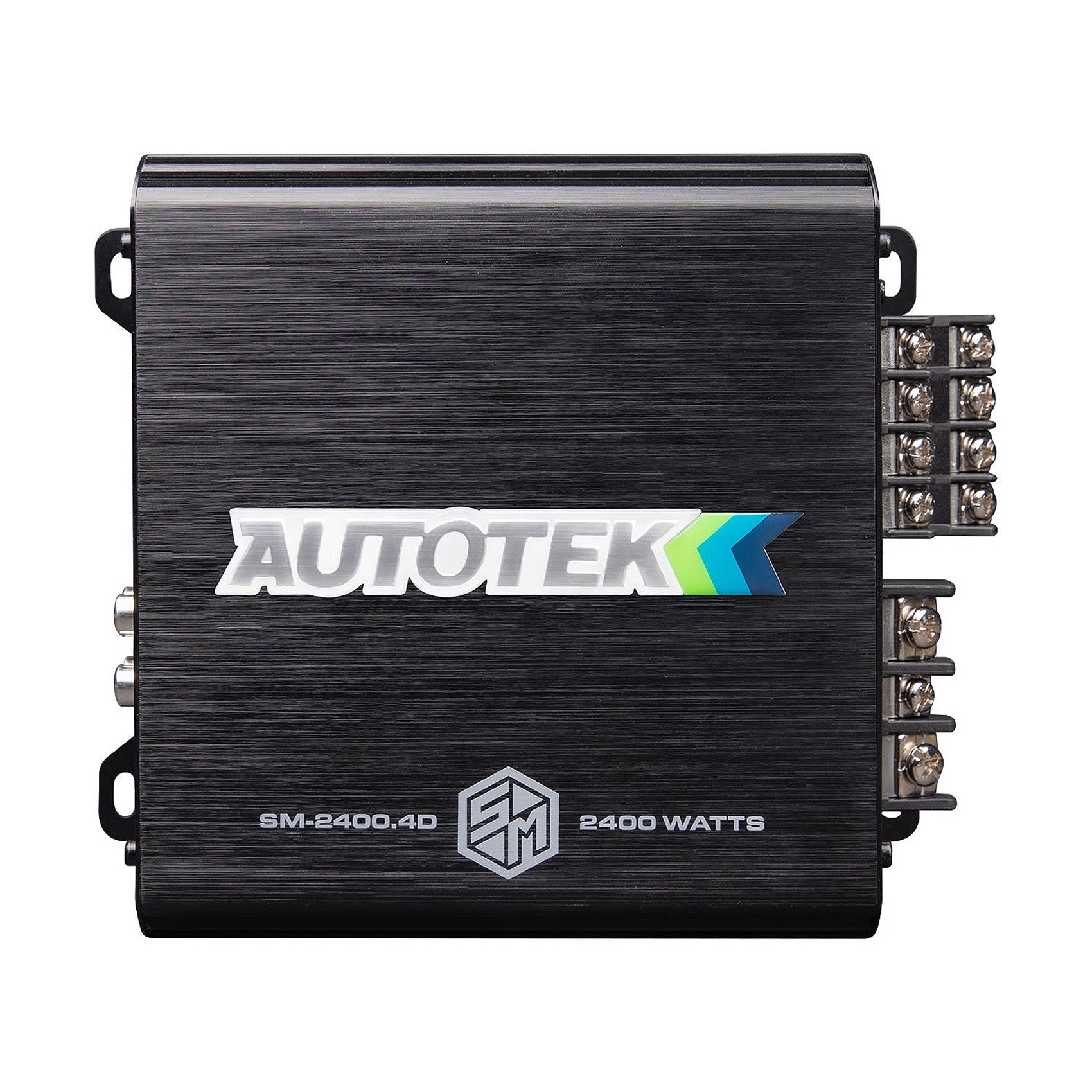

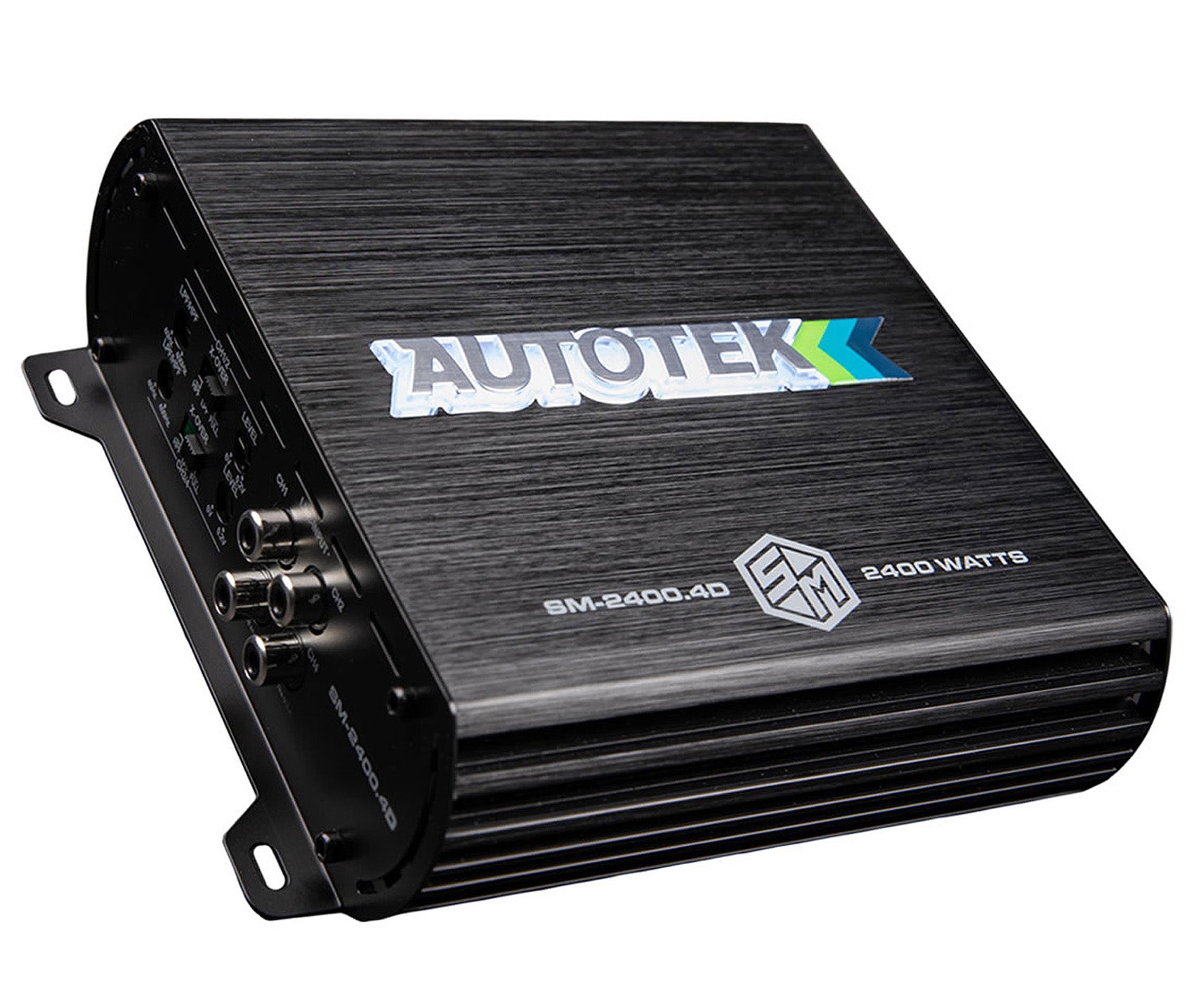

Autotek SM-2400.4D 2400w 4 Channel Compact Car Stereo Amplifier Class D Amp

Description:

Autotek SM-2400.4D STREET MACHINE amplifier series with QTD Technology delivers 2400 watts to speakers and features built-in electronic crossovers.

Features & Benefits:

• Low Noise Preamplifier Circuit

  • Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.

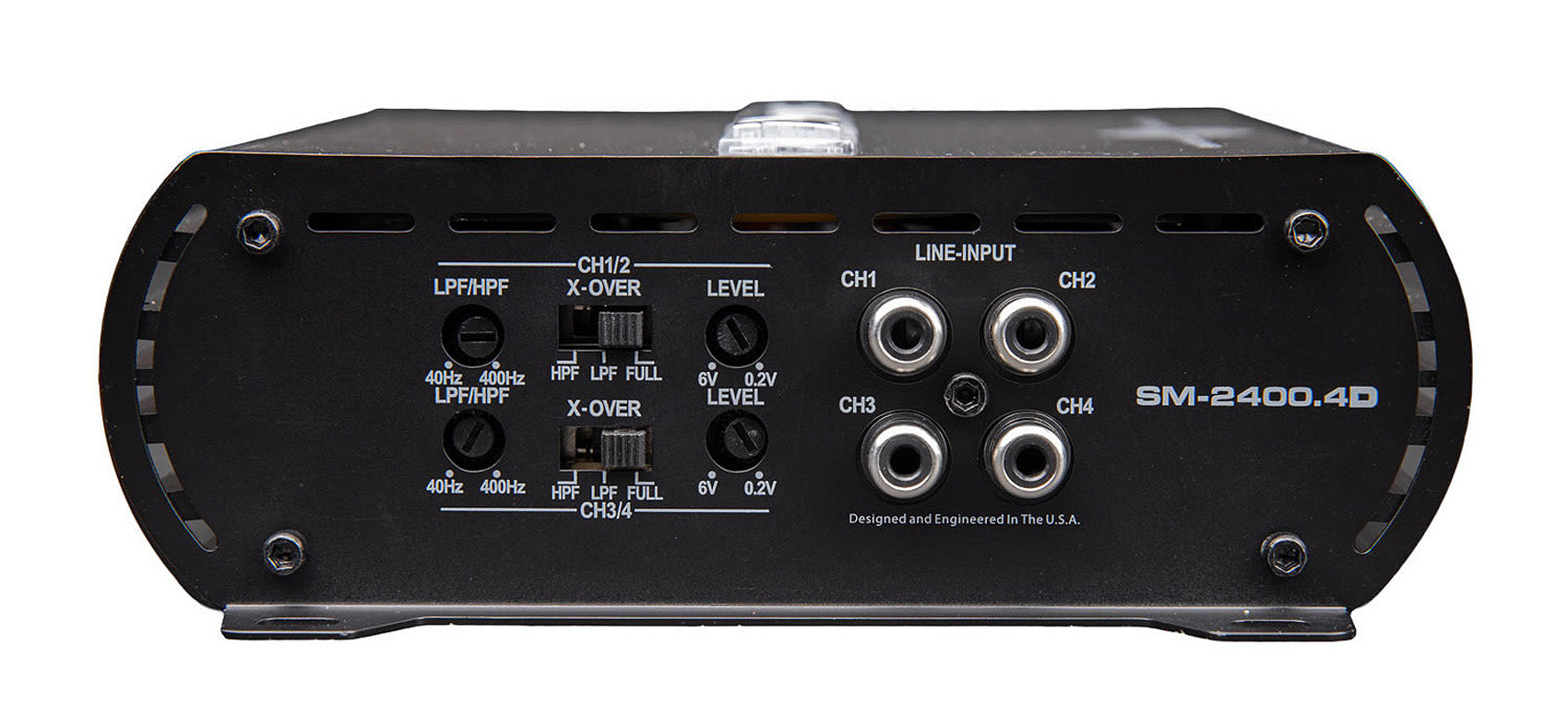

• RCA Inputs

  • Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.

• Operation Mode

  • Four Channel Stereo, Dual Stereo Bridged, Stereo + Bridged Mono, Dual Bridged Mono

• Crossover Type

  • Fully Adjustable 12dB Crossovers

• Electronic Equalizer

  • Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers.

• Class / Topology

  • Class D: Very efficient Class D design to drive additional power to speaker frequencies while remaining a small footprint

• Output Device Technology

  • Pro-Fi™ High Speed MOSFET’s components maximize power efficiency while improving sound quality and minimizing distortion.

• Heat Sink

  • Sound Shield™ Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool while shielding music from distortions that can be caused by heat.

• Power Supply

  • High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

• Output Connections

  • Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.

• Connection Type

  • Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.

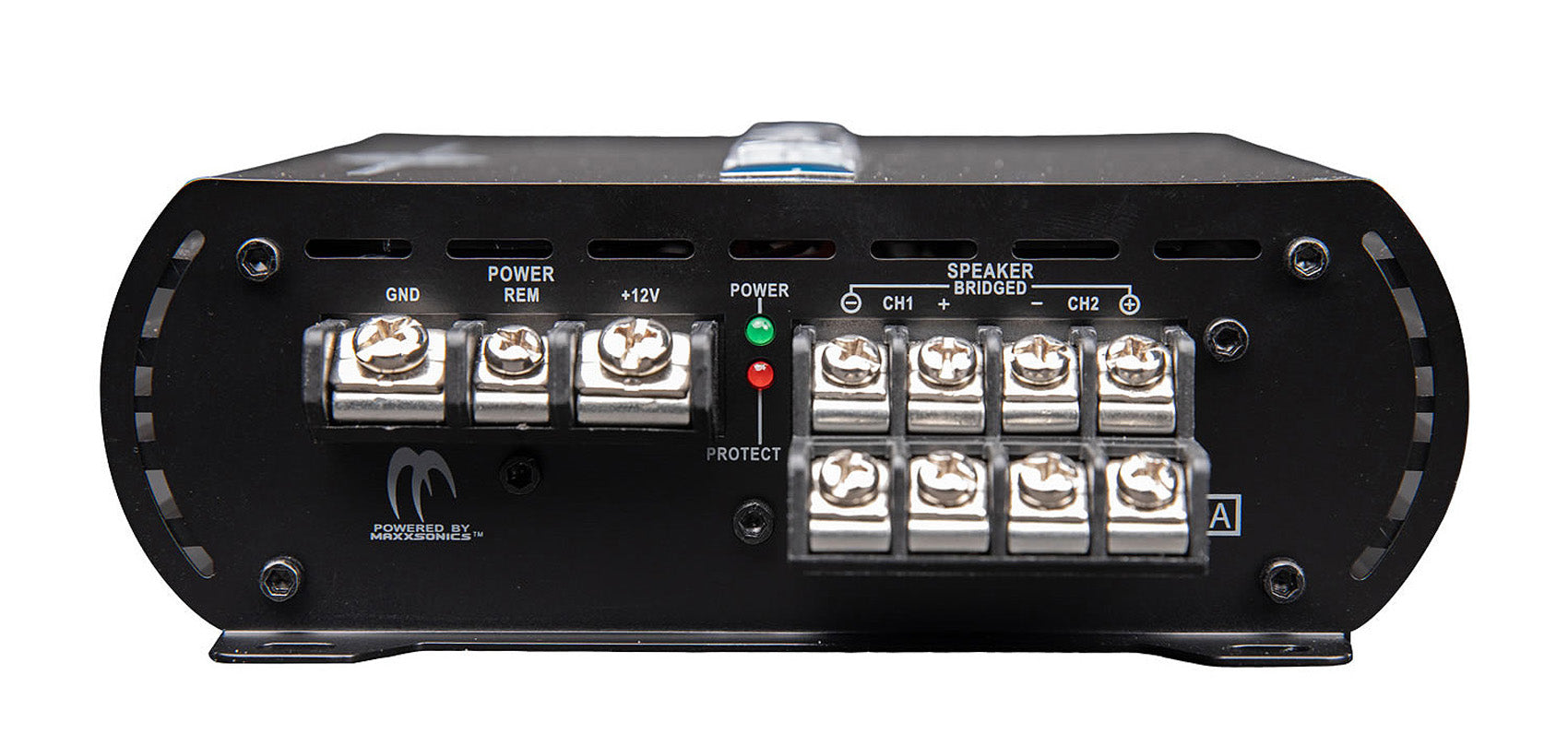

• LED System Protection Circuitry Diagnostics

  • Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.


Details & Specs:

• Item Weight (lbs): 2.8

• Item Length (in): 6.75

• Item Width (in): 6.125

• Item Height (in): 2.06

• Series: Street Machine

• Color: Black

• Warranty: 1 Year

• Compatible Vehicles: Universal

• Amp Class: Class D

• Amp Total Channels: 4

• Amp Max Power (watts): 2400

• Amp Power @ 2 Ohms (ch x watts): 4 x 600

• Amp Power @ 4 Ohms (ch x watts): 4 x 300

• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 1200

• Amp Crossover: Variable Electronic 12dB Per Octave

• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz

• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz

• Amp Variable Voltage: 0.2-6V

• Amp Signal to Noise: >100dB

• Amp Frequency Response: 20Hz-20kHz

• Amp Total Harmonic Distortion (THD): < 0.5%

• Amp Speaker Level Audio Inputs: RCA

• Amp Power Terminal 12v/GND: 4 GA

• Amp Speaker Terminal Wire Gauge: 8 GA

• Amp Fusing: External 80A
