Sundown Audio SML-12 D2 12" 600w RMS Shallow Subwoofer Slim DVC 2-Ohm Car Sub

Description:

Introducing the SML series: a revolutionary line of subwoofers by Sundown Audio. This series is an inch shallower than the SLD line, yet delivers nearly the same excursion, making it the ultimate choice for customers in search of an extremely shallow driver with deep bass. Specifically designed to fit under or behind your seat, the SML series excels in performance, especially within small enclosures.

Features:

• 600 Watts RMS/1200 Watts Peak
• Dual 2 ohm
• Black Aluminum 2.5” voice coil former for superior heat dissipation
• High temperature 4-layer copper voice coil wire

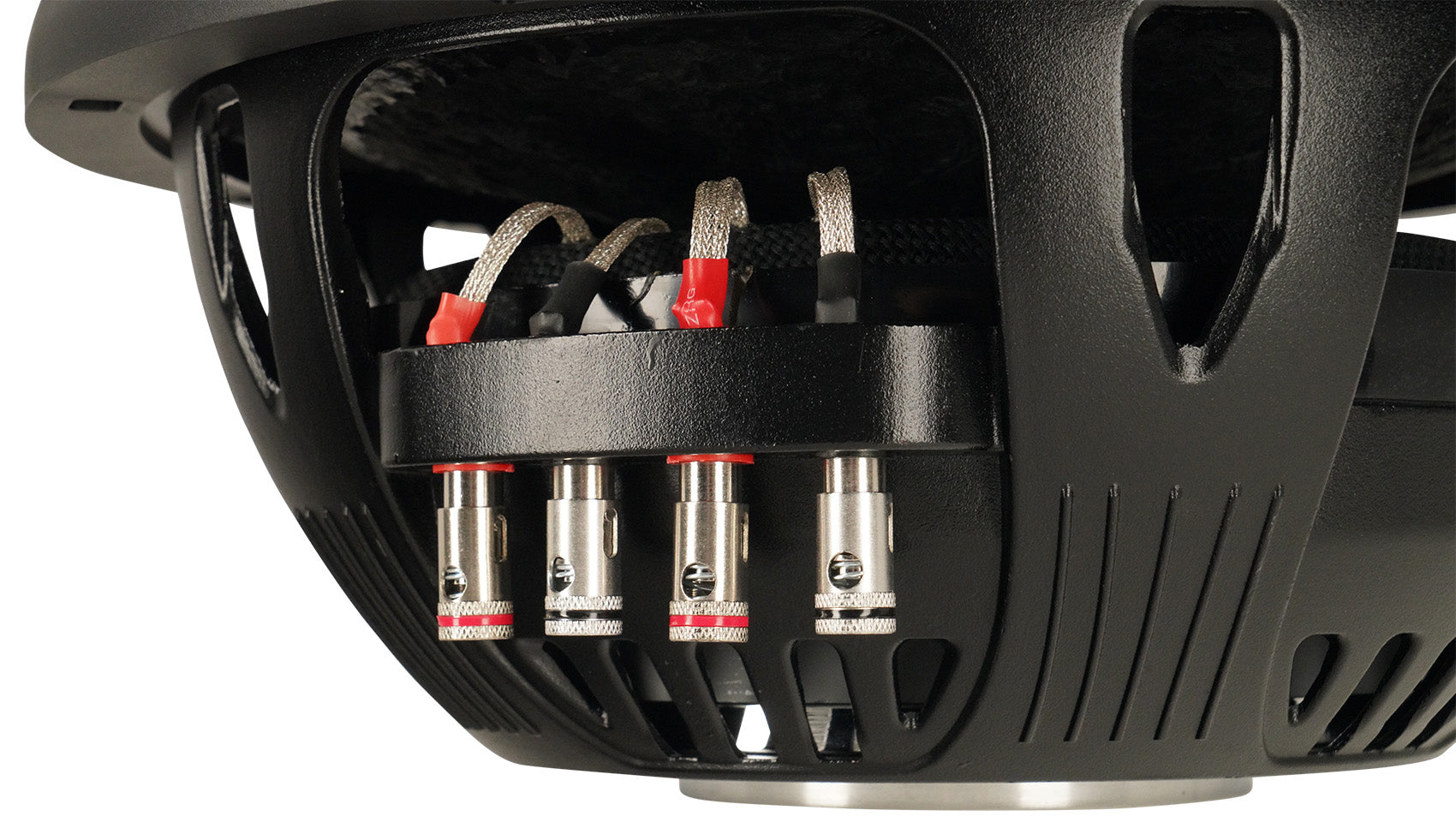

• Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
• Vented pole-piece and multi-vented magnetic gap
• Dual-magnet design for smooth acoustic response
• Custom tooled cone shape for reduced mechanical noise over high excursion
• Bolt-through motor design to ensure maximum longevity and ruggedness

Specifications:

• RE (Ohms): 3.650
• FS (Hz): 34.932
• VAS (L): 39.012
• Qes: 0.456
• Qms: 2.862
• Qts: 0.394
• BL (NA): 17.879
• Mms (Grams): 182.067
• Cms (uM/N): 114.018
• Sens (dB @ 1w/1m): 87.5
• Xmax: 11mm

Subwoofer Measurements:

• Displacement (Inches): .05cu ft
• Depth (Inches): 4.45
• Cutout (Inches): 10.75"
• Motor Diameter (Inches): 6.14

Ported Enclosure Specs:

• Ported Enclosure Size: 1.25-1.75 cu ft
• Recommended Port Area: 26-30 sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 0.75-1.0 cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: 0.75 cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 15sq in
• 4th Order Port Length: 6"
