Audio Technica ATW-1423/L Wireless Microphone System Receiver+Handheld+Lav Mics

Description:

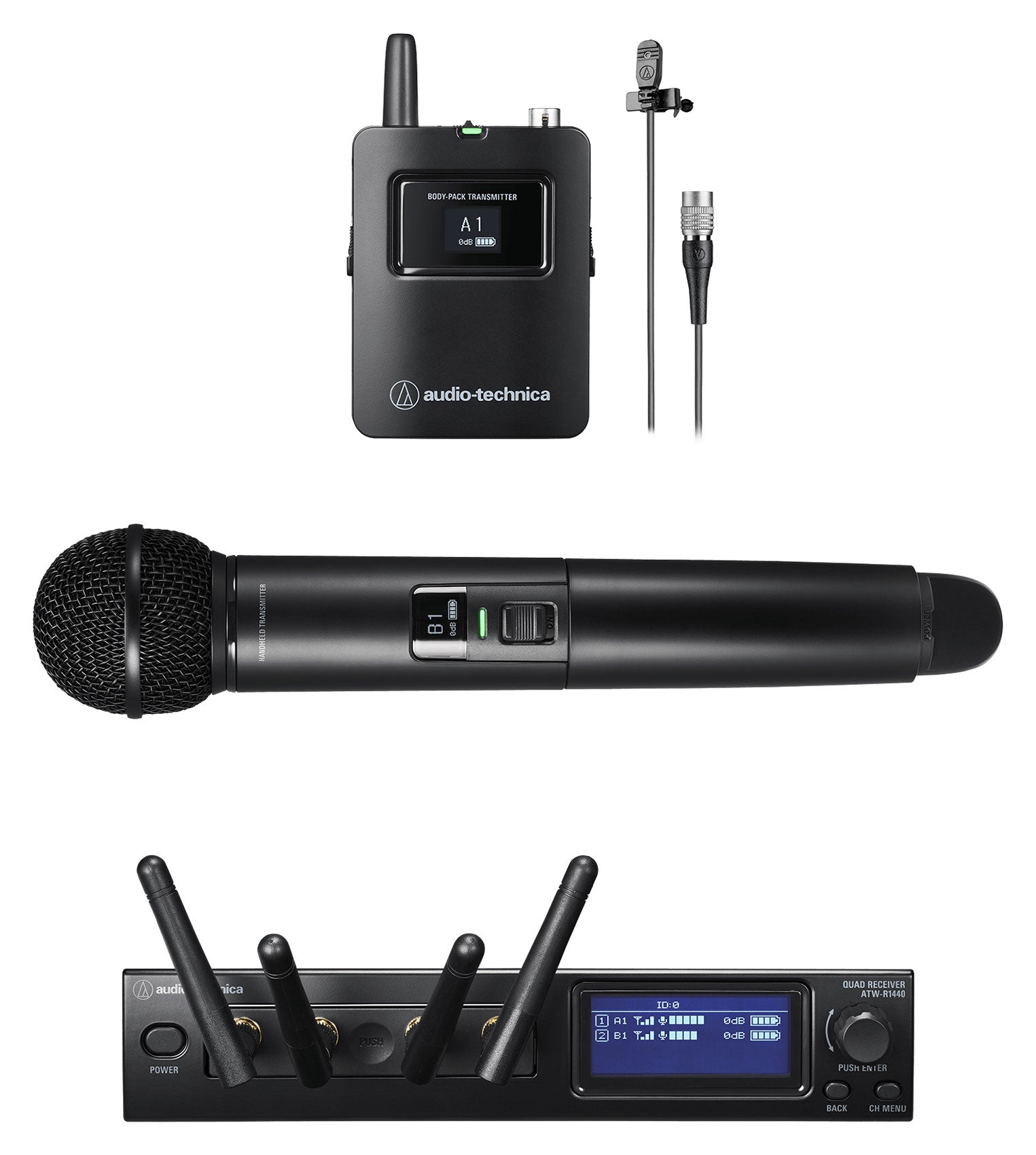

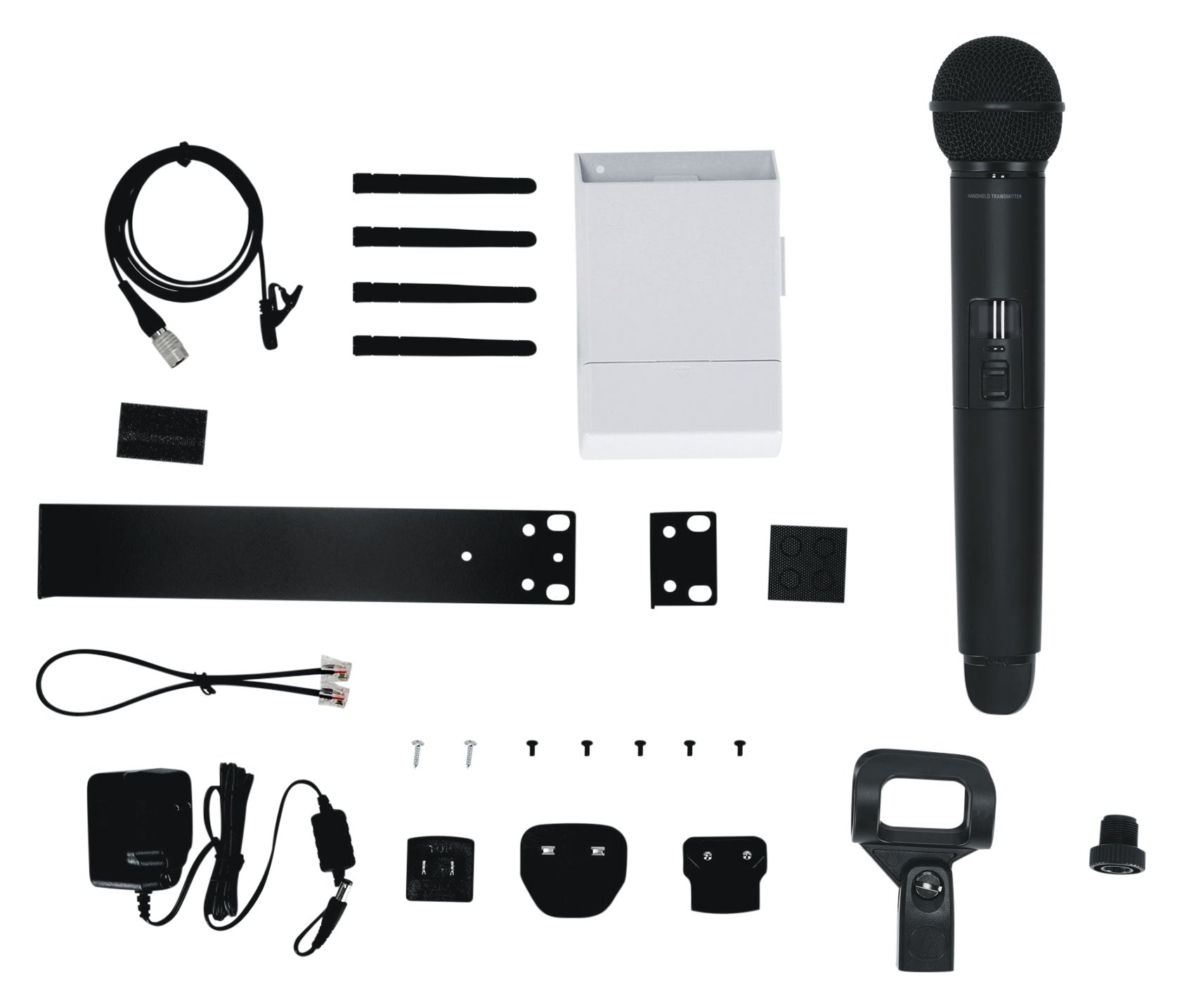

System 20 Digital Wireless System includes one ATW-R1440 4-channel receiver, one ATW-T1402 handheld microphone transmitter, one ATW-T1401 body-pack transmitter, and one MT830cW lavalier microphone.

Features:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
• User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis can be linked and used simultaneously
• Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations

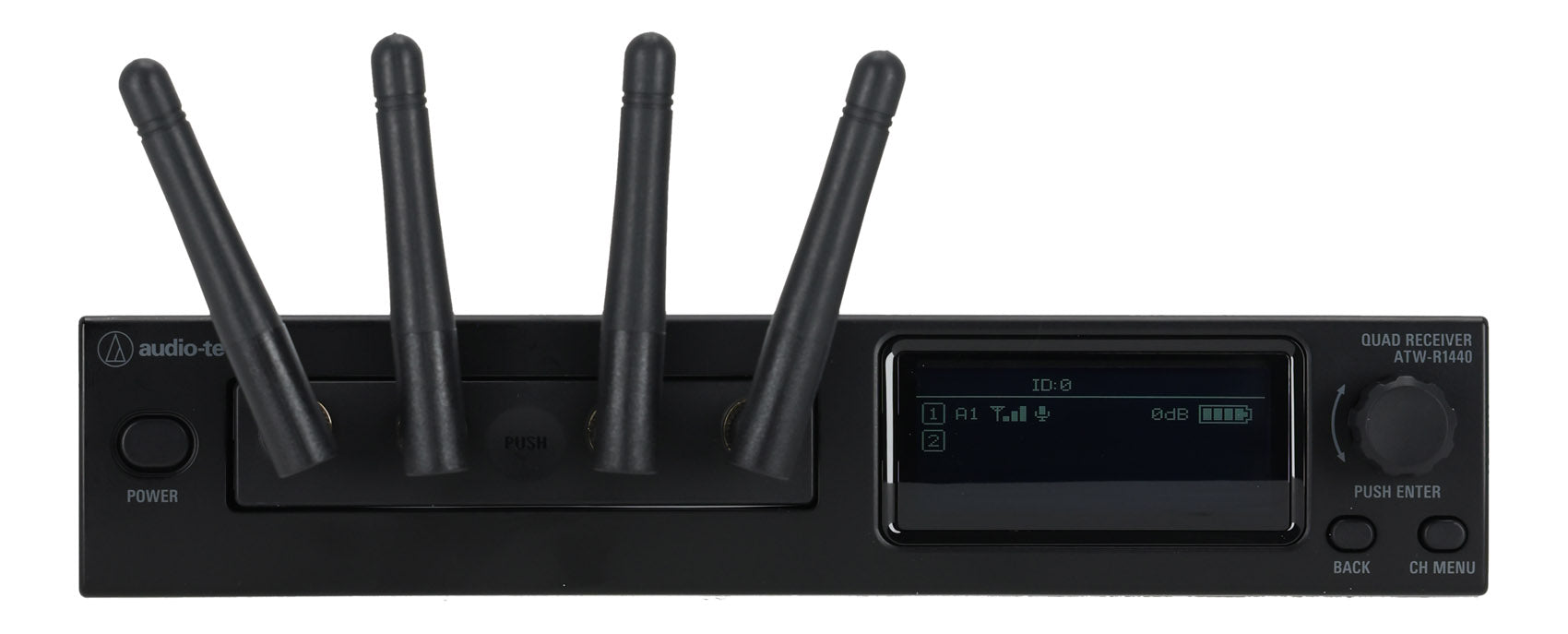

• Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

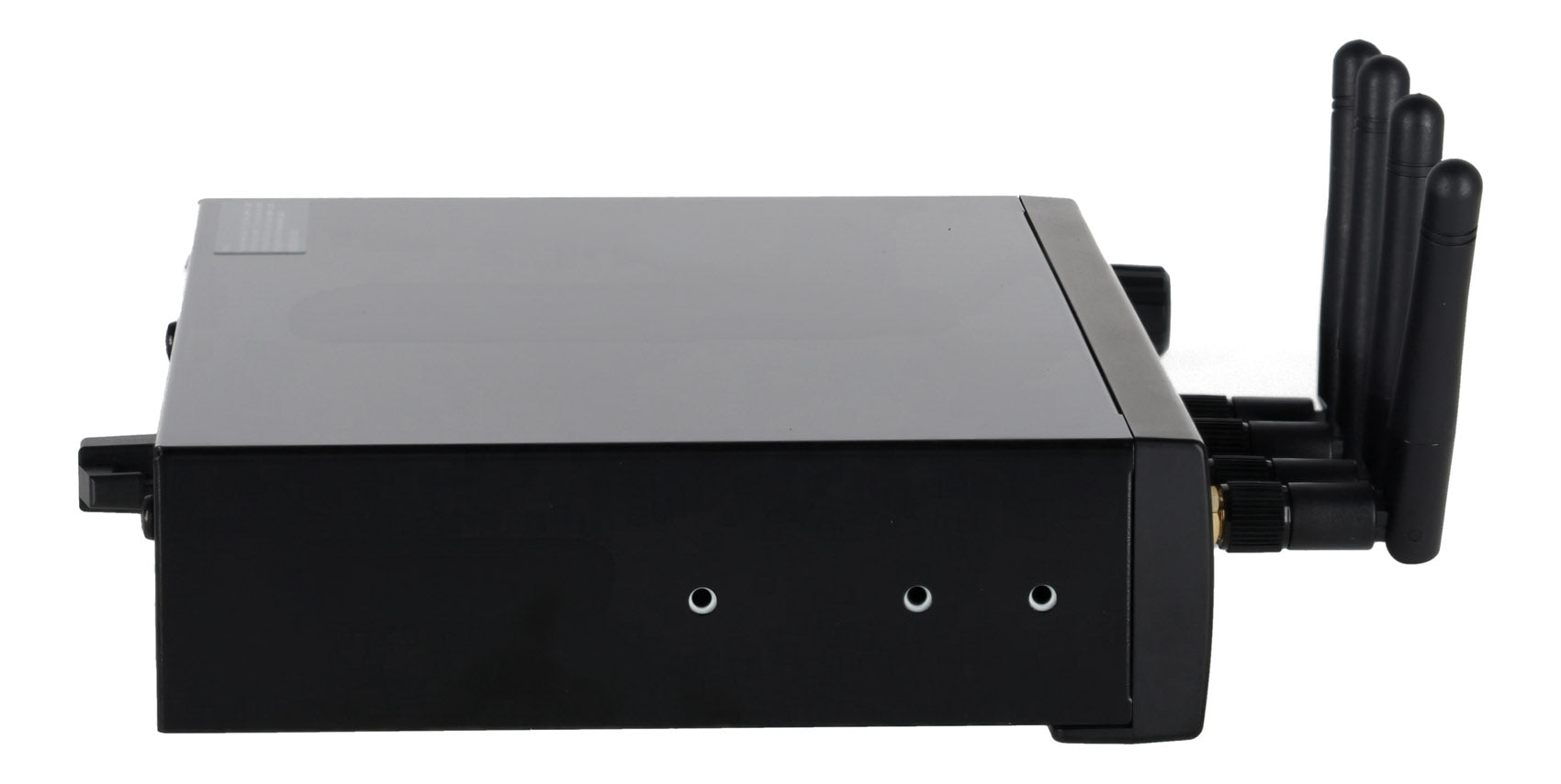

• Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
• Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
• Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
• AES128 encryption for security
• Compatible with Syslog protocol
• Ability to configure, monitor, and save device settings as projects in Wireless Manager
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
• Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries

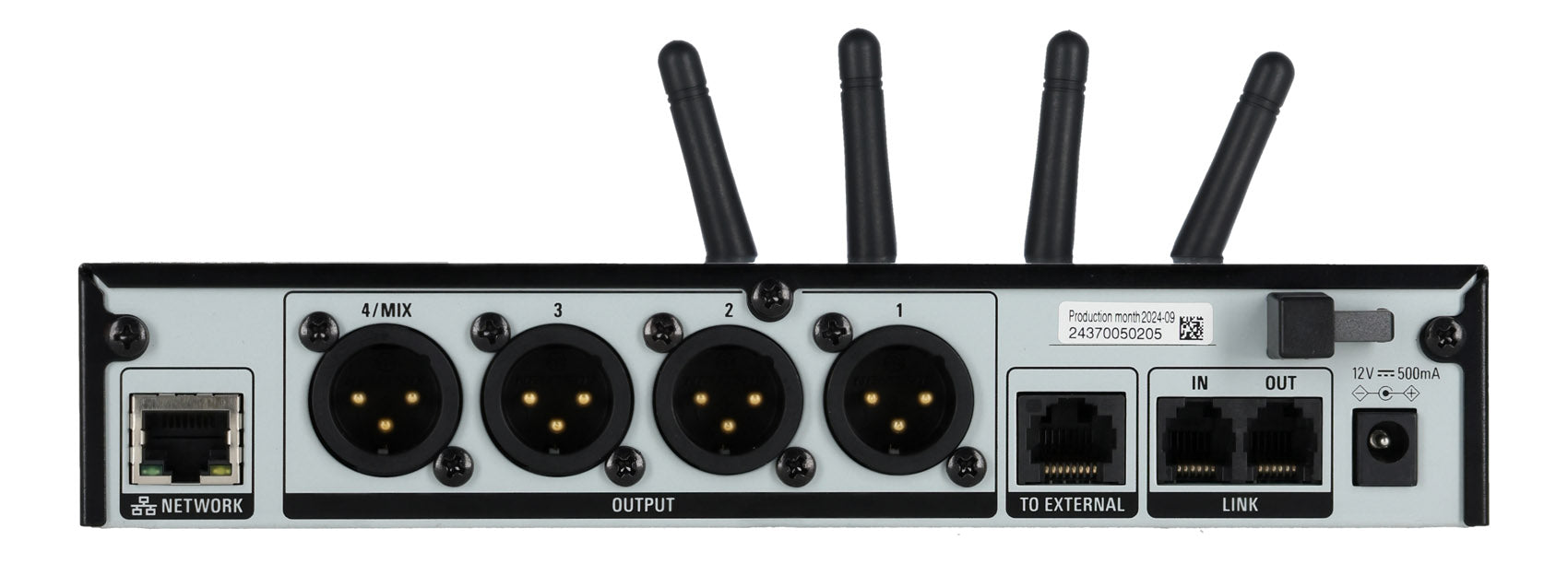

• Supports mixed output for situations with limited input channels

Specifications:

• Operating Frequencies: 2,402 to 2,480 MHz
• Dynamic Range: 120 dB (A-weighted), typical
• Total Harmonic Distortion: < 0.05%, typical
• Maximum Simultaneous Use (recommended): Standard: 10 channels & HD mode: 20 channels (It depends on the region and environment)
• System Frequency Response: 20 to 20,000 Hz (Varies depending on the microphone to be installed)
• Delay: Standard: 2.8ms & HD mode: 6.7ms
• Audio Sampling Rate: Standard: 24-bit/48 kHz & HD mode: 24-bit/48 kHz

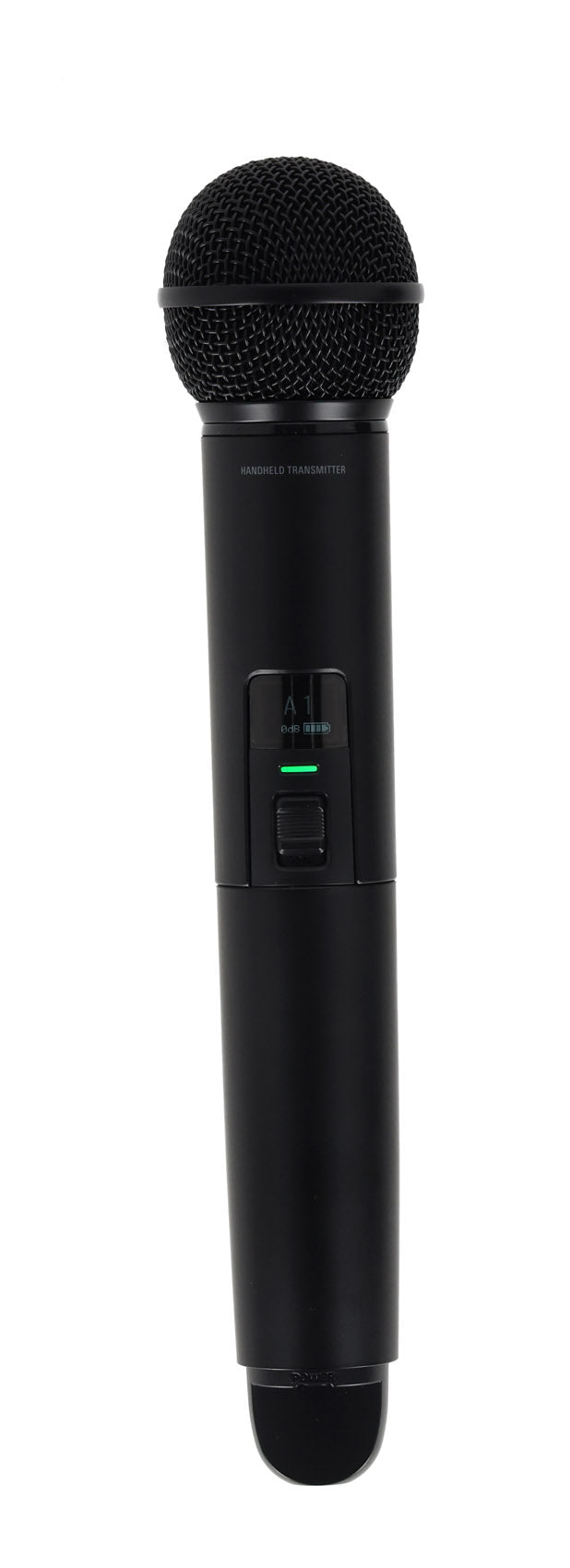

ATW-T1402 HANDHELD TRANSMITTER:

• Modulation Mode: GFSK
• RF Output Power: 10mW EIRP
• RF Sensitivity: -90 dBm, typical
• Antenna: True diversity
• Microphone Type: Dynamic
• Microphone Polar Pattern: Hypercardioid
• Battery: 3 V DC (two 1.5 V AA)

Battery Life:

• Approx. 18 hours (alkaline)
• Approx. 16 hours 30 minutes (Ni-MH)
• Approx. 35 hours (lithium)
• Operating Temperature Range: 5ºC to +40ºC (41°F to 104°F)
• Dimensions: 265.0 mm (10") × 53.7 mm (2.1")
• Weight: 300 g (11 oz), Without Batteries
• Included Accessories: Mic holder AT8456a, converting thread adapter (3/8" - 5/8")

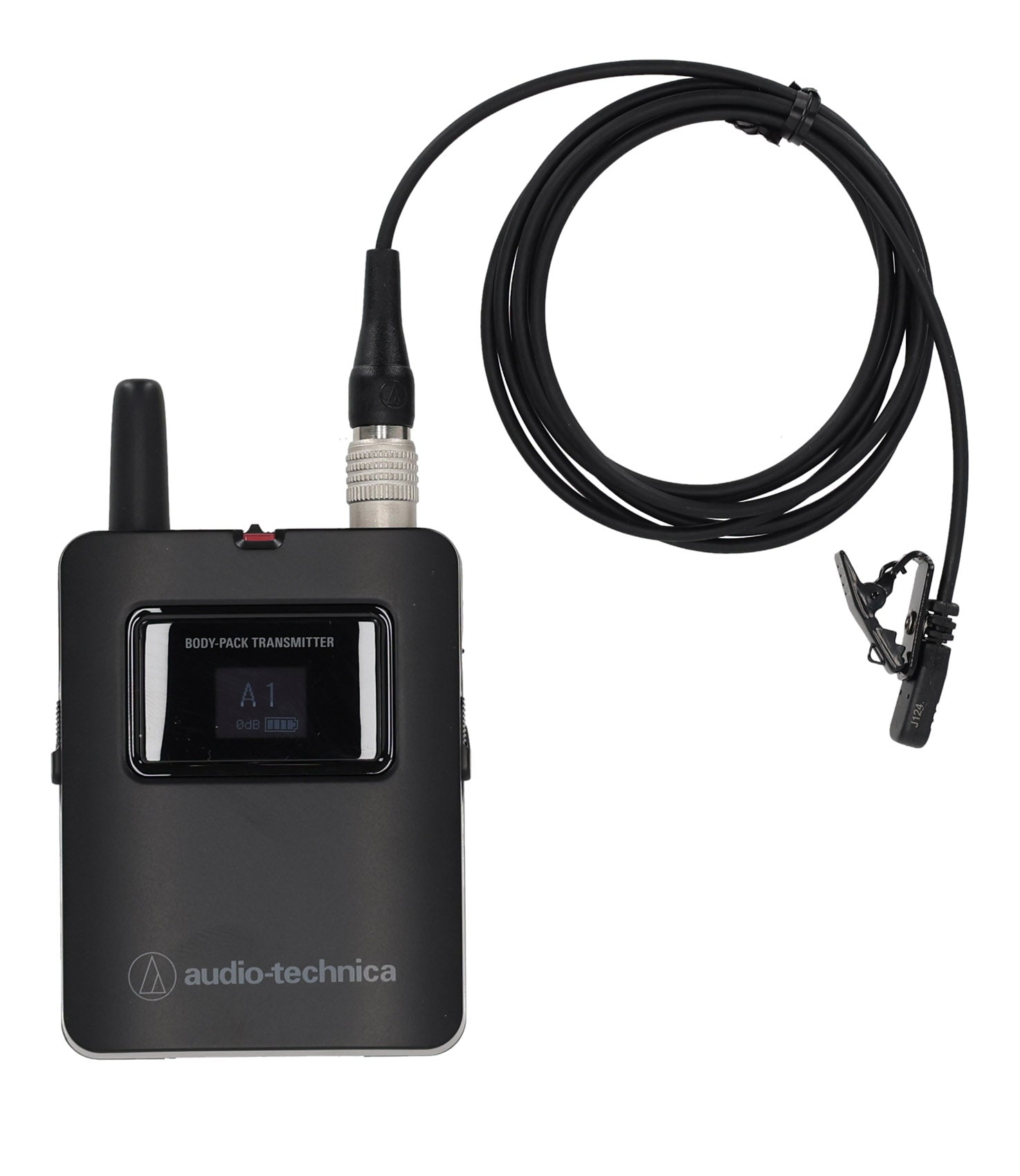

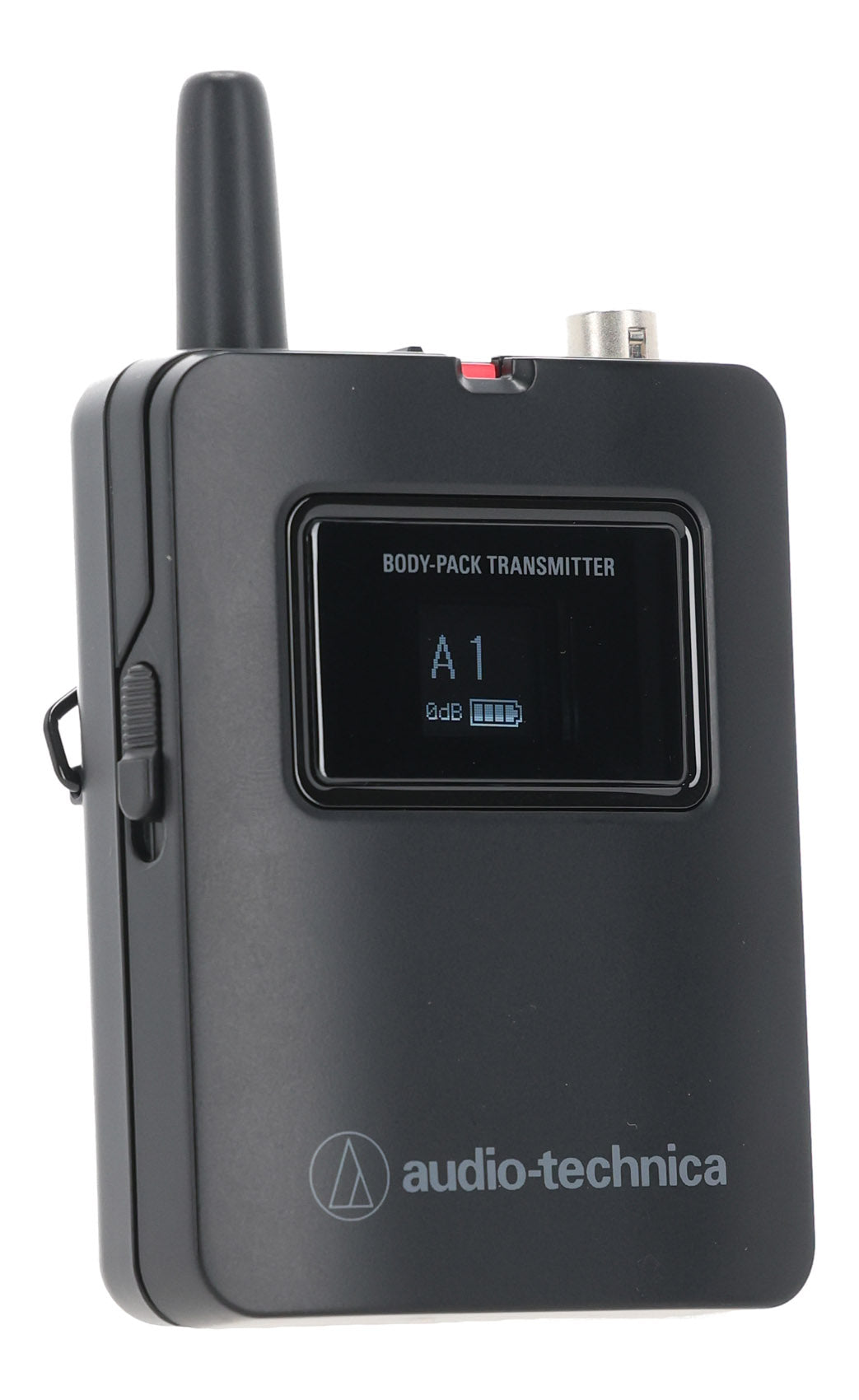

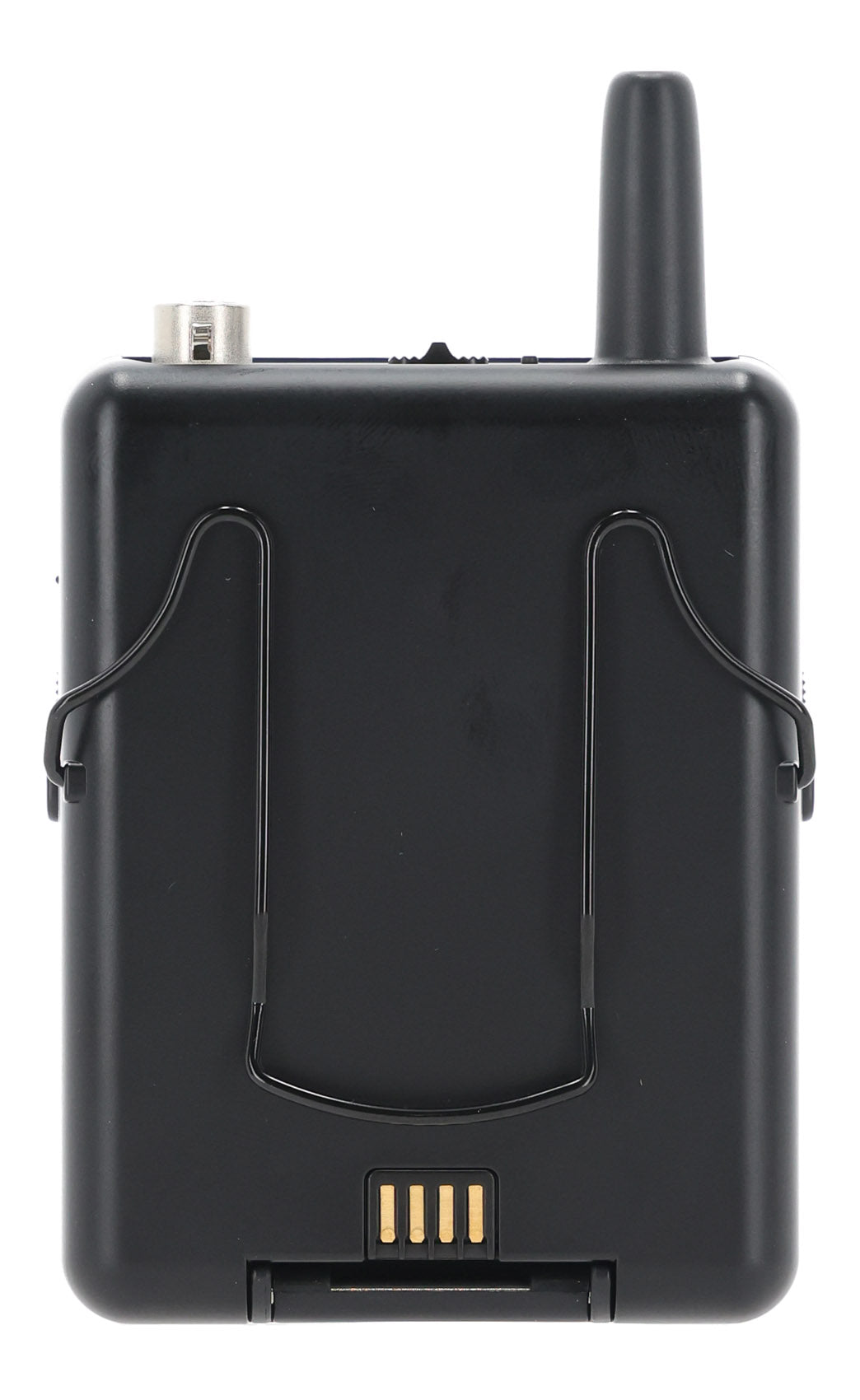

ATW-T1401 BODY-PACK TRANSMITTER:

• Modulation Mode: GFSK
• RF Output Power: 10mW EIRP
• RF Sensitivity: -90 dBm, typical
• Antenna: True diversity

Input Connection:

• Four pin locking connector
• Pin 1: GND
• Pin 2: INST INPUT
• Pin 3: MIC INPUT
• Pin 4: DC BIAS +10 V
• Battery: 3 V DC (two 1.5 V AA)

Battery Life:

• AA alkaline batteries: Approx. 15 hours
• AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
• AA lithium batteries: Approx. 29 hours
• Operating Temperature: 5ºC to +40ºC
• Dimensions: 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H)
• Weight: 80g (2.8 oz), Without Batteries
